D-Link DCS-5010L User manual

User Manual
Pan & Tilt Day/Night Network Camera
DCS-5010L
Version 1.0 | June 13, 2013

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior express written permission from
D-Link Corporation.
Revision Date Description
1.0 June 13, 2013 • Initial release
Manual Overview

3D-Link DCS-5010L User Manual
Table of Contents
Table of Contents
Manual Overview............................................................... 2
Manual Revision............................................................................ 2
Trademarks ..................................................................................... 2
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 6
Hardware Overview..................................................................... 7
Front View................................................................................ 7
Rear View ................................................................................. 8
Installation ......................................................................... 9
Zero Conguration Setup........................................................10
Camera Setup Wizard................................................................13
Manual Hardware Installation................................................14
Wireless Installation Considerations....................................15
WPS - Push Button Setup.........................................................16
Mounting Instructions..............................................................17
mydlink...........................................................................................18
Conguration...................................................................19
Using the Web Conguration Interface..............................19
Live Video ......................................................................................20
Setup...............................................................................................21
Wizard.....................................................................................21
Internet Connection Setup Wizard........................22
Network Setup..............................................................24
Wireless Setup......................................................................25
Dynamic DNS (DDNS) .......................................................26
Image Setup .........................................................................27
Video .......................................................................................28
Audio.......................................................................................29
Motion Detection ...............................................................30
Mail ..........................................................................................31
FTP............................................................................................33
Time and Date......................................................................35
Day/Night Mode .................................................................36
Camera Control ...................................................................37
Maintenance ................................................................................38
Admin .....................................................................................38
System ....................................................................................39
Firmware Upgrade..............................................................40
Status ..............................................................................................41
Device Info ............................................................................41
Active User ............................................................................42
Troubleshooting ..............................................................43
Technical Specications ..................................................46
Contacting Technical Support ........................................48
Warranty...........................................................................49
Registration .....................................................................56

4D-Link DCS-5010L User Manual
Section 1 - Product Overview
Package Contents
• DCS-5010L Pan & Tilt Day/Night Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Quick Install Guide
• Mounting Bracket and Screws
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product
will cause damage and void the warranty for this product.
System Requirements
• Computer with Microsoft Windows® 8/7/Vista®/XP, or Mac with OS X® 10.6 or higher
• PC with 1.3 GHz or above and at least 128 MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed
and enabled
• Existing 10/100 Ethernet-based network or 802.11g/n wireless network
Product Overview

5D-Link DCS-5010L User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DCS-5010L Pan & Tilt Day/Night Network Camera. The DCS-5010L is a versatile and
unique solution for your home or small oce. Unlike a standard webcam, the DCS-5010L is a complete system with a built-in CPU
and web server that transmits high quality video images for security and surveillance. The pan/tilt function allows the camera
to patrol a wide area, while the built-in IR LEDs provide around-the-clock surveillance regardless of the lighting conditions.
The DCS-5010L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the
Internet via a web browser.The simple installation and intuitive web-based interface oer easy integration with your Ethernet/
Fast Ethernet or 802.11 b/g/n wireless network, and with Wireless N technology you have the freedom to place the DCS-5010L
anywhere within range of your existing wireless network. The DCS-5010L also comes with remote monitoring and motion
detection features for a customizable, cost-eective security solution.
Your DCS-5010L is mydlink-enabled, which means that you can view and manage your camera from anywhere over the Internet
through the mydlink website, or through the mydlink mobile app for iOS and Android. You can view your live video feed, take
snapshots, and manage the camera’s conguration, all from anywhere you have Internet access.

6D-Link DCS-5010L User Manual
Section 1 - Product Overview
Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-5010L is a standalone surveillance camera that requires no special hardware or software, and can operate independently, even without a
PC. This camera is also mydlink-enabled, which means you can view and manage your camera through the mydlink website, or through the mydlink
mobile app for iOS and Android mobile devices.
Pan/Tilt for Wide Viewing Area
Patrol a large area with one camera thanks to the DCS-5010L’s pan and tilt functions. You can use the web interface to manually adjust the camera
lens position, or set up to 24 pre-dened preset positions, enabling you to quickly move to frequently used points of interest.
IR LEDs for Day and Night functionality
The built-in infrared LEDs enable night time viewing of up to 8 meters (26 feet), giving you clear images regardless of lighting conditions.
H.264 Codec for Smooth, Space-Ecient Video
This camera supports use of the H.264 video codec, which gives you high-quality video with reduced bandwidth requirements. This means that
you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to save recordings.
Motion Triggered Notications and Recordings
The DCS-5010L can send e-mail notications with snapshots or video clips whenever motion is detected. You can customize areas of the video to
monitor for motion to keep watch over specic areas of interest, and have the DCS-5010L send you an e-mail notication or upload images to an
FTP server whenever motion is detected.
802.11b/g/n Wireless or Ethernet/Fast Ethernet Support
The DCS-5010L oers wireless 802.11b/g/n and Ethernet/Fast Ethernet connectivity, making it easy to integrate into your existing network
environment. The DCS-5010L works with either a 10 Mbps Ethernet-based network or 100 Mbps Fast Ethernet-based network for traditional wired
environments, and works with 802.11b/g/n wireless routers or access points for added exibility. The Site Survey feature also allows you to view
and connect to any available wireless networks within range of the camera.
Remote Monitoring Utility
This camera also includes the D-ViewCam software, which adds enhanced features and functionality that help you create a full surveillance system for
up to 32 cameras. With D-ViewCam, you can view multiple cameras at the same time, record video, and set up scheduled and triggered recordings.
Features

7D-Link DCS-5010L User Manual
Section 1 - Product Overview
Hardware Overview

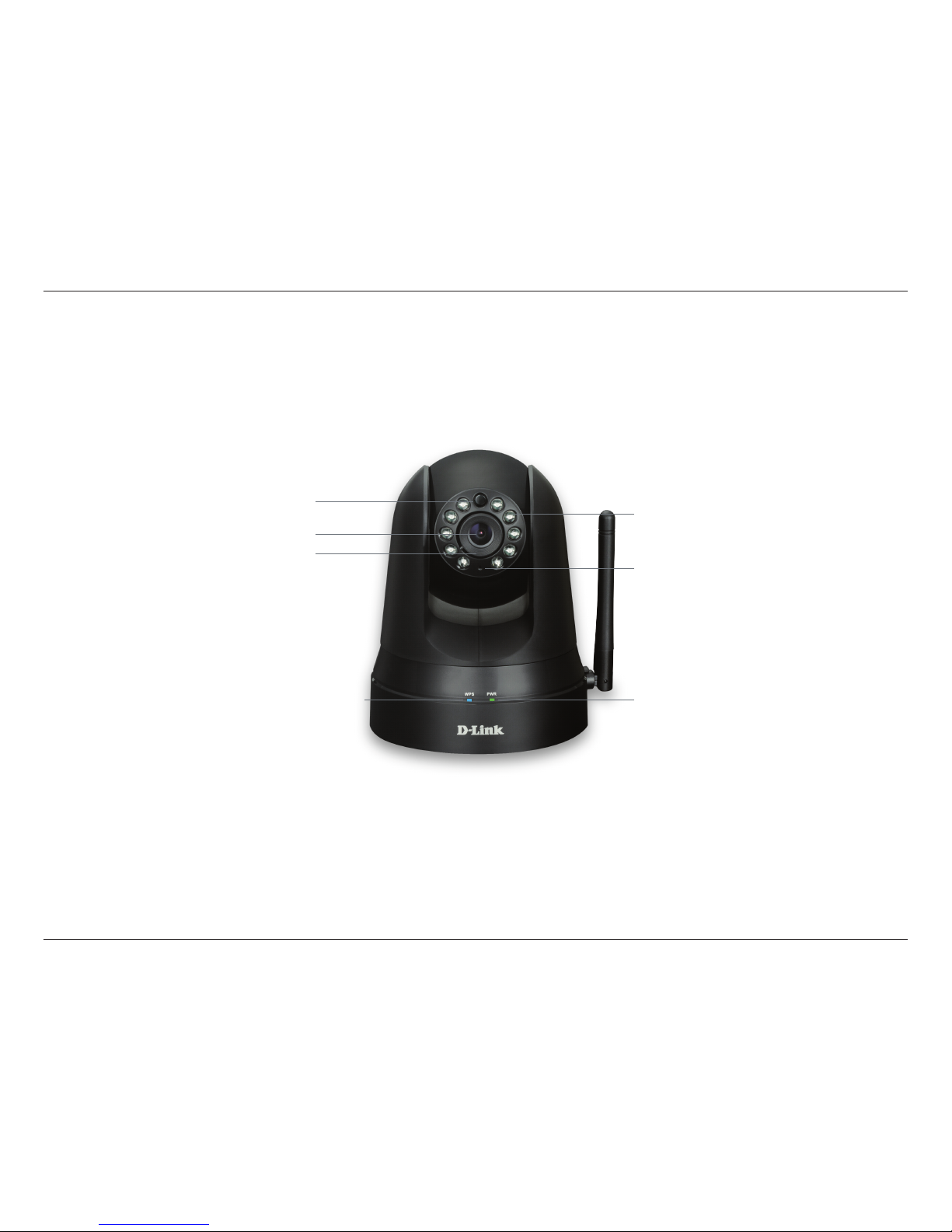

Front View
Camera Lens
Microphone
IR LED
Light Sensor
Power and Link LEDWPS LED
Manual Focus Bezel

8D-Link DCS-5010L User Manual
Section 1 - Product Overview

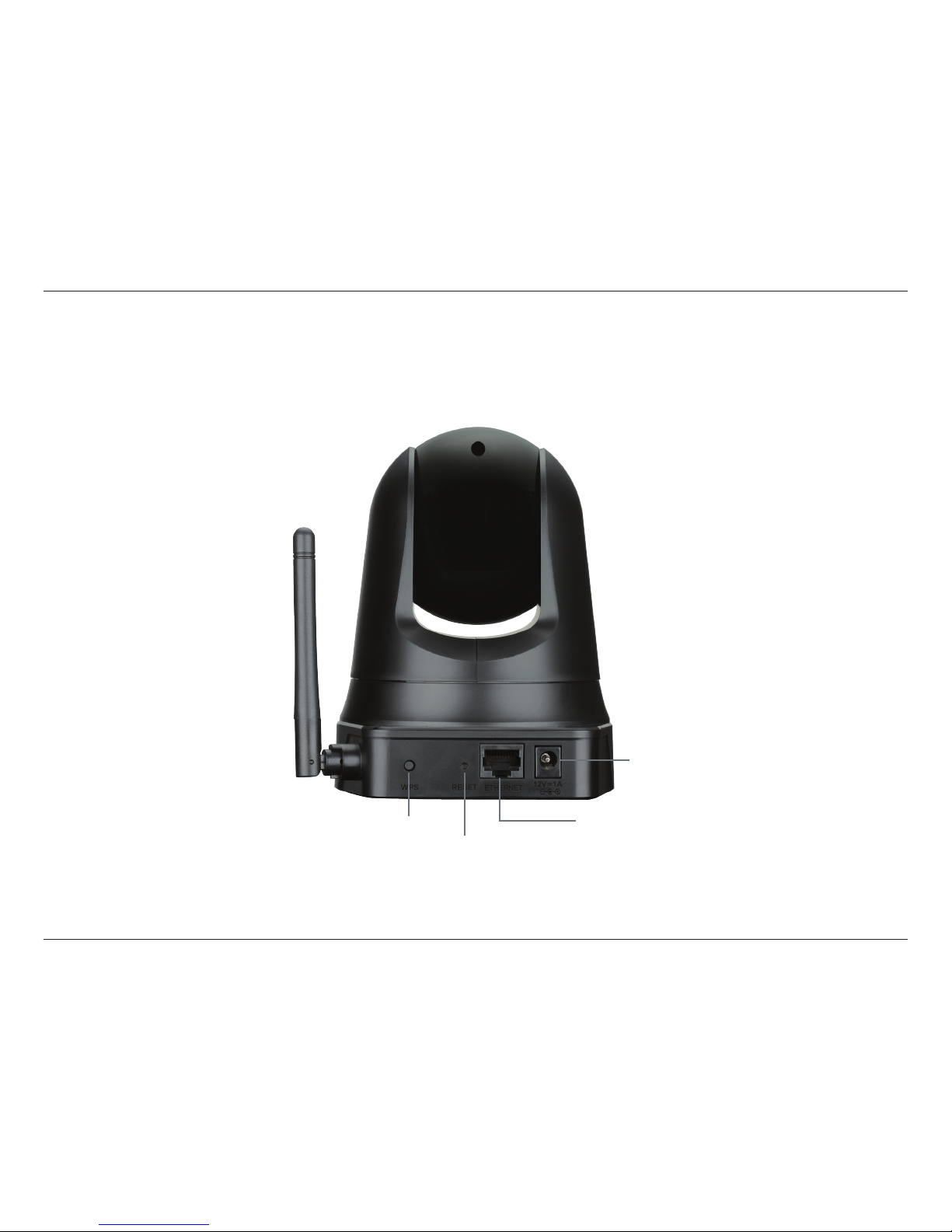

Rear View
Power Connector
Ethernet Port
Reset Button
WPS Button

9D-Link DCS-5010L User Manual
Section 2 - Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router (D-Link cloud router), this is the easiest way to set up
your camera. Refer to “Zero Conguration Setup” on page 10.
Camera Installation Wizard: If you do not have a mydlink-enabled router, use the Camera Installation Wizard to guide
you through setup and initial conguration of your camera. Refer to“Camera Setup Wizard” on page 13.
Manual Hardware Installation: This section shows you how to manually set up your camera, however in order to use
the mydlink features of your camera, you will still need to run the Camera InstallationWizard. Refer to“Manual Hardware
Installation” on page 14.
Installation

10D-Link DCS-5010L User Manual
Section 2 - Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration
automatically congures your camera's settings for you and adds the camera to your mydlink account automatically without
the need to run the Setup Wizard.

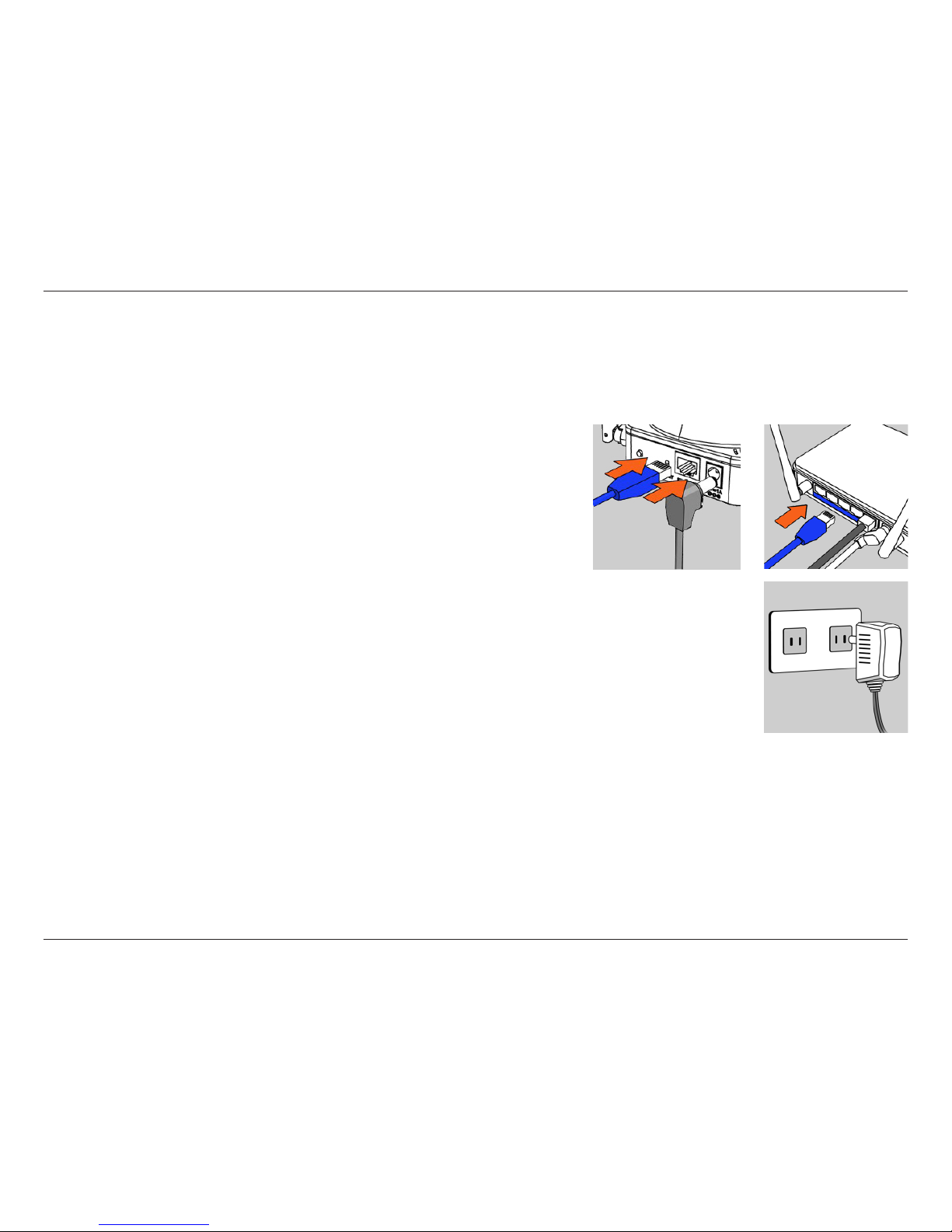

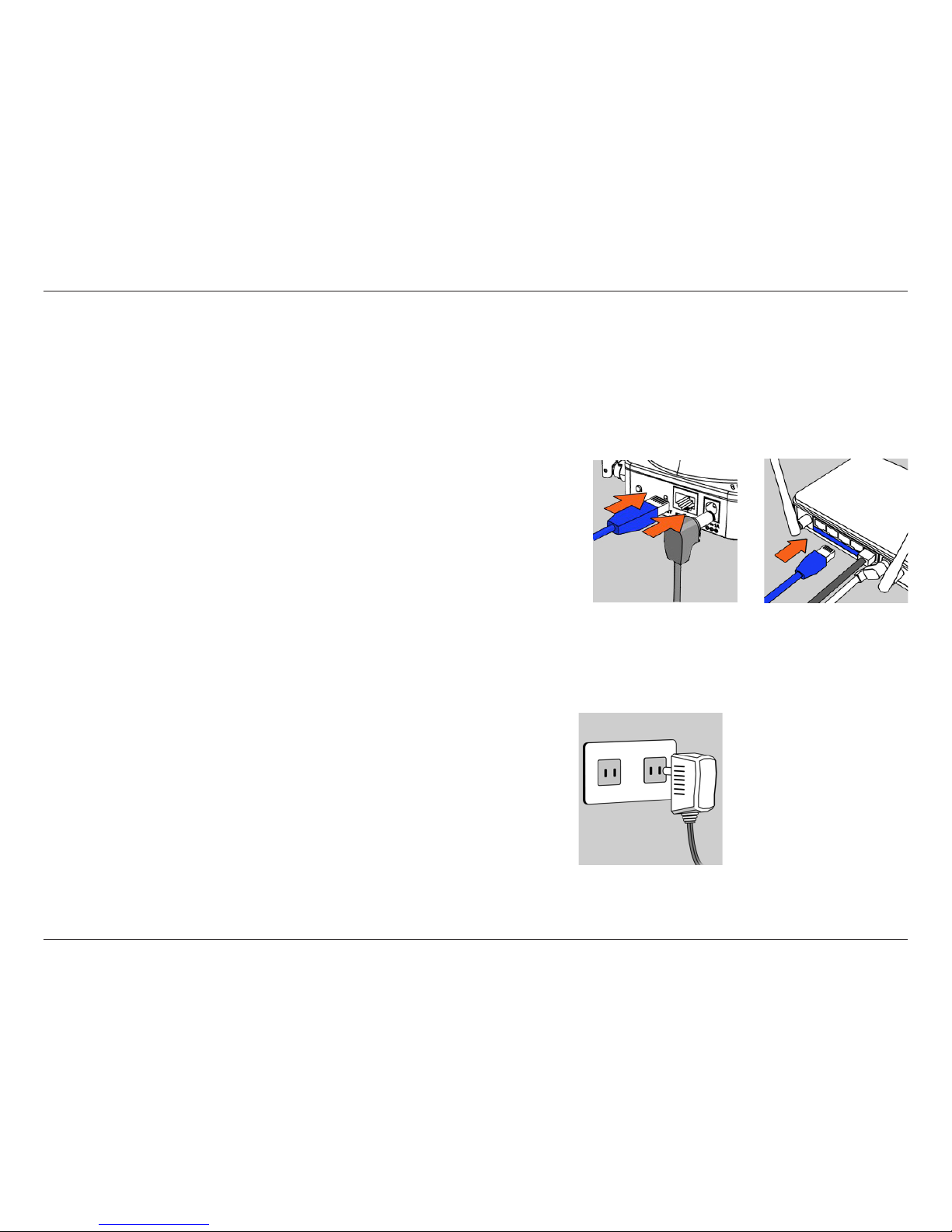

Step 1 - Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available (LAN) port on your D-Link Cloud Router. Connect the
power adapter into the power port on the back of the camera.
Note: If you wish to use your camera wirelessly, you will be able to remove the
cable after the Zero Conguration Setup is complete and place the camera within
your wireless network. The router will congure the camera’s wireless settings
automatically.
Step 2 - Attach the External Power Adapter
Plug the power adapter into a wall outlet or surge protector.

11D-Link DCS-5010L User Manual
Section 2 - Installation
DCS-5010L

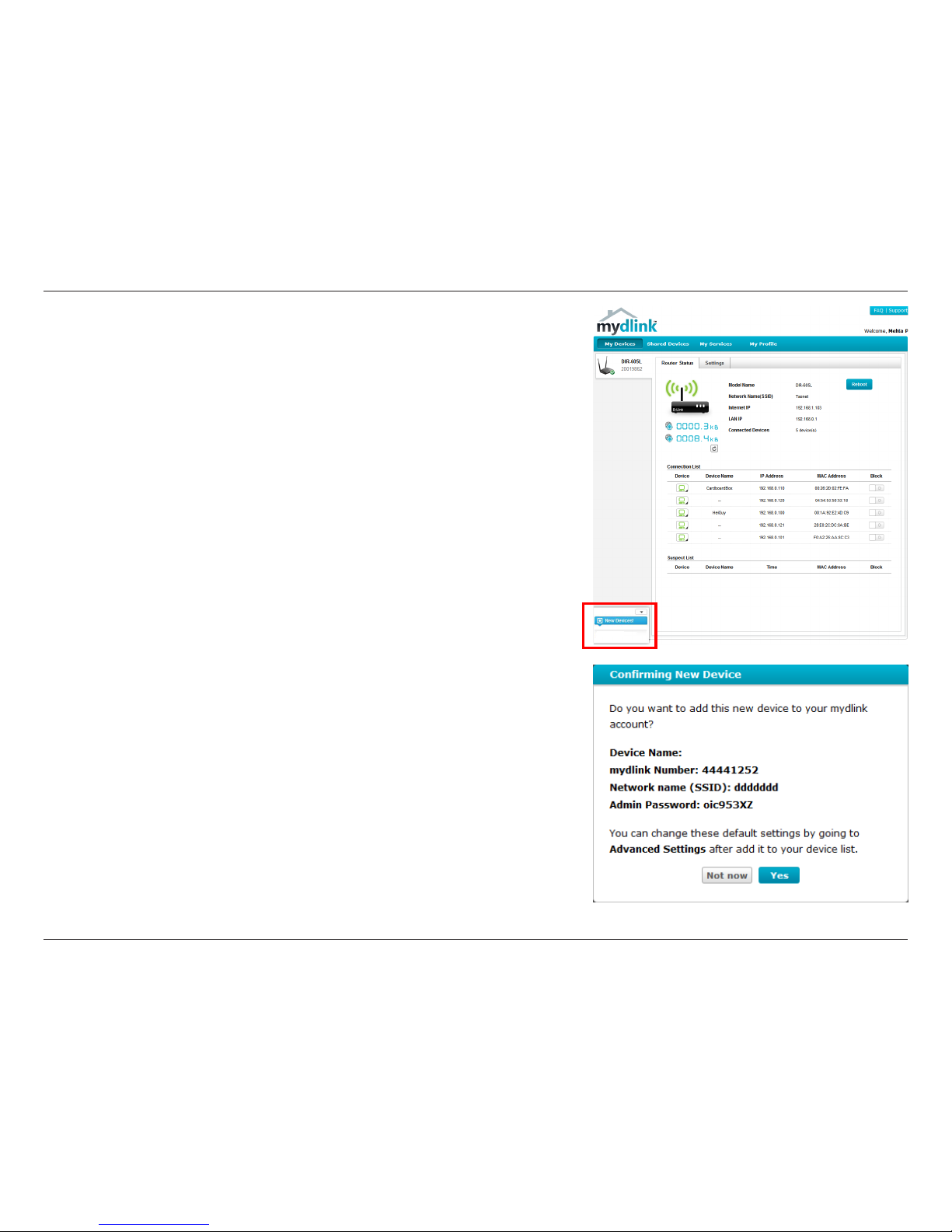

Step 4 - Register Device to mydlink
A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click Yes to add the camera
to your account.
Step 3 - Check Your mydlink Account
From any computer with an Internet connection, open a web browser such
as Internet Explorer and log in to your mydlink account. The mydlink page
will check for new devices and display a New device Found! notication in
the bottom-left corner. Click the notication to continue.
DCS-5010L

12D-Link DCS-5010L User Manual
Section 2 - Installation

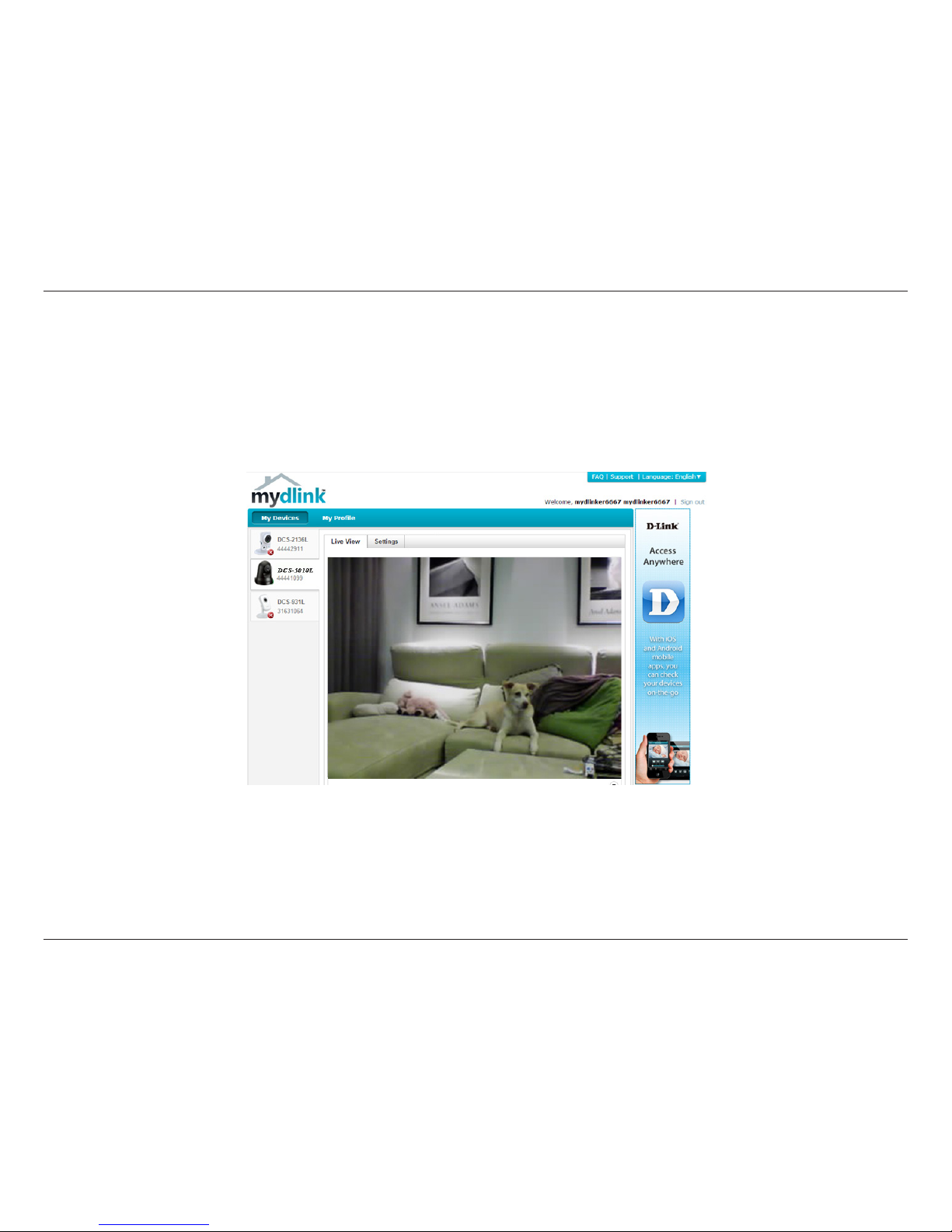

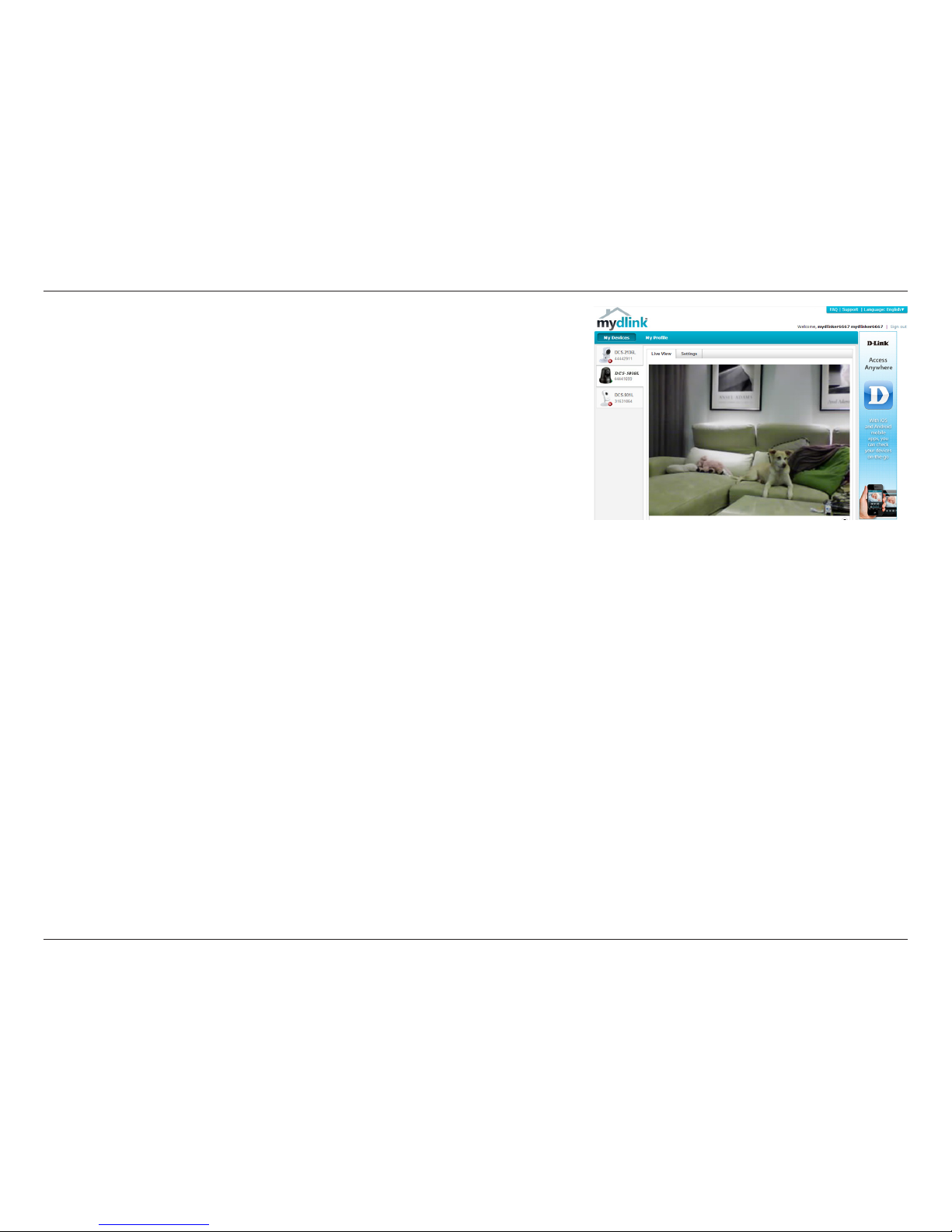

Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
If you wish to connect your camera to your router wirelessly, you can simply
disconnect the Ethernet cable and move the camera to its intended location.
Your router's wireless settings have been automatically transferred to the camera
and no further conguration is required.
Your camera is now set up. You can skip to “mydlink” on page 18 to learn
more about the mydlink features of this camera, or go to “Conguration” on
page 19 for advanced conguration.
Note: If the live image is blurry or out of focus, you can manually adjust the focus
by rotating the manual focus bezel surrounding the camera lens.

13D-Link DCS-5010L User Manual
Section 2 - Installation

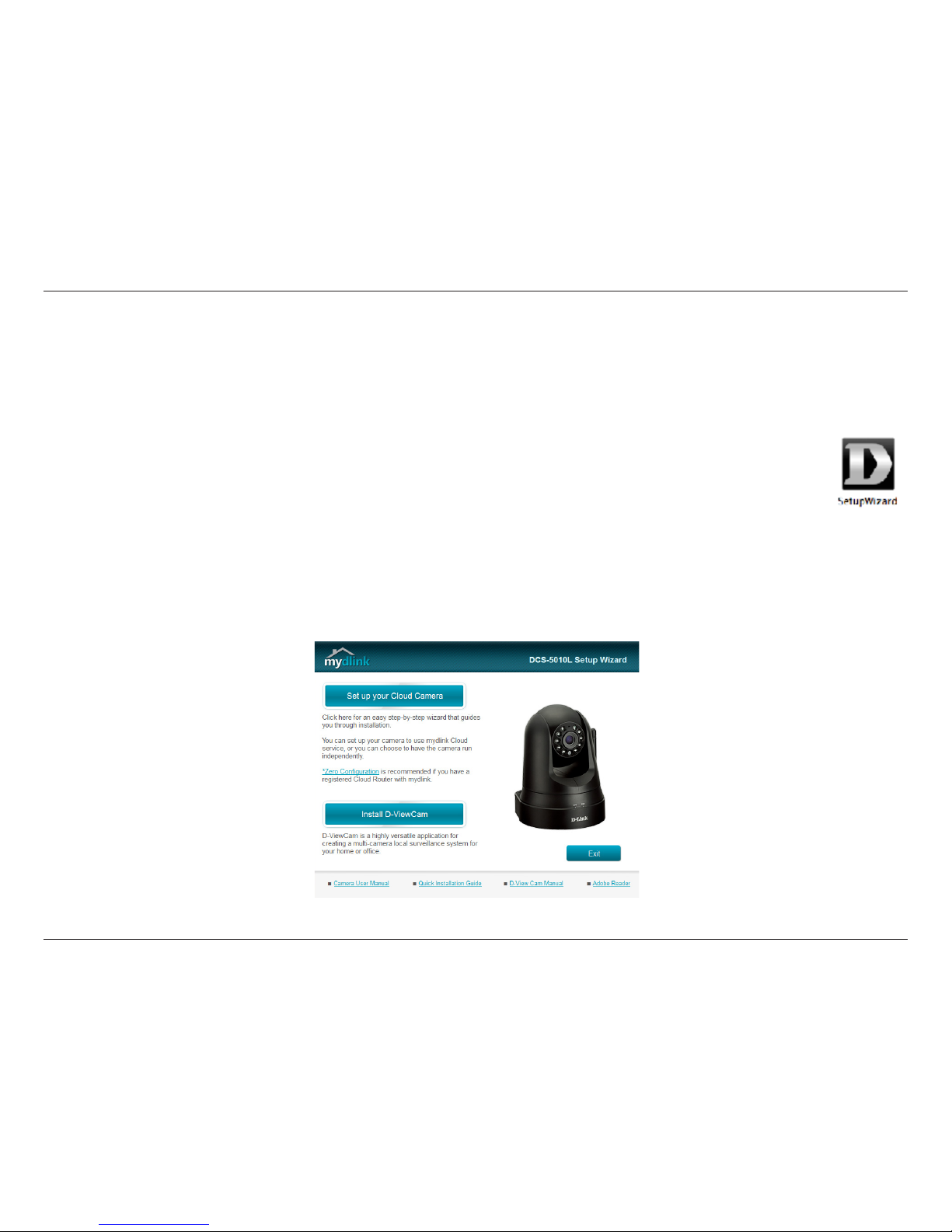

Camera Setup Wizard
If you do not have a mydlink-enabled cloud router, you can use the Camera Setup Wizard to guide you through the process
of adding your camera to the mydlink service
Please download the Setup Wizard from http://www.mydlink.com/support.
Windows Users - Extract (“unzip”) the les to a folder on your computer and then double-click the autorun.exe le.
Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le and launch the application.
After about 30 seconds, the SetupWizard will open, which will guide you step-by-step through the installation process from connecting
your hardware to conguring your camera and registering it with your mydlink account.
Click Set up your Cloud Camera to go through the SetupWizard, which will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and registering it with your mydlink account.

14D-Link DCS-5010L User Manual
Section 2 - Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero
Conguration Setup.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For
more information, refer to“WPS - Push Button Setup”on page 16. If your router
does not support WPS, you will still be able to set up your camera’s wireless
settings in the camera’s web interface.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available LAN port on your router. Plug the supplied power
adapter into the back of the camera
Plug in the External Power Adapter
Plug the power adapter into a wall outlet.
Congure Your Camera
Refer to“Conguration”on page 19 for information on how to congure your
camera.

15D-Link DCS-5010L User Manual
Section 2 - Installation
Wireless Installation Considerations
Your D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the
operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic
guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your
Network Camera) - each wall or ceiling can reduce your adapter’s range by 1-30 meters (3-90 feet).
2. Be aware of the direct line between network devices. A wall that is half a meter thick (1.5 feet), at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle, it can appear over 14 meters (42 feet)
thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle)
for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal.Try
to position your access points, wireless routers, and other networking devices where the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least or 1-2 meters (3-6 feet ) away from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as
far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

16D-Link DCS-5010L User Manual
Section 2 - Installation
To create a WPS connection:
Step 1
Make sure the camera is plugged in, then press and hold the WPS button for
ten seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually on the front or side of your router. On some routers, you may need
to log in to the web interface and click on an on-screen button to activate
the WPS feature. If you are not sure where the WPS button is on your router,
please refer to your router’s User Manual.
The DCS-5010L will automatically create a secure wireless connection to your
router. While connecting, the blue LED will ash and your camera will reboot.

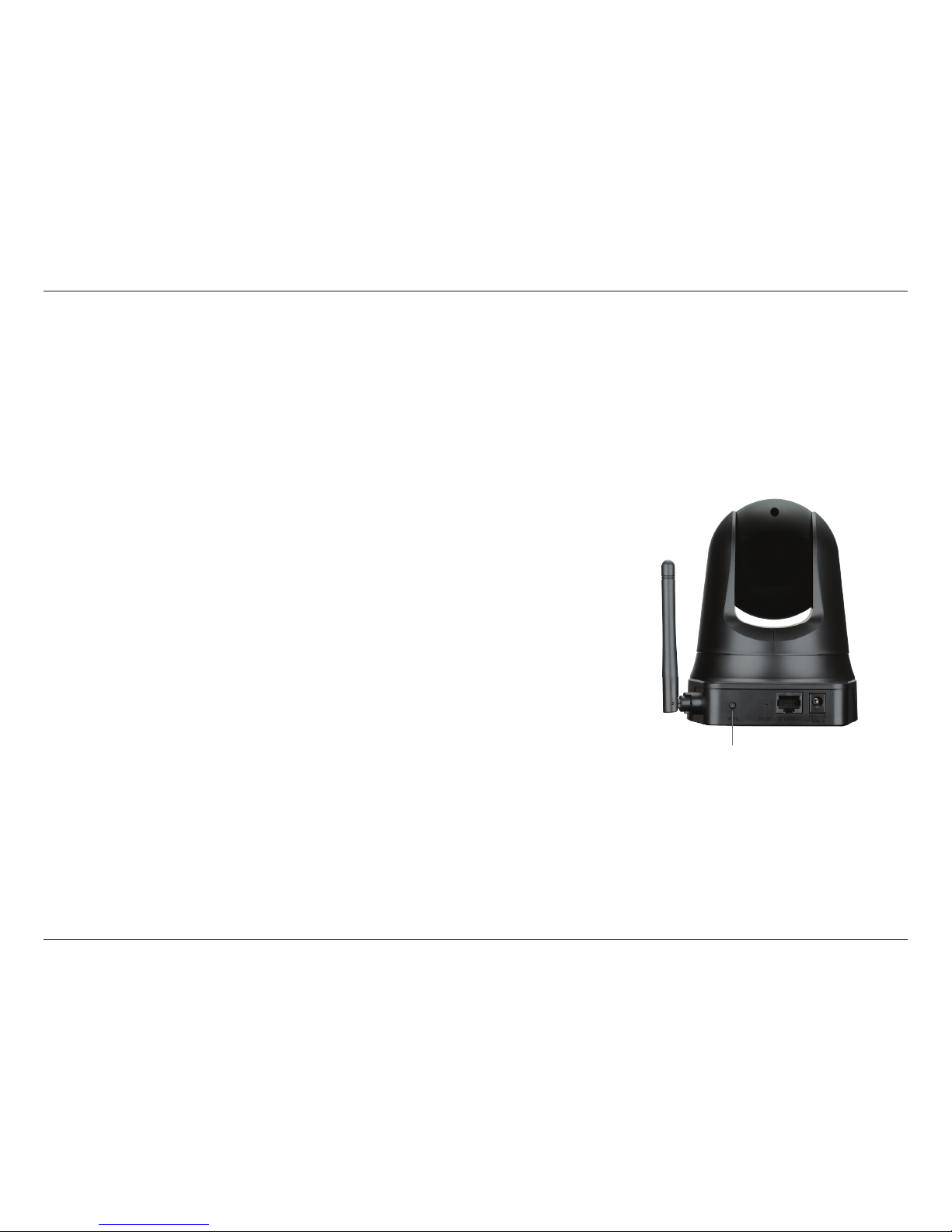

WPS - Push Button Setup
WPS Button
If your router supports Wi-Fi Protected Setup (WPS), you can create a secure wireless connection using the WPS Button on the
back of the camera. Please note that WPS setup only establishes a secure wireless connection, and you will still need to run
the Setup Wizard to congure your camera.

17D-Link DCS-5010L User Manual
Section 2 - Installation

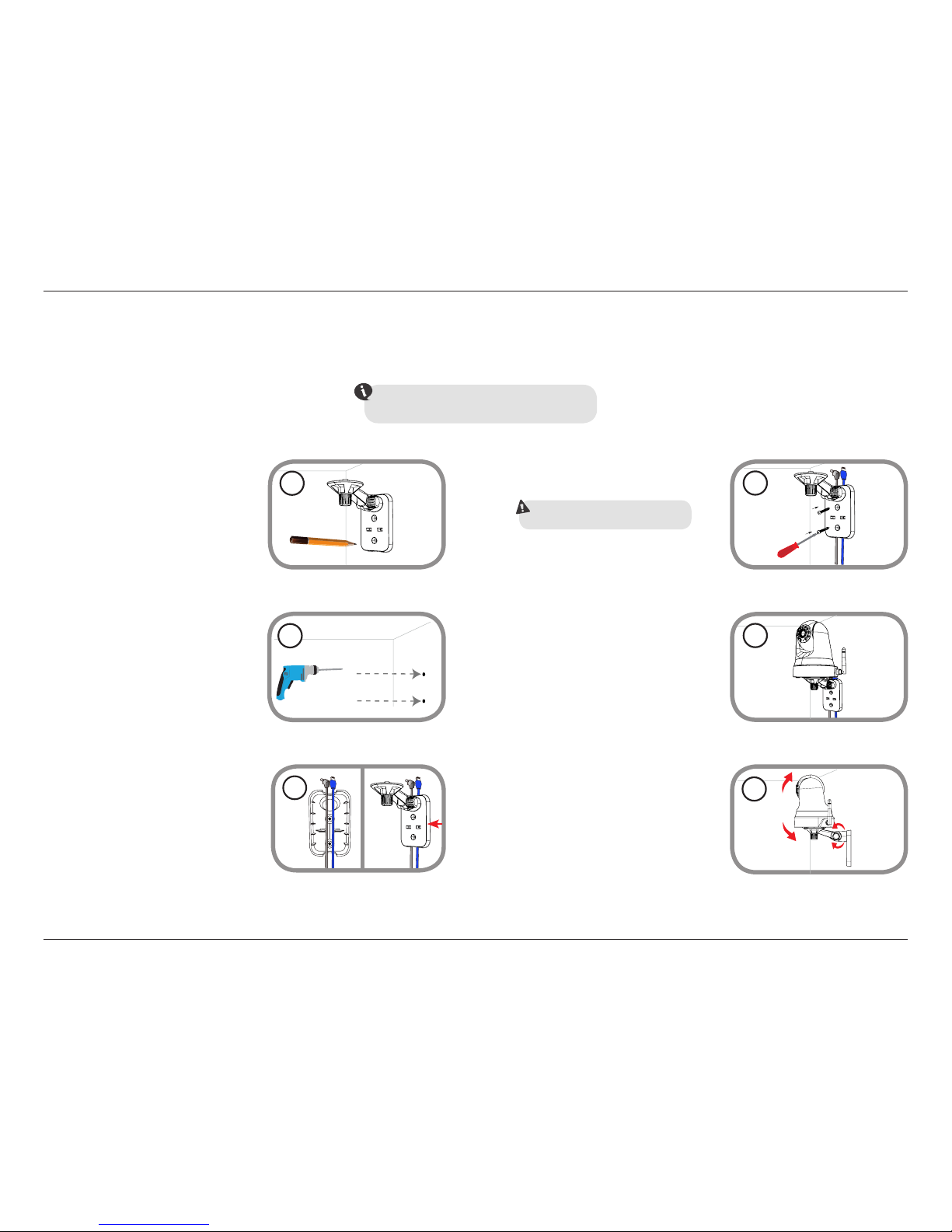

Mounting Instructions
To mount your camera on a wall or ceiling, please follow the steps below.
It is suggested that you congure the camera
before mounting.
Place the mounting bracket where you want
to position the camera and use a pencil to
mark the holes.
Use appropriate tools to drill two holes the
same diameter as the plastic anchors. After
drilling the holes, insert the plastic anchors
to support the screws.
2
If desired, the power and Ethernet cables
can be concealed behind the mounting
bracket. Run the cables through the back of
the mounting bracket, securing them with
the built-in guides. Be sure to leave enough
cable length protruding from the top to
allow connection to the camera.
3
1
Using the supplied thumbscrew, fasten the
camera to the mounting bracket. Connect
the power and Ethernet cables to the
camera.
5
Adjust the angle of the arm on the
mounting bracket as required. Tighten the
thumbscrew to lock the arm in place.
6
Fasten the mounting bracket to the wall using
the screws provided. 4
Do not overtighten the screws as this may
crack the mounting bracket.

18D-Link DCS-5010L User Manual
Section 2 - Installation
mydlink
After registering your DCS-5010L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.

19D-Link DCS-5010L User Manual 19
Section 3 - Conguration
Conguration
Using the Web Conguration Interface
After completing the Camera InstallationWizard, your camera is ready to use.The camera’s built-in web conguration interface
is designed to allow you to easily access and congure your DCS-5010L. There are two ways in which you can access your
camera’s web conguration interface:
• Log in to your mydlink account to access your camera’s conguration interface.
• You can also access the interface locally by entering the IP address of your camera into a web browser, such as Internet
Explorer®. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create
a password, leave the password eld blank. After entering your password, click OK.
Note: If you are directly connecting your camera to your PC, or if you are using the camera on a closed network, the default IP
is 192.168.0.20. If the camera is connected to a router or network, a dierent IP address may have been assigned.
DCS-5010L

20D-Link DCS-5010L User Manual 20
Section 3 - Conguration

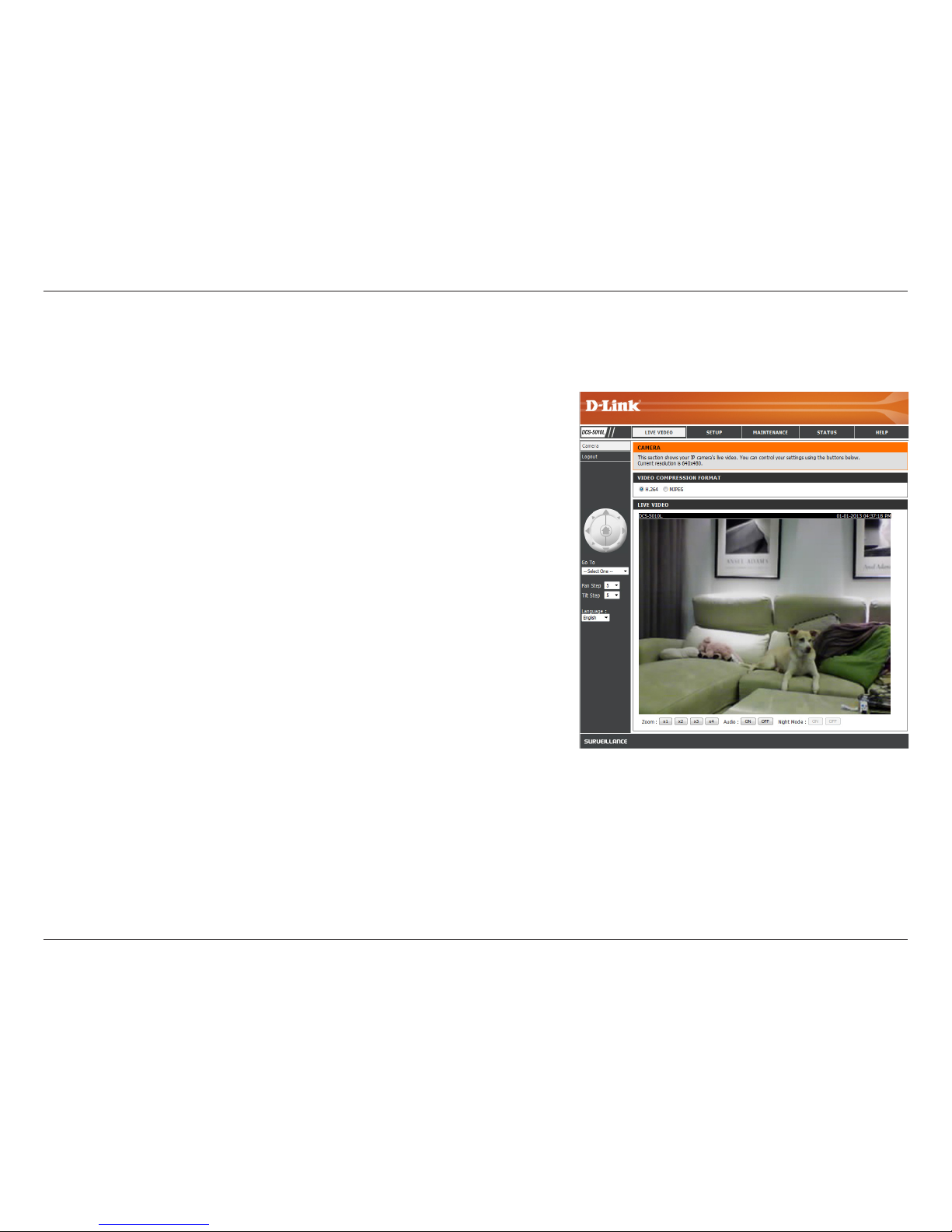

Live Video
Video
Compression
Format:
Pan/Tilt Wheel:
Go To:
Pan Step:
Tilt Step:
Language:
Zoom:
Audio:
Night Mode:
Click the H.264 or MJPEG radio button to choose which stream to
view.
Click on the directional arrows on the pan/tilt wheel to manually
control the pan and tilt functions of the camera. At any time, you can
click the home button in the center of the wheel to return the camera
to its home position.
Select one of the preset locations from the drop-down menu to move
the camera to that position. Preset positions can be set by going to
the Camera Control section of the Setup menu.
Select the increment of movement for each press of a pan (up/down)
arrow on the pan/tilt wheel.
Select the increment of movement for each press of a tilt (left/right)
arrow on the pan/tilt wheel.
You can select the desired language for the web interface from this
drop-down menu.
Click on these buttons to adjust the level of digital zoom applied to
the image
Click on these buttons to turn audio playback on and o.
If you have set the night mode to manual, the night mode feature can
be toggled using these buttons
Note: If the live image is blurry or out of focus, you can manually
adjust the focus by rotating the manual focus bezel surrounding the
camera lens.
The LiveVideo screen shows you the live video feed from your camera. For information on how to congure your Live Video streams, refer to“Video”
on page 28.
