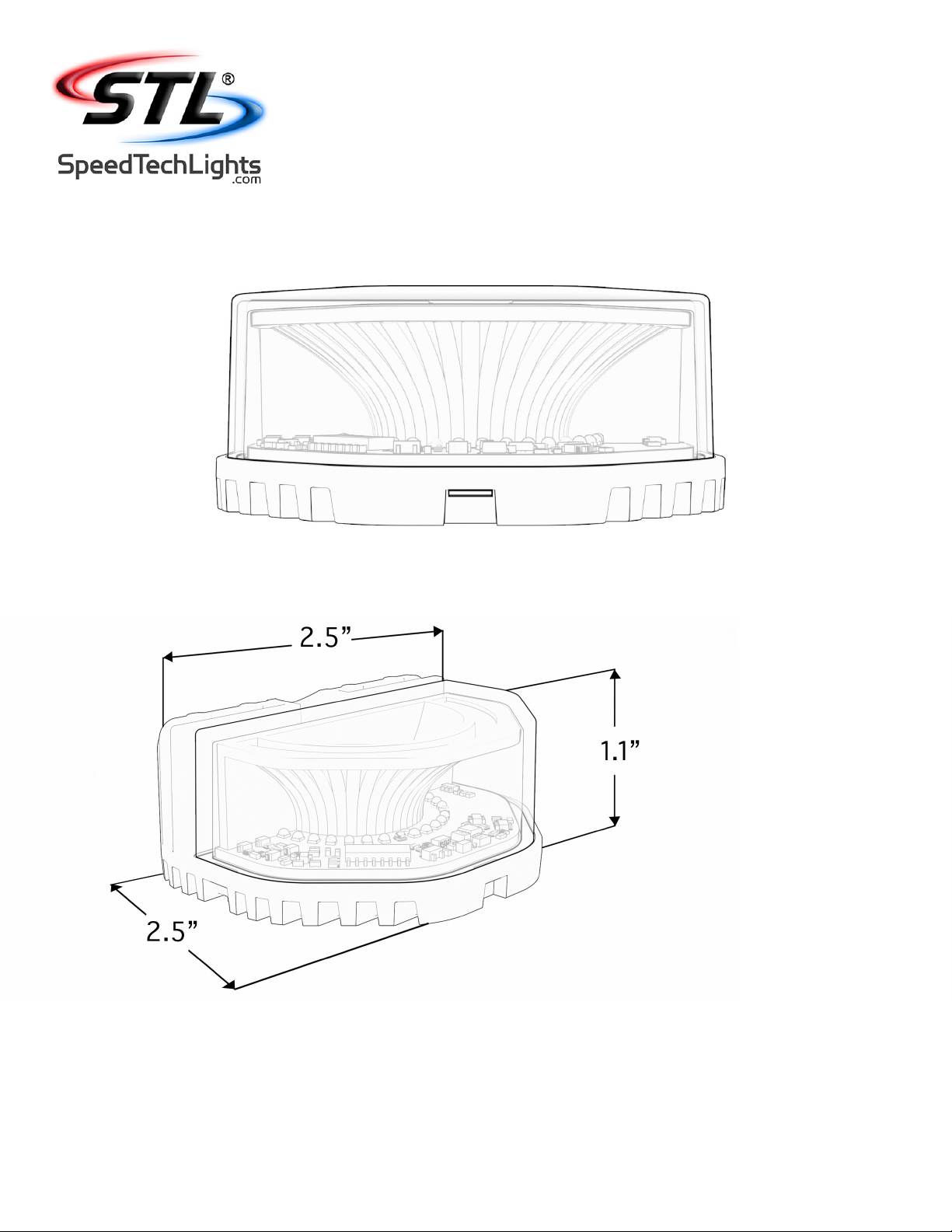

SpeedTech Lights ZX-180 User manual

1SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
G-ZX180
INSTRUCTION MANUAL

2SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
Warnings and Notices for Users and Installers
This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and
safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will nd
important information in this manual that could prevent property damage and/or serious injury to the user and installer.
STL products are intended to alert pedestrians and other operators of the presence of personnel, the operation of emergency vehicles, an emergency
site, and any warning needs. This does not ensure that pedestrians or drivers will react, heed, or observe emergency warning signals. Nor does the use
of emergency signals grant or ensure you the right of way. It is your responsibility to make sure you can proceed safely before driving against tra󰀩c,
entering an intersection, responding at a high rate of speed, or walking on or around tra󰀩c lanes.
Your STL emergency vehicle devices should be tested daily to ensure the device and all its functions are operating correctly. If you experience a
malfunction contact STL’s Customer Service immediately for troubleshooting options, or a warranty or service claim. You must ensure that the projection
of the visual and audible signal is not blocked by vehicle components (i.e.: open trunks, visors, compartment doors), vehicles, other obstructions, or
people.
This is professional grade equipment and is intended for strict use by authorized personnel only. It is the user’s responsibility to understand and obey all
laws regarding emergency warning devices. You must know and be familiar with all applicable city, state, and federal laws and regulations prior to the
use of emergency vehicle warning devices.
SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the
warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired
and mounted to ensure e󰀨ectiveness and safety. Therefore controllers must be properly installed and placed within convenient reach of the operator so
eye contact with the roadway is never lost.
The e󰀨ectiveness of your STL equipment is highly dependent upon correct mounting and wiring. Improper wiring and mounting of the warning device will
reduce the output and performance of the equipment. Emergency warning devices frequently require high electrical voltages and/or currents. Properly
protect and use caution around live electrical connections. Grounding or shorting of electrical connections can cause high current arcing, which can
cause severe personal injury and/or serious vehicle damage, including re.
Electromagnetic interference can be caused by many electronic devices used in emergency vehicles. To ensure that this doesn’t happen to you, Light
Bars should be mounted a minimum of 12” - 34” from the radio antenna and do not power your equipment from the same circuit or share the same
grounding circuit with radio communication equipment. After installation, test all the vehicle’s equipment together to ensure everything operates free of
interference.
Driver and/or passenger airbags (SRS) will impact the way you mount your equipment. Any equipment installed in the deployment area of the airbags
will damage or dislodge the airbags and sensors. This will also reduce the e󰀨ectiveness of the airbags to protect the passengers and therefore these
areas must be avoided. Installers must make sure that this equipment along with any parts, hardware, wiring, power supplies, and switch boxes do not
interfere with the airbags, SRS wiring, or sensors.
All STL equipment needs to be mounted and installed according to the vehicle manufacturer’s instructions and securely attached to a part of the vehicle
of su󰀩cient strength to withstand the forces applied by the equipment. This device should be permanently mounted within the zones specied by the
vehicle manufacturer. This especially applies to equipment mounted on the exterior of the vehicle to avoid dislodging. Mounting units on the interior of
the vehicle by a method other than permanent mount is discouraged as it may become detached under aggressive driving conditions such as sudden
braking, collision, or swerving.
PROPER INSTALLATION COMBINED WITH OPERATOR TRAINING IN THE PROPER USE OF EMERGENCY WARNING DEVICES IS ESSENTIAL
TO ENSURE THE SAFETY OF EMERGENCY PERSONNEL AND THE PUBLIC.
Unpacking Your STL Product
• Unpack your unit to identify all parts including but not limited to: Light Bar, switch box, brackets, screws, bolts, wiring harness, fuses, etc.
• Some parts may be in small bags.
• Some products may be packaged inside boxes of other products.
• Some parts such as Gutter Brackets, may be in the foam protection. Double check that no parts are left within the foam protection or left in the box.

3SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
Important Points for Your Safety and Longevity of Your Light Bar
• Installers are required to have a good understanding of automotive electronic systems and procedures for proper installation.
• Never stare directly into the LEDs as momentary blindness and/or eye damage may occur.
• Never take any lights through a car wash. Use only water to clean the outer body/lens of your equipment.
• Never use a pressure washer to clean any STL products. Inspect and test your product daily to ensure it operates properly and is mounted
correctly.
• Never cut wires or work on a unit while the unit is still connected to a power source.
• Never install this product or route any wires through or in the deployment area of the airbag. Doing so may cause serious personal injury as it will
damage or reduce the e󰀨ectiveness of the airbag by causing the unit to become a projectile. Reference the owner’s manual for your vehicle to nd
the airbag deployment area. The User/Installer assumes all responsibility to determine proper mounting location, based on providing ultimate safety
to all passengers in the vehicle.
• If the product requires you to drill holes, the installer must ensure that the drilling process does not damage any vehicle components or other vital
parts. Check all sides of the mounting surface before beginning to drill. Make sure to deburr all drilled holes and remove any metal remnants or
shards to avoid injury and wires from becoming spliced. Grommets are to be installed in all wire passage holes.
• Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and
located as close to the power take o󰀨 points as possible to protect the wiring and device.
• Insulation displacement connectors are not to be used.
• In order for STL products to operate at optimum e󰀩ciency, a secure and good electrical connection to the battery’s Ground Post must be made. The
recommended procedure requires the unit’s ground wire be connected directly to the NEGATIVE (-) battery post. DO NOT use Circuit Breaks.
• Instruction manuals should be stored in a safe place for reference if you need to reinstall the unit or perform maintenance. They can also be
found at the main site under the product listing at www.SpeedTechLights.com. If your product is no longer available on the website contact STL’s
Customer Service at 800-757-2581 for assistance.
• If your product requires the use of a control box or remote device to turn on and control your equipment, make sure it is installed in a location that
allows both the user and the vehicle to operate safely in any driving condition.
• Never activate or control your equipment in hazardous driving conditions.
• Use SXL type wire in the engine compartment where higher heat resistance is required according to SAE J-1128. All wires should be in accordance
with the minimum wire size and other recommendations made by the manufacturer and be protected from hot surfaces and moving parts.
• FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS, WARNINGS, NOTICES, AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE
PRODUCT OR VEHICLE THAT WILL VOID YOUR WARRANTY AND/OR CAUSE SERIOUS INJURY TO YOU AND YOUR PASSENGER.
Pre-Installation and Testing
BENCH TEST all units prior to installation by connecting the Positive Cable (Red) and Negative Cable (Black) to a power source to ensure all the
features and parts of the Light Bar are functional.
Test Check List:
• LED diode and LED Module functionality
• Flash patterns
• Non-volatile memory
• Physical damage
If you have trouble call Customer Service at 800-757-2581 before proceeding.
Maintenance
While STL’s Light Bars are very durable, there are some things you need to keep in mind and practice to preserve the longevity and function of your Bar.
• Never take any STL Light Bars through a car wash, such as a pressure washer, automatic car wash, brushes that will scratch your equipment or
similar car washes or equipment where chemicals, high pressure water, and materials may scratch or damage your equipment.
• Use Water (H2O) with a soft cloth to clean your Light Bar and lenses.
• Yellowing of clear lenses may occur overtime. Lenses can be purchased by calling STL Customer Service at 800-757-2581.

4SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
Flash Pattern Synchronization
• To sync the units together, they must be on the same Master/Slave setting. Either all Master or all Slave, it doesn’t matter.
• To set as Master, hold down the Blue cable to Negative for 3 seconds until all LEDs steady burn. This will also reset ash pattern to the default.
• To set as Slave, hold down the Blue cable to Negative for 3 seconds until all LEDs turn o󰀨. This will also reset ash pattern to the default.
• Choose a ash pattern and make sure all units to be synced are on the same ash pattern.
• Once the Master/Slave setting has been programmed and all units are on the same pattern, connect all Blue cables to each other to activate
synchronization.
Alternating Synchronization
• To alternate sync the units, simply program one set of units as the Master and the other set of units as the Slave.
• To set as Master, hold down the Blue cable to Negative for 3 seconds until all LEDs steady burn. This will also reset ash pattern to the default.
• To set as Slave, hold down the Blue cable to Negative for 3 seconds until all LEDs turn o󰀨. This will also reset ash pattern to the default.
• Choose a ash pattern and make sure all units to be alternating synced are on the same ash pattern.
• Once the Master/Slave setting has been programmed and all units are on the same pattern, connect all Blue cables to each other to activate
alternating synchronization.
Color Change (2 or 3 Color Units Only)
• Touch Green cable to +12VDC to cycle through all Color Modes. See mode list below:
Wiring Diagram
Wire Color Function
Red*
Mode 1
Yellow*
Mode 2 (Overrides Mode 1)
White*
Mode 3 (Overrides Mode 1 and 2)
* Indicates a main power cable.
Wire Color Function
Green
Color Change (2 or 3 Color Units Only)
Blue
Flash Pattern and Sync
Black*
Negative
NOTE: All cables except Negative and Blue cable contact +12 VDC.
Specications
Voltage 12 VDC
Amps 0.8
Optic Reective
LED Count 7 Single Color / 13 Double Color / 19 Triple Color
Cable Length 10”
Flash Patterns 15
Color 1
Color 3
Color 2
Color 1 and 3
Color 1 and 2
Color 2 and 3
Color 1, Color 2, and Color 3

5SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
Vehicle Specic Brackets:
Vehicle: Mounting Kit:
Dodge Ram 1500 2019+ 0° Wedge and 5° Wedge
Ford Explorer/Interceptor Utility 2020+ 5° Wedge
Chevy Tahoe/Suburban/Yukon 2015+ 10° Wedge
Chevy Silverado 2019+ 10° Wedge
GMC Sierra 2019+ 10° Wedge
Dodge Charger 2011+ Q-1019 (Sold Separately)
Dodge Ram 1500 2009-2018 Q-1019 (Sold Separately) and 5° Wedge
Chevy Silverado/Sierra 2014-2018 Q-1019 (Sold Separately) and 5° Wedge
Ford Explorer 2013-2019 Q-2019 (Sold Separately)
Chevy Caprice 2011+ Q-3019 (Sold Separately)
Ford F-150 2015+ Q-3019 (Sold Separately) and 5° Wedge
Ford Taurus 2013+ Q-4019 (Sold Separately)
Dodge Durango 2015+ Q-6019 (Sold Separately)

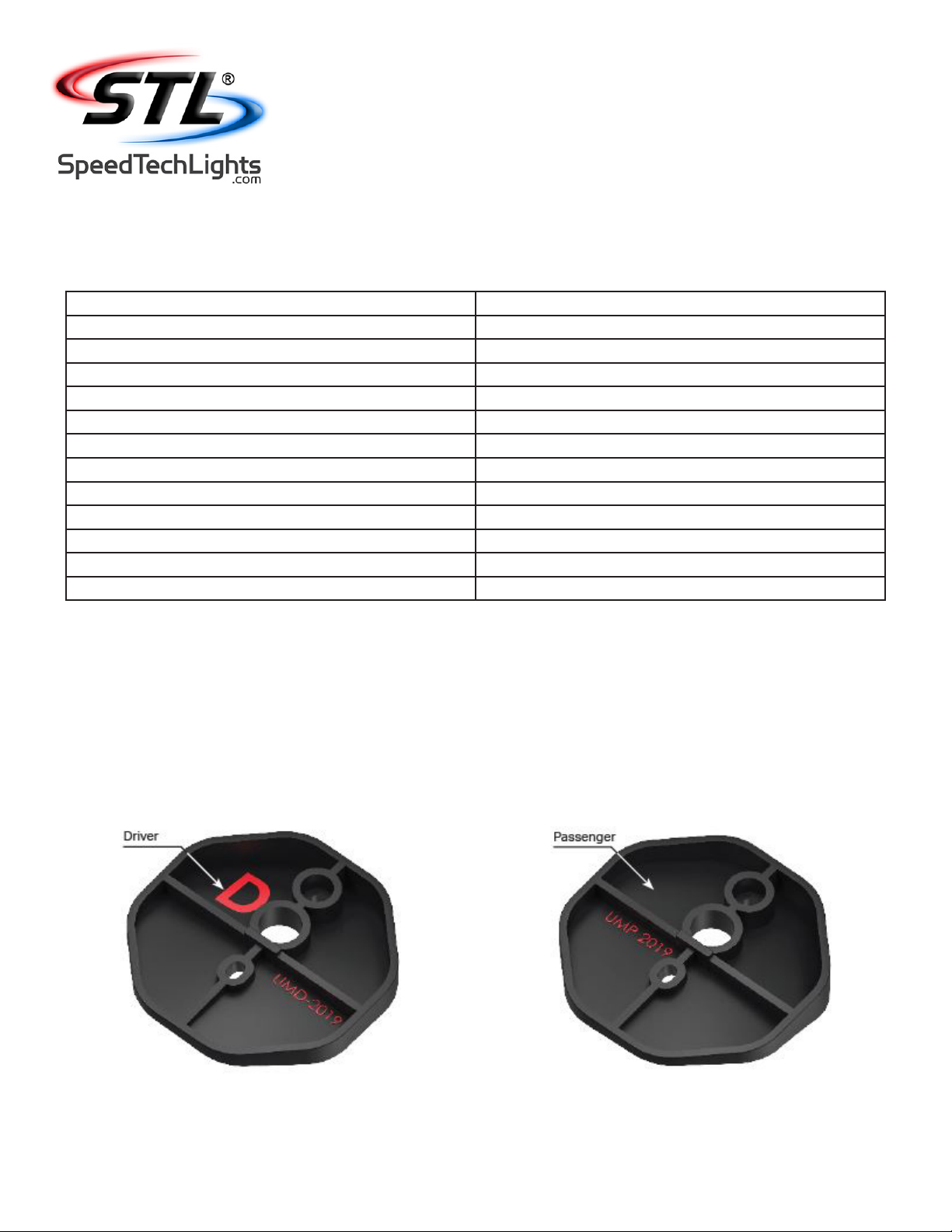

Q-X019 Bracket: Driver vs Passenger
For Vehicle Specic Bracket models Q-X019 that are sold separately, there is a dened Driver side and a Passenger
side bracket. Driver side models are marked with a “D” and “UMD-X019”. Passenger side models are marked only with a
“UMP-X019”. See below examples:

6SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT

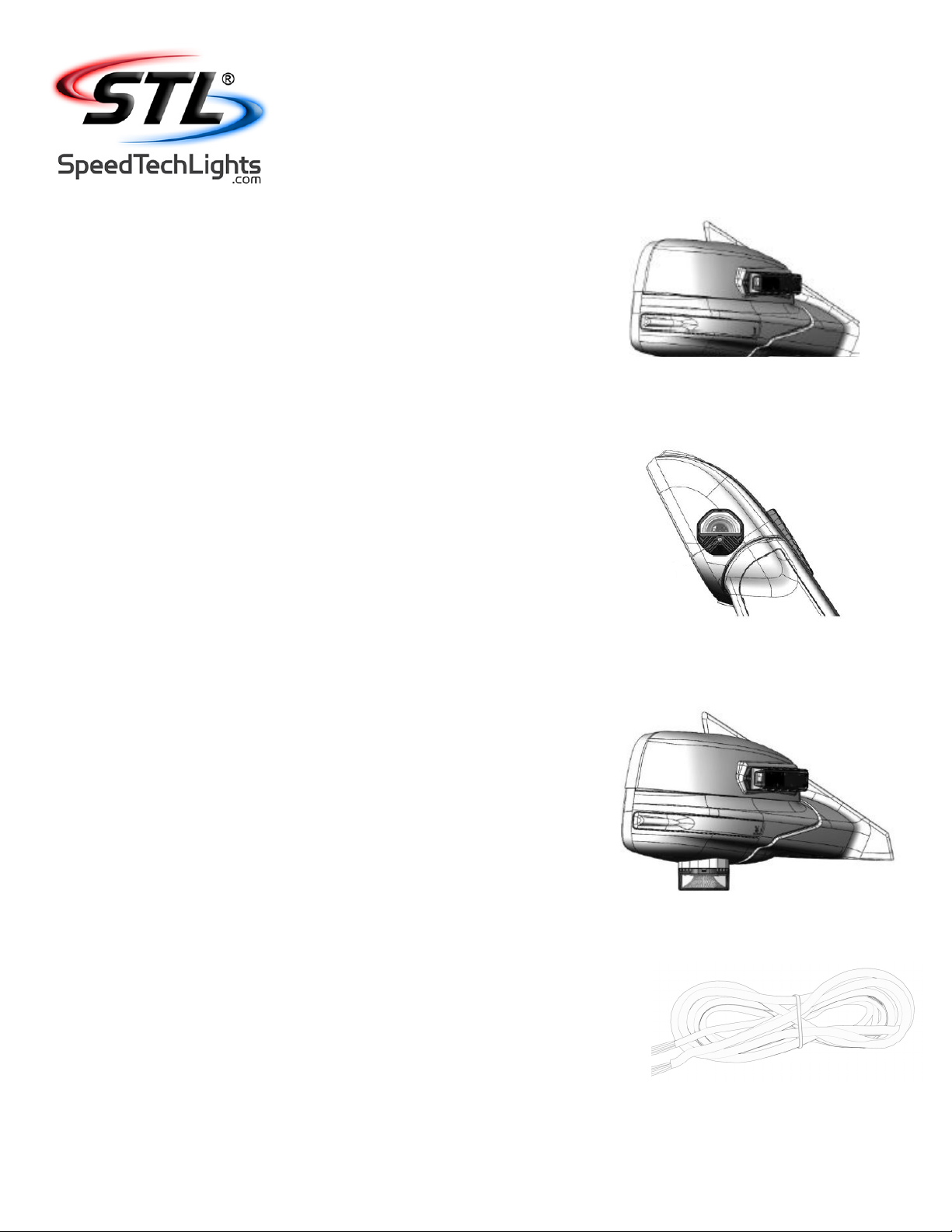

Mounting Instructions
• Place the mounting bracket against the mirror and drill mounting and cable
exit holes. The mounting bracket should be oriented such that the unit is facing
perpendicular to the vehicle and parallel to the ground.
• Secure mount with included hardware. It is best to remove the mirror from the
vehicle for actual mounting steps.
Extension Cable (Sold Separately)
• If you are extending the main cables, just add the desired length of cable to the end of the main
cables coming out of the unit. You will solder and heat shrink the wire you are lengthening from
the unit to each additional length of extension cable. DO NOT cross connect wires.
• NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or debris.
• Secure mount with included hardware. It is best to remove the mirror from the
vehicle for actual mounting steps.
• Run the cables through and mount unit to the mirror. You will want to set the ash
pattern of the unit prior to this nal step. Using included hardware secure the unit
to the bracket.
• Run the cables through the door then connect unit to power source and secure
mirror to vehicle again.

7SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT

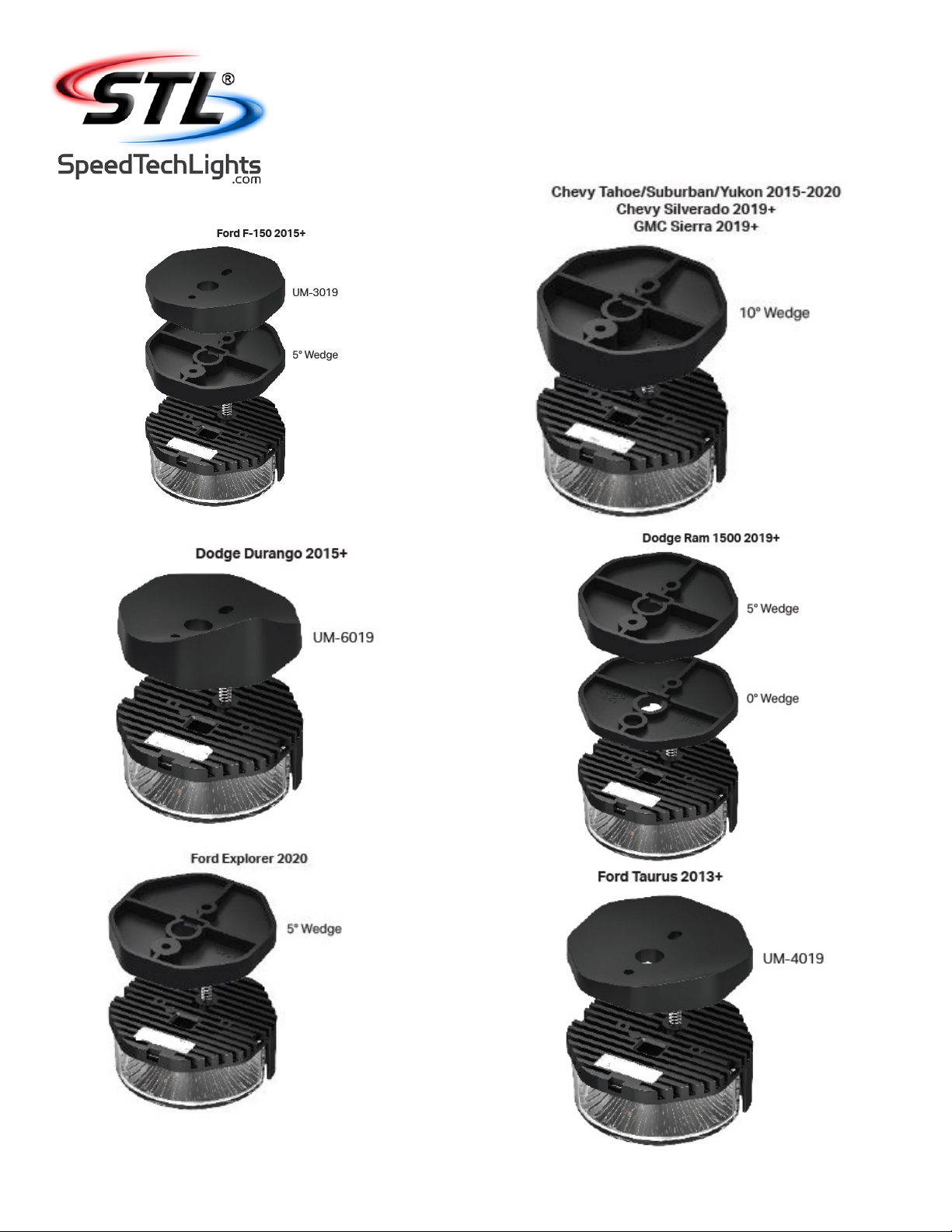

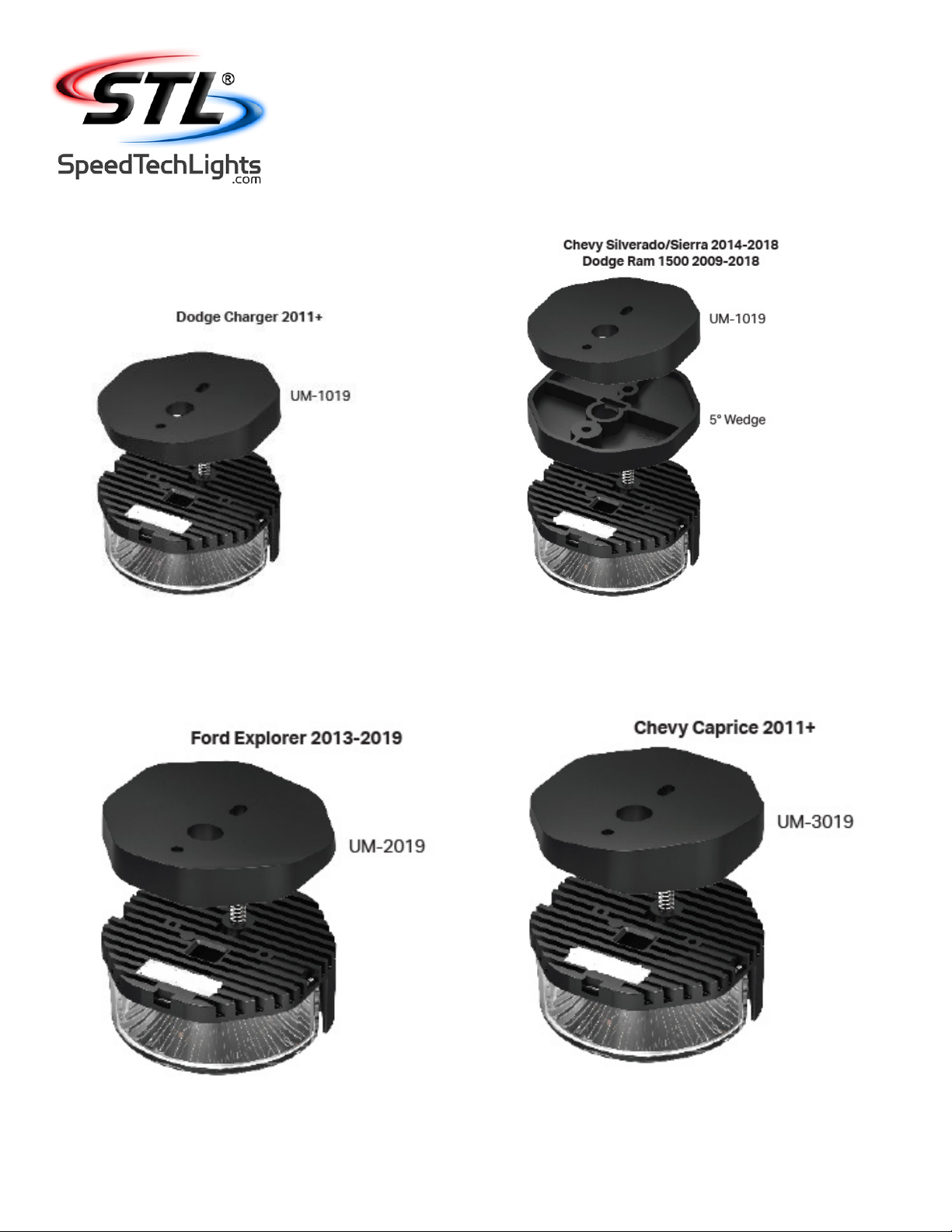

Vehicle Specic Mounting Kits

8SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT

9SpeedTech Lights, Inc © 2020
ZX-180
UNDER SIDE-VIEW MIRROR LIGHT
All rights reserved. No part of this Instruction Manual may be reproduced, distributed, transmitted, or otherwise shared in any form or by any means,
including but not limited to photocopying, recording, electronic delivery, .PDF reproduction, or any other means of reproducing all or any part hereof without
the express prior written consent of SpeedTech Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers
of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However,
no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by
any means, except with the prior written consent of SpeedTech Lights, Inc.
Flash Pattern List
• Slow Single Flash
• Fast Single Flash
• Slow and Fast Single Flash
• Slow Double Flash
• Fast Double Flash
• Slow and Fast Double Flash
• Slow Triple Flash
• Fast Triple Flash
• Slow and Fast Triple Flash
• Burst Pattern 1
• Burst Pattern 2
• Brake Pop
• Steady Burn High
• Steady Burn Low
• Puddle Light
About Modes 1-3
• Each Mode can be set to have a unique pattern.
• Follow wiring diagram to identify Modes 1-3 wires to toggle each Mode.
About Flash Patterns
• All STL LED products are equipped with a non-volatile memory which will recall the last ash pattern when the product is turned on.
• Follow the wiring diagram to identify the Flash Pattern wire to manually cycle through patterns.
