600 SERIES

PAGE 1 OF 2
SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION
HIGH VOLTAGE
MODULE

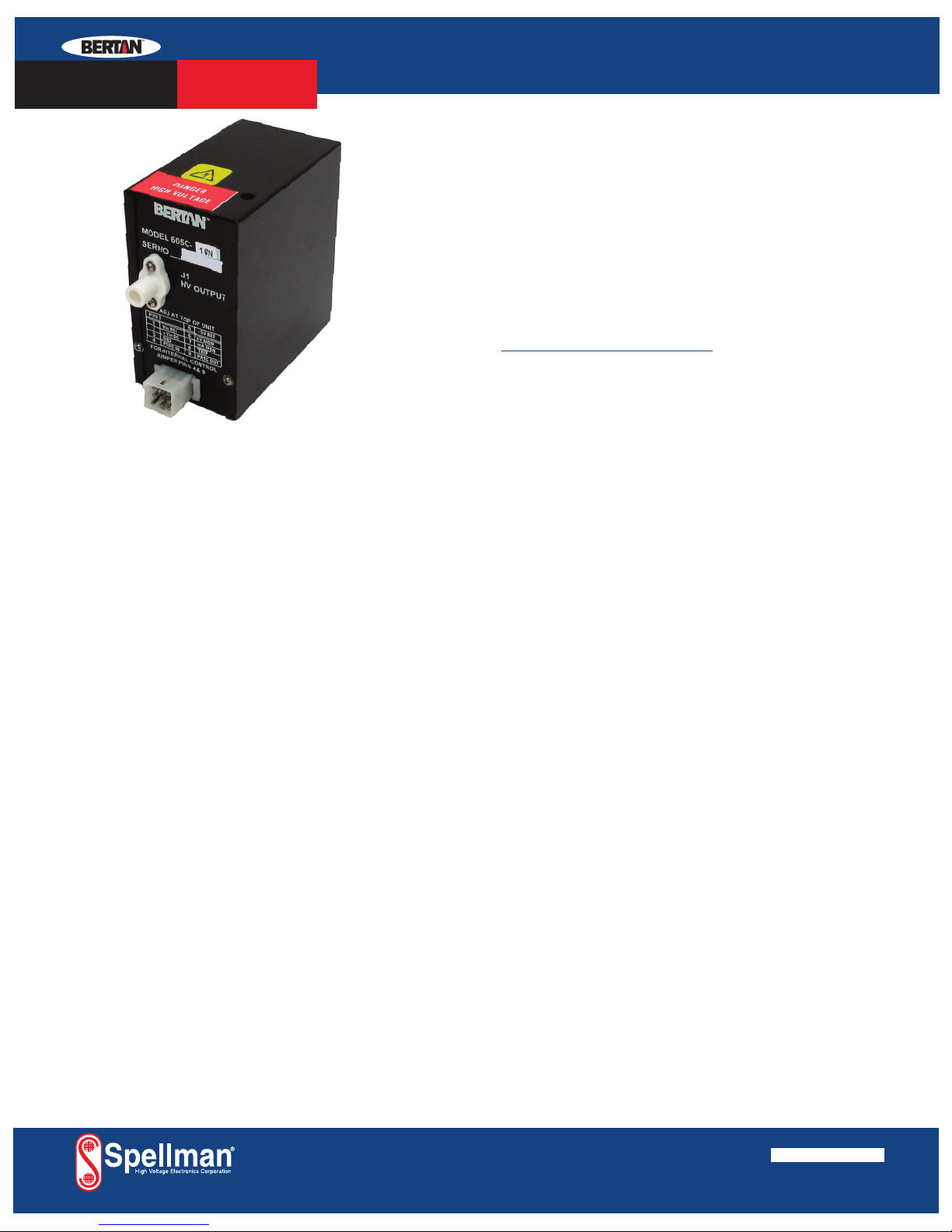

Spellman’s Bertan brand of 602C modular high voltage
power supplies offer well regulated, fixed polarity outputs
up to 20kV, that operate off a standard switch selectable
115/230Vac input. These fully enclosed modules are
designed for bench top or OEM applications like spec-
trometers, detectors, imaging and electron beam usage.
The output voltage can be controlled by either a local
internal potentiometer or by a customer provided ground
referenced signal for remote operation. Additionally
ground referenced output voltage and current monitor
signals are provided. A high voltage enable signal input
allows remote control of the supply.
TYPICAL APPLICATIONS
Spectrometers
Detectors
SPECIFICATIONS
Input Voltage:
115Vac, ±10%, 50/60 Hertz @ 0.5 amp
230Vac, ±10%, 50/60 Hertz @ 0.25 amp
Input voltage is fused and switch selectable
Output Polarity:
Positive or negative, specify at time of order
Output Voltage:
See “model ratings” table
Output Current:
See “model ratings” table
Voltage Regulation:
Line - ±0.001% of rated output voltage over
specified input voltage range
Load - ±0.002% of rated output voltage
for a full load change
Ripple:
See “model ratings” table
Stability:
≤0.01% per hour, after a 1/2 hour warm up
Accuracy:
Local control ±0.2%
Remote Programming ±(0.1% of setting + 0.1% of maximum)
Voltage Monitor ±(0.1% of reading + 0.1% of maximum)
Current Monitor ±(2% of reading + 1% of maximum)
Temperature Coefficient:
≤50ppm/°C
Arc/Short Circuit:
All units are fully arc and short circuit protected and will limit
continuous short circuit output current to less than 110% of
maximum rated output current.
Operating Temperature:
0°C to +50°C
Storage Temperature:
-40°C to +85°C
Humidity:
20% to 85% RH, non-condensing
Interface Connector:
9 pin Molex connector, mating connector and pins provided
AC Input Line Connector:
3 position terminal block
Output Connector:
10´ (3 meter) detachable HV cable is provided for units
up to 5kV; 10kV through 20kV: 59˝ (1.5 meter) cable.
Cooling:
Convection cooled.
Dimensions:
5.0˝H X 3.1˝W X 8.7˝D (128mm x 78mm x 220mm)
Weight:
≤6.75 pounds (3.1kg)
Regulatory Approvals:
Compliant to 2004/108/EC, the EMC Directive and
2006/95/EC, the Low Voltage Directive. UL/CUL recog-
nized, File E137710.
602C
•1-20KV @ 10-15 WATTS
•AC INPUT MODULAR POWER SUPPLY
•115/230 VAC SELECTABLE
•EXCELLENT REGULATION
•VERY LOW RIPPLE
•ARC/SHORT CIRCUIT PROTECTED
www.spellmanhv.com/manuals/600
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e-mail: [e-mail]
www.spellmanhv.com 128041-001 REV. H
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
Copyright © 2005 Spellman High Voltage Electronics Corp.

INTERFACE CONNECTOR-P2
AC INPUT TERMINAL BLOCK
MODEL RATINGS TABLE
Model Output Voltage Output Current Ripple (Vpp)
602C-10P,N 0 to 1kV 0 to 15mA 15mV
602C-15P
,N 0 to 1.5kV 0 to 10mA 15mV
602C-30P,N 0 to 3kV 0 to 5mA 30mV
602C-50P,N 0 to 5kV 0 to 2mA 50mV
602C-100P,N 0 to 10kV 0 to 1mA 200mV
602C-150P,N 0 to 15kV 0 to 0.6mA 450mV
602C-200P,N 0 to 20kV 0 to 0.5mA 800mV
PIN SIGNAL SIGNAL PARAMETERS
1 n/c None
2 n/c None
3 Signal Ground Ground
4 Voltage Program 0 to 5Vdc = 0 to 100% rated output, 1MΩ Zin
5 +5.0Vdc Reference +5.0Vdc, 10mA maximum
6 kV Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩ Zout
7 mA Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩ Zout
8 Trip Input Connect to ground to trip unit off
9 Local Voltage Program Internal program potentiometer wiper, 0 to 5Vdc
Terminal Function
1 115/230 Vac Input
2 Neutral
3 Ground
PAGE 2 OF 2

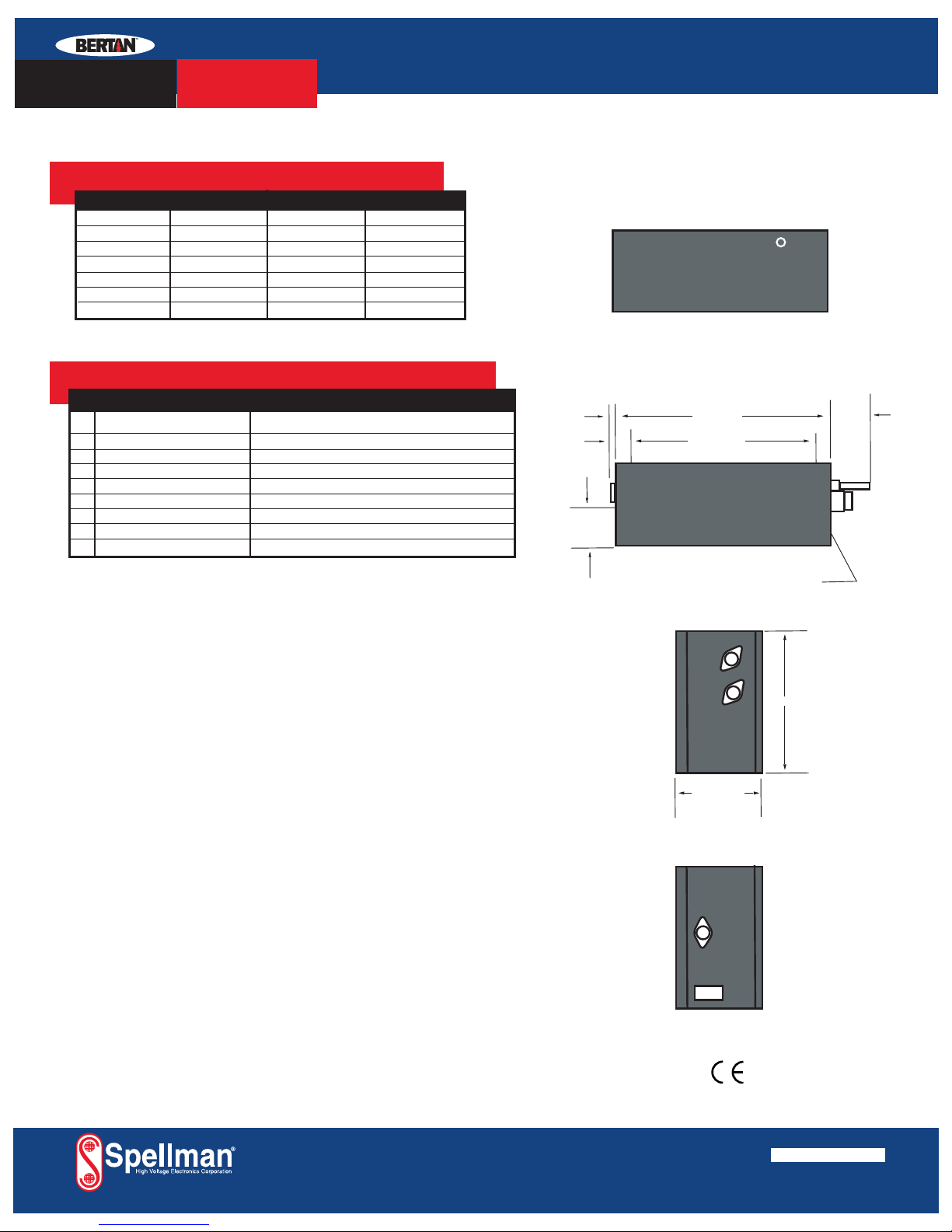

TOP VIEW
BOTTOM VIEW
FRONT VIEW
REAR VIEW
HV ADJUST
P2
115V
230V
FUSE
HV OUT
LINE
NEUT
GND
8-32 UNC-2B
.25 MAX DP
3PL
1.00 [5.0]
5.03 [127]
.62 [5.0]
.42 [10.6]
7.62 [193]
3.06 [77.7]
2.12 [53.8]
1.53 [38.8]
1.06 [26.9]
5.75 [146]
DIMENSIONS: in.[mm]
SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION
HIGH VOLTAGE
MODULE
602C
Specify “P” for positive polarity or “N” for negative polarity
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e-mail: [e-mail]
www.spellmanhv.com 128041-001 REV. H
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
Copyright © 2005 Spellman High Voltage Electronics Corp.

PAGE 1 OF 2
S P E L L M A N H I G H V O LTA G E E L E C T R O N I C S C O R P O R AT I O N
HIGH VOLTAGE
MODULE
Spellman’s Bertan brand of 603C modular high voltage
power supplies offer well regulated, fixed polarity outputs
up to 30kV, that operate off a standard switch selectable
115/230Vac input. These fully enclosed modules are
designed for bench top or OEM applications like spec-
trometers, detectors, imaging and electron beam usage.
The output voltage can be controlled by either a local
internal potentiometer or by a customer provided ground
referenced signal for remote operation. Additionally
ground referenced output voltage and current monitor
signals are provided. A high voltage enable signal input
allows remote control of the supply.
T PICAL APPLICATIONS
Spectrometers
Detectors
SPECIFICATIONS
Input Voltage:
115Vac, ±10%, 50/60 Hertz @ 1.0 amp
230Vac, ±10%, 50/60 Hertz @ 0.5 amp
Input voltage is fused and switch selectable
Output Polarity:
Positive or negative, specify at time of order
Output Voltage:
See “model ratings” table
Output Current:
See “model ratings” table
Voltage Regulation::
Line: ±0.001% of rated output voltage over
specified input voltage range
Load:±0.002% of rated output voltage
for a full load change
Ripple:
See “model ratings” table
Stability:
≤0.01% per hour, after a 1/2 hour warm up
Accuracy:
Local Control ±0.2%
Remote Programming ±(0.1% of setting + 0.1% of maximum)
Voltage Monitor ±(0.1% of reading + 0.1% of maximum)
Current Monitor ±(2% of reading + 1% of maximum)
Temperature Coefficient:
≤50ppm/ C
Arc/Short Circuit:
All units are fully arc and short circuit protected and will limit
continuous short circuit output current to less than 110% of
maximum rated output current.
Operating Temperature:
0C to +50 C
Storage Temperature:
-40 C to +85 C
Humidity:
20% to 85% RH, non-condensing
Interface Connector:
9 pin Molex connector, mating connector and pins provided
AC Input Line Connector:
3 position terminal block
Output Connector:
10´ (3 meter) detachable HV cable is provided for units
up to 5kV; 10kV through 20kV: 59˝ (1.5 meter) cable,
30kV: 78˝ (2 meter) cable
Cooling:
Convection cooled
Dimensions:
5.0˝H X 5.5˝W X 8.5˝D (127mm x 140mm x 216mm)
Weight:
≤8.0 pounds (3.64kg)
Regulatory Approvals:
Compliant to 2004/108/EC, the EMC Directive and
2006/95/EC, the Low Voltage Directive. UL/CUL
recognized, File E137710.
603C
•1-3 KV @ 12-3 WATTS
•AC INPUT MODULAR POWER SUPPLY
•115/23 VAC SELECTABLE
•EXCELLENT REGULATION
•VERY LOW RIPPLE
•ARC AND SHORT CIRCUIT PROTECTED
www.sp llmanhv.com/manuals/600
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128042-001 REV. H
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

PAGE 2 OF 2
DIMENSIONS: in.[mm]
MODEL RATINGS TABLE
Model Output Voltage Output Current Ripple (Vpp)
603C-10P,N 0 to 1kV 0 to 30mA 15mV
603C-15P,N 0 to 1.5kV 0 to 20mA 15mV
603C-30P,N 0 to 3kV 0 to 10mA 30mV
603C-50P,N 0 to 5kV 0 to 5mA 50mV
603C-100P,N 0 to 10kV 0 to 2mA 200mV
603C-150P,N 0 to 15kV 0 to 1.5mA 450mV
603C-200P,N 0 to 20kV 0 to 1.0mA 800mV
603C-300P,N 0 to 30kV 0 to 0.4mA 6 volts
INTERFACE CONNECTOR-P2
PIN SIGNAL SIGNAL PARAMETERS
1 n/c None
2 n/c None
3 Signal Ground Ground
4 Voltage Program 0 to 5Vdc = 0 to 100% rated output, 1MΩZin
5 +5.0Vdc Reference +5.0Vdc, 10mA maximum
6 kV Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩZout
7 mA Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩZout
8 Trip Input Connect to ground to trip unit off
9 Local Voltage Program Internal program potentiometer wiper, 0 to 5Vdc

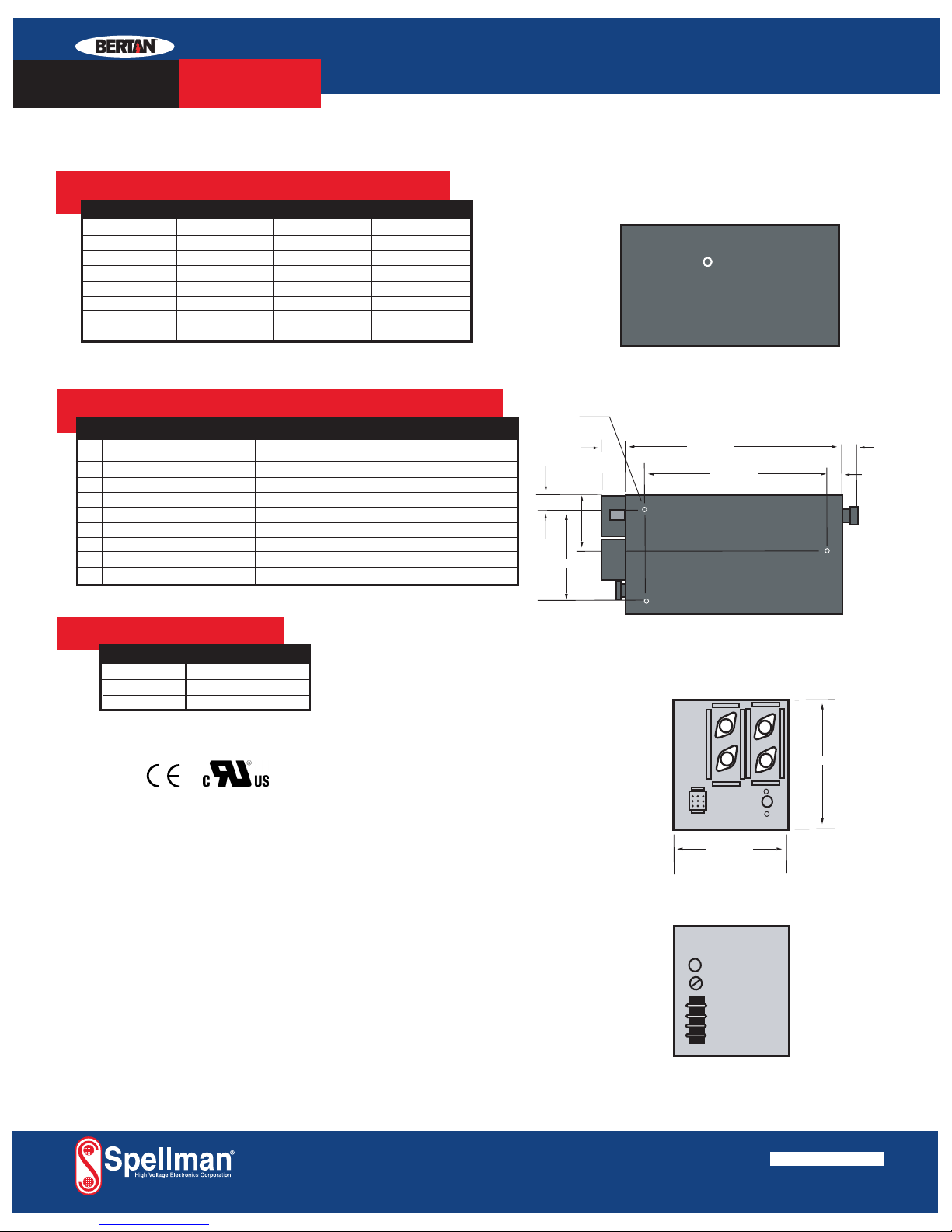

TOP VIEW
BOTTOMVIEW
FRONT VIEW
REARVIEW
HV ADJUST
P2
115V
230V
FUSE
HV
OUT
LINE
NEUT
GND
8-32UNC-2B
.31MAXDP
3PL
5.00 [127]
7.50[190]
.40[10]
.44 [11]
6.40[162]
.78[19.8]
1.00 [25.4]
4.00 [101]
2.34[59.4]
5.50[139]
AC INPUT TERMINAL BLOCK
Terminal Function
1 115/230 Vac Input
2 Neutral
3 Ground
Sp cify “P” for positiv polarity or “N” for n gativ polarity
S P E L L M A N H I G H V O LTA G E E L E C T R O N I C S C O R P O R AT I O N
HIGH VOLTAGE
MODULE
603C
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128042-001 REV. H
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

PAGE 1 OF 2
SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION
HIGH VOLTAGE
MODULE

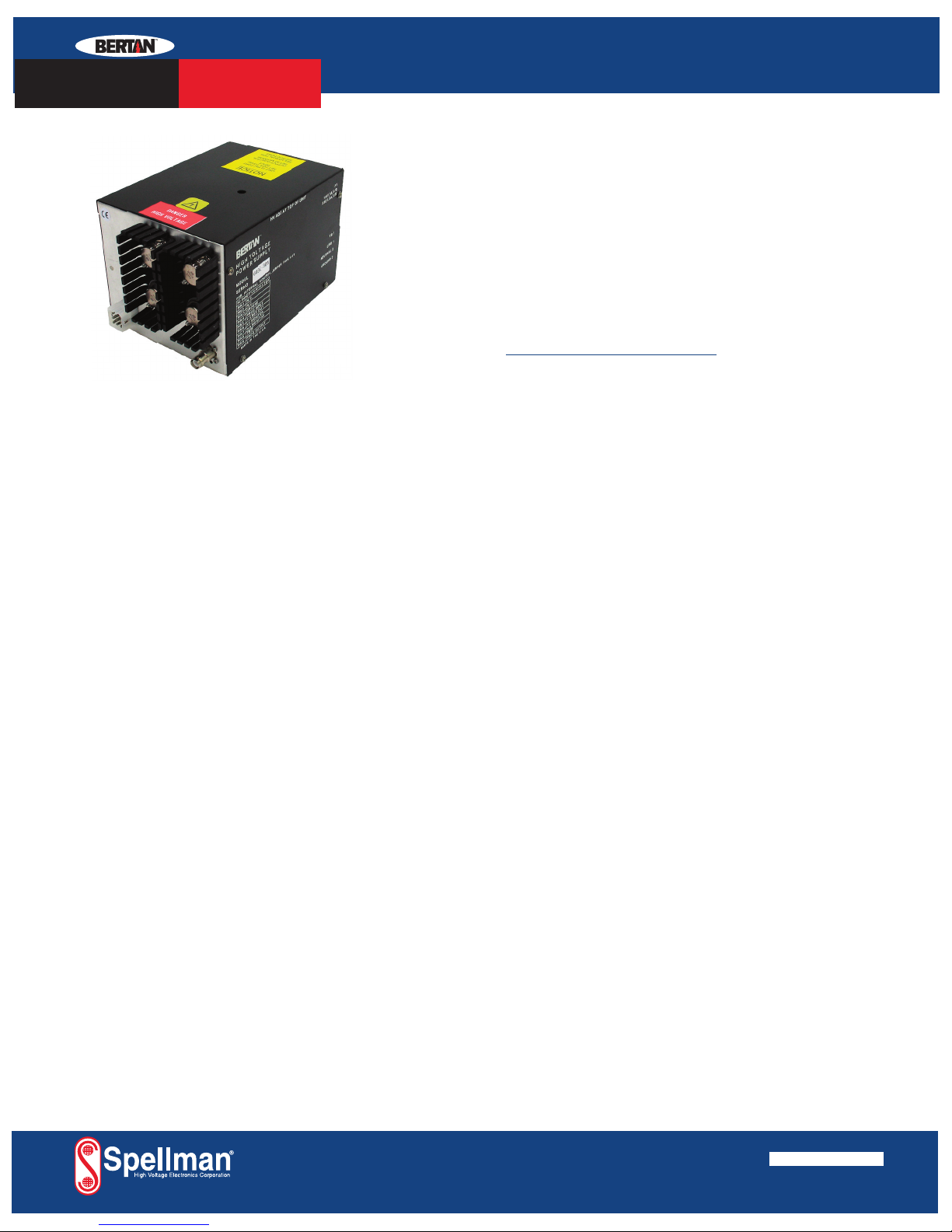

Spellman’s Bertan brand of 605C modular high voltage
power supplies offer well regulated, fixed polarity outputs
up to 20kV, which operate off a +28Vdc input (+24Vdc
optional). These fully enclosed modules are designed for
bench top or OEM applications like spectrometers, detec-
tors, imaging and electron beam usage.
The output voltage can be controlled by either a local
internal potentiometer or by a customer provided ground
referenced signal for remote operation. Additionally
ground referenced output voltage and current monitor
signals are provided. A high voltage enable
signal input allows remote control of the supply.
TYPICAL APPLICATIONS
Spectrometers
Detectors
SPECIFICATIONS
Input Voltage:
+28Vdc, ±10%, @ 0.75 amp
+24Vdc, ±10%, @ 1 amp (24V Option)
Output Polarity:
Positive or negative, specify at time of order
Output Voltage:
See “model ratings” table
Output Current:
See “model ratings” table
Voltage Regulation:
Line: ±0.001% of rated output voltage over specified
input voltage range
Load:±0.002% of rated output voltage for a full
load change
Ripple:
See “model ratings” table
Sta ility:
≤0.01% per hour, after a 1/2 hour warm up
Accuracy:
Local control ±0.2%
Remote Programming ±(0.1% of setting + 0.1% of maximum)
Voltage Monitor ±(0.1% of reading + 0.1% of maximum)
Current Monitor ±(2% of reading + 1% of maximum)
Temperature Coefficient:
≤50ppm/°C
Arc/Short Circuit:
All units are fully arc and short circuit protected and will limit
continuous short circuit output current to less than 110% of
maximum rated output current.
Operating Temperature:
0°C to +50°C
Storage Temperature:
-40°C to +85°C
Humidity:
20% to 85% RH, non-condensing
Interface Connector:
9 pin Molex connector, mating connector and pins provided
Output Connector:
59˝ (1.5 meter) detachable HV cable is provided
Cooling:
Convection cooled
Dimensions:
5.0˝H X 2.75˝W X 4.75˝D (128mm x 70mm x 121mm)
Weight:
≤3.2 pounds (1.45kg)
Regulatory Approvals:
Compliant to 2004/108/EC, the EMC Directive and
2006/95/EC, the Low Voltage Directive.
605C
•1-20KV @ 6-9 WATTS
•DC INPUT MODULAR POWER SUPPLY
•EXCELLENT REGULATION
•VERY LOW RIPPLE
•ARC/SHORT CIRCUIT PROTECTED
www.spellm nhv.com/m nu ls/600
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128043-001 REV. F
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

TOP VIEW
BOTTOMVIEW
FRONT VIEW
REARVIEW
HV ADJUST
HV
P2
8-32UNC-2B
.31 MAXDP
2PL
4.78[121]
.81 [20.5]
MAX.
3.50 [88.90]
5.03[127]
2.75[69.85]
1.38 [35]
.64 [35.0]
.25[6.35]
P2
PAGE 2 OF 2
DIMENSIONS: in.[mm]
INTERFACE CONNECTOR-P2
MODEL RATINGS TABLE
Model Output Voltage Output Current Ripple (Vpp)
605C-10P,N 0 to 1kV 0 to 9mA 15mV
605C-15P,N 0 to 1.5kV 0 to 6mA 15mV
605C-30P,N 0 to 3kV 0 to 3mA 30mV
605C-50P,N 0 to 5kV 0 to 1.5mA 50mV
605C-100P,N 0 to 10kV 0 to 0.75mA 200mV
605C-150P,N 0 to 15kV 0 to 0.4mA 450mV
605C-200P,N 0 to 20kV 0 to 0.25mA 750mV
PIN SIGNAL SIGNAL PARAMETERS
1 Power Ground Power Ground
2 Power Input +28Vdc Power Input (+24Vdc optional)
3 Signal Ground Signal Ground
4 Voltage Program 0 to 5Vdc 0 to 100% rated output, 1MΩZin
5 +5.0Vdc Reference +5.0Vdc, 10mA maximum
6 kV Monitor 0 to 5Vdc 0 to 100% rated output, 10KΩZout
7 mA Monitor 0 to 5Vdc 0 to 100% rated output, 10KΩZout
8 Trip Input Connect to ground to trip unit off
9 Local Voltage Program Internal program potentiometer wiper, 0 to 5Vdc
SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION
HIGH VOLTAGE
MODULE
605C
Specify “P” for positive pol rity or “N” for neg tive pol rity
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128043-001 REV. F
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

PAGE 1 OF 2
SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION
HIGH VOLTAGE
MODULE
Spellman’s Bertan brand of 606C modular high voltage
power supplies offer well regulated, fix polarity outputs up
to 30kV, which operate off a +2 Vdc input (+24Vdc
optional). These fully enclosed modules are designed for
bench top or OEM applications like spectrometers, detec-
tors, imaging and electron beam usage.
The output voltage can be controlled by either a local
internal potentiometer or by a customer provided ground
referenced signal for remote operation. Additionally
ground referenced output voltage and current monitor
signals are provided. A high voltage enable signal input
allows remote control of the supply.
TYPICAL APPLICATIONS
Spectrometers
Detectors
SPECIFICATIONS
Input Voltage:
+2 Vdc, ±10%, @ 2.25 amps
+24Vdc, ±10%, @ 2.5 amps (24V Option)
Output Polarity:
Positive or negative, specify at time of order
Output Voltage:
See “model ratings” table
Output Current:
See “model ratings” table
Voltage Regulation
Line: ±0.001% of rated output voltage over specified
input voltage range
Load:±0.002% of rated output voltage for a
full load change
Ripple:
See “model ratings” table
Stability:
≤0.01% per hour, after a 1/2 hour warm up
A ura y:
Local control ±0.2%
Remote Programming ±(0.1% of setting + 0.1% of maximum)
Voltage Monitor ±(0.1% of reading + 0.1% of maximum)
Current Monitor ±(2% of reading + 1% of maximum)
Temperature Coeffi ient:
≤50ppm/°C
Ar /Short Cir uit:
All units are fully arc and short circuit protected and will limit
continuous short circuit output current to less than 110% of
maximum rated output current.
Operating Temperature:
0°C to +50°C
Storage Temperature:
-40°C to + 5°C
Humidity:
20% to 5% RH, non-condensing
Interfa e Conne tor:
9 pin Molex, mating connector and pins provided
Output Conne tor:
10´ (3 meter) detachable HV cable is provided for units
up to 5kV; 10kV through 20kV: 59˝ (1.5 meter) cable;
30kV: 7 ˝ (2 meter) cable
Cooling:
Convection cooled
Dimensions:
5.0˝H X 5.50˝W X 4.75˝D (12 mm x 140mm x 121mm)
Weight:
≤3.2 pounds (1.45kg)
Regulatory Approvals:
Compliant to 2004/10 /EC, the EMC Directive and
2006/95/EC, the Low Voltage Directive.
606C
•1-30KV @ 12-30 WATTS
•DC INPUT MODULAR POWER SUPPLY
•EXCELLENT REGULATION
•VERY LOW RIPPLE
•ARC SHORT CIRCUIT PROTECTED
www.spellmanhv. om/manuals/600
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128044-001 REV. F
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

PAGE 2 OF 2
DIMENSIONS: in.[mm]
INTERFACE CONNECTOR-P2
PIN SIGNAL SIGNAL PARAMETERS
1 Power Ground Power Ground
2 Power Input +2 Vdc Power Input (+24Vdc optional)
3 Signal Ground Signal Ground
4 Voltage Program 0 to 5Vdc = 0 to 100% rated output, 1MΩZin
5 +5.0Vdc Reference +5.0Vdc, 10mA maximum
6 kV Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩZout
7 mA Monitor 0 to 5Vdc = 0 to 100% rated output, 10KΩZout
Trip Input Connect to ground to trip unit off
9 Local Voltage Program Internal program potentiometer wiper, 0 to 5Vdc
MODEL RATINGS TABLE
Model Output Voltage Output Current Ripple (Vpp)
606C-10P,N 0 to 1kV 0 to 30mA 15mV
606C-15P,N 0 to 1.5kV 0 to 20mA 15mV
606C-30P,N 0 to 3kV 0 to 10mA 30mV
606C-50P,N 0 to 5kV 0 to 5mA 50mV
606C-100P,N 0 to 10kV 0 to 2mA 200mV
606C-150P,N 0 to 15kV 0 to 1.5mA 450mV
606C-200P,N 0 to 20kV 0 to 1.0mA 00mV
606C-300P,N 0 to 30kV 0 to 0.4mA 6 volts
S P E L L M A N H I G H V O LTA G E E L E C T R O N I C S C O R P O R AT I O N
HIGH VOLTAGE
MODULE
606C
TOP VIEW
BOTTOMVIEW
FRONT VIEW
REARVIEW
HV ADJUST
8-32 UNC-2B
.31 MAXDP
4PL
4.50 [114]
3.0 [76.2]
1.25 [31.75]
.56[14]
P2
HV
OUT
5.00 [127]
5.50 [139]
1.0 [25.4]
3.0 [76]
Spe ify “P” for positive polarity or “N” for negative polarity
Corporate Headquarters
Hauppauge, New York USA
[phone] FAX: [phone]
e mail: [e-mail]
www.spellmanhv.com 128044-001 REV. F
Spellman High Voltage is an ISO 9001:2008 and ISO 14001:2004 registered company
For locations worldwide

IMPORTANT SAFETY PRECAUTIONS
SAFETY
THIS POWER SUPPLY GENERATES VOLTAGES THAT ARE DANGEROUS AND MAY BE FATAL.
OBSERVE EXTREME CAUTION WHEN WORKING WITH THIS EQUIPMENT.
High voltage power supplies must always be grounded.
Do not touch connections unless the equipment is off and the
Capacitance of both the load and power supply is discharged.
Allow five minutes for discharge of internal capacitance of the power supply.
Do not ground yourself or work under wet or damp conditions.
SERVICING SAFETY
.
Maintenance may require removing the instrument cover with the power on.
Servicing should be done by qualified personnel aware of the electrical hazards.
WARNING note in the text call attention to hazards in operation of these units
that could lead to possible injury or death.
CAUTION notes in the text indicate procedures to be followed to avoid possible
damage to equipment.
Copyright ©2000, Spellman High Voltage Electronics Corporation. All Rights Reserved.
This information contained in this publication is derived in part from proprietary and patent data. This information has
been prepared for the express purpose of assisting operating and maintenance personnel in the efficient use of the
model described herein, and publication of this information does not convey any right to reproduce it or to use it for
any purpose other than in connection with installation, operation, and maintenance of the equipment described.
118004-001 REV. B

WICHTIGE SICHERHEITSHINWEISE
SICHERHEIT
DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT LEBENSGEFÄHRLICHE HOCHSPANNUNG.
SEIN SIE SEHR VORSICHTIG BEI DER ARBEIT MIT DIESEM GERÄT.
Das Hochspannungsnetzteil muß immer geerdet sein.
Berühren Sie die Stecker des Netzteiles nur, wenn das Gerät ausgeschaltet ist und die elektrischen
Kapazitäten des Netzteiles und der angeschlossenen Last entladen sind.
Die internen Kapazitäten des Hochspannungsnetzteiles benötigen ca. 5 Minuten, um sich zu entladen.
Erden Sie sich nicht, und arbeiten Sie nicht in feuchter oder nasser Umgebung.
Notwendige Reparaturen können es erforderlich machen, den Gehäusedeckel während des Betriebes zu
entfernen.
Reparaturen dürfen nur von qualifiziertem, eingewiesenem Personal ausgeführt werden.
“WARNING” im folgenden Text weist auf gefährliche Operationen hin, die zu Verletzungen oder zum Tod
führen können.
“CAUTION” im folgenden Text weist auf Prozeduren hin, die genauestens befolgt werden müssen, um
eventuelle Beschädigungen des Gerätes zu vermeiden.
SERVICESICHERHEIT
118004-001 REV. B

PRECAUTIONS IMPORTANTES POUR VOTRE SECURITE
CONSIGNES DE SÉCURITÉ
CETTE ALIMENTATION GÉNÈRE DES TENSIONS QUI SONT DANGEUREUSES ET PEUVENT ÊTRE FATALES.
SOYEZ EXTRÊMENT VIGILANTS LORSQUE VOUS UTILISEZ CET ÉQUIPEMENT.
Les alimentations haute tension doivent toujours être mises à la masse.
Ne touchez pas les connectiques sans que l’équipement soit éteint et que la capacité à la fois de la charge et de
l’alimentation soient déchargées.
Prévoyez 5 minutes pour la décharge de la capacité interne de l’alimentation.
Ne vous mettez pas à la masse, ou ne travaillez pas sous conditions mouillées ou humides.
La maintenance peut nécessiter l’enlèvement du couvercle lorsque l’alimentation est encore allumée.
Les réparations doivent être effectuées par une personne qualifiée et connaissant les risques électriques.
Dans le manuel, les notes marquées « WARNING » attire l’attention sur les risques lors de la manipulation de ces
équipements, qui peuvent entrainer de possibles blessures voire la mort.
Dans le manuel, les notes marquées « CAUTION » indiquent les procédures qui doivent être suivies afin d’éviter
d’éventuels dommages sur l’équipement.
CONSIGNES DE SÉCURITÉ EN CAS DE REPARATION
118004-001 REV. B

IMPORTANTI PRECAUZIONI DI SICUREZZA
SICUREZZA
QUESTO ALIMENTATORE GENERA TENSIONI CHE SONO PERICOLOSE E
POTREBBERO ESSERE MORTALI.
PONI ESTREMA CAUTELA QUANDO OPERI CON QUESO APPARECCHIO.
Gli alimentatori ad alta tensione devono sempre essere collegati ad un impianto di terra.
Non toccare le connessioni a meno che l’apparecchio sia stato spento e la capacità interna
del carico e dell’alimentatore stesso siano scariche.
Attendere cinque minuti per permettere la scarica della capacità interna dell’alimentatore
ad alta tensione.
Non mettere a terra il proprio corpo oppure operare in ambienti bagnati o saturi d’umidità.
SICUREZZA NELLA MANUTENZIONE.
Manutenzione potrebbe essere richiesta, rimuovendo la copertura con apparecchio
acceso.
La manutenzione deve essere svolta da personale qualificato, coscio dei rischi elettrici.
Attenzione alle AVVERTENZE contenute nel manuale, che richiamano all’attenzione ai
rischi quando si opera con tali unità e che potrebbero causare possibili ferite o morte.
Le note di CAUTELA contenute nel manuale, indicano le procedure da seguire per evitare
possibili danni all’apparecchio.
118004-001 REV. B

600 SERIES MANUAL 1 118118-001 Rev A
Table of Contents
I. INTRODUCTION
1.0 Scope of Manual…………………………………………………………. 2
1.1 Purpose of Equipment……………………………………………………... 2
1.2 Description……….…………………………………………………………2
II. OPERATION
2.1 Installation………….……………………………………………………. 4
2.2 Input Power………….………………………………………………...…. 4
2.3 High Voltage Control………….…………………………………………. 4
2.3.1 Internal Potentiometer Control………………………..…………………..……. 4
2.3.2 External Potentiometer Control…………………………………………………. 4
2.3.3 External Voltage Control……………………………………………………….... 4
2.4 High Voltage Monitor……………………………………………………. 4
2.5 Output Current Monitor………………………………………………….. 4
2.6 Trip Unit…………………………………………………………………. 4
2.7 Input/Control/Monitor Connections……………………………………… 5
III. PROGRAMMING OPTIONS
3.1 General…………………………………………………………………… 5
3.2 Standard Mode…………………………………………………………… 6
3.3 -5 Volt Programming Mode (for 0-100% output voltage)………………. 6
3.4 -5 Volt Programming Mode (for 0-103% output voltage)………………. 6
3.5 Series 612C -5 Volt Programming Mode……………………………….. 6
IV. CIRCUIT DESCRIPTION
4.1 Functional Description…………………………………………………… 8
V. MAINTENANCE
5.1 General…………………………………………………………………… 8
5.2 Cleaning………………………………………………………………….. 8

600 SERIES MANUAL 2 118118-001 Rev A
SECTION I –
INTRODUCTION/SPECIFICATIONS
1.0 SCOPE OF MANUAL
This manual is provided to assist the user in
the installation and operation of the Bertan
Series 602C, 603C, 605C, 606C and 612C
modular high voltage power supplies.
Statements will apply to models in all of the
Series unless reference is made to specific
models. For the protection of personnel and
equipment, it is essential that this manual
be thoroughly read prior to the installation
and application of power.
1.1 PURPOSE OF EQUIPMENT
The Series 602C, 603C, 605C, 606C and
612C are families of regulated fixed output
polarity modular high voltage power
supplies. They provide exceptional
performance in applications such as CRT’s
spectrometers, detectors, medical imaging,
image intensifiers, E-Beam, I-Beam,
medical imaging and capillary
electrophoresis (HPCE) systems.
1.2 DESCRIPTION
The units are fully enclosed and designed to
easily satisfy system or bench top
operation. A wide range of stable output
voltages, up to 30kV are available. The
output voltage is controlled locally by a
minimum 15-turn potentiometer. Remote
analog voltage of resistance programming is
also available to the user as a standard
feature. All units offer a 0 to +5Vdc analog
monitor output proportional to the output
current.
The Series 602C, 603C and 612C require
an input of 115/230Vac (switch selectable)
+10%, 50-60Hz. The Series 605C and 606C
require a +28Vdc +10% input (or +24Vdc
±10% for units equipped with +24V Option).
Each unit in the Series converts the applied
power to a high voltage DC output. This
output voltage is highly regulated and
filtered. The high voltage assembly is fully
encapsulated in silicone rubber for reliable,
arc-free, stable operation.
HV Connector: SERIES 602C, 603C, 605C 606C
MODEL HV OUTPUT
CONNECTOR
MATING HV
CONNECTOR
602C
-15 P, N thru -50 P, N UG-931/U (MHV) UG-932/U (Bertan PDB)
603C & 606C
-15 P, N thru -50 P, N KINGS 1707-1 (SHV)
1705-1
Bertan PAE)
All 605C and all
-100 P, N and -150 P, N 8101FP
8101M
(Bertan PGC-008L151-000)
All –200P,N 8101FP
8101M
(Bertan PGC-008L1 51-000)
All –300P,N 8111SFP
8111M
(Bertan PGQ-008L201 -000)
Only the mating connectors for the 8101 FP
and 8111 SFP (assembled to an unshielded
high voltage cable) are provided. For other HV
mating connectors order separately.

600 SERIES MANUAL 3 118118-001 Rev A
The appropriate mating connector kit is provided
with each Series 612C unit. For pre-assembled
high voltage cables, please consult factory.
Size and Weight
SERIES 612C
MODEL HV OUTPUT MATING HV
CONNECTOR CONNECTOR
KIT
612C-200 JJA 405787
612C-300 JJA 405787
612C-500 JJB 405786
SERIES
SIZE
H” x W” x D”
(
mm
)
WEIGHT
Lbs
(
k
g)
602C 5.03 x 3.06 x 8.66 6.75
(1 25 x 78 x 220) (3.1)
603C 5.00 x 5.50 x 8.50 8.0
(127 x 140 x 216) (3.64)
605C 5.04 x 2.75 x 4.75 3.2
(128 x 70 140 x 114)(1.45)
606C 5.00 x 5.50 x 4.50 3.5
(127 x 140 x 114) (1.6)
612C 4.88 x 8.38 x 9.75 9
(124 x 213 x 248) (4.1)

600 SERIES MANUAL 4 118118-001 Rev A
SECTION II – OPERATION
CAUTION: THIS UNIT CAN STORE
HAZARDOUS VOLTAGE! COMPLETELY
DISCHARGE THE HIGH VOLTAGE TO
GROUND BEFORE ATTEMPTING
REMOVAL OF THE HIGH VOLTAGE
CABLE.
2.1 INSTALLATION
All power supplies can be mounted in any
position using the tapped holes in the base
plate. The mounting screws should extend
no more than ¼” into the unit. Series 602C
and 605C require #8-32 mounting screws.
Series 603C, 606C, and 612C require #10-
32 mounting screws.
2.2 INPUT POWER
Input power is applied via the 3-terminal
terminal strip for the Series 602C, 603C,
and 612C or via the 9-pin connector for the
Series 605C and 606C. The terminal or pin
connections are as listed in Section 2.7.
CAUTION: APPLICATION OF INPUT
POWER CAN IMMEDIATELY PRODUCE
A HIGH VOLTAGE OUTPUT!
2.3 HIGH VOLTAGE CONTROL
There are three modes of controlling the
high voltage. The use can select mode by
making appropriate connections via the 9-
pin Molex connector. All modes provide high
voltage control from 0 to 100% (± 0.5%).
2.3.1 INTERNAL POTENTIOMETER
CONTROL
See Section 2.7 for hook-up information.
This will allow control of the high voltage
output by means of the multi-turn
potentiometer accessible via a hole in the
cover.
2.3.2 EXTERNAL POTENTIOMETER
CONTROL
See Section 2.7 for hook-up information.
Connecting an external potentiometer
(recommended value of 5kW) will control
the high voltage output independently of the
internal potentiometer setting.
2.3.3 EXTERNAL VOLTAGE CONTROL
See Section 2.7 for hook-up information.
The output high voltage can be controlled
by a 0 to +5Vdc analog signal.
2.4 HIGH VOLTAGE MONITOR
See Section 2.7 for hook-up information. A
0 to +5Vdc analog signal, which is
proportional to the output high voltage. The
monitor has a series impedance of 10kW.
2.5 OUTPUT CURRENT MONITOR
See Section 2.7 for hook-up information. A
0 to +5Vdc analog signal, which is
proportional to the output current. The
monitor has a series impedance of 10kW.
2.6 TRIP UNIT
See Section 2.7 for hook-up information. It
provides the user with a means of remote
turn ON/OFF. This input requires a contact
closure to ground to turn off the high
voltage. A NPN open collector transistor
logic can also be employed. When no
connection is made to this input the high
voltage is enabled.

600 SERIES MANUAL 5 118118-001 Rev A
2.7 INPUT/CONTROL/MONITOR
CONNECTIONS
INPUT POWER CONNECTIONS SERIES
602C/603C/612C ONLY
TERMINAL FUNCTION
1 115/230Vac Input
2 Neutral
3 Ground
CONTROL AND
MONITORING CONNECTIONS
ALL MODELS
P2/PIN# FUNCTION
3 Ground
4 Program Input
5 +5Vdc Reference
6 kV Monitor
7 Current Monitor
8Trip (Short to Gnd)
9 Internal Program
INPUT POWER CONNECTIONS SERIES
605C/606C ONLY
P2/PIN# FUNCTION
1 +Vcc Return
2 +Vcc Input

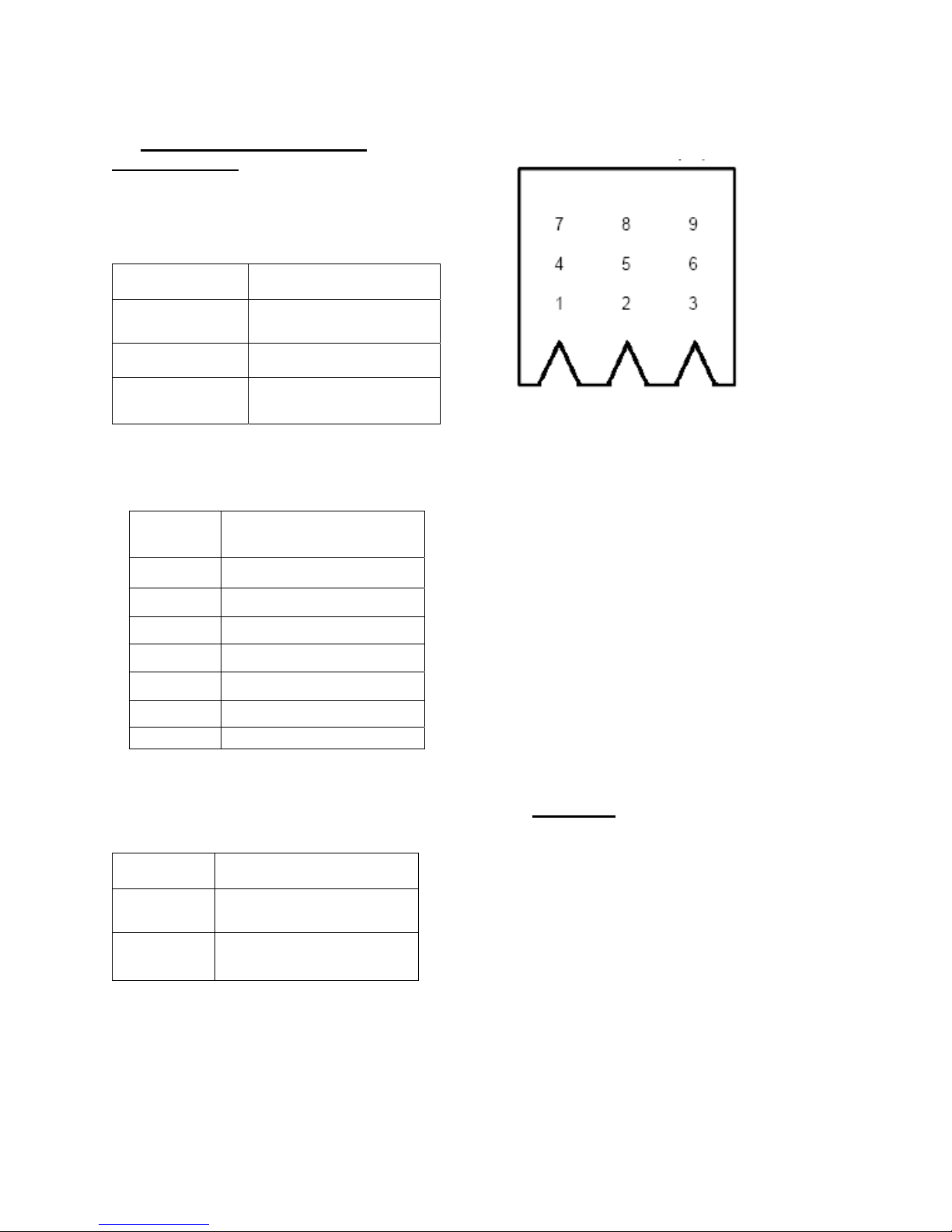

PIN LAYOUT INPUT/CONTROL/MONITOR
CONNECTOR (P2)
Note: To obtain local control using the
internal potentiometer accessible at the top
of the unit, jumper P2 pin 4 to pin 9.
For remote potentiometer control connect the
remote potentiometer as follows:
CW terminal to P2 pin 5
CCW terminal to P2 pin 3
Wiper terminal to P2 pin 4
For remote 0 to +5V voltage programming,
apply the input program voltage to P2 pin 4.
For remote TRIP connect P2 pin 8 to P2 pin
3
SECTION III PROGRAMMING OPTIONS
3.1 GENERAL
To provide additional flexibility and
compatibility with earlier models, provision
has been included to allow voltage
programming of all models with a 0 to –5
Volt programming input. There are four
different jumper-selectable modes for
programming. The jumpers for selecting the
required operating mode are located on
PCB100 (the large PCB), easily accessible
upon removal of the cover. Jumper
locations are shown below in Table III-1.
The four modes are described below. The

600 SERIES MANUAL 6 118118-001 Rev A
first three modes apply to all Series 602C,
603C, 605C, 606C and 612C units. The last
mode applies only to the Series 612C and is
included only with Series 612C units
ordered with the –5VPRO option.
3.2 STANDARD MODE
The unit is shipped in this configuration and
operation is as described in the previous
sections of this instruction manual. The unit
can be controlled using the internal pot or
programmed with a remote 0 to +5 Volt
signal or controlled with a remote
potentiometer.
3.3 -5 VOLT PROGRAMMING (for 0 to
100% output voltage) MODE
To achieve this operation the jumpers on
PCB100 must be configured as shown in
the chart below. In this mode the
programming signal is applied to P2 pin 4,
same as for Standard Mode, only now a 0 to
–5 Volt programming input is required to
achieve 0 to 100% output voltage
programming. No jumpers should be
attached to P2, the external connector. In
this mode there is no internal control, the
internal potentiometer is bypassed.
3.4 -5 VOLT PROGRAMMING (for 0 to
103% output voltage) MODE:
To achieve this operation the jumpers on
PCB100 must be configured as shown in
the chart below. In this mode the
programming signal is applied to P2 pin 4,
same as for Standard Mode. No jumpers
should be attached to P2, the external
connector.
In this mode the internal potentiometer is
used to control the maximum programmed
output voltage at –5 Volt programming
input. With the potentiometer fully
clockwise, the output will be 0 to 103% of
maximum for a 0 to –5 Volt input. With the
potentiometer turned up approximately half
way, a 0 to –5 Volt input will produce a 0 to
approximately 50% of maximum output
voltage.
This mode is included to provide exact
compatibility with some previous units. It
also provides the user with a controllable
upper limit on the programmed output for an
input of –5 Volts.
3.5 SERIES 612C –5 VOLT
PROGRAMMING MODE
Series 612C units ordered with the –5VPRO
(-5 Volt Programming) option, include an
extra 5 pin hexagonal connector (J3). The
connector contains additional monitor
outputs and a 0 to – 5 Volt programming
input. This option provides compatibility with
earlier Series 612C models when used with
–5 Volt programming. The mating connector
for J3 is included and J3 connections are
shown below in Table III-2.
In this mode the programming signal is
applied to J3 pin A. A 0 to –5 Volt
programming input is required to achieve 0
to 100% output voltage programming. No
jumpers should be attached to P2, the
external connector. In this mode there is no
internal control, the internal potentiometer is
bypassed.

600 SERIES MANUAL 7 118118-001 Rev A
TABLE III-1 PCB 100 JUMPER
POSITIONS
STANDARD MODE:
Jumper pins 1 to 3, pins 5 to 7
3.3 -5 VOLT PROGRAMMING (for 0 to
100% output voltage) MODE: Jumper pins 1
to 2, pins 3 to 4
3.4 -5 VOLT PROGRAMMING (for 0 to
103% output voltage) MODE: Jumper pins 1
to 2, pins 3 to 5, and pins 6 to 8
3.5 ERIES 612C –5 VOLT
PROGRAMMING MODE: Jumper pins 3 to
5, pins 4 to 6, and pins 7 to 8
TABLE III-2 J3 PIN CONNECTIONS
(Series 612C Option –5VPRO only)
PIN A: 0 to –5Volt programming input
PIN B: NC
PIN D: Output voltage monitor (0 to +5V for
0 to maximum HV output) PIN E: GND
PIN H: Output current monitor (0 to +5V for
0 to maximum current out)
