SPIERINGS AT3 User manual

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
I

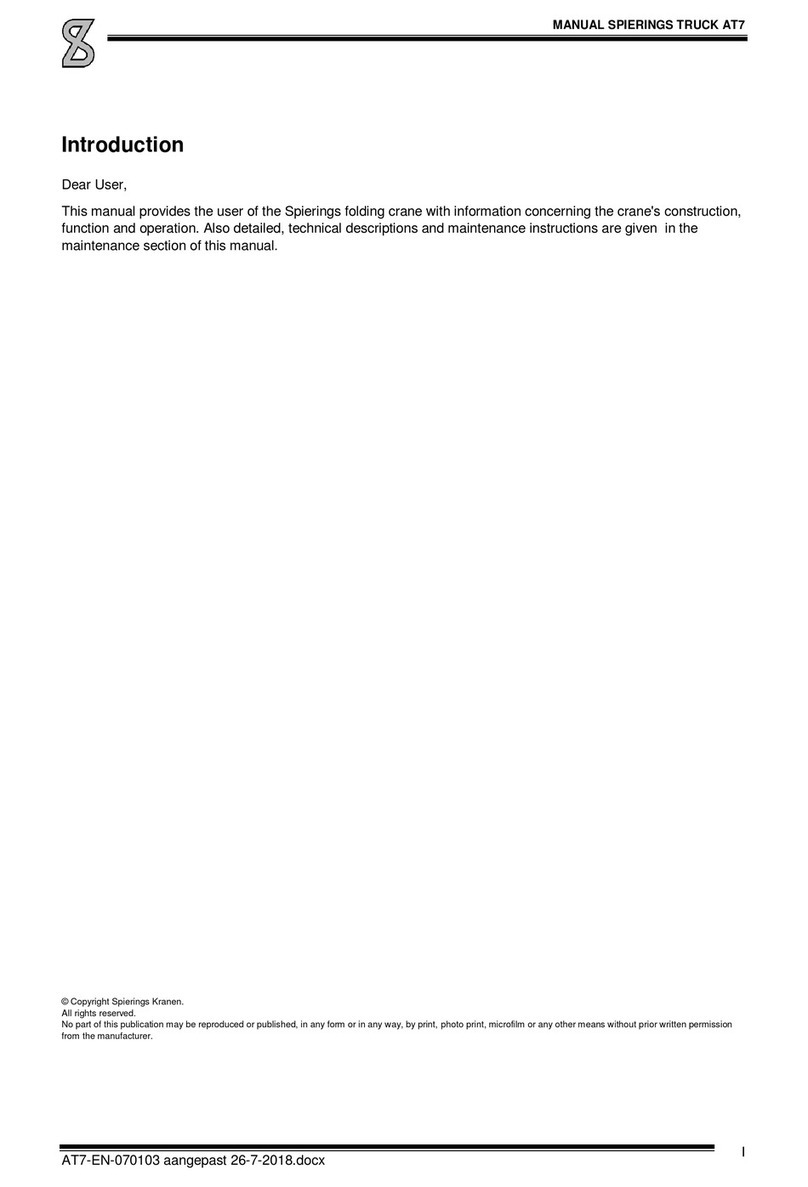

Preface
Dear user,
This operating manual provides the user of the Spierings folding crane with information concerning the crane's
construction and operation. You will find detailed technical specifications and maintenance instructions in the
maintenance part of this manual.
© Copyright Spierings Cranes.
All rights reserved.
No part of this publication may be reproduced or published, in any form or in any way, by print, photo print, microfilm or any other means without prior permission from the
manufacturer.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
II
Liability clause
SECTION 1. OPERATION
1.1 The Spierings truck may only be used for the purpose it was manufactured and designed for and only as
described in the user manual or in the additions to it.
1.2 Any use of the Spierings truck that differs from its design purpose or as described in the use manual or
the additions to it, will cause the product warranty and the manufacturer’s liability, for any direct or
indirect damage, to expire.
1.3 Only qualified, skilled personnel are allowed to operate the truck. The driver should have a special
driving license for driving heavy vehicles. The driver/operator must be in good physical and mental
health, so that he/she is able to carry out the work without restrictions and react with responsibility in all
given situations.
1.4 The driver/operator/user of the Spierings truck should be informed immediately of any additions/changes
to the user manual.
SECTION 2. SAFETY
2.1 For safety reasons the driver/operator/user should carry out all operations as stated in the user manual
or in the additions to it.
2.2 If more stringent safety demands are locally placed on the truck/crane than specified in the Spierings
truck user manual or additions to it, these more stringent requirements must be strictly complied with. If
not, all warranty will expire and the manufacturer will not be liable for any damage or costs.
2.3 The Spierings truck manufacturer points out explicitly, that the driver/operator/user and local personnel
should not enter the cranes/trucks danger zone. If, for any reason or cause, an unexpected situation
occurs during operation one should contact the technical department or Spierings Service department
first before proceeding.
SECTION 3. WARRANTY
3.1 It is prohibited to carry out modifications or welding to the Spierings truck without prior written permission
of the manufacturer of the Spierings truck.
3.2 Frequent maintenance and periodic checks should be carried out in accordance with the user manual, or
in the additions to it. If maintenance or checks are carried out otherwise, or less frequent, without prior
written permission of the manufacturer of the Spierings truck, all warranty will expire and any liability, for
direct or indirect damage, is explicitly excluded.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
III

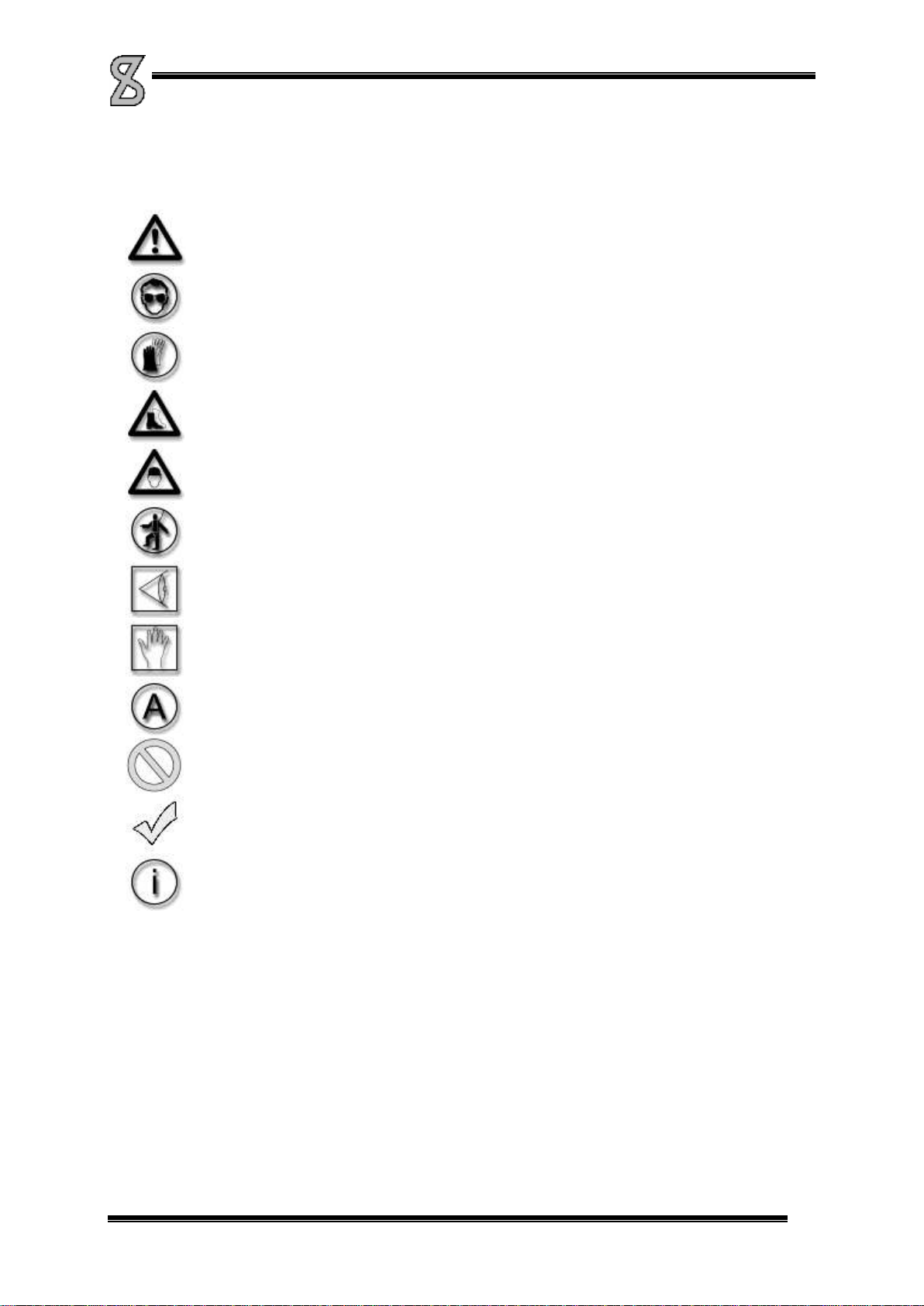

Explanation of the symbols used
CAUTION!
Wear safety goggles!
Wear safety gloves!
Wear safety boots!
Wear head protection!
Use safety belt!
Check!
Manual action!
Automatic action!
Wrong!
Right!
Information!

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
IV
Index
PREFACE ................................................................................................................................................................ I
LIABILITY CLAUSE................................................................................................................................................ II
EXPLANATION OF THE SYMBOLS USED.......................................................................................................... III
INDEX ....................................................................................................................................................................IV
1. GENERAL DATA AT3.............................................................................................................................. 1-1
2. OPERATION............................................................................................................................................. 2-1
2.1. Get to know the truck .................................................................................................................. 2-1
2.2. Truck cabin.................................................................................................................................. 2-4
2.2.1. Getting in....................................................................................................................... 2-4
2.2.2. Doors............................................................................................................................. 2-4
2.2.3. Wing mirrors.................................................................................................................. 2-4

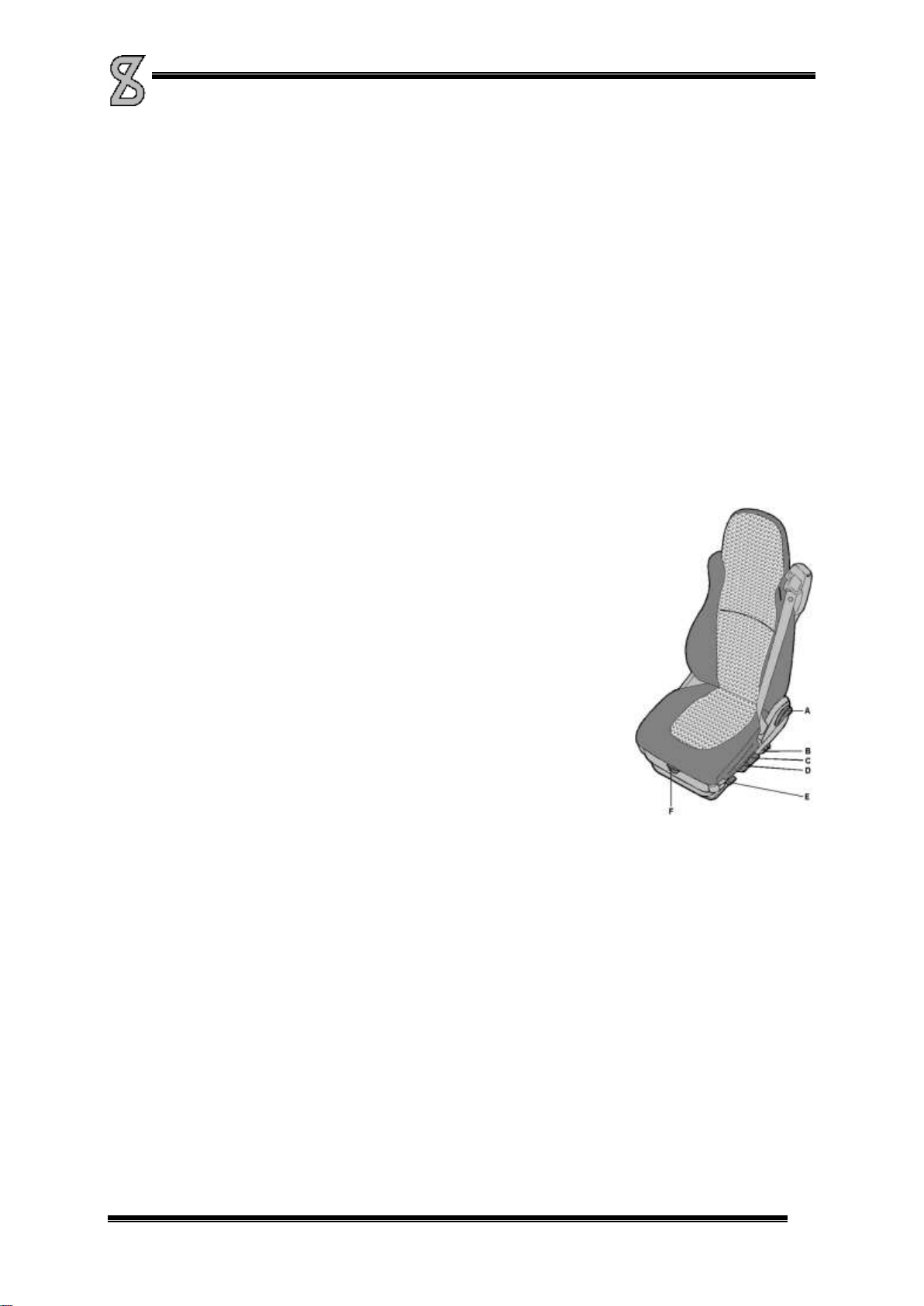

2.2.4. Seats ............................................................................................................................. 2-4
2.2.5. Safety belts.................................................................................................................... 2-4
2.2.6. Storage room................................................................................................................. 2-4
2.2.7. Sun blind ....................................................................................................................... 2-5
2.2.8. Fuse box........................................................................................................................ 2-5
2.2.9. Windscreen washer reservoir........................................................................................ 2-5
2.2.10. Battery charger remote control batteries ..................................................................... 2-5
2.2.11. Fire extinguisher.......................................................................................................... 2-5
2.3. Control panel............................................................................................................................... 2-6
2.4. Driving the Spierings crane....................................................................................................... 2-14
2.4.1. Starting........................................................................................................................ 2-15
2.4.2. Turning off the engine.................................................................................................. 2-15
2.5. Driving on the road.................................................................................................................... 2-15
2.6. Brakes....................................................................................................................................... 2-16
2.6.1. Operating brake........................................................................................................... 2-16
2.6.2. Parking brake .............................................................................................................. 2-16
2.6.3. Vacuum brake ............................................................................................................. 2-16
2.6.4. Braking with the retarder (optional).............................................................................. 2-17
2.7. Retarder/ESC/CC...................................................................................................................... 2-17
2.7.1. Retarder ...................................................................................................................... 2-17
2.7.2. The Bremsomat........................................................................................................... 2-18
2.7.3. Cruise control (CC)...................................................................................................... 2-18
2.7.4. Variable vehicle speed limit......................................................................................... 2-19
2.7.5. Speed control (ESC).................................................................................................... 2-19
2.8. Driving off the road.................................................................................................................... 2-20
2.8.1. All terrain mode transfer case...................................................................................... 2-20
2.8.2. Longitudinal differential lock ........................................................................................ 2-20
2.8.3. Transverse differential lock.......................................................................................... 2-21
2.9. Parking...................................................................................................................................... 2-21
2.10. Axle height adjustment.............................................................................................................. 2-22
2.10.1. Levelling (S)............................................................................................................... 2-22
2.10.2. Driving (T).................................................................................................................. 2-23
2.10.3. Suspension blocking (T)............................................................................................ 2-23
2.10.4. Off the road mode...................................................................................................... 2-23
2.11. Independent rear axle steering.................................................................................................. 2-23
2.12. Driving with erected tower......................................................................................................... 2-23

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
V
2.13. Driving with a trailer................................................................................................................... 2-24
2.14. Towing the crane....................................................................................................................... 2-24
2.14.1. Towing when the diesel engine can still run .............................................................. 2-24
2.14.2. Towing when the diesel engine is out of order........................................................... 2-25
3. MAINTENANCE........................................................................................................................................ 3-1
3.1. General ....................................................................................................................................... 3-1
3.1.1. Clothing ......................................................................................................................... 3-1
3.1.2. Surroundings................................................................................................................. 3-1
3.1.3. Diesel engine................................................................................................................. 3-1
3.1.4. Moving parts.................................................................................................................. 3-1
3.1.5. Oils and coolant............................................................................................................. 3-2
3.1.6. Environment .................................................................................................................. 3-2
3.1.7. Refreshing oil/cooling system........................................................................................ 3-2
3.1.8. Fire-risk ......................................................................................................................... 3-2
3.1.9. Cleaning of components................................................................................................ 3-2
3.2. Maintenance plan AT3 truck........................................................................................................ 3-3
4. DIESEL ENGINE....................................................................................................................................... 4-1
4.1. Services in the first period of use................................................................................................ 4-1
4.2. Access to the diesel engine......................................................................................................... 4-2
4.3. Engine oil .................................................................................................................................... 4-2
4.3.1. Check oil level ............................................................................................................... 4-2
4.3.2. Fill up engine oil............................................................................................................. 4-3
4.3.3. Engine oil change.......................................................................................................... 4-3
4.4. Engine oil filter............................................................................................................................. 4-4
4.4.1. Oil filter replacement...................................................................................................... 4-4
4.5. Cooling system............................................................................................................................ 4-5
4.5.1. Check coolant level ....................................................................................................... 4-5
4.5.2. Fill up coolant ................................................................................................................ 4-6
4.5.3. Change coolant ............................................................................................................. 4-6
4.5.4. Anti-freeze..................................................................................................................... 4-7
4.5.5. Radiator and intercooler ................................................................................................ 4-7
4.6. Air inlet system............................................................................................................................ 4-8
4.6.1. Cleaning the air filter...................................................................................................... 4-8
4.6.2. Air cleaner cartridge replacement.................................................................................. 4-9
4.7. Fuel system................................................................................................................................. 4-9
4.7.1. Replace fuel filter........................................................................................................... 4-9
4.8. Fuel filter/water separator.......................................................................................................... 4-11
4.8.1. Drain the water separator............................................................................................ 4-11
4.8.2. Fuel filter/water separator replacement ....................................................................... 4-12
4.9. V-belts....................................................................................................................................... 4-12
4.9.1. V-belts inspection........................................................................................................ 4-12
4.9.2. V-belt adjustment......................................................................................................... 4-13
4.9.3. Gear belt check ........................................................................................................... 4-14
4.9.4. Gear belt adjustment................................................................................................... 4-15
4.10. Exhaust system......................................................................................................................... 4-15
4.11. Valve clearance check and adjustment..................................................................................... 4-16
5. DRIVE LINE.............................................................................................................................................. 5-1
5.1. Gearbox ...................................................................................................................................... 5-1
5.1.1. Maintenance gear box................................................................................................... 5-2
5.1.2. Check oil level of the gear box....................................................................................... 5-2
5.1.3. Gear box oil change ...................................................................................................... 5-3

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
VI
5.2. Transfer case.............................................................................................................................. 5-3
5.2.1. Maintenance transfer case ............................................................................................ 5-4
5.2.2. Check oil level transfer case.......................................................................................... 5-4
5.2.3. Transfer case oil change ............................................................................................... 5-5
5.3. Axles ........................................................................................................................................... 5-5
5.3.1. Maintenance axles......................................................................................................... 5-6
5.3.2. Check oil level differentials............................................................................................ 5-6
5.3.3. Differential oil change.................................................................................................... 5-7
5.3.4. Check oil level hubs....................................................................................................... 5-7
5.3.5. Hubs oil change............................................................................................................. 5-8
5.4. Tires............................................................................................................................................ 5-8
5.4.1. Maintenance tires.......................................................................................................... 5-8
5.4.2. Tire pressure ................................................................................................................. 5-8
5.5. Check the brake lining thickness................................................................................................. 5-9
5.5.1. Brakes ........................................................................................................................... 5-9
5.6. Clutch.......................................................................................................................................... 5-9
5.6.1. Checking the clutch....................................................................................................... 5-9
5.6.2. Venting the clutch........................................................................................................ 5-10
5.6.3. Clutch fluid change...................................................................................................... 5-11
6. STEERING SYSTEM................................................................................................................................ 6-1
6.1. Check the steering system.......................................................................................................... 6-2
6.2. Align the steering system............................................................................................................ 6-2
7. ELECTRICAL SYSTEM............................................................................................................................ 7-1
7.1. Lighting........................................................................................................................................ 7-1
7.2. Dashboard lighting ...................................................................................................................... 7-1
7.3. Batteries...................................................................................................................................... 7-2
7.3.1. Check the batteries........................................................................................................ 7-2
7.3.2. Recharging the batteries ............................................................................................... 7-2
7.3.3. Replacing batteries........................................................................................................ 7-3
8. HYDRAULIC SYSTEM ............................................................................................................................. 8-1
8.1. Check oil level hydraulic tank...................................................................................................... 8-1
8.2. Hydraulic oil change.................................................................................................................... 8-1
8.3. Hydraulic return filter change ...................................................................................................... 8-2
8.3.1. Hydraulic return filter ..................................................................................................... 8-2
8.4. Check the suspension’s accumulators ........................................................................................ 8-2
8.5. Hoses and connections hydraulic system ................................................................................... 8-3
9. PNEUMATIC SYSTEM ............................................................................................................................. 9-1
9.1. Primary system: brake system.................................................................................................... 9-1
9.2. Secondary system: accessories and gearbox............................................................................. 9-1
9.3. Air dryer....................................................................................................................................... 9-2
9.3.1. Air dryer filter change .................................................................................................... 9-2
9.4. Air vessels................................................................................................................................... 9-3
9.5. Air lubricator/water separator...................................................................................................... 9-3
9.5.1. Refill air lubricator.......................................................................................................... 9-4
9.5.2. Water separator............................................................................................................. 9-4
9.6. Check brake pressure................................................................................................................. 9-4
9.7. Hoses and connections pneumatic system................................................................................. 9-4
10. LUBRICATION........................................................................................................................................ 10-1

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
VII
10.1. Central lubrication system (Option)........................................................................................... 10-1
10.1.1. Timer central lubrication system................................................................................ 10-1
10.1.2. Grease reservoir central lubrication system .............................................................. 10-1
10.1.3. Greasing points central lubrication system................................................................ 10-2
10.2. Manual lubrication..................................................................................................................... 10-3
10.2.1. Outrigger beam cylinders .......................................................................................... 10-3
10.2.2. Driven axles............................................................................................................... 10-3
10.2.3. Cardan shafts............................................................................................................ 10-4
10.2.4. Steering system......................................................................................................... 10-4
11. VARIOUS................................................................................................................................................ 11-1
11.1. Window washer fluid ................................................................................................................. 11-1
11.2. Fire extinguisher........................................................................................................................ 11-1
12.TECHNICAL DATA................................................................................................................................. 12-1
13. ENCLOSURES ....................................................................................................................................... 13-1

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
1-1
1. General data AT3
The AT3 carriage is especially designed for the Spierings SK377 folding crane. Extra attention is paid to a smooth
and comfortable transport to the work site. The crane is suited for driving on public roads, fully equipped with
counterweight and tools. The chassis is an especially rigid structure to create a good crane support.
In Picture 1-1 you will find the measurements of the SK377 with the AT3 carriage. The dimensions given are the
overall dimensions, axle bases and turning circle.

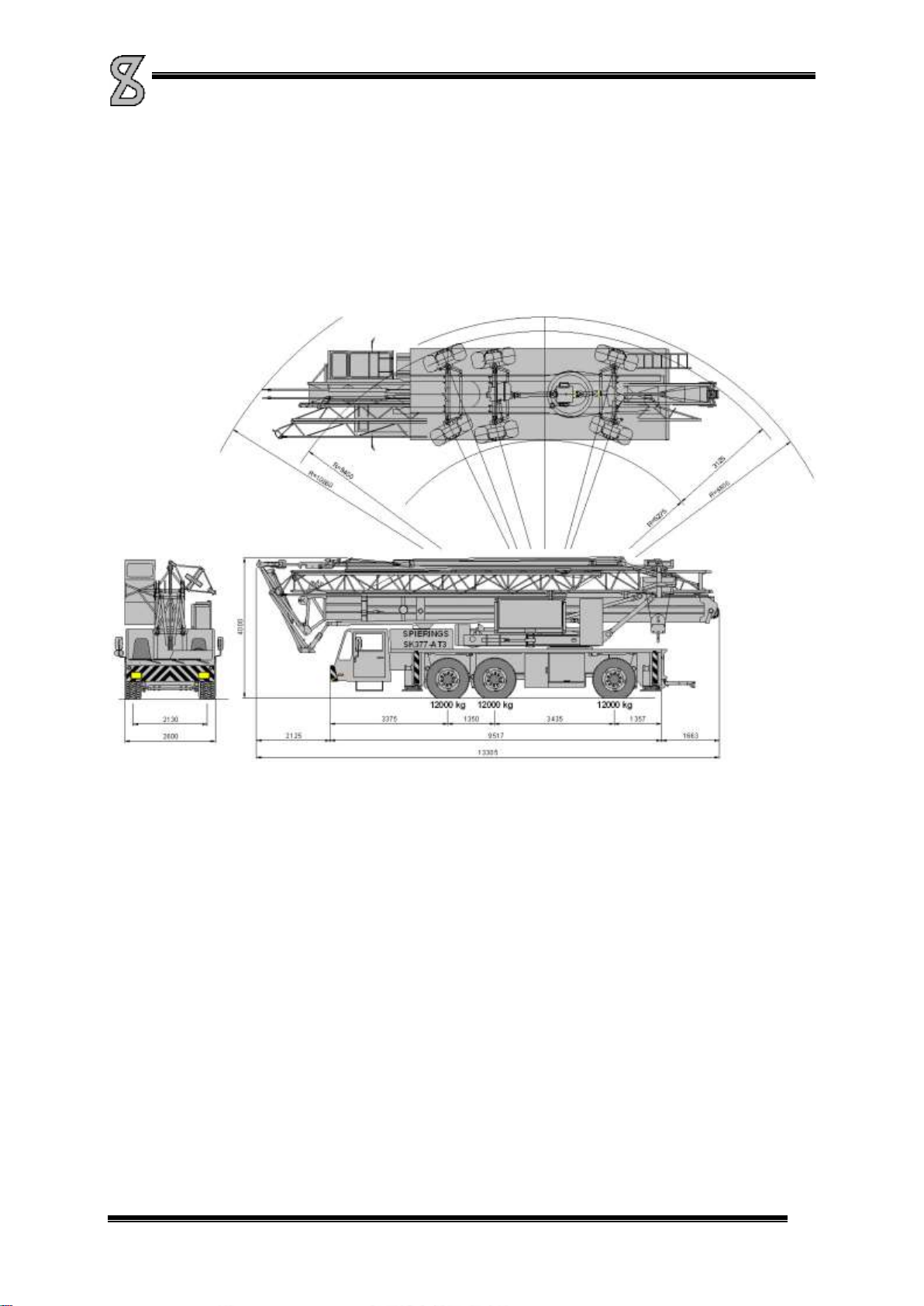

Picture 1-1
Measurements:
•Length: 13,5m
•Width: 2,6m
•Height: 4m
Drive unit:
•9.6 litres DAF diesel engine with turbo compressor and intercooler (type PE 265C).
•ZF gearbox with 16 gears forward and two gears reverse.
•STEYR high/low gear shift, transfer case, with high speed (road) and low speed (off the road) transmission.
•Three Ginaf axles, where axles one and three are driven.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
1-2
Steering:
•All axles are steered.
•Mechanically coupled steering, where axle three is steered in the opposite direction of axle one and two,
realizing a small turning circle.
•Hydraulically powered 2-circuit steering system.
•Fitted with an emergency steering pump, so when the main steering pump malfunctions, the truck remains
steerable until it is at a standstill.
•Provisions for driving off the road:
- axle height adjustable
- high/low gear shift transfer case can be put in low gear for driving off the road
- longitudinal and transverse differentials can be locked
•Electronic gas pedal "ESC” with speed control.
Suspension:
•Hydro-pneumatic suspension.
•The suspension can be blocked (e.g. when driving with erected tower).
Braking system:
•Pneumatic brakes with anti-blocking system (ABS)..
4 point outrigger system:
•Wide support base: 6,9m x 6,4m
•Narrow support base: 6,9m x 4,8m
Power supply:
When there is no separate diesel engine on the superstructure, the crane can be supplied with power in two
different ways:
•External construction power-supply 40 kVA during rigging up/rigging down, 40 kVA during operation.
•The truck built-in Leroy Somer 70 kVA generator for power supply to the crane when (sufficient) external
power is lacking.
Further data:
•Maximum speed limited to 85 km/h
•Minimum speed at 1000 rpm: 1,8 km/h (is 30 m/min)
•Truck weight including crane 36,000 kg
•The axle load is 12,000 kg per axle

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
1-3

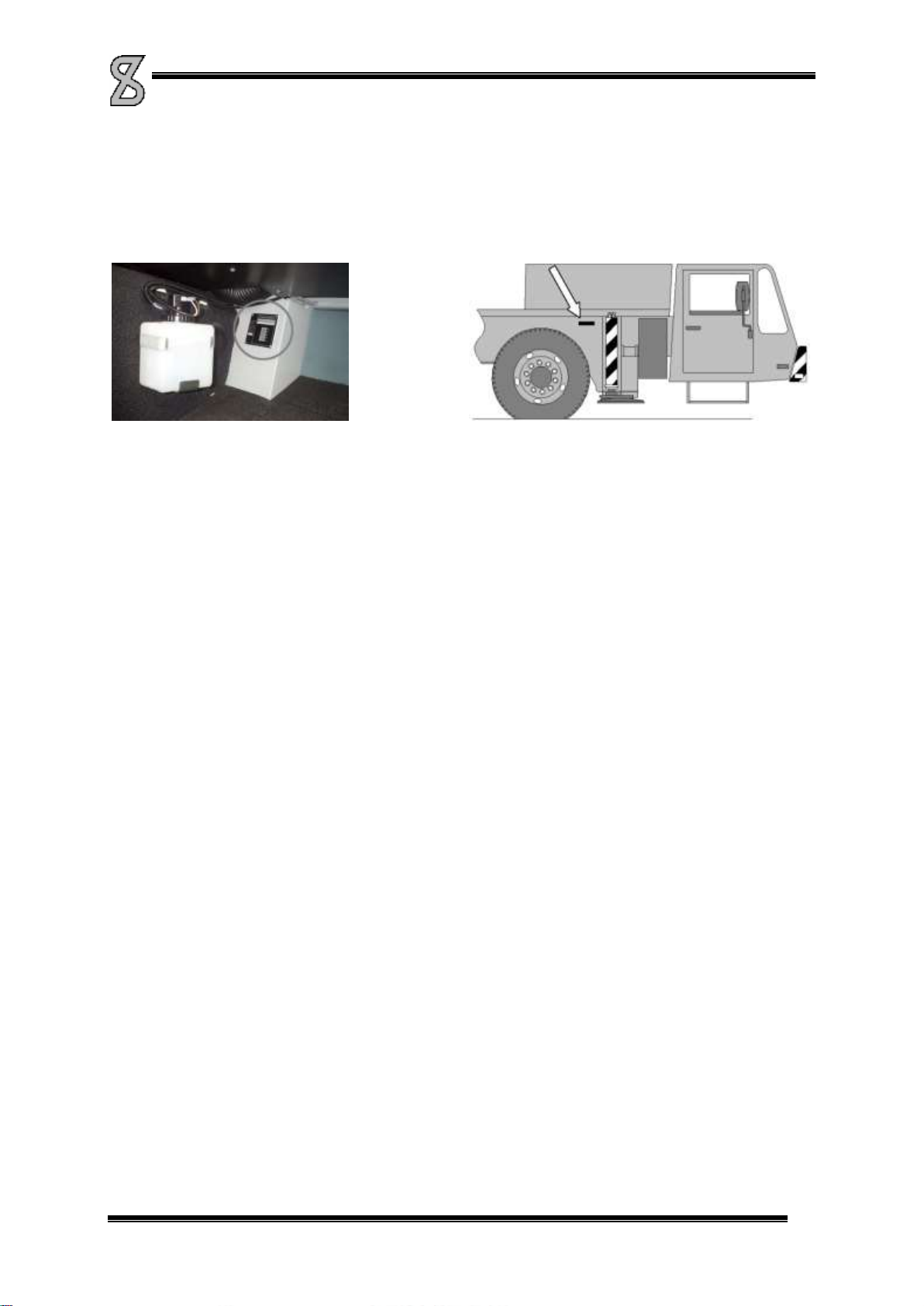

Identification numbers:
•Engine number: left-hand front on the engine block below the cylinder head rim.
•Vehicle identification number: on the identification plate in the co-driver's leg-room (see Picture 1-2) and
stamped in the right frame girder in front of the first axle (see Picture 1-3)
Picture 1-2
Picture 1-3

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
2-1
2. Operation
2.1. Get to know the truck
Picture 2-1
1. Truck cab
Besides driving the crane, with the controls in the truck cab you can among other things support the crane on
outriggers and adjust the carriage axle height.
2. Spare tyre/sling box/pallet hook support/hullo clamp support (optional)
On this location you can install one of the following options:
•Spare tyre support. The spare tyre support is fitted with a winch and is mounted on a swing frame. When you
swing the frame out you can lower the spare tyre with the winch.
•Sling box
•Pallet hook support
•Hullo clamp support
3. Storage boxes
There are toolboxes on the left as well as on the right side of the carriage between the middle and rear axle.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
2-2
4. Storage box/power box
When the crane does not have a diesel superstructure engine, you will find the power-box on the right-hand side
of the carriage next to the fuel tank.
With the selector switch on the power-box, the power supply for the crane is selected. Either an external power
supply can be connected to this power box, or the built-in generator supplies the power. Power can also be
branched off for accessory equipment
5. Outriggers
At both sides of the truck there are 2 extending outrigger beams, and to each beam a hydraulically operated
outrigger (see Picture 2-2). These outriggers provide stability during hoisting operation. The outrigger beams have
an antiskid coating to prevent skidding. The outrigger pad holders can be used to facilitate stepping on the
outrigger beam.
With a separate (remote) control box the outriggers can be radio controlled. On the rear outrigger beams are
levels to check if the crane set-up is level.
Picture 2-2
6. Storage room support plates
To obtain a solid support base on a week ground, support plates can be used. Under the toolbox as well as under
the fuel tank there are 2 support plates each. (Or three in combination with steel support frames)
7. Toolbox at the rear (optional)
For extra storage room a toolbox can be mounted all along the rear of the truck.
8. Bumper
The crane has a standard bumper at the rear. When the bumper is folded up, the towing hook can be used (refer
“Driving with a trailer”).
9. Jib turning pipe
Through a hole in the deck you can reach the jib turning pipe. This pipe is used to swing the jib in front of the
tower during erecting and folding the crane.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
2-3
10. Work lamps
To the rear of the cab and truck are mounted work lamps, which can be
switched on/off from the cab.
By unscrewing the knob, the lamp support can be moved to the left and
right (see Picture 2-3).
Picture 2-3
11. Hydraulic tank/battery box
Underneath the engine cowling on this side of the truck is located
the hydraulic tank, (see Picture 2-4, 3) with filter (2), the air filter
(1), the air dryer (2) and batteries (5).
12. Fuel tank
The fuel tank’s capacity is 400 litres.
Picture 2-4
13. Truck ladder
To facilitate getting on the truck a ladder is mounted at the left-hand side of the
truck. Pick up the free end of the ladder so the pin comes out of the deck (see
Picture 2-5) and swing the ladder outside the frame. When swinging back the
ladder, make sure the pin returns in the hole.
Picture 2-5
14. Concrete bucket/brick gripper support (optional)
15. On the bumper a support can be mounted to carry a concrete bucket or a brick gripper.
16. Rear-/side view cameras (optional)
To broaden your view at the rear and right-hand side of the truck cameras can be installed. In the cab a monitor is
installed, showing the camera view.
Standard, the view of the side camera is shown. When putting the transmission in reverse, the monitor
automatically switches over to rear camera view.
17. Central lubrication system (optional)
This is the grease reservoir for the truck's optional central lubricating system.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
2-4
2.2. Truck cabin
In the truck cab you drive the crane safely and comfortably to its destination. This chapter makes you familiar with
the cab.
2.2.1. Getting in
Use the step under the door. Make use of the steering wheel to hold on to.
2.2.2. Doors
Turn the handle up to open the door from the inside. The door can only be locked up from the outside.
There is an ashtray on the inside of the door. After opening the ashtray, you push the locking device down to
remove the ashtray from the holder to empty it.
The windows can be electronically operated by means of the switches on the dashboard.
2.2.3. Wing mirrors
The wing mirrors may be adjusted by hand. Make sure the mirrors are adjusted before driving off, so that you
have satisfactory view. The mirror heating can be switched on with the switch on the control panel.
2.2.4. Seats
The cab has room for the driver and a co-driver. The driver's seat has pneumatic
suspension. The seats' position can be adjusted. This should only be done when
the vehicle stands still.
A) Back adjustment
B) Lumbar support adjustment (push = pumping up an pull = deflating)
C) Height adjustment (pulling the handle = up and pushing it = down)
D) Tipping the seat
E) Handle fast lowering
F) Adjustment seat
Picture 2-6
2.2.5. Safety belts
The seats are fitted with safety belts. Driver and co-driver must wear them when driving. Do not modify the belt or
its attachment by yourself. Regularly check its operation by jerking the belt from its winding mechanism. The belt
must lock when doing this. Have the locking device repaired or replaced when it does not function properly. When
the belt was heavily loaded during a collision, it must be completely replaced, even if it looks like there is nothing
wrong with it.
2.2.6. Storage room
In the middle of the cab ceiling is a storage compartment. It has a lockable lid at the driver's side and at the side
of the co-driver. There is another storage compartment at the co-driver's side in the dashboard.

MANUAL SPIERINGS TRUCK AT3
AT3-EN-040930 verbeterde versie.docx
2-5

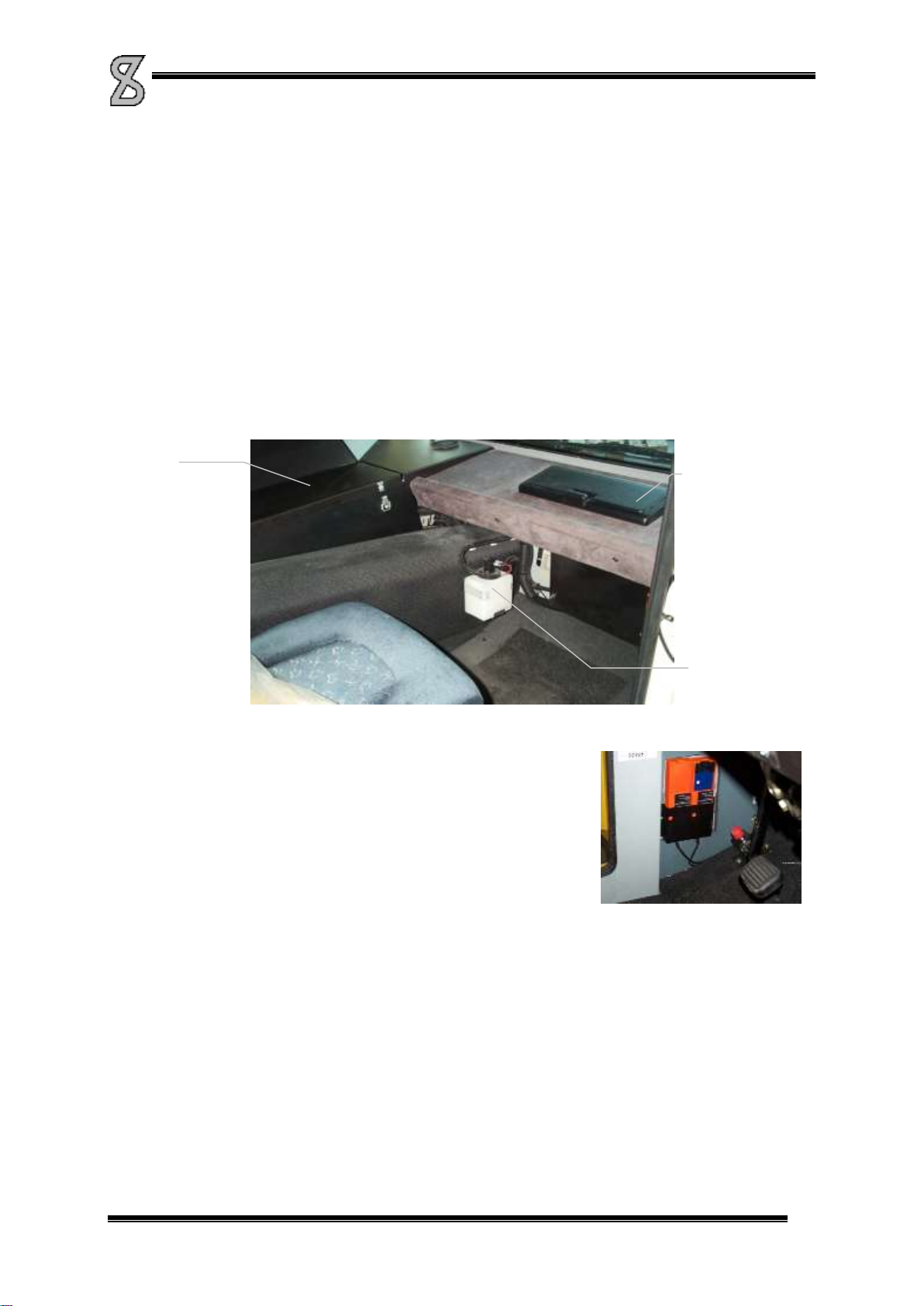

2.2.7. Sun blind
