SPIERINGS AT7 User manual

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
I
Introduction
Dear User,
This manual provides the user of the Spierings folding crane with information concerning the crane's construction,
function and operation. Also detailed, technical descriptions and maintenance instructions are given in the
maintenance section of this manual.
© Copyright Spierings Kranen.
All rights reserved.
No part of this publication may be reproduced or published, in any form or in any way, by print, photo print, microfilm or any other means without prior written permission
from the manufacturer.

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
II
Liability Clause
This liability clause was added to prevent possible miscommunication.
ARTICLE 1. USE
1.1. The Spierings truck may only be used for the designated purpose, and in the manner as laid
down/described in the manual and possible additions thereto.
1.2. Any other than the designated use and/or any other manner of operation than laid down/described in this
manual and possible additions thereto, and/or action inconsistent with the previous, will explicitly invalidate
any guarantee claim as well as any liability for damage, consequential damage and future damage, by any
reason and for no matter what.
1.3. Operating the Spierings truck is only permitted by people, who have the relevant expertise and a valid
driving license for driving a heavy truck, and who are physically and mentally capable of properly carrying
out the work involved.
1.4. In case of the additions to the manual, the user/operator/driver of the Spierings truck must be notified
thereof immediately, and the additions must be added to the manual.
ARTICLE 2. Safety
2.1. For safety reasons, the user/operator/driver must strictly comply with the instructions in the manual and
possible additions thereto.
2.2. If at any work site of the Spierings truck/crane the safety rules and regulations are more strict than those
laid down in the manual, or possible additions thereto, these stricter rules are to be complied with under
penalty of expiry of the guarantee and with exclusion of every liability.
2.3. The Spierings truck manufacturer explicitly warns the user/operator/driver and/or bystanders, to stay out of
the Spierings truck/crane's danger zone.
If any unexpected situation, by whatever cause, occurs during use and/or operation of the Spierings truck,
please contact your technical department or Spierings Service immediately.
ARTICLE 3. WARRANTY
3.1. Without previous written permission of the Spierings truck manufacturer, it is forbidden to carry
modifications and/or welding at or on the Spierings truck.
3.2. Systematic maintenance and periodic inspections must be carried out according to the manual and
possible additions thereto.
Deviating from these instructions without prior written consent of the Spierings truck manufacturer 's, turns
every guaranty claim invalid as well as every liability for damage, consequential damage and future
damage, by any reason and for no matter what.

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
III
Explanation of the Symbols Used
CAUTION!
Wear safety goggles!
Wear gloves!
Wear safety shoes!
Wear a helmet!
Put on safety belt!
Check / test!
Manual action!
Automatic action!
Incorrect!
Good !
Information!

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
IV
Table of Contents
INTRODUCTION................................................................................................................................................I
LIABILITY CLAUSE .........................................................................................................................................II
EXPLANATION OF THE SYMBOLS USED......................................................................................................III
TABLE OF CONTENTS...................................................................................................................................IV
1. GENERAL DATA AT7.........................................................................................................................1-1
2. OPERATION.......................................................................................................................................2-1
2.1. Introduction to the Truck.........................................................................................................2-1
2.2. Truck Cab..............................................................................................................................2-4
2.2.1. Getting in ..................................................................................................................2-4
2.2.2. Doors........................................................................................................................2-4
2.2.3. Wing Mirrors..............................................................................................................2-4
2.2.4. Seats........................................................................................................................2-4
2.2.5. Seat Belts .................................................................................................................2-4
2.2.6. Storage Room...........................................................................................................2-4
2.2.7. Sun Blind..................................................................................................................2-5
2.2.8. Fuse Box...................................................................................................................2-5
2.2.9. Windscreen Washer Reservoir...................................................................................2-5
2.2.10. Central Console.......................................................................................................2-5
2.2.11. Battery Charger Remote Control Batteries................................................................2-6
2.2.12. Fire Extinguisher .....................................................................................................2-6
2.3. Control Panel.........................................................................................................................2-7
2.4. Operating the Air-conditioning ..............................................................................................2-17
2.5. Driving the Spierings Crane..................................................................................................2-18
2.5.1. Starting...................................................................................................................2-18
2.5.2. Driving off................................................................................................................2-18
2.5.3. Reversing................................................................................................................2-18
2.5.4. Stopping .................................................................................................................2-19
2.5.5. Turn off the Engine..................................................................................................2-19
2.6. Gear Change.......................................................................................................................2-19
2.6.1. Automatic Gear Change ..........................................................................................2-19
2.7. Manual Gear Change........................................................................................................... 2-20
2.7.1. Display Indications ..................................................................................................2-20
2.8. Brake System ......................................................................................................................2-21
2.8.1. Operating Brake......................................................................................................2-21
2.8.2. Parking Brake..........................................................................................................2-21
2.8.3. Vacuum Brake.........................................................................................................2-21
2.8.4. Braking with the Retarder ........................................................................................2-22
2.9. Control Lever Retarder/ESC/CC...........................................................................................2-22
2.9.1. Retarder..................................................................................................................2-22
2.9.2. The Bremsomat.......................................................................................................2-22
2.9.3. Cruise Control (CC).................................................................................................2-23
2.9.4. Variable Speed Limiter ............................................................................................2-24
2.9.5. Engine Speed Control (ESC) ...................................................................................2-24
2.10. Driving off the Road .............................................................................................................2-25
2.10.1. Off-the-Road Mode Transfer Case.........................................................................2-25
2.10.2. Longitudinal Differential Lock.................................................................................2-25
2.10.3. Transverse differential lock....................................................................................2-26
2.11. Parking................................................................................................................................2-26

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
V
2.12. Axle Height Adjustment........................................................................................................2-26
2.12.1. Suspension Locking (Axle Locking)........................................................................2-26
2.12.2. Off-the-Road Mode................................................................................................2-27
2.12.3. Levelling out..........................................................................................................2-27
2.13. Control Panel Axle Steering..................................................................................................2-28
2.13.1. Small Turning Circle..............................................................................................2-29
2.13.2. Manual..................................................................................................................2-29
2.13.3. Crab Steering........................................................................................................2-30
2.13.4. Wall Steering.........................................................................................................2-30
2.14. Driving with Rigged Up Tower ..............................................................................................2-30
2.15. Driving with Trailer...............................................................................................................2-30
2.16. Towing the Crane.................................................................................................................2-32
2.16.1. Towing When the Diesel Engine Still Runs.............................................................2-32
2.16.2. Towing When the Diesel Engine Does Not Run...................................................... 2-32
3. MAINTENANCE..................................................................................................................................3-1
3.1. Safety....................................................................................................................................3-1
3.1.1. Clothing ....................................................................................................................3-1
3.1.2. Surroundings.............................................................................................................3-1
3.1.3. Diesel Engine............................................................................................................3-1
3.1.4. Moving parts .............................................................................................................3-1
3.1.5. Oils and coolant ........................................................................................................3-2
3.1.6. Environment..............................................................................................................3-2
3.1.7. Change Oil/Cooling System.......................................................................................3-2
3.1.8. Fire Hazard...............................................................................................................3-2
3.1.9. Cleaning Components...............................................................................................3-2
3.2. Maintenance Chart for the AT7 Truck .....................................................................................3-3
4. DIESEL ENGINE.................................................................................................................................4-1
4.1. Service Inspections at Commencement of Operations.............................................................4-2
4.2. Access to the diesel engine....................................................................................................4-2
4.3. Engine Oil..............................................................................................................................4-3
4.3.1. Check the Engine Oil Level........................................................................................4-3
4.3.2. Top up Engine Oil......................................................................................................4-3
4.3.3. Change Engine Oil ....................................................................................................4-4
4.4. Oil Filters Engine....................................................................................................................4-5
4.4.1. Oil Filter Replacement...............................................................................................4-5
4.4.2. Centrifugal Filter Replacement...................................................................................4-6
4.5. Cooling..................................................................................................................................4-7
4.5.1. Check the Coolant Level............................................................................................4-7
4.5.2. Top up Coolant..........................................................................................................4-8
4.5.3. Changing Coolant......................................................................................................4-8
4.5.4. Antifreeze..................................................................................................................4-9
4.5.5. Radiator / Intercooler / Oil Cooler...............................................................................4-9
4.6. Air Inlet System....................................................................................................................4-10
4.6.1. Air Filter Cleaning....................................................................................................4-10
4.6.2. Air Cleaner Cartridge Replacement..........................................................................4-11
4.7. Fuel System.........................................................................................................................4-11
4.7.1. Fuel Filter Replacement...........................................................................................4-11
4.8. Oil pump gearbox.................................................................................................................4-12
4.9. Fuel Filter/Water Separator ..................................................................................................4-13
4.9.1. Draining the Water Separator...................................................................................4-14
4.9.2. Fuel Filter/Water Separator Replacement.................................................................4-14

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
VI
4.10. Poly V-Belts.........................................................................................................................4-15
4.10.1. Poly V-Belts Replacement .....................................................................................4-15
4.10.2. Poly V-Belt on the Cooler Pump.............................................................................4-15
4.10.3. Poly V-Belt Generator............................................................................................4-16
4.11. Exhaust system ...................................................................................................................4-16
5. DRIVE SYSTEM..................................................................................................................................5-1
5.1. Gearbox ................................................................................................................................5-1
5.1.1. General Maintenance Gearbox..................................................................................5-1
5.1.2. Check Oil Level Gearbox...........................................................................................5-2
5.1.3. Change Gearbox Oil..................................................................................................5-2
5.1.4. Check Oil Level Torque Converter / Retarder .............................................................5-3
5.1.5. Change Gearbox Oil..................................................................................................5-3
5.1.6. Oil Filter Torque Converter / Retarder Replacement ...................................................5-4
5.2. Transfer Case........................................................................................................................5-5
5.2.1. General Maintenance Transfer Case..........................................................................5-5
5.2.2. Check Oil Level Transfer Case ..................................................................................5-5
5.2.3. Change Oil in Transfer Case......................................................................................5-6
5.3. Axles .....................................................................................................................................5-7
5.3.1. General Maintenance Axles.......................................................................................5-7
5.3.2. Check the Oil Level in the Differentials.......................................................................5-8
5.3.3. Change Oil in Differentials.........................................................................................5-9
5.3.4. Check the Hubs Oil Level ..........................................................................................5-9
5.3.5. Chang Oil in the Hubs..............................................................................................5-10
5.4. Tyres...................................................................................................................................5-10
5.4.1. General Maintenance Tyres..................................................................................... 5-10
5.4.2. Tyre Pressure..........................................................................................................5-10
5.5. Check the Brake Linings.......................................................................................................5-11
5.5.1. Braking System.......................................................................................................5-11
6. STEERING SYSTEM...........................................................................................................................6-1
6.1 Steering System Structure..............................................................................................................6-1
Mechanical............................................................................................................................6-2
6.2 Rear Axle Steering.................................................................................................................6-2
6.2.1 Functioning Rear Axle Steering..................................................................................6-2
6.2.2 Malfunction Rear Axle Steering ..................................................................................6-2
6.3 Check the Steering System ....................................................................................................6-2
6.1. Alignment ..............................................................................................................................6-3
7. ELECTRICAL SYSTEM ......................................................................................................................7-1
7.1. Lighting..................................................................................................................................7-1
7.2. Dashboard Lighting................................................................................................................7-1
7.3. Batteries................................................................................................................................7-2
7.3.1. Check the Batteries...................................................................................................7-2
7.3.2. Charging the Batteries...............................................................................................7-2
7.3.3. Batteries Replacement ..............................................................................................7-3
8. HYDRAULIC SYSTEM........................................................................................................................8-1
8.1. Check Oil Level Hydraulic Oil Tank.........................................................................................8-1
8.2. Changing Hydraulic Oil...........................................................................................................8-2
8.3. Hydraulic Oil Filter Replacement.............................................................................................8-3
8.3.1. Hydraulic Fine Filter...................................................................................................8-3
8.3.2. Hydraulic Filters ........................................................................................................8-4
8.4. Check the Suspension System Accumulators..........................................................................8-4

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
VII
8.5. Hoses and Couplings Hydraulic System..................................................................................8-4
8.6. Hydraulic Brake Power Axle 1 ................................................................................................8-5
8.6.1. Check Oil Level.........................................................................................................8-5
8.6.2. Change Oil................................................................................................................8-5
9. PNEUMATIC SYSTEM........................................................................................................................9-1
9.1. Primary System: Brake System ..............................................................................................9-1
9.2. Secondary System: Accessories and Gearbox........................................................................9-2
9.3. Air Vessels ............................................................................................................................9-3
9.4. Air Dryer................................................................................................................................9-3
9.5. Water Separator.....................................................................................................................9-4
9.6. Check Brake Pressure ...........................................................................................................9-5
9.7. Hoses and Couplings Pneumatic System................................................................................9-5
10. LUBRICATION..................................................................................................................................10-1
10.1. Central Lubricating System...................................................................................................10-1
10.1.1. Timer Switch Central Lubricating System ............................................................... 10-1
10.1.2. Grease Container Central Lubricating System ........................................................10-1
10.1.3. Grease Points Central Lubricating System..............................................................10-2
10.2. Manual Lubrication...............................................................................................................10-2
10.2.1. Extending Cylinders Outrigger Beams....................................................................10-2
10.2.2. Cardan shafts........................................................................................................10-3
10.2.3. Steering system.....................................................................................................10-3
10.2.4. Tower Support.......................................................................................................10-3
11. MISCELLANEOUS ...........................................................................................................................11-1
11.1. Check Windscreen Washer Fluid..........................................................................................11-1
11.2. Fire Extinguisher..................................................................................................................11-1
11.3. Air-conditioning (option)........................................................................................................11-1
12. TECHNICAL DATA........................................................................................................................... 12-1
13. ENCLOSURES ................................................................................................................................. 13-1

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
1-1
1. General Data AT7
The AT7 carriage is especially designed for the Spierings SK2400 folding crane. Extra attention is paid to a safe
and comfortable transport to the work site. The crane is suited for driving on public roads, fully equipped with
counterweight and tools. The chassis is a specially rigid structure to create a good crane support.
Picture 1-1 shows the measurements of the SK2400 with the AT7-carriage. The measurements given are the
overall dimensions, axle bases and turning circle.
Picture 1-1
Drive Line:
•12.9 litre DAF-diesel engine with turbo compressor and intercooler (model: XM375S1).
•ZF-TC Tronic automatic gearbox with retarder and torque converter; twelve forward gears and 2 reverse
gears (model: ZF12TC2740).
•STEYR transfer case, with high speed (road) and low speed (off the road) transmission (model:
VG2701/400).
•Electronic accelerator "E-gas” with speed control.
•7 Kessler & Co axles, of which axles 1, 3, 4 and 7 are driven.

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
1-2
Steering:
With regard to the steering, we distinguish between road and off the road steering.
•Road steering: Axles 1 to 3 are mechanically steered by means of the steering wheel, axle 4 remains rigid
and, depending on the driving speed, axle 5 steers along in opposite direction up to 30 km/h, axles 6 and 7
up to 50 km/h respectively.
Off-the-road steering: these special steering programs are only available in off-the-road mode.
•“Small turning circle”: This steering program enables an extra small turning circle.
•“Manual”: this program enables you to control the steering movement of axle 7. Axles 4 to 6 steer along
proportionally.
•“Crab steering: all 7 axles steer in the same direction.
•“Wall steering”: Program to drive away from an object with minimal swing of the truck's rear end.
The 2-circuit steering system is hydraulically powered by means of a 2-circuit steering gear housing and auxiliary
cylinders.
The steering system is fitted with an emergency steering pump, so in case of main control pump malfunction or
diesel engine break-down, the truck remains steerable until it stands still.
•Provisions for driving off the road:
- Adjustable axle height
- Transfer case with off-the-road gear
- Longitudinal and transverse differentials can be locked.
- All axles participate in the steering process.
Suspension:
•Hydropneumatic suspension
•Possibility to block the suspension.
Braking System:
•Pneumatically operated brakes
4-point Outrigger System
•Wide (full support base): 7.95 m x 7.63 m
•Narrow (reduced support base): 7.95 m x 5.72 m
Further Data:
•Maximum speed limited to 83 km/h
•Minimum speed at 1.000 rpm: 1.85 km/h (is 30.8 m/min)
•Truck weight including superstructure approx. 84,000 kg.
•The axle load is 12,000 kg per axle.

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
1-3
Identification:
•Engine number: on the valve cover or on the water pump.
•Carriage frame number: on the identification shield in the co-driver's leg-room (see Picture 1-2) and stamped
in the right frame girder in front of the first axle. (see Picture 1-3).
Picture 1-2
Picture 1-3

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-1
2. Operation
2.1. Introduction to the Truck
Picture 2-1
1. Bumper
The bumper, equipped with lighting fixture, can be folded up to hitch on a trailer.
2. Truck Cab
In addition to driving the crane, the control panel in the truck cab can be used to operate the outrigger system and
to adjust the axles' height.
3. Work Lamps
Work lamps are found at the rear of the engine cowling
and at the rear of the truck, both at the left and right-
hand side, which can be operated in the cab.
By loosening the screw (A) at the bracket, the lamp can
be moved sideways. (Picture 2-2).
Picture 2-2

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-2

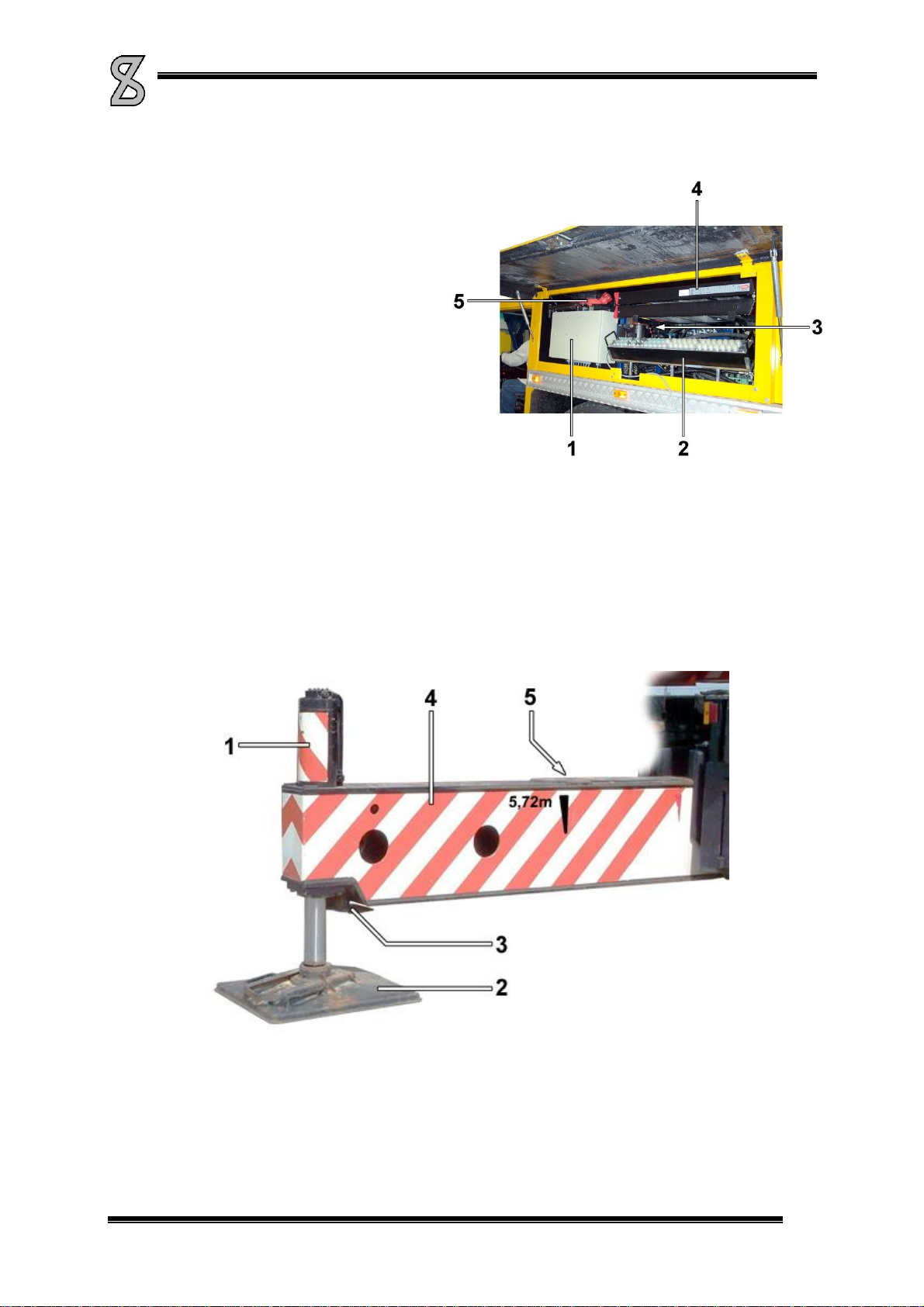

4. Left-hand Engine Cowling
At this side under the engine cowling, the following
parts are found:
1. Control box
2. Grease container for automatic lubrication
system
3. Auxiliary steps
4. Oil filling pipe
Picture 2-3
5. Outriggers
At both sides of the truck there are 2 extending outrigger beams (4), and to each beam a hydraulically operated
outrigger (1). These outriggers keep the machine stable during hoisting operations. The outrigger beams have
an antiskid coating (5) to prevent slipping. The outrigger pad holders (3) can be used to facilitate stepping on the
outrigger beam.
With a separate (remote) control box the outriggers can be radio controlled. The level position of the crane can be
checked by means of the levels.
Furthermore, the crane is equipped with a standard automatic outrigger control program.
Picture 2-4

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-3
6. Right-hand Engine Cowling
At the right-hand side of the truck under the engine
cowling, the following parts are found:
1. Air cleaner
2. Combined cooler (intercooler/radiator/oil cooler)
with hydraulically driven fan.
3. Soundproof side
Picture 2-5
7. Fuel Tank
The fuel tank is integrated in the frame at the rear of the truck. The tank capacity is 725 litres and can be filled
through a filler neck at the rear, right-hand side of the truck. (Picture 2-6).
Picture 2-6
8. AdBlue Tank
The filler neck on the AdBlue tank is at the right-hand side in the middle of the truck. The total capacity of this tank
is 75 litres.
Picture 2-7

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-4
9. Outrigger Plates
Directly behind the truck cab 4 steel outrigger plates in all can be carried. They can be put in place by means of a
hoisting arm mounted at the crane's outer tower.
2.2. Truck Cab
2.2.1. Getting in
Use the step under the door.
2.2.2. Doors
Turn the handle up to open the door from the inside. The door can only be locked up from the outside. There is an
ashtray on the inside of the door. After opening the ashtray, you push the locking device down to remove the
ashtray from the holder to empty it.
The windows can be operated by means of the switches on the dashboard.
2.2.3. Wing Mirrors
The wing mirrors may be adjusted by hand. Make sure the mirrors are adjusted before driving off, so that you
have optimal view. The mirror heating can be switched on with a switch on the control panel.
2.2.4. Seats
The cab has room for the driver and a co-driver. The driver's seat has pneumatic
suspension, the co-driver's seat does not. The seats' position can be adjusted.
This should only be done when the vehicle stands still.
(see Picture 2-8).
A) Back adjustment
B) Lumbar support adjustment (push = inflate and pull = deflate)
C) Height adjustment (pulling the handle = up and pushing it = down)
D) Tilting the seat
E) Handle rapid lowering
F) Chair seat adjustment
Picture 2-8
2.2.5. Seat Belts
The seats are fitted with seat belts. Driver and co-driver must wear them when driving. Do not modify the belt or
its attachment by yourself. Regularly check its operation by jerking the belt from its winding mechanism. The belt
must lock when doing this. Have the lock repaired or replaced, if it does not function properly. When the belt was
heavily loaded during a collision, it must be completely replaced, even if it looks like there is nothing wrong with it.
2.2.6. Storage Room
In the middle of the cab ceiling is a storage compartment. It has a lockable lid at the driver's side and at the side
of the co-driver.

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-5
2.2.7. Sun Blind
To prevent sunlight from blinding you, a sun blind is mounted above the windscreen for the driver and the co-
driver. Pull down the blind with the joggle in the middle of the blind. The blind will remain in the desired position.
Push the button on the side of the blind to roll it up.
2.2.8. Fuse Box
The fuse box is found in the dashboard at de co-
driver's side. (Picture 2-9).
Picture 2-9
2.2.9. Windscreen Washer Reservoir
This reservoir is found at the left-hand side of the co-
driver.
Picture 2-10
2.2.10.Central Console
All components under the central console at the co-driver's side can be reached through two lids. Here you will
find a.o. the following components (Picture 2-11):
1. Computer ABS system
2. Central lubricating system timer
3. Navigation system
4. Transfer case neutral (when towing the vehicle)
5. Setting switch for rear axle steering
6. ECUs for rear axle steering
7. Socket 220V
Picture 2-11

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-6
2.2.11.Battery Charger Remote Control Batteries
The charging unit for the batteries of the remote controls is found at the left under the dashboard at driver's side.
Picture 2-12
Every remote control comes with 2 batteries each.
While the batteries are charged, the indicator lamp lights. As soon as they are fully charged, the lamp starts
flashing.
2.2.12.Fire Extinguisher
The fire extinguisher is situated behind the co-driver's
seat.
Picture 2-13

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-7

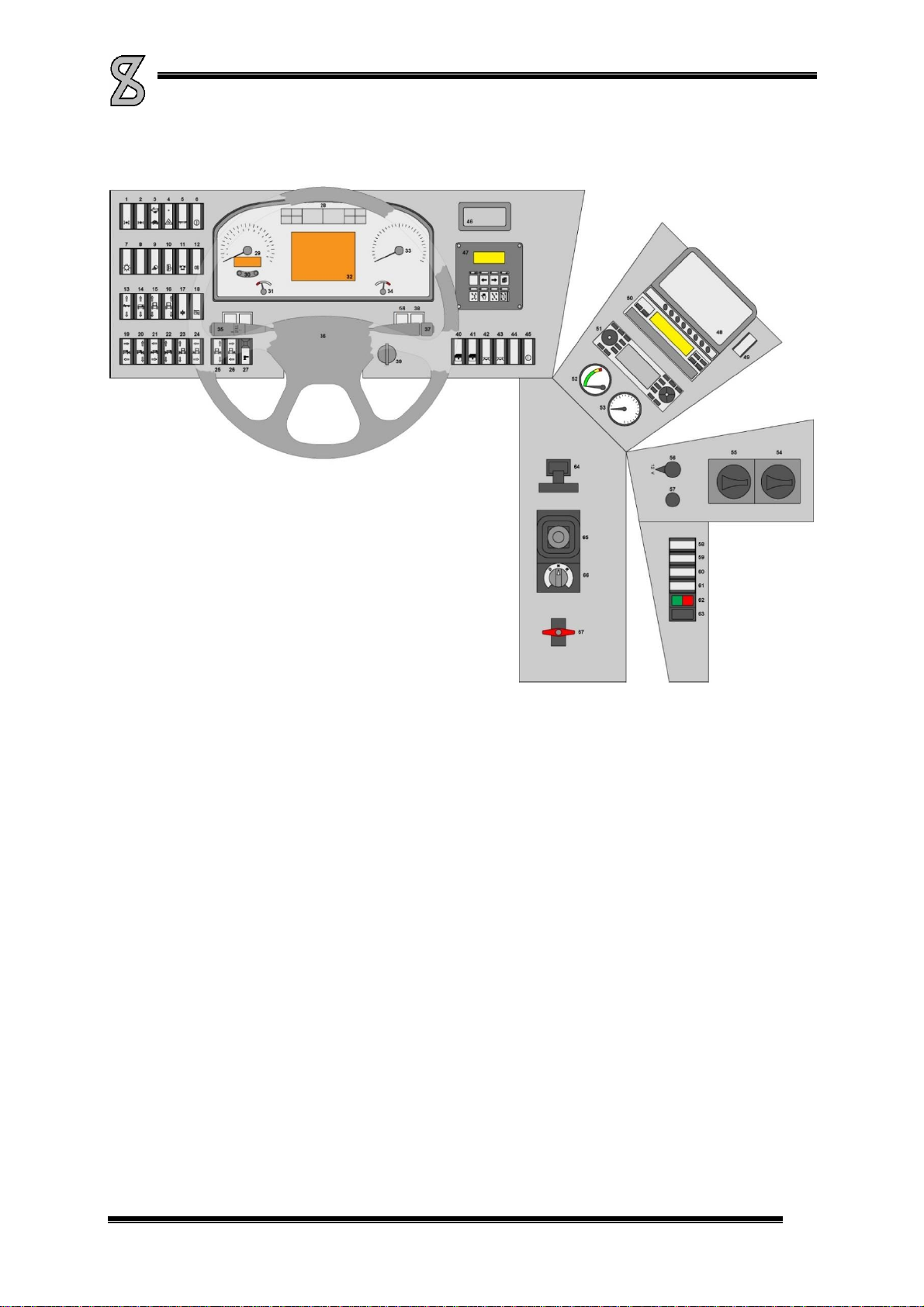

2.3. Control Panel
1. Longitudinal differential lock
2. Transverse differential lock
3. Transfer case high/low
4. Switch alarm light
5. Aeronautic warning lamp
6. Screen switch (32)
7. Light switch off/dipped head lights
8. Dimmer dashboard lighting
9. Switch worklamps
10. Switch mirror heating
11. Switch rotaflares
12. Switch fog rear light
13. Switch axles up/down
14. Switch axles 1 and 2 up/down
15. Switch axles 3, 4, 5 and 6 left up/down
16. Switch axles 3, 4, 5 and 6 right up/down
17. Switch levelling out
18. Switch driving/blocking
19. Switch outrigger beam front left-hand side retract/extend

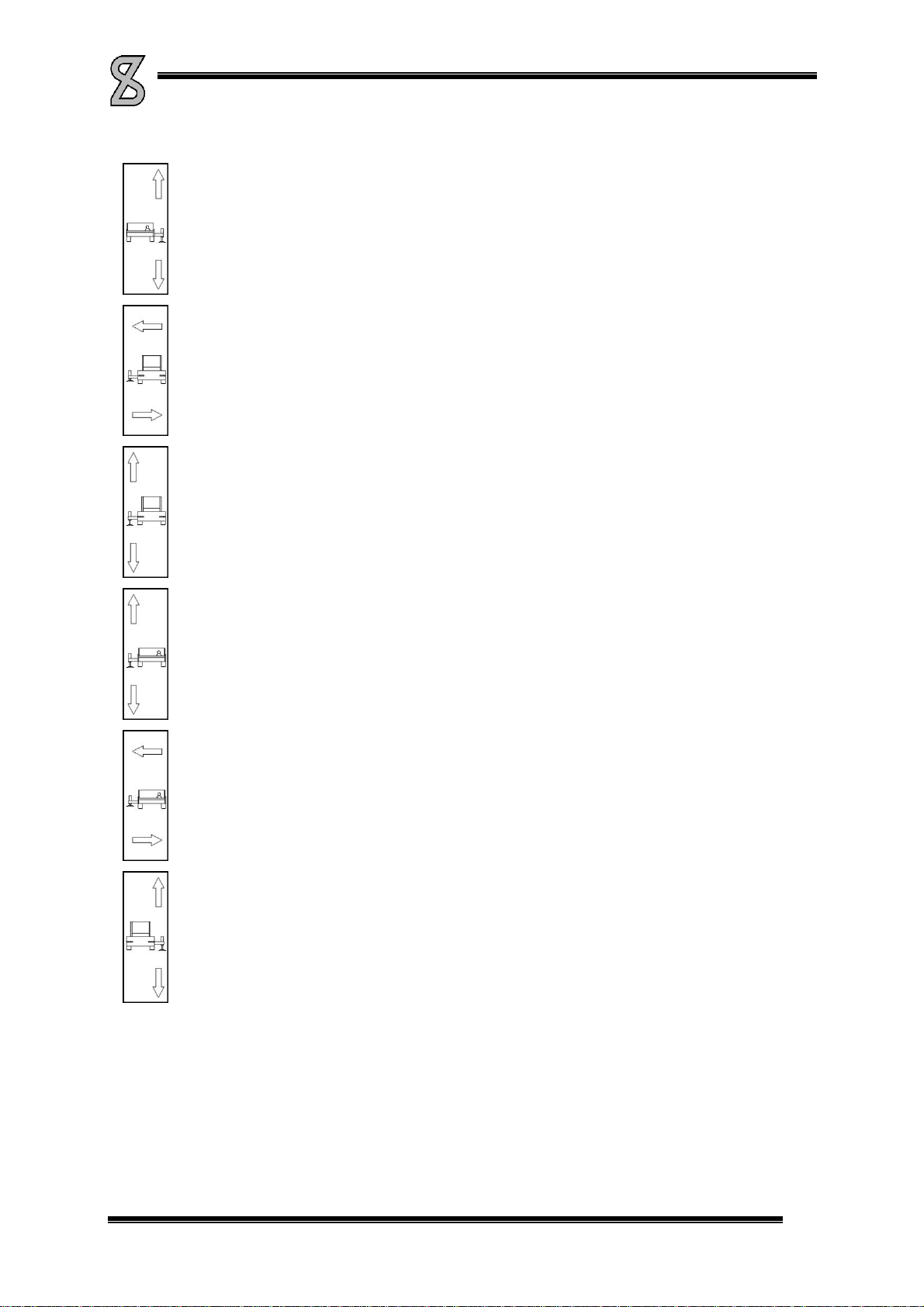

20. Switch outrigger front left-hand side retract/extend
21. Switch outrigger beam rear left-hand side retract/extend
22. Switch outrigger rear left-hand side retract/extend
23. Switch outrigger front right-hand side retract/extend
24. Switch outrigger beam front right-hand side retract/extend
25. Switch outrigger rear right-hand side retract/extend
26. Switch outrigger beam rear right-hand side retract/extend
27. Switch outrigger controls on/off
28. Monitor lamps
29. Speedometerwith milometer and trip recorder
30. Trip recorder reset switch
31. Fuel gauge
32. Instruments cluster
33. Tachometer
34. Coolant temperature gauge
35. Control lever direction indicator / windscreen wiper interval
36. Steering wheel
37. Control Lever Retarder/Cruise Control/Engine Speed Control (ESC)
38. Airport Lighting
39. Ignition lock
40. Door window control left
41. Door window control right
42. Cab lighting driver's side
43. Cab lighting co-driver's side
44. Steering system road/off-the-road
45. Shunting mode on/off
46. Display automatic gearbox
47. Control panel for axle steering
48. Monitor camera/navigation system
49. Switch screen switching camera/navigation
50. Digital tachograph
51. Radio/Cd-player
52. Oil temperature gauge retarder
53. Oil-pressure gauge pump pressure
54. Fan settings
55. Heat settings cab heater
56. 12 Volt socket
57. Cigarette lighter
58. Automatic outrigger system on/off
59. Automatic outrigger system start
60. Automatic outrigger system stop
61. Automatic outrigger system “all axles retract"
62. Monitor lamps automatic outrigger system
63. Blind
64. Slewing brake
65. Gear stick for manual gear shifting
66. Selector switch gearbox
67. Main battery switch
68. Oil pump gearbox warning lamp
Picture 2-14

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-8
1. Switch Longitudinal Differential Lock
Switch on the longitudinal differential lock, when while driving off-road the vehicle has too little or no
traction. The longitudinal differentials will be locked.
2. Switch Transverse Differential Lock
Switch on the transverse differential lock when while driving with longitudinal differential lock, the
vehicle still has insufficient traction. The differentials in the axles are locked.
3. Transfer Case high/low
While driving on paved roads this switch must be on “high” (hare). The transfer case is in road mode.
While driving off the road on difficult terrain, this switch can be changed to “low” (turtle). The transfer
case switches to off-the-road mode.
4. Switch Hazard Warning Lights
In the event of an emergency the hazard warning lights are switched on and off with this switch.
5. Aeronautic Warning Lamp
When the work site is near an airport, the aeronautic warning lamp must be switched on.
7. Switch Dipped Head Lights
8. Dimmer Dashboard Lighting
9. Switch Worklamps
This switch operates the worklamps at the rear left- and right-hand side on the truck cab.
10. Switch Mirror Heating
11. Switch Rota flare
12. Switch Fog Rear Light

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-9
13. Switch All Axles up/down
With this switch the cylinders of all axles are simultaneously retracted or extended (e.g. during
outrigger operation)
14. Switch Axles 1 and 2 up/down
With this switch the cylinders of axles 1 and 2 can be extended or retracted simultaneously.
15. Switch Axles 3, 4, 5 and 6 Left up/down
With this switch the cylinder at the left-hand side of the third, fourth, fifth and sixth axle are retracted or
extended.
16. Switch Axles 3, 4, 5 and 6 Right up/down
With this switch the cylinder at the right-hand side of the third, fourth, fifth and sixth axle are retracted
or extended.
17. Switch Levelling Out
To get all axles at the same height for transport mode, e.g. after outrigger operation, the cylinders of
all axles must be levelled out.
18. Switch driving/blocking
19. Switch outrigger beam front left-hand side retract/extend

MANUAL SPIERINGS TRUCK AT7
AT7-EN-070103 aangepast 26-7-2018.docx
2-10
20. Switch outrigger front left-hand side retract/extend
21. Switch outrigger beam rear left-hand side retract/extend
22. Switch outrigger rear left-hand side retract/extend
23. Switch outrigger front right-hand side retract/extend
24. Switch outrigger beam front right-hand side retract/extend
25. Switch outrigger rear right-hand side retract/extend
