SPINNAKER LIMITED EDITION HASS User manual

Vol. 1.104 EN
AUTOMATIC
This timepiece is equipped with
a self-winding Mechanical
Automatic movement.
It does not need a battery.
It is powered by the motions of
the user’s own wrist during
the wear of the watch.
You may also choose to wind
the watch manually.
For more details on operating this timepiece
please refer to
the enclosed booklet or visit:
spinnaker-watches.com

SCREW-
DOWN
CROWN
MINUTE
HAND
HOUR
HAND
SECOND
HAND
DATE
DAY
UNI-DIRECTIONAL
TURNING BEZEL
PLEASE READ THE FOLLOWING
BEFORE UNSCREWING THE
CROWN
Screw-down Crown
Screw-down crowns are used to ensure water
resistance. ALWAYS be certain that your
crown is securely screwed down (Position [0]
is secured. Positions [1], [2] and [3] are not
secured for water resistance ).
Do NOT unscrew your crown while you are in
any environment where moisture is present.
0 1 2 3
(1st click) (2nd click)
CLOSED:
SECURELY SCREWED
AND
WATER RESISTANT
OPENED:
NOT SECURED
FOR
WATER RESISTANCE 1

0
1

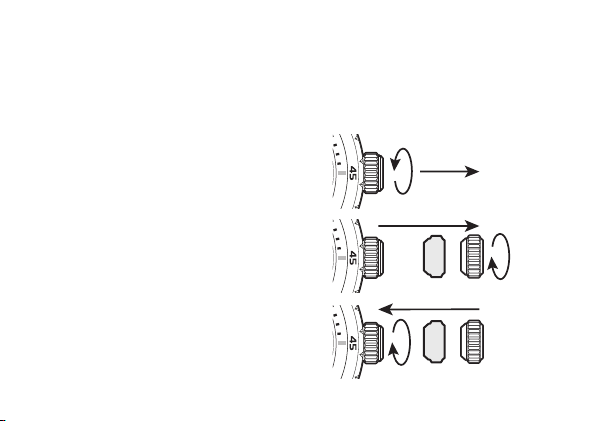

USING THE SCREW-DOWN
CROWN
Do NOT pull the crown unless it is
UNSCREWED first:
NOTE: Failure to SECURELY screw down the
crown after setting the watch may affect its
water resistance.
TO UNSCREW: Turn the
crown anti-clockwise until it
turns freely without tension.
GENTLY pull the crown out
to the other desired
positions for watch setting
(see specific operating
instructions on the following
pages).
TO SCREW: Push the crown
ALL THE WAY IN (towards
the watch) THEN begin to
turn clockwise until it is
securely screwed down.
0
1
Before you use this watch,
It is recommended that you manually
wind the mainspring to start it
moving.
This Watch Is An Automatic Watch Equipped
With A Manual Winding Mechanism.
WINDING THE MAINSPRING
1. Unscrew the crown by
turning it anti-clockwise.
2. When it is in position [1],
turn the crown clockwise
to wind. Wind 5-10 times
and it will start to move
naturally after shaking
slightly.
3. Push the crown in then
screw it securely.
2 3

* This watch MUST be worn for at least 8
(Eight) hours each day to ensure it is fully
wound.
An automatic watch will only wind when
the watch is on your wrist and your arm
moves. Winding the watch by the crown
will put power on the spring but not
enough to allow the watch to function fully.
If your watch stops overnight or loses time
it means it is not being fully wound.
IMPORTANT NOTE
1. If your watch is running smoothly, please
do not wind the crown to avoid
overwinding the movement. Provided you
are wearing the watch frequently, your
watch should have sufficient power to
operate without any fuss.
2. If your watch has stopped running after a
period of not wearing the watch, gently
move the watch side to side 20 to 30 times
to move the rotor or gently turn the crown
5 to 10 times to get the second hand run at
its normal speed.
0
2 3
03
HOW TO SET THE TIME
1. Unscrew the crown and pull it out to
position [3]-(2nd click).
2. Turn the crown clockwise to set the correct
time.
3. Push the crown in then screw it securely.
45

* Do not set the day between
9:00 P.M. and 4:00 A.M.
2
02
* Do not set the date between
9:00 P.M. and 4:00 A.M.
HOW TO SET THE DATE
1. Unscrew the crown and pull it out to
position [2]-(1st click).
2. Turn the crown anti-clockwise to set the
correct date.
3. Push the crown in then screw it securely.
0
2
02
HOW TO SET THE DAY
1. Unscrew the crown and pull it out to
position [2]-(1st click).
2. Turn the crown clockwise to set the correct
day.
3. Push the crown in then screw it securely.
0
6 7

3.
HOW TO CHANGE THE
BRACELET TO NATO STRAP
1. 2.
4.
5.
89

HOW TO USE
A DEPLOYANT CLASP
1. Flip the cover.
2. Press the buttons on the clasp sides.
1
2
6.
7.
8.
9.
10 11

Nylon Head
Hammer
3.
4.
HOW TO RESIZE
METAL BRACELET
On the inside of the bracelet, you will see
some small arrows engraved on removeable
links.
2.
1.
12 13

Nylon Head
Hammer
Finish
7.
8.
5.
6.
14 15

9.
Micro size
adjustment
10.
11.
Finish
16 17

WATER RESISTANCE
Note that the water resistance chart serves only
as a guide (please refer to the water resistance
chart on the next page). Actual water resistance
may vary depending on a number of factors
including water temperature, water salinity and
use under water.
The water resistance of your timepiece may
eventually be compromised over time with
general wear and tear and use of your
timepiece under adverse conditions.
Always remember to employ the screw down
crown if available to maintain the water
resistance of your timepiece. Warranty may be
voided if the screw down crown has not been
properly employed.
Note that you should NEVER wear your watch in
a jacuzzi, hot shower or steam room where
steam may enter the case despite the
watertight seals used to protect your watch.
This may cause condensation inside your watch,
which may affect and damage the inner
workings of your watch.

50M/
5ATM
WATER RESISTANCE
CHART
SPLASH/
SHOWERING
SWIMMING/
BATHING
BRIEF SWIMMING/
WATER SPORTS
PROLONGED
SWIMMING/
FREE DIVING
SCUBA
DIVING
PROFESSIONAL
DEEP SEA DIVING
300M/
30ATM 500M/ 50ATM
100M/
10ATM 200M/ 20ATM
