Spirax Sarco TD42 User manual

IM-P068-24 ST Issue 5 1
TD42
Thermodynamic Steam Trap
Installation and Maintenance Instructions
IM-P068-24
ST Issue 5
0680150/5
1. Safety information
2. General
product information
3. Installation
4. Commissioning
5. Operation
6. Maintenance
7. Spare parts
Printed in the UK © Copyright 2007

IM-P068-24 ST Issue 52
Safe operation of this product can only be guaranteed if it is properly
installed, commissioned, used and maintained by qualified personnel (see Section
1.11) in compliance with the operating instructions. General installation and
safety instructions for pipeline and plant construction, as well as the proper
use of tools and safety equipment must also be complied with.
1.1 Intended use
Referring to the Installation and Maintenance Instructions, name-plate and Technical
Information Sheet, check that the product is suitable for the intended use / application.
This product complies with the requirements of the European Pressure Equipment
Directive 97 / 23 / EC and falls within category 'SEP'. It should be noted that products
within this category are required by the Directive not to carry the mark.
i) This product has been specifically designed for use on steam, air or
condensate / water, which is in Group 2 of the above mentioned Pressure
Equipment Directive. The products’ use on other fluids may be possible but,
if this is contemplated, Spirax Sarco should be contacted to confirm the
suitability of the product for the application being considered.
ii) Check material suitability, pressure and temperature and their maximum and
minimum values. If the maximum operating limits of the product are lower
than those of the system in which it is being fitted, or if malfunction
of the product could result in a dangerous overpressure or overtemperature
occurrence, ensure a safety device is included in the system to prevent such
over-limit situations.
iii) Determine the correct installation situation and direction of fluid flow.
iv) Spirax Sarco products are not intended to withstand external stresses that
may be induced by any system to which they are fitted. It is the responsibility
of the installer to consider these stresses and take adequate precautions to
minimise them.
v) Remove protection covers from all connections and protective film from all
name-plates, where appropriate, before installation on steam or other high
temperature applications.
1.2 Access
Ensure safe access and if necessary a safe working platform (suitably guarded)
before attempting to work on the product. Arrange suitable lifting gear if required.
1.3 Lighting
Ensure adequate lighting, particularly where detailed or intricate work is required.
1.4 Hazardous liquids or gases in the pipeline
Consider what is in the pipeline or what may have been in the pipeline at some
previous time. Consider: flammable materials, substances hazardous to health,
extremes of temperature.
1.5 Hazardous environment around the product
Consider: explosion risk areas, lack of oxygen (e.g. tanks, pits), dangerous gases,
extremes of temperature, hot surfaces, fire hazard (e.g. during welding), excessive
noise, moving machinery.
1. Safety information

IM-P068-24 ST Issue 5 3
1.6 The system
Consider the effect on the complete system of the work proposed. Will any proposed
action (e.g. closing isolation valves, electrical isolation) put any other part of the
system or any personnel at risk?
Dangers might include isolation of vents or protective devices or the rendering
ineffective of controls or alarms. Ensure isolation valves are turned on and off in a
gradual way to avoid system shocks.
1.7 Pressure systems
Ensure that any pressure is isolated and safely vented to atmospheric pressure.
Consider double isolation (double block and bleed) and the locking or labelling of
closed valves. Do not assume that the system has depressurised even when the
pressure gauge indicates zero.
1.8 Temperature
Allow time for temperature to normalise after isolation to avoid danger of burns.
1.9 Tools and consumables
Before starting work ensure that you have suitable tools and /or consumables
available. Use only genuine Spirax Sarco replacement parts.
1.10 Protective clothing
Consider whether you and/or others in the vicinity require any protective clothing
to protect against the hazards of, for example, chemicals, high /low temperature,
radiation, noise, falling objects, and dangers to eyes and face.
1.11 Permits to work
All work must be carried out or be supervised by a suitably competent person.
Installation and operating personnel should be trained in the correct use of the
product according to the Installation and Maintenance Instructions.
Where a formal 'permit to work' system is in force it must be complied with.
Where there is no such system, it is recommended that a responsible person
should know what work is going on and, where necessary, arrange to have an
assistant whose primary responsibility is safety.
Post 'warning notices' if necessary.
1.12 Handling
Manual handling of large and/or heavy products may present a risk of injury.
Lifting, pushing, pulling, carrying or supporting a load by bodily force can cause
injury particularly to the back. You are advised to assess the risks taking into
account the task, the individual, the load and the working environment and use
the appropriate handling method depending on the circumstances of the work
being done.
1.13 Residual hazards
In normal use the external surface of the product may be very hot. If used at the
maximum permitted operating conditions the surface temperature of some products
may reach temperatures of 500°C (932°F).
Many products are not self-draining. Take due care when dismantling or removing
the product from an installation (refer to 'Maintenance instructions').

IM-P068-24 ST Issue 54
1.14 Freezing
Provision must be made to protect products which are not self-draining against
frost damage in environments where they may be exposed to temperatures below
freezing point.
1.15 Disposal
Unless otherwise stated in the Installation and Maintenance Instructions, this
product is recyclable and no ecological hazard is anticipated with its disposal
providing due care is taken.
1.16 Returning products
Customers and stockists are reminded that under EC Health, Safety and
Environment Law, when returning products to Spirax Sarco they must provide
information on any hazards and the precautions to be taken due to contamination
residues or mechanical damage which may present a health, safety or
environmental risk. This information must be provided in writing including Health
and Safety data sheets relating to any substances identified as hazardous
or potentially hazardous.

IM-P068-24 ST Issue 5 5
2. General product information
2.1 General description
The TD42 range are maintainable thermodynamic steam traps which are suitable for
pressures up to 42 bar g, complete with integral strainer and screwed body connections.
The TD42L and TD42LC are specifically designed for lower capacity applications and
therefore, ideal for tracing and mains drainage applications. Note: 'L' and 'LC' denotes
lower capacity.
The TD42 and TD42H are specifically designed for higher load applications.
The TD42A, TD42HA, TD42LA and TD42LCA are designed for applications where the
release of air is a concern. It is supplied with an anti-air-binding disc. Note: the letter 'A' in
the nomenclature denotes that an anti-air-binding disc is used in this product.
The TD42L, TD42LA, TD42H and TD42HA have electroless nickel preparation (ENP) body
surfaces which is both energy saving and oxidation resistant.
The TD42, TD42A, TD42LC and TD42LCA have black body surfaces.
Please note that both the TD42S2, and TD42S3 are socket weld traps and are covered by
separate IMI's. See IM-P068-37 for the TD42S2, and IM-P068-38 for the TD42S3.
Groove indentifies
TD42A, TD42LA, TD42LCA
and TD42HA versions
which have an
anti-air-binding disc

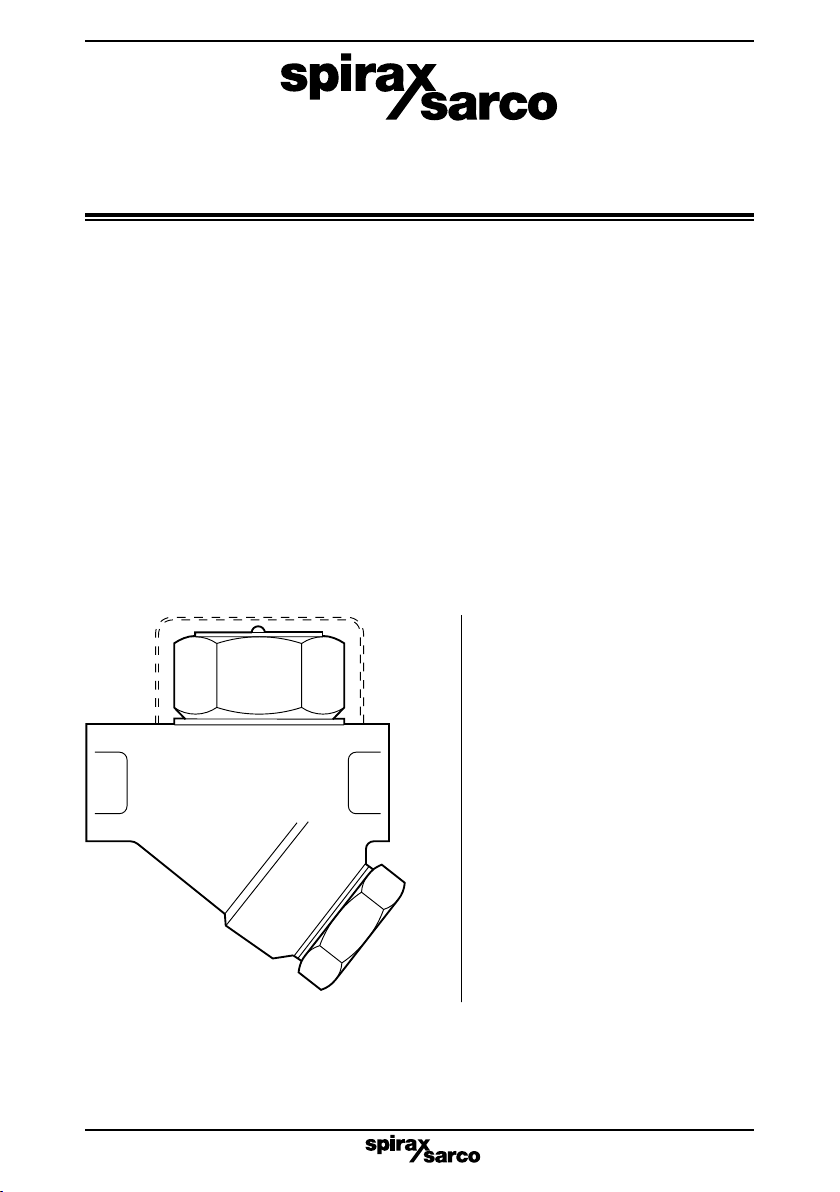

TD42 shown
Groove
anti-air-binding disc
Fig. 1 TD42 and variants
Optional extras
Insulating cover: to prevent the trap being unduly influenced by excessive heat loss such
as when subjected to low outside temperatures, wind, rain etc.
Integral blowdown valve: A BDV1 or BDV2 can be fitted to the strainer cap, alternatively
the strainer cap can be drilled, tapped and plugged " BSP or NPT.
Standards
These products fully comply with the requirements of the European Pressure Equipment
Directive 97/ 23 / EC.
Certification
This product is available with a manufactures Typical Test Report. Note: All certification /
inspection requirements must be stated at the time of order placement.
Note:
For additional information see the following Technical Information Sheets: TI-P068-22,
TI-P151-04 and TI-S01-03.

IM-P068-24 ST Issue 56
2.2 Sizes and pipe connections
TD42 ", ½"LC, ½" and ¾" screwed BSP or API
TD42A ", ½"LC, and ½" screwed BSP (BS 21 parallel) or API
TD42H ½", ¾" and 1" screwed BSP or NPT
TD42L ", ½", ¾" and 1" screwed BSP or NPT
TD42HA ½" screwed BSP or NPT
TD42LA ", ½", ¾" and 1" screwed BSP or NPT
TD42LCA ½" screwed BSP

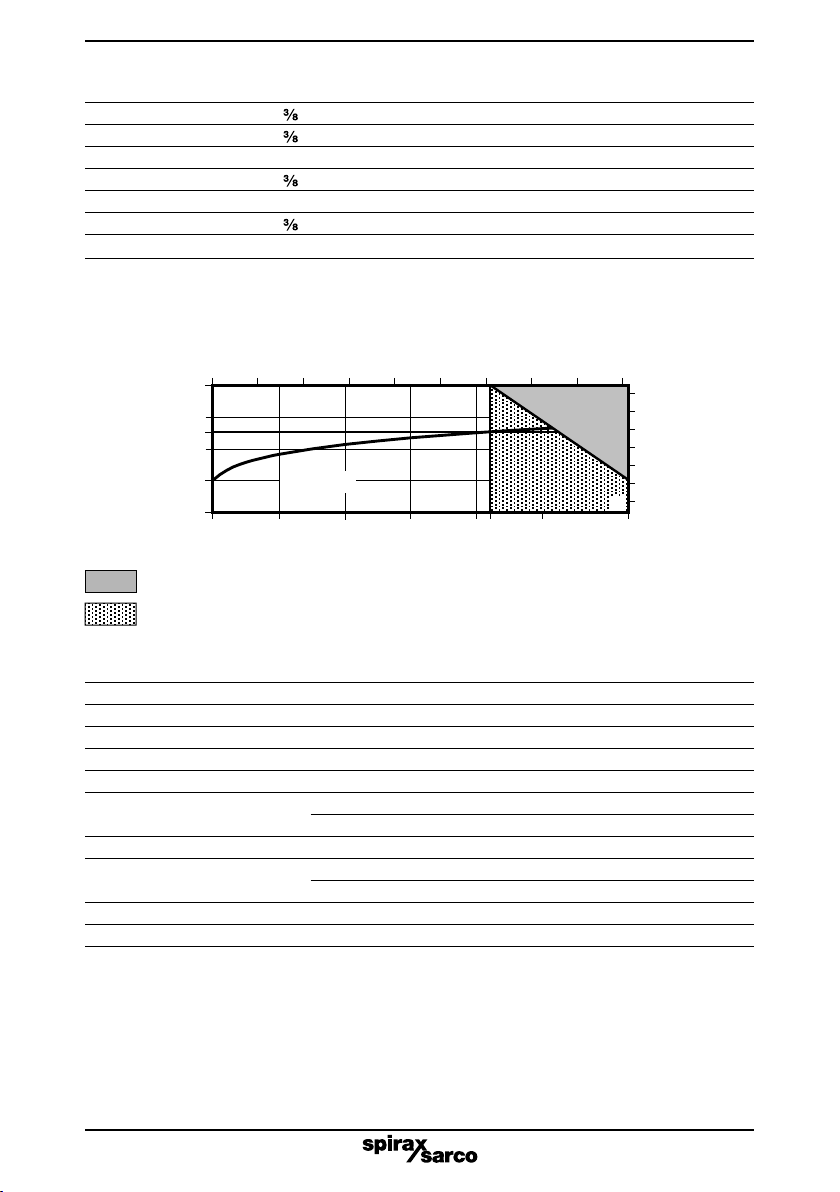

2.3 Pressure / temperature limits (ISO 6552)






      







         
Pressure bar g
The product must not be used in this region.
For optimum product performance the PMO should not exceed 42 bar g.
A - C TD42L and TD42H
B - C TD42LA and TD42HA
Body design conditions PN63
PMA Maximum allowable pressure 63 bar g @ 100°C (914 psi g @ 212°F)
TMA Maximum allowable temperature 400°C @ 42 bar g (752°F @ 609 psi g)
Minimum allowable temperature 0°C (32°F)
PMO Maximum operating pressure 42 bar g (609 psi g)
TMO Maximum operating TD42L and TD42H 400°C @ 42 bar g (752°F @ 609 psi g)
temperature TD42LA and TD42HA 255°C @ 42 bar g (491°F @ 609 psi g)
Minimum operating temperature 0°C (32°F)
Minimum inlet pressure TD42L and TD42H 0.25 bar g (4 psi g)
for satisfactory operation TD42LA and TD42HA 0.80 bar g (12 psi g)
PMOB Maximum operating backpressure should not exceed 80% of the upstream pressure
Designed for a maximum cold hydraulic test pressure of: 95 bar g (1378 psi g)
Temperature °C
Steam
saturation
curve
A
B
C
Pressure psi g
Temperature °F

IM-P068-24 ST Issue 5 7
3. Installation
Note:
Before actioning any installation observe the 'Safety information' in Section 1.
Referring to the Installation and Maintenance Instructions, name-plate and Technical
Information Sheet, check that the product is suitable for the intended installation:
3.1 Check materials, pressure and temperature and their maximum values. If the maximum
operating limit of the product is lower than that of the system in which it is being fitted,
ensure that a safety device is included in the system to prevent overpressurisation.
3.2 Determine the correct installation situation and the direction of fluid flow.
3.3 Remove protective covers from all connections and protective film from all
name-plates, where appropriate, before installation on steam or other high temperature
applications.
3.4 The trap should preferably be installed in the horizontal plane, with a small drop leg
preceding it. Suitable isolation valves must be installed to allow for safe maintenance
and trap replacement. Consideration should be given to a suitable method for
testing the correct operation of the trap. This may be a sight glass or a Spiratec
system. Sight glasses must be positioned a minimum of 1 m (3 ft) downstream of
any blast-action traps. Where the trap discharges into a closed return system, a
non-return valve should be fitted downstream to prevent return flow.
3.5 Isolation valves must be installed to allow for safe maintenance and trap replacement.
3.6 Always open isolation valves slowly until normal operating conditions are achieved -
this will avoid system shocks.
3.7 Check for leaks and correct operation.
Note: If the trap is to discharge to atmosphere ensure it is to a safe place, the discharging
fluid may be at a temperature of 100°C (212°F).
TD42
Condensate
Steam
Steam trap set
Fig. 2 Typical application

IM-P068-24 ST Issue 58
6. Maintenance
Note: Before actioning any maintenance programme observe
the 'Safety information' in Section 1.
6.1 General information:
- Before undertaking any maintenance on the trap it must be isolated from both the supply
line and return line and any pressure allowed to safely normalise to atmosphere. The trap
should then be allowed to cool.
- When reassembling make sure that the joint faces are clean.
- Maintenance can be completed with the trap in the pipeline, once the safety procedures
have been observed.
- It is recommended that new gaskets and spares are used whenever maintenance is
undertaken.
- Ensure that the correct tools and necessary protective equipment are used at all times.
- When maintenance is complete open isolation valves slowly and check for leaks.
6.2 How to service
- Remove the insulating cover (7), if fitted, and unscrew the cap (2) using a suitable spanner
or socket. Do not use stillsons or a wrench of similar type which may cause distortion
of the cap.
- If the seating faces on the body are only slightly worn, they can be refaced by lapping
on a flat surface, such as a surface plate. A figure-of-eight motion and a little grinding
compound, such as 'Carborundum Co's Compound I.F.' gives the best results.
If the wear is too great to be rectified by simple lapping, the seating faces on the body
must be ground flat and then lapped.
Note: the disc (3) should always be replaced with a new one. The total amount of metal
removed in this way should not exceed 0.25 mm (0.010").
- When reassembling, the disc (3) is normally placed in position with the grooved side in
contact with the body seating face (1).
- Screw on the cap (2) to the recommended tightening torque (see Table 1); no gasket
is required but a suitable high temperature anti-seize grease should be applied to the
threads.
6.3 How to clean or replace the strainer:
- Unscrew the strainer cap (5) using a suitable spanner.
- Withdraw the screen (4) and clean or, if damaged, replace with a new one.
- To reassemble, insert the screen (4) into the strainer cap (5), then screw the strainer cap
into place. A fine smear of 'Molybdenum Disulphide' grease should be applied to the first
few threads. Care should be taken to ensure that the gasket and gasket faces are clean.
- Tighten to the recommended torque (see Table 1).
- When maintenance is complete open isolation valves slowly and check for leaks.
After installation or maintenance ensure that the system is fully functional. Carry out tests on
any alarms or protective devices.
4. Commissioning
The thermodynamic steam trap will discharge condensate with a blast type action at a
few degrees below steam saturation temperature, due care must be given to the site
of the discharge.
5. Operation

IM-P068-24 ST Issue 5 9
Table 1 Recommended tightening torques
or
Item Part Size N m lbf ft
mm
TD42 ( ") 36 A / F 135 - 150 100 - 110
TD42 (½"LC) 36 A /F 135 - 150 100 - 110
2 TD42/ TD42H (½", ¾") 41 A /F 180 - 200 132 - 147
TD42L (½", ¾" 1") 36 A / F 135 - 150 100 - 110
TD42H (1") 55 A / F 250 - 275 184 - 202
5 (All) 32 A / F M28 170 - 190 125 - 140
4
7
3
6
Fig. 3
2
1
5

IM-P068-24 ST Issue 510
4
7
3
6
The spare parts available are shown in solid outline. Parts drawn in broken line are not
supplied as spares.
Available spares
Disc (packet of 3) 3
Disc and strainer screen (TD42LA, TD42HA, TD42A or TD42LCA) 3, 4, 6
Strainer screen and gasket 4, 6
Strainer cap gasket (packet of 3) 6
Insulating cover 7
How to order spares
Always order spares by using the description given in the column headed 'Available spares'
and state the size and type of trap.
Example:
1 - Strainer screen and gasket for a Spirax Sarco ½" TD42L thermodynamic steam trap.
7. Spare parts
Fig. 4

IM-P068-24 ST Issue 5 11

IM-P068-24 ST Issue 512
