SPK Electronic Co SPK-TRACKER-P001 User manual

1
SPK ELECTRONICS CO., LTD.
Add:10F,NO.510,SEC.5,CHUNG HSIAO E. RD, TAIPEI, TAIWAN
Tel:02-2346-2323 Fax:02-2346-3939
E-mail:spk@spkecl.com WEB:http://www.spkecl.com
Waterproof GPS Personal tracker
MODEL: SPK-TRACKER-P001
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make
sure to read this manual carefully before using this product. Please note that specification and information are
subject to changes without prior notice in this manual. Any change will be integrated in the latest release. The
manufacturer assumes no responsibility for any errors or omissions in this document.

2
1.
Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote
targets by SMS or internet. The most advanced technology of GPS and AGPS dual positioning. The waterproof level
achieve IPX - 6.
2.
Applications
Vehicle rental / Fleet management etc
Outdoor sports
Protect child / the elder/ the disabled / pet etc
Provide peace-of-mind for businessmen
Personnel Management
Criminals Tracking
3.Hardware
Description
3.2Side face

3
4.Specs.
Content
Specs.
Dim.
77mm x 37mm x 23mm
Weight
55g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS chip
UBLOX
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 35-80s
Warm status 35s
Hot status 1s
Wall charger
110-220V input
5V output
Battery
Chargeable 3.7V 1000mAh Li-ion battery
Standby
240hours
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
Functions:
1. GPS and Location Based Service
Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location byAGPS.
2. Real time tracking
Real time tracking it by cell phone and platform .Also can support get location every 5 seconds, and the GPS
accuracy is 5m .
3. Check the history of route on platform
Can check and replay within one year history of route of device ,by web monitor center.
4.Monitoring and communication
Can hear the voice around the tracker by cell phone .Also support communication with the tracker by cell phone
(OEM).
5.SOS Alarm
SOS button ,when user have emergency , press the SOS button ,the tracker will send “help me “SMS to all
authorized phone number and monitoring web platform.
6. Power Saving Mode
The device go into standby mode when there isn’t vibration for 3 minutes , it will go into working mode when it feel
vibration
7.Google map on mobile
Check the location with Google map on mobile.
8. Geo-fence and movement alert
Set up a Geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized
number when it breaches the district..
9.Low BatteryAlarm

4
5.Usage
Please charge 12hours at first use.
Insert SIM card in right way. Please put the unit outside and make sure the trademark side facing up.
Confirm your SIM card have calling, send SMS, GPRS function.
Confirm your SIM card have enough balance (money).
Confirm your SIM card can show caller ID and don not use call forwarding function.
5.1 SIM card installation
Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text
format, can’t be identified for PDU format.
5.1.1 Open the rear cover, remove the screws by screwdriver.
5.1.2 Forward push and open the metal piece, put the SIM card into the card slot, and press the metal piece to its
original position, push it backward.
5.2Battery and Charger
Do charge the battery to capacity in 8 -12 hours for first time. This unit adopts built-in Li-ion battery, and full battery
can standby 240 hours. After first use, the battery usually should be charged fully in 3-5 hours.
Cautions:
a: For it’s Li-ion battery, which contains harmful chemicals and may burst, please don’t bump, puncture it violently
and keep it off fire.
b: Please charge the battery in time to keep it working normally.
5.3Startup
Put the SIM card and battery in place.
Turn on the unit outdoors by Pushing the button to“On”the indicator is on.
Set admin number,APN , IP and open GPRS
Eg: Step1.admin123456+space+your phone number
Step2.apn123456+ space+local apn content
Step3 .adminip123456+space+101.1.16.228+space+7700
Step4. gprs123456
In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. The

5
indicator will keep flashing every 3 seconds when the unit has received the signals.
When this unit receives GPS signals normally, you can use it and do any setting as the instructions of this
manual.
green LED for GPRS working status
Status of indicator
Meaning
Slow flash (flash 1s after every 2s)
GSM / GPRS conversation start
Continuously in bright status
No GPRS signal
Green Led off
Device fault or dormant
Blue LED for GPS working status
Status of indicator
Meaning
Slow flash (flash 1s after every 2s)
GPS location successful
Continuously in bright status
Searching GPS signal
Blue led off
Device fault or dormant
Red LED for power charging status
Status of indicator
Meaning
Red led on all the time
Charging
red led off
Full battery or charged full
5.4 commands list(pls note 123456 is the default password)
Feature name
Active
command
Reply
Cancel
command
reply
Begin(blank
before set)
Begin123456
Begin ok
Admin number
Admin123456+
space+number
Admin ok
Noadmin12345
6+space+numb
er
Noadmin ok
Sos number
Sos123456+sp
ace+number
Sos number ok
Nosos123456+
space+number
Nosos number
ok
Sossms
Sossms123456
Sossms ok
Nosossms1234
56
Nosossms ok
Soscall
Soscall123456
Soscall123456
ok
Nososcall1234
56
Nososcall ok
Password
Password1234
56+space+new
Password ok
Sever ip&port
Adminip123456
+space+ip+spa
ce+port
Adminip ok
APN
Apn123456+sp
ace+local apn
content
Apn ok
LBS
Addjz=1
Open LBS
Addjz=0
Close LBS
GPRS
Gprs123456
Gprs ok
Nogprs123456
Nogprs ok
Time Zone
Timezone1234
Timezone ok
Timezone1234
Timezone ok

6
56+space+8
56+space+-8
Language
Lag1
Switched to
english
Restore factory
setting
format
No reply
Upload
frequency(10-1
80s)
Upload123456
+time
Upload ok
Sleep working
mode
Sleep123456+s
pace+time
Sleep time ok
Wake up by
sms,call,press
button
Shock working
mode
Sleep123456+s
pace+shock
Sleep shock ok
Wake up by
shock,sms,call,
press button
No sleep
working mode
Nosleep123456
Nosleep ok
Get location
Where or
G123456#
Google map
link
One way
communication
monitor
Monitor123456
In this
mode,you could
hear the voice
around units
after call it
Shock alarm
Shock123456
Shock ok
Noshock12345
6
Noshock ok
Shock call
alarm
vibcall123456
Shock call
alarm ok
Shock sms
alarm
vibsms123456
Shock sms
alarm ok
Move
alarm(distance:
100-5000m)
Move123456+s
pace+distance
Move ok
Nomove123456
Nomove ok
Over speed
alarm(50-120k
m/h)
Speed123456+
space+max
speed
Speed ok
Nospeed12345
6
Nospeed ok
Set a geo-fence
(stockade)
stockade+1234
56+space+long
,lat;long,lat
stockade ok
nostockade123
456
Nostockade ok
Check setting
of device
Param1
Software
version,date,im
ei,ip&port,apn,
web platform
Param2
Admin
number,sos
number,move
distance,speed,
etc
Status of device
status
Bat:4,gprs:1.gs
m:3,gsm:1,acc:
0,oil:0,power:1,
s:0

7
5.5 Web platform and sever ip&port
Website
Sever IP
Port
www.lkgps.net
101.1.16.228
7700
6.download
6.1 android version: scan below QR code
6.2 ios version: search “LKGPS” in app store
7. Faults & The solutions
Faults
Solution
Startup Fail
Check the battery and see if it is fully charged or
correctly installed.
Hang up Fail
In existence of an authorized number, an unauthorized
number dials up the unit. Please initialize the unit and re-set up
the authorized numbers.
Monitoring failure
Please check the authorization number is set to the correct time
No GSM Signal
Please make sure SIM Card is GSM Net and installed correctly; also call displa
should be on; but no call transfer and PIN code off.
Table of contents
Other SPK Electronic Co GPS manuals

SPK Electronic Co
SPK Electronic Co SPK-GPS8063 Operational manual

SPK Electronic Co
SPK Electronic Co SPK-TRACKER-PET01 User manual

SPK Electronic Co

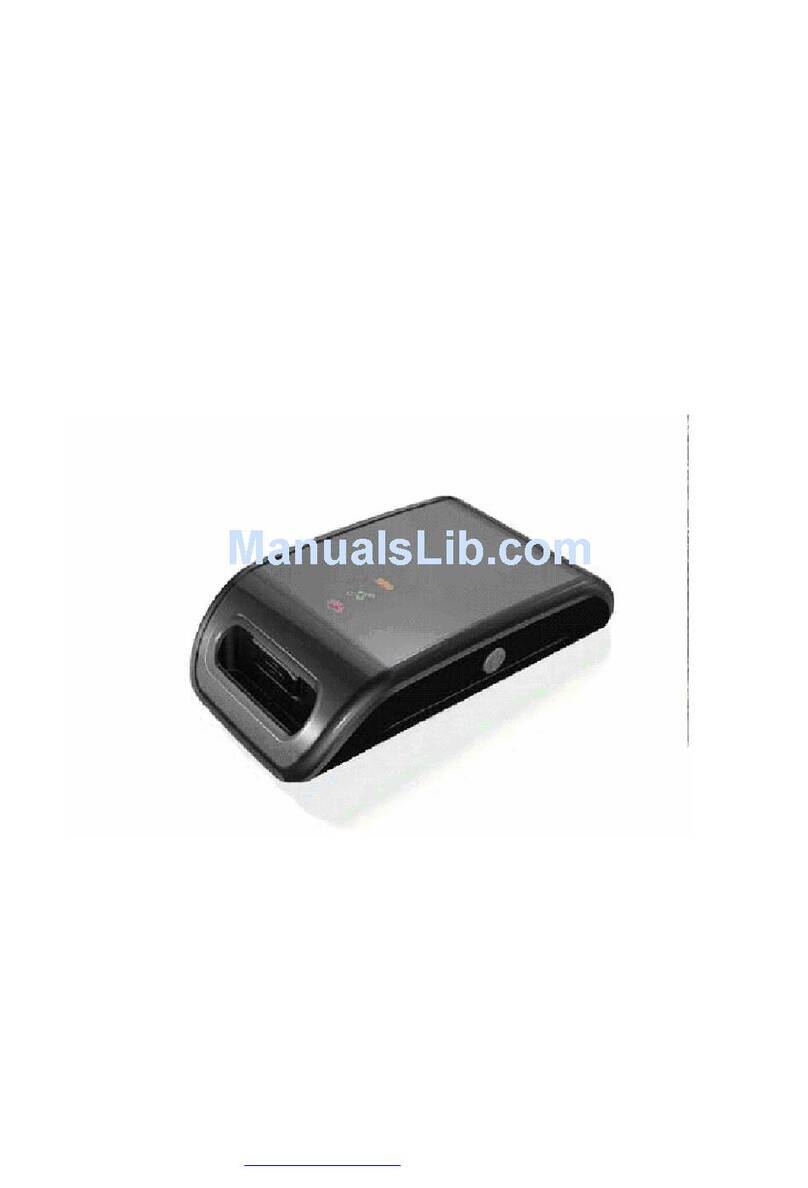

SPK Electronic Co SPK-GL3080 User manual

SPK Electronic Co
SPK Electronic Co SPK-AL-NAVI600 User manual

SPK Electronic Co

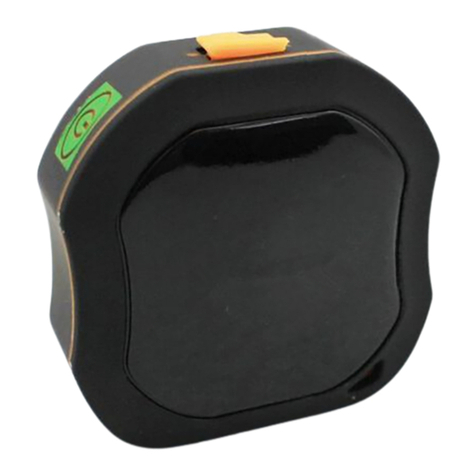

SPK Electronic Co SPK-TRACKER-P002 User manual
