Prestigio GeoVision 5800BTHDDVR User manual

CAUTION
1. To reduce the risk of electric shock, do not remove the cover (or back). No
user-serviceable parts inside. Refer servicing to qualified service personnel.
2. The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
WARNING
The device should not be exposed to dripping or splashing and no objects filled with
liquids should be placed on the device.
Important Safety
Instructions
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

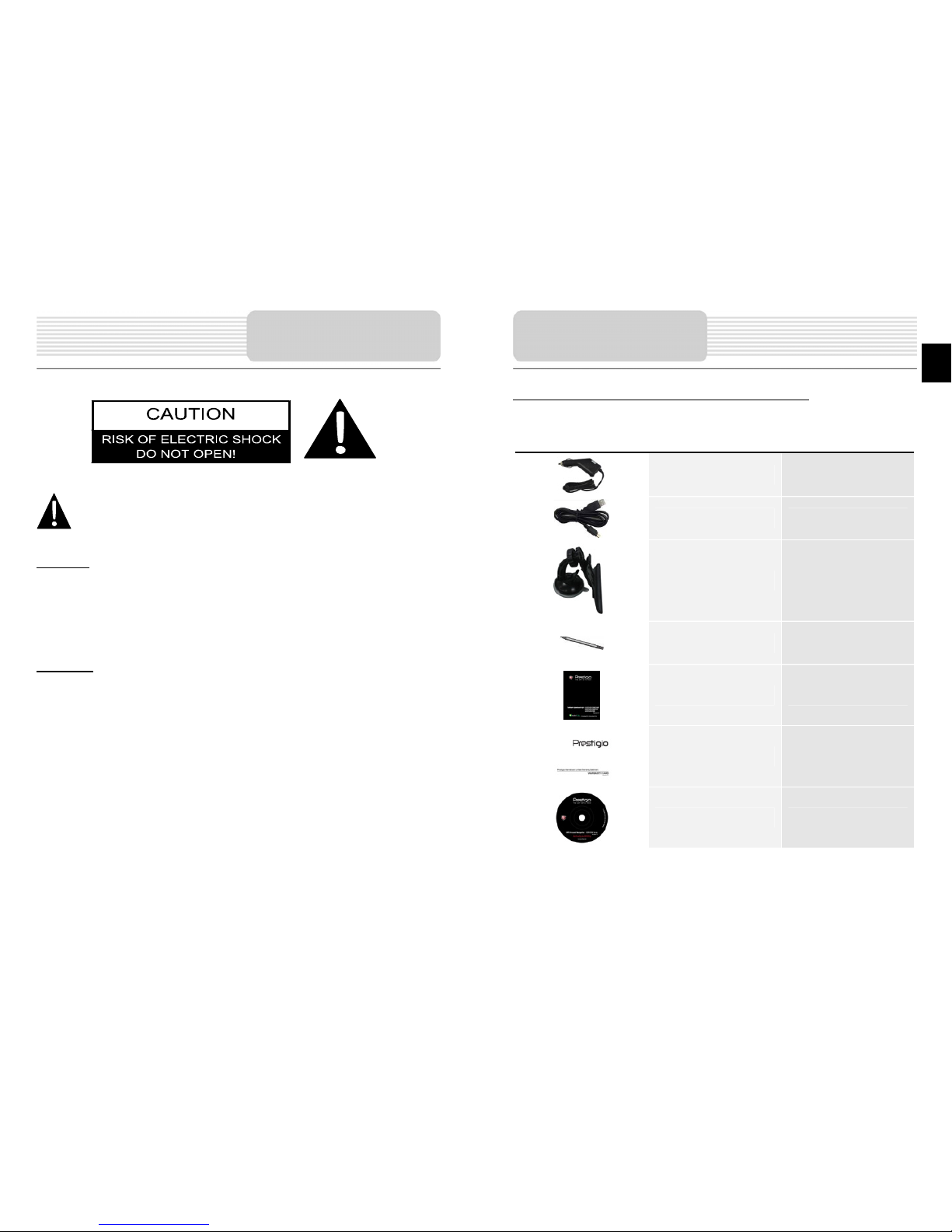

Prestigio GeoVision 5800BTHDDVR–Accessories List
ITEM NAME QTY
Car Charger 1
USB Cable 1
Car Mount 1
Stylus Pen 1
User Manual 1
Warranty Card 1
Driver/Document CD 1
Accessories
EN
EN - 1

Prestigio GeoVision 5800BTHDDVR

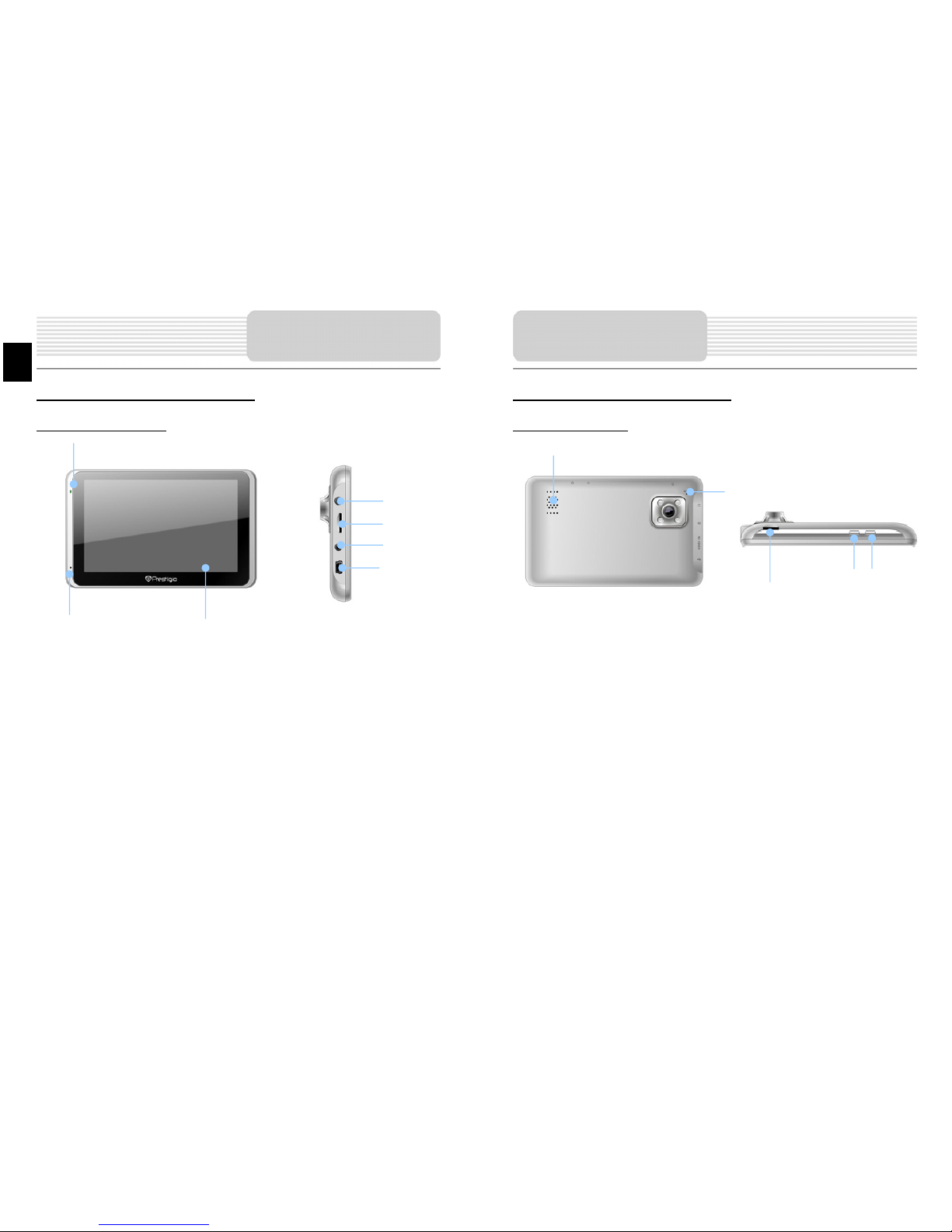

Front and Side View
1. LCD Touch Screen
Tap the screen with touch pen or finger to select menu commands or to enter
information.
2. Battery Status Indicator
The indicator glows in bright green color when battery is fully charged and in red
color when charging.
3. Earphone Jack
Connects to earphones or headsets.
4. microSD Slot
Receiving micro SD memory card for data access or memory expansion.
5. Video-IN Jack
6. mini USB Port
Connection to USB Cable for data access or battery charging
7. Microphone
Recordssound
View of Main Unit
1
4
3
6
2
EN
5
7
EN - 2
Prestigio GeoVision 5800BTHDDVR
Rear and Top View
1. Speaker
Emits sound, voice or music.
2. Reset Button
Press to reboot the device.
3. T-flash slot for DVR
Receiving micro SD card for recording video
4. Power Button
Press to power the device ON/OFF.
5. Lock Button
Press to lock the current video
View of Main Unit
1
4
2
35

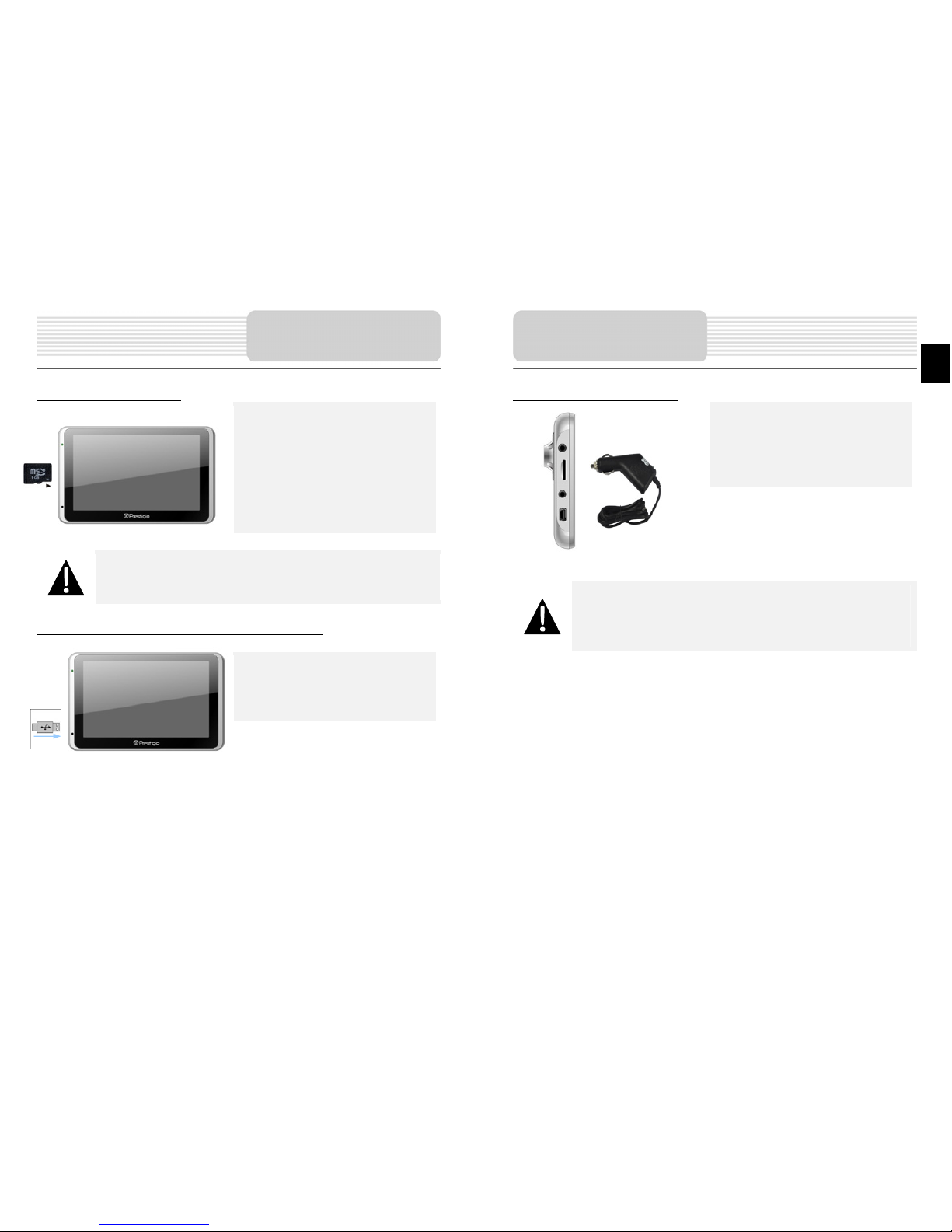

Inserting microSD Card
zTo insert a microSD card, place the
connector towards the device and the
card label towards the front side of
the device.
zTo remove a microSD card, gently
press the edge of the card to release
the safety lock and pull the card out
of the slot.
NOTE:
Please always make sure that no application is accessing the microSD
card before extraction.
Connecting to External USB Device (Charging)
zInsert the USB connector into the
appropriate USB port.
zInsert the other USB connector into
the USB port on PC to start charging.
Device Connections
Connecting to Car Charger
zInsert the USB connector into the
appropriate USB port.
zInsert car charger connector into
vehicle 12V accessory/cigarette
socket to start charging.
NOTE:
Please connect the car charger to vehicle 12V accessory/cigarette
socket after the vehicle engine is started to protect the device from
sudden surges in current.
Device Connections
EN
EN - 3

About Rechargeable Battery
The device is equipped with a built-in rechargeable battery. Please fully charge the
battery (for at least 5 hours) before initial use. The battery status indicator glows in red
color when charging and turns bright green color when charging is complete. Charging
time is approximately 4 hours.
Working conditions and precautions for the rechargeable battery
zDevices with new batteries should be fully charged before initial use.
zIt is not necessary to start charging the device before the battery is fully
discharged.
Cautions on Battery
Charging
EN
EN - 4

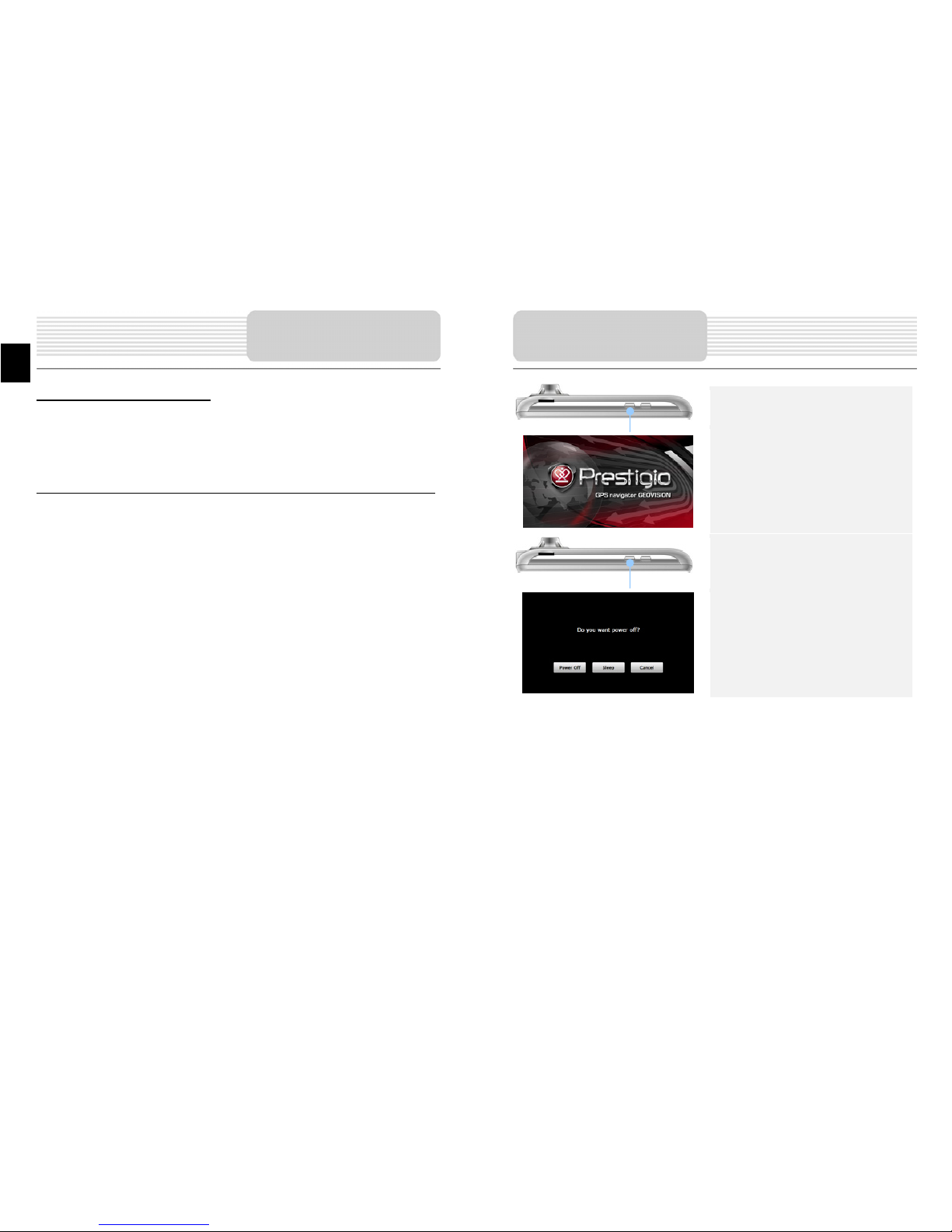

1. Press and hold Power Button to turn
on the device.
2. Shortly after the greeting screen is
shown, the main menu will be
displayed.
3. Tap the corresponding buttons with
touch pen included to navigate
through various functions.
4. Press and hold Power Button to turn
the device off or to allow the device to
enter sleep mode.
5. Tap Sleep icon to put the device to
sleep mode or Power Off icon to turn
the device off.
Getting Started

zIn the main menu, tap on to
enter the device settings.
zTap to display other settings.

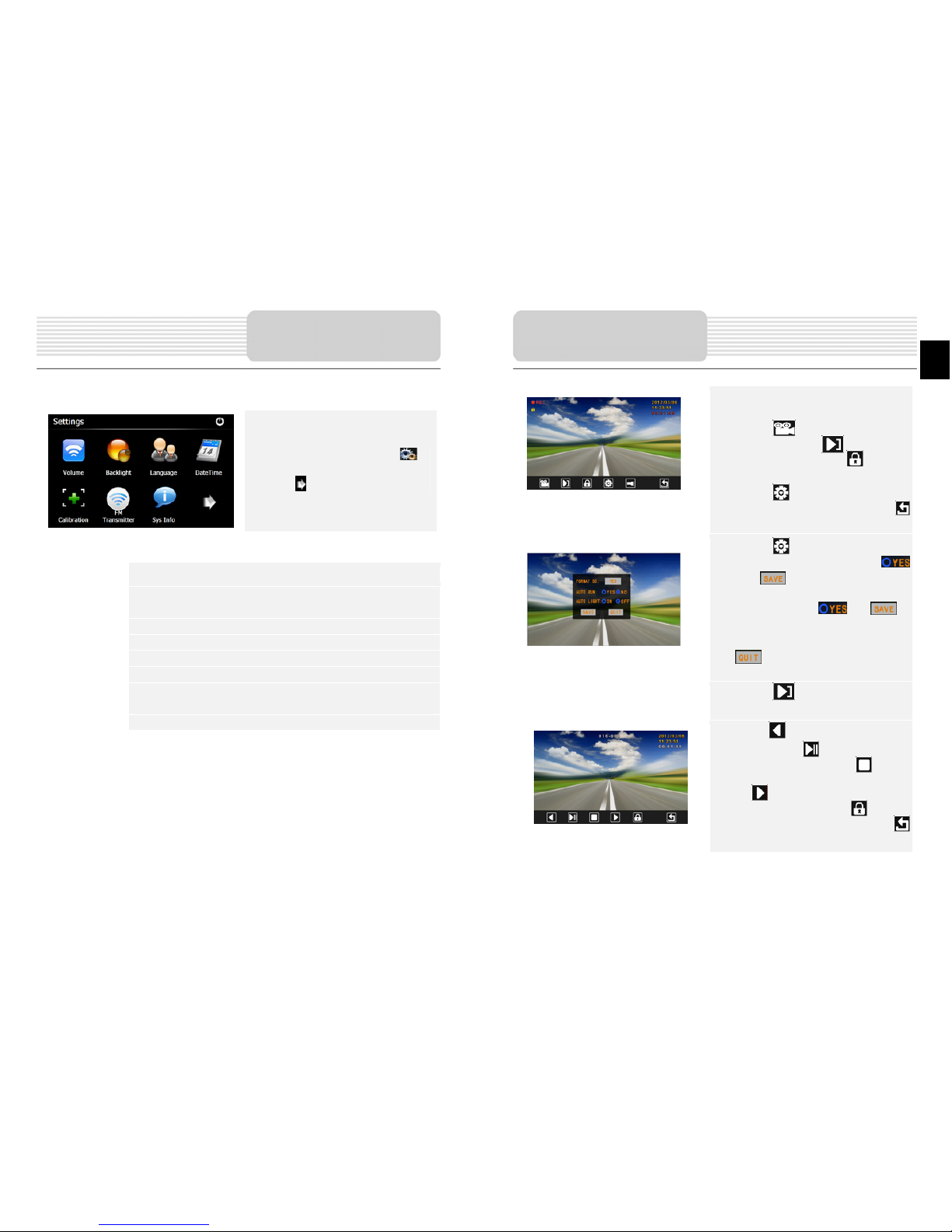

Volume Adjust sound volume, mute device, or enable warning messages.
Backlight Adjust the brightness of touch screen, enable/disable auto
backlight.
Language Select desired language.
DateTime Set up Time Zone/Date/Time.
Calibration Calibrate the screen when position deviation occurs.
FM transmitter Transmit audio signals from the navigator to radio sets.
USB Set the data transmission mode(Active sync or Mass Storage)
between the navigator and computer.
Factory Reset Restore all system settings to its factory default values.
Device Settings
1. Tap on DVR icon on the main menu
to start using DVR function.
2. Tap on to start or stop video
recording ; Tap on to play the
recorded video; Tap on to lock
the recording video.
3. Tap on to format the TF card &
start-up method of video; Tap on
to exit the DVR function.
4. Tap on to enter the setting
interface as left picture; Tap on
and , the device will run the
DVR function automatically when
power on; Tap on and ,
the IR lights will be running
automatically during the dark; Tap on
to exit the setting interface.
5. Tap on to enter the playback
interface as left picture.
6. Tap on to play the previous
video; Tap on to pause or
continue playing; Tap on to
stop playing the current video; Tap
on to play the next video of
previous videos; Tap on to
lock&unlock current video; Tap on
to return the DVR main interface.
(Note: For DVR, it’s a must to use TF card with Class4 at least)
DVR Function
EN
EN - 5

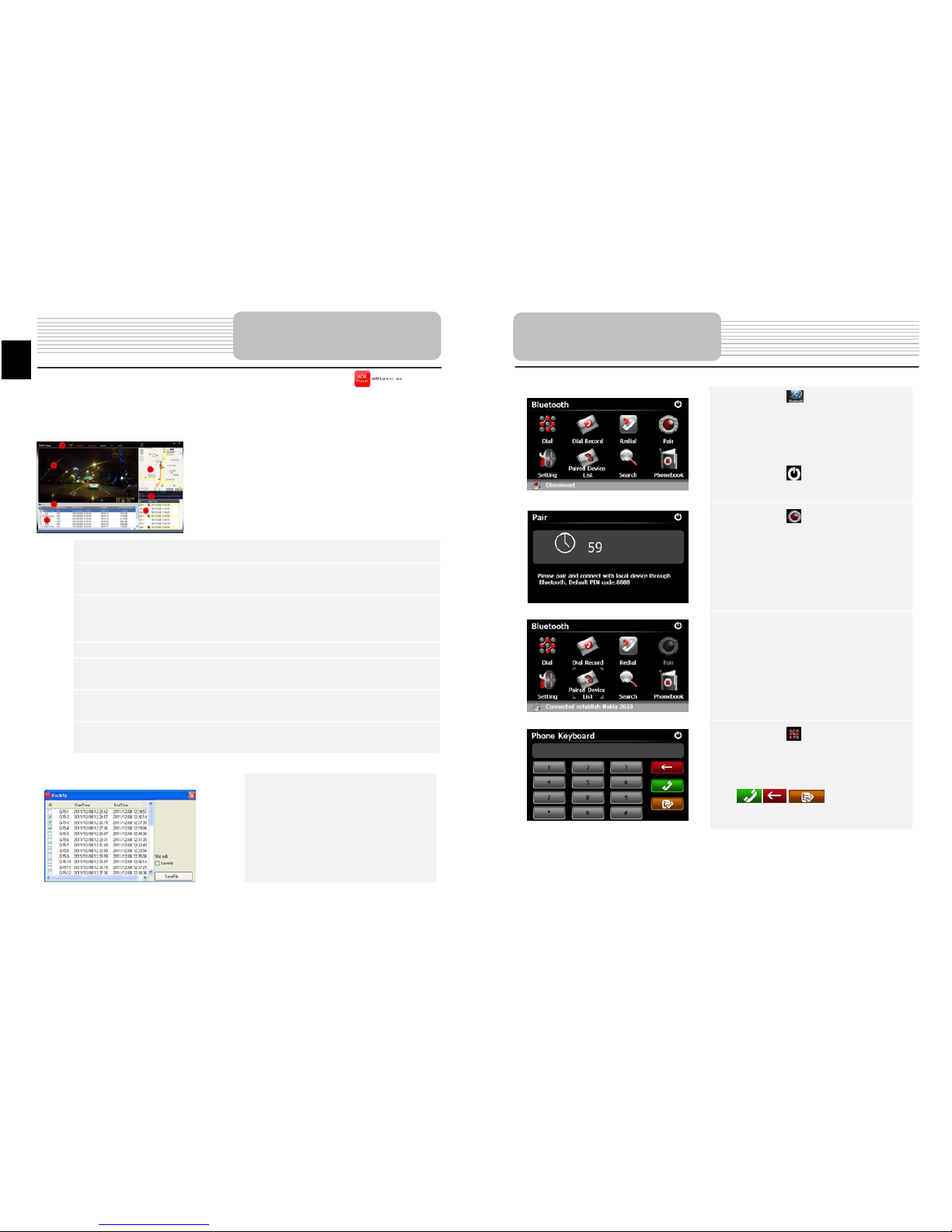

The ADR player will be automatically generated after TF format. The file
will be shown on the screen once open the TF card by computer. Click ADR Player, the
interface will be as below: (Note: for more detailed info about ADR player, please refer to
CD)
①Video Display Area: Display the current playing video
②GPS Information Display Area: Display the GPS information of the current
video including GPS coordinates and driving speed
③
Map Display Area: When ADR Player has connected to Google Map via
network and the current playing video has GPS information record, the area
will display the drive route
④G-Sensor Display Area: Display G-Sensor information.
⑤Progress Slider Bar: Show the progress of playing video and end user can
drag mouse to any desired location on slider bar for playing video
⑥Video Group List: Display all video groups in the SD Card; Video group is a
combination of continuous video clips.
⑦Video Clip List: Display all video clips in the SD Card; ADR Player lists videos
in clips
zSelect a video group and press
save video button, the interface
will be as left figure; Check the
checkbox you want on the clip IDs
or check “ Save All” checkbox and
press” Save File” button to export
and save video clips to AVI files.
ADR player of DVR
EN
EN - 6
1. Tap on Bluetooth icon on
the main menu to start using
Bluetooth function.
2. The link status is shown at the
bottom of the interface.
3. Tap on to exit the current
function.
4. Tap on in Bluetooth
interface to start pairing with mobile
phone device with GPRS function.
5. Please make sure Bluetooth
function on mobile phone is
detectable by other devices.
6. “Connected established” will be
displayed upon the successful
pairing.
7. Tap on in Bluetooth
interface to enter the Phone
Keyboard.
8. Tap on digit buttons and tap on
/ / to start Dialing,
Backspace, and enter Dial Record.
Bluetooth Function

9. Tap on / to adjust the
volume. Tap on to end call.
10. Tap on to enter call record.
Tap on to enter keypad. Tap on
to switch the call to mobile
phone or switch it back to device.
11. The call fails to connect as
illustrated.
12. Tap on to return to Phone
Keyboard interface.
13. Calling number will be displayed
upon the Incoming Call.
Bluetooth Function
14. Tap icon on Bluetooth
interface to enter Dial Record.
15. Tap on / / icons to view
Dialed Call list, Received Call list,
and Missed Call list. Tap on to
start dialing.
16. To delete a desired phone
number in the list, select the number
and tap on . Tap on to
delete all numbers in the list.
17. Tap on in the Bluetooth
interface to redial the last dialed
number.
18. Tap on in the Bluetooth
interface to enter Setting function.
19. Tap on to set a new PIN
code. Tap on /to select a
ring tone.
20. Tap on to enable/disable the
Bluetooth function. Tap on to
enable/disable automatic HFP
connection.
Bluetooth Function
EN
EN - 7

21. Tap on in Bluetooth
interface to enter Paired Device List
function.
22. Tap on to delete mobile
phone name from the list. Tap on
to disconnect the PND
(Personal Navigation Device) from
the mobile phone. Select mobile
phone name from Paired Device
List and tap on to enter Profile
list.
23. Tap on to re-connect from
previously connected mobile phone.
Tap on to disconnect the PND
(Personal Navigation Device) from
the mobile phone.
24. Tap on in Bluetooth
interface to start searching process.
25. Pairing devices(mobile phones)
will be displayed in the list when
search is completed.
26. Tap on the mobile phone name
and tap on to pair. Tap on
to enter Paired Device List.
Bluetooth Function
EN
EN - 8

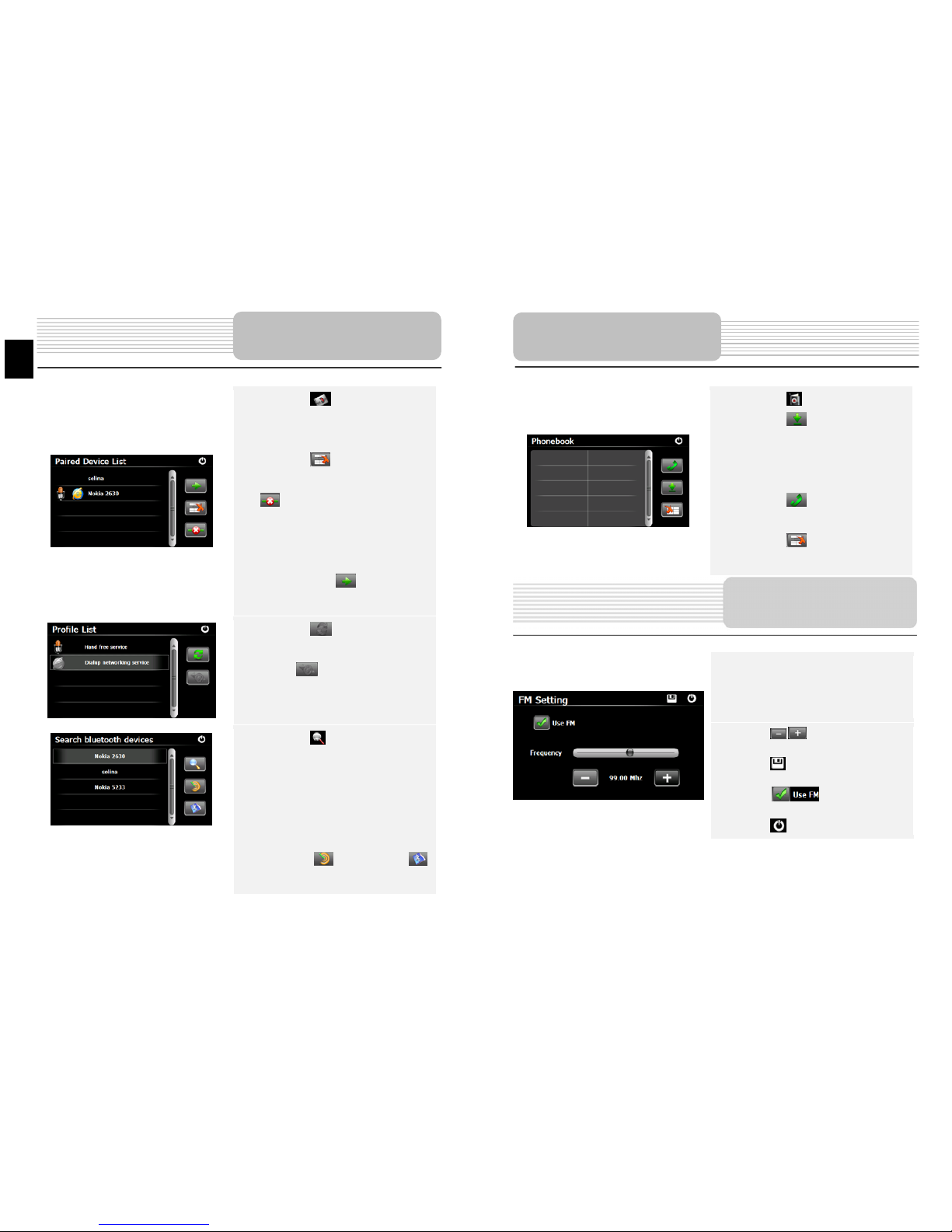

27. Tap on to enter Phonebook.
28. Tap on to download the
phone numbers of the mobile phone
to the PND (Personal Navigation
Device).
29. Tap on to dial the phone
number.
30. Tap on to delete mobile
phone name from the list.
1. Tap on Function icon on the main
menu.
2. Tap on FM icon to start using
Bluetooth function.
3. Tap on /or drag the cursor to
tune FM frequency down/up.
4. Tap on to save current FM
station.
5. Tap on to enable the FM
function.
6. Tap on to exit.
（Note: Please make sure GPS is connected to the car charger before using FM
Transmitter）
Bluetooth Function
FM Function

When using the navigation software for the first time, an initial setup process starts
automatically. Do as follows:
Select the program language. If your preferred language does not appear on the
screen, tap / or drag the list up or down with your finger to view all available
languages. Tap to select your preferred language. Tap to
confirm your selection, and proceed to the next page.
Read the Software and Database End User Licence Agreement, and tap
if you agree with the terms of use.
The Configuration wizard starts in the selected language. Tap to
continue.
Select the voice guidance language profile. If your preferred language does not
appear on the screen, scroll the list for other available profiles. Tap any item in the list for
a short voice sample. Tap to confirm your selection, and proceed to the next
page.
Initialization and
Software Activation
Set your preferred time format and units. Tap to confirm your
preferences.
Set your preferred route planning options. Tap to confirm your
preferences.
You are offered to watch the tutorial that leads you through the basic steps of
navigation. Tap if you would like to get an instant understanding of the
functions of your software. You can run it later if you choose .
You are now asked whether you allow the software to collect usage information and
GPS logs that may be used for improving the application and the quality and coverage of
maps. Tap to allow the anonymous statistics or to disable this
function.
The initial setup is now complete. The application starts.
Initialization and
Software Activation
EN
EN – 9

Introduction
After the initial setup, and whenever the software is started, the Navigation menu
appears. You have the following options:
•Tap to select your destination by entering an address or selecting
a place of interest, a location on the map or one of your Favourite destinations.
You can also look up your recent destinations from the Smart History, enter a
coordinate or use the location saved in a photo.
•Tap to display the route parameters. You can view the route in its
full length on the map. You can also perform route-related actions such as
editing or cancelling your route, setting a start point for the route, picking route
alternatives, avoiding parts of the route, simulating navigation or adding the
destination to your Favourites.
•Tap to customize the way the navigation software works, watch the
Tutorial, simulate demo routes, or to run some additional applications.
•Tap to start navigating on the map.
•Tap to stop navigation and exit the software.
Navigation
EN
EN – 10
Destination Menu
In the Navigation menu, tap . The Find menu provides you with the following
options:
•Tap to specify an address as your destination.
•Tap to select a place of interest as your destination.
•Tap to navigate to a location selected on the map.
•Tap to choose from the list of your favourite destinations.
•Tap or to navigate to the recent destination that is shown on the
button.
•Tap to choose from the list of all recent destinations.
•Tap to navigate to a coordinate or to a location saved in a photo.
Navigation

Navigating to An Address
In the Navigation menu, tap , then tap . By default, the screen
proposes the city or town where you are located.
If needed, change the country. Tap the button showing the name of the country.
1. Use the keyboard to enter the name of the country.
2. After entering a couple of characters, the list of countries that match the entered
string appears. Tap the country of your choice.
If needed, change the city/town. Tap the button showing the name of the city/town,
and use the keyboard to enter a part of its name. As you enter letters, the most likely
city/town name is always shown in the input field. You have the following options:
•Tap to select the city/town that is offered in the input field.
•Tap to correct your entry.
•Tap to browse the list of city/town names matching your input.
Select a city/town from the list.
Navigation
Navigating to An Address
Enter the street name:
1. Tap .
2. Use the keyboard to enter a part of the street name.
3. Tap to select the street that is offered in the input field or tap
to browse the list of all streets matching your input. Select a street from the list.
Enter the house number:
1. Tap .
2. Use the keyboard to enter the house number.
3. Tap to finish entering the address.
The map appears with the selected destination in the middle. Tap another map
location if necessary, then tap to confirm the destination.
After a short summary of the route parameters, the map appears showing the entire
route. Wait for a few seconds or tap and start navigating.
Navigation
EN
EN – 11

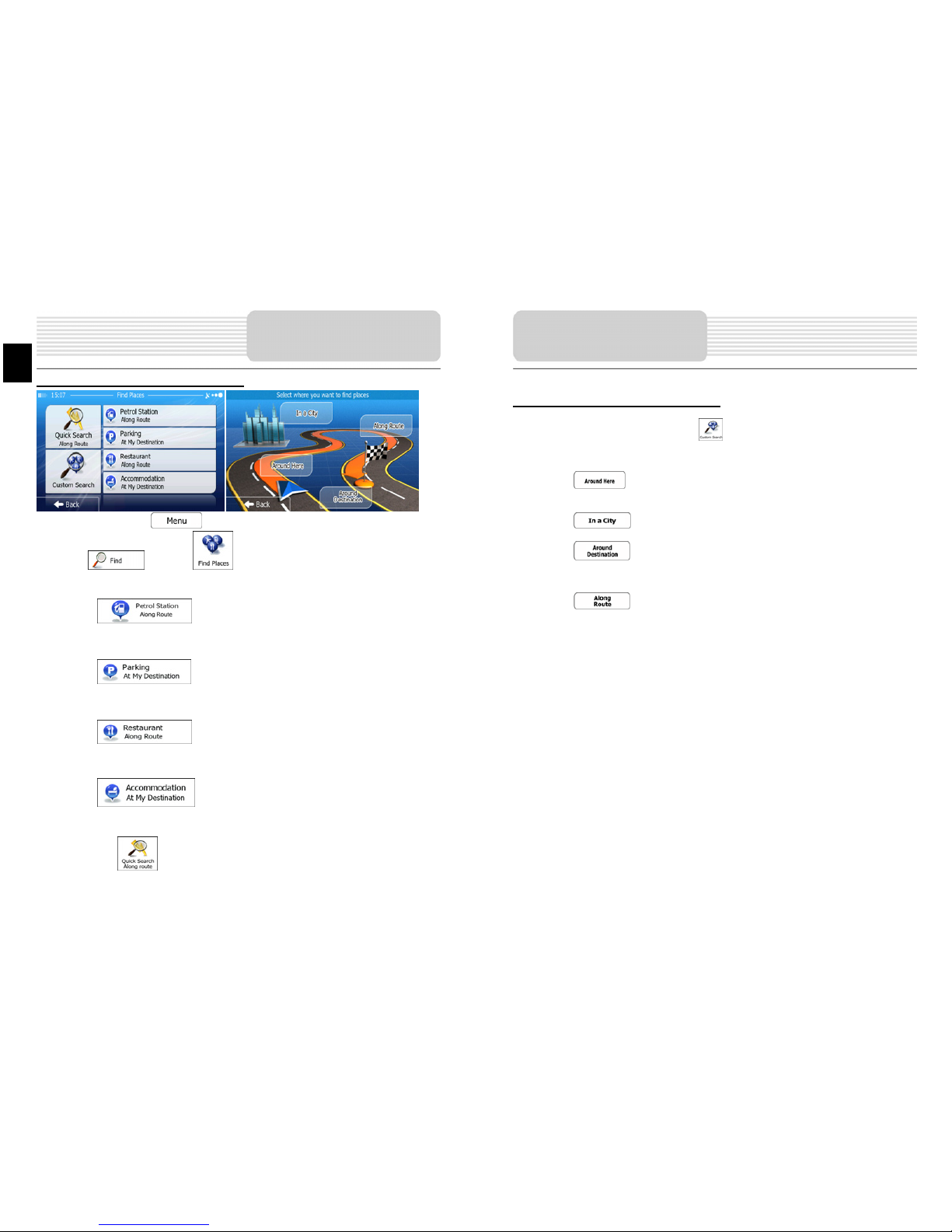

Navigating to a Place of Interest (POI)
On the Map screen, tap to return to the Navigation menu. In the Navigation
menu, tap , then tap . You are offered the following preset search
categories:
•Tap to get a list of petrol stations along the route or if it is
not available, around your current position or your last known position.
•Tap to get a list of parking lots near the destination or if it
is not available, around your current position or your last known position.
•Tap to get a list of restaurants along the route, around
your current position or your last known position.
•Tap to get a list of accommodation near the destination,
around your current position or your last known position.
You can also tap and search for a place by entering its name.
Navigation
EN – 12
EN
Navigating to a Place of Interest (POI)
If none of the above is appropriate, tap to find a place of interest at the following
locations:
•Tap to search around the current position or if it is not available,
around the last know position.
•Tap to search for a place within a selected city or town.
•Tap to search for a place around the destination of the active
route.
•Tap to search along the active route, and not around a given point.
This is useful when you search for a later stopover that results in a minimal
detour only, such as searching for upcoming petrol stations or restaurants.
Navigation

Example for Navigating to a Place of Interest
Example: To find a park around your destination, do as follows (starting from the
Navigation menu):
Tap .
Tap .
Tap .
Tap .

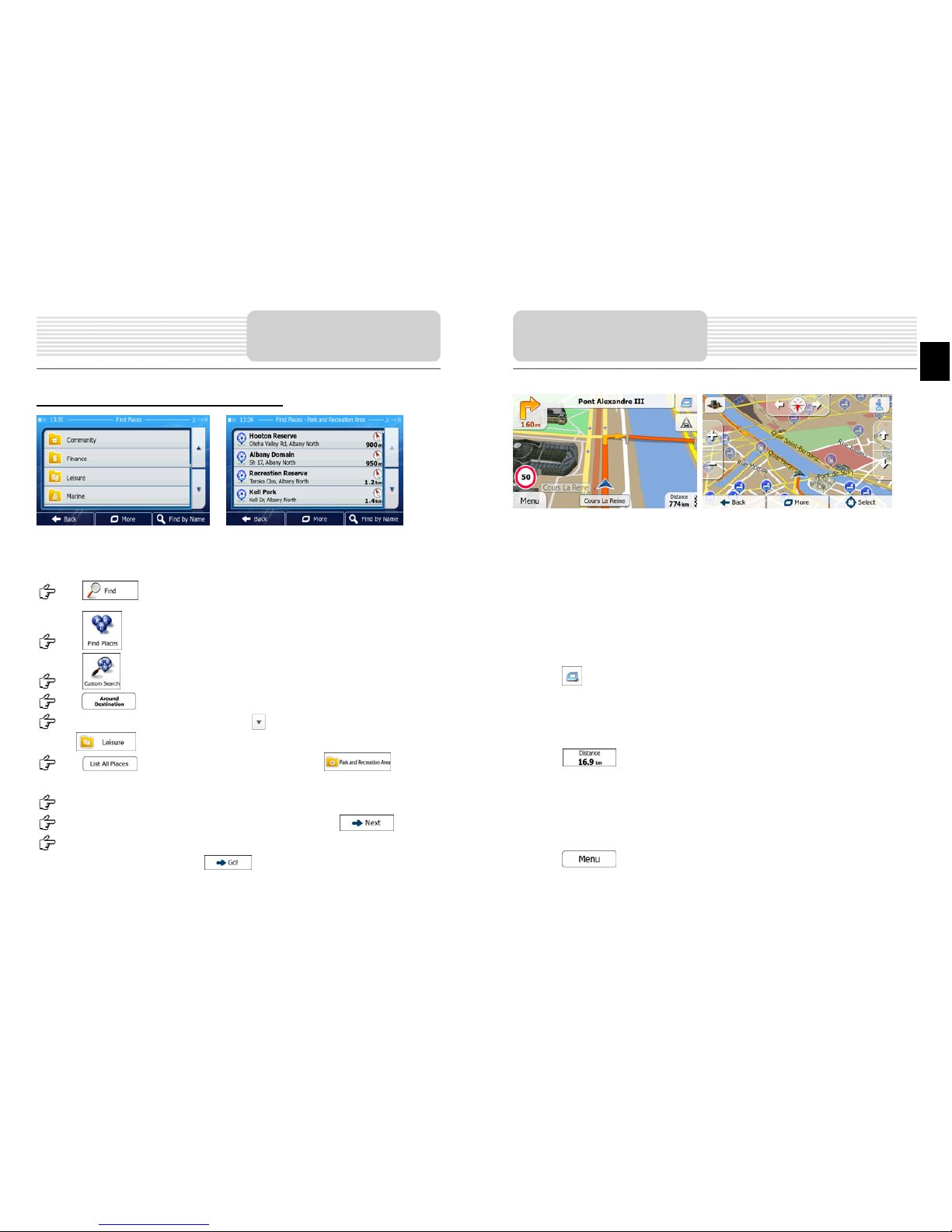

The list of place categories appears. Tap or slide your finger to browse the list,
and tap .
Tap to browse the whole category, or tap to narrow
down your search.
Tap any of the list items.
Check the details and the location of the place, and then tap .
After a short summary of the route parameters, the map appears showing the entire
route. Wait for a few seconds or tap and start navigating.
Navigation
The Map screen is the most important and frequently used screen of the software. The
Vehimarker (a blue arrow by default) represents your current position, and the orange
line shows the recommended route. There are screen buttons and data fields on the
screen to help you navigate. During navigation, the screen shows route information.
•At the top of the screen, you see your heading and the house numbers on left and
right if you have not selected a route destination. When navigating a route, you see
the next manoeuvre and the next street/road on your route. Tap either of them to
open the route itinerary.
•Tap to open the Quick menu with a selection of functions that are useful
during navigation.
•Tap the map anywhere to explore the map around your current position. Additional
map control buttons appear.
•Tap to open three data fields on the map. Tap any of them to
suppress the others. The default values (you can change them in Map settings):
•the remaining distance to the destination,
•the estimated time of the arrival at the destination, and
•the remaining time of the trip.
•Tap to return to the Navigation menu.
More Menu
EN
EN -13

The 'More' menu provides you with various options and additional applications. In the
Navigation menu, tap .
•: Fine-tune route planning options, change the look of the Map screen,
turn on or off warnings, or restart the Configuration wizard, etc.
•: Visit www.naviextras.com to get additional content, such as new maps or
3D landmarks and useful applications.
•: Access multimedia applications: the Picture Viewer or the Music Player.
•: Access travel applications: the unit converter, the clothing size converter
or country information.
•: Access other useful applications: the calculator, the fuel and maintenance
monitor, sunrise and sunset information or the trip and track log monitor.
•: Read the Tutorial to get instant understanding of the functions of your
software, or run the Demo to watch sample route simulations to see how
navigation works.
More Screen
EN -14
EN
In the Navigation menu, tap , then tap . The Settings menu provides
you with the following options (scroll the list to see all):
•: Adjust the different sound volumes, change the voice guidance
profile, or enable and set up warnings.
•: Change the function buttons in the Quick menu of the Map screen.
•: Before selecting one of the Lorry profiles as the Vehicle type used
in route calculation, set up the editable lorry attribute profile with the parameters
of your lorry. These parameters will be used in route calculation.
•: You can turn Smart Routes on or off, select whether to take traffic
events into consideration when calculating the route or you can change the
radio station.
•: Select the type of vehicle you are driving, the road types used in
route planning, and the route planning method.
•: These settings determine how Green routes will be calculated.
Settings

They are also used to display the cost and CO2emission of routes.
•: Adjust map related settings: change the daytime and night colour
schemes, change the default zoom level, switch between 2D and 3D map,
suppress buildings or change the Vehimarker.
•: Change the values of the data fields on the Map screen, show or
suppress junction views and signpost or display a route progress bar on the left
of the map.
•: Turn the menu animations on or off, select a different skin for the
application, adjust the display backlight.
•: Change the program language, the time format and units or the
time zone.
•: Turn the automatic trip or track log saving on or off, check the
current size of the trip database.
•: The application collects usage information and GPS logs that may
be used for improving the application and the quality and coverage of maps.
Here you can enable or disable collecting these logs.
•: Modify the basic software parameters set during the initial setup
process.
•: Delete all saved data and reset all settings to their factory defaults.
Settings
Take steps described in the tables below to solve simple problems before contacting
customer service.
NOTE:
Immediately turn off the device and disconnect the power adapter if the
device is not working properly. Never try to repair the unit without
authorized professionals for it may damage the unit.
Troubleshooting
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
There is no
sound.
The volume may be turned
down or mute.
Turn up the volume or turn
on the sound output.
Users cannot
turn on the unit.
The adaptor is not
connected well.
Connect the adaptor
correctly.
The built-in rechargeable
battery is weak.
Use the adaptor to supply
power or charge the
battery.
There is no
picture. The brightness may be
turned down.
Adjust the brightness of the
LCD.
The unit cannot
receive satellite
signals or cannot
orient.
The unit work may be
obstructed by buildings or
metal blocks.
Make sure to use the unit
outdoors; if in vehicle, you
can use the external GPS
antenna to solve this
problem.
EN
EN – 15

Troubleshooting
EN
EN – 16
Irregularity or
instability in
signal receiving.
The built-in rechargeable
battery is weak.
Use the adaptor to supply
power or charge the
battery.
The unit may be obstructed
by material, such as heat
insulation paper. Remove the material.
The movement of the unit is
too strong.
Avoid any movement of the
unit.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
MODEL GV5800BTHDDVR
Navigation Software IGO Primo
GPS Chipset SiRF Atlas V, 664MHz
DVR 120 degrees/720P/1.0 MP/IR Light/30FPS
Antenna Internal
Interface USB
Display size 5"
Resolution 800*480
Display type TFT, Touch screen
RAM 128MB, DDR2
Flash 4GB, MLC
Expansion slot Micro SD-Card slot, max 8GB
Battery type/capacity Li-poly/1000mAh
Operating system Windows CE .NET 6.0
Speaker Built-in, 1W
V
ideo formats supported MPEG4,WMV, AVI,
A
SF,MP4,
MPG,3GP （not support RM,RMB)
A
udio formats supported WMA, MP3,WAV,M4A,OGG, AAC
Earphone jack 3.5mm
Operating Temperature 0C ~ +50ºC
Operating humidity 10% to 90% non-condensing
Technical Specifications

ВНИМАНИЕ
1. За да намалите риска от от електрически удар, не махайте задния капак.
Вътре няма части, които да се поправят от потребителя. Поверете
обслужването на квалифициран сервизен персонал.
2. Производителят не носи отговорност за повреди, причинени от замени и
модификации на продукта без оторизация от производителя или оторизирана
фирма.
ПРЕДУПРЕЖДЕНИЕ
Устройството не трябва да бъде излагано на оплискване или окапване стечности.
Върху него не трябва да се поставят съдове пълни стечности.
Важни инструкции
за безопасност
Възклицателният знак вравностранен триъгълник есцел да
предупреди потребителя за важни инструкции за работа иобслужване в
литературата придружаваща устройството.
Prestigio GeoVision 5800BTHDDVR – списък саксесоари
АКСЕСОАР ИМЕ КОЛИЧЕСТВО
Зарядно за кола 1
USB кабел 1
Стойка за монтаж вкола 1
Стилус (писалка) 1
Ръководство на
потребителя 1
Гаранционна карта 1
CD с
драйвери/документация 1
Аксесоари
BG
BG - 1

Prestigio GeoVision 5800BTHDDVR
Изглед отпред иотстрани
1. Чувствителен на допир LCD екран
Докоснете екрана списалката или спръст, за да изберете команди от менюто,
или за да въведете информация.
2. Индокатор за статуса на батерията
Индикаторът свети светлозелено, когато батерията езаредена докрай, и
червено, когато се зарежда.
3. Вход за слушалки
За свързване на слушалки.
4. Слот за microSD карти
За поставяне на microSD карта памет за разширение на паметта.
5. Video-IN вход
6. mini USB порт
За свързване на USB кабел за зареждане на батерията или достъп до данни
7. Микрофон
За запис на звук
Изглед на
у
ст
р
ойството
1
4
3
6
2
BG
5
7
BG - 2
Prestigio GeoVision 5800BTHDDVR
Изглед отзад иотгоре
1. Високоговорител
За извеждане на звук – глас или музика.
2. Бутон Ресет
Натиснете, ако искате да рестартирате устройството.
3. Слот за microSD карти за DVR
За поставяне на microSD карта памет за запис на видео
4. Бутон Захранване
Натиснете, за да включите/изключите устройството.
5. Бутон Заключване
Натиснете, за да заключите текущото видео
Изглед на
у
ст
р
ойството
1
4
2
35

Поставяне на microSD карта
zЗа да поставите micro SD карта,
ориентирайте конектора към
устройството снадпис към екрана.
zЗа да извадите microSD картата,
внимателно натиснете края на
картата, за да освободите
ключалката иизвадите картата от
слота.
ЗАБЕЛЕЖКА:
Моля, преди изваждане се уверете, че никое приложение не работи
сmicro SD картата.
Свързване на външно USB устройство (зареждане)
zСвържете mini USB конектора на
кабела към mini USB порта на
устройството.
zСвържете другия USB конектор на
кабела към свободен USB порт на
РС, за да започнете зареждането.
Свързване на
у
ст
р
ойството
Свързване към зарядно за кола
zСвържете mini USB конектора на
кабела към mini USB порта на
устройството.
zInsert car charger connector into
vehicle 12V accessory/cigarette
socket to start charging.
ЗАБЕЛЕЖКА:
Моля, свържете зарядното за кола към 12V гнездо за запалка на
колата след като стартирате двигателя, за да защитите устройството
от токови пикове.
Свързване на
у
ст
р
ойството
BG
BG - 3

За акумулаторната батерия
Устройството еснабдено свградена презареждаема (акумулаторна) батерия. Моля,
заредете докрай батерията (поне 5 часа) преди първоначална употреба.
Индикаторът за статус на батерията свети вчервено по време на зареждане ив
светло зелено, когато зареждането завърши. Времето за зареждане еоколо 4 часа.
Условия за работа ипредпазни мерки за акумулаторната
батерия
zНова батерия за устройството трябва да бъде заредена докрай преди
първоначална употреба.
zНе енеобходимо да зареждате батерията, ако не едокрай разредена.
Внимание при
зареждане
BG
BG - 4
1. Натиснете изадръжте Бутон
Захранване, за да включите
устройството.
2. Малко след началния
поздравителен екран се показва
главното меню.
3. Докоснете съотв.бутони с
писалката за навигация в
различните функции.
4. Натиснете изадръжте Бутон
Захранване, за да изключите
устройството, или за да го
поставите врежим „сън”.
5. Докоснете иконата Сън (Sleep) за
да го поставите врежим „Сън”, или
Изкл (Power Off) за да изключите
устройството.
Първи стъпки
