Sportsman OPEN 282 TE 2020 User manual

OPEN
282 TE
Owner’s Manual and
Quick-reference Guide
2020

Table of Contents
Introduction
Important Information
Specifications
Overall Dimensions & Terminology
Features & Performance
Certifications & Registrations
Boating Safety
Electrical & Plumbing Systems
Windless System
Fuel System
Boating Navigation Rules
Warranty & Services
Contact Information
3
4
5
6
7
12
13
18
38
39
44
45
48
Topic Page
2
OPEN
282 TE

Introduction
3
OPEN
282 TE
WELCOME TO THE SPORTSMAN TEAM!
Here at Sportsman Boats, we take great pride in producing the finest, most
well designed saltwater fishing and pleasure boats on the market today. Our
designs incorporate the most modern technology while applying good old
“Common Sense” technology as well. From our advanced composite
construction, ergonomic console designs, patented “Total Access” hatch, and
superior ride and handling characteristics, we think you will agree that
Sportsman is setting a new standard. Sportsman Boats builds the fastest
growing line of family-friendly center console boats in-class, built with the
latest designs, procedures and materials to give you and your family
unparalleled performance with a dry, safe and comfortable ride
We do not take lightly the confidence you have placed in us with your
decision to purchase your Sportsman boat. We will always strive to provide for
you and your family the superior customer service you deserve. We hope that
you enjoy your time out on the water as much as we enjoy building your
Sportsman boat!
Safe Boating and Tight Lines,
Tommy Hancock

WEIGHT:
VERTICAL CLEARANCE:
`
ENGINE MAKE: MODEL:
ENGINE SERIAL #:
PROPELLER MAKE:
# OF BLADES:
DIAMETER / PITCH: MODEL:
PART #:
MAKE: MODEL:
SERIAL #: GVRM:
ADDITIONAL INFORMATION:
DEALER
SPORTSMAN
NAME: PHONE:
PHONE: REPRESENTATIVE:
SALES PERSON: ADDRESS:
SERVICE MANGER:
ADDRESS:
ENGINE / PROPELLER INFORMATION
OPTIONAL EQUIPMENT / OPTION PACKAGES
TRAILER INFORMATION
MODEL:
PURCHASE DATE:
IGNITION KEY #:
DRAFT:
BOAT INFORMATION / SPECIFICATIONS
HULL SERIAL #:
DELIVERED:
REGISTRATION #:
We recommend filling
out the information in
this table and keeping
one copy of this page in
your personal records
and one copy with your
owner’s manual. This
information will be
important should you
need to contact your
dealer or Sportsman
Boats Manufacturing
for technical assistance
and/or service.
Important Information
4
OPEN
282 TE

Length Overall
Beam
Draft
Deadrise at Transom
Approximate Usable Fuel Capacity
Approximate Dry Weight
Maximum Engine Horse Power
28’2”
9’3”
19.75”
21°
195 gal.
6700 lbs.
600 HP (4 Stroke)
Specifications
5
OPEN
282 TE

Overall Dimensions & Terminology
6
Note: We recommend measuring
the trailered height of your boat
for towing safety purposes. This
height may depend on the
specific trailer being used.
Port Side
Starboard
Side
Helm
Transom
Stern Aft Forward Bow
28’2”
9’3”
OPEN
282 TE

7
Features & Performance
Standard Features
OPEN
282 TE
•
SportTech™ Advanced Fabrication Process
•
Battery Switches & 3 Batteries
•
SportLink™ Electronics Integration System
•
MDI Digital Switching System
•
Bow Cushion
•
Garmin GPSMAP® 1242xsv Touch MFD 12"
•
Built-
In Console Chaise Lounge
•
Airmar B60 Thru-Hull Transducer
•
Built-In Swim Platform w/ 4
Step Ladder
•
Garmin VHF 110 Radio w/ Antenna
•
Compass
•
JL Audio MediaMaster® MM50 Premium Marine Stereo
•
Console Footrest with Pads
•
(6) JL Audio M3 White Sport Grille Speakers
•
Console Interior Liner
•
(2) Macerated In-Deck Fish Boxes
•
Dash Panel Cover
•
(4) Flush Mount Gunwale Rod Holders
•
Dual Premium Seat on
Fiberglass Leaning Post
•
10-Year Hull Warranty
•
Fiberglass Hard-Top w/ LED
Lighting & Misters
•
13 Gallon Freshwater Tank w/ Washdown
•
Fiberglass Leaning Post w/
Built-In 32 gal. Livewell
•
195 Gallon Fuel Tank w/ Fuel Level Sensor
•
Grip Tex Yacht Style Non-Skid
•
30 Gallon Rear Livewell
•
Helm Pad
•
Advanced Fiberglass Stringer System (No Wood)
•
High Speed Livewell Pick Up
•
Anchor Windlass System w/ Anchor & 300' Line
•
Horn

8
Features & Performance
Standard Features
OPEN
282 TE
•
Insulated Bow Storage
•
Rub Rail Navigation Lights
•
Integrated Tempered Glass Windshield
•
Self Bailing Cockpit
•
Interior LED Lighting Package
•
Side Entry Door
•
JL Audio Combo USB & 3.5 mm Audio Jack
•
Stainless Steel Cup Holders - 7
•
Light Hull Color
•
Stainless Steel Drain Covers
•
Lockable Console Storage w/ Porcelain Head & Shower
•
Stainless Steel Propeller
•
Macerated Bow Coffin Box - 104 Gal
•
Stainless Steel Rub Rail
•
Matching Hard-Top Underside Color
•
Stainless Steel Steering Wheel w/ Knob
•
Optimus Electronic Power Steering w/ Tilt
•
Stainless Steel Switches
•
Port and Starboard Toe Rail
•
Trim Tabs w/ LED Indicator
•
Premium Marine Vinyl with Distressed Look
•
Under Gunwale Rod Racks
•
Pull-Up Cleats
•
Underlid Gasket
•
Raw Water Washdown
•
Underwater Lights
•
Rear Fold Down Seat w/ Access
•
Yacht & NMMA Certified
•
Recessed Bow Hand Rails

Features & Performance
9
Optional Features
Available Options
Stereo Upgrade
Color Selection
- Driftwood
- Ice Blue
- Island Blue
- Jet Black
- Sea Mist Green
- Silver Cloud
- Steel Blue
- White
Powder Coat
Selection
- Black - White
- JL Speakers
-JL 10” Amplified Subwoofer
- JL Amplifier
OPEN
282 TE
•
Second Garmin GPSMAP® 1242xsv Touch
12"
•
Garmin GMR™ Fantom 18 Radome
•
Garmin GMR™ Fantom 18 Radome (2nd
Station)
•
Garmin GMR™ 424 xHD2 Open Array
•
Garmin Reactor™ 40 Autopilot
•
Garmin GXM™ 53 SiriusXM® Weather
Antenna
•
JL Audio M6/MM100/DSP Amps Package
•
Airmar B175M CHIRP Thru-Hull
Transducer Upgrade
•
Custom Color Engine (Twins)
•
Dark Hull Color(Black/St Blue) Upgrade
•
Edson 13” SS Comfort Grip Steering Wheel
w/ PowerKnob
•
Fiberglass Leaning Post w/ Built-In Tackle
Center & Sink
•
Gull Wings
•
Half Tower w/ Second Station
•
Leaning Post Cover
•
Mooring Cover (Sunbrella®)
•
On-Board Battery Charging System
•
Optimus 360 Joystick
•
Powder Coating
•
Release Marine Package
•
Sun Shade w/Poles - Front
•
Sun Shade w/Poles - Rear
•
Taco Outriggers - GS280
•
Transhield Shipping Cover
•
Windshield Close Out

10
Features & Performance
Major Features
Swim Platform
Fold-down Seat with
Access
Rear Livewells
Rod Holders
Fiberglass Leaning Post with Tackle Storage
Stainless Wheel
Console Chaise
Lounge
Side Entry Door
Rear Entry Door
Fish Boxes
Anchor Windlass
System w/ Anchor &
300′ Line
Lockable Console
w/ Porcelain Head
Floor
Storage
Coffin Box
Storage
OPEN
282 TE

Features & Performance
11

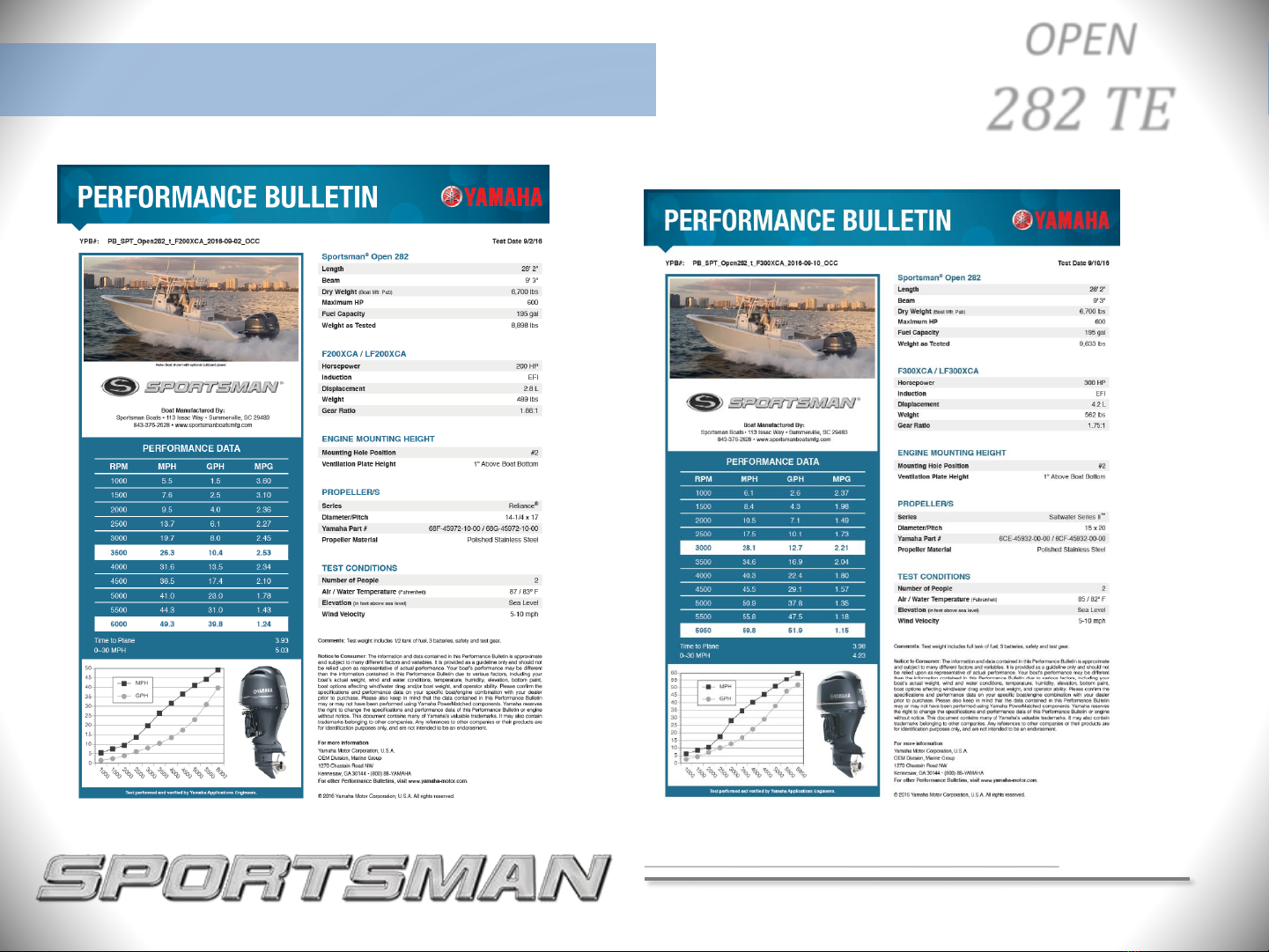

Twin 200 HP Twin 300 HP
Note: These are posted on our website at
http://sportsmanboatsmfg.com/open-312-center-console/
OPEN
282 TE

Sportsman Boats is certified by the National Marine Manufacturers Association (NMMA).
NMMA certification not only meets the standards of the United States Coast Guard
(USCG), but goes further to meet the standards set by the ABYC (American Boat and Yacht
Counsel). All Sportsman models have been designed, constructed, and thoroughly tested
to meet or exceed these standards. For more information about these standards, you may
visit http://www.nmma.org/certification/boats.
Sportsman has a permanent record of your boat. This record is documented during the
manufacturing process. It is identified by its “Hull Identification Number” (HIN). The HIN
is a12-digit code located on the starboard side of the transom, just under the Rub Rail.
When contacting your dealer concerning maintenance or warranties, please have your HIN
and model number available. This information can be found on your copy of the warranty
card. Federal and State laws require a power boat to be registered in the state where it is
primarily used. Registration numbers and validation stickers must be displayed according
to regulations. The registration certificate must be on board when boating. The boat serial
number, or Hull Identification Number (HIN), is required on the registration form. The
HIN should be included on all documents or any correspondence.
Certifications & Registrations
Hull Identification Number & Registration
NMMA Certification
12
OPEN
282 TE

USCG approved visual distress signals are required for day and night use when
operating on US waters. Approved signals include flares, orange smoke, an orange
distress flag, or an electric distress light.
Boating Safety
The US Coast Guard (USCG) requires
that every boat have specific equipment
on board. Check with local regulations
on mandatory equipment apart from
the list of Coast Guard requirements.
REQUIRED
SAFETY EQUIPMENT
At least one Type-1 hand held portable
fire extinguisher must be carried on
board. For boats over 20’ two are
required. Check extinguisher regularly
for charge status.
FIRE EXTINGUISHER
You must have a USCG approved personal flotation device of Type I, II, or III aboard
for each passenger, in addition to one Type IV throw able PFD. Always wear a PFD
when boating. In some states, children are required to wear a PFD at all times. Check
your local regulations.
PERSONAL FLOTATION DEVICE (PFD)
Your Sportsman boat is equipped with
navigation lights which comply with
both Inland and International rules.
LIGHTING
Your Sportsman boat is equipped with
an electric horn which meets the USCG
requirements for
a sound signal device.
SOUND
SIGNALING DEVICES
VISUAL DISTRESS SIGNALS
13
OPEN
282 TE

Please become familiar with the location and content of the
Caution, Warning, and Danger Labels found on your boat.
Boating Safety
Being on the water is a great experience, but it can become a bad experience
very quickly if safety and maintenance instructions of your boat are not
followed. Therefore, warnings and notices have been included in order to
help you operate and maintain your boat safely. They are defined as follows:
14
OPEN
282 TE

If your label is damaged. Please call Sportsman’s
parts department for replacement stickers.
Boating Safety
Your Owner’s Manual was written to
include safety instructions to ensure safe
operations. Safety alert symbols are used
to show potential personal injury hazards.
Every precaution has been taken to reduce the
risks associated with death, possible injury and
damage from fire or explosion. You must also
take your own necessary precautions and
practice proper maintenance procedures in order
to enjoy the optimal safe operation of your boat.
15
OPEN
282 TE

Your boat produces carbon monoxide and uses flammable fuel.
Carbon monoxide can cause brain damage or death. Carbon
monoxide is colorless, odorless and extremely dangerous.
Boating Safety
16
OPEN
282 TE

Boating Safety Label Locations
17
OPEN
282 TE

18
Electrical & Plumbing Systems
Sportsman offers the Garmin 1242
Touch 12” Display which integrates
the following functions with ease:
-MDI Digital Switching
-ClearVü
-SideVü
-Stereo
-Sonar
-Radar Capability
-Navigation
-Engine Instruments
-Coastal Charts

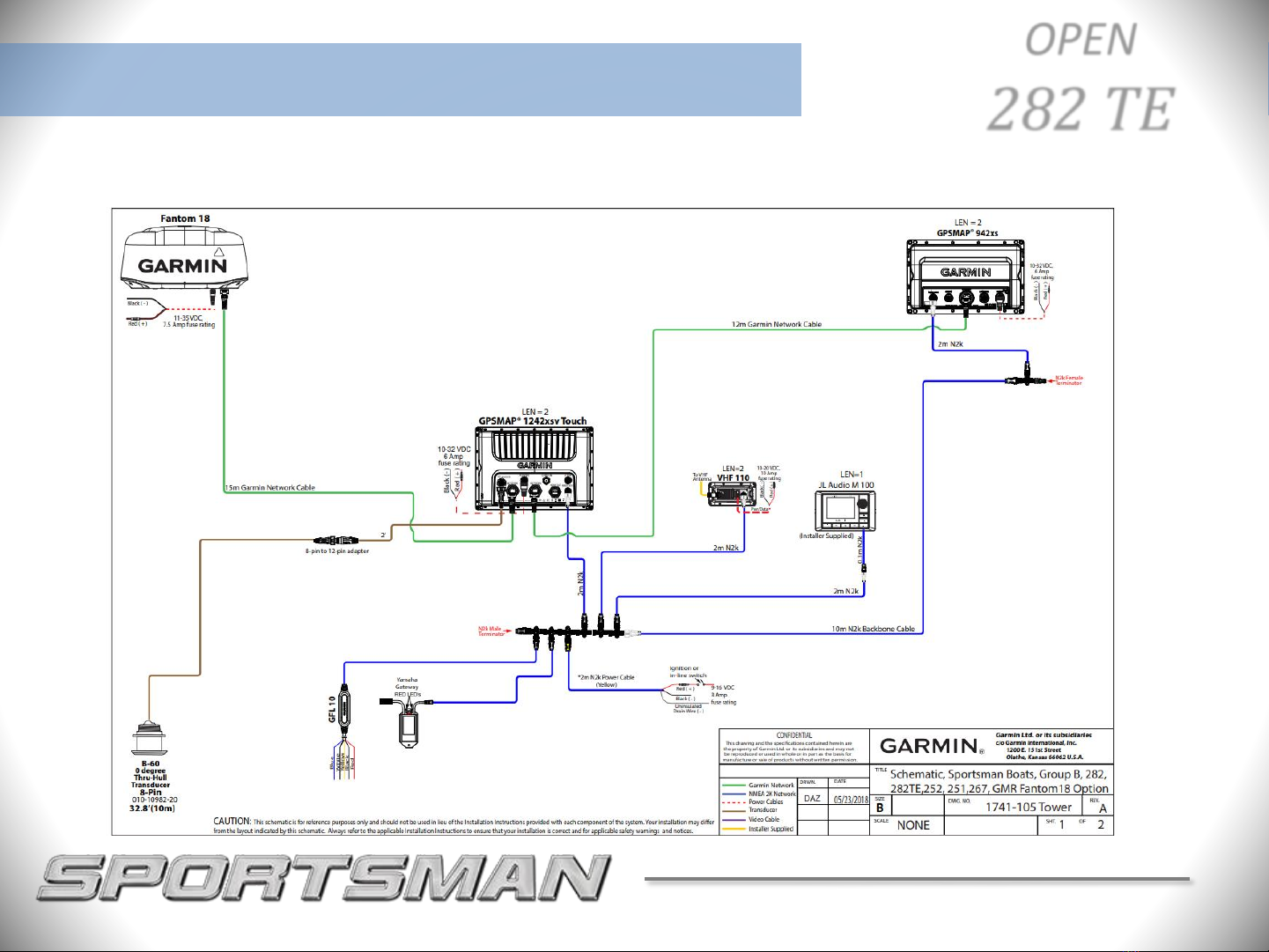

SportLink®
Electronics Integration System
Take control of your electronics with SportLink® Electronics Integration System, equipped standard on every Sportsman
Boat. The Garmin & JL Audio powered electronics packages have been carefully designed around each model to meet
and exceed your needs out on the water.
OPEN
282 TE

19
Electrical & Plumbing Systems
Garmin 12” Package
OPEN
282 TE

20
SeaStar Maximus DCM Digital Switching
System
Redefining Convenience & Innovation
The SeaStar Maximus DCM Digital Switching System
eliminates the need to have physical switches on the
dash. This not only cleans up the dash of switches but it
add longevity to the electrical system of your boat. This
is the way of the future and here at Sportsman Boats,
we are leading the pack in innovation.
The system communicates through NMEA2000 to your
Garmin MFD to add a screen that shows all of your 12v
switches, doing away with the need to have physical
toggle switches on the dash. You are able to customize
the look and feel of the switches as well as create
presets and modes with your favorite combination of
lights. This type of flexibility is just not possible without
digital switching.
To wrap it all up, it also includes a fob that allows you to
operate the 8 most used functions on your boat from up
to 100 feet away from your Sportsman Boat. This remote
can even turn all power on or off on the vessel,
redefining convenience and innovation.
Electrical & Plumbing Systems
Digital Switching
OPEN
282 TE
