Bayliner 212 Runabout User manual

Engine Serial Number: _____________________________________
Hull Identification Number:__________________________________

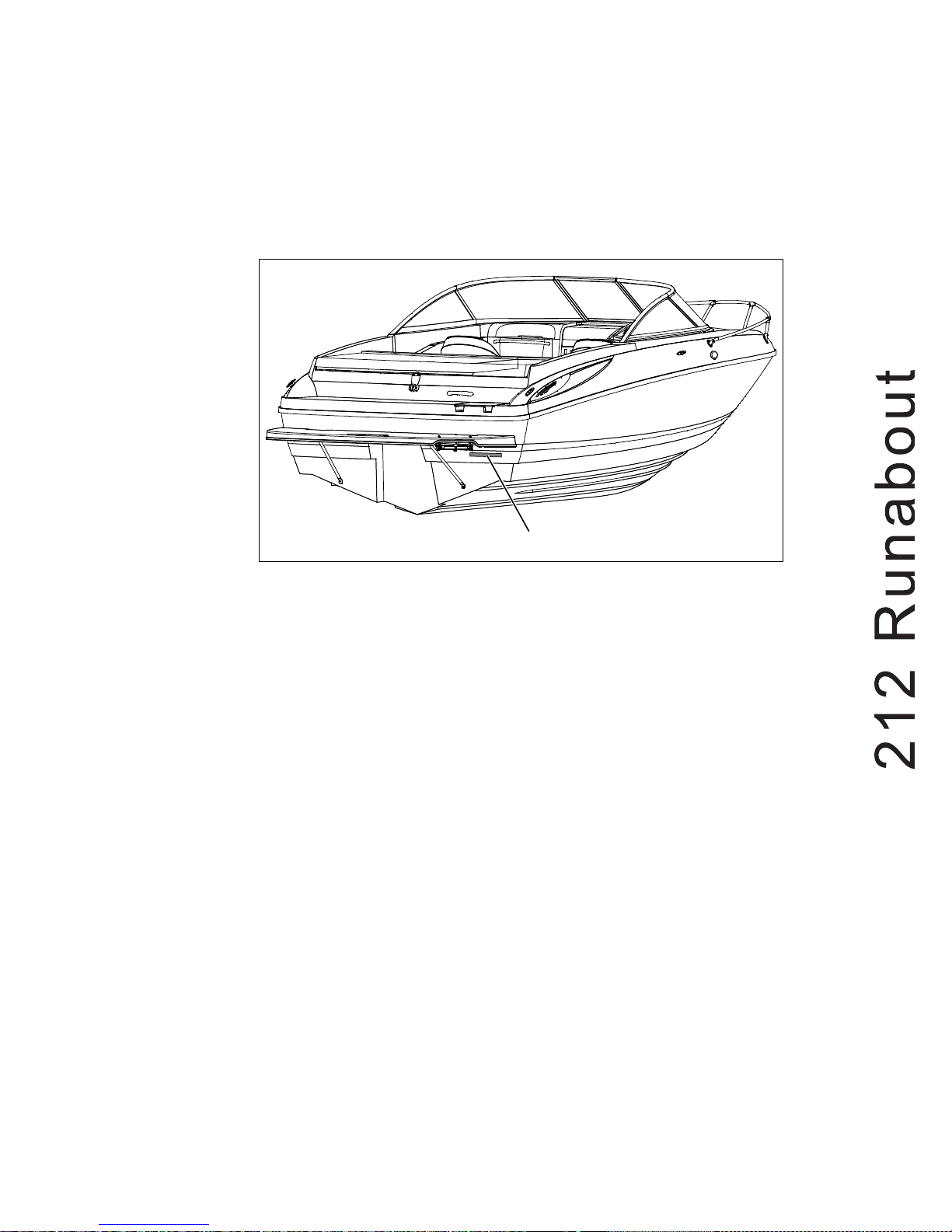

Hull Identification Number
•The Hull Identifica-
tion Number (HIN)
is located on the
starboard hullside
just forward of the
transom.
•Record the HIN (and
the engine serial
numbers) in the
space provided
above.
•IncludetheHIN with
any correspondence
or orders.
© 2005 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical,
photocopying, recording or otherwise, without prior written permission of Bayliner.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the
preparation of this document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from
the use of information contained herein.
Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equip-
ment at any time without notice or obligation. Illustrations and/or photos may show optional equipment.
All Bayliner products meet or exceed USCG (United States Coast Guard) and/or NMMA (National Marine Manufacturer’s Association) con-
struction standards. Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufactur-
ing process by destroying ozone in the upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated
by and are the property of Bayliner. Neither receipt nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the
document or any part thereof, any information contained therein, or to construct boats or any item from it, except by written permission from or
written agreement with Bayliner. This document is to be returned upon request to Bayliner.
HIN LOCATION
Part Number
1816135

CONTENTS
Chapter 1: Welcome Aboard!
Dimensions & Tank Capacities 1
Dealer Service 1
Warranty Information 1
Boating Experience 2
Engine & Accessory Guidelines 2
Engine & Accessory Literature 2
Propeller 3
Structural Limitations 3
Qualified Maintenance 3
Safety Standards 4
Special Care for Moored Boats 5
Carbon Monoxide (CO) 6
CO Facts 6
Factors that Increase the Effects of CO Poisoning 6
Where & How CO Can Accumulate 7
How to Protect Yourself & Others From CO 7
CO Checklists 8
CO Monitor 8
More Information 9
Warnings & Warning Labels 10
Chapter 2: Locations
Exterior Views 12
Hull Views 12
Deck Views 13
Helm 14
Component Locations 15
Chapter 3: Propulsion & Related Systems
Engine 26
Bilge Blower System 26
Fuel System 27
Fuel Fill & Vent 28
Fuel Filters 28
Anti-siphon Valve 28
Quick Oil Drain System 29
Chapter 4: Controls & Gauges
Steering 30
Shift/Throttle Controls 30
Power Trim & Tilt 30
Gauges 31
Cleaning the Gauges 31
Gauge Fogging 31
Radio Transmission Interference 31
Fuel Gauge 31
Compass (If Equipped) 32
Depth Finder (If Equipped) 32
Chapter 5: Plumbing
Bilge Pump 33
Bilge Pump Testing 34
Freshwater System (If Equipped) 35
Freshwater System Winterization 36
Drain Systems 37
Deck Drains 37
Gray Water Gravity Drains 37
Portable Toilet 37

Chapter 6: Deck Equipment
Cleats & Bow/Stern Eyes 38
Ski-Tow Ring 38
Canvas & Vinyl Tops & Enclosures 39
Convertible Top 39
Bimini Top (If Equipped) 40
Vinyl Curtains (If Equipped) 41
Canvas Care 42
Clear Vinyl Care 43
Chapter 7: Entertainment Systems
Audio Equipment 44
Chapter 8: Convertible Seats, Beds, & Tables
Sleeper Seats (If Equipped) 45
Operating Positions 45
Lounge Positions 45
V-berth Conversion 46
Jump Seat to Sunlounge Conversion 47
Chapter 9: Lights
Care & Maintenance 48
Interior & Exterior Lights 48
Navigation Lights 48
Chapter 10: Electrical System
12-Volt DC System 50
Battery 50
Fuses 50
12-Volt DC Accessory Outlet 50
Alternator 50
Electrical Routings 51
12-Volt DC Deck Harnesses 51
Battery Cable Routing 52
110-Volt AC Hull Harness 52
Wiring Diagram 53
Important Records 54
Float Plan 55

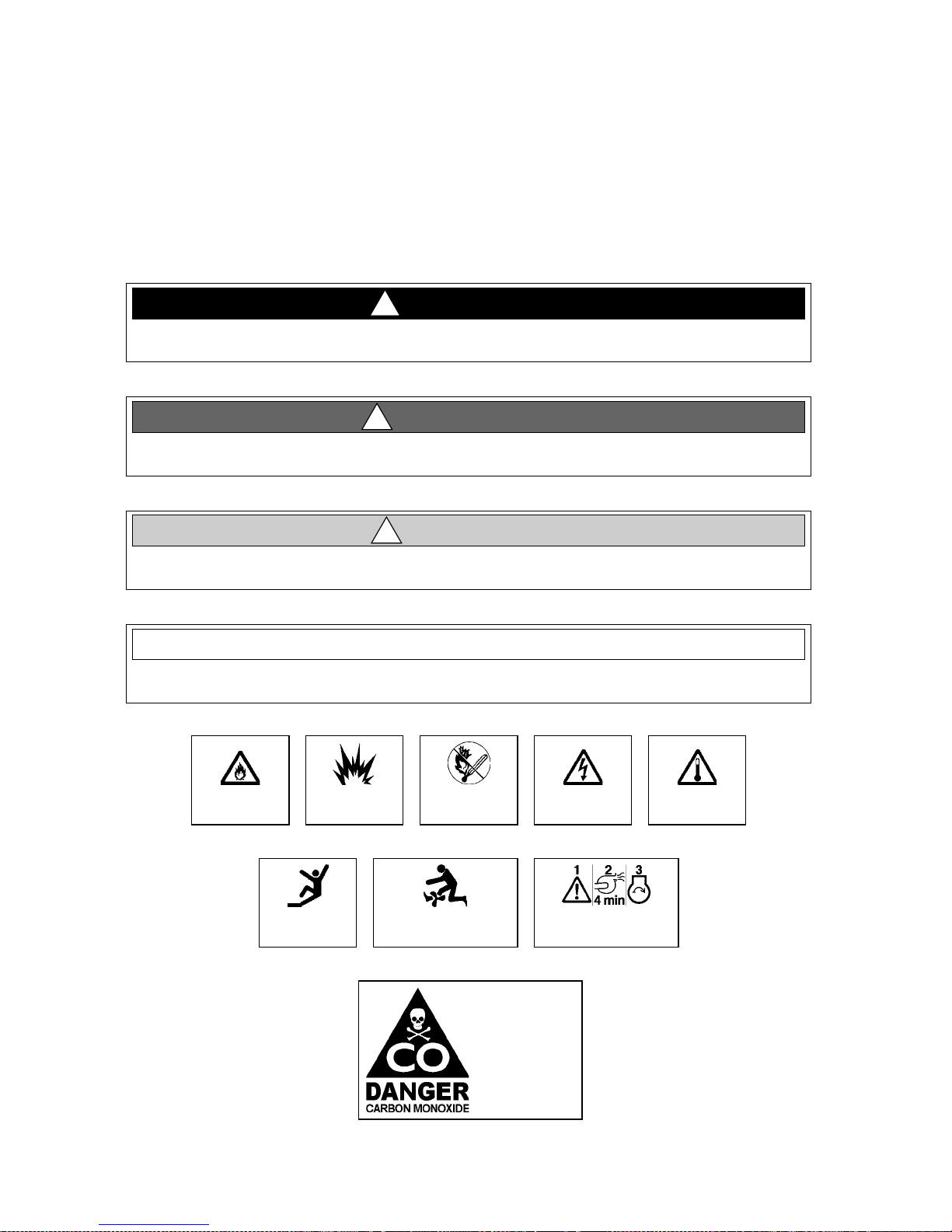

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this supplement to call attention to potentially dan-
gerous situations which could lead to either personal injury or product damage. Read all warnings carefully and fol-
low all safety instructions.
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
DANGER!
!
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION
!
This box calls attention to installation, operation or maintenance information, which is impor-
tant to proper operation but is not hazard related.
NOTICE
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
212 •Owner’s Manual Supplement
Chapter 1: Welcome Aboard!
•This Owner’s Manual Supplement provides information about your boat that is not covered in the Sport Boat
Owner’s Manual.
•Before using your boat, study this Owner’s Manual Supplement, the Sport Boat Owner’s Manual, and all engine
and accessory literature carefully.
•Keep this Owner’s Manual Supplement and the Sport Boat Owner’s Manual on your boat in a secure, yet readily
available place.
Dimensions & Tank Capacities
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your boat.
•Contact your dealer if you have any problems with your new boat.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Bayliner dealer.
Warranty Information
•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not get a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957 for
a copy.
Overall
Length Length Rigged Bridge Clearance Beam Draft (Hull) Draft (Maximum) Fuel Capacity Freshwater Capacity
20' 5" 21' 4" 4' 9" 8' 2" 1' 7" 3' 0" 35 Gallons 10 Gallons

Chapter 1: Welcome Aboard! 212 •Owner’s Manual Supplement
2
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and
safety, get handling and operating experience before assuming command of your boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For
more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation, or local boat club can advise you of local
sea schools or competent instructors.
Engine & Accessory Guidelines
•Your boat’s engine and accessories were selected to provide optimum performance and service.
•Installing a different engine or other accessories may cause unwanted handling characteristics.
•Should you choose to install a different engine or accessories that will affect your boat’s running trim, have an
experienced marine technician perform a safety inspection and handling test before operating your boat again.
Engine & Accessory Literature
•The engine and accessories installed on your boat come with their own operation and maintenance manuals.
•Read these manuals before using the engine and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this supplement is included in your
owner’s packet.
CONTROL HAZARD!
A qualified operator MUST be in control of your boat atALL times. Do NOToperate your boat
while under the influence of alcohol or drugs.
WARNING!
!
When storing your boat, please refer to your engine’s operation and maintenance manuals.
NOTICE
Certain modifications to your boat WILL result in cancellation of your warranty protection.
ALWAYS check with your dealer BEFORE making any modifications to your boat.
NOTICE

212 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
3
Propeller
•Keep the propeller in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your boat.
Structural Limitations
The swim platform extension is designed to be lightweight for proper boat balance. The load limit for the swim plat-
form extension is 30 pounds per square foot, evenly distributed.
Qualified Maintenance
•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Sport Boat Owner’s Manual, this supplement, the engine owner’s manual,
and all accessory literature.
ENGINE DAMAGE HAZARD!
The factory standard propeller may not be the best for your particular boat and load condi-
tions. Refer to the engine manual for engine RPM ratings. The engine should reach, but not
exceed its full rated RPM when full-throttle is applied.
Immediately contact your local Bayliner dealer if:
•The engine cannot reach its full rated RPM when full-throttle is applied, or;
•The engine exceeds its full rated RPM when full-throttle is applied.
CAUTION
!
To maintain the integrity and safety of your boat, allow ONLY qualified personnel to perform
maintenance on, or change, in any way, the:
•Steering system
•Propulsion system
•Engine control system
•Fuel system
•Environmental control system
•Electrical system
•Navigational system
WARNING!
!

Chapter 1: Welcome Aboard! 212 •Owner’s Manual Supplement
4
Safety Standards
•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, and all of them were designed to insure your safety and the safety
of other people, vessels and property.
Read this supplement, the Sport Boat Owner’s Manual, and all accessory instructions for important safety standards
and hazard information.
FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of your boat NOT designed for
such use.
•Sitting on seat-backs, lounging on the forward deck, bow riding, gun-
wale riding or occupying the transom platform while underway is especially hazardous and
WILL cause personal injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
•ALWAYS secure the anchor and other loose objects BEFORE getting underway.
•The anchor and other items that are NOT properly secured can come loose when your boat
is moving and cause personal injury or death.
DANGER!
!
A wide variety of components used on this vessel contain or emit chemicals known to the State
of California to cause cancer and birth defects and other reproductive harm.
Examples Include:
•Engine and generator exhaust
•Engine and generator fuel, and other liquids such as coolants and oil, especially used
motor oil
•Cooking fuels
•Cleaners, paints, and substances used for vessel repair
•Waste materials that result from wear of vessel components
•Lead from battery terminals and from other sources such as ballast or fishing sinkers
To Avoid Harm:
•Keep away from engine, generator, and cooking fuel exhaust fumes.
•Wash exposed skin thoroughly with soap and water after handling the substances above.
WARNING!
!

212 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
5
Special Care for Moored Boats
•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.
•This will detract from your boat’s beauty, greatly affect its performance, and may damage the gel coat.
•Periodically haul your boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
•To help seal the hull bottom and reduce the chance of gel coat blistering while your boat is
moored, apply an epoxy barrier coating.
•The barrier coating should be covered with several coats of anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE

Chapter 1: Welcome Aboard! 212 •Owner’s Manual Supplement
6
Carbon Monoxide (CO)
CO Facts
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your boat.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative. Even low levels of exposure can result in injury or death.
Factors that Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy

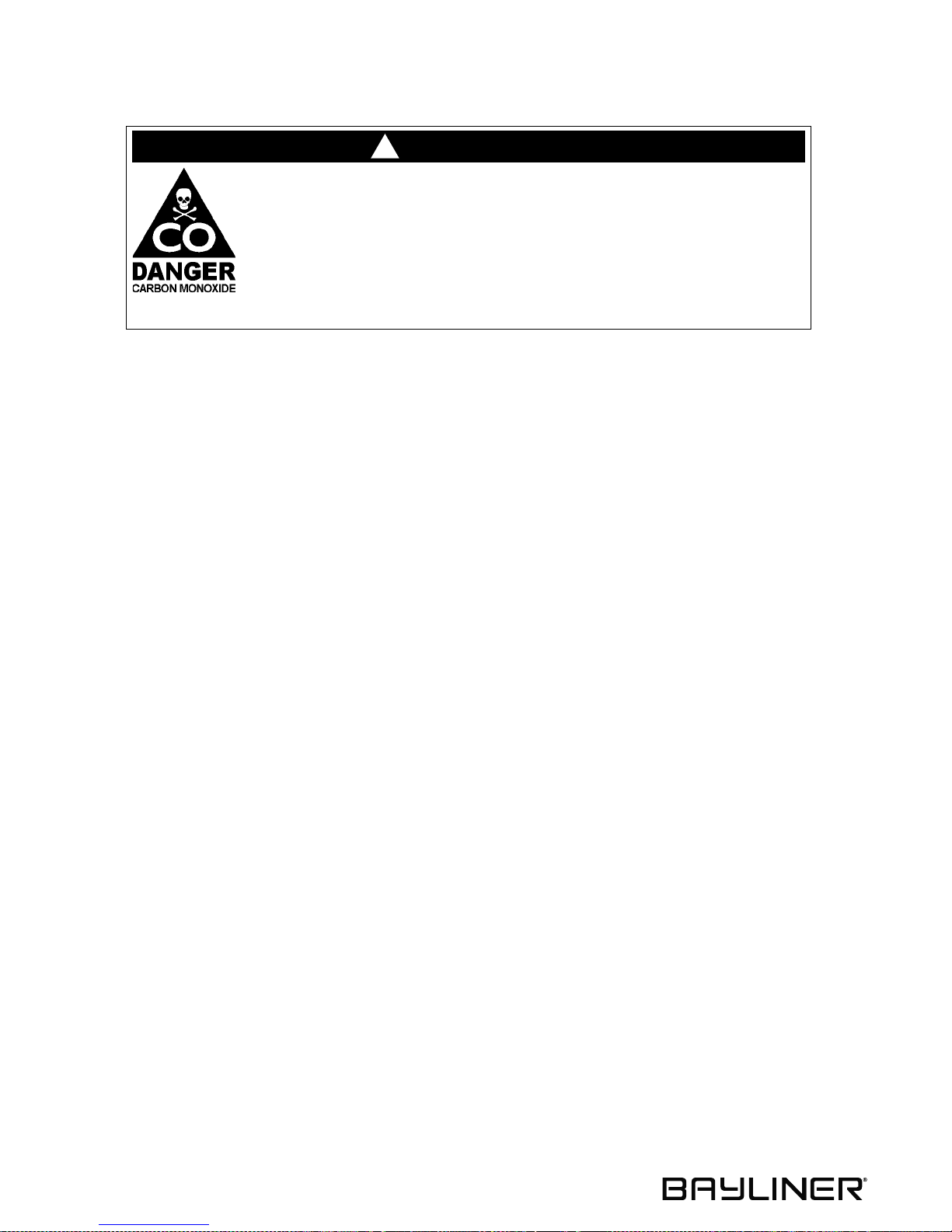

•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving
watercraft can be fatal.
DANGER!
!

212 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
7
Where & How CO Can Accumulate
Stationary conditions that increase CO accumulations include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your boat away from source of CO.
Running conditions that increase CO accumulations include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run boat so that prevailing winds help dissipate exhaust.
How to Protect Yourself & Others From CO
•Know where and how CO may accumulate in and around your boat (see above).
•Always maintain fresh air circulation throughout your boat.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) is running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on your boat, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO monitors inside your boat. Never ignore any alarm. Replace monitors as recommended by
the monitor manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org

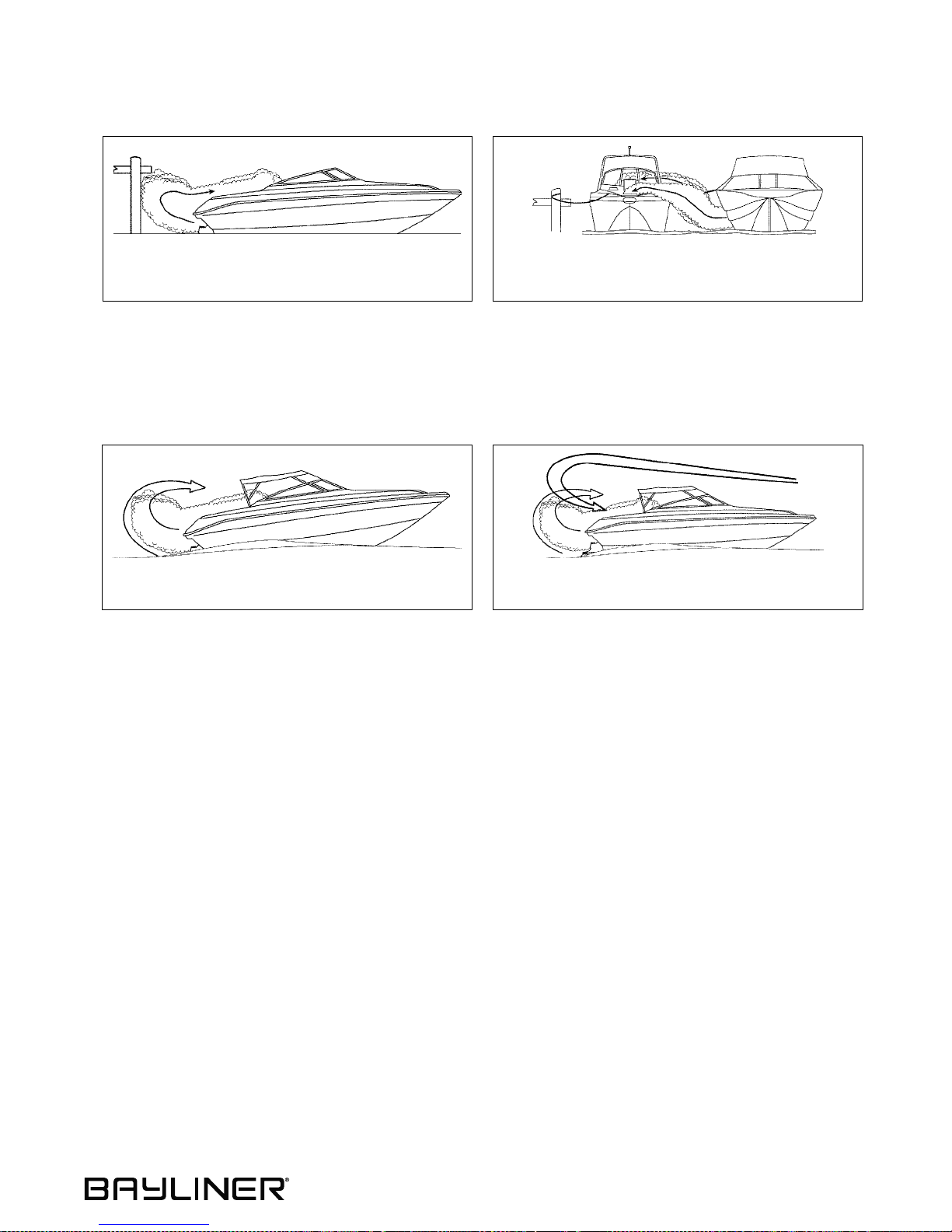

A. Using engine, generator, or other fuel burn-
ing device when boat is moored in a con-
fined space.
B. Mooring too close to another boat that is
using its engine, generator, or other fuel
burning device.
C. Running boat with trim angle of bow too high. D. Running boat without through ventilation
(station wagon effect).

Chapter 1: Welcome Aboard! 212 •Owner’s Manual Supplement
8
CO Checklists
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your boat.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Listen for any change in exhaust sound, which could mean an exhaust component failure.
❏Test the operation of each CO monitor by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the man-
ifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
CO Monitor
•Do not disconnect the CO monitor.
•Read the manufacturer’s instructions for your CO monitor. If you did not get the manufacturer’s instructions,
call [phone] and they will be mailed to you.
If your boat is not equipped with a CO monitor, consider purchasing one from your dealer or marine supply store.
The stereo memory and CO monitor place a small, but constant drain on the battery.
NOTICE

212 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
9
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
U
nited States Coast Guard
O
ffice of Boating Safety (G-OPB-3)
2
100 Second Street SW
W
ashington, DC 20593
w
ww.uscgboating.org
1
-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council, In
c.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

Chapter 1: Welcome Aboard! 212 •Owner’s Manual Supplement
10

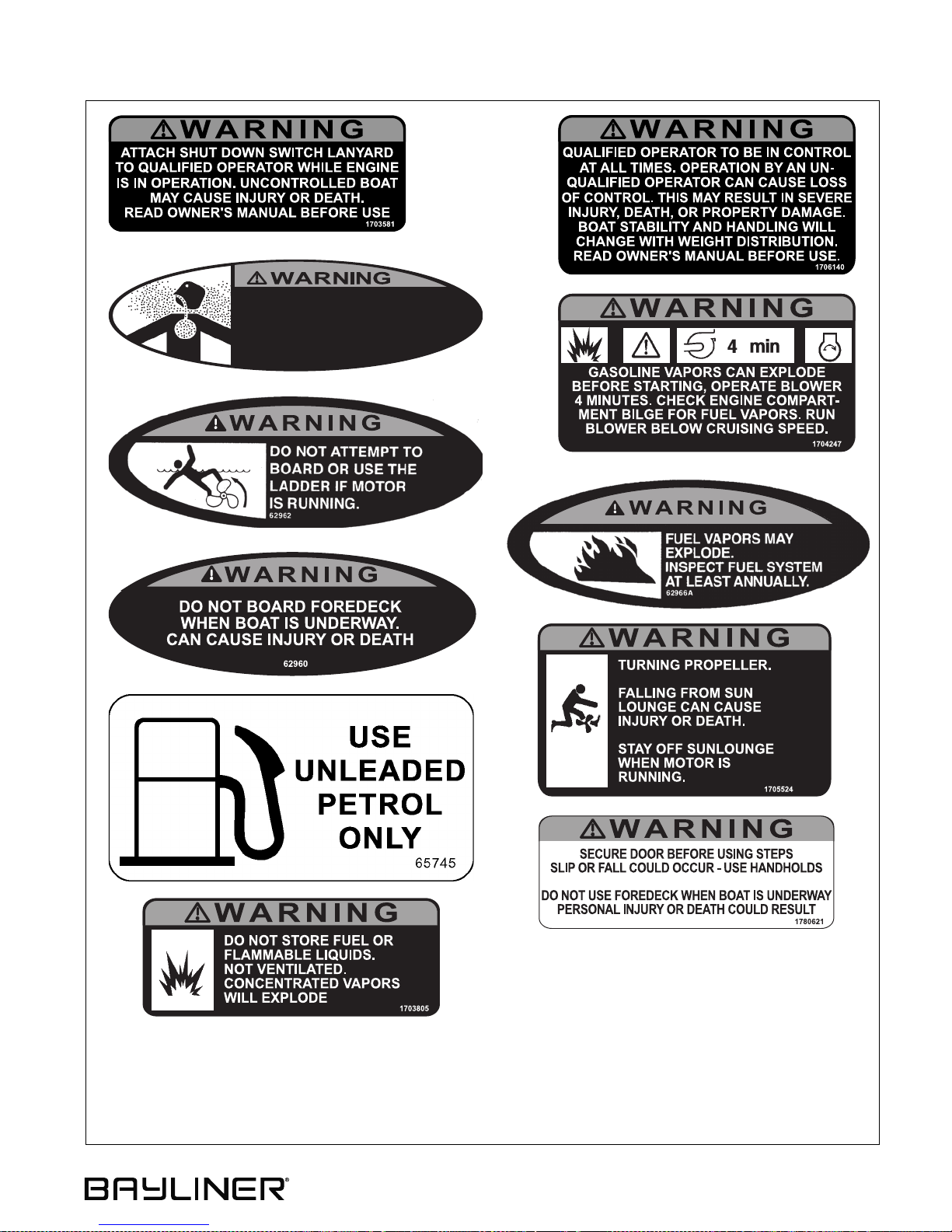

Warnings & Warning Labels
1 PN 1705524 SUNLOUNGE WARNING
2 PN 1704245 USE UNLEADED FUEL ONLY
3 PN 1703701 EXPLOSIVE FUEL WARNING
4 PN 1703700 BOARDING LADDER WARNING
5 PN 1703698 FOREDECK WARNING
6 PN 1704247 BLOWER WARNING
7 PN 1706140 QUALIFIED OPERATOR
8 PN 1693520 CO WARNING
9 PN 1780621 ENTRY DOOR WARNING
10 PN 1703581 EMERGENCY SHUTDOWN
11 PN 1703805 FLAMMABLE LIQUID WARNING
NOTE: LABELS SHOWN ON NEXT PAGE
12
34
567
8910
11

212 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
11
CARBON MONOXIDE HAZARD.
KEEP CLOSED WHEN
RUNNING ENGINE
OR GENERATOR. 1693520

12
212 •Owner’s Manual Supplement
Chapter 2: Locations
Exterior Views
Hull Views
TRANSOM
SWIM PLATFORM
EXTENSION (IF EQUIPPED)
STERN EYESTERN EYE
BILGE DRAIN
PLUG
BOARDING
LADDER
BOW EYE
ANCHOR LOCKER
DRAIN
BILGE PUMP DRAIN DECK DRAIN
DECK DRAINS
DECK DRAINS
COCKPIT SINK DRAIN
STARBOARD HULLSIDE
PORT HULLSIDE

212 •Owner’s Manual Supplement Chapter 2: Locations
13
Deck Views
STANDARD SEATING
SPORT SEATING
BOW HATCH
CLEAT
GREEN
RUNNING
LIGHT
ANCHOR ROLLER
RED
RUNNING
LIGHT
CLEAT
ANCHOR
LOCKER
CLEAT
CLEAT
CLEAT
ALL-ROUND
LIGHT
VENTED FUEL FILL
DECK FITTING
GRAB HANDLE
SKI TOW RING
GREEN
RUNNING
LIGHT CLEAT BOW HATCH
ANCHOR ROLLER
RED
RUNNING
LIGHT
CLEAT
ANCHOR
LOCKER
CLEAT
CLEAT
CLEAT
ALL-ROUND
LIGHT
GRAB HANDLE
SKI TOW RING
SWIM PLATFORM
EXTENSION (IF EQUIPPED)
BOARDING
LADDERS
SWIM PLATFORM
EXTENSION (IF EQUIPPED)
BOARDING
LADDERS
VENTED FUEL FILL
DECK FITTING

Chapter 2: Locations 212 •Owner’s Manual Supplement
14
Helm
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS.
NOTE: TYPICAL HELM LAYOUT SHOWN.
VOLTMETER
TEMPERATURE SPEEDOMETER TRIM & TILT TACHOMETER OIL PRESSURE FUEL
DEPTH
FINDER
(IF EQUIPPED)
STEREO
ACCESSORIES 12-VOLT
DC OUTLET
BILGEIGNITION
SWITCH
BLOWER
HORN
NAVIGATION
LIGHT
ANCHOR
LIGHT
PUMP
