Sportsman Open 352 User manual

Open
352
Owner’s Manual and
Quick-reference Guide
2021

Introduction
2
WELCOME TO THE SPORTSMAN TEAM!
Here at Sportsman Boats, we take great pride in producing the finest, most
well-designed saltwater fishing and pleasure boats on the market today. Our
designs incorporate the most modern technology while applying good old
“Common Sense” technology as well. From our advanced composite
construction, ergonomic console designs, patented “Total Access” hatch, and
superior ride and handling characteristics, we think you will agree that
Sportsman is setting a new standard. Sportsman Boats builds the fastest
growing line of family-friendly center console boats in-class, built with the
latest designs, procedures and materials to give you and your family
unparalleled performance with a dry, safe and comfortable ride
We do not take lightly the confidence you have placed in us with your
decision to purchase your Sportsman boat. We will always strive to provide for
you and your family the superior customer service you deserve. We hope that
you enjoy your time out on the water as much as we enjoy building your
Sportsman boat!
Safe Boating and Tight Lines,
Tommy Hancock

WEIGHT:
VERTICAL CLEARANCE:
`
ENGINE MAKE: MODEL:
ENGINE SERIAL #:
PROPELLER MAKE:
# OF BLADES:
DIAMETER / PITCH: MODEL:
PART #:
MAKE: MODEL:
SERIAL #: GVRM:
ADDITIONAL INFORMATION:
DEALER
SPORTSMAN
NAME: PHONE:
PHONE: REPRESENTATIVE:
SALES PERSON: ADDRESS:
SERVICE MANGER:
ADDRESS:
ENGINE / PROPELLER INFORMATION
OPTIONAL EQUIPMENT / OPTION PACKAGES
TRAILER INFORMATION
MODEL:
PURCHASE DATE:
IGNITION KEY #:
DRAFT:
BOAT INFORMATION / SPECIFICATIONS
HULL SERIAL #:
DELIVERED:
REGISTRATION #:
We recommend filling
out the information in
this table and keeping
one copy of this page in
your personal records
and one copy with your
owner’s manual. This
information will be
important should you
need to contact your
dealer or Sportsman
Boats Manufacturing
for technical assistance
and/or service.
Important Information
3

Length Overall
Beam
Draft
Deadrise at Transom
Approximate Usable Fuel Capacity
Approximate Dry Weight
Maximum Engine Horse Power
35’2”
11’2”
24”
23°
330 gal.
9850 lbs.
900 HP (4 Stroke)
Specifications
4

11’2”
Overall Dimensions & Terminology
Port Side
Starboard
Side
Helm
Transom
5
35’2”
Aft Forward
Stern Bow
Note: We recommend measuring
the trailered height of your boat
for towing safety purposes. This
height may depend on the
specific trailer being used.

6
SportLink® Electronics Integration System
Garmin GPSMAP® 8622 MFD 22"
Airmar B175M CHIRP Thru-Hull Transducer
Garmin VHF 215 Radio w/ Antenna
Yamaha Command Link Plus CL7 Touchscreen Display
SeaStar Maximus Digital Switching System
JL Audio MediaMaster® MM100 Premium Marine Stereo
(12) JL Audio M6 Gloss White Sport Grille Speakers
(2) JL Audio MVi Amps w/ Built-in DSP
JL Audio MMR-20 Stereo Remote Controller
Anchor Windlass System w/ Anchor & 400' Line
Battery Switches & 5 Batteries
Compass
Console Footrest w/ Pads
Console Interior Liner
Edson 13” SS Comfort Grip Steering Wheel w/ PowerKnob
Electric Actuated Bow Sun Deck/Table
Helm Pad
Integrated Tempered Glass Windshield w/ Actuated Vent
Horn
(2) 30 Gallon Pressurized Aquarium Livewells
(2) Macerated In-Deck Fish Boxes
(6) Flush Mount Gunwale Rod Holders
10-Year Hull Warranty
35 Gallon Freshwater Tank w/ Washdown
355 Gallon Fuel Tank w/ Fuel Level Sensor
65 qt. Built-In Cooler & Console Lounge
Seating
88 qt. Rear Insulated Center Cooler
Lockable Console w/ Berth, Rod Storage, Sink
& Shower
Raw Water Washdown
Standard Features
Integrated Hard-Top Navigation Lights (Lumitec)
Interior LED Lighting Package
On-Board Battery Charging System
Optimus EPS Fully-Electric Steering Actuator w/ Tilt
Porcelain Head w/ Overboard Discharge & Pump Out
Trim Tabs w/ LED Indicator

7
Features & Performance
Standard Features
Bow Bolsters
Bow Cushion Set w/ Removable Filler Board
Cockpit Bolsters
Fiberglass Hard-Top w/ Integrated D-Tubing Frame
Fiberglass Leaning Post w/ Rear Facing Seating &
Sink
Premium Sileather® Marine Silicone Fabrics
Rear Fold Down Seat
Stern Fiberglass Cockpit Table
SunDeck/Table Cushion
Triple Premium Seats on Fiberglass Leaning Post
SportTech® Advanced Vacuum Infusion Process
Advanced Infused Fiberglass Stringer System (No
Wood)
Dual Fuel Fills (Port & Starboard)
Dual Side Entry Doors w/ Removable Ladder
Grip Tex Yacht Style Non-Skid
High Speed Livewell Pick Up
Insulated Bow Storage
Light Hull Color
Matching Hard-Top Underside Color
Port and Starboard Toe Rail
Powder Coating
Pull-Up Cleats
Recessed Bow Hand Rails
Removable Bow Backrest
Sea Chest
Self Bailing Cockpit
Stainless Steel Cup Holders
Stainless Steel Drain Covers
Stainless Steel Propellers
Stainless Steel Rub Rail
Total Access Compartment
Under Gunwale Bow Storage
Under Gunwale Rod Racks
Underlid Gaskets

Features & Performance
8
Optional Features
Available Options
Color Selection
- Ice Blue
- Island Blue
- Jet Black
- Sea Mist Green
- Storm Cloud
- Shark Gray
- Steel Blue
- White
Powder Coat
Selection
- Black - White
- JL Speakers
-JL 10” Amplified Subwoofer
- JL Amplifier
•
Second Garmin GPSMAP® 8622 MFD
•
Garmin GMR™ Fantom 18 Radome
•
Garmin GMR™ 424 xHD2 Open Array
•
Garmin Reactor™ 40 Autopilot (300s Only)
•
Garmin GXM™ 54 SiriusXM® Weather
Antenna
•
2nd Garmin VHF 215 Radio
•
Air Conditioning (12V 3500 BTU)
•
Console Drape (LP & Console, req. Top)
•
Custom Color Engine (Triples)
•
Dark Hull Color (Black/Steel/Shark)
Upgrade
•
Dive Tank Storage
•
Electric Reel Outlets
•
Fiberglass LP w/ Tackle Center and Sink
•
Gemlux Bluewater Outriggers
•
Gemlux Shade - Front
•
Gemlux Shade - Rear
•
Gull Wings
•
Optimus 360 Joystick (Triples Only)
•
Release Marine Package (Helm, Chairs & Bow Backs)
•
Release Marine Package (Helm Pod)
•
Seakeeper 3 Gyroscopic Stabilizer
•
Sun Shade w/ Poles - Front
•
Sun Shade w/ Poles - Rear
•
Taco Outriggers - GS380
•
Transhield Shipping Cover
•
Yamaha Auto Pilot (Twins Only)
•
Yamaha Helm Master (Twins Only)
Stereo Upgrade

9
Features & Performance
Major Features
Anchor
Storage
Bow Storage
Fold-down Seat
Rear Livewells
Fiberglass Leaning Post with Fold Down Seat
Stainless Wheel
Console Seat
and Cooler
Adjustable Backrest
Side Entry Door
Side Entry Door
Fish Boxes
Electric Actuated Table

Features & Performance
10

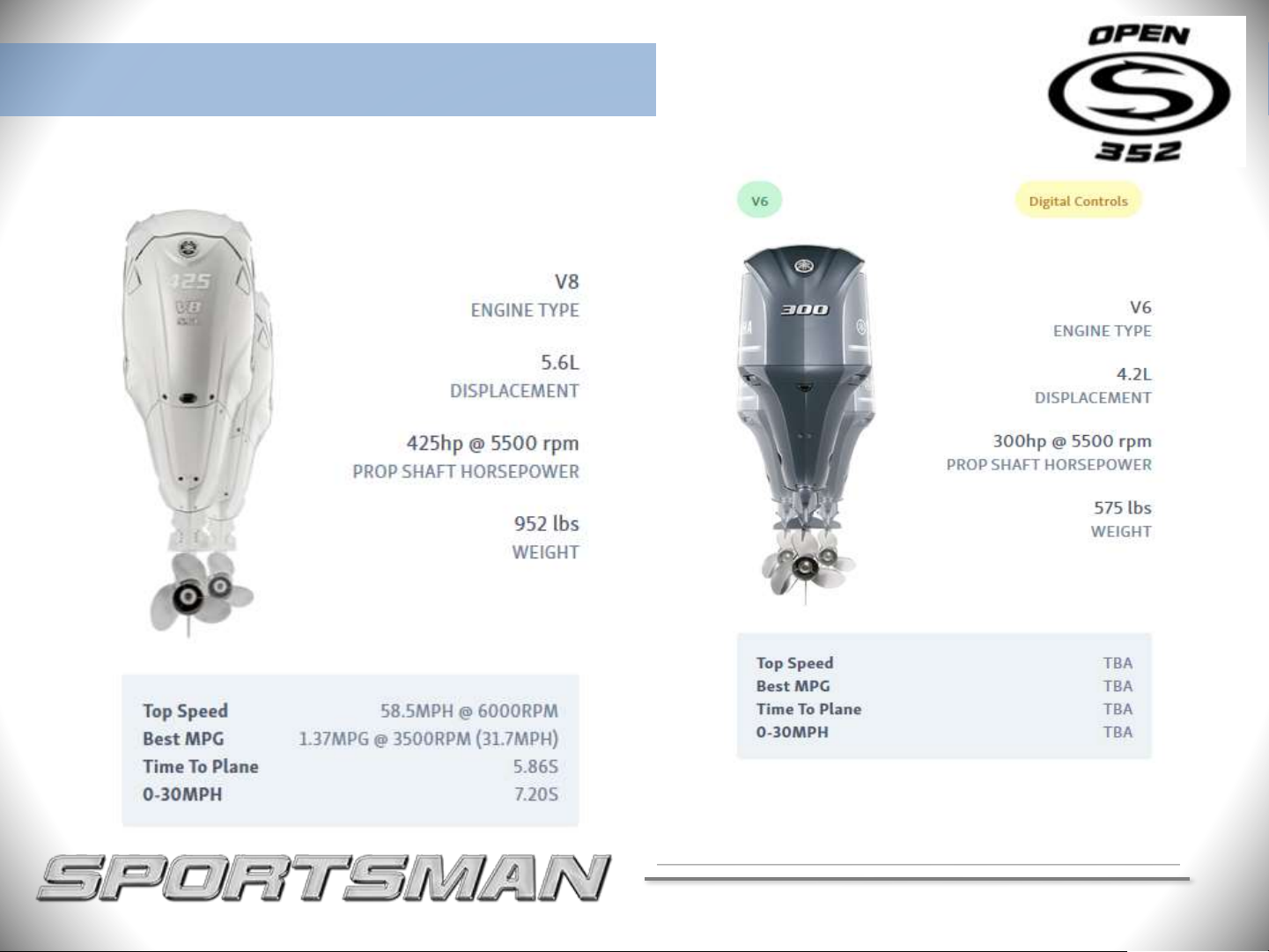

Twin 425 HP
Note: These are posted on our website at
https://www.sportsmanboatsmfg.com/open/352-Center-Console/power
Triple 300 HP

11
Features & Performance 425 HP
Performance
Bulletin

Sportsman Boats is certified by the National Marine Manufacturers Association (NMMA).
NMMA certification not only meets the standards of the United States Coast Guard
(USCG), but goes further to meet the standards set by the ABYC (American Boat and Yacht
Counsel). All Sportsman models have been designed, constructed, and thoroughly tested
to meet or exceed these standards. For more information about these standards, you may
visit http://www.nmma.org/certification/boats.
Sportsman has a permanent record of your boat. This record is documented during the
manufacturing process. It is identified by its “Hull Identification Number” (HIN). The HIN
is a12-digit code located on the starboard side of the transom, just under the Rub Rail.
When contacting your dealer concerning maintenance or warranties, please have your HIN
and model number available. This information can be found on your copy of the warranty
card. Federal and State laws require a power boat to be registered in the state where it is
primarily used. Registration numbers and validation stickers must be displayed according
to regulations. The registration certificate must be on board when boating. The boat serial
number, or Hull Identification Number (HIN), is required on the registration form. The
HIN should be included on all documents or any correspondence.
Certifications & Registrations
Hull Identification Number & Registration
NMMA Certification
12

USCG approved visual distress signals are required for day and night use when
operating on US waters. Approved signals include flares, orange smoke, an orange
distress flag, or an electric distress light.
Boating Safety
The US Coast Guard (USCG) requires
that every boat have specific equipment
on board. Check with local regulations
on mandatory equipment apart from
the list of Coast Guard requirements.
REQUIRED
SAFETY EQUIPMENT
At least one Type-1 hand held portable
fire extinguisher must be carried on
board. For boats over 20’ two are
required. Check extinguisher regularly
for charge status.
You must have a USCG approved personal flotation device of Type I, II, or III aboard
for each passenger, in addition to one Type IV throw able PFD. Always wear a PFD
when boating. In some states, children are required to wear a PFD at all times. Check
your local regulations.
PERSONAL FLOTATION DEVICE (PFD)
Your Sportsman boat is equipped with
navigation lights which comply with
both Inland and International rules.
LIGHTING
Your Sportsman boat is equipped with
an electric horn which meets the USCG
requirements for
a sound signal device.
SOUND
SIGNALING DEVICES
VISUAL DISTRESS SIGNALS
13
FIRE EXTINGUISHER

Please become familiar with the location and content of the
Caution, Warning, and Danger Labels found on your boat.
Boating Safety
Being on the water is a great experience, but it can become a bad experience
very quickly if safety and maintenance instructions of your boat are not
followed. Therefore, warnings and notices have been included in order to
help you operate and maintain your boat safely. They are defined as follows:
14

If your label is damaged. Please call Sportsman’s
parts department for replacement stickers.
Boating Safety
Your Owner’s Manual was written to
include safety instructions to ensure safe
operations. Safety alert symbols are used
to show potential personal injury hazards.
Every precaution has been taken to reduce the
risks associated with death, possible injury and
damage from fire or explosion. You must also
take your own necessary precautions and
practice proper maintenance procedures in order
to enjoy the optimal safe operation of your boat.
15

Your boat produces carbon monoxide and uses flammable fuel.
Carbon monoxide can cause brain damage or death. Carbon
monoxide is colorless, odorless and extremely dangerous.
Boating Safety
16

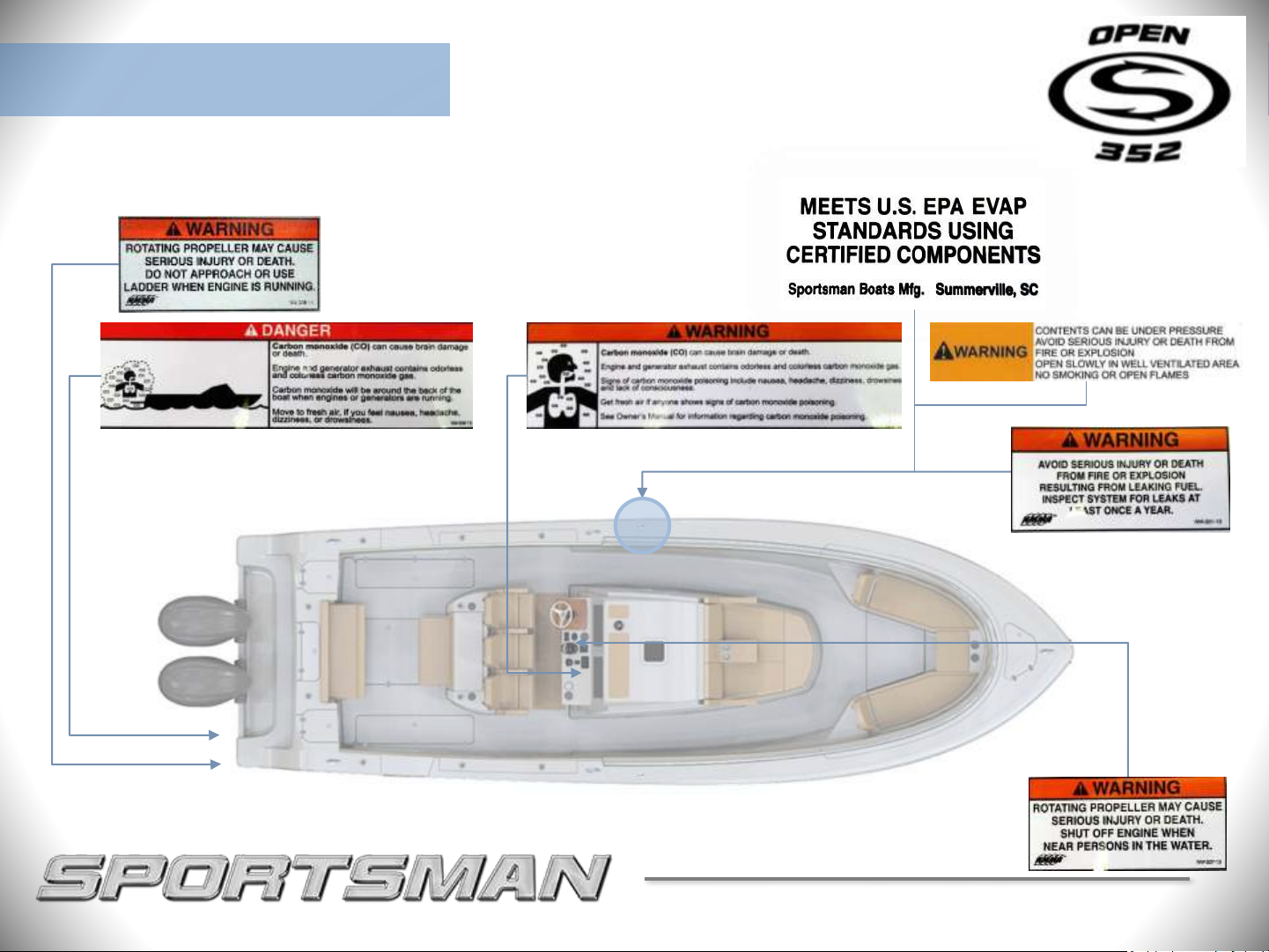

Boating Safety Label Locations
17

18

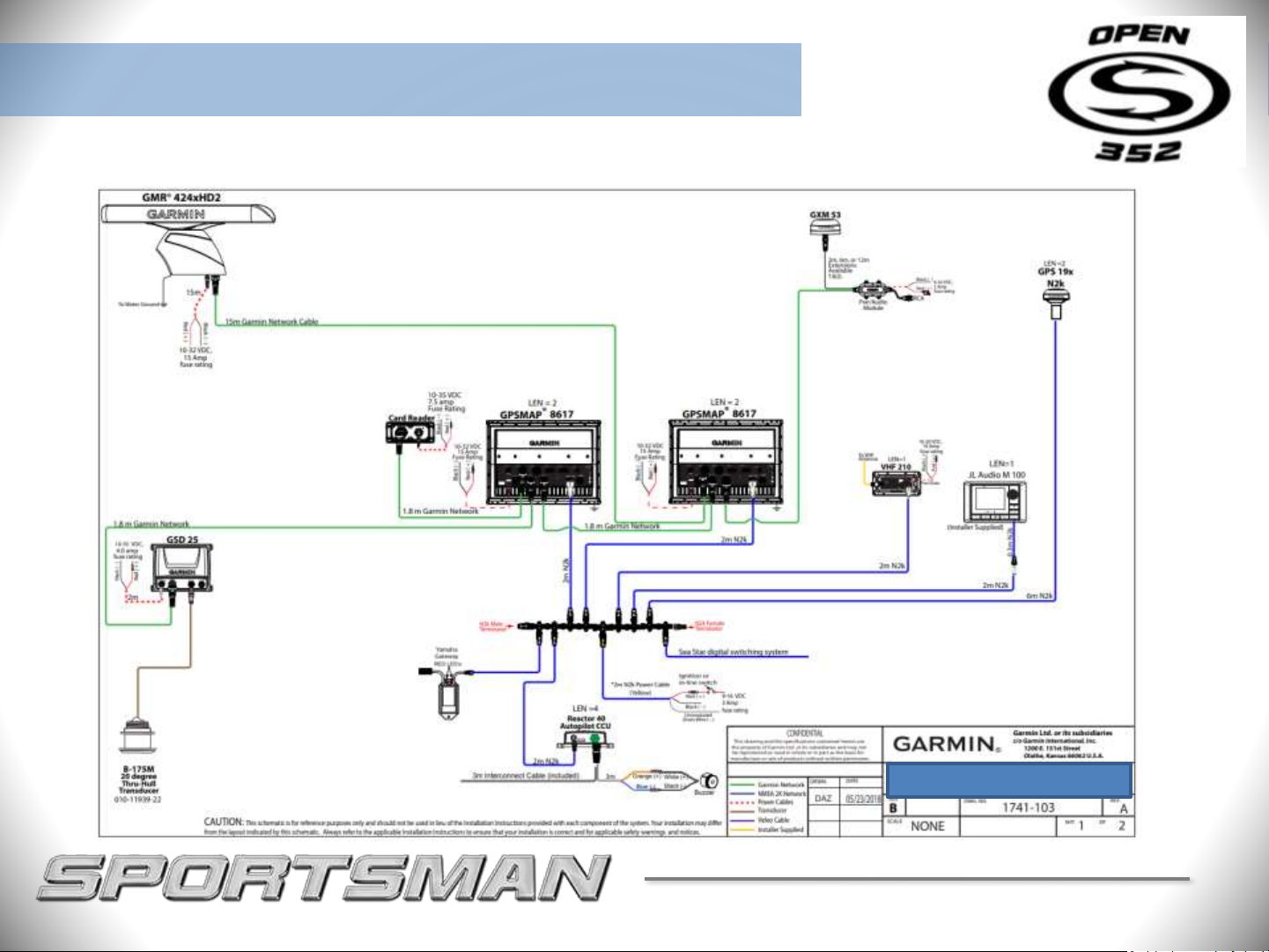

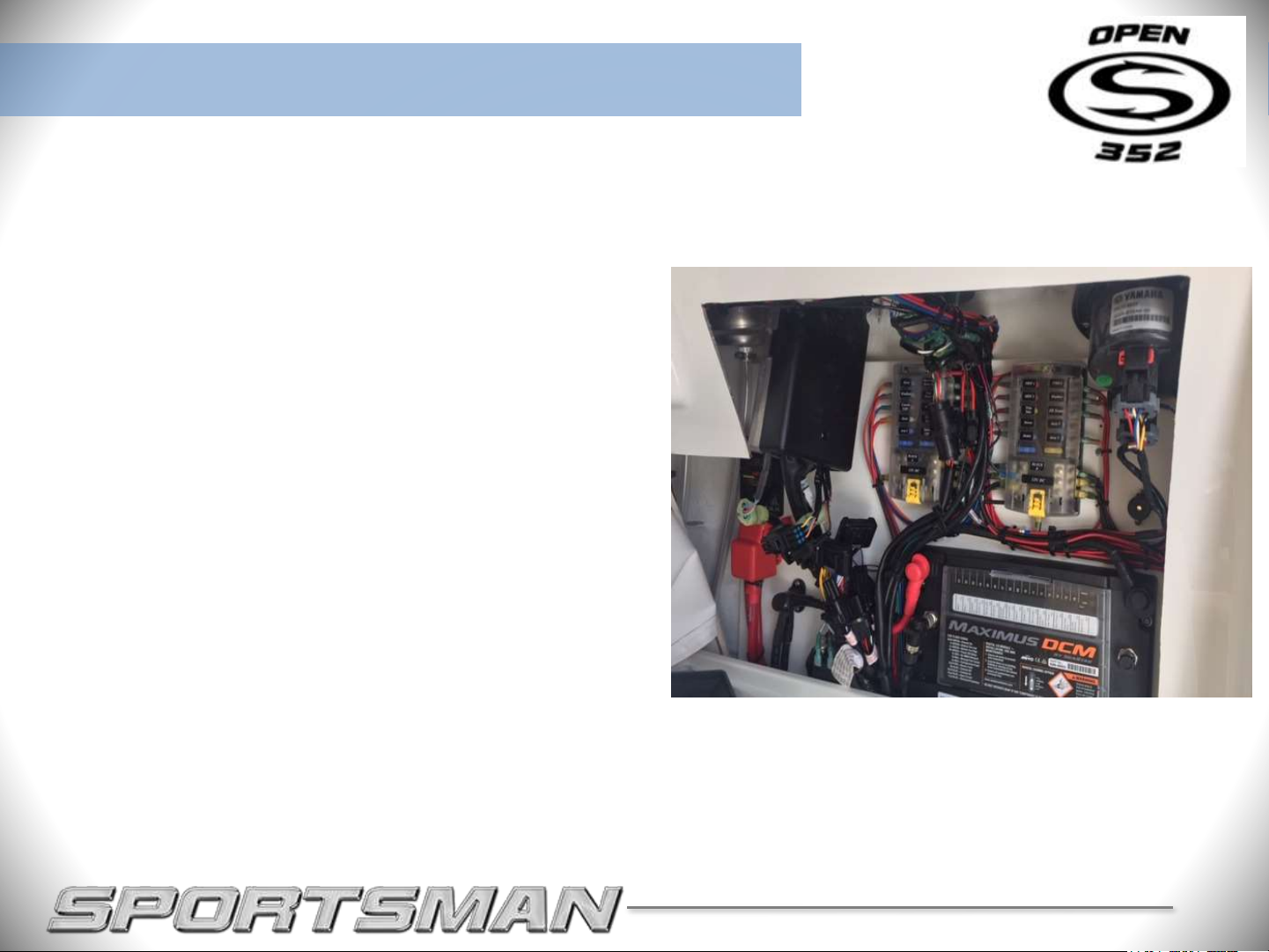

Electrical & Plumbing Systems

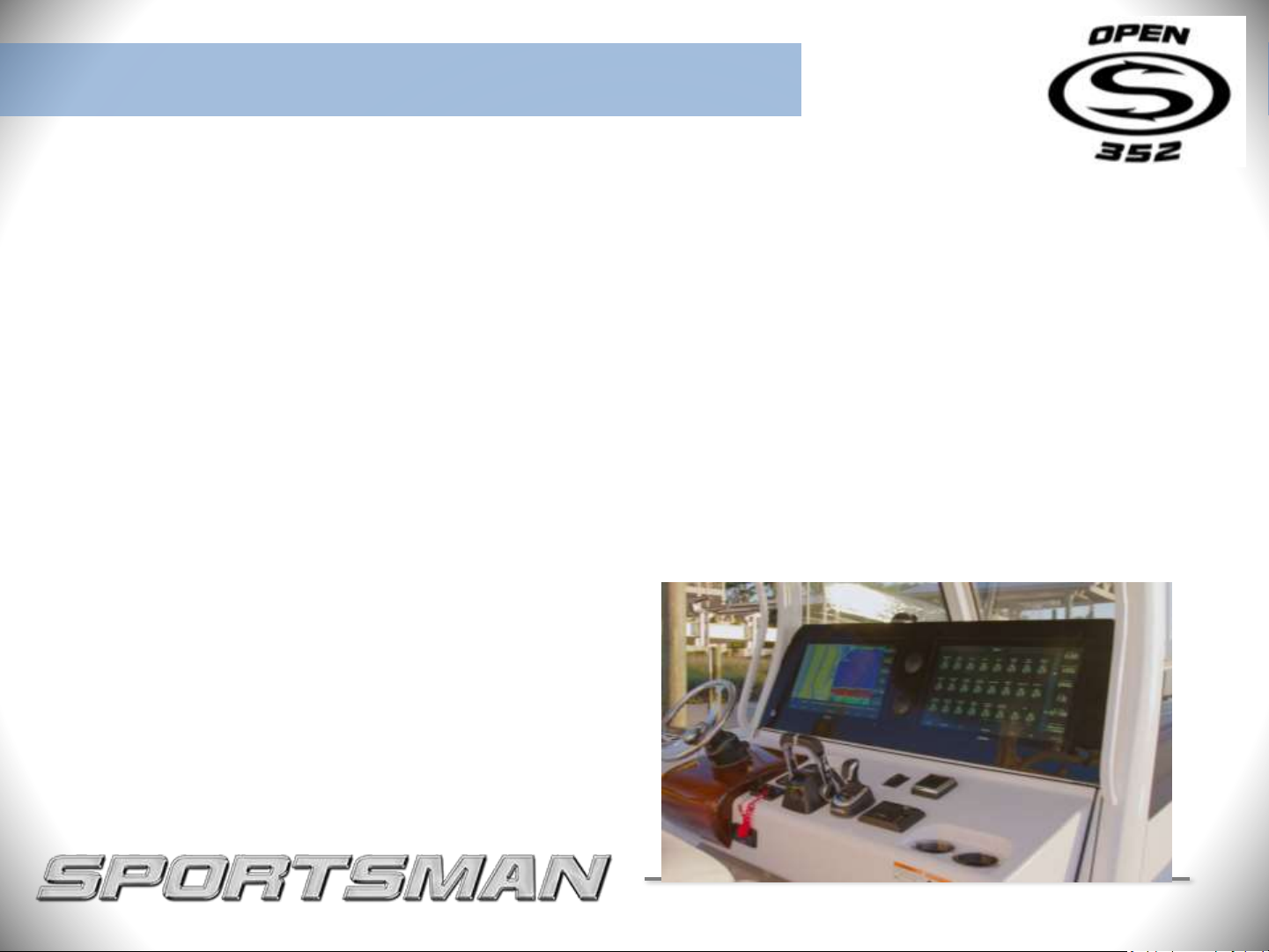

Garmin 22” Package
GPSMAP 8622 large-format multifunction display features a 22-inch full HD
screen with touch control. Sunlight-readable, anti-glare display is exceptionally
easy to view and also includes auto-dimming feature for use in low light or at
night. New maximum glass design enables you to experience a beautifully
powerful, completely networked helm at your fingertips. In-plane switching (IPS)
LCD display —an industry first for this class —provides consistent, accurate
colors from all viewing angles. It also provides standard USB touch output for use
as a touchscreen monitor for Windows® and Mac® operating systems. Install
multiple displays with the industry’s lowest flush-mount profile or flat mount
them edge-to-edge to create a sleek glass helm look. Quick, 1-touch access to the
information you need makes boating easier.

19
Electrical & Plumbing Systems
Garmin 22Package

20
SeaStar Maximus DCM Digital Switching
System
Redefining Convenience & Innovation
The SeaStar Maximus DCM Digital Switching System
eliminates the need to have physical switches on the
dash. This not only cleans up the dash of switches, but it
add longevity to the electrical system of your boat. This
is the way of the future and here at Sportsman Boats,
we are leading the pack in innovation.
The system communicates through NMEA2000 to your
Garmin MFD to add a screen that shows all of your 12v
switches, doing away with the need to have physical
toggle switches on the dash. You are able to customize
the look and feel of the switches as well as create
presets and modes with your favorite combination of
lights. This type of flexibility is just not possible without
digital switching.
To wrap it all up, it also includes a fob that allows you to
operate the 8 most used functions on your boat from up
to 100 feet away from your Sportsman Boat. This remote
can even turn all power on or off on the vessel,
redefining convenience and innovation.
Electrical & Plumbing Systems
Digital Switching
