Sportsman Heritage 211 User manual

Owner’s Manual and
Quick-Reference Guide

Table of Contents
Introduction
Important Information
Specifications
Overall Dimensions & Terminology
Features & Performance
Certifications & Registrations
Boating Safety
Electrical & Plumbing Systems
Fuel System
Boating Navigation Rules
Warranty & Services
Contact Information
3
4
5
6
7
12
13
19
32
37
38
41
Topic Page
2

Introduction
3
WELCOME TO THE SPORTSMAN TEAM!
Here at Sportsman Boats, we take great pride in producing the finest, most
well designed saltwater fishing and pleasure boats on the market today. Our
designs incorporate the most modern technology while applying good old
“Common Sense” technology as well. From our advanced composite
construction, ergonomic console designs, patented “Total Access” hatch, and
superior ride and handling characteristics, we think you will agree that
Sportsman is setting a new standard. Sportsman Boats builds the fastest
growing line of family-friendly center console boats in-class, built with the
latest designs, procedures and materials to give you and your family
unparalleled performance with a dry, safe and comfortable ride
We do not take lightly the confidence you have placed in us with your
decision to purchase your Sportsman boat. We will always strive to provide for
you and your family the superior customer service you deserve. We hope that
you enjoy your time out on the water as much as we enjoy building your
Sportsman boat!
Safe Boating and Tight Lines,
Tommy Hancock

WEIGHT:
VERTICAL CLEARANCE:
`
ENGINE MAKE: MODEL:
ENGINE SERIAL #:
PROPELLER MAKE:
# OF BLADES:
DIAMETER / PITCH: MODEL:
PART #:
MAKE: MODEL:
SERIAL #: GVRM:
ADDITIONAL INFORMATION:
DEALER
SPORTSMAN
NAME: PHONE:
PHONE: REPRESENTATIVE:
SALES PERSON: ADDRESS:
SERVICE MANGER:
ADDRESS:
ENGINE / PROPELLER INFORMATION
OPTIONAL EQUIPMENT / OPTION PACKAGES
TRAILER INFORMATION
MODEL:
PURCHASE DATE:
IGNITION KEY #:
DRAFT:
BOAT INFORMATION / SPECIFICATIONS
HULL SERIAL #:
DELIVERED:
REGISTRATION #:
We recommend filling
out the information in
this table and keeping
one copy of this page in
your personal records
and one copy with your
owner’s manual. This
information will be
important should you
need to contact your
dealer or Sportsman
Boats Manufacturing
for technical assistance
and/or service.
Important Information
4

Length Overall
Beam
Draft
Deadrise at Transom
Approximate Usable Fuel Capacity
Approximate Dry Weight
People Capacity
Maximum Engine Horse Power
20’11”
8’5”
12”
15°
61 gal.
2400 lbs.
10 persons
200 HP (4 Stroke)
Specifications
5

Overall Dimensions & Terminology
Port Side
Starboard
Side
Helm
Transom
6
8’5”
20’11”
Aft Forward
Stern Bow
Note: If your boat has a T-Top,
we recommend measuring the
trailered height of your boat for
towing safety purposes. The
approximate trailered height is
10’2”. This height may depend
on the specific trailer being used.

7
Features & Performance
Feature Packages
Color Selection
- Driftwood
- Ice Blue
- Island Blue
- Jet Black
- Sea Mist Green
- Silver Cloud
- Steel Blue
- White
Powder Coat
Selection
- Black - White
•
SportTech™ Advanced Fabrication
Process
•
Console Footrest w/ Glove
Box & Storage Bin
•
Large Bow Fish Box
•Stainless Steel Steering Wheel
w/ Knob
•
SportLink™ Electronics Integration
System
•
Console Grab
Rail
•
Large Rear Casting Deck
•
Stainless Steel
Switches
•
Garmin GPSMAP® 942xs MFD 9"
•
Console
Windscreen
•
NMMA Certified
•
Swim Platform w/ 3 Step
Ladder
•
Airmar B60 Thru-Hull Transducer
•
Dash Panel
Cover
•Premium Marine Vinyl with Distressed
Look
•Trolling Motor Plug/Harness
•
(1) 20 Gallon Rear Livewell
•Deluxe Leaning Post w/ Flip
Up Bolsters
•
Pull-Up Cleats
•
Under Gunwale Rod Racks
•
(1) 20 Gallon Rear Recirculating
Livewell w/ Pro-Air
•
Dual Battery Configuration
w/ Switch & Trays
•
Rear Fold Up Bench Seat w/ Storage
•Underlid Gasket
•10 Gallon Livewell Front Seat of Console
•Extra Large Forward Storage
Box
•
Rear Total Access Hatch
•
10-Year Hull Warranty
•
Grip Tex Yacht Style Non-
Skid
•
Recessed Bow Hand Rails
•
2 Flush Mount Gunwale Rod Holders
•High Speed Livewell Pick Up
•
Rub Rail Navigation Lights
•
6 Vertical Rod Holders on Console
(Boats w/o T-Top)
•
Horn
•
Self Bailing Cockpit
•
64 Gallon Fuel Tank w/ Fuel Level
Sensor
•
Hydraulic Tilt
Steering
•
Stainless Steel Cup Holders - 6
•
Advanced Fiberglass Stringer System
(No Wood)
•
Interior LED Lighting
Package
•
Stainless Steel Propeller
•
All White Hull (Sides & Bottom)
•
JL Audio Combo USB & 3.5
mm Audio Jack
•
Stainless Steel Rub Rail
•
Anchor Storage
•
Large Bow Casting Deck w/ Lockable Storage for 10 Rods

Features & Performance
8
Options
•
Garmin VHF 110 Radio w/ Antenna
•
Garmin GXM™ 53 SiriusXM® Weather Antenna
•
Airmar B175M CHIRP Thru-Hull Transducer Upgrade
•
Bimini Top
•
Bow Casting Chair
•
Bow Cushion Set / Sundeck
•
Compass
•
Console Cover
•
Custom Color Engine
•
Dark Hull Color(Black/St Blue)
•
Dark Hull Color(Black/St Blue) Upgrade
•
Deluxe T-Top w/ LED Lighting
•
Edson 13” SS Comfort Grip Steering Wheel w/
PowerKnob
•
Freshwater Washdown w/ 13 gal. Tank
•
Gunwale Rod Holders / Each
•
Helm Pad
•
Yeti Cooler w/ Slide Out Track
•
Light Hull Color
•
Mooring Cover
•
On-Board Battery Charging System
•
Optimus Electronic Power Steering w/ Tilt
•
Powder Coating for Ski Tow Bar
•
Raw Water Washdown
•
Removable Reclining Bow Backrest w/
Seat Cushions
•
SeaStar Jack Plate
•
SeaStar ProTap Controller (req. Jack
Plate)
•
Ski Tow Bar
•
Spray Shield
•
Transhield Shipping Cover (w/o Top
Only)
•
Trim Tabs
•
Under Leaning Post Tackle Storage
•
Underwater Lights

9
Features & Performance
Major Features
Anchor Storage
Storage Compartment
Swim Platform
Bench Seat
Rear Livewells
Deluxe Leaning Post
Rod Holders
Stainless Wheel
Console Seat
Flip-up Bolsters
Storage Compartment

Note: This is posted on our website at
http://sportsmanboatsmfg.com/heritage-211-center-console/

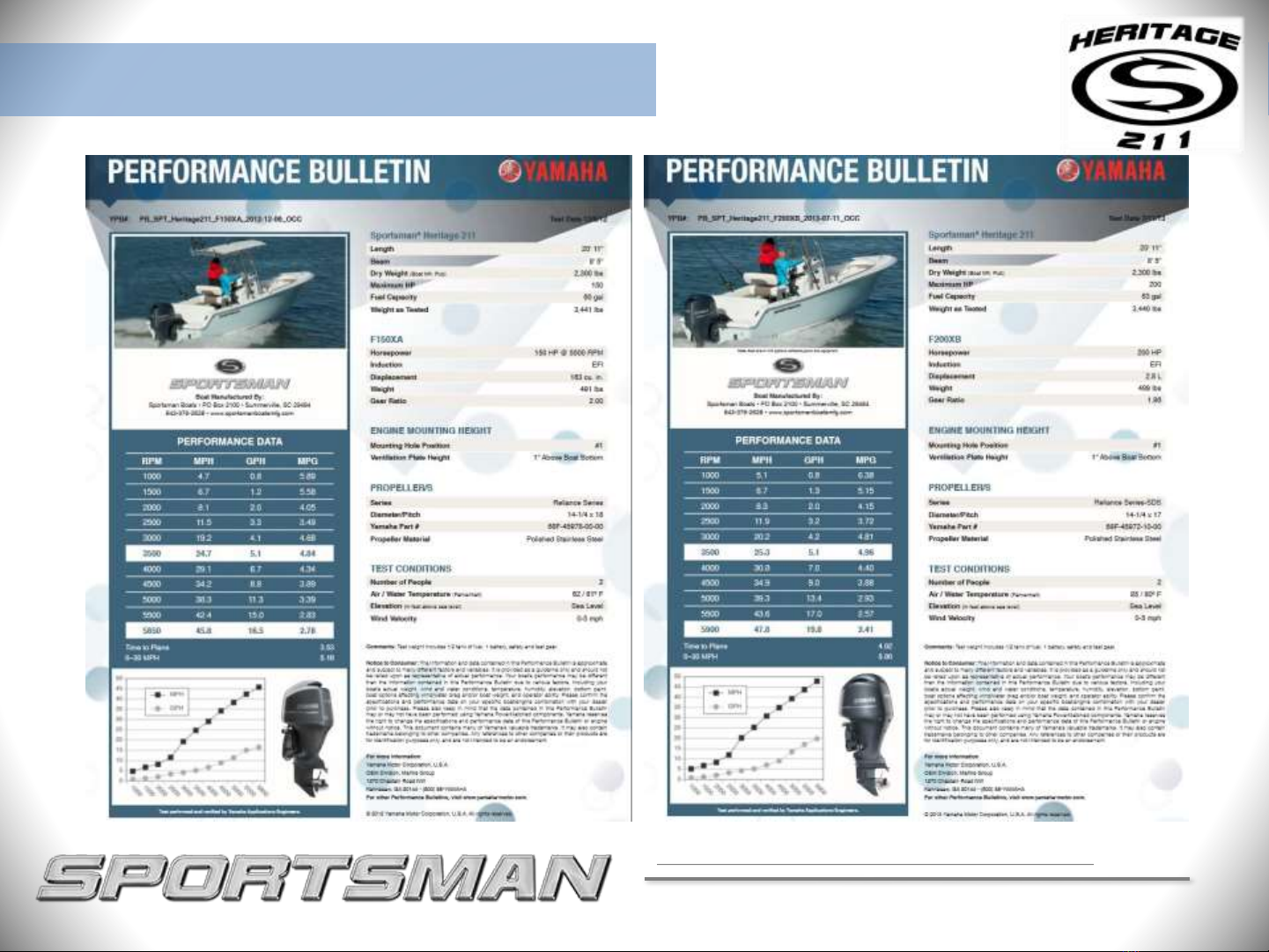

Features & Performance
10
150 HP 200 HP

Sportsman Boats is certified by the National Marine Manufacturers Association (NMMA).
NMMA certification not only meets the standards of the United States Coast Guard
(USCG), but goes further to meet the standards set by the ABYC (American Boat and Yacht
Counsel). All Sportsman models have been designed, constructed, and thoroughly tested
to meet or exceed these standards. For more information about these standards, you may
visit http://www.nmma.org/certification/boats.
Sportsman has a permanent record of your boat. This record is documented during the
manufacturing process. It is identified by its “Hull Identification Number” (HIN). The HIN
is a12-digit code located on the starboard side of the transom, just under the Rub Rail.
When contacting your dealer concerning maintenance or warranties, please have your HIN
and model number available. This information can be found on your copy of the warranty
card. Federal and State laws require a power boat to be registered in the state where it is
primarily used. Registration numbers and validation stickers must be displayed according
to regulations. The registration certificate must be on board when boating. The boat serial
number, or Hull Identification Number (HIN), is required on the registration form. The
HIN should be included on all documents or any correspondence.
Certifications & Registrations
Hull Identification Number & Registration
NMMA Certification
11

USCG approved visual distress signals are required for day and night use when
operating on US waters. Approved signals include flares, orange smoke, an orange
distress flag, or an electric distress light.
Boating Safety
The US Coast Guard (USCG) requires
that every boat have specific equipment
on board. Check with local regulations
on mandatory equipment apart from
the list of Coast Guard requirements.
REQUIRED
SAFETY EQUIPMENT
At least one Type-1 hand held portable
fire extinguisher must be carried on
board. For boats over 20’ two are
required. Check extinguisher regularly
for charge status.
FIRE EXTINGUISHER
You must have a USCG approved personal flotation device of Type I, II, or III aboard
for each passenger, in addition to one Type IV throw able PFD. Always wear a PFD
when boating. In some states, children are required to wear a PFD at all times. Check
your local regulations.
PERSONAL FLOTATION DEVICE (PFD)
Your Sportsman boat is equipped with
navigation lights which comply with
both Inland and International rules.
LIGHTING
Your Sportsman boat is equipped with
an electric horn which meets the USCG
requirements for
a sound signal device.
SOUND
SIGNALING DEVICES
VISUAL DISTRESS SIGNALS
12

Please become familiar with the location and content of the
Caution, Warning, and Danger Labels found on your boat.
Boating Safety
Being on the water is a great experience, but it can become a bad experience
very quickly if safety and maintenance instructions of your boat are not
followed. Therefore, warnings and notices have been included in order to
help you operate and maintain your boat safely. They are defined as follows:
13

If your label is damaged. Please call Sportsman’s
parts department for replacement stickers.
Boating Safety
Your Owner’s Manual was written to
include safety instructions to ensure safe
operations. Safety alert symbols are used
to show potential personal injury hazards.
Every precaution has been taken to reduce the
risks associated with death, possible injury and
damage from fire or explosion. You must also
take your own necessary precautions and
practice proper maintenance procedures in order
to enjoy the optimal safe operation of your boat.
14

Your boat produces carbon monoxide and uses flammable fuel.
Carbon monoxide can cause brain damage or death. Carbon
monoxide is colorless, odorless and extremely dangerous.
Boating Safety
15

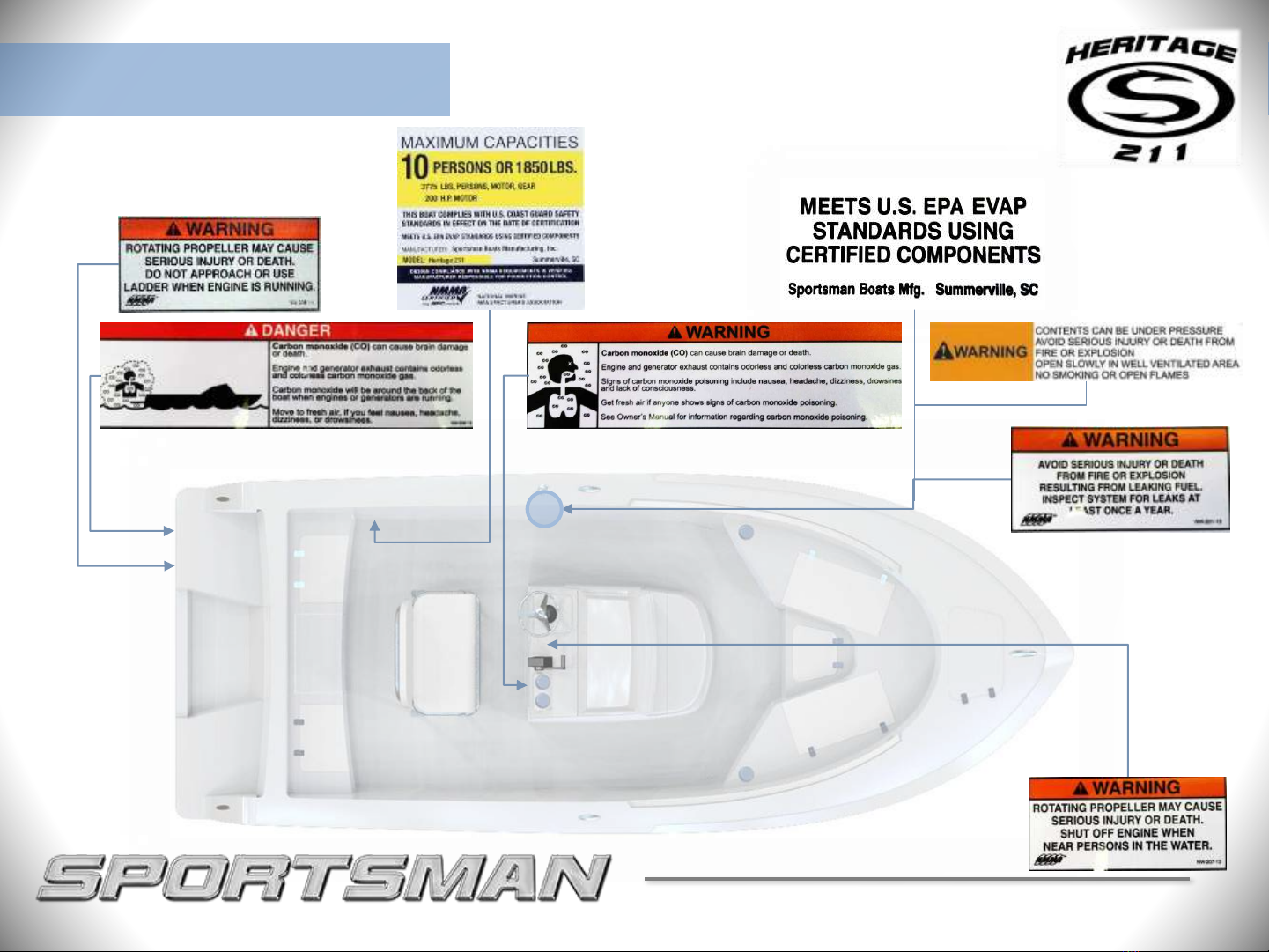

Boating Safety Label Locations
16

Boating Safety
17

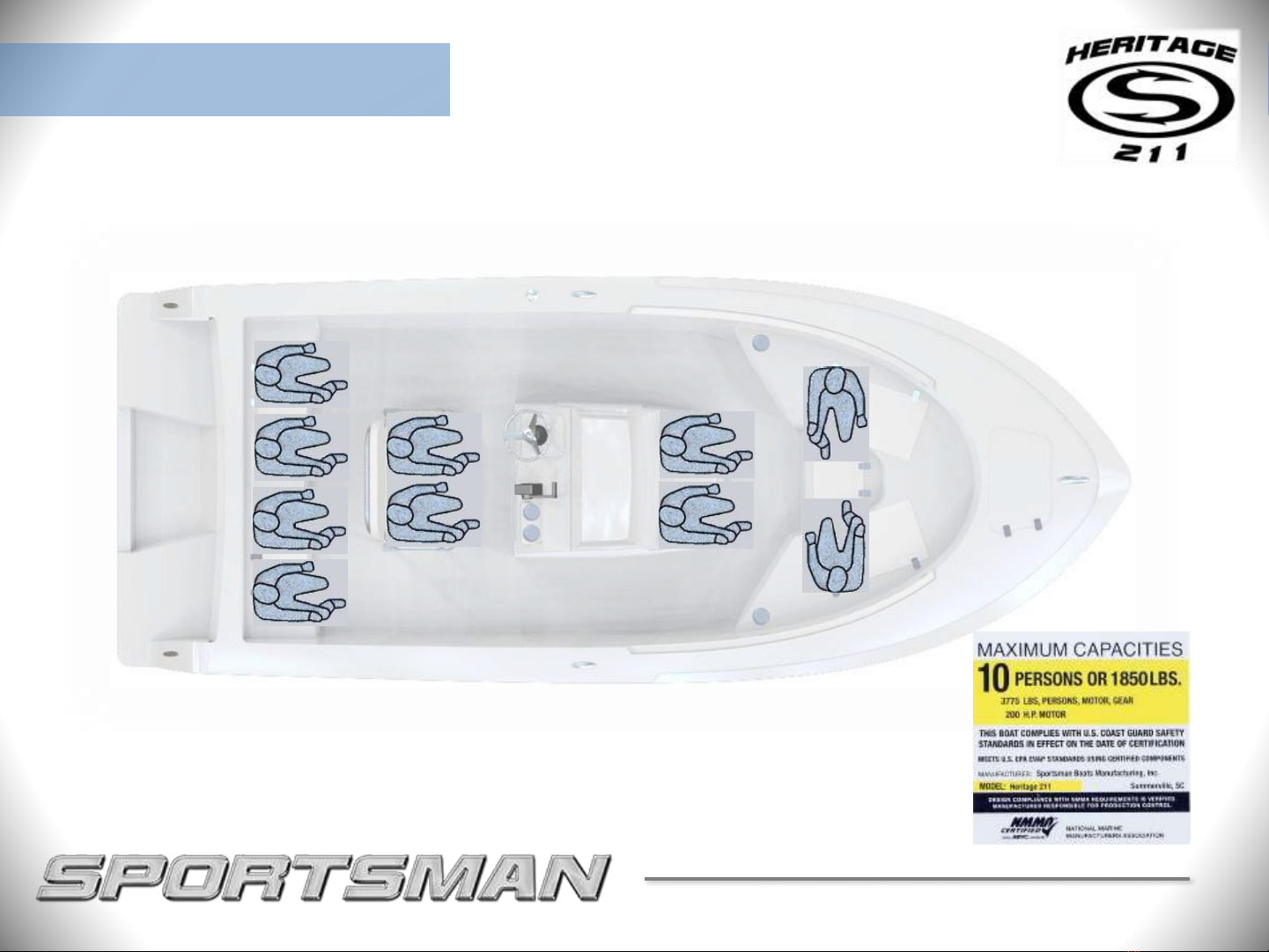

The Sportsman Heritage 211 has a 10 Person
Capacity. Seating locations are shown below.

18

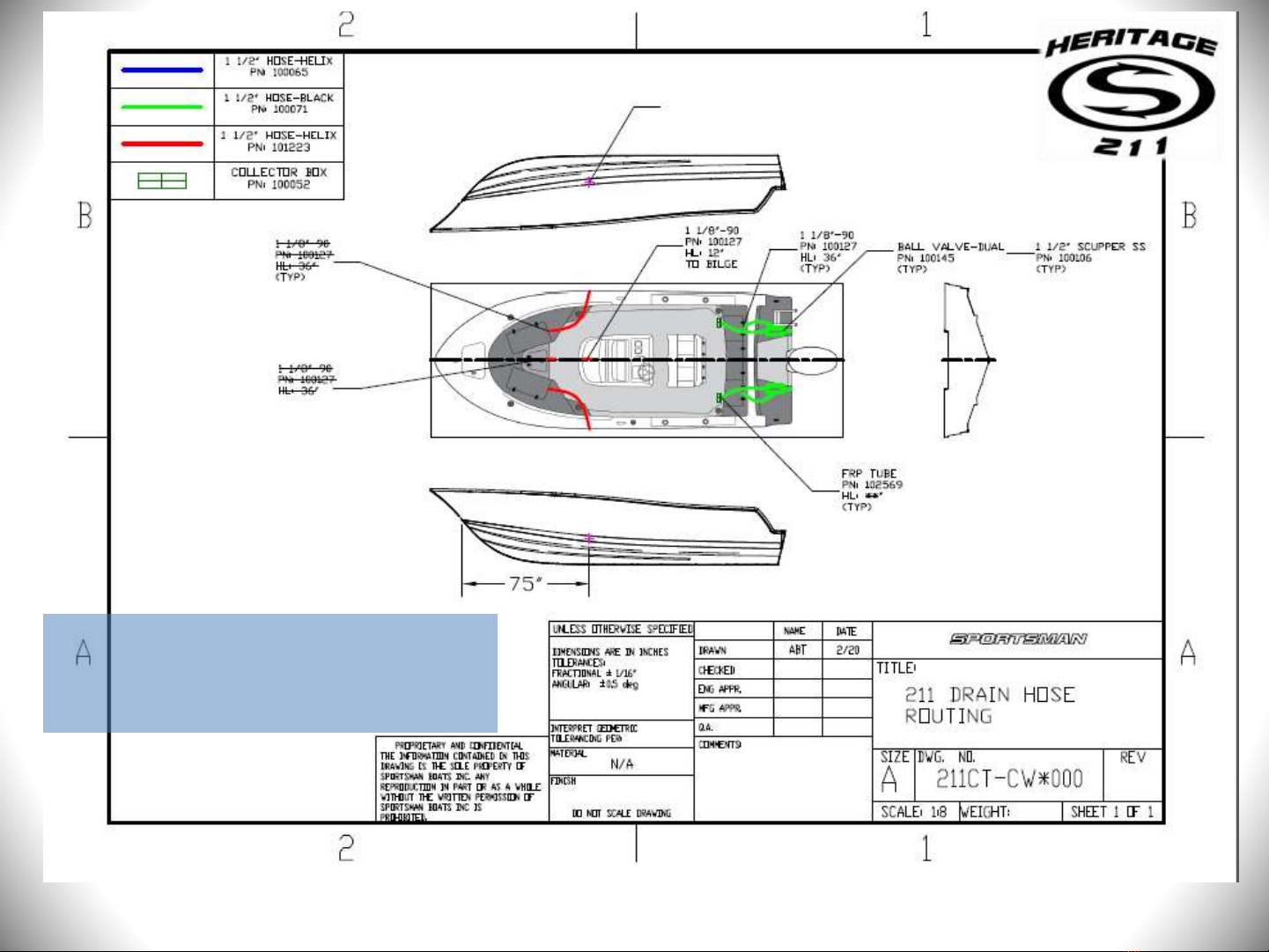

Electrical &
Plumbing Systems

Electrical & Plumbing Systems

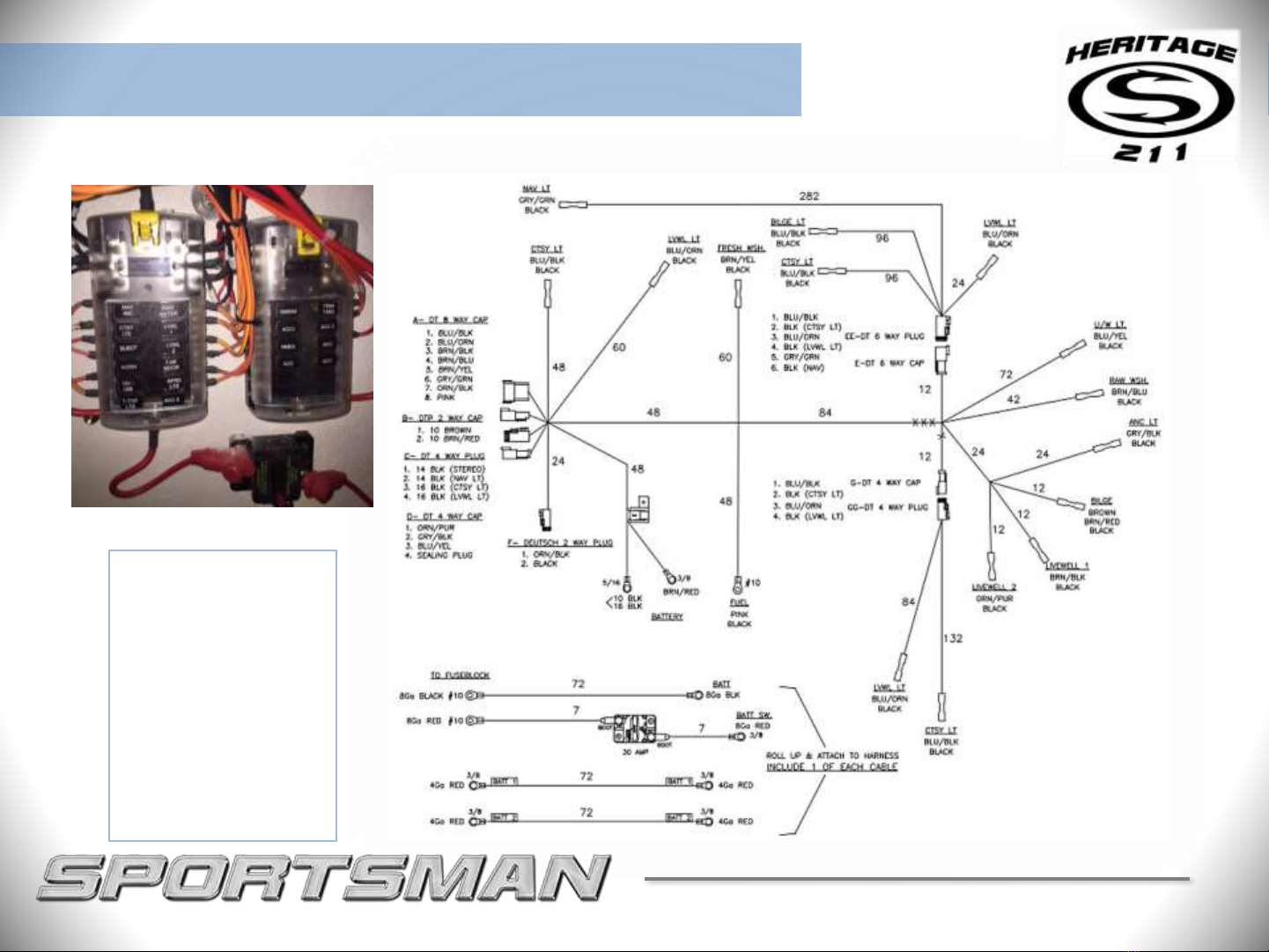

Wire Harness
19
The fuse panel is located
under the console. It is
clearly labeled for easy
identification. The bilge
pump’s 6 amp fuse is also
located here. There is also
a 30 amp breaker
branching off the main
battery switch. If an
electrical component of
your boat stops working
properly, this should be
the first place to look.
Fuse Panel

20
Electrical & Plumbing Systems
Sportsman offers the Garmin
942xs multi-function Display
which integrates the following
functions with ease:
-ClearVü
-SideVü
-Stereo
-Sonar
-Radar Capability
-Navigation
-Engine Instruments
-Coastal Charts
SportLink®
Electronics Integration System
Take control of your electronics with SportLink® Electronics Integration System, equipped standard on every Sportsman
Boat. The Garmin & JL Audio powered electronics packages have been carefully designed around each model to meet
and exceed your needs out on the water.
