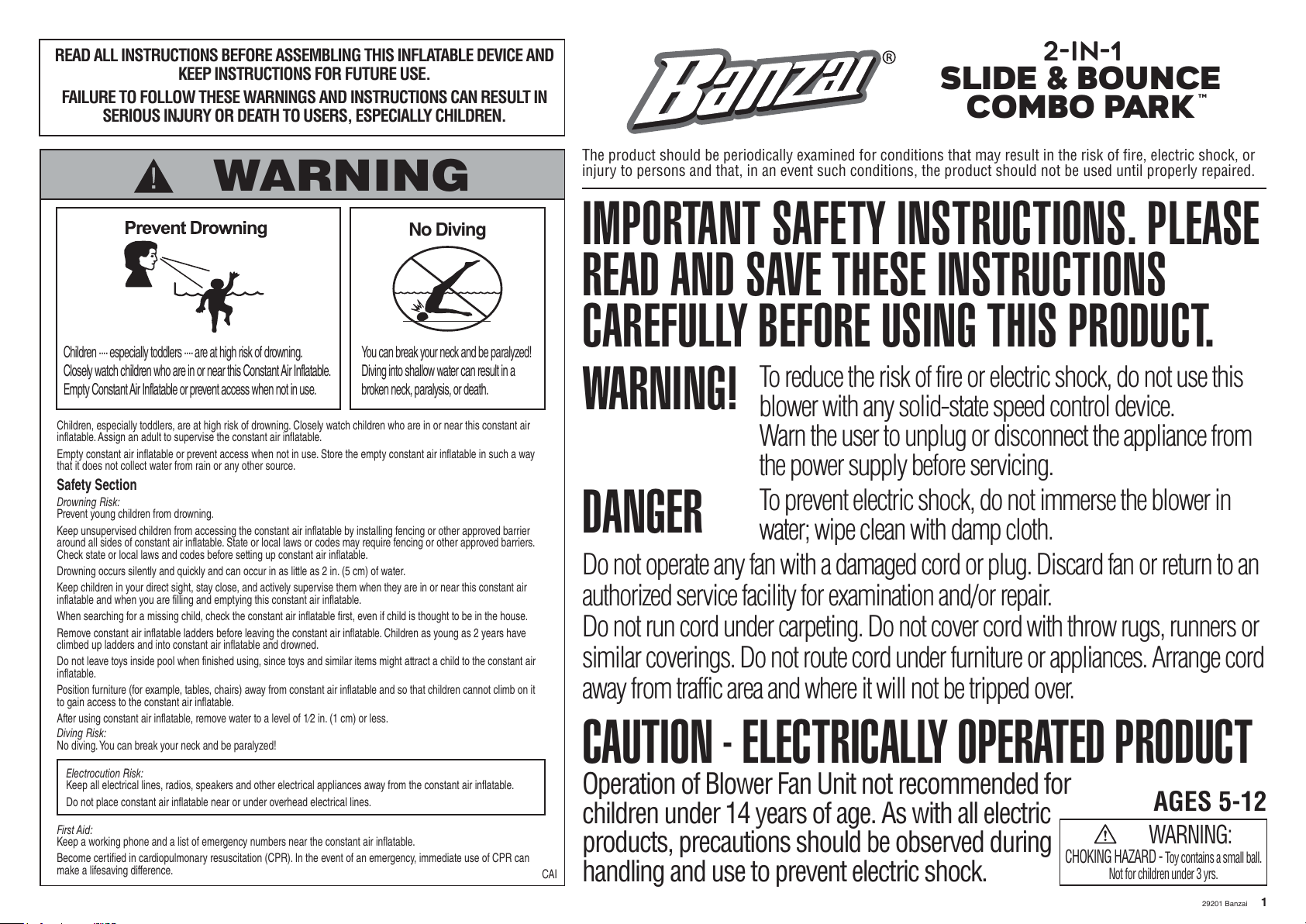

Banzai 2-IN-1 SLIDE & BOUNCE COMBO PARK User manual

29201 Banzai 1
AGES 5-12
The product should be periodically examined for conditions that may result in the risk of fire, electric shock, or
injury to persons and that, in an event such conditions, the product should not be used until properly repaired.
WARNING
READ ALL INSTRUCTIONS BEFORE ASSEMBLING THIS INFLATABLE DEVICE AND
KEEP INSTRUCTIONS FOR FUTURE USE.
FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS CAN RESULT IN
SERIOUS INJURY OR DEATH TO USERS, ESPECIALLY CHILDREN.
CAI
IMPORTANT SAFETY INSTRUCTIONS. PLEASE
READ AND SAVE THESE INSTRUCTIONS
CAREFULLY BEFORE USING THIS PRODUCT.
CAUTION - ELECTRICALLY OPERATED PRODUCT
Operation of Blower Fan Unit not recommended for
children under 14 years of age. As with all electric
products, precautions should be observed during
handling and use to prevent electric shock.
DANGER
Do not operate any fan with a damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners or
similar coverings. Do not route cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
To prevent electric shock, do not immerse the blower in
water; wipe clean with damp cloth.
WARNING! To reduce the risk of fire or electric shock, do not use this
blower with any solid-state speed control device.
Warn the user to unplug or disconnect the appliance from
the power supply before servicing.
Children, especially toddlers, are at high risk of drowning. Closely watch children who are in or near this constant air
inflatable. Assign an adult to supervise the constant air inflatable.
Empty constant air inflatable or prevent access when not in use. Store the empty constant air inflatable in such a way
that it does not collect water from rain or any other source.
Safety Section
Drowning Risk:
Prevent young children from drowning.
Keep unsupervised children from accessing the constant air inflatable by installing fencing or other approved barrier
around all sides of constant air inflatable. State or local laws or codes may require fencing or other approved barriers.
Check state or local laws and codes before setting up constant air inflatable.
Drowning occurs silently and quickly and can occur in as little as 2 in. (5 cm) of water.
Keep children in your direct sight, stay close, and actively supervise them when they are in or near this constant air
inflatable and when you are filling and emptying this constant air inflatable.
When searching for a missing child, check the constant air inflatable first, even if child is thought to be in the house.
Remove constant air inflatable ladders before leaving the constant air inflatable. Children as young as 2 years have
climbed up ladders and into constant air inflatable and drowned.
Do not leave toys inside pool when finished using, since toys and similar items might attract a child to the constant air
inflatable.
Position furniture (for example, tables, chairs) away from constant air inflatable and so that children cannot climb on it
to gain access to the constant air inflatable.
After using constant air inflatable, remove water to a level of 1⁄2 in. (1 cm) or less.
Diving Risk:
No diving.You can break your neck and be paralyzed!
Electrocution Risk:
Keep all electrical lines, radios, speakers and other electrical appliances away from the constant air inflatable.
Do not place constant air inflatable near or under overhead electrical lines.
First Aid:
Keep a working phone and a list of emergency numbers near the constant air inflatable.
Become certified in cardiopulmonary resuscitation (CPR). In the event of an emergency, immediate use of CPR can
make a lifesaving difference.
CHOKING HAZARD - Toy contains a small ball.
Not for children under 3 yrs.
WARNING:
Slide & Bounce
Combo PaRk
2-in-1
TM
You can break your neck and be paralyzed!
Diving into shallow water can result in a
broken neck, paralysis, or death.
No Diving
Children .... especially toddlers .... are at high risk of drowning.
Closely watch children who are in or near this Constant Air Inflatable.
Empty Constant Air Inflatable or prevent access when not in use.
All manuals and user guides at all-guides.com

While every attempt is made to embody the highest degree of protection in all equipment, we cannot
guarantee freedom from injury.The user assumes all risk of injury due to use.All merchandise is sold
on this condition, which no representative of the company can waiver or change.
REPAIR PATCH INSTRUCTIONS WARNING
For your convenience, a repair patch has been included to repair holes in the inflatable section. In the
event of an accidental puncture, cut out a suitably sized patch. Make sure you round the corners of your
repair patch to avoid peeling. Make sure area to be patched is clean. Press patch firmly over the
puncture. Do not inflate for 30 minutes.
29201 Banzai 2
CHILDREN MUST HAVE ADULT SUPERVISION WHEN
PLAYING WITH THIS PRODUCT.
NEVER LEAVE CHILDREN UNATTENDED.
• NOT FOR ADULT USE. NOT FOR CHILDREN OVER 12 OR
UNDER 5 YEARS OF AGE.
• THIS PRODUCT IS NOT FOR USE BY ANYONE WEIGHING
OVER 120 lb (54 kg).
WATER SLIDE :
• Platform:
Individual user maximum weight limit: 120 lb (54 kg)
Combined user maximum weight limit: 150 lb (68 kg)
• Whole Product:
Total weight limit: 600 lb (270 kg)
Total no. of users : 5
• The maximum fall height is 42 in (107 cm).
BOUNCER :
• Platform:
Individual user maximum weight limit: 120 lb (54 kg)
Combined user maximum weight limit: 250 lb (114 kg)
• Whole Product:
The maximum fall height is 16 in (41 cm).
Total no. of user: 3
• For outdoor use.
• Keep away from fire.
• To prevent electrical shock or damage to blower, do not pour water
on it and never leave outsides overnight.
• Keep the blower away from water.
• Keep children away from blower.
• Remove shoes, eyeglasses, and sharp objects before playing with
the product.
• No flipping, piling, pushing or wrestling when playing with the
product.
• No head-first sliding. Always slide feet-first.
• Only one child should be on the platform at a time.
• Only one child should climb up the climbing wall at a time.
• Only one child should enter or exit the bouncer at a time.
• Do not curl the water hose.
SAFETY PRECAUTIONS
• Do not play on the slide without filling the pool with at least
8 in (20 cm) of water. Thoroughly wet all slide surfaces, platforms
and climbing walls before use to ensure optimal play performance.
• No diving of any sort is safe.
• Always dry the product thoroughly before storing. Can cause
mildew if stored damp.
SET UP:
• Adult assembly required.
• NOT FOR COMMERCIAL USE. This product is intended for family
domestic use only.
• Place and use on level ground.
• Do not set up or use in windy, snowy or rainy weather.
• Do not set up or use on concrete, asphalt or any other hard
surfaces.
• Use on flat lawn only, not pavement or other hard surfaces. Lawn
should be free of rocks, bumps, depressions, sticks, etc.
• Set up a safe distance from fences, garages, houses, walls, water,
overhanging branches, laundry lines, overhanging electrical wires
and other obstructions.
• To prevent product from becoming unstable and the possibility of
serious injury or death, do not play on the product until it is
completely filled with air and anchored properly.
• The design of the constant air inflatable requires a fair amount of
air to emit from its porous fabric material. This ensures that the
product remain inflated while allowing it to resist small tears and
punctures.
• To anchor the product properly, ALWAYS anchor the product and
blower with corresponding ground stakes before use.
• Keep the blower and power cord away from water.
• To extend the life of the product, do not leave the product in the
sun when not in use.
SLIDING INSTRUCTIONS:
• Be sure the slide surface is wet before use.
• Do not stand on the top of the slide, on the slide rails, or on the
slide itself.
• Climb up the climbing wall and sit at the top of the slide with your
feet pointing down the slide. Scoot forward and slide down feet
first.
• To avoid the risk of serious injury or death, always slide with your
feet first, and never slide on your knees, stomach, or head first. Do
not jump off or dive off the slide.
• Only one child should slide down the slide at a time.
• Never slide while facing direct sunlight.
• To avoid possible serious injury, the sliding path and landing area
must be clear of all obstacles and other users before sliding.
• When sliding into the pool, the entering area should be clear of all
submerged obstacles, non-submerged obstacles and other users.
• Do not jump off or dive off the slide into the pool to avoid the risk of
serious injury or death.
• Do not jump off or dive off the climbing wall into the pool to avoid
the risk of serious injury or death.
BOUNCING INSTRUCTIONS:
• Enter the bouncer by using the specified entrance only.
• To avoid the risk of serious injury or death, make sure there are no
other users near the entrance before entering the bouncer. Enter
the bouncer by crawling on your hands and knees up the slide.
Never enter head first. Use caution when entering.
• Bounce away from walls and other occupants, especially avoid
bouncing near the openings.
• Do not enter or exit the product by jumping in or out of it.
• To avoid the risk of injury, never stand on, bounce into or jump
from walls inside or outside of product.
• Never dive head first in the bouncer.
• Keep hands off the mesh walls.
WARNING! Failure to follow the installation and operating instructions present a risk of SERIOUS INJURY OR DEATH.
All manuals and user guides at all-guides.com

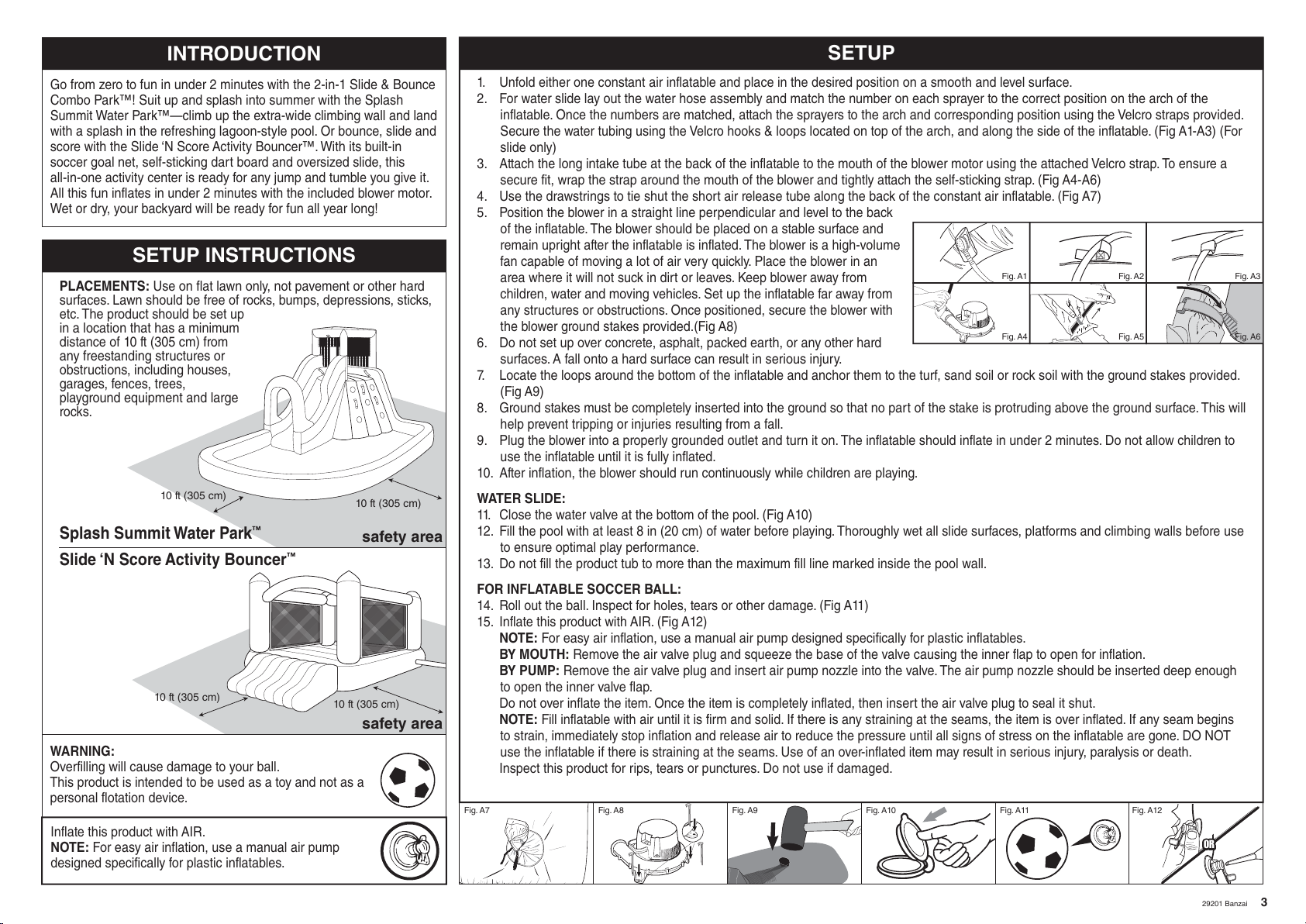

INTRODUCTION
10 ft (305 cm)
10 ft (305 cm)
10 ft (305 cm)
10 ft (305 cm)
1. Unfold either one constant air inflatable and place in the desired position on a smooth and level surface.
2. For water slide lay out the water hose assembly and match the number on each sprayer to the correct position on the arch of the
inflatable. Once the numbers are matched, attach the sprayers to the arch and corresponding position using the Velcro straps provided.
Secure the water tubing using the Velcro hooks & loops located on top of the arch, and along the side of the inflatable. (Fig A1-A3) (For
slide only)
3. Attach the long intake tube at the back of the inflatable to the mouth of the blower motor using the attached Velcro strap. To ensure a
secure fit, wrap the strap around the mouth of the blower and tightly attach the self-sticking strap. (Fig A4-A6)
4. Use the drawstrings to tie shut the short air release tube along the back of the constant air inflatable. (Fig A7)
5. Position the blower in a straight line perpendicular and level to the back
of the inflatable. The blower should be placed on a stable surface and
remain upright after the inflatable is inflated. The blower is a high-volume
fan capable of moving a lot of air very quickly. Place the blower in an
area where it will not suck in dirt or leaves. Keep blower away from
children, water and moving vehicles. Set up the inflatable far away from
any structures or obstructions. Once positioned, secure the blower with
the blower ground stakes provided.(Fig A8)
6. Do not set up over concrete, asphalt, packed earth, or any other hard
surfaces. A fall onto a hard surface can result in serious injury.
7. Locate the loops around the bottom of the inflatable and anchor them to the turf, sand soil or rock soil with the ground stakes provided.
(Fig A9)
8. Ground stakes must be completely inserted into the ground so that no part of the stake is protruding above the ground surface. This will
help prevent tripping or injuries resulting from a fall.
9. Plug the blower into a properly grounded outlet and turn it on. The inflatable should inflate in under 2 minutes. Do not allow children to
use the inflatable until it is fully inflated.
10. After inflation, the blower should run continuously while children are playing.
WATER SLIDE:
11. Close the water valve at the bottom of the pool. (Fig A10)
12. Fill the pool with at least 8 in (20 cm) of water before playing. Thoroughly wet all slide surfaces, platforms and climbing walls before use
to ensure optimal play performance.
13. Do not fill the product tub to more than the maximum fill line marked inside the pool wall.
FOR INFLATABLE SOCCER BALL:
14. Roll out the ball. Inspect for holes, tears or other damage. (Fig A11)
15. Inflate this product with AIR. (Fig A12)
NOTE: For easy air inflation, use a manual air pump designed specifically for plastic inflatables.
BY MOUTH: Remove the air valve plug and squeeze the base of the valve causing the inner flap to open for inflation.
BY PUMP: Remove the air valve plug and insert air pump nozzle into the valve. The air pump nozzle should be inserted deep enough
to open the inner valve flap.
Do not over inflate the item. Once the item is completely inflated, then insert the air valve plug to seal it shut.
NOTE: Fill inflatable with air until it is firm and solid. If there is any straining at the seams, the item is over inflated. If any seam begins
to strain, immediately stop inflation and release air to reduce the pressure until all signs of stress on the inflatable are gone. DO NOT
use the inflatable if there is straining at the seams. Use of an over-inflated item may result in serious injury, paralysis or death.
Inspect this product for rips, tears or punctures. Do not use if damaged.
SETUP
Go from zero to fun in under 2 minutes with the 2-in-1 Slide & Bounce
Combo Park™! Suit up and splash into summer with the Splash
Summit Water Park™—climb up the extra-wide climbing wall and land
with a splash in the refreshing lagoon-style pool. Or bounce, slide and
score with the Slide ‘N Score Activity Bouncer™. With its built-in
soccer goal net, self-sticking dart board and oversized slide, this
all-in-one activity center is ready for any jump and tumble you give it.
All this fun inflates in under 2 minutes with the included blower motor.
Wet or dry, your backyard will be ready for fun all year long!
SETUP INSTRUCTIONS
safety area
safety area
PLACEMENTS: Use on flat lawn only, not pavement or other hard
surfaces. Lawn should be free of rocks, bumps, depressions, sticks,
etc. The product should be set up
in a location that has a minimum
distance of 10 ft (305 cm) from
any freestanding structures or
obstructions, including houses,
garages, fences, trees,
playground equipment and large
rocks.
Slide ‘N Score Activity Bouncer™
Splash Summit Water Park™
Fig. A7 Fig. A8 Fig. A9 Fig. A10
OROR
Fig. A11 Fig. A12
Fig. A2
Fig. A1 Fig. A3
Fig. A4 Fig. A5 Fig. A6
WARNING:
Overfilling will cause damage to your ball.
This product is intended to be used as a toy and not as a
personal flotation device.
Inflate this product with AIR.
NOTE: For easy air inflation, use a manual air pump
designed specifically for plastic inflatables.
29201 Banzai 3
All manuals and user guides at all-guides.com

CONNECTING THE WATER HOSE
FOR WATER SLIDE
1. Wet the inflatable before connecting the garden hose to the
hose adapter.
2. Locate the end of the Water Spraying Hose Assembly that
should be attached to the inflatable.
3. Attach the screw cap of the hose assembly to your garden
hose.
4. Turn on the water slowly. It may take a few moments until
water begins to spray.
5. Adjust the water pressure so that the water sprays onto the
sliding surface of the inflatable, keeping the inflatable wet.
1. Follow all setup instructions to ensure the product has been
set up properly.
2. Remove shoes, eyeglasses, and sharp objects before playing
with the product.
3. No flipping, piling, pushing or wrestling when playing with the
product.
4. Adult supervision is required to ensure observation of all parts
of the play area, all activity on the inflatable device and
keeping the entrance free from obstruction at all times.
SLIDE:
1. Only one child should be on the platform at a time.
2. Only one child should climb up the climbing wall at a time.
3. No diving of any sort is safe.
4. Be sure the slide surface is wet before use.
5. Do not stand on the top of the slide, on the slide rails, or on
the slide itself.
6. Climb up the climbing wall and sit at the top of the slide with
your feet pointing down the slide. Scoot forward and slide
down feet first.
7. To avoid the risk of serious injury or death, always slide with
your feet first and never slide on your knees, stomach, or head
first. Do not jump off or dive off the slide.
8. Only one child should slide down the slide at a time.
9. Never slide while facing direct sunlight.
10. To avoid possible serious injury, the sliding path and landing
area must be clear of all obstacles and other users before
sliding.
11. When sliding into the pool, the entering area should be clear
of all submerged obstacles, non-submerged obstacles and
other users.
12. Do not jump off or dive off the slide into the pool to avoid the
risk of serious injury or death.
13. Do not jump off or dive off the climbing wall into the pool to
avoid the risk of serious injury or death.
BOUNCER:
1. Only one child should enter or exit the doorway at a time.
2. Enter the bouncer by using the specified entrance only.
3. To avoid the risk of serious injury or death, make sure there
are no other users near the entrance before entering the
bouncer. Enter the bouncer by crawling on your hands and
knees up the slide. Never enter head first. Use caution when
entering.
4. Bounce away from walls and other occupants; especially
avoid bouncing near the opening.
5. Do not enter or exit the product by jumping in or out of it.
6. To avoid the risk of injury, never stand on, bounce into or jump
from walls inside or outside of product.
7. Never dive head first in the bouncer.
8. Keep hands off the mesh walls.
HOW TO USE
IMPORTANT WATER
PRESSURE AND OPERATING
INFORMATION
Water pressure can vary dramatically between cities. Please read
the following to answer some common questions.
Areas of LOW WATER PRESSURE:
• For maximum performance, it is recommended to use a 5/8 in
(1.6 cm) diameter garden hose.
• If water does not spray sufficiently, it is usually due to low
water pressure. Make sure the water is on all the way; as long
as the slide is getting wet, it will be fun to use.
• Long hoses reduce water pressure: The longer the hose, the
farther the water travels from the faucet, thus reducing water
pressure. In areas of low water pressure, this could affect
performance of the water spray. Try using a shorter hose if you
have one.
Areas of HIGH WATER PRESSURE:
• If water shoots over the slide, adjust the faucet to lower the
water pressure. It is important that the water lands on the slide
to keep it wet and slick.
Stakes are to be driven straight
down until the top of the stake is
below ground level. Do not drive
stakes at an angle. For best holding
strength, drive stakes into hard, dry
soil. In loose or wet soil, or both,
stake holding strength will be
reduced.
ANCHORING THE INFLATABLE
Ye s No
Stake Angle
Water Spraying
Hose Assembly
Water Spraying
Hose Assembly
Blower Ground
Stakes
Ground
Stakes
Blower
Motor
Slide ‘N Score Activity Bouncer™
Splash Summit Water Park™
2-IN-1 SLIDE & BOUNCE COMBO PARK™
SETUP DIAGRAM
Follow Anchoring Instructions
User must read and follow anchoring instructions to ensure the
proper number of anchors used, soil conditions, and stake
installation.
29201 Banzai 4
All manuals and user guides at all-guides.com

SAFETY CHECKLIST: READ BEFORE USING
The Slide ‘N Score Activity Bouncer is made for year-round fun.
Challenge your friends or practice your aim with the following
activities—or just bounce and slide into fun!
BEFORE YOU BEGIN:
Target Toss:
The dart board is divided into sections that are worth different
points. Give the balls a toss and aim for the highest points. Any
time the ball lands and sticks on a section, you get that number of
points. Take turns tossing the ball 3 times and add up the points.
The person with the highest score wins the game.
Soccer:
The back woven mesh wall of the Slide ‘N Score Activity Bouncer
is specially designed to serve as a soccer goal net. Challenge a
friend to a game of soccer with the included inflatable soccer ball. One player tries to kick the ball into
the goal for a score, while another tries to defend the goal. Take turns kicking the ball and see who
scores the most.
HOW TO PLAY
For emergency evacuation,
users should evacuate
through the exit and walk to
a safe location as shown
with the dotted lines in the
diagram below. To avoid
danger of tripping over the
air intake tube and causing
potential injury, do not walk
on the side of the inflatable
that has the blower motor
attached.
EMERGENCY EVACUATION
SET UP:
1. Before set up: Check under and around the inflatable for sharp objects, rocks, sticks, lawn sprinklers
or any other object that can cause injury or damage the inflatable. Set up on a flat lawn surface, free
of depressions or high spots.
2. Use with manufacturer-supplied stakes ONLY.
3. Areas immediately adjacent to all areas of access egress of the inflatable water slide device 13 ft 4 in
L x 9 ft W x 6 ft 10 in H (406 cm L x 274 cm W x 208 cm H) or the inflatable bouncer device 12 ft L x 9 ft
W x 7 ft H (366 cm L x 274 cm W x 213 cm H) shall have use zones, which are free of obstacles and
covered with impact attenuating surfacing for a minimum distance of at least 10 ft (305 cm).
4. Do not use a damaged inflatable.
5. For water slide wet entire slide before connecting the hose to the inflatable and before playing. (Slide
only)
6. Blower motor and electrical cords should not pass under the inflatable and interfere with its operations.
7. Blowers and electrical cords shall be positioned at least 4.3 ft (1.3 m) from a walled side of the inflable
device and 8.2 ft (2.5 m) from an open side.
8. The product shall be inflated with the provided blower or with other manufacturer-specified
replacement blower.
USE:
1. Adult setup and supervision is required at all times. Adults should read instruction manual entirely and
instruct children on proper use of this inflatable.
2. For long periods of play, move inflatable occasionally to prevent depressions in ground underneath.
3. Check all ground stakes occasionally to make sure they stay secure and flat on the ground.
4. The sliding path must be clear of users before sliding.
SLIDE:
5. Get bathing suits or clothing wet before using the product.
6. For water slide remove all hard or sharp objects from person and pockets, such as toys, buckles, keys,
jewelry, watches, etc.
7. Do not leave water hose turned on when you are not using the inflatable. Only turn it on when playing.
8. While playing with the inflatable, it is normal for some water to seep into the interior through the seam
areas. IT IS IMPORTANT to completely dry prior to storing.
PROPER USE OF PRODUCT:
1. Separation of larger children from smaller children.
2. Prevention of users from climbing of hanging on the containing walls.
3. Prevention of inappropriate activities (for example, somersaults and rough play).
4. Restrictions on the consumption of food, drink and gum.
5. Correct use position of inflatable device (for example, on slide, climbing wall).
6. Keep pets off of the inflatable device.
7. Do not attach items to the inflatable device that are not specifically designed for use with the inflatable
device, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chains as they
have the potential to cause a strangulation hazard.
NOTE:
• Check your local country or city regulations for requirements on securing the pool.
• Secure the pool from unauthorized use.
Blower
Motor
Air Release
Tube
Air Intake
Tube
Evacuative
Paths
Entrance/
EXIT
After you have finished sliding or bouncing, exit the splash pool or bouncer and stand up on the grass.
To avoid danger of tripping over the air intake tube and causing potential injury, do not walk on the
side of the inflatable that has
the blower motor attached.
Always walk around the
inflatable as shown with the
dotted line in the diagram
below.
Never stand, walk, or run on
the slides as you may slip and
injure yourself.
There should be a clear and
unobstructed path along the
walking paths. Make sure that
the blower motor does not
interfere with the walking paths.
AFTER SLIDING OR BOUNCING
Air Intake
Tube
Blower
Motor
Air Release
Tube
Evacuative
Paths
Entrance/
EXIT
Slide ‘N Score
Activity Bouncer™
Splash Summit
Water Park™
Slide ‘N Score
Activity Bouncer™
Splash Summit
Water Park™
Air Release Tube
Walking Path
Blower
Motor
Air Intake Tube
Air Release Tube
Evacuative Paths
Evacuative
Paths
Blower
Motor
Air Intake
Tube
29201 Banzai 5
All manuals and user guides at all-guides.com

Fig B1
Fig B2
Fig B3
Fig B4
Fig B5
Fig B8
Fig B7
Fig B6
Grounding methods
This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This product is equipped with a cord
containing a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER – Improper installation of the grounding plug can result in a risk of electric shock. If repair or
replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade
terminal. The wire with insulation having a green outer surface with or without yellow stripes is the
grounding wire.
Check with a qualified electrician or service technician if the grounding instructions are not completely
understood or if in doubt as to whether the product is properly grounded. Do not modify the plug
provided; if it will not fit the outlet, have the proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-V circuit and has a grounding plug similar to the plug illustrated
in Figure A. Only connect the product to an outlet having the same configuration as the plug. Do not use
an adapter with this product.
MAINTENANCE OF 2-IN-1 SLIDE & BOUNCE COMBO PARK™
GROUNDING INSTRUCTIONS
TO DEFLATE:
1. Remove all users from the product.
2. Remove the balls from product and store them in a secure place
where it is out of reach of children.
3. Turn off and disconnect the water hose from the plug.
4. Drain inflatable pool area by opening the water valve.
5. Completely dry off the inflatable by allowing it to stand inflated for
at least 2 hours before wiping down with a dry beach towel or
soft, absorbent cloth, noting deep pockets in the climbing wall and
the splash pool.
6. Unplug the blower.
7. Disconnect the long intake tube from the blower and place the
blower in a safe place.
8. Open the air release tube and allow the inflatable to deflate
completely. It should deflate on its own within 5 minutes. (Fig B1)
9. Remove the clear water tubing from the inflatable.
10. Remove the ground stakes of the inflatable by pulling on the head of the stakes. DO NOT pull on
the inflatable corners!
11. Allow the inflatable to dry completely before rolling up, which may take up to 48 hours. Be sure
the pool and inflatable are free of dirt, leaves, sand, etc. This will lengthen the life of your
inflatable.
12. Fold the inflatable in half, making sure that the release tube is parallel to the fold. Fold it in half 2
more times, parallel to the first fold. (Fig B2-B3)
13. Roll the inflatable tightly starting from the end opposite the intake and release tubes. (Fig B4-B5)
14. Roll the inflatable tightly from one end to the other and avoid any creasing.
15. Once the inflatable soccer ball is completely dry, carefully deflate and then roll it up.
IMPORTANT:
Never store the product when wet. Allow to dry before rolling up.
Move the product every day to prevent browning or damage to the lawn.
Follow all previous instructions each time you set up the product.
Store the product in a secure place, away from children, to prevent suffocation.
STORAGE:
Slip the carrying bag over the rolled-up inflatable. Flip over the bag and the inflatable, close the bag,
and store the inflatable and the blower in a dry place. Store the inflatable in a secure place away
from children to prevent suffocation. Never leave either the product or the blower outside when not in
use. (Fig B6-B8)
To prevent mold and other damage to the inflatable, it is strongly advised to air dry the product with
the blower motor to ensure it is completely dry before folding up for storage.
To extend the life of the water spraying hose assembly, store it in an adequately ventilated area. Do
not store the water spraying hose assembly together with the inflatable.
1. Check the inflatable at regular intervals for holes, tears or other damage. DO NOT use a damaged
inflatable. Use of a damaged inflatable could result in serious injury or death.
2. In addition to checking the product at a regular interval, be sure to complete a thorough check of the
entire product at the beginning of each season or series of use.
3. If any component of the product is damaged or deteriorated, discontinue use and contact the
manufacturer.
4. Regularly check the condition of the ground stakes that hold the inflatable in place. Damage to or
deterioration of the stakes could result in the inflatable becoming unstable, which could result in
serious injury.
5. To keep the product clean, you can use a dry cloth or a cloth dampened with a neutral,
non-inflammable, nontoxic cleaning and sanitizing solution or pure water to wipe the surface of the
inflatable or blower.
6. Use a dry cloth to clean the foot holes and remove debris after each play cycle. Make sure that there
are no water and debris on the inflatable before storing.
29201 Banzai 6
All manuals and user guides at all-guides.com

BLOWER OPERATING INSTRUCTIONS
1. 1 x Inflatable Water Slide
2. 1 x Inflatable Bouncer
3. 1 x Blower Motor
4. 1 x Water-Spraying Hose Assembly for Water Slide
5. 3 x Blower Ground Stakes
6. 14 x Ground Stakes + 1 x Extra
7. 2 x Carrying Bags
8. 4 x Repair Patches
9. 3 Self-Sticking Dart Balls
10. 1 Inflatable Soccer Ball
4
132
8 9 10
67
5
INTENDED USE:
This product is only to be used for inflating the 2-IN-1 SLIDE & BOUNCE COMBO PARK™. Household Use only.
PART LIST
WARNING:
1. Electrical current requirements:110-120VAC/60Hz
2. The power supply to the blower should include a reliable earth terminal and current leakage
protection device.
3. The power cord to the appliance should be clearly marked, so that persons using lawn mowers or
other types of equipment are aware that there is a cord on the ground.
4. The blower should never be left unattended when in use. The appliance is not to be used by
children.
5. No objects should cover the air intake when the blower is in use. Sand, small stones or other
objects should not be allowed to be sucked into the blower.
6. Under no circumstances should a finger or any sharp object be inserted into the air intake.
7. The power supply to the blower should not be exchanged for any other type of supply. If the
power supply is damaged, it should be repaired by a technician.
8. To avoid the danger of electrical shock, do not use the blower in the rain.
9. Do not use extension cords as this would present an electrocution hazard.
10. Do not leave the blower exposed to strong sunlight.
11. Children should not touch the blower. Children must not play on the product until the blower is
properly installed.
12. Children should not attach foreign objects to the blower that are not specifically designed for use
with the blower, such as, but not limited to jump ropes, clothesline, pet leashes, cables and
chains as they may cause a strangulation hazard.
13. Sudden gusts of wind may lift the product off the ground.
14. Blowers and electrical cords should be kept out of reach.
15. The product shall be inflated with the provided blower or with other manufacturer-specified
replacement blower.
INSTALLATION:
1. Place the blower on the ground and then secure it by inserting the ground stakes into the holes in
the base.
2. The blower should be installed in a well-ventilated location and on a level surface.
3. The air input of the product (the long intake tube) is to be attached to the air output of the blower
and secured in place with a cord.
USING THE BLOWER:
1. Plug the blower into a power supply.
2. To avoid electrical shock, never plug in or
unplug the appliance with wet hands.
3. The power supply should be disconnected if
the blower or the product needs to be
transported or moved.
4. There is an ON/OFF switch on the blower
body. Press “ I ” to switch on the blower, and
press “0” to switch off the blower.
29201 Banzai 7
All manuals and user guides at all-guides.com

RESET
TEST
Indicator
NOTE: The maximum wind speed for
operations of the inflatable shall be 20 mph.
ALL NEW MATERIAL. Surface Clean Only. Electrical ratings: 110-120VAC, 60Hz, 3.3A
Attn: Each time the blower is used, a simple test with the Ground Fault
Circuit Interrupter (GFCI) must be conducted.
1. Push the “Reset” button located on the GFCI receptacle, first to assure normal blower and GFCI operation.
2. Press “ I ” to switch on the blower.
3. Push the “Test” button located on the GFCI receptacle. The blower should go “OFF.”
4. Push the “Reset” button again. The blower should go “ON” again.
The indicator on the GFCI receptacle will be red whenever the “Reset” button is pressed.
If the blower remains “ON” when the “Test” button is pushed, the blower or GFCI is not working properly. If blower or GFCI is not working
properly, please call a qualified, certified electrician who can assess the situation.
Maintenance and Storage:
1. To keep the product clean you can use a dry cloth or a cloth dampened with a neutral, non-inflammable, nontoxic cleaning and sanitizing solution or
pure water to wipe the surface of the blower.
2. You should not clean the blower with a chemical solution as this may damage the coating and plastic parts.
3. Never clean the blower in water.
4. Never store the blower outside. Keep it in a dry place indoors unreachable by children.
5. Regularly check the condition of the blower stakes. Damage to or deterioration of the stakes could result in the blower becoming unstable, which could result in serious injury.
6. Regularly check the condition of the power cord. Damage to or deterioration of the cord could cause a serious electrocution hazard. If the cord is damaged or deteriorated, immediately
discontinue use of the blower and contact the manufacturer.
7. This blower is equipped with an Auto-Reset Protector. If the motor overheats, the protector will trip to protect your safety. Turn off the blower and let it cool down completely before using again.
Please follow the instructions carefully to avoid any wrong operation that will cause overheating.
8. To prevent any damage to the power cord, always carry the blower by its built-in handle. Do not carry the blower by its cord or twist the cord. Keep the power cord dry.
OCT.2019
BEFORE RETURNING TO STORE
PLEASE VISIT
THE CUSTOMER SERVICE WEBSITE
BELOW FOR IMMEDIATE ASSISTANCE
REGARDING QUESTIONS OR
PROBLEMS WITH THIS PRODUCT.
www.toysinquiry.com
60 DAY LIMITED WARRANTY FROM DATE OF PURCHASE.
BANZAI IS USED UNDER LICENSE BY FOCUS BRAND LTD.
CONTENTS AND SPECIFICATIONS MAY VARY FROM THOSE ILLUSTRATED.
29201
TANG RONG ROAD,
CHANGPING, DONGGUAN, CHINA
ALL RIGHTS RESERVED
MADE IN CHINA
www.toysinquiry.com
All manuals and user guides at all-guides.com
