Sprint sp2603 User manual

1
Introduction
IMPORTANT:
The 2603 is an Accessory Handset for use with the 2652 system. You must have
the 2652 in order to use the 2603 Accessory Handset.
This manual is designed to familiarize you with the 2603 Accessory Handset setup,
registrationandbasicfunctions.Fordetailedoperationalinstructions,pleasereferto
the 2652 manual.

2
Whenusingyourtelephoneequipment,basicsafetyprecautionsshouldalwaysbefollowed
to reduce the risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen sink,
or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage.
6. Slots and openings in the Handset and Base Unit are provided for ventilation. To
protect it from overheating, these openings must not be blocked by placing the
product on the bed, sofa, rug, or other similar surface. This product should never
beplacednearoroveraradiatororheatregister.This productshouldnotbeplaced
in a built-in installation where proper ventilation is not provided.
7. This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not install this product where
the cord might be damaged by anyone walking on it.
9. NeverpushobjectsofanykindintothisproductthroughHandsetorBaseUnitslots
as they may touch dangerous voltage points or short out parts that could result
in a risk of fire or electric shock. Never spill liquid of any kind on the product.
10.To reduce the risk of electric shock, do not disassemble this product, but take it
to an authorized service facility. Opening or removing cabinet parts other than
specified access doors may expose you to dangerous voltages or other risks.
Incorrectreassemblingcancauseelectricshockwhentheapplianceissubsequently
used.
11. Do not overload wall outlets and extension cords as this can result in the risk of
fire or electric shock.
Important Safety Instructions

3
12.Unplugthisproduct fromthewall outletandreferservicing toanauthorized service
facility under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. Iftheproductdoesnotoperatenormallybyfollowingtheoperatinginstructions.
Adjust only those controls that are covered by the operating instructions,
because improper adjustment of other controls may result in damage and will
oftenrequireextensiveworkbyanauthorizedtechniciantorestoretheproduct
to normal operation.
E. If the product has been dropped and the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
13.Avoidusingatelephone(otherthanacordlesstype)duringanelectricalstorm.There
may be a remote risk of electric shock from lightning.
14.Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
Important Safety Instructions

4
Setup
Your 2652 multi-handset system can operate up to 4 Handsets.

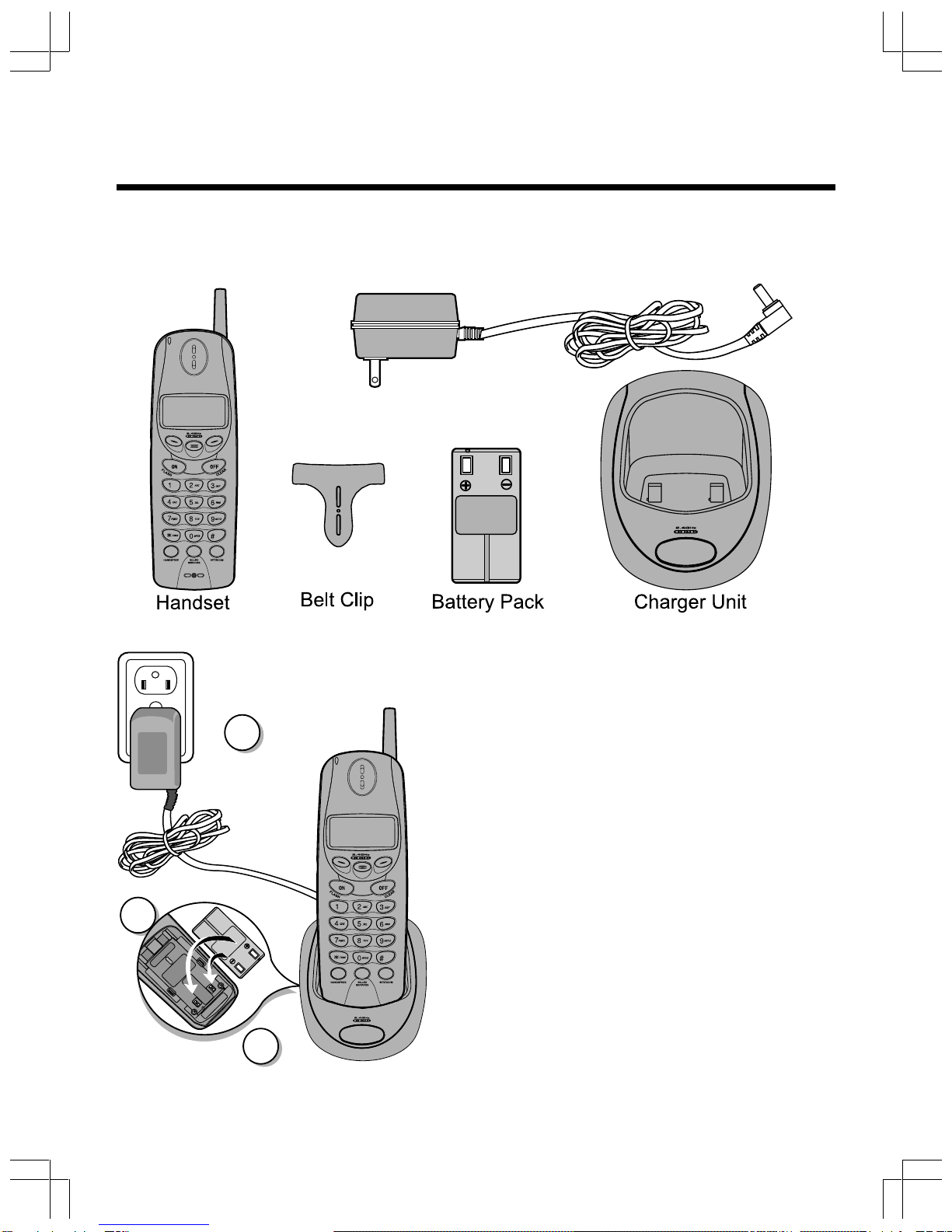

The accessory Handset 2603 consists of the following:
Getting Started
AC Power Adaptor
1
5
3
Setupofthe 2603Accessory
Handset
1. Plug the AC power adapter into an
electricaloutlet.PlugtheDCconnector
into the bottom of the Charger Unit.
2. Remove the Handset battery
compartment cover by pressing on
the indent and sliding downward.
3. Place the new battery pack in the
Handset, with the metal contacts
aligned with the charge contacts in
the battery compartment.
4. Replace the battery compartment
cover by sliding it upward.
5. Place the Handset in the Charge
Cradle, and allow it to charge for 12
hours. After the initial charge, a
maintenancechargeof 12hoursshould
be sufficient.

5

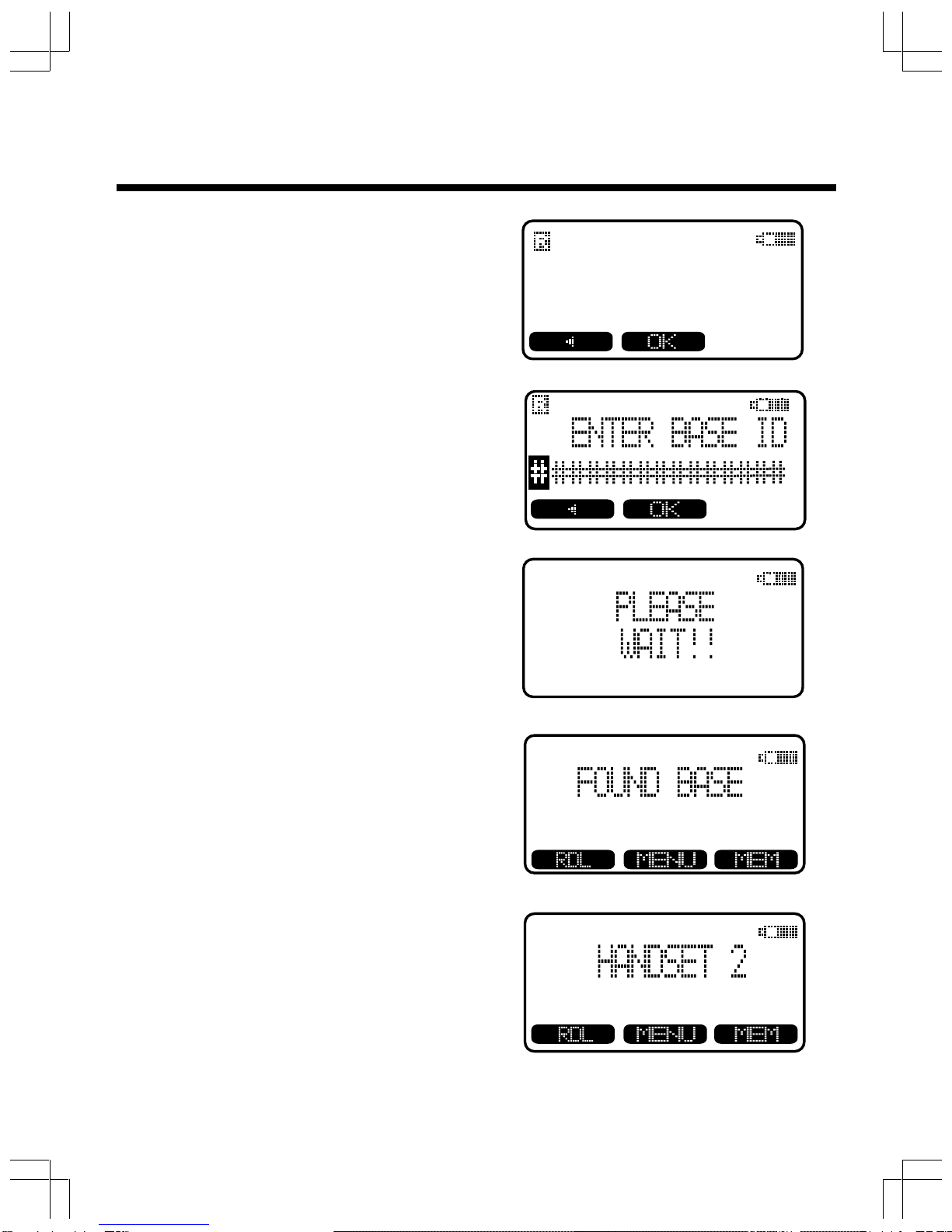

Enter ID Code
1. After charging the Handset, remove
itfromitsChargeCradle,thescreen
willdisplay:
2. Press NEW, then enter the 15 digit
Base ID code, located on the
underside of the 2652 Base Unit.
3. PressOK.The Handsetwill display:
PLEASE WAIT!!
4. Waitapproximately15seconds.The
Handset will display:
FOUNDBASE
NOTE: Occasionally, it will take
longer than 15 seconds for the
Handset to find the Base Unit. This
is normal.
IftheHandsetdisplays: SYSTEMIS
BUSY PLEASE TRY LATER, this
indicates that the system is in use.
Wait until the Base Unit is in the idle
(on hook) mode, and repeat steps
2 through 4.
Congratulations! You can now enjoy the
benefits of your multi-Handset system.
Registration
NO BASE
SUBSCRIPTION

6

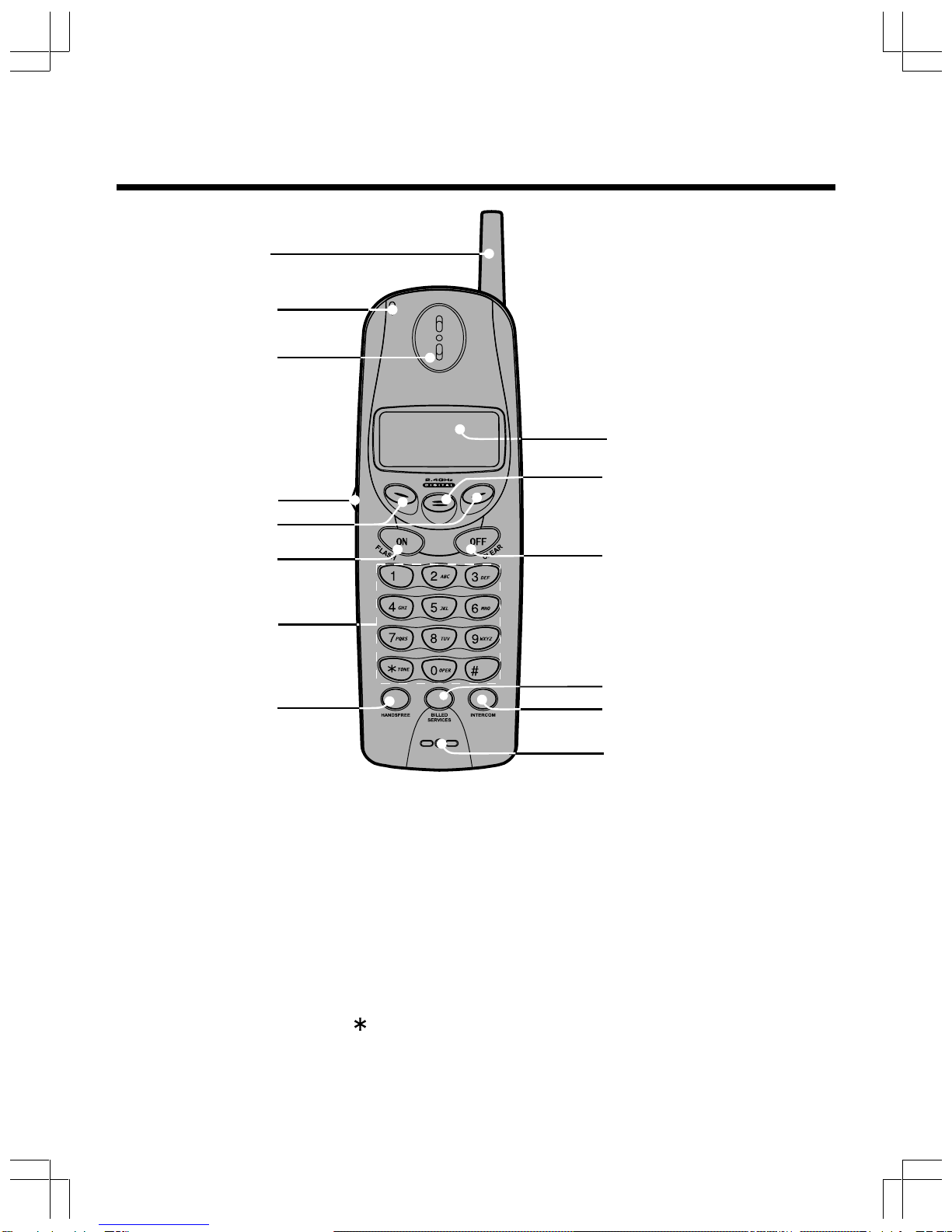

The Handset Layout
1. Antenna
2. Message Waiting Indicator
3. Earpiece
4. Headset Jack (2.5mm)
5. Scroll Keys
6. On (Flash)
7. Dialing Key (0-9, , #)
8. Handsfree
Speakerphone
9. LCD Display
10. Select
11. Off (Clear)
12. Billed Services
13. Intercom
14. Microphone
1
3
4
9
10
11
12
2
13
14
5
6
7
8

7

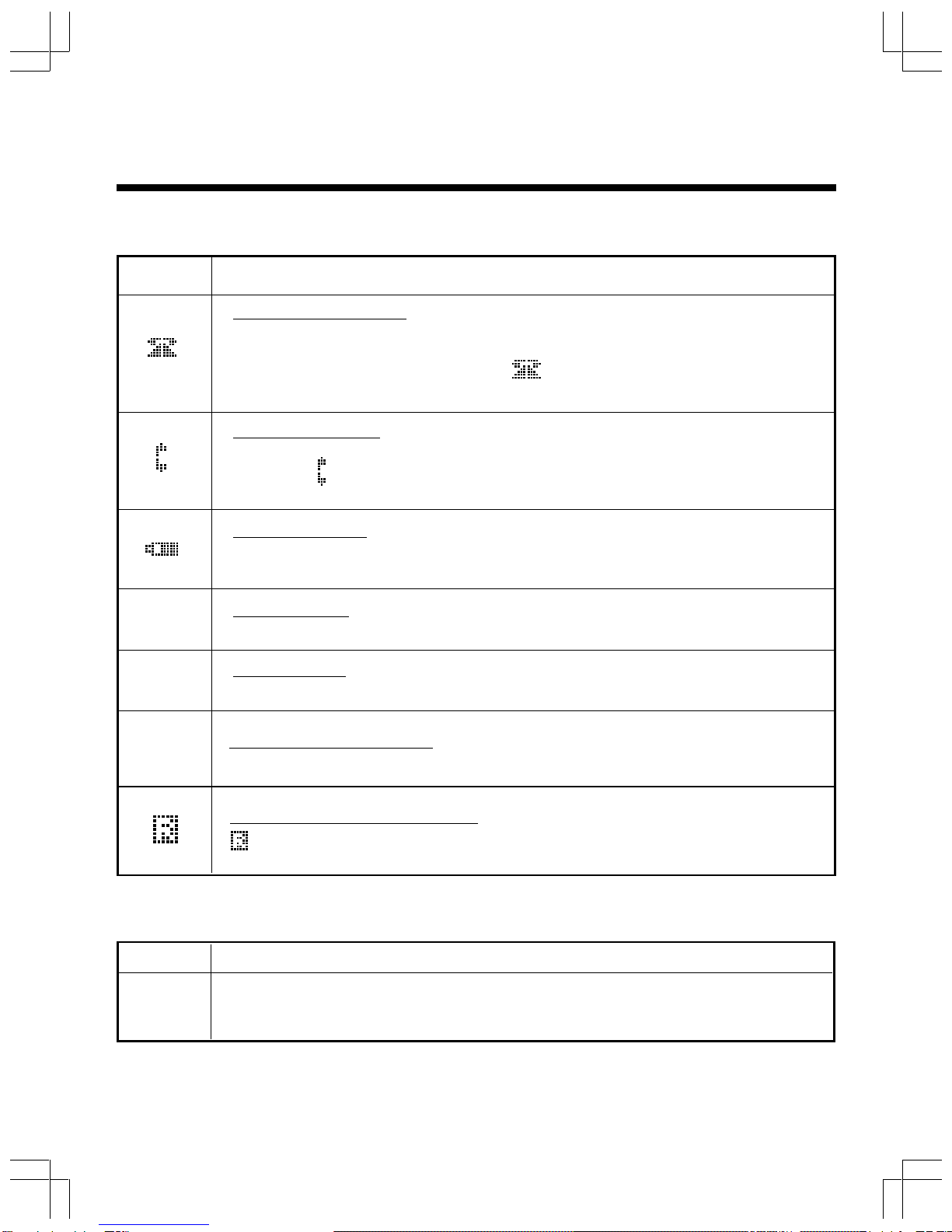

Handset Icons
Icon Description
Line In Use indicator
On steady with no number next to it when a parallel set is in use.
Onsteadywithoneormorenumbersnexttoit,indicatingwhichextensions
are using the line. For example, 12 indicates that Handset 1 and
Handset 2 are on an outside call.
Intercomindicator
Onsteady withtheextensionnumberscurrentlyonan intercomcall.For
example, 02indicatesthattheBaseandHandset2areonanintercom
call.
Batteryindicator
Cycles (Low, Medium, and High) when Handset battery is charging.
Flashes when a low battery condition is detected.
Muteindicator
On steady when the Handset microphone is muted.
Holdindicator
On steady when the line is on hold.
M
H
Handset Indicators
Handset Operation
Handset LEDs
LED
Message
Waiting
Description
Flashestoindicatethatyouhavenewmessagesinyourvoicemail.Service
must be subscribed to through your local telephone company.
E
HandsetRegistrationindicator
is display when a Handset is either not registered, or is searching
for a Base Unit.
RangeExtender indicator
Onsteadywhen the Range Extenderison.

8
Your 2603 cordless telephone is equipped with a 2.5mm Headset Jack for use with an
optional accessory Headset forhands-freeoperation.IfyouchoosetousetheHeadset
option,youmustobtainanoptionalaccessoryHeadset,whichiscompatiblewiththe2603.
Once you have a compatible 2.5mm Headset, locate the Headset Jack on the 2603
Handset. Connect the plug on the Headset cord to the jack on the cordless Handset.
The plug should fit securely. Do not force the connection.
Operation
NOTE :
Whenever a compatible Headset is
connected to the cordless Handset, the
microphone on the Handset will be muted.
Thisisdonetolimittheeffectofbackground
noise.
Belt Clip
The2603isalsoequippedwithadetachable
belt clip. Align the pins on the inside edge
of the clip with the notches on the sides of
the2603Handset.Thebeltclipshouldsnap
securely into place. Do not force the
connection.
Headset OperationAdditional Information

9
Taking Care Of Your Telephone
Your2603cordlesstelephonecontainssophisticatedelectronicparts,soitmustbetreated
with care.
Avoid rough treatment
PlacetheHandsetdowngently.Savetheoriginalpackingmaterialstoprotectyourtelephone
if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the Handset outdoors in the
rain, or handle it with wet hands. Do not install your Base Unit near a sink, bathtub or
shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment.
For your own safety, use caution when using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many years.
Clean it only with a soft cloth slightly dampened with water or a mild soap. Do not use
excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are
wet or standing in water. If your Base Unit should fall into water, DO NOT RETRIEVE
ITUNTILYOUUNPLUGTHEPOWERCORDANDTELEPHONELINECORDSFROM
THE WALL. Then pull the unit out by the unplugged cords.
Maintenance

10
In Case Of Difficulty
If you have difficulty operating your phone, the suggestions below should solve the
problem.
The Phone Doesn't Work At All
• Make sure the Power Cord is plugged in.
• Make sure the telephone line cord is plugged firmly into the Base Unit and the
telephone wall jack.
• Make sure the batteries are properly charged. If the "LOW BATTERY" message
is shown, the battery pack needs charging.
No Dial Tone
• First check all the suggestions above.
• If you still don't hear a dial tone, disconnect the Base Unit from the telephone jack
and connect a different phone. If there is no dial tone, the problem is in your wiring
or local service. Call your local telephone company.
YouGetNoise, Static,OrAWeakSignalEven When You're
Near The Base Unit
• HouseholdappliancespluggedintothesamecircuitastheBaseUnitcansometimes
cause interference. Try moving the appliance or the Base Unit to another outlet.
YouGetNoise,Static,OrAWeakSignalWhenYou'reAway
From The Base Unit
• You may be out of range. Either move closer to the Base, or relocate the Base
Unit.
• The layout of your home may be limiting the range. Try moving the Base Unit to
anotherposition.
The Handset Does Not Ring When You Receive A Call
• Make sure you have the Handset ringeractivated. Tosettheringer,seeHANDSET
SETTINGS.
• Make sure the telephone line cord is plugged firmly into the Base Unit and the
telephone jack. Make sure the power cord is plugged in.
• You may be too far from the Base Unit.
• You may have too many extension phones on your telephone line to allow all of
them to ring. Try unplugging some of the other phones.

11
You Hear Other Calls While Using Your Phone
• DisconnectyourBaseUnit fromthetelephonejack,and plugina regular telephone.
If you still hear other calls, the problem is probably in your wiring or local service.
Call your local telephone company.
You Hear Noise In The Handset, And None Of The Keys
Or Buttons Work
• Make sure the power cord is plugged in.
In Case Of Difficulty
Common Cure For Electronic
Equipment
If the unit does not seem to be responding
normally,thentryputtingtheHandsetinthe
cradle. If it does not seem to respond, do
the following (in the order listed):
1. Disconnect the power to the Base.
2. DisconnecttheHandsetbattery,and
spare battery pack, if applicable.
3. Wait a few minutes.
4. Connect power to the Base.
5. Re-install the battery pack (s).
6. Watch for Handset to display:
then

12
Limited Warranty
The Supplier warrants, to the original purchaser only, the material and
workmanship of this product for ONE YEAR from the date of purchase. The
Supplier will repair or replace, at our option, this product without charge should
it fail due to a defect in material or workmanship within that time period.
This warranty does not apply to loss or damage that is the result of accident,
misuse or negligence. All other warranties, expressed, implied or statutory,
including warranties of fitness for a particular purpose, are limited to the time
period listed and are otherwise excluded from this warranty if unauthorized
repairs are attempted. Additionally, the Supplier shall not be liable for any
incidental or consequential damage or commercial loss, nor for any other loss
or damages.
The Supplier assumes no responsibility for products sent without prior return
authorization.
For Warranty service ONLY, call 1-800-595-9511.

13
FCC and ACTA Regulations
This equipment complies with Parts 15 of the Federal Communications
Commission (FCC) rules for the United States. It also complies with regulations RSS210 and
CS-03 of Industry and Science Canada. Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept
anyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.
A label is located on the underside of the Base Unit containing either the FCC
registration number and Ringer Equivalence Number (REN) or the IC registration
number and Load Number. You must, upon request, provide this information to your
localtelephonecompany.
This equipment is compatible with inductively coupled hearing aids.
For repair/warranty information, the telephone company may ask you to disconnect this
equipment from the line network until the problem has been corrected.
FCC Part 15
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Theequipmenthasbeentestedandfoundtocomplywithpart15oftheFCCrules.These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.However, there is no
guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

14
FCC Part 68
IfthisequipmentwasapprovedforconnectiontothetelephonenetworkpriortoJuly23,2001,
itcomplieswithPart68oftheFederalCommunicationsCommission(FCC)rules.Iftheequip-
ment was approved after that date, it complies with the Part 68 rules and with Technical
Requirements for Connection of Equipment to the Telephone Network adopted by
the AdministrativeCouncilforTerminalAttachments (ACTA). We are required toprovide
youwiththefollowinginformation.
1. Product identifier and REN information
The label on the back or bottom of this equipment contains, among other things,
anidentifierindicatingproductapprovalandtheRingerEquivalenceNumber(REN).
This information must be provided to your local telephone company upon request.
For equipment approved prior to July 23, 2001, the product identifier is preceded by
the phrase “FCC Reg No.” and the REN is listed separately. For equipment
approved after that date, the product identifier is preceded by “US”and a colon (:),
and the REN is encoded in the product identifier without a decimal point as
the sixth and seventh characters following the colon. For example,theproduct
identifier US:AAAEQ03T123XYZ would indicate an REN of 0.3.
The REN is used to determine how many devices you may connect to your
telephonelineandstillhavethemringwhenyouarecalled.Inmost,butnotallareas,
the sum of all RENs should be five (5.0) or less. You may want to contact your
local telephone company for more information.
2. Connection and use with the nationwide telephone network
The plug and jack used to connect this equipment to the premises wiring and the
telephone network must comply with the applicable Part 68 rules and technical
requirements adopted by ACTA. A compliant telephone cord and modular plug is
providedwiththisproduct.Itisdesignedtobeconnectedtoacompatiblemodular
jack that is also compliant. An RJ11 jack should normally be used for connecting
to a single line and an RJ14 jack for two lines. See Installation Instructions in
theuser’smanual.Thisequipmentmay not be used with Coin TelephoneLines
orwithPartyLines.Ifyouhavespeciallywiredalarmdialingequipmentconnected
toyourtelephoneline,ensuretheconnectionofthisequipmentdoesnotdisable
your alarm equipment. If you have questions about what will disable alarm
equipment, consult your telephone company or a qualified installer.
3. Repair instructions
Ifthisequipmentismalfunctioning,itmustbeunpluggedfromthemodularjackuntil
the problem has been corrected. Repairs to this telephone equipment can only
FCC and ACTA Regulations

15
be made by the manufacturer or its authorized agents.Forrepairprocedures,
follow the instructions outlined under the Limited Warranty.
4. Rights of the telephone company
If this equipment is causing harm to the telephone network, the telephone company
may temporarily discontinue your telephone service. The telephone company is
required to notify you before interrupting service. If advance notice is not practical,
you will be notified as soon as possible. You will be given the opportunity to correct
the problem and the telephone company is required to inform you of your right
to file a complaint with the FCC. Your telephone company may make
changes in its facilities, equipment, operation, or procedures that could affect the
proper functioning of this product. The telephone company is required to notify
you if such changes are planned.
5. Hearing aid compatibility
If this product is equipped with a corded or cordless Handset, it is hearing aid
compatible.
6. Programming/testing of emergency numbers
If this product has memory dialing locations, you may choose to store police, fire
department and emergency medical service telephone numbers in these
locations. If you do, please keep three things in mind:
a. Werecommend thatyoualso write thetelephonenumber onthedirectorycard,
so thatyoucan stilldialtheemergencynumber manuallyifthememorydialing
featuredoesn’twork.
b. Thisfeatureisprovidedonlyasaconvenience,andthemanufacturerassumesno
responsibility for customer reliance upon the memory feature.
c. Testing the emergency telephone numbers you have stored is
not recommended.However,ifyoudo makeacalltoanemergencynumber:
• You must remain on the lineandbrieflyexplainthereason forthecall before
hangingup.
• Programming/testingofemergency numbersshouldbe performedduring
off-peak hours, such as in the early morning or late evening, when the
emergency services tend to be less busy.
FCC and ACTA Regulations

16
Notice:
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN
assigned to each terminal equipment provides an indication of the maximum number of
terminalsallowed tobe connectedto atelephone interface.The terminationonan interface
may consist of any combination ofdevicessubjectonlytotherequirementthatthesumofthe
RingerEquivalence Numbers of all the devices does not exceed five.
Beforeinstallingthisequipment,usersshouldensurethatitispermissibletobeconnected
to the facilities of the local telecommunications company. The equipment must also be
installedusinganacceptablemethodofconnection.Thecustomershouldbeawarethat
compliance with the above conditions may not prevent degradation of services in some
situations.
RepairstocertifiedequipmentshouldbemadebyanauthorizedCanadianmaintenance
facility designated by the Supplier. Any repairs or alterations made by the user to this
equipment,orequipmentmalfunctions,maygivethetelecommunicationscompanycause
to request the user to disconnect the equipment.
Usersshouldensurefortheirown protection that the electrical ground connectionsofthe
power utility, telephone lines and internal metallic water pipe system, if present, are
connected together.Thisprecaution may beparticularlyimportant inruralareas.
Caution:
Users should not attempt to make such connections themselves, but should contact the
appropriateelectrical inspectionauthority,or electrician,asappropriate.
Your telephone is designed to operate at the maximum power allowed by the FCC. This
meansyourHandset andBaseUnitcan communicateonlyovera certaindistance-which
willdependonthelocationoftheBaseUnit andHandset,weather,andtheconstructionand
layoutofyour home oroffice.
FCC and ACTA Regulations

17
FREQUENCY CONTROL
Crystalcontrolled
PLL synthesizer
TRANSMIT FREQUENCY
2401.056 - 2482.272 MHz
RECEIVE FREQUENCY
2401.056 - 2482.272 MHz
CHANNELS
95Channels
NOMINAL EFFECTIVE
RANGE
Maximum power allowed by FCC. Actual
operating range may vary according to
environmentalconditionsatthetimeofuse.
SIZE
Handset: 176mm x 51mm x 41mm
Charger: 68mm x 87mm x 58mm
WEIGHT
Handset: 187 grams
Charger: 65 grams
POWER REQUIREMENTS
Handset: 2.4 VDC 800mAh NiCd
Battery Pack or 1500mAh
NiMH Battery Pack
Charger: 6 VDC @ 300mA
MEMORY
SpeedDial: 50 Memory locations, up
to 32 digits per location.
CID: 50 Memory locations
SPECIFICATIONSARETYPICAL
AND MAY CHANGE WITHOUT
NOTICE.
FCC and ACTA Regulations

91-005586-030-00
ISSUE 0

2.4GHz DIGITAL SPREAD SPECTRUM
CORDLESS TELEPHONE SYSTEM
Model 2 03
OWNER'S MANUAL
