Astral Pool ALASKA Series User guide

© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 1
EF-4
EF-6
EF-8
EF-10
EF-15
EF-17
ALASKA Modbus
32535
32536
32537
32538
32540
32541
SIBERIA Modbus
33301
33302
33303
33304
33306
33307
BERING Modbus
66306
66307
66308
66309
66311
66312
ALASKA / SIBERIA / BERING SERIES HEAT PUMP
TECHNICAL MANUAL. START-UP AND OPERATION · MANUAL TÉCNICO. ARRANQUE Y FUNCIONAMENTO ·MANUEL
TECHNIQUE. MISE EN ROUTE ET FONCTIONNEMENT · TECHNISCHES HANDBUCH. INBETRIEBNAHME UND BETRIEBSWEISE ·
MANUALE TECNICO. AVVIAMENTO E FUNZIONAMENTO · MANUAL TÉCNICO. ARRANQUE E FUNCIONAMENTO
EDITION: 2
15/05/2019
ALASKA
SIBERIA
BERING

© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 2

© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 3
TABLE OF CONTENTS
1. INTRODUCTION ................................................................................................................ 5
2. SECURITY .......................................................................................................................... 6
2.1 RESPONSIBILITY OF HOLDER................................................................................ 6
2.2 CIRCUITO REFRIGERANTE .................................................................................... 6
2.3 PROTECTION GEAR .............................................................................................. 7
2.4 HAZARDS.............................................................................................................. 8
3. PACKAGING INSPECTION................................................................................................ 10
4. EQUIPMENT DESCRIPTION ............................................................................................. 10
4.1. COMPONENTS ................................................................................................... 11
4.2. TECHINICAL CHARACTERISTICS.......................................................................... 12
4.3. ELECTRICAL CHARACTERISTICS.......................................................................... 12
4.4. ELECTRICAL DIAGRAMS ..................................................................................... 12
4.5. SIZE .................................................................................................................... 12
5. EQUIPMENT INSTALLATION ........................................................................................... 13
1.1. SAFETY INSTRUCTIONS ...................................................................................... 13
1.2. REQUIREMENTS AND PREVIOUS OPERATIONS ................................................. 13
1.3. OPERATING CONDITIONS .................................................................................. 14
5.4 CONDENSATION DRAIN..................................................................................... 17
6. REGULATOR.................................................................................................................... 18
6.1 MAIN FUNCTIONS.............................................................................................. 18
6.2 MAIN TECHNICAL CHARACTERISTICS. ............................................................... 19
6.3 PARAMETER SETTINGS ...................................................................................... 19
6.4 STARTING BASIC OPERATION ............................................................................ 23
6.4.1 OPERATING MODE....................................................................................................23
6.4.2 HEAT MODE..............................................................................................................23
6.4.3 COOL MODE (CHILLER MODELS)...............................................................................24
6.4.4 AUTO MODE (CHILLER MODELS) ..............................................................................25
6.4.5 PROCESO DE DESESCARCHE .....................................................................................25
6.4.6 WATER PUMP CONTROL...........................................................................................26
6.4.7 FAN OPERATING CONDITIONS..................................................................................27
6.4.8 REMOTE SWITCH ......................................................................................................27
6.5 PROTECTION SYSTEMS ...................................................................................... 27
6.5.1 COMPRESSOR DELAY PROTECTION ..........................................................................27
6.5.2 PHASE CONTROL.......................................................................................................27
6.5.3 OVER CURRENT PROTECTION (If 23=0, disable).......................................................27

© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 4
6.5.4 WATER FLOW PROTECTION (F46=0, disable) ...........................................................28
6.5.5 HIGH PRESSURE PROTECTION ..................................................................................28
6.5.6 LOW PRESSURE PROTECTION...................................................................................28
6.5.7 EXHAUST TEMPERATURE PROTECTION....................................................................28
6.5.8 THE WATER TEMPERATURA DIFFERENT IS TOO LARGE PROTECTION......................28
6.5.9 LOW TEMPERATURE LIMITS THE COMPRESSOR RUNNING......................................29
6.5.10 ANTIFREEZE PROTECTION IN WINTER ......................................................................29
6.5.11 SENSOR FAULT PROTECTION....................................................................................29
6.6 TROUBLESHOOTING GUIDE SYSTEM FAULTS AND LIST OF ERROR CODES ....... 30
6.7 CONTROL LCD .................................................................................................... 32
6.8 DISPLAY functions.............................................................................................. 36
7. GENERAL PRECAUTIONS................................................................................................. 38
8. HECKING THE PACKAGING ............................................................................................. 39
9. ELECTRICAL CONNECTIONS ........................................................................................... 39
10. HYDRAULIC CONNECTIONS ............................................................................................ 41
11. START-UP PROCEDURE................................................................................................... 41
12. PREVENTIVE MAINTENANCE .......................................................................................... 42
13. WARRANTY AND GENERAL CONDITIONS....................................................................... 43
14.WARRANTY CERTIFICATE............................................................................................... 45

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 5
ENGLISH
1. INTRODUCTION
Thank you for acquiring your new ALASKA / SIBERIA / BERING. The experience that company has
gained during more than 25 years in the world of air conditioning has been put to your service
in this product, in which we also incorporate the technical breakthroughs that turn this unit into
the equipment that can solve your water conditioning needs offering you the best possible
performancese.
The information symbol indicates useful information for correct installation and proper
performance.
The warning symbol indicates important information to bear in mind to prevent risk of
injuries and / or damage for the user and / or the equipment.
The forbidden symbol indicates an operation / procedure that is forbidden and will cancel
the warranty.
WE RECOMMEND THAT YOU MAKE A NOTE OF THE FOLLOWING
INSTALLER
DATE
TELEPHONE
MODEL
SERIAL NO.
DISTRIBUTOR'S STAMP
INSTALLER'S STAMP
Please read this manual carefully to ensure proper installation and start-up, become
familiar with the full potential of the equipment and to bear in mind all the
circumstances required for proper equipment performance and long duration.
.
This equipment must be installed and repaired by certified professionals in the electrical,
hydraulic and refrigeration fields.
.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 6
ENGLISH
2. SECURITY
2.1 RESPONSIBILITY OF HOLDER
El titular es la persona, personas o entidad que explota el equipo con fines comerciales,
particulares o económicos por sí mismo o bien lo cede a un tercero para su
explotación/utilización y asume la responsabilidad legal del producto relativa a la protección del
usuario, del personal o de terceros.
Junto a las obligaciones de seguridad contenidas en estas instrucciones, es obligatorio respetar
que:
•El titular debe asegurarse de que todo el personal a cargo de la instalación, operación,
servicio técnico, mantenimiento y limpieza del equipo han sido instruidos acerca de las
medidas de seguridad necesarias al interactuar con el equipo de una manera segura y
entendiendo los riesgos involucrados.
•El titular debe asegurar que todo el personal que interactúe con este equipo ha leído y
entendido estas instrucciones. Además, el titular debe capacitar e informar sobre
peligros al personal a intervalos regulares.
•El titular debe poner a disposición del personal el equipo de protección adecuado.
El titular también es responsable de que el equipo esté en un perfecto estado técnico. Por ello,
será de aplicación lo siguiente:
•El titular debe garantizar que se cumplan los intervalos de mantenimiento descritos en
este manual.
•El titular debe hacer inspeccionar de forma regular todos los dispositivos de seguridad
en cuanto a su capacidad de funcionamiento y su integridad.
2.2 CIRCUITO REFRIGERANTE
This machine contains a mechanical refrigeration system. The owner must ensure that the
people in charge of the operation, management and maintenance of the unit are subject
matter experts. Additionally the owner must ensure that these people comply with the
regulations of the European Union, as well as the technical and legal requirements of the
region or country.
REGULATION (EU) No 517/2014 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 16
April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No 842/2006.
http://eur-lex.europa.eu/legal-content/ES/TXT/HTML/?uri=CELEX:32014R0517&from=EN

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 7
ENGLISH
2.3 PROTECTION GEAR
Personal protective equipment serves to protect personnel against hazards that have an adverse
effect on occupational health safety. To carry out the various work on and with the equipment,
personnel must wear personal protective equipment:
SAFETY WORK CLOTHES
They are tight work clothes of low tear resistance, with narrow sleeves and
without protruding elements. It is intended for not being trapped by moving
parts of the machine. Do not wear rings, necklaces or other adornment
objects.
SAFETY SHOES
Safety shoes protect against heavy falling parts and avoid sliding on slippery
surfaces.
GLASSES AND EARPLUGS.
They serve to protect the eyes from projections of small-medium materials
and to protect the ears against high noise levels.
HEAT AND COLD PROTECTIVE GLOVES.
This gloves help protect hands against heat and cold burns in case of
touching very hot or cold surfaces.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 8
ENGLISH
2.4 HAZARDS
This section identifies the residual risks identified through a risk assessment.
To reduce health hazards and avoid dangerous situations, pay attention to the safety
instructions listed below:
DANGER OF INJURY BY LIQUID ACCUMULATIONS:
Danger of slippage by liquid accumulation.
•Collect liquids accumulation with the proper means.
•Wear non-slip safety footwear.
Place warning and signaling signs in the area where liquid
accumulation may occur.
DANGER OF INJURY OR DEATH BY ELECTRICAL SHOCK:
In the event of direct contact with live parts, there is a risk of death from
electric shock. Damage to the insulation or damage to various components
can lead to death.
•Only qualified people may work on the electrical installation.
•If you notice any damage to the insulation, disconnect power
supply and proceed to repair any damage.
•Before starting any work on the electrical installation, follow the
following rules:
✓Remove power supply.
✓Safeguard against reconnection.
✓Check coltage absence.
✓Grounding and short-circuiting
Protect the work area.
DANGER OF INJURY BY MOVING PARTS: FANS
Rotating parts of the fans can cause serious injuries.
•Do not put your hands into the fan rotor or maintenance it
during operation.
•Do not open the machine’s panels during operation.
•Make sure that the fan rotor is not accessible during
operation.
•Pay attention to the fan stop interval before opening the
machine’s panels.
•Before opening the fan, check that it is stationary.
DANGER OF INJURY BY SHARP EDEGES AND SHARP CORNERS:
Danger of injury with sharp edges and sharp corners.
Sharp edges and sharp corners on components housing parts can cause
cuts on the skin.
•When working in the vicinity of sharp edges or sharp corners,
proceed with coution.
•Wear protective gloves.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 9
ENGLISH
DANGER OF INJURY BY REFRIGERANT GAS:
Refrigerant gases may cause disorders in heart rate and frostbite in case of
body contact, ingestion or inhalation.
•Avoid contact with refrigerant gases.
•Works on refrigeration systems must be carried out by qualified
personnel.
•When working with refrigerants, do not eat, drink or smoke. Wash
your hands after finishing work.
•Wear all necessary protection gear: clothing, gloves, glasses ...
•Work in a ventilated place.
DANGER OF INJURY BY HOT SURFACES:
The surfaces of some components may become hot during operation of
the equipment. Contact with skin can cause severe burns.
•When working in the vicinity of hot surfaces, wear protection gear:
clothing and safety gloves.
DANGER OF INJURY BY COLD SURFACES:
The surfaces of some components may become cold during operation of
the equipment. Contact with skin can cause severe freeze-burns.
•When working in the vicinity of cold surfaces, wear protection gear:
clothing and safety gloves.
DANGER OF INJURY BY PRESSURIZED GASES:
Pressurized components of the equipment can leak fluids under high
pressure if they are handled incorrectly or in case of defect and cause
serious injuries.
•Before working with the pressurized elements, remove the
pressure.
DANGER OF INJURY BY FIRE:
If the fire extinguishing media is not ready for use or is inadequate, serious
injury or death may occur as well as serious material damages.
•Make sure that there is adequate extinguishing media at the site.
•Check extinguishing media periodically.
•Replace or replenish the extinguishing media after each use.
•When using extinguishers, pay attention to the instructions for use.
DANGER OF INJURY OR DEATH BY FAULTY SECURITY SYSTEMS:
If safety devices are not working correctly or have been tampered with or
manipulated, there is a risk of serious injury, even death.
•Before starting any work on the equipment, check that all safety
devices are in working order and correctly installed.
•Do not override or short circuit any safety device.
•Make sure that all safety devices are accessible at all times.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 10
ENGLISH
3. PACKAGING INSPECTION
This equipment comes with RECYCLABLE packaging that can withstand rough transport
conditions. However, you should examine the device during installation to ensure there is no
damage, thus avoiding any subsequent malfunction. The MANUFACTURER will not be held
responsible in this case
4. EQUIPMENT DESCRIPTION
The cooler is used for cooling the pool cup, cold water basins, etc.
If the unit/package is damaged upon delivery, or the delivery itself is incomplete, make a
note on the carrier’s bill and immediately place a claim to the carrier company.
IS VERY IMPORTANT TO KEEP THE PACKAGED EQUIPMENT UPRIGHT, THE PACKAGING HAS BEEN
SPECIFICALLY DESIGNED FOR THIS. ALWAYS MAINTAIN IT IN A VERTICAL POSITION.
IF THE UNIT IS DAMAGED, OR THE DELIVERY IS INCOMPLETE, MAKE A NOTE OF IT ON THE CARRIER'S BILL AND
IMMEDIATELY MAKE A CLAIM TO THE COMPANY IN CHARGE OF DELIVERY.
IF THE UNIT IS DAMAGED, OR THE DELIVERY IS INCOMPLETE, MAKE A NOTE OF IT ON
THE CARRIER'S BILL AND IMMEDIATELY MAKE A CLAIM TO THE COMPANY IN CHARGE
OF DELIVERY

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 11
ENGLISH
4.1. COMPONENTS
Las enfriadoras están equipadas con los siguientes elementos:
Robust and lightweight design in an aluminium magnesium alloy that is resistant to solar
radiation over an aluminium frame. The colour does not deteriorate.
High performance condensator battery (gas-air heat sink), manufactured in copper tube with
lacquered aluminium fins that are specially designed for corrosive and coastline
environments.
Fan(s):
Axial (ALASKA).
Centrífugal (SIBERIA).
Scroll Compressor.
G2 titanium water condensers. Guaranteed corrosion resistance.
Coolant gas R-407-C.
High and Low pressure switches (HP/LP).
Expansion by thermostatic mixing valve with external balancer.
By-flow dehydrator filter.
Hydraulic circuit with waterflow switch at the water intake, manufactured in PVC pipe.
Flow switch for flow control.
Water treatment system control.
Electrical protections for switchgear and power.
User-friendly control panel with current temperature, setpoint and alarm messages display.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 12
ENGLISH
4.2. TECHINICAL CHARACTERISTICS
Main technical data of the machines:
•ALASKA:
TABLE 1: TECHNICAL DATA [ALASKA], pág. 47.
•SIBERIA:
•TABLE 2: TECHNICAL DATA [SIBERIA], pág. 47.
•BERING:
•TABLE 3: TECHNICAL DATA [BERING], pág. 48.
4.3. ELECTRICAL CHARACTERISTICS
Electrical control panel for complete process control and to guarantee optimum performance
with minimum power consumption at all times. Containing the following components:
•Circuit breakers.
•Contactors and thermal relay
•Interconnection and ground terminals.
•Card controller and Display.
•Power Supply.
Main electrical data of the machine series:
TABLE 4: MAXIMAL ELECTRICAL DATA [ALASKA], pág. 49.
TABLE 5: MAXIMAL ELECTRICAL DATA [SIBERIA], pág. 49.
TABLE 6: MAXIMAL ELECTRICAL DATA [BERING], pág 49
4.4. ELECTRICAL DIAGRAMS
To look up electrical diagrams of the different equipment, consult:
IMAGE 1: ELECTRICAL SCHEME [ALASKA / SIBERIA / BERING], pág. 50.
IMAGE 2: BORNES [ALASKA / SIBERIA / BERING], pág. 51.
IMAGE 3: POWER [ALASKA / SIBERIA / BERING], pág 52
4.5. SIZE
To look up the dimensional data and weight of the product, see:
•ALASKA: IMAGE 5: ALASKA DIMENSIONS, pág. 53.
•SIBERIA: IMAGE 6: SIBERIA DIMENSIONS, pág. 54.
•BERING: IMAGE 7: BERING DIMENSIONS, pág 54
A general rule for the power cable is: section of 1 mm2for every 5 amps for cable
lengths of up to 20 meters, although this rule has to be verified and adapted for each
installation and for lengths of more than 20 meters and always in accordance with local
requirements / regulations.
.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 13
ENGLISH
5. EQUIPMENT INSTALLATION
These units are supplied fully assembled, with complete electrical wiring and its definitive charge
of refrigerant gas R407-C. Furthermore, every assembled machine has been put to the test inside
a test laboratory inside the manufacturing factory before shipping to clients.
The hydraulic circuit of the unit has been carefully drained to avoid residual water in the casing
of the evaporator and prevent any risk of corrosion in case of prolonged storage of the machine.
1.1. SAFETY INSTRUCTIONS
Always ensure that Personal protective equipment is usd to protect personnel against hazards
that have an adverse effect on occupational health safety. Refer to paragraph ¡Error! No se
encuentra el origen de la referencia., pág ¡Error! Marcador no definido..
All the people in charge of the installation of the unit must have been instructed concerning the
unit security measures, thus interacting with the machine in a safe way and understanding the
hazards involved. Refer to paragraph ¡Error! No se encuentra el origen de la referencia. pág.
¡Error! Marcador no definido.
1.2. REQUIREMENTS AND PREVIOUS OPERATIONS
Todos los modelos:
•Check the place where the equipment is to be located is strong enough to support the
weight of this.
•To improve the distribution of weights, the unit will be placed on a bench according to
the designer's criteria.
•Always place the machine in a vertical and level position
•The equipment is designed to work:
oALASKA / BERING models: Outdoor installation.
oSIBERIA / BERING models: Indoor installation.
•A space must be provided around the equipment for its maintenance and operation, in
addition to checking that the air inlet and outlet are not obstructed.
•It is not advisable to place the machine 1.5 meters above the sheet of water, or 3 meters
below.
•During operation, condensation water produced by the evaporator may appear, for
which the machine has an evacuation outlet identified on one side.
This appliance must be installed and serviced by certified professionals, approved in
electrical, hydraulic and air conditioning domains.
For any questions regarding unit installation, please, take note of the machine model,
serial number, manufacture year, and contact us.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 14
ENGLISH
•To avoid any corrosive process in the evaporator battery, the unit can not be installed
in an acidic or alkaline environmentPara evitar cualquier proceso corrosivo en la batería
evaporadora no se podrá instalar la unidad en ambiente ácido o alcalino.
In addition, the SIBERIA models must take into account the following:
•The arrangement of the air ducts must be of an adequate size and the loss of load of the
ducts must not exceed the available pressure of the installed fans.
•The aspiration and impulsion of the equipment will be installed at a sufficient distance
between them so that undesired recirculation can not occur.
•It is also desirable to provide a removable door or plate in the outdoor air intake duct to
be able to check its condition and proceed to clean any dirt that may be trapped in the
air inlet of the unit.
•Leave at least 1 meter of unused space around the equipment to facilitate personnel
access and maintenance operations.
1.3. OPERATING CONDITIONS
Water physical and chemical parameters must be in between:
•PH ......................................................... 7,2 a 7,8
•Residual chlorine................................... 1 a 2 ppm
•Alkalinity ............................................... 80-125 ppm
•Total dissolved solids ............................ <=3000 mg/l
•Hardness ............................................... 200-300 ppm
The limits established for working conditions in order to guarantee the proper operation of the
equipment are:
•Maximum condensation water inlet temperature.: 35 °C.
•Maximum input air condensation:........................40 °C.
•Maximum input water pressure:...........................3,5 bar.
The primary hydraulic circuit, used to heat the pool water, must not be galvanized steel
or aluminum. Corrosion problems may appear due to galvanic corrosion
•The ALASKA models have been designed for outdoor installation (never indoors).
•The SIBERIA have been designed for installation indoors (never outdoors).
•
THE WARRANTY WILL BE VOID IF THIS CONDITION IS NOT FULFILLED

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 15
ENGLISH
The operating conditions will influence the performance of the equipment and the power data
provided in the data sheet may vary, if these placement recommendations do not occur. It is
extremely important that the minimum water flow indicated in the technical sheet is
guaranteed. If this flow is reduced, the compressor dew point is higher, and the energy
consumption is higher.

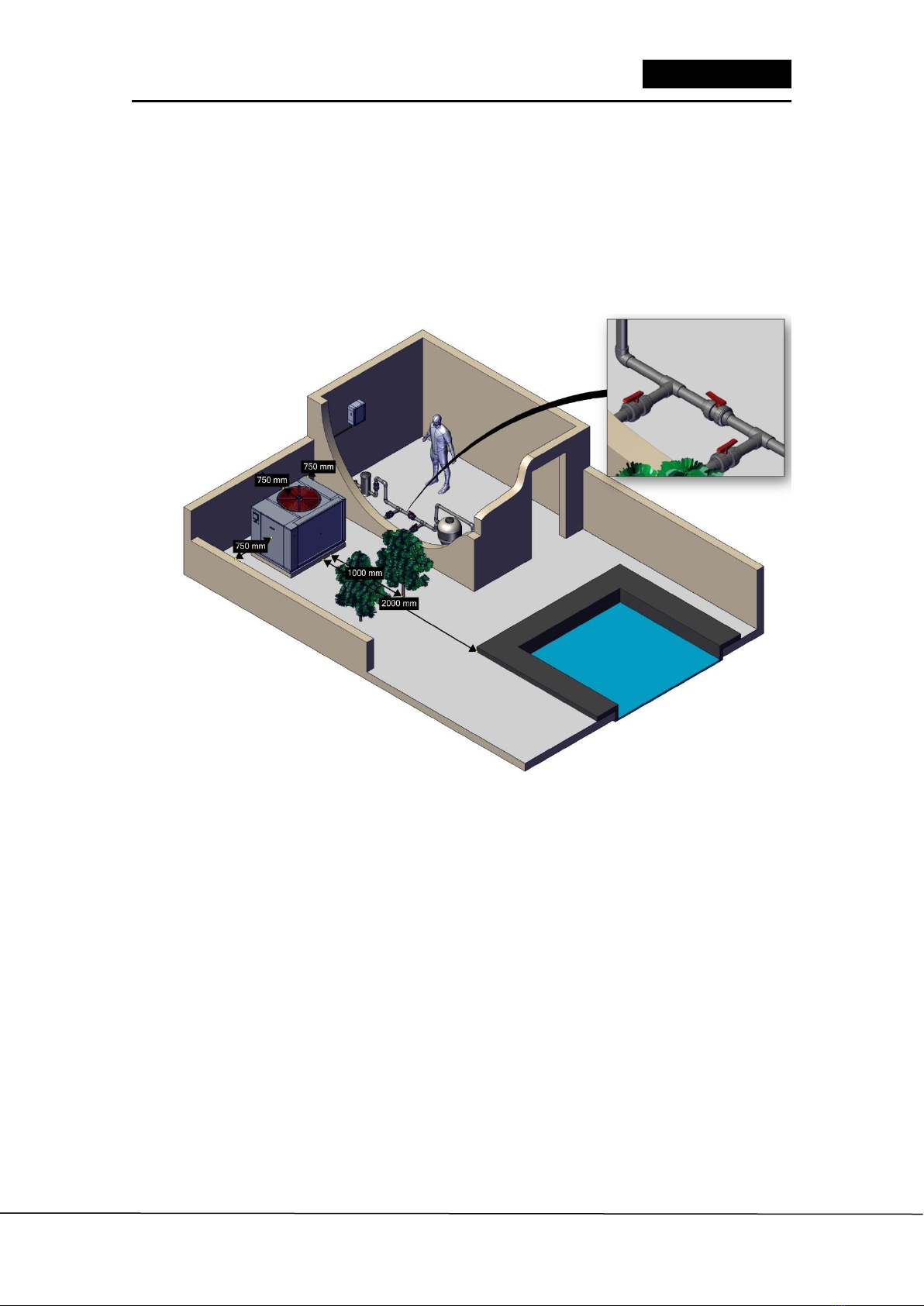

Example of installation of ALASKA with Axial fan for outdoor installation only:
V1-V2-V3: By-pass valves. (Required for all models)
V3
V1
V2

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 16
ENGLISH

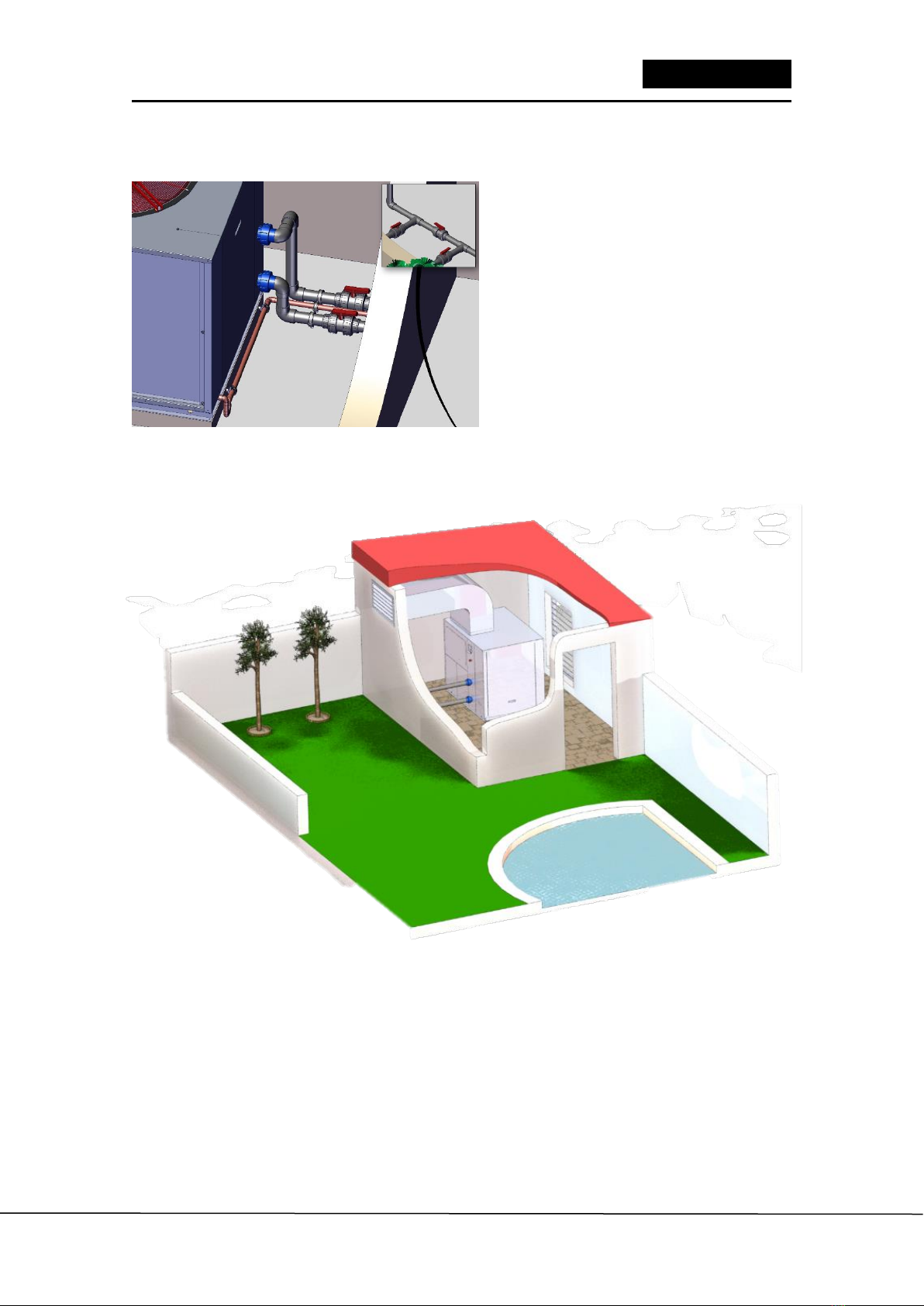

Installation example of the SIBERIA equipment with centrifugal fan for indoor installation only:
It is necessary to make the duct network so that the air collected by the machine to operate the
refrigeration circuit, never return to the machine, and must be expelled to the street. The
machine must be located exclusively inside.
In this example of installation it can be seen that the technical room is perfectly ventilated
through a grid of sufficient size to guarantee the correct flow of air through the evaporator. And
that the driving air is driven outside.
V4-V5: Adjustment valves
SIFÓN
V4
V5

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 17
ENGLISH
If the distance between the machine and the outside air is too high, a duct can be connected
directly to the evaporator inlet, as long as the nominal air flow of the equipment is
guaranteed. The limit of loss of load of these models Indoor is 120 Pa, and if this value is not
respected, the heat pump can be damaged. For greater load losses available, consult Fluidra
Comercial.
5.4 CONDENSATION DRAIN
The machine will naturally generate condensation water. This water will be gathered inside the
machine and will come out through a condensation drain located on the frame of the
equipment. The installation must have a drain to evacuate such condensation water.
The condensation drain is identified by this decal on the machine:
It is advised to install a siphon in the condensation drainage to prevent liquid and odours
returns.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 18
ENGLISH
6. REGULATOR
6.1 MAIN FUNCTIONS
The NA8981 regulator is ideal to control air-water heat pumps with on or two compressors. It is
equipped with temperature probes (water input and output, evaporator defrost, compressor
discharge and ambient temperature). It also has safety sensors (high and low pressure switches,
a flow switch to control water flow through the equipment, compressor consumption meter and
internal fan thermal switch).
Its main functions are shown below:
•TEMPERATURE DISPLAY AND CONTRILLING: The display shows the water temperature at
all times and the user can choose the setpoint between the operating limits. The settings of
the temperature probes can also be displayed.
•AUTO DEFROST CONTROLLING: It has an optimized design of logical defrost controlling and
can defrost effectively in order to ensure the machine can run normally at low temperature.
•EXHAUST TEMPERATURE PROTECTION: If the discharge temperature of the compressor is
too high, the machine will stop and an alarm will appear on the display (A24 or A25).
•HIGH AND LOW PRESSURE PROTECTION: The machine is equipped with high and low
pressure switches that stop the machine and displays an alarm if either pressure exceeds its
limits (A11, A12, A13 or A14).
•DIFFERENT PERIOD OF OPERATION: The regulator has two operating modes: "Heating" and
"Schedule programming". In the " Cooling" mode, the machine will operate until the water
temperature reaches the setpoint temperature set by the user. In the "Schedule
programming" mode, as many as three machine operating periods can be scheduled (See
STARTING BASIC OPERATION).
•PHASE MISSING PROTECTION AND SEQUENCE PROTECTION: When any of the 3 phases
supplying the equipment fails or the 3 phases have been connected incorrectly, the machine
will stop and an alarm will appear on the display (A91).
•DISPLAY OF COMPRESSOR CONSUMPTION AND PROTECTION VERSUS EXCESS
CONSUMPTION: The regulator shows compressor consumption (A) on the screen. If
consumption is excessive, the machine will stop and an alarm will appear on the display
(A93-A94).
•SEQUENTIAL COMPRESSOR START-UP: The regulator starts up the compressors in sequence
to avoid excess peak power use in the line.
•WINTER ANTI-FREEZE PROTECTION: This protection allows the regulator to recirculate the
water by starting up the water treatment pump so the water does not remain in the frozen
pipes (See PROTECTION SYSTEMS).
•TRIP CIRCUIT: The regulator uses this function to protect the machine in the event of faults
affecting the contactors or an error in the supply line.
•EMERGENCY OPERATION FUNCTION: If communication fails in the LCD display, the machine
can operate with the most recently saved settings.
•EMERGENCY STOP: The equipment is prepared with an emergency push-button with a

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 19
ENGLISH
manual interlock and reset that cuts off the general power to the machine if pressed.
•MINIMUM VOLTAGE STOP: The machine is protected against severe voltage drops in the
line by an automatic cut-off device in the main circuit breaker; this device triggers when
voltage drops to a certain level below the nominal voltage.
6.2 MAIN TECHNICAL CHARACTERISTICS.
•Power supply: 230V±10% or AC 380V±10% (See circuit diagram)
•Maximum output capacity:
oWater pump ................... 30A/220VAC (Connecting the water treatment pump
to a contactor is recommended)
oFan:................................. 10A/220VAC
oCompressor 1: ................ 5A/220VAC
oCompressor 2: ................ 5A/220VAC
o4-way valve:.................... 5A/220VAC
•Temperature probes: NTC R25=5kΩ, B(25/50)=3470K
6.3 PARAMETER SETTINGS
Press "S" for 3 seconds to enter the parameter settings menu:
You can change the following parameters F11, F50~F54，F58，F61，F62，F85, press  to
select the parameter you want to change.
Use  to select the code, press “S to show the parameter setting and use  to change
it. Press “S” again to save the changes and return to the parameter settings menu.
Press “S” you can see the value of the parameter, after selecting the parameter, use  to
set the value of the parameter (Holding the key down can change the value quickly).
Press“Sagain to save the changes and return to the parameter setting menu. Press “M” to exit
parameters menu at any time without saving the changes.
Press “S” for 10 seconds, If a password has been programmed (F19 o F20), the display will
show “PAS” to enter the password, use  to indroduce each digit, and press “S” to select
the next digit, If the password is correct, you can change any parameter froml F11 to F99.
Press “M” means cancel and the parameter will not be changed.

ALASKA / SIBERIA / BERING SERIES · Cooler EF AIR/WATER –WATER/WATER
© FLUIDRA 2019 ALL RIGHTS RESERVED. PROPRIETARY DOCUMENT.
Pag: 20
ENGLISH
The internal list of parameters is as follows:
Concept
Code
Parameter name
Range
Factory
setting
Unit
Observations
Temperature
F11
Temperature setting point
F14 –F13
28
C
F12
Temperature difference
1 –10
1
C
F13
Max setting temperature
30 –100
40
C
F14
Min setting temperature
1 –29
10
C
F15
Auto mode temperature
difference
0 –20
1
C
F17
ID
1 –255
9
-
F19
Password (Installer)
0 –999
-
-
0: Without password (Consult your
salesman)
F20
Password (Manufacturer)
0 –999
-
-
0: Without password (Consult your
salesman)
Compressor
Defrost
F21
Compressor delay time
1 –10
8
min
F22
Compressor Phase protection
Number of circuits*
0 –1
0ONE PHASE
0: no protection
1：have protection
1THRE
PHASE
F24
Water fiow switch delay time
1-2
1
1：1 Compressor
2：2 Compressors
F25
Low limit temperature
0-100
1
min
F26
The lower limit temperature of
Low speed operation
-20 - 10
0
Not enabled select -20
F27
The upper limit temperature of
Low speed operation
-10~30
-10
C
1. Temperature differential ±1°C.
2. Always working at low speed (-
10ºC).
F28
OPERATING MODES ENABLED
35~100
44
C
Temperature differential ±1°C
F29
Defrost start temperature
0 / 1 / 2 / 3
2
0: Automatic mode (C/H)
1: Heat mode (Heat)
2: Cool mode(Cool)
3: Choose the mode (M)
Desescarche
Remote
control
F31
Defrost end temperature
-10 –0
-3
C
F32
Defrost start time
5 –35
15
C
F33
Max defrost time
1–120
1
min
F34
Pipe1(2) fault，Defrost start
temperature
3 –20
10
min
F35
Alarm Delay Time after Defrost
-10 - 20
7
C
Ambient Temp.
Defrost according to F33/34.
F36
4-way valve mode
0 –120
3
min
F37
Remote Cooling MODE
0 - 1
1
1: heating 4-way valve has
electricity
0: heating 4-way valve has not
electricity
Control
Remoto
Voltage
consumption
F38
Remote Heating MODE
0 –1
0
0: Always cooling, and the set point
is not taken into account
1The set point is taken intoaccount
F39
Maximum consumption
protection
0 –1
0
0: Always cooling, and the set point
is not taken into account
1The set point is taken into
account
Voltaje y
Consumo
F40
Temperature setting point
2-40
Depends on
the model
of the
machine
10
0：not enable
TABLE 4
TABLE 5
TABLE 6
F42
Alarm delay time due to excessive
consumption
0 –30
3
S
