Stadium BA8230 User manual

Bathroom Storage Tower
Dimensions
Width - 40cm
Depth - 30cm
Height - 169.3cm
Issue 2 - 15/12/2017
Important – Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts
email us at techstyle.spar[email protected]
Assembly Instructions - Please keep for future reference BA8230

1
Safety and Care Advice
Important – Please read these instructions fully before starting assembly
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close
to its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor.
• Parts of the assembly will be
easier with 2 people.
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Dispose of all packaging
carefully and responsibly.
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
Skin contact: Remove
contamination by washing with
soap and water. This procedure
should also be followed prior to
eating and drinking.
Eye contact: Rinse immediately
with clean water for 15 minutes
and seek medical advice.
If swallowed: Seek medical
advice immediately.
Glue safety - Take care when using glue, please follow the advice below

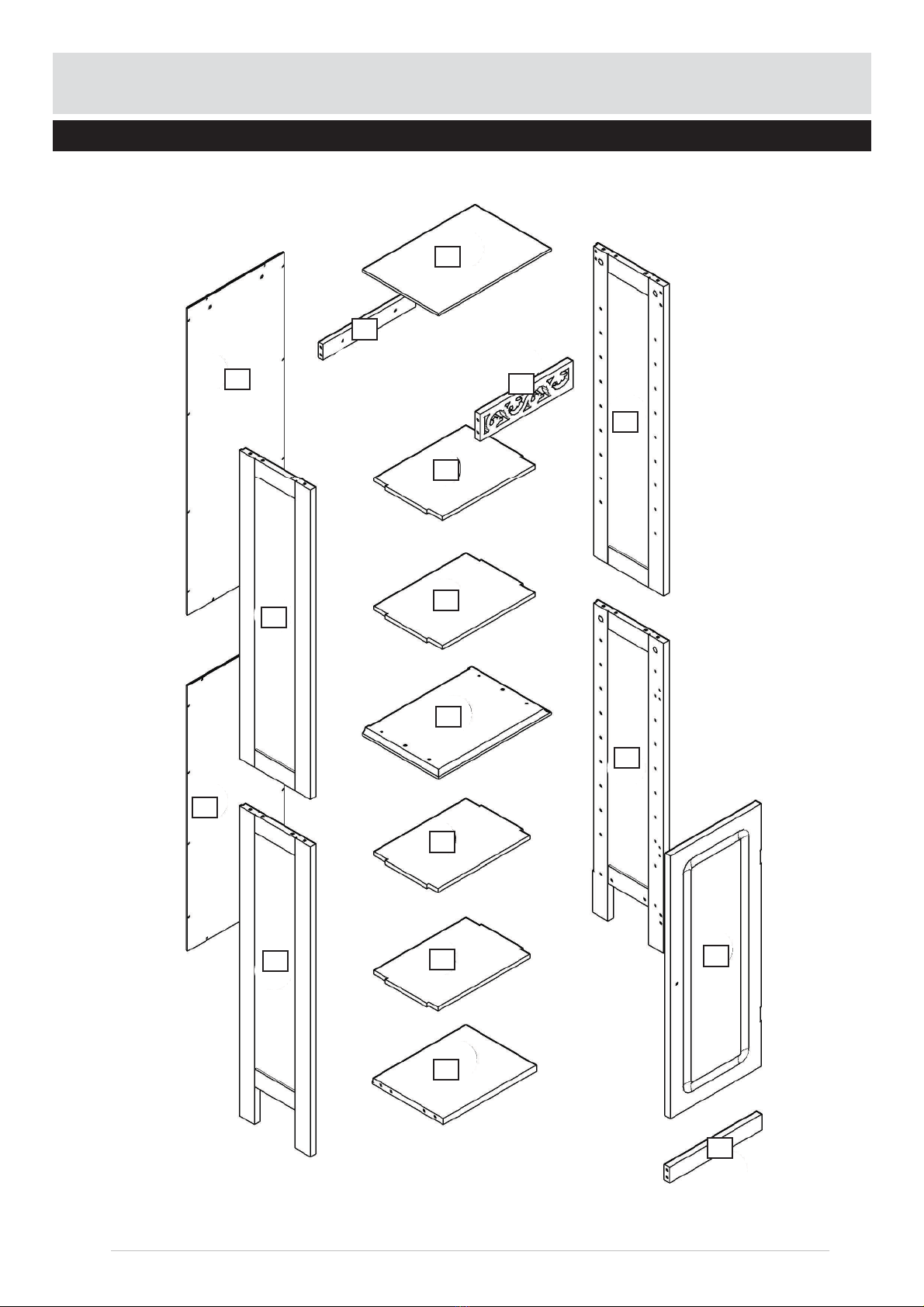

Components - Panels
Please check you have all the panels listed below
2
If you have damaged or missing components,
email us at [email protected]
4
1
14
14
5
15
15
8
7
12
2
11
10
3
6
13
9

3
Please check you have all the fittings listed below
Small wooden dowel x 4
Ruler - Use this ruler to help correctly identify the screws
Tools required
a
Large screw x 6
e
Camlock bolt x 12
b
Metal plate x 1
h
Camlock nut x 12
c
Hinge x 2
j
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
Magnet x 1
f
Large wooden dowel x 22
d
Grub screw x 2
g
Components - Fittings If you have damaged or missing components,
email us at [email protected]
Crosshead screwdriver
(medium & large)
Flatblade screwdriver
(medium)
Small
hammer
Ruler/tape
measure
Drill
Eye protection
(when using a
hammer or glue)
7mm Suitable drill bit
(for use with wall plug)
Round head screw x 24
l
Handle x 1
m
Small screw x 10
k
Shelf support x 16
o
Wall plug x 2
p
Medium screw x 2
n
Glue x 1
q

4
Assembly Instructions

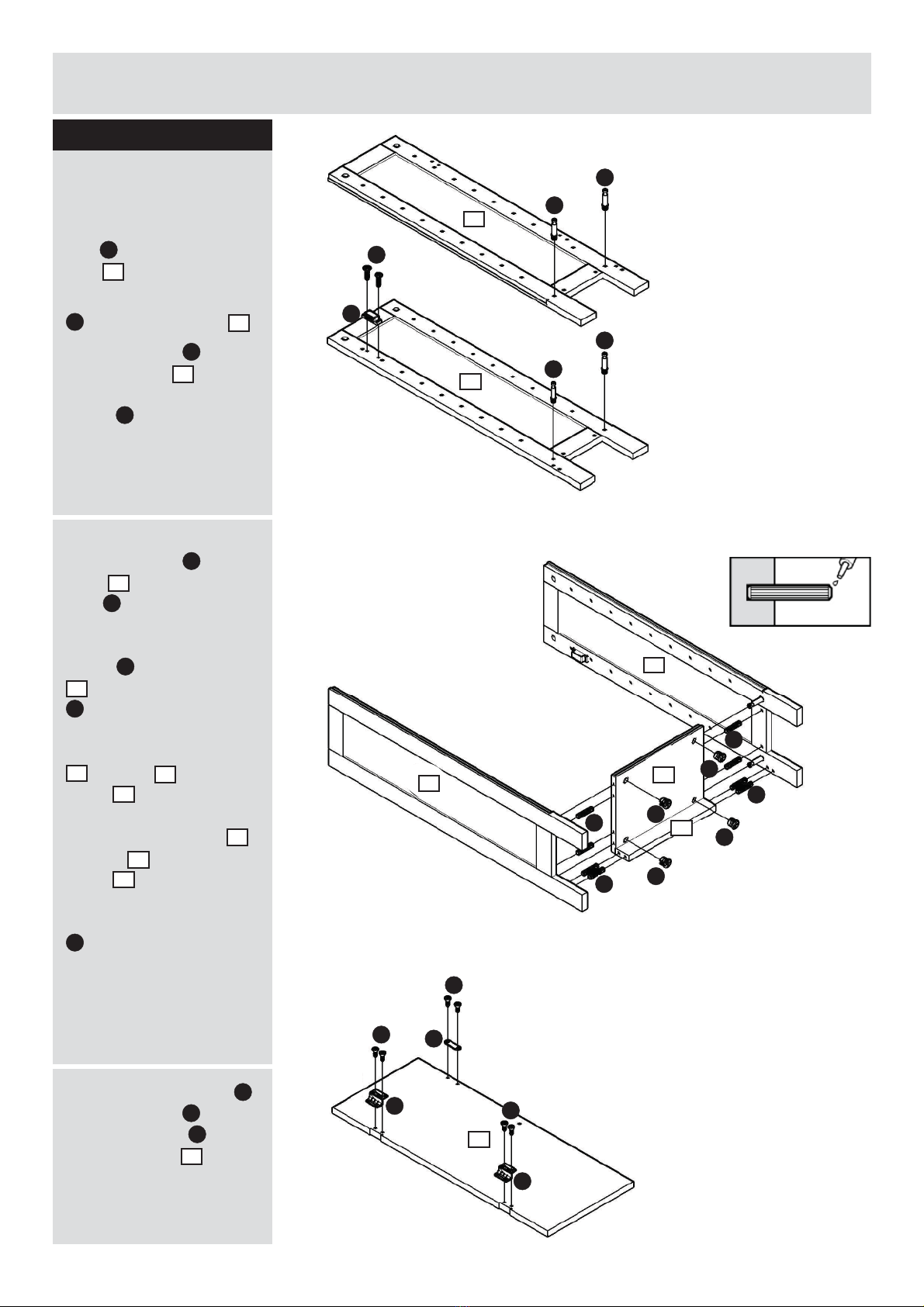

Step 1
Assemble top section
a: Insert 4 x small
wooden dowel a, 2 in
each end of decorative
freize 3(adding a dab
of glue qto the ends)
Insert 4 x large wooden
dowel d, 2 in each end
of back crossbar 10 .
(adding a dab of glue q
to the ends)
Attach decorative freize
3and back crossbar
10 to top left side 2.
(adding a dab of glue
qto the ends of the
wooden dowels)
b: Insert 4 x camlock
bolt binto top 4.
Insert 4 x camlock bolt
binto centre shelf 5.
c: Insert 4 x large
wooden dowel d, 2 in
each into the ends of
sides 1and 2(adding
a dab of glue qto the
ends)
Attach top 4to the
assembled top section
as shown. Insert 4 x
camlock nut cand
rotate a 1/4 to a 1/2 turn
or until the nut connects
with the bolt and is
secure.
d: Insert 2 x large
wooden dowel d, 2 in
each into the ends of
sides 1and 2. Attach
centre shelf 5to the
assembled top section
as shown and fix into
place using 4 x large
screw e.
a:
b:
d:
q
d
a
a
d
2
1
10
3
45
b
b
b
b
b
b
b
b
d
1
2
4
d
c
2
1
5
e
e
e
e
d
d
c:

Assembly Instructions
Step 2
Assemble base
section
e: Insert 2 x camlock
bolt binto base right
side 6.
Insert 2 x camlock bolt
binto base left side 7.
Attach magnet fto
base left side 7fixing
into place with 2 x grub
screw g.
f: Insert 4 x large
wooden dowel dinto
base 8(adding a dab of
glue qto the ends)
Insert 4 x large wooden
dowel dinto base plinth
9(adding a dab of glue
qto the ends)
Attach base right side
6to base 8and base
plinth 9as shown.
Attach base left side 7
to base 8and base
plinth 9as shown.
Insert 4 x camlock nut
cand rotate a 1/4 to a
1/2 turn or until the nut
connects with the bolt
and is secure.
g: Attach metal plate h
and 2 x hinges jusing
2 x small screw kfor
each into door 13 .
5
e:
f:
g:
b
b
6
b
b
7
g
f
7
d
d
d
dc
6
9
8
c
c
c
13
k
k
jk
j
h

6
Assembly Instructions
Step 3
Joining up
h: Insert 4 x large
wooden dowel dinto
the assmebled base
section (adding a dab of
glue qto the ends)
Carefully place the
assembled top seciton
onto the base section.
Insert 4 x camlock nut
c, 2 in each of the base
sides, and rotate a 1/4 to
a 1/2 turn or until the nut
connects with the bolt
and is secure.
i: Attach base back
panel 12 and top back
panel 11 as shown using
24 x round head screw
l.
h:
i:
c
1
2
c
d
d
dd
c
c
6
7
11
12
l
l
l
ll
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l

Assembly Instructions
Step 4
Add door and shelves
j: Insert 8 x shelf support
ointo the top open
section. Choose the
desired shelf height and
add 1 x shelf support o
for each corner.
Repeat for the base
cupboard section.
Attach door 13 to the
base cupboard section
using 2 x small screw k
for each hinge.
Attach handle ito door
13 using medium screw
n.
k: Slide in 2 x shelf 14
at your chosen positions
in the top open section.
Slide in 2 x shelf 15 at
your chosen positions
in the base cupboard
section.
j:
k:
13
o
o
o
o
o
o
n
i
k
o
o
o
o
o
k
14
14
15
15

If you need any help or have damaged or missing parts, email techstyle.spar[email protected]
Techstyle Spares, Stadium North, Tofts Farm Industrial Estate, Brenda Road, Hartlepool, TS25 2DH
Assembly Instructions

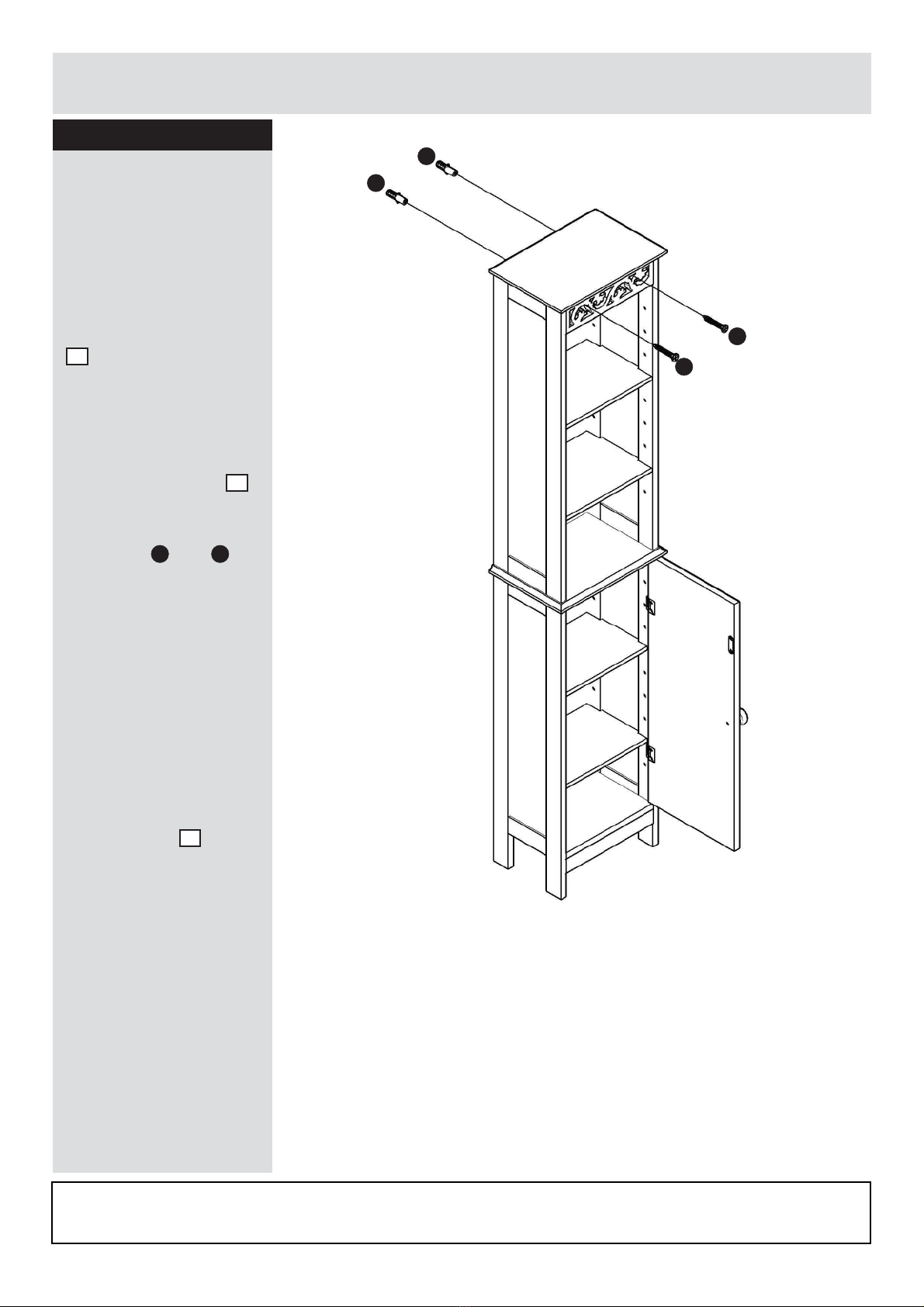

Step 5
Wall fixing
l: For added security you
can attach this unit to
your wall.
Measure the distance
between the fixing holes
in the back crossbar
10 - transpose this
measurement to the wall
making sure the marks
are level OR Oer the
unit upth the wall and
mark through the holes
in the back crossbar 10 .
NOTE: The fixings
provided, eand p
are only suitable for
solid walls. Make sure
you use wall plugs
suitable for your type
of wall - see A Guide
to Wall Mounting &
Fixings overleaf.
Drill holes suitable for
your wall plugs. Tap wall
plugs into drilled holes.
Attach unit to wall using
back crossbar 10 .
Assembly is complete.
