Stahlwille 13217 User manual

TROLLEY
13 217
13217 IP
1
TROLLEY
13217 / 13217 IP67
OPERATING INSTRUCTIONS
MANUAL

1
2
3
2
3
3
4
4
5
7
8
8
8
10
NOTE
Please read these operating instructions carefully to ensure safe
handling. Keep these instructions for future use.
The operating instructions will help you in using the tool trolley
13217 & 13217 IP 67 safely and in accordance with its intended
use.
Version: 01/2023
TARGET GROUP FOR THESE
OPERATING INSTRUCTIONS
The operating instructions are intended for users of the tool trolley
13217 & 13217 IP 67.
The information in these operating instructions is intended for
authorised, trained and instructed personnel.
It is assumed that these persons have general technical knowledge.
Any person
— transporting
— disassembling
— handling
— using
the tool trolley must have read and understood the relevant content
of these operating instructions.
If you do not understand any of the information in these operating
instructions or if you are missing information, please contact our
technical support at [phone].
TROLLEY
13217 / 13217 IP67
OPERATING INSTRUCTIONS MANUAL
CONTENTS
OPERATING INSTRUCTIONS
Note
Target group for these operating instructions
Technical description
Dimensions
Product features
Equipment features
Intended use, scope of application
Basic safety instructions
Disposal
Cleaning / Care / Maintenance
Spare parts list
TECHNICAL DESCRIPTION

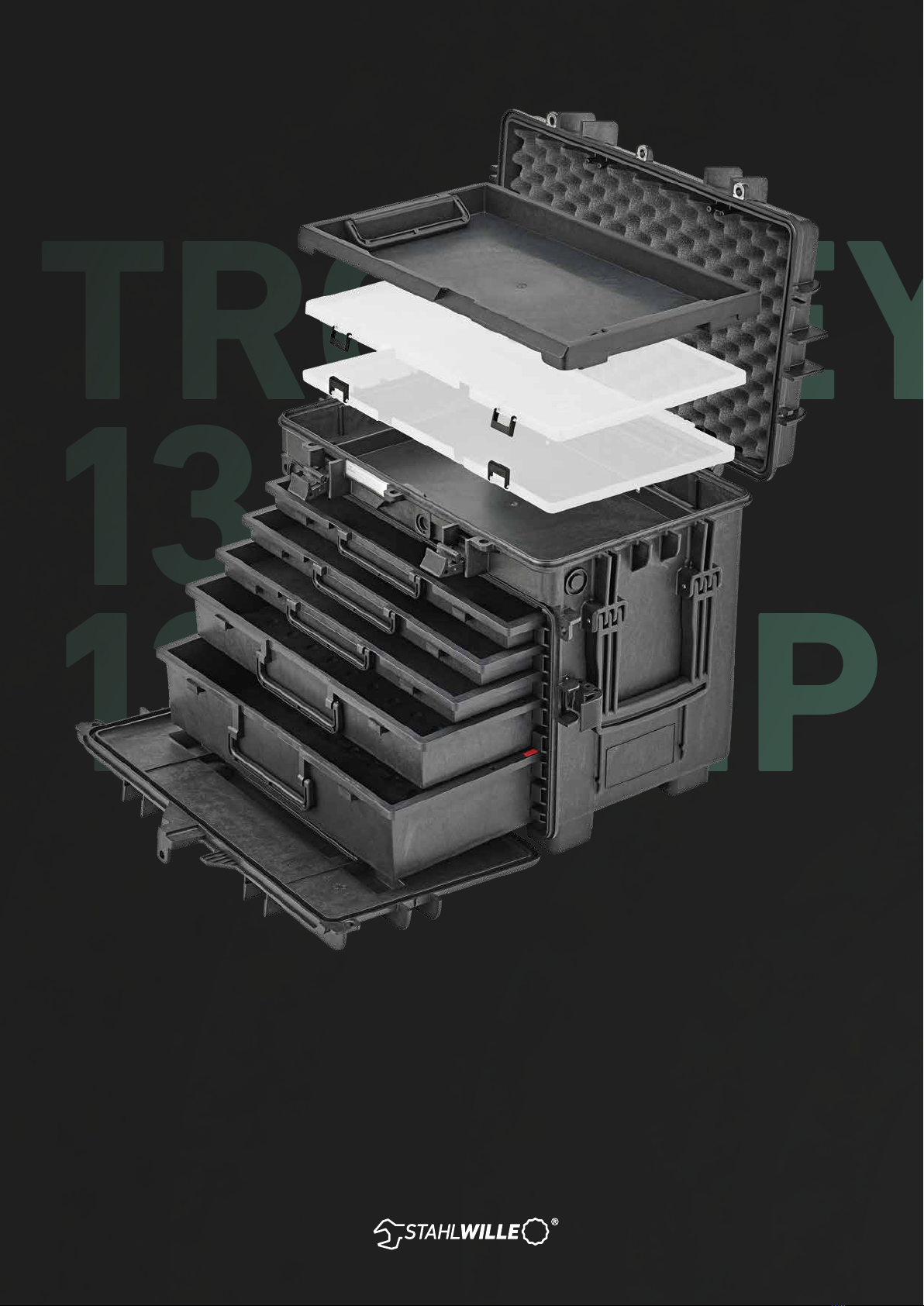

The 13217 & 13217 IP67 trolley is ideal for professional users to
store and transport tools of any kind (hand tools, power tools, spare
parts) and is ideally suited for maintenance and after-sales service.
It consists of a sturdy injection-moulded main housing made of
copolymer PP and is therefore considered to be particularly
durable, impact-resistant and temperature-resistant.
2

4
3
5
54
A B
EC
D
mm
A581
B381
C455
D59
E396
EQUIPMENT FEATURES

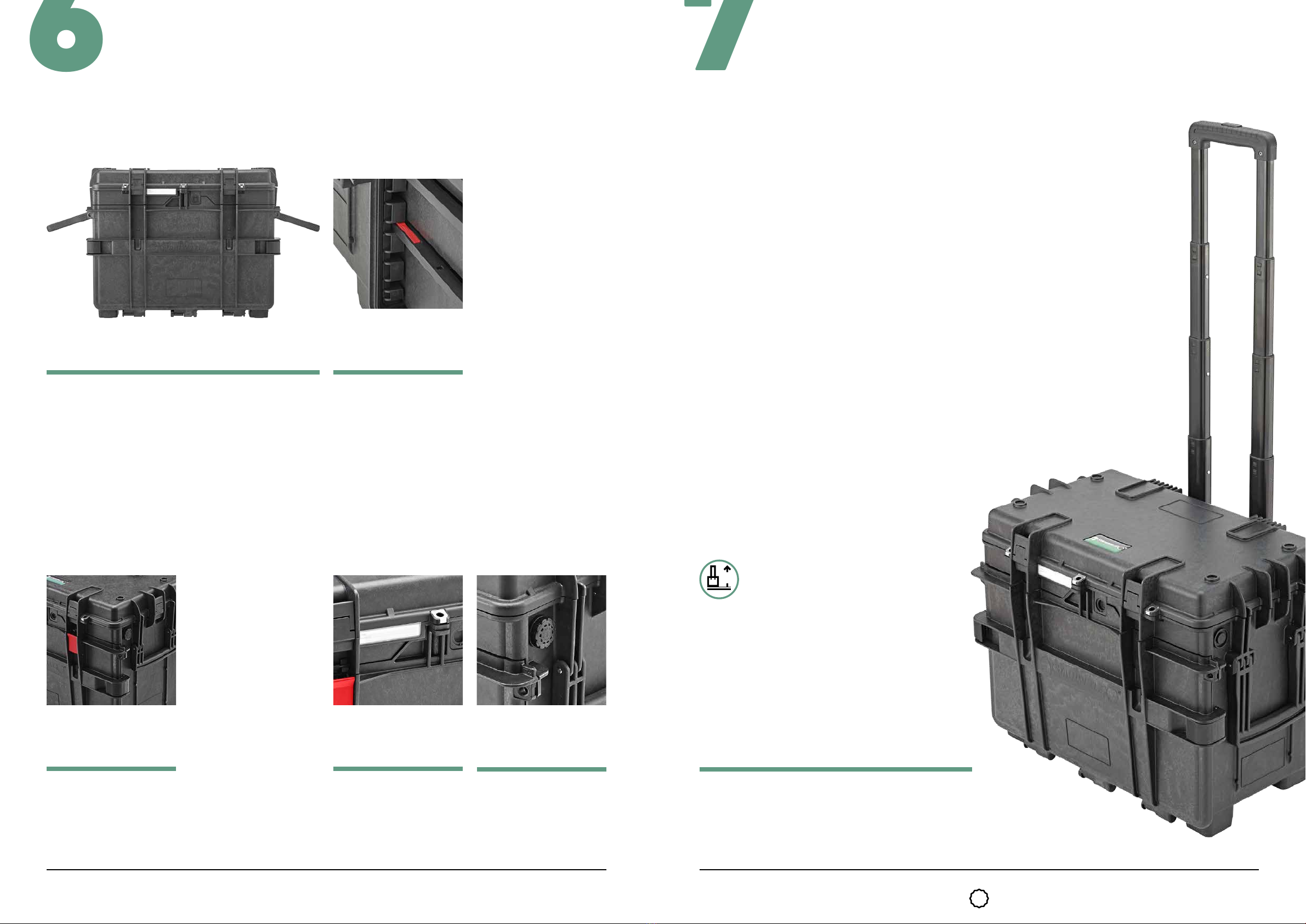

Front cover opening
The front cover can be opened up to 180°.
Metal clamps
Reinforced metal clamps at the main points for locks.
Cover seals
Both the top (only 13217 IP 67) and the front cover are equipped
with polyurethane seals that protect the housing from water
ingress.
Stackable
The special design of the base and cover feet ensures perfect
stackability.
DIMENSIONS
The dimensions given below refer to the external dimensions.
— Empty weight: 13.5 kg
— Temperature range min -33°C / max +90°
PRODUCT CHARACTERISTICS
— 2 side handles
— Locking telescopic handle, extendable to a maximum of 990 mm
— 4 self-lubricating rolls
— Front valve closures (2 for 13217; 4 for 13217 IP67)
— Built-in locking device for the drawers
— Cover and front flap, removable
— Each flap can be locked separately with a padlock
High & low temp Corrosion-
proof
Flight safe Shockproof Water resistant Wheels
Figure 3: Seal on opened cover
Figure 5: Two stacked tool trolleys
Figure 1: Trolley with front door cover open to 180°
Figure 2: View of the front metal clamps
with the cover closed
Figure 4: Seal on opened front cover

6
7
76
EQUIPMENT FEATURES
Side handles
Two folding side handles allow the tool trolley to be carried by two
people.
Automatic venting valve
The tool trolley has an
automatic pressure relief valve
(only for the IP 67 version).
Main and front cover locks
The tool trolley is equipped with four clamp-free top cover closures
(two for non-IP67 versions) with easy opening mechanism and four
front main door closures. (Two for non-IP 67 versions)
Self-stop system
All drawers are fitted with a self-stop to prevent accidental opening.
Nameplate that can be
written on
The tool trolley has a water-
proof and removable PVC ID
label. This is where a name tag
can be inserted.
Figure 9: Writable nameplateFigure 7: Cover locks Figure 10: Automatic pressure relief valve
INTENDED USE, SCOPE OF APPLICATION
All instructions in the operating instructions must be followed
to ensure proper use. Any other use is considered improper use.
STAHLWILLE Eduard Wille GMBH & CO. shall not be liable for any
damage resulting from such use.
The tool trolley 13217 IP67 has protection class IP67 and is
virtually maintenance-free. Available spare parts are listed in the
associated spare parts list.
The tool trolleys 13217 and 13217 IP67 are designed exclusively
for the transport and storage of tools.
— No modifications (e.g. installation or modification of the tool
trolley) may be made to the tool trolley without the
manufacturer’s approval.
— Any damaged parts on the tool trolley should be replaced
immediately with original spare parts from the included spare
parts list.
— Only original spare parts and wear parts should be used.
— The built-in extendable trolley handle should only be used to pull
the trolley behind you over flat surfaces. To do this, press the
unlock button on the handle and pull the handle to the desired
height until the push buttons audibly click into place. There are
three dierent height settings.
— There are two fold-out handles on the sides for carrying the
trolley. Due to the high weight, loaded tool trolleys should only be
carried by 2 people. Avoid falls from greater heights, especially
with the telescopic handle extended or the folded handles folded
out. To avoid injuries from dropping, always wear safety shoes
when using the trolley.
— The maximum load is 36.5 kg. The maximum total weight is 50 kg.
— The 30 mm high drawer can be loaded to a maximum of 5 kg.
— The 60 and 95 mm high drawers can be loaded to a maximum of
15 kg.
Figure 11: Trolley with retracted integrated trolley handle
Figure 6: Tool trolley with folded out side handles Figure 8: Self-stop drawer system
Do not lift the trolley o the ground using
the extendable handle
DO
NOT

9
BASIC SAFETY INSTRUCTIONS
DISPOSAL
Injury hazard due to crushing
When closing the front and cover flaps, care must be taken to
ensure that no extremities are located between the frame and the
cover edge.
Dispose of the tool trolley 13217 through an approved disposal
company. Observe and follow the applicable regulations. If you are
in doubt, contact your city or local authority.
CLEANING / CARE / MAINTENANCE
Carry out cleaning and maintenance work as necessary according
to the following operating rules:
— Do not use compressed air to clean the trolley.
Dirt penetration damages seals.
— Clean the plastic parts of the trolley with a cloth soaked in mild
soapy water.
— For detergents, observe and follow the manufacturer's
instructions.
— Prevent soapy water from entering seals.
— Store detergents and lubricants in accordance with applicable
regulations.
— Dispose of detergents and lubricants in accordance with local
regulations.
— Check the trolley periodically for damage and replace defective
components with original spare parts.
8

TROLLEY
13 217
13217 IP
1110

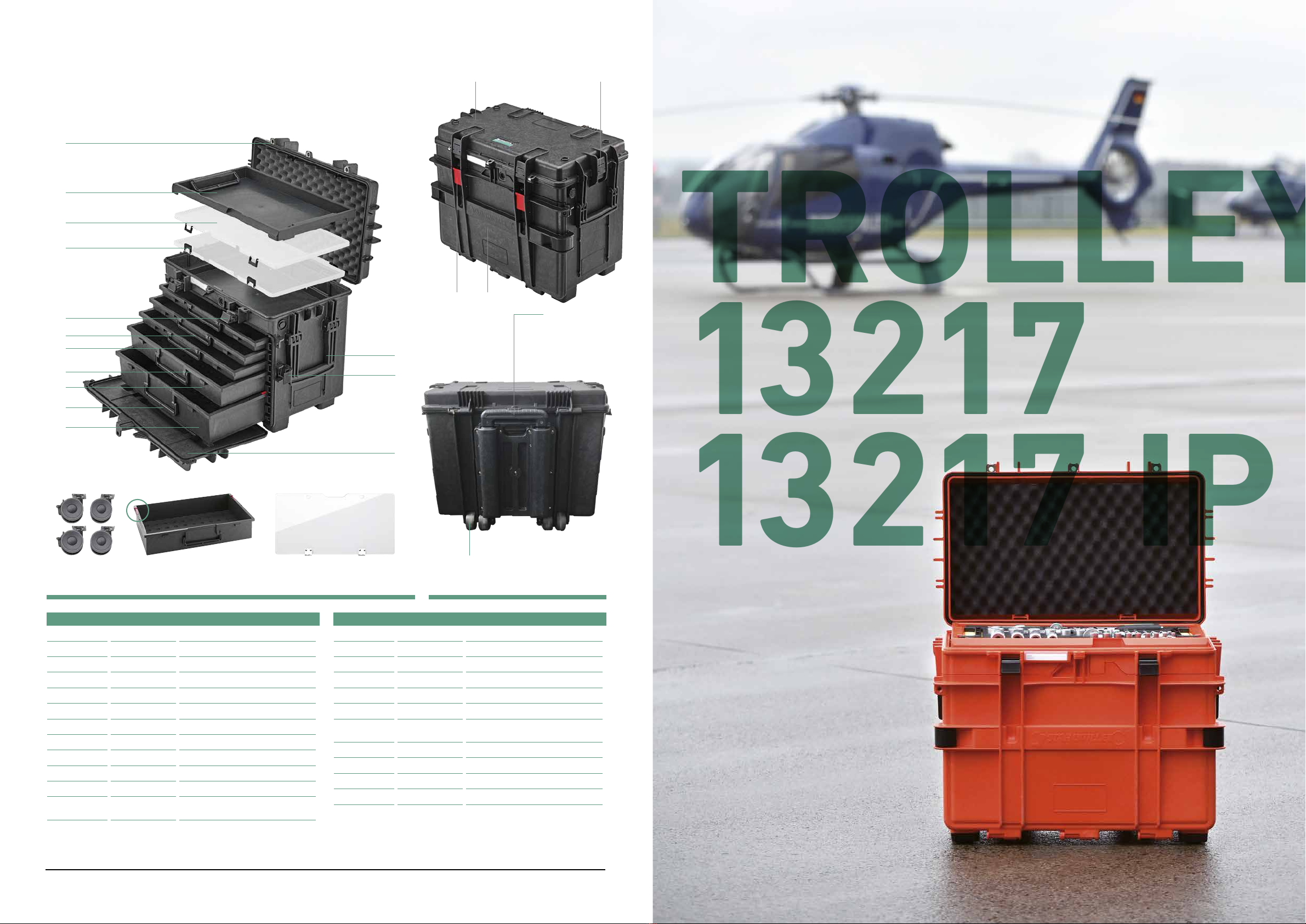

Position no. Code number Item name
1 90432684 13217 Closure red IP67
2 90432685 13217 Side closure
3 90432686 13217 Cover closure
3.1 90432686 13217 Cover closure IP 67
4 90432687 13217 Drawer handle 30 mm
5 90432688 13217 Drawer handle 60 mm
6 90432689 13217 Drawer handle 95 mm
7 90432580 13217 TG Telescopic handle
8 81483230 13217 Drawer 30 mm
9 81483260 13217 Drawer 60 mm
10 81483295 13217 Drawer 95 mm
11 90432645 13217 Spare wheel kit
with 2 wheels
Position no. Code number Item name
12 90432581 13217 SG side grip
13 90432682 13217 IP67 cover
14 90432767 13217 Front cover black
15 90432683 13217 IP67 front cover
16 90432578 Tray for holding cover insert
17 90432579 Transparent drawer cover
18 90432631 Closure for transparent drawer
cover
19 90432633 Metal eyelet
20 96894805 13217 Wheelset
21 90432737 13217 Drawer locking device
22 89010100 13217 Transparent cover
SPARE PARTS LIST FOR TROLLEY
13217 AND 13217 IP67
4
8
2
3
16
17
19
18
7
6
10
12
14
1
13
14 /15
21 2220
5
9
11
3.1

12
