Stairville SF-1500 User manual

SF-1500
fog machine
user manual

Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
31.01.2013

Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 14
5 Starting up.................................................................................................................................................. 15
6 Connections and operating elements........................................................................................... 17
7 Operating.................................................................................................................................................... 23
7.1 Remote control functions............................................................................................................. 25
7.2 Functions in operating mode ‘DMX’......................................................................................... 27
8 Technical specifications....................................................................................................................... 31
9 Troubleshooting...................................................................................................................................... 32
10 Cleaning....................................................................................................................................................... 34
11 Protecting the environment.............................................................................................................. 36
Table of contents
SF-1500
3

1 General notes
This user manual contains important information on safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to other users, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
General notes
fog machine
4

This section provides an overview of the symbols and signal words used in this user manual.
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
WARNING! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in death or serious injury if it is not
avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
Symbols and signal words
General notes
SF-1500
5

Warning signs Type of danger
Warning – high-voltage.
Warning – flammable substances.
Warning – hot surface.
Warning – harmful or irritating substances.
Warning – danger zone.
General notes
fog machine
6

2 Safety instructions
This device is intended to be used to produce artificial fog by vaporising fog fluid. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
SF-1500
7

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric
shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety instructions
fog machine
8

WARNING!
Risk of burns from flammable liquids
The use of flammable liquids in this device may cause severe burns and damage
to property.
Always use approved fog fluids. Never fill flammable liquids into the tank of the
device.
WARNING!
Risk of burns
The generated fog at the fog nozzle is hot and can cause burns. Occasionally hot
fluid drops may escape from the nozzle.
The distance of persons and objects to the fog nozzle must be at least fifty centi‐
metre (1.6 feet).
Do not touch the fog nozzle during and shortly after operation. It becomes very
hot and may cause burns even several hours after switching off the device.
Safety instructions
SF-1500
9

WARNING!
Risk of slipping caused by condensation
Fog machines can produce condensation. Do not direct the fog to floors. Floors
and surfaces can become slippery by condensed fog.
Check at regular intervals whether it is possible to walk on the floors without a
slipping hazard, and, if necessary, remove the condensation.
WARNING!
Health hazard caused by fog fluid handling
Fog fluid does contain glycols complying with the regulations for foodstuffs.
However, it may be harmful if swallowed.
Do not induce vomiting. Seek medical advice immediately. Keep fog fluid in a safe
place. If the fog fluid comes into contact with eyes rinse thoroughly with water.
Safety instructions
fog machine
10

CAUTION!
Possible respiratory problems
The device can be operated safely only with the approved fog fluid. The use of
other fluids can release toxic gases. Claims for damages caused by the use of non-
approved fluids shall be excluded.
Do not create fog in closed or poorly ventilated areas.
Do not expose persons with health problems (such as allergic respiratory condi‐
tions, asthma) to artificial fog.
NOTICE!
Risk of fire
Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.
Safety instructions
SF-1500
11

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
fog machine
12

3 Features
This fog machine is suitable for use in clubs, bars, discotheques, on stages and for fire practise.
Special features of the device:
nControl via DMX (4 channels) or remote control (included)
nSuitable for mobile use
nLarge fog fluid container
Features
SF-1500
13

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the device against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Place the device on a level surface. The device must not be positioned with more than 15° incli‐
nation during operation. The unit requires 20 cm clearance on the sides and above.
Installation
fog machine
14

5 Starting up
Establish all connections as long as the unit is switched off. Use the shortest possible high-
quality cables for all connections.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX output to audio devices such as mixers or amplifiers.
Starting up
SF-1500
15

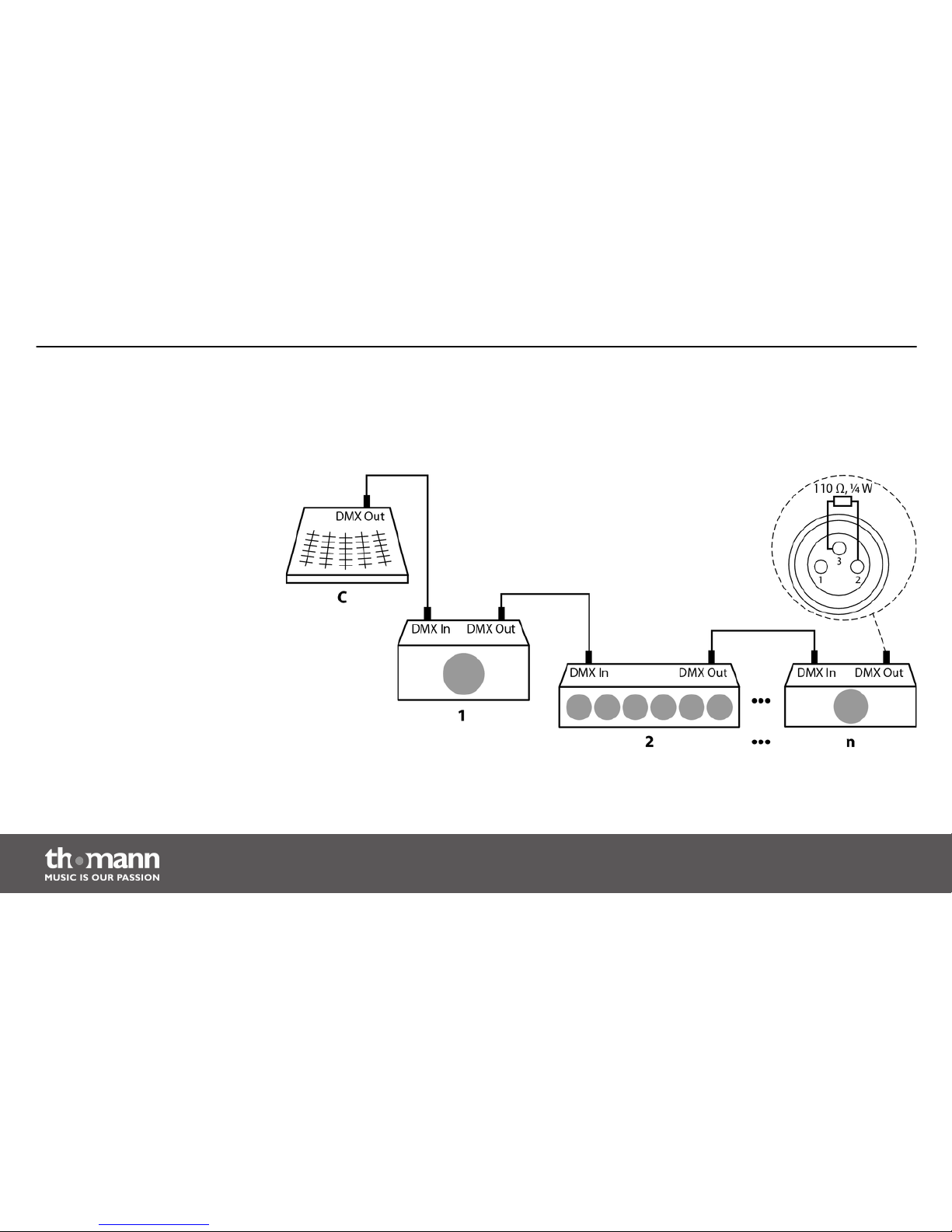

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the first DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
fog machine
16

6 Connections and operating elements
Front panel
Connections and operating elements
SF-1500
17

1 Fog nozzle.
2 Fluid container with screw-cap.
3 Carrying handle.
4 Fog fluid feed line from fluid container to vaporiser.
Connections and operating elements
fog machine
18

Rear panel
Connections and operating elements
SF-1500
19

2 Fluid container with screw-cap.
3 Carrying handle.
4 Fog fluid feed line from fluid container to vaporiser.
5 Connection and storage compartment for the remote control.
6CONTROL OUTPUT
DMX output.
7CONTROL INPUT
DMX input.
8 Main switch to turn the device on or off.
9BACKUP
Resettable fuse.
Connections and operating elements
fog machine
