Stairville WLS-DMX IP65 User manual

WLS-DMX Outdoor
Receiver IP65
receiver
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
15.02.2018, ID: 426813 (V2)

Table of contents
1 General notes............................................................................................................................................... 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 7
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 15
5 Starting up.................................................................................................................................................. 16
6 Connections and controls................................................................................................................... 20
7 Operating.................................................................................................................................................... 22
8 Technical specifications....................................................................................................................... 23
9 Plug and connection assignments.................................................................................................. 24
10 Troubleshooting...................................................................................................................................... 25
11 Protecting the environment.............................................................................................................. 28
Table of contents
WLS-DMX Outdoor Receiver IP65
3

1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
receiver
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General notes
WLS-DMX Outdoor Receiver IP65
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’, ‘OFF’.
Letterings
Displays
General notes
receiver
6

The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch off the device.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Instructions
General notes
WLS-DMX Outdoor Receiver IP65
7

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General notes
receiver
8

2 Safety instructions
This device is intended for the wireless transmission of DMX signals in lighting systems. Use
the device only as described in this user manual. Any other use or use under other operating
conditions is considered to be improper and may result in personal injury or property damage.
No liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
WLS-DMX Outdoor Receiver IP65
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro-
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis-
tered electrician.
Safety instructions
receiver
10

NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
WLS-DMX Outdoor Receiver IP65
11

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
Safety instructions
receiver
12

3 Features
Special features of the device:
nProfessional W-DMX receiver
nWireless signal transmission in frequency range 2,4 GHz (ISM band) without interference
nToll-free operation in the EU and NAFTA countries, no permit required
nOperation via button on the unit
nLED for monitoring the operating status
nLockable input socket (Power Twist IP65) for mains power supply
nSuitable power cable included
nRobust aluminium die-cast housing with various mounting options
nOutdoor operation is possible due to protection class IP65
nPressure equalisation element (prevents the development of condensation inside the
device)
As a suitable transmission unit we recommend item no. 366876.
Features
WLS-DMX Outdoor Receiver IP65
13

Equipment with protection class IP65 are dust-tight and completely protected against contact
(first code number). They are also protected against splash water from any angle (second code
digit). That is why this equipment can also be used outdoors. Event technology equipment is
generally only designed for temporary use however (event lighting) and not for permanent
use outdoors.
The specified protection class does not make a statement about the weather resistance of the
equipment (resistance to changing ambient conditions as well as against the effects of sun-
light and UV rays).
The seals and screw connections of the equipment must be checked regularly to ensure a
fault-free operation. In cases of doubt, consult a specialist workshop in due time.
Information about protection
class IP65
Features
receiver
14

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi-
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli-
fiers.
Installation
WLS-DMX Outdoor Receiver IP65
15

5 Starting up
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Starting up
receiver
16

Connect a compatible transmitter to the DMX output of your DMX controller and a receiver to
the DMX input of the first DMX device in the DMX chain that is to be controlled. In this point-
to-point configuration the DMX signal from one transmitter is sent to one receiver.
Point-to-point connection
Starting up
WLS-DMX Outdoor Receiver IP65
17

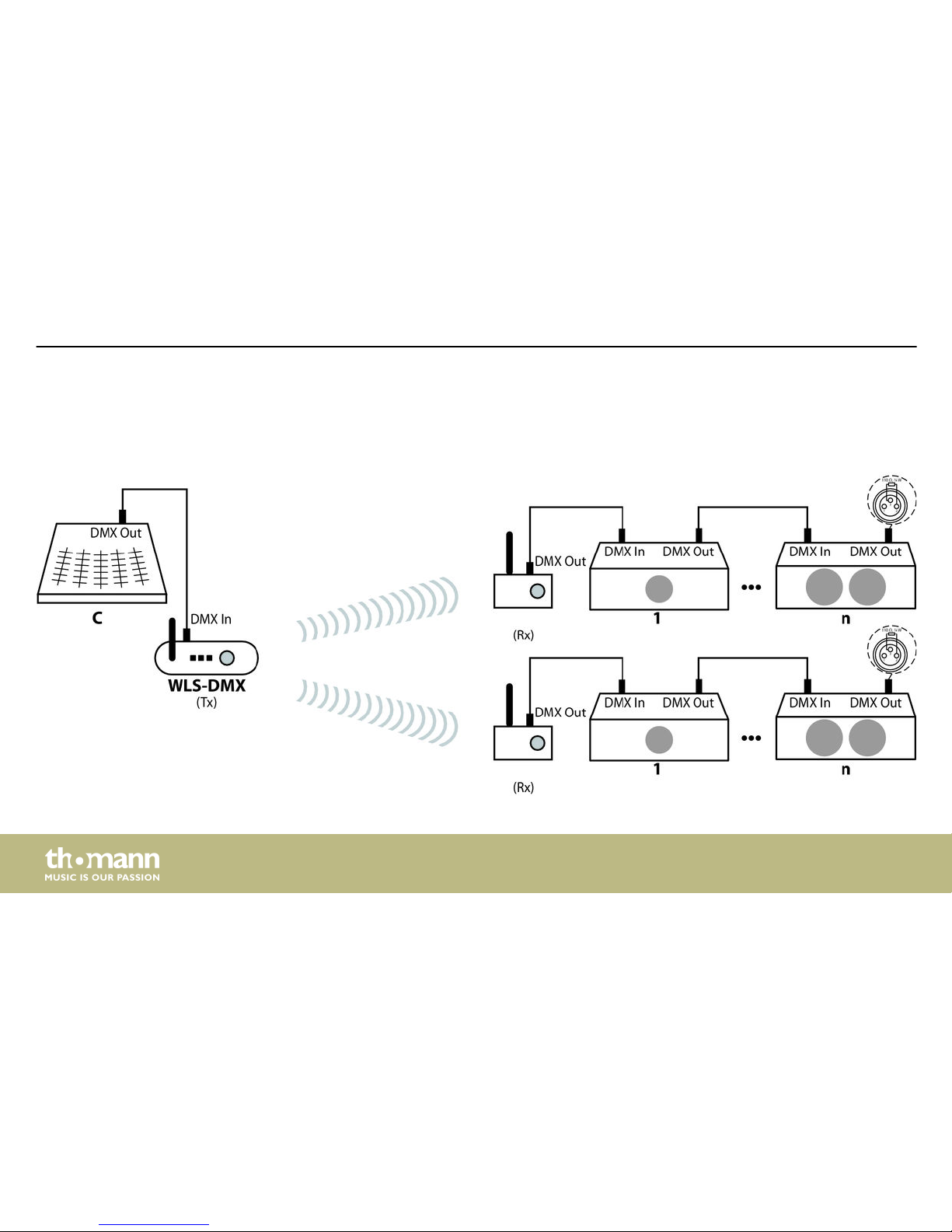

Connect a compatible transmitter to the DMX output of your DMX controller and a receiver to
the DMX input of each first DMX device in the DMX chains that are to be controlled. In this
point-to-multipoint configuration the DMX signal from one transmitter is sent to several
receivers. Transmitter and all receivers must be set to the same frequency range.
Point-to-multipoint connection
Starting up
receiver
18

Connect the output of the first DMX device to the input of the second one and so on, to form a
series connection. Make sure that the output of the last DMX device in the chain is terminated
by a resistor (110 Ω, ¼W).
DMX chain
Starting up
WLS-DMX Outdoor Receiver IP65
19

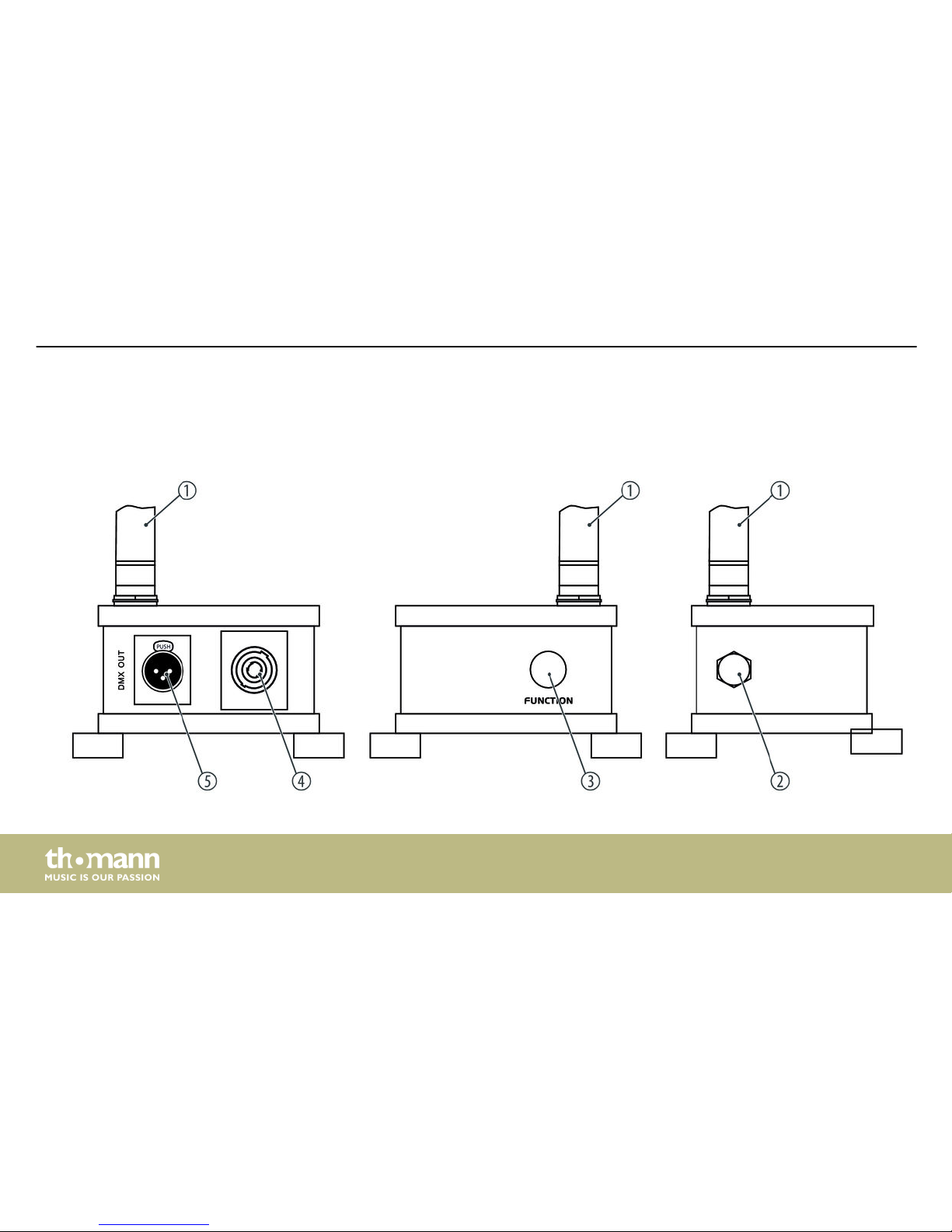

6 Connections and controls
Front panel
Connections and controls
receiver
20
