Star Manufacturing Star 530TF User manual

STAR HOLDINGS INTERNATIONAL INC.
10 Sunnen Dr., St. Louis, MO 63143
telephone: [phone]
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your dealer if you have any questions
concerning installation, operation or maintenance of this equipment.
OWNERS MANUAL
30lb COUNTERTOP
ELECTRIC FRYER
MODELS
Wells Star
F30 530TF
Includes
INSTALLATION
USE & CARE
EXPLODED VIEW
PARTS LIST
WIRING DIAGRAM
p/n 2M-Z21032 Rev. - 160114
IL3102

2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star Holdings reserves the right to change speci cations and product design
without notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the speci cations contained in this sheet are subject to change
without notice. While Star International Holdings Inc., exercises good faith
efforts to provide information that is accurate, we are not responsible for errors or
omissions in information provided or conclusions reached as a result of using the
speci cations. By using the information provided, the user assumes all risks in
connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it
ready when you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Star Website: www.star-mfg.com
Wells Website: www.wellsbloom eld.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc.,
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
xi
MAINTENANCE & REPAIR

2M-Z21032 Owners Manual for Countertop 30LB Electronic Fryer
1
MAINTENANCE & REPAIR xi
SPECIFICATIONS 1
FEATURES & OPERATING CONTROLS 2
PRECAUTIONS & GENERAL INFORMATION 3
INSTALLATION 4
OPERATION 5, 6
CAUTIONS FOR ALL DEEP FAT FRYERS 7
CARE OF FAT 8
HANDY FRYING CHART 9
WARRANTY 10
WIRING DIAGRAM 11

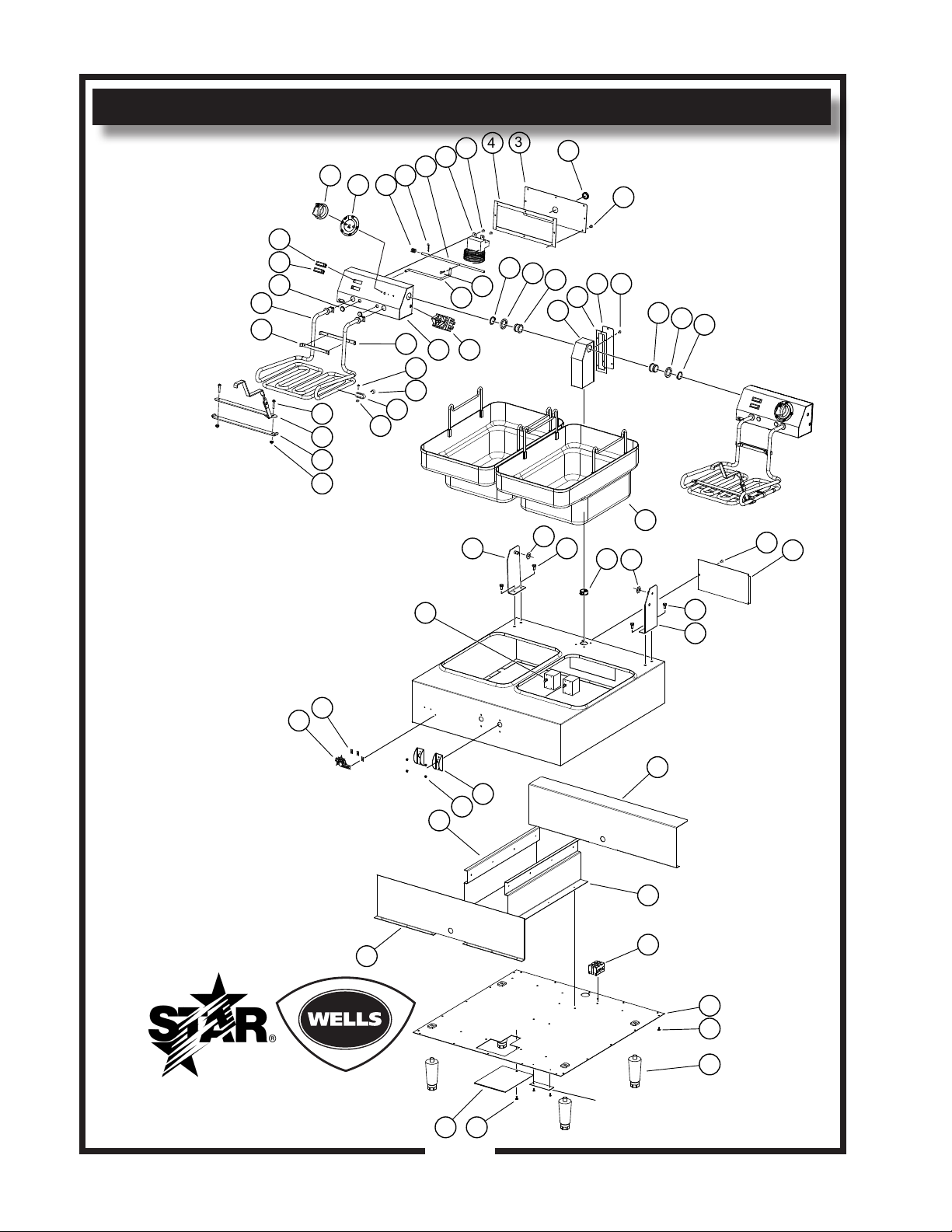

EXPLODED VIEW & PARTS LIST 12- 14
Proper installation, professional operation and consistent maintenance of this appliance will ensure that
it gives you the very best performance and a long, economical service life.
This manual contains the information needed to properly install this appliance, and to use and care for
the appliance in a manner which will ensure its optimum performance.
TABLE OF CONTENTS
SPECIFICATIONS
INTRODUCTION
12” (30.4 CM)
24”
(60.9 CM)
24”
(60.9 CM)
21 7/16”
(54.4 CM) 4”
(10.1 CM)
1 1/4” (3.1 CM)
5” (12.7 CM)
6”
(15.2 CM)
16 3/4”
(42.5 CM)
CENTERLINE OF
CONDUIT CONNECTION
CENTERLINE OF
CONDUIT CONNECTION
ELEMENT HANDEL
SWINGS DOWN FOR
EXTRA CLEARANCE 36 11/32”
(97.3 CM) ref.
IL3103
16” (40.6 CM)
STAR WELLS Voltage kW Amps Dimensions Weight
Width Depth Height Installed Shipping
530TF F30 208V 8,638 41.5 24” 24” 16.75” 69 lbs
(31.3 kg
81 lbs
(36.7 kg)
240V 11,500 47.5

2M-Z21032 Owners Manual for Countertop 30LB Electronic Fryer
2
FEATURES & OPERATING CONTROLS
4” Adjustable Feet
Nameplate
On / Off
Switch
Twin 15lb Kettles
Fryer Head
Locking Pin
Fryer Head
Lifting Handle
Element
Power & Heating Indicators
Fryer Head Latch
Basket
Hanging Brackets
Temperature
Adjustment
(not shown, on back)
Hi- Limit
IL3101
Fig. 1 Countertop Electric Fryer (shown with the fryer head in the up position)

2M-Z21032 Owners Manual for Countertop 30LB Electronic Fryer
3
This equipment is designed and sold for commercial use only by personnel
trained and experienced in its operation and is not sold for consumer use
in and around the home nor for use directly by the general public in food
service locations.
Before using your new equipment, read and understand all the instructions
& labels associated with the unit prior to putting it into operation. Make
sure all people associated with its use understand the units operation &
safety before they use the unit.
All shipping containers should be checked for freight damage both visible
and concealed. This unit has been tested and carefully packaged to
insure delivery of your unit in perfect condition. If equipment is received in
damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after
equipment is unpacked, a request for inspection of concealed damage
must be made with carrier within 15 days. Be certain to retain all contents
plus external and internal packaging materials for inspection. The carrier
will make an inspection and will supply necessary claim forms.
Cleanliness of this appliance is essential to good sanitation. Read and
follow all included cleaning instructions and schedules to ensure the safety
of the food product.
Disconnect this appliance from electrical power before performing any
maintenance or servicing.
DO NOT submerge this appliance in water. This appliance is not jet
stream approved. DO NOT direct water jet or steam jet at this appliance,
or at any control panel or wiring. DO NOT splash or pour water on, in or
over any controls, control panel or wiring.
Exposed surfaces of this appliance can be hot to the touch and may cause
burns.
The technical content of this manual, including any wiring diagrams,
schematics, parts breakdown illustrations and/or adjustment procedures,
is intended for use by qualied technical personnel. Any procedure which
requires the use of tools must be performed by a qualied technician.
This manual is considered to be a permanent part of the appliance.
This manual and all supplied instructions, diagrams, schematics, parts
breakdown illustrations, notices and labels must remain with the appliance
if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this
appliance has American sizes on all hardware.
PRECAUTIONS AND GENERAL INFORMATION
CAUTION:
RISK OF
DAMAGE
DO NOT connect or energize
this appliance until all
installation instructions are
read and followed. Damage
to the appliance will result if
these instructions are not
followed.
CAUTION:
HOT SURFACE
Exposed surfaces can be hot
to the touch and may cause
burns.
DANGER: BURN HAZARD
Contact with cooking grid surface will cause severe burns. Use the handle to lift the
grid. Avoid contact with grid surfaces.
WARNING: ELECTRIC SHOCK HAZARD
All servicing requiring access to non-insulated components must be performed by
qualied service personnel. DO NOT open any access panel that requires the use
of tools. Failure to heed this warning may result in severe electric shock.
