SB-WH3193-52 Assembly Instructions
Model：SB-WH3193-52
●Load capacity: 80KG
●For safe use, please read this booklet carefully before assembling.
●This product is suitable for 55-86 inch displays.
●Be careful of the cutting edge when using the cutter.

●Components
A-PC Shelf Board 1pc
B-Hanging Bracket 1pc
C-Pedestal 1pc
D-Stand Prop 1pc
F-Angle adjustment 2pcs
G-Shelf support (Left) 1pc
E-Handle 1pc
H-Shelf support (Right)1pc
M8×80 4pcs
M8×20 20pcs
8pcs
8pcs
∅18×∅10.5×1.2 8pcs
M6×8 12pcs
4pcs
1pc
1
1pc
J-Lever 1pc
I-Display Bracket 2pcs
With long screw (M6 x 120 mm)
1pc
●Assembly Tools
①Hexagon Plus Bolt
②Hexagon Plus Bolt
③Hexagon Plus Bolt
④M10 Flat Washer
⑤ M10 Spring Washer M10×∅10.5×2.5
M10×10
4mm×56
⑥M10 Fall Prevention Nut
⑦Caster with Φ100mm Stopper
⑧Hex Wrench
⑨Wrench (not included)
⑩Plus Screwdriver (not included)

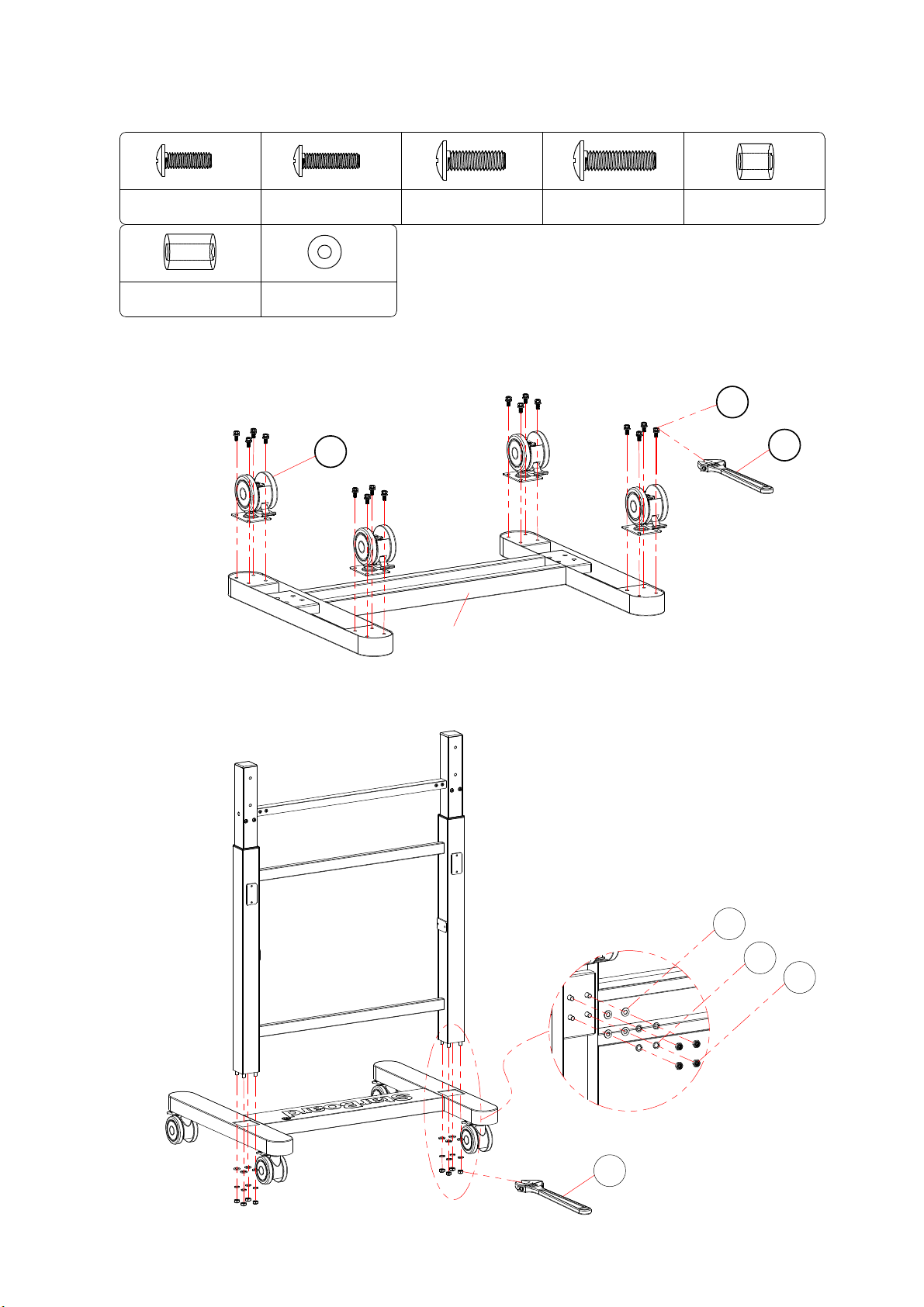

Step 1: Temporarily fix the Φ100mm caster ⑦ to the pedestal C with the
16 pieces of ②, and fasten the screw after adjustment.
2
Step 2: Temporarily fix the stand support D to the pedestal C in the
order of ④ → ⑤ → ⑥, and fasten it after adjustment.
2
C
79
•Display selection general-purpose parts (Please use other if the
screws do not fit.)
b--M6X30 Cross pan
screw 4pcs
g--∅20 × ∅8.5 × 1.5
M8 flat washer 10pcs
a--M6X20 Cross pan
screw 4pcs
e--∅18 × ∅8.5 × 5
Resin washer 4pcs
c--M8X20 Cross pan
screw 4pcs
d--M8X30 Cross pan
screw 4pcs
f--∅18 × ∅8.5 × 10
Resin washer 4pcs
4
56
9

Step 3: Attach the angle adjustment unit F to the stand support D,
temporarily fix it with ①, and fasten it after adjustment.
Step 4: Temporarily fix the monitor hanging bracket B to the angle
adjustment unit F with ②, and fasten it after adjustment.
3
F
19
2
B
9

4
Step 5: Temporarily attach the left and right shelf support brackets
GH to the stand support D.
Step 6: Temporarily fix the PC shelf board A to the left and right shelf
support brackets GH with the four pieces of ③, adjust with the parts
temporarily fixed in step 5, and then fasten everything.

Step 7: Temporarily fix the handle E to the stand support D with the four
③, and fasten it after adjustment.
5
Step 8: Attach the display bracket I to the base hole. After attaching
the display to the hanging bracket B, firmly fix the long screw for fall
prevention.
I
I
a/c
g
b/d
e
b/d
f

6
Step 9: Insert the lever J as shown in the figure and adjust the height.
10
360°
J

●Assembled Stand drawing
7
