Starburst Technologies SB-SDQM-2130 User manual

Starburst®Technologies Customer Support •1-800-242-1606 ext. 274
2x SD Encoder –Modulator
SB-SDQM-2130
INSTRUCTION MANUAL
The content and design of this document is the intellectual property of PDi Communications, Inc. and is protected
under copyright law. Any duplication of this material without written consent of an authorized officer of this company
will be litigated to the fullest extent of the law.

INTRODUCTION
Thank you for buying the SDM-2130 MPEG-2 SD Encoder
Modulator Combo. Please read this manual carefully to
install, use and maintain the modulator in the best
conditions of performance. Keep the manual at hand for
future reference.
General description
Main features
◆
2U design
◆
Quick Boot-up
◆Covers frequency range from 54 to 860MHz
◆
Local control via friendly front button Control Panel
◆
Remote control via supplied utility
SAFETY INSTRUCTION
All the safety and operating instructions should be read
before the product is operated. For safety purpose all
instructions are adhered to.
Cleaning
Unplug the unit from the rack before cleaning. Do not use
liquid or aerosol cleaners, use adamp cloth.
Attachments
Do not use attachment that are not recommended by
manufacturer as they can cause hazards.
Water and moisture
Do not use this product near water.
Mounting
Ensure the unit is rack mounted securely on the wall or in the
19’’ cabinet as not to cause harm to anyone or to damage
the product by being dislodged.
Power cord protection
Power-supply cords should be routed so they are not
pinched or placed where they could cause atrip hazard.
Ventilation
Slots and openings in the housing are provided for ventilation to
prevent overheating and ensure reliable operation.These openings
should never be blocked or covered by placing the unit on acarpet,
flooring, furniture or fabric surface. The unit should not be placed in
abuilt-in structure such as acupboard or rack unless proper
ventilation is provided.
Power source
This unit should only be operated from the type of power
source indicated in the technical specification (page 3of this manual).
Lightning
For added protection of this unit; unplug it from the wall
when left unattended or unused for long periods of time and
disconnect the cable system. This will protect the product
from lightning strike or power surges
Object and liquid entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-our part that could result in afire or electric shock.
Never spill liquid of any kind on the unit.
Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service person-
nel.
Damage requiring service
Unplug this unit from the wall or the cabinet and return it to
the qualified service personnel for sevicing if any of the
following occurs:
-The power supply cord or plug is damaged.
-Liquid has been spilled, or objects have fallen into the unit.
-The unit has been exposed to rain or water.
-If the unit has been dropped or damaged in anyway.
Heat
The unit should be positioned away from any heat source such as
radiators, fireplaces, cooking stoves, or other products (including
amplifiers) that produce heat.

Starburst®Technologies Customer Support •1-800-242-1606 ext. 274
SPECIFICATIONS
VIDEO
RF OUTPUT
Input format:
(CVBS) Audio/Video
Channel range:
CH2-CH134 STD channel plan
Frequency range:
54-860 MHz
Output level:
+15dBmV to +30dBmV
QAM mode:
ITU-T J.83, Annex B 64, 256QAM
MER:
38dB minimum
Output impedance: 75
AUDIO
CONTROL
Port number:
1 & 2
Local operation:
Figure 8 number LED, Buttons
Input format:
Stereo (L/R) (10K
Remote operation:
Web browser
STREAM
GENERAL
TS Mux:
Mux 2×Video & 2×Audio transport stream
Dimensions:
68×50×250 mm
PSIP:
MGT/CVCT/STT
Weight
0.8 kg
Closed Caption: EIA-608
Power source:
DC 12V@440mA / DC 5V@920mA
PWR. consumption: 10W
OPERATION
Manual Operation- Via Push Button and LED Display

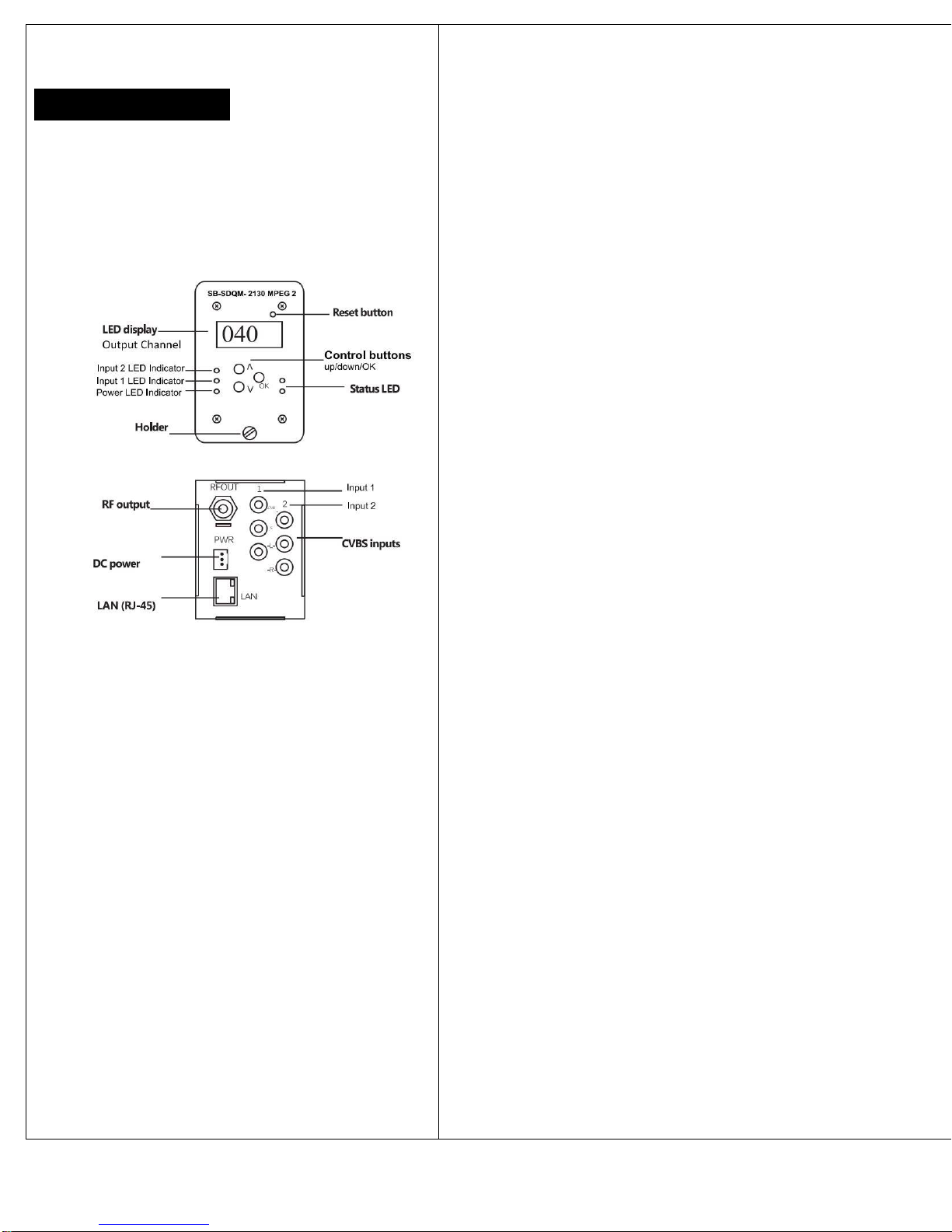

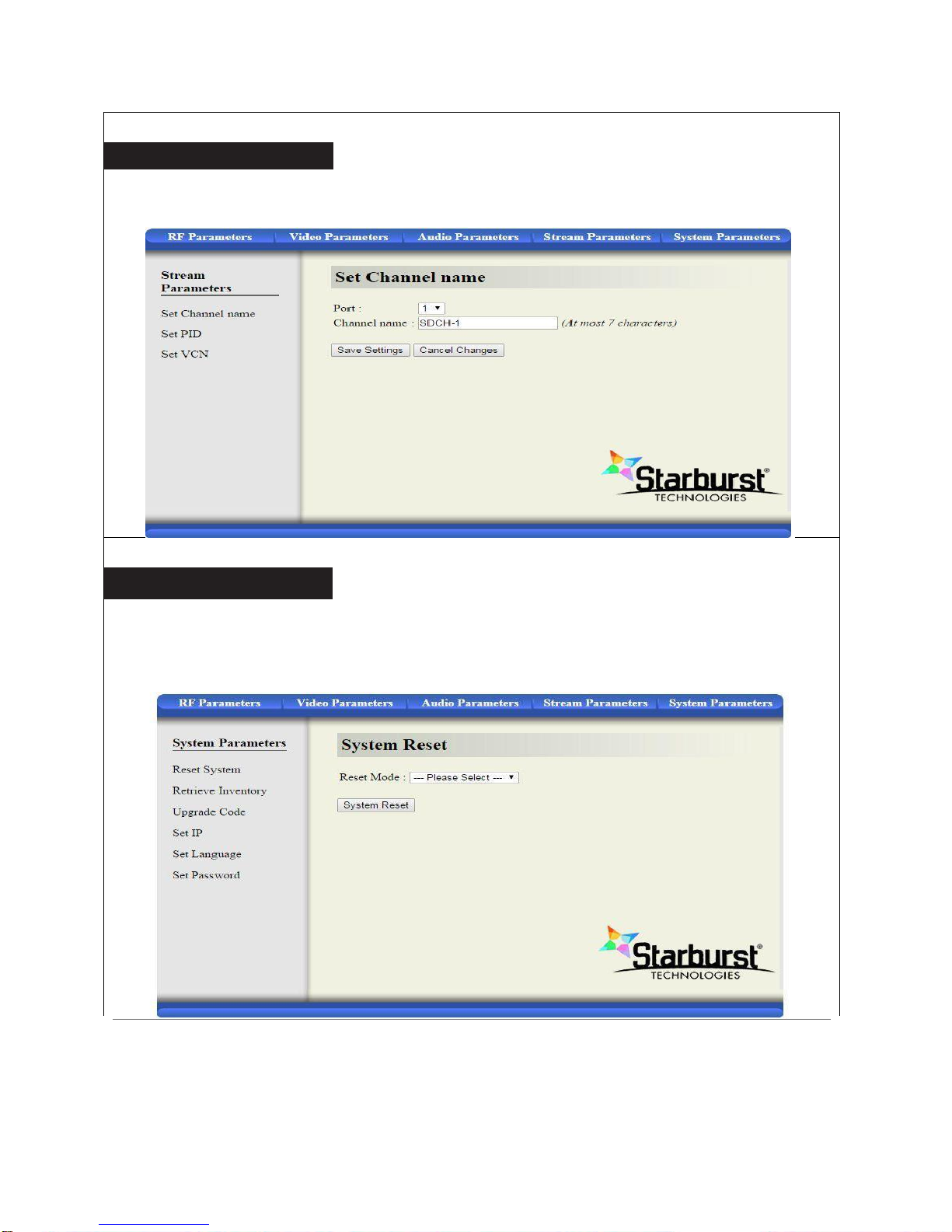

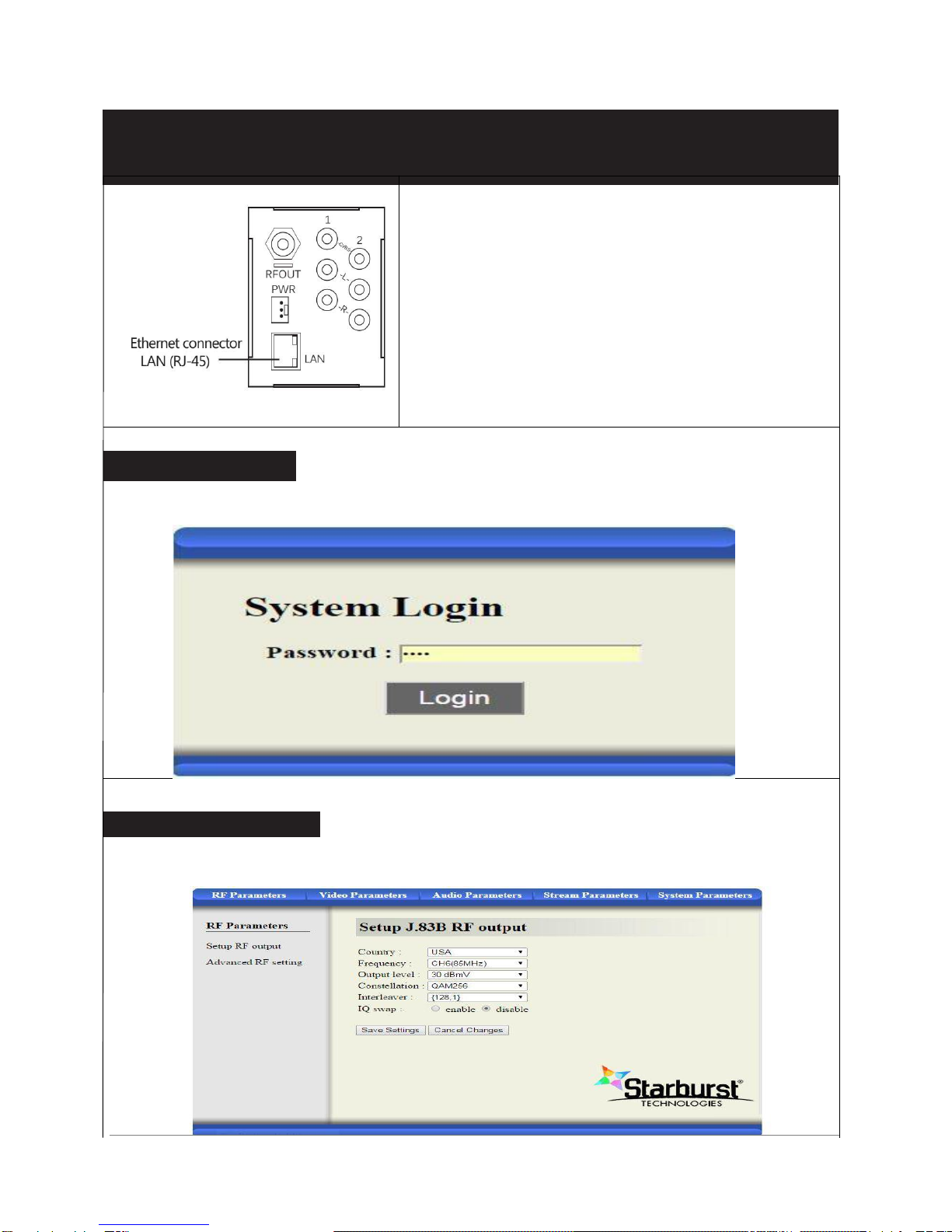

Web Interface/ Remote Operation –Via LAN Port
Manual Operation
To enter the Menu in manual mode, use this sequence of key strokes:
Key strokes = Press UP arrow, DOWN arrow, and OK. Do this two times!
OUP should appear
To navigate through the menus refer to System LED Function Outline
along with the Navigational Flowchart.

Starburst®Technologies Customer Support •1-800-242-1606 ext. 274
SYSTEM LED FUNCTION OUTLINE
OUP
Press the OK button on OUP to enter the ‘Output’ mode.
CHA
Press the OK button to access channel adjustment mode. Use the UP or DOWN buttons to set
the channel number. Press OK button to save the channel assigned.
(CH2-CH134).
OUL
Use the same steps as above to set the Frequency Output Level (+15dBmV-+30dBmV).
COM
Use the same steps as above to set the Constellation (ITU-T J.83, QAM256).
N / Y
Press the UP or DOWN buttons to select YES or NO.
Select ‘y’ for yes, all changes made will be stored in the memory. Select ‘n’ for no to cancel.
IPA
Following the flow charts to enter the ‘IPA’ IP address mode.
IP1
Press OK to enter IP adjustment mode. Use the UP or DOWN buttons to set the first number of IP1.
Press the DOWN button to advance to the next digit and UP and
DOWN button to set (0-999). Press the OK button to save.
IP2
Use the same steps as above to set the IP2 numbers. (0-999)
IP3
Use the same steps as above to set the IP3 numbers. (0-999)
IP4
Use the same steps as above to set the IP4 numbers. (0-999)
IPA
When all the sections in ‘IPA’ completed Press the UP or DOWN Button to select YES or NO.
Y/S
Select ‘y’ for yes, all the settings above will be stored in the memory.
Select ‘n’ for no to cancel.
ESC
Press the OK button to exit to system home screen interface.

Starburst®Technologies Customer Support •1-800-242-1606 ext. 274

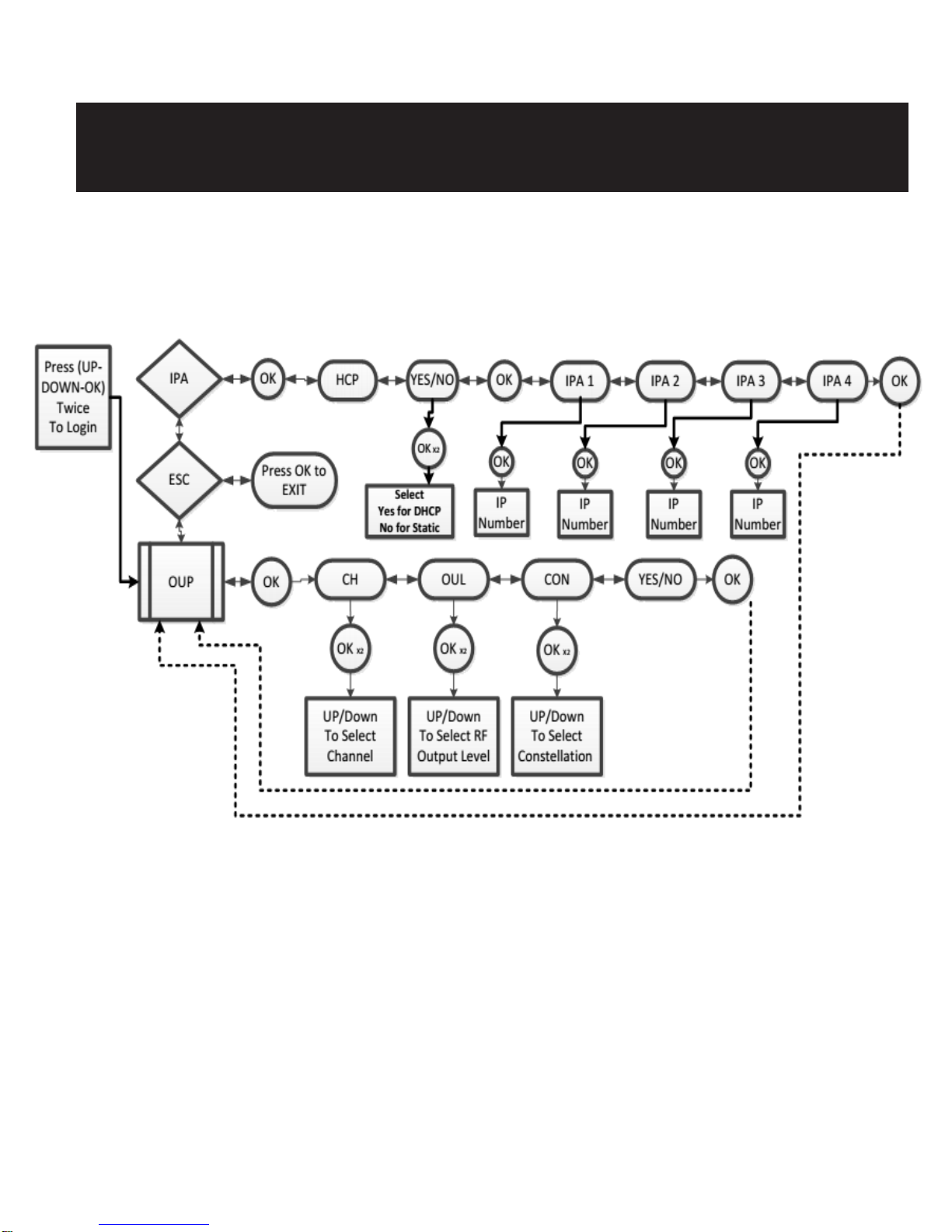

NAVIGATIONAL FLOWCHART
