Starline A63 ECO User manual

Thank you for your choice
StarLine security-telematic complex
and wish you safe travels!
The information presented in this manual,
refers to car alarms StarLine A63 eco, А63, A93 eco,
A93, A93 GSM, А93 2CAN+2LIN
Software GK74-Р3
Federal StarLine Technical Support. Free call
Russia
8-800-333-80-30
Belarus
8-10-8000-333-80-30
Kazakhstan
8-800-070-80-30
Ukraine
0-800-502-308
Edition №5
March 2017 г.

StarLine A93, StarLine A63
2
Please read carefully!
Before embarked on the exploitation the car alarm, read this manual
carefully, pay attention to all sections marked with , and decide if
this car alarm is the right for your car, for which follow the requirements
of the car’s manufacturer and car’s service manual.
If you couldn’t identify if this car alarm the right to be installed on the
car, return it to the seller within 14 days from the date of purchase.
Car alarm is a complex technical device, involving the connection to
the vehicle’s circuits related to the engine.
Installation should be performed only by specially trained qualied
specialists.
It is forbidden to carry out installation, programming, maintenance,
repair and disassembly-assembly of the car alarm and remote controls
from persons who are not qualied and not trained and tested
knowledge on safety.
In programming car’s alarm parameters, tted parameters must not
contradict requirements of the service manual of the car.
The user is fully responsible for damage caused to persons, animals
or property as a result of the use of the car alarm for its unintended
purpose or in violation of the safety requirements set out in this
manual.
The manufacturer is not responsible for losses or accidents caused by
failure to follow safety rules and requirements set out in this manual.

User’s manual
3
In order to avoid possible misunderstandings, please keep documents
attached to the car alarm in the sale. Check the lling in the warranty
card, including availability of the date of the sale and stamp of the seller.
In the absence of the date of the sale (purchase) the warranty period
starts since the date of manufacture of the car alarm.
Do not take remote control from your car alarm, with same bunch of
keys. Don’t place car alarm remote controls in places accessible to
children and animals. Don’t allow liquid on the remote control.
If the display icon warning of the low battery of the remote control ,
please, in advance take steps to replace the battery.
Recommended to keep a spare battery in the vehicle while maintaining
in its original packaging.
Compulsory security measures when using remote start
engine
It is necessary to remember that the car is a source of danger. Section
12.8. the rules of the road states: «Driver may leave his place or leave
the vehicle if it had taken the necessary measures to avoid inadvertent
movement of the vehicle or use it in the absence of the driver.»

StarLine A93, StarLine A63
4
Before embarked on the exploitation the car alarm, carefully read the
precautions of the safe use of remote or automatic engine starting
set out below:
1. Always park out the car on an open, well-ventilated site;
2. Always set the parking brake, that must be presented in good
mechanical condition and rule out the possibility of vehicle move-
ment;
3. Leaving the car, always secure the control lever of the automatic
transmission to «PARK» and the shift lever manual transmission in
a neutral position;
4. If your vehicle has a manual transmission, before you enable re-
mote or automatic start engine be sure to follow the procedure for
the preparation to start engine «Software neutral»;
5. Never give remote controls manage of the car alarm to children,
and other persons without their preliminary familiarization with
the service manual;
6. Before you enable remote or automatic engine start:
- make sure good mechanical condition of the car,
- make sure you have enough fuel, oil, coolant, etc.,
- set the required operating parameters for the heater (air condition-
ing), windows heating and other accessories,
- install the salon’s defog flow control in position «Air circulation», al-
lowing you to more effectively heat or cool the air in the car.

User’s manual
5
Mandatory safety measures during charging car’s battery
Remember that any process of battery charge associated with the
supply on the battery and, accordingly, in the onboard network of
the vehicle electrical voltage greater than the nominal 12V, which will
damage the equipment of the vehicle and equipment additionally
installed on your car.
Do not use the charging and starting-charging devices for charging the
battery directly on the car without disconnecting the battery terminals
from the onboard network in the following modes:
- fast charging high amperage (modes «boost» or similar);
- dierent modes of START which intended to start the engine;
- in the charge mode 24V batteries.
Do not use starting-charging devices for engine start, connected
battery or with connected defective batteries (short circuit in banks, the
destruction of plates etc.)
Never use damaged charger devices, 24V battery charges and devices
which not intended for charging battery, for example, welding inverters.
All of the above devices and modes can cause an uncontrolled ow
of high voltage more than 25V and up to 60V on the car’s onboard
network and result in electronic components of the car alarm and car
equipments to failure.
It is not recommended to use the «jump-starting» mode for charging
the battery. Even the described «safe» ways for jump-starting is only
secure to the car «donor».

StarLine A93, StarLine A63
6
Connection and disconnection completely discharged or faulty battery
on your car while engine is running can destroy electronic devices of
your car and car alarm due short circuit or surge overvoltage occurring
when connecting/disconnecting the battery.
In the case of using the above devices and modes, the responsibility for
damage the electronic equipments rests with the car’s owner.
Keep the safe charging battery technology
Before charging the battery terminal must be disconnected from the
onboard network of the car. After that you can start the process of
charging the battery. After charging, connect the battery to an onboard
network of the car.
This need has been reasoned that without measuring devices you
can’t determine the serviceability, battery status, and the reason
for its discharge (availability of internal short circuits or breaks). Any
charger device connection to the unserviceable battery causes the risk
of damage the car’s electronic equipments and car alarm with a high
voltage.

User’s manual
7
The contents
Technical specication ......................................................................................10
Security and service functions of car alarm................................................ 11
How to control car alarm

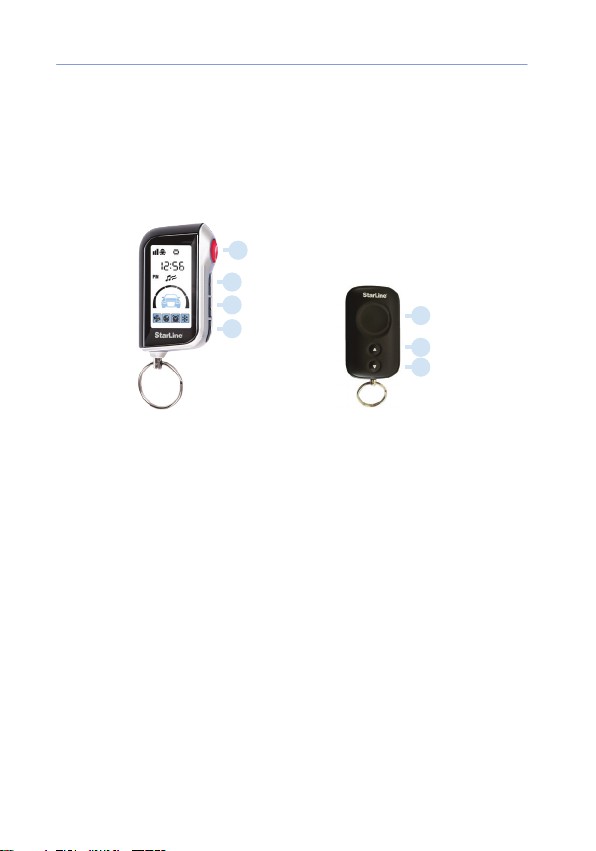

Car alarm remote controls ............................................................................................ 14
Duration of buttons pressing of remote controls ................................................. 14
Remote control commands .......................................................................................... 16

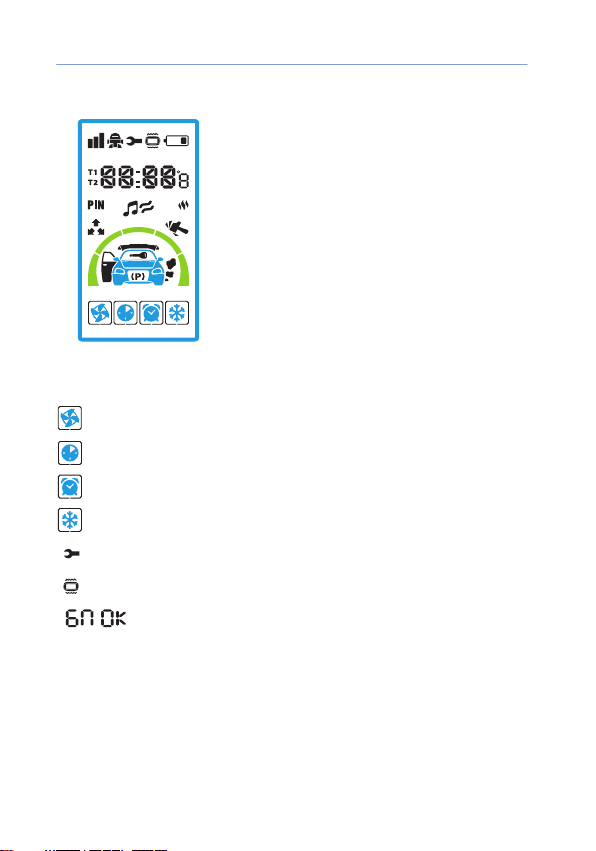

LCD display ......................................................................................................................... 20
Active modes and functions ........................................................................................ 20
Car alarm status indication ........................................................................................... 21
LCD remote main functions menu ............................................................................. 22
Working modes setting by cursor method ............................................................. 26
List of modes, possible to set by cursor method .................................................. 28
Security functions
ARM with sound conrmation ..................................................................................... 29
ARM without sound conrmation .............................................................................. 30
Silent arm mode ............................................................................................................... 31
Passive arming .................................................................................................................. 32
ARM mode with engine running ................................................................................ 33
Remote engine shut down with keeping ARM mode ................................................... 35
ARM without remote control .......................................................................................... 36
Auto rearming ................................................................................................................... 37
Auto door bypass sensors activation delay ............................................................ 37
Self-diagnostic during arming .................................................................................... 38
DISARM with audio conrmation signals ................................................................ 39
DISARM without audio conrmation signals ......................................................... 40
Two-step unlock engine ................................................................................................ 41
Disarm without remote control .................................................................................. 42
Disarm with engine running ........................................................................................ 43
Self-diagnostic during disarming ............................................................................... 44
Alarm signals interrupted without disarming ....................................................... 45
Alarm signals ..................................................................................................................... 46
LCD display of alarm reasons ....................................................................................... 48
Protection against power disconnection ................................................................ 49
Additional wireless lock radio relays StarLine R2 ................................................ 49
Additional code relays StarLine R3 and StarLine R4 ........................................... 50
Connection of GSM modules ....................................................................................... 50
Anti-hijack mode ............................................................................................................. 50

StarLine A93, StarLine A63
8
Activation of anti-hijack mode by remote ............................................................. 51
How to switch anti-hijack o ...................................................................................... 53
PANIC function ................................................................................................................. 54
Service functions
Car status check, car battery voltage,
passenger compartment and engine temperatures ........................................... 55
Automatic door lock control ........................................................................................ 56
Car nder ........................................................................................................................... 57
Temporarily shock sensor bypass .............................................................................. 58
Temporarily tilt sensor bypass ..................................................................................... 59
Tilt sensor sensitivity adjustment .............................................................................. 60
Shock sensor sensitivity adjustment ......................................................................... 61
Additional CH 1 control ................................................................................................ 63
Additional CH 2 control ................................................................................................. 65
Additional CH 3 control ................................................................................................. 67
Additional CH 4 control ................................................................................................. 68
Additional CH 5 control ................................................................................................. 69
Additional CH 6 control ................................................................................................. 70
Additional CH 7 control (locking relay, connector X1) ........................................ 71
Additional CH 8 control (unlocking relay, connector X1) ................................... 72
Additional CH 9 control ................................................................................................. 73
Turbotimer mode ............................................................................................................. 74
Serviceability control of limit switches .................................................................... 79
LCD remote battery charge check .............................................................................. 80
Call from car ....................................................................................................................... 80
Alarm memory .................................................................................................................. 81
Out of range check .......................................................................................................... 83
Buttons block from pressing ........................................................................................ 84
Engine heater control ..................................................................................................... 85
Remote controls learning .............................................................................................. 86
Check the quantity of learned remote controls .................................................... 87
PIN code emergency disarm ........................................................................................ 87
PIN code input — version 1 ( emergency disarm) ................................................. 88
PIN code input — version 2 ( emergency disarm) ............................................... 89
Service mode ..................................................................................................................... 90

User’s manual
9
Remote engine start
Particular features of remote engine start .............................................................. 91
Prepare for remote engine start for cars with manual transmission ............. 92
Procedure «sofware neutral» ....................................................................................... 92
Remote engine start by remote control ................................................................... 96
Remote engine shut down ........................................................................................... 97
Remote prolongation of engine running time ...................................................... 98
Automatic engine start .................................................................................................. 99
Alarmatic engine start by alarm ................................................................................. 99
Periodical automatic engine start ............................................................................100
Automatic engine start by temperature ................................................................102
Deactivation of the automatic engine start .........................................................104
Indication of engine running after engine started ..................................................105
SLAVE mode
Main terms and denitions .........................................................................................107
Car alarm control in SLAVE mode .............................................................................108
Immobilizer with validator
(PIN-code identication by using car factory keys-buttons) ........................ 113
Anti-hijack mode ............................................................................................................ 114
Functions programming
Programming protection and service functions (table №1) .......................... 116
Programming engine start parameters (table №2) ........................................... 120
Remote controls battery exchange ......................................................................... 123

StarLine A93, StarLine A63
10
Technical specification
RF carrying frequency ........................................... from 433,05 to 434,79 MHz
RF channels .............................................................................................................. 128
LCD remote range:
Control commands ......................................................................................... 800 m*
Alarm trigger reception ............................................................................. 2000 m*
LED remote range .............................................................................................. 15 m*
Shock/tilt sensor type .......................................... 3 axis digital accelerometer
Working temp range ....................................................... from –50 up to +85 °С
Power supply DC ............................................................................................ 9 – 18 V
Current consumption in armed mode ................................... less then 17 mA
Average current consumption with GSM ........................................... 25 mA**
Max output loads:
• siren ........................................................................................................................... 2 A
• light control .................................................................................................... 2х7,5 A
• central lock motors ............................................................................................ 15 A
• ignition circuit ..................................................................................................... 25 A
• ACC circuit ............................................................................................................ 25 A
• Starter circuit ........................................................................................................ 25 A
• engine kill (black red wire , connector Х3) ......................................... 200 mA
• engine kill (by external relay) ........................................................................ 30 A
• additional control channels (except CH7 and CH8) ....................... 200 mA

User’s manual
11
Security and service functions
of car alarm
Protected areas of the car and how to control them
• Engine – a blocking relay, code relay StarLine R3 (optional), and
StarLine R4 (optional), digital radio relay StarLine R2 (optional).
• The doors, hood, trunk, hand brake, the brake pedal
– limit switches.
• Ignition – Ignition circuit monitoring input.
• Body – a two-level shock sensor, tilt sensor.
Car alarm protection
• Dialoge control code with individual keys encryption excludes
intelligent electronic hacking.
• Patented multi-channel narrowband transceiver It provides
reliable operation in conditions of urban noise.
• Remembering the initial state when power is turned o and
return to the same state when power is restored.
• Interrupting the alarm without disarming.
• Limit the number of alarm cycles from the sensors.
• Automatic control of the communication channel.
Security and anti-hijack function of the car alarm
• Arming with sound and light conrmation.
• Warning signals transmitted to your LCD remote control.
• Silent arming on / o.
• Silent mode protection.
• Armed mode with the engine running.
• Arm/disarm without the use of remote control.
• Automatic return to arm mode in case of accidental disarming
• The immobilizer mode.
• Anti-hijack mode.
• «PANIC» function.
• Programmed PIN code of an emergency disarm

StarLine A93, StarLine A63
12
• Engine blocking preserved even after HW removal
• Programmable 2 steps engine unblock.
Self-diagnosis and indication of operating modes
• Indication of a faulty zone when arming.
• Display the reason of car alarm trigger, for 11 zones of
protection.
• LED display of car alarm status and LCD remote control status
indication.
• Indication of the fact triggering of car alarm by sound signals.
• Automatic control of security sensors and auto bypass faulty
sensors from protection eld.
• LED indication of serviceability of limit switches
• Remote control with user friendly display.
• Comfortable display backlight.
• 3 dierent sound mode and vibrate work of remote control.
Car alarm service functions
• Bypass the door zone and sensor activation delay because of
dome light fade out.
• Selecting the volume of conrmation signals
arming / disarming.
• Shock and tilt sensors bypass separately by levels in armed
mode.
• Remote control central locking.
• Central lock control by ignition.
• Two-step door unlocks (driver door rst).
• Double-pulse lock control for doors
• 8 additional control channels.

User’s manual
13
• Check the vehicle’s battery voltage.
• Separate indication of cabin temperature and under the hood
• «Comfort» function.
• Call from the car.
• Light warning about opened door.
• Turbo timer mode.
• Remote programming of functions and remote controls.
• Service mode.
• Dome light control.
• Call mode from car.
• Protection against accidental pressing remote control buttons.
• Learn new remote controls and removal of the lost remote
controls from car alarm memory.
• Display of the current time, alarm, reverse timer.
• Indication of remote control battery discharge.
• Support external GSM modules StarLine M20, M30 and StarLine
M21, M22, M31, M32 or installation of built-in GSM module
Remote engine start functions
• Remote start / expanding time of engine run / engine shut
down.
• Automatic engine start by temperature, alarm clock
periodic timer start for every 2, 4, 6, 8 ..... 24 hours.
• Support of remote engine start in cars with PST.
• Selecting the type of engine: petrol / diesel.
• Selecting the transmission type: Auto / Manual.
• Detection of engine running by TACH signals, generator or
voltage.
• Protection against starter overcranking when starting the
engine.
• Remaining engine run time on LCD display of remote control.

StarLine A93, StarLine A63
14
How to control Car alarm
Remotes for control
Car alarm has the following remotes included in kit*:
LCD remote control: LED remote control:
1
2
3
4
1
2
3
4-buttons remote control with 3-buttons remote control
2 -way control and without display
LCD display.
* depending on model and specication list
In order to take car alarm advantage as much as possible, and provide
maximum security, we recommend to use LCD remote control.
LED remote control we recommend to use only if no opportunities
to work with LCD remote. Feed back features in LED remote is not
implemented, it is intended only for basic commands.

User’s manual
15
Duration of buttons pressing
of remote controls
Here and further in text we use the following terminology
of duration and sequence of remote control pressing:
• Short press — one time button press (or 2 buttons together)
duration is less 0,5 s;
• Long press — press and hold button (or 2 buttons together)
until melody starts ;
• Double press — two times press of the button within 1s;
• Sequential press — two press of one or dierent buttons
First press is long (until sound appears), second press — is
short (First button should be released before pressing second
button).

StarLine A93, StarLine A63
16
Remote control commands
COMMAND
PRESS BUTTONS CONDITION
LCD
remote
LED
remote Ignition Icons ARM
Security functions
ARM with
sound
1
short OFF
Any except
OFF
DISARM with
sound
2
short OFF
Any except
ON
ARM without
sound
1 + 1
in sequence
1
double OFF
Any except
OFF
DISARM
without
sound
2 +2
in sequence
2
double OFF
Any except
ON
Alarm mode
without
sound
1 +2
in sequence –OFF
Any except
OFF
Interrupt
alarm
signals
1
short OFF
Any except
ON
Hi-Jack mode
ON
*
1 + 3
long until
1 + 2
long until ON
Any except
OFF

User’s manual
17
COMMAND
PRESS BUTTONS CONDITION
LCD
remote
LED
remote Ignition Icons ARM
Hi-Jack mode
OFF
*
2
short No matter
Any except
No matter
Shock sensor
Levels ON/OFF
1
double
2 + 1
In
sequence
OFF
Any except
ON
Tilt sensor
Levels ON/OFF
3
double –OFF No matter ON
PANIC mode ON 1 + 3
Long until
1 + 2
Long until OFF
Any except
No matter
Engine control
Engine start
and
5 min
prolong
1 long 1 long OFF
Any except
No matter
Engine shut
down
1 + 4
In sequence
1 + 2
In
sequence
OFF
Any except
No matter

StarLine A93, StarLine A63
18
Additional equipment control
CH 1 activation 2 + 1
In sequence
3
double No matter No matter No matter
CH 2 activation 3 + 1
In sequence
3 + 2
In
sequence
No matter No matter No matter
CH 4 activation 2 + 3
In sequence –No matter No matter No matter
CH 5 activation 3 + 2
In sequence –No matter No matter No matter
CH 6 activation 4 + 2
In sequence –No matter No matter No matter
Running a
stand-alone
heater
1 + 3
In sequence
1 + 3
In
sequence
No matter No matter No matter
Shock sensor
adjustment
3 + 3
In sequence –No matter No matter OFF
Tilt sensor
adjustment
4 + 4
In sequence –No matter No matter OFF

User’s manual
19
Service functions
Car alarm
status
request
car battery
voltage,
engine and
passenger
compartment
temp
3
short –No matter No matter No matter
Car find 4
double
3
short No matter No matter No matter
Activation of
cursor menu
2 or 3
Long until
second
sound
appear
–No matter No matter No matter
Remote
control
prog menu
entry
4 Long until
second
sound
appear
–No matter No matter No matter
Buttons block
ON
2 + 4
together
1 + 3
together No matter No matter No matter
Buttons block
OFF
1 + 4
together
2 + 3
together No matter No matter No matter

StarLine A93, StarLine A63
20
LCD display
Active modes and functions
Turbotimer mode* .
Timer engine start mode.*
Alarm clock engine start mode.*
Temperature engine start mode* .
Service mode.
Keychain silent mode.
Buttons press block.
*engine start modules should be installed (check with your installer)
