StarTech.com CABSHELF1U User manual

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 05/18/2011
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1 x Fixed Shelf
• 4 x M6 Cage Nut
• 4 x M6 Cabinet Screw
System Requirements
• EIA-310C compliant 19in server rack/cabinet
• At least 1U of available space in rack/cabinet to mount shelf
• If using a rack/cabinet that does not use square mounting
points along the posts, the appropriate mounting hardware
for the rack will be required (consult documentation for the
rack or contact the manufacturer)

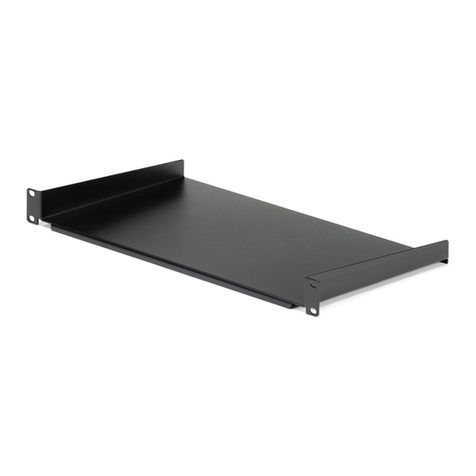

CABSHELF1U
19” 1U Universal Fixed Shelf for Server Rack/Cabinet
*actual product may vary from photos
Installation
1. Locate a suitable location in the rack/cabinet to mount the
shelf. The shelf itself requires 1U of space within the rack/
cabinet.
2. If the rack uses square mounting holes, install the included
cage nuts into the square mounting holes on the front posts
of the rack.
3. Place the shelf into the rack and align the mounting points
on the front brackets of the shelf with the mounting points
on the rack (e.g. the cage nuts, if used).
4. Use the provided cabinet screws to secure the shelf to the
rack. If not using the included cage nuts or M6 threaded
rack posts, the appropriate mounting hardware for the rack
should be used.
5. Make sure the screws are properly tightened and the shelf
has no movement before attempting to place anything on
the shelf. Be sure to observe the maximum weight capacity
of the shelf.
