STAX SR-X9000 User manual

Owner’s Manual

Thank you very much for purchasing STAX high-end earspeaker SR-X9000. SR-X9000 is the
flagship model equipped with the fixed electrode which is evolved further than the SR-009 series.
INTRODUCTION
FEATURES
■Sound element with newly developed third-generation fixed electrodes (MLER-3);
The fixed electrode is extremely thin and the cross section of the electrode is round-shaped, so the air
resistance and reflection is reduced and the sound transparency is improved.
Thin electrodes are poor in rigidity and metal-mesh electrodes vibrate. These factors may make sound
unclear.
SR-X9000 is the culmination of STAX technology. SR-X9000 is equipped with the fixed electrode
“MLER-3”, for which we further evolved the multi-layer structure, a feature of the fixed electrodes for
the SR-009.
One of the characteristic materials of MLER-3 is metal-mesh. This is the ideal material for an electro-
static fixed electrode. For reducing vibration of mesh to the minimum, an etching electrode and a met-
al-mesh electrode are united by diffused junction (thermocompression bonding). This technology real-
izes natural sound. Moreover, gold plating reduces electrical resistance of electrodes and improves
clear sound.
■Ultra-thin film diaphragm;
SR-X9000 is equipped with an ultra-thin film diaphragm made of super engineering plastic to improve
the linearity of the sound. Now you can enjoy the high linearity bass and clear resonance.
■Genuine leather ear pads;
The main reason to use the genuine leather (sheep skin) is breathability and softness which improves
fitting comfort. But the leather also improves “vividness” and “dignity” of sound.
(Unlike artificial leather, wrinkles or gloss of genuine leather differs depending on the used part. For
this reason, the performance is not affected even if the surface of right and left ear pads looks a little
different.)
■Changeable cables;
Cables can be detached from the earspeakers. If higher quality cables will be developed in the future,
cables can be easily changed.
SR-X9000 includes 2 cables (2.5m cable and 1.5m cable). Choose cables according to your style.
The material of the cables are silver-coated 6N (99.9999%) OFC parallel 6-strand, low-capacity wide
structure.
■Newly developed arc assembly (headband) and asymmetry case holder;
The arc assembly is made of stainless steel thin plate richly. So the arc assembly is more flexible and
tough than ever. The cable outlets are positioned slightly forward to make the earspeakers fit better.
The height of the head pad can be adjusted by the newly developed slider parts with 10-step clicking
system. This system enables the earspeakers for the best fit. Once you adjust, you can always keep
the best position. Re-adjustment is not required for each listening.
The head pad softens the pressure to your ears to enable you to enjoy listening to music comfortably
for a long time.
■Enclosure made of tough machined aluminum;
The sound element is firmly fixed to the enclosure. This improvement makes sound clearer.
Furthermore, the depth of the enclosure is reduced to a minimum. The air from the sound element
flows more smoothly.
-2-

NAME OF EACH PART
写真2
Earspeaker body (case)
Left/Right channel marks of the attached cable:
L/R marks on the cable plugs or the gold solid line
(left) and the gold dotted line (right)on the cable
Guard Mesh
Head Pad
Ear pad
CASE HOLDER
（When the cable is plugged）
-3-
Attached cable:1.5m or 2.5m
When putting on and off,
hold earspeakers with both
hands.
The product name is indicated on the
other side of this plate.
Slide part
This is Left channel
HPS-2︓Earspeaker stand
(Optional items)
DUAL ARC（Head Spring）

HOW TO USE
Left/Right channel marks
on the cable plug
The enlarged view of the slider
Left/Right channel marks of the
earspekers
The figure to the right is L-CH.
Hold the slider with your fingers and slide
up and down to adjust the position.
Serial-number sticker is applied
here. (Left channel)
-4-
CAUTION
Outlet of the earspeakers
● Take the earspeakers and the attached cable (1.5m or 2.5m)out of the case. Confirm Right and Left
marks on the cable plugs and firmly insert the cable into the outlet of the earspeakers.
When pulling out the cable to change cables, please be sure to hold the plug and pull it straight out.
For details, please refer to “NAME OF EACH PART” on page 3.
● SR-X9000 is electrostatic type earspeakers that operate on STAX PRO series bias (DC580V).
Connect SR-X9000 to the 5-pin outlet of STAX driver unit.
● Confirm the 5-pin positions and firmly insert the plug into the outlet of STAX driver unit.
And when pulling out the plug, please be sure to hold the plug and pull it straight out.
Pulling diagonally the cable plug out may damage the plug or the outlet.
If the outlet is too tight to insert the cable, insert the cable plug holding the driver unit.
● As Left/Right indications, the gold solid line (left) and the gold dotted line (right)are found on the
cable. L/R marks are on the cable plug. (Photo 2)

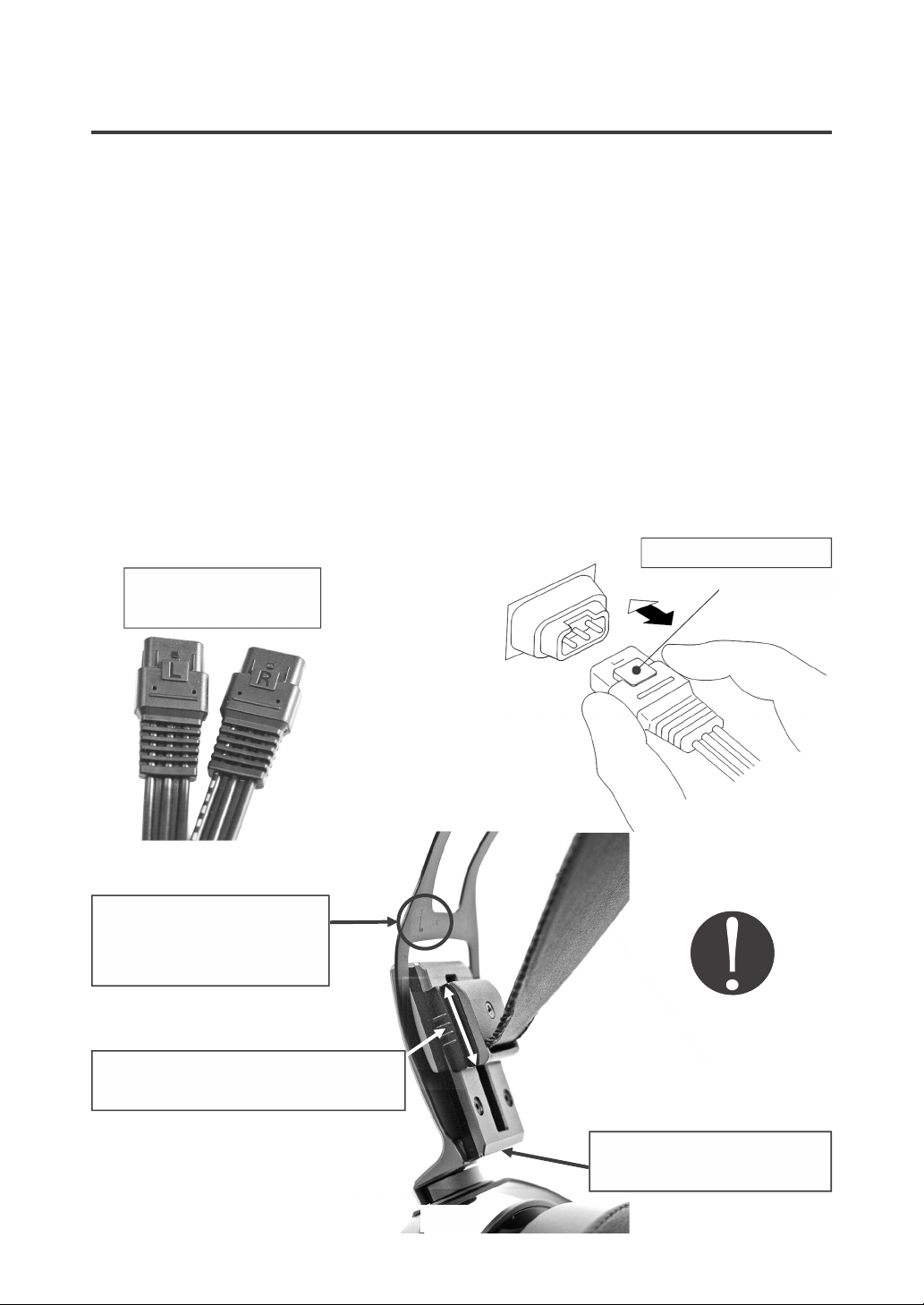

● How to adjust the head pad height;
The height of the head pad can be adjusted by moving the sliders on the left and right side of the
head pad. (Photo 3)
● Be sure to hold the earspekers with both hands when putting on and off.
Figure1
“L” or “R” mark

To use SR-X9000 safely for a long time, please observe the precautions described below.
●Do not hold only the cable when bringing the earspeakers. The cable comes off and the earspeakers
fall down. This may cause a serious breakdown.
●There is a risk of electric shock. Note the following conditions.
Do not pull the cable plugs from the earspeakers when the driver unit operates.
If the cable plugs come off, immediately turn off the driver unit.
●Keep the earspeakers away from high temperature and humidity.
●The sound of STAX earspeakers is not distorted. So you may turn up volume too high.
Avoid excessive input. When crack noise occurs, Turn the volume down.
●The diaphragm is an ultra-thin film. Do not apply impact to the diaphragm.
If the earspeakers are dropped or pressed when attached, the diaphragm may be torn because of the
difference in air pressure.
●The earspekers are composed of precision machinery parts. Never disassemble the earspeakers.
Please note that the damages caused by disassembly are not covered by the warranty.
●Wipe off dirt from the earspeakers with a gauze cloth dampened with slightly soapy water, thin neutral
detergent or a small quantity of alcohol.
Never use strong solvents such as thinner or benzene.
●When sweating, apply 1 or 2 gauze cloths between the ear pads and your ears.
●The cable is flexible parallel 6-strand structure. But do not forcibly bend or pull the cable.
Be sure to hold the plug when inserting or removing the cable from the driver unit.
●When putting on and off, hold earspeakers with both hands.
●Wipe off dirt from the earspeakers with a soft cloth dampened with thin neutral detergent.
●After use, dry the earspeakers enough, put them on the stand and put the cover on to prevent dust.
●In case of the long-term storage, remove the cable from the earspeakers, dry enough and put in the
accessory storage case made of paulownia wood.
CAUTIONS FOR USE
-5-
CAUTION
Be sure to hold the plug when you clean and store the earspeakers.
（Please be sure to read）

ACCESSORIES
HPS-2
RECOMMENDED DRIVER UNITS
●Two types of finest quality extension cables are available.
・SRE-950S (5m silver-coated 6N (99.9999%) OFC parallel 6-strand, low-capacity special wide structure)
・SRE-925S (2.5m silver-coated 6N (99.9999%)OFC parallel 6-strand, low-capacity special wide structure)
※The extended cables are exclusive for 5-pin plugs.
●The earspeaker stand HPS-2 is available for protection and long-term safe usage.
●Also a protection sack (CPC-1)is available for protecting your earspeakers from dust.
SRE-950S / SRE-925S CPC-1
◆For the detailed information about each driver unit, refer to STAX website or catalogs.
Website : https://stax-international.com/
◆SR-X9000 can be used for all STAX driver units equipped with 5-pin PRO bias.
●Low-noise vacuum tubes (6922)for the first stage and high power solid-state for
the output stage are installed.
●The power amplifier of SRM-T8000 can be directly connected by passing volume
control.
●Input level; 100mV (RCA / at 100V output)
SRM-T8000 is equipped with the high-power and wide-range power amplifier
exclusive for earspeakers. Direct connection to SRM-T8000 power amplifier ena-
bles volume control by your own attenuator or preamplifier.
●The optional expansion slot is installed.
SRM-T8000
-6-
●The vacuum tubes (6SN7)for the output stage are installed.
(RCA input x 1, XLR input x 1 and RCA parallel output x1)
●Input level 100mV (RCA / at 100V output)
Strictly selected vacuum tubes are used. SRM-700T is characterized by rich
middle-bass and resonant high range.
●Direct connection to SRM-700T power amplifier enables volume control by your
own attenuator or preamplifier.
SRM-700T
●FET for the amplification stage and high power solid-state for the output stage are
installed.
(RCA input x 1, XLR input x 1 and RCA parallel output x1)
●Input level 100mV (RCA / at 100V output)
SRM-700S is equipped with the high-power and wide-range power amplifier
exclusive for earspeakers.
●Direct connection to SRM-700S power amplifier enables volume control by your
own attenuator or preamplifier.
SRM-700S

SPECIFICATIONS
●Type: push-pull electrostatic large circular sound element, open-air type enclosure.
●Frequency response: 5 - 42,000Hz
●Impedance: 145kΩ (including the 2.5m accessory cable, at 10kHz)
●Sound pressure sensitivity: 101dB / input 100Vr.m.s. / 1kHz
●Bias voltage: DC580V
●Left/Right channel marks: the gold solid line (left) and the dotted line (right) on the cable and L/R
marks on the cable plugs.
●Ear pad: Genuine leather (a part contacting with skin), high-quality artificial leather (other parts).
● Weight: 432g (cable not included)
●Cable (one each): silver-coated 6N (99.9999%)OFC parallel 6-strand, low-capacity special wide
cable, 2.5m and 1.5m full length.
※Use SR-X9000 with STAX Driver Units.
※Specs and appearance of SR-X9000 are subject to change without notice for update.
-7-
■Storage case made of paulownia wood;
◆ Paulownia wood has an insect repellent and antiseptic effect and a great “humidity control effect”.
◆ Paulownia wood has flame retardancy and low thermal conductivity.
The case is suitable for storing earspeakers for a long time.
◆ Light and soft woods such as paulownia wood absorb and release humidity when temperature
changes. So humidity inside of the case almost does not change.
◆ Before storing, dry enough the ear pads and the head pad to prevent mold.
About “warranty guidelines”
● For warranties, please confirm with the dealer from which you purchased or a nearest
distributor.
● Be sure to keep the warranty card after reading.
(The warranty card cannot be reissued.)
●Since ear pads and head pads contact with the skin directly, they are consumables.
They are not covered by the warranty.
●It is recommended to exchange ear pads and head pads, if they deteriorate such as
getting dirty or hardening.
●Warranty may be invalid for failures using drivers or adapters other than our products.
●In case you send your earspeaker for repair, please be sure to attach a memorandum
specifying the model name of your driver unit or adaptor.
●Keep in mind that without the memorandum warranty becomes invalid in spite of the
warranty period.
●Note that the repair will be charged without presentation of a proper warranty card.

PN:8034020008
! Caution!
SR-X9000 is a precision machinery.
Please handle carefully.
The ear pads are highly airtight and sensitive to the differ-
ence in air pressure between inside and outside.
When the earspeakers are pressed against the ears, the dia-
phragm is pushed by air and contacts to the electrode.
In this case, crack noise may occur.
This is not a breakdown.
This noise may occur in case that the earspeakers are
strongly pressed when being putted on.
But this sound does not affect the earspeakers’ performance.
If the earspeakers are pressed too frequently, the ultra-thin
diaphragm may be torn.
STAX LIMITED
Tel: [phone] Fax: [phone] URL: https://stax-international.com/
3798-1 Shimonanbata, Fujimi-shi, Saitama-ken, Japan 〒354-0004
C
Printed in Japan 21-07-0.5K MP STAX LTD
