SteamOvap IER-04 Series User manual

ELECTRIC RESISTIVE STEAM HUMIDIFIER
Installation and Operation Manual
Please read and save this manual
steamOvap technologies inc, 9495 Charles de la Tour, Montreal, Qc, H4N 1M5, Canada
Tel.: [phone] • www.steamOvap.com
Rev.180401
IER

3
Introduction
Foreword
Thank you for purchasing IER steamOvap electric steam Humidifier.
If you have questions or comments please contact us:
www.steamOvap.com
[e-mail]
1-844-357-4477
Intended use
IER electric steam humidifier is intended exclusively to produce steam from water at
atmospheric pressure for air humidification.
Operating conditions are specified in this Installation and Operation Manual (IOM).
Operation of this humidifier in the intended use scope requires that all directions and
information contained in this IOM are observed.
Any other use or operation outside the above design scope without written authorization from
steamOvap may lead to trouble and hazardous conditions and will void warranty.
No alteration or modification to the humidifier must be done without written authorization
from steamOvap.
Replacement of any defective components must be done with original component and spare
parts from steamOvap representative.
Installation and Operation Manual Limitation
This IOM is intended for trained and qualified personnel and must be applied along with the
applicable local codes and regulations.
Any work related to installation or service for this humidifier must comply with local code and
regulation regarding safety and prevention of accidents.
End of life disposition
Ensure that IER electric steam humidifier is empty from water, if not proceed same way as for a
standard drain for service.
Disconnect IER electric steam humidifier from power supply, electrical control signal, water
main supply, Steam line, and drain. IER electric steam humidifier can then be removed from the
wall or stand.
IER electric steam humidifier is an electrical equipment and as such MUST not be disposed of in
domestic waste.
This humidifier should be returned to the closest steamOvap authorized representative for
proper dismantling, recycling and disposition of components according to local regulations.

4
Table of content
Introduction ............................................................................................... 3
Table of content ........................................................................................ 4
Safety warnings ........................................................................................ 5
Before to proceed to Installation ............................................................... 6
IER Overview ........................................................................................... 7
Installation overview ............................................................................... 10
Installation – step 1 IER Positioning & Mounting ..................................... 12
Installation – step 2 Water supply installation ......................................... 18
Installation – step 3 Drain installation ..................................................... 19
Installation – step 4 Steam line installation ............................................. 20
Installation – step 5 Power supply installation ......................................... 26
Installation – step 6 Control installation................................................... 28
Verification before start-up ...................................................................... 30
Configuration & Operation ...................................................................... 32
Warranty ................................................................................................. 43

S A F E T Y
5
Safety warnings
General
Risk of electric shock.
Disconnect power supply before installation or service.
For safety and warranty reasons, Installation and service of this humidifier should be carried
out by trained and qualified personnel.
Any work related to installation and service of this humidifier must comply with local code and
regulation regarding safety and prevention of accidents.
Electrical Warning
Risk of electric shock.
Disconnect power supply before installation or service.
Power supply connexion must be done by a trained and qualified electrician.
Any work related to power supply installation or service of this humidifier must comply with
local code and regulation regarding safety and prevention of accidents.
Water safety warning
Any work related to water supply, drain connection as well as steam lines and
condensate returns lines installation or service of such for this humidifier must
comply with local code and regulation regarding safety and prevention of accidents.
Water supply connexion must be done by a trained and qualified plumber.
Risk of malfunction. Steam lines should not have any restriction or blockage that may cause a
burst of pressure in the steam line.
Others
Risk of flooding. In order to avoid any risk of flooding steamOvap recommends a Hi
limit humidity switch installed in the air duct downstream of the steam distribution
ramp.
Risk of freezing. Plan an anti-freeze system in case of installation in a location that would be
exposed to outside conditions and susceptible of freezing.
Risk of malfunction. Do not block steam outlet(s).
section
0





I N T E N D E D U S E
6
Before to proceed to Installation
Please read this Installation and Operation manual before to proceed to the Installation
Receiving & Unpacking
1. Upon receipt verify that packaging is complete and not damaged.
In case of damage, and/or missing boxes advise immediately the carrier by writing a
note on the waybill.
2. Verify that model of the humidifier matches the purchase order and that all accessories
are included.
3. Any missing item should be reported as soon as possible to steamOvap or its
representative and within 5 business days after receipt.
steamOvap will not assume any responsibility for missing item after this delay.
4. Proceed carefully to unpacking, and check that the humidifier and its accessories are not
damaged. in case of damage please proceed as for point 3
Included in standard delivery of IER electric steam
humidifier
1. IER electric steam humidifier
2. Water supply hose
3. Collar(s) to secure steam hose on steam outlet of IER
4. This IOM
Depending on other accessories ordered
5. Steam ramp(s)
6. Steam hose
7. Condensate hose
8. RH% sensors for duct or room
9. HI Limit RH% switch
10. Air flow switch
section
1

O V E R V I E W
7
IER Overview
IER electric steam humidifier

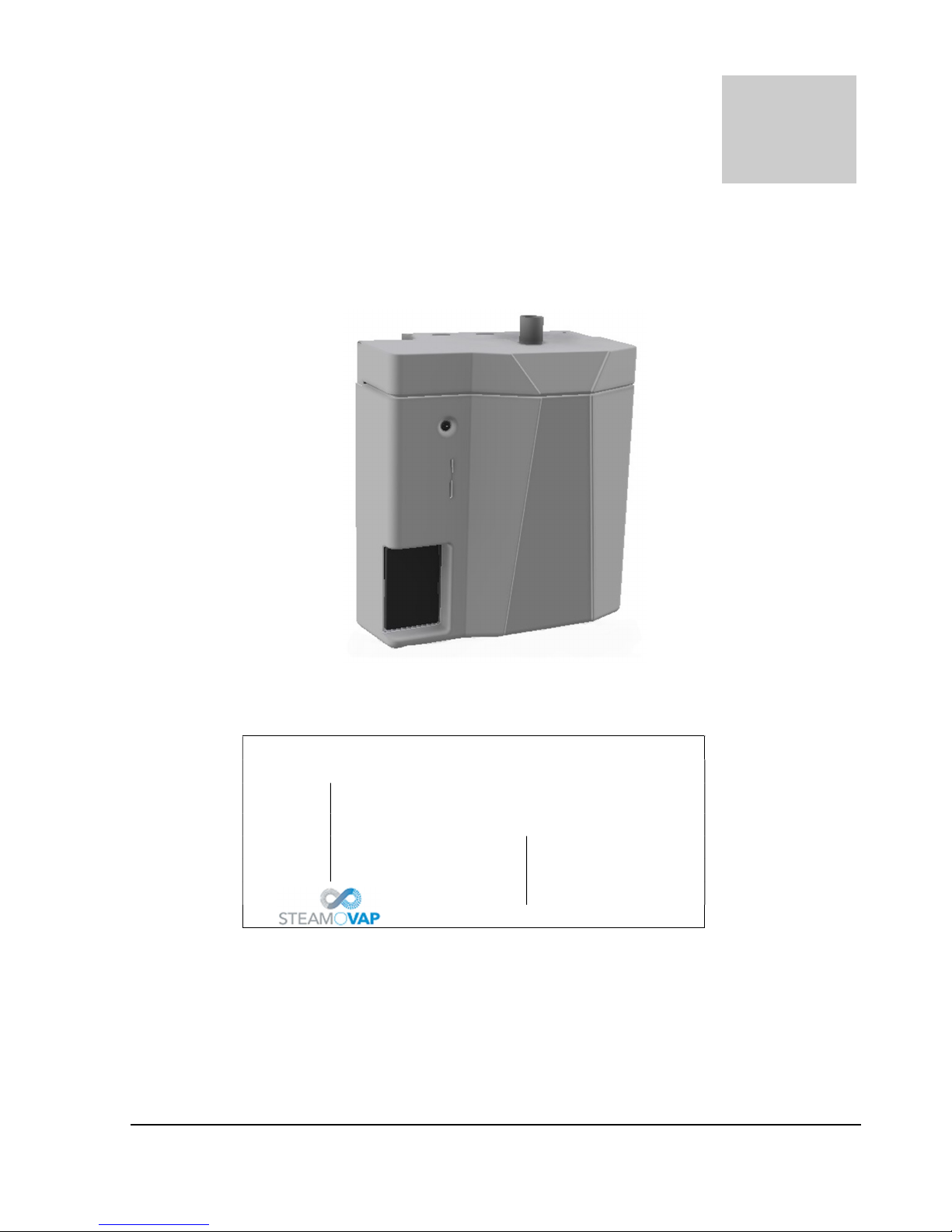

Figure 1 – IER Overview
IER product designation & name plate
steamOvap technologies inc.
Electric resistive steam humidifier
MODEL
IER
12
-
240/1
S/N
YY-DDDXXX
POWER
12kW VOLTAGE 240Vac
CURRENT
44.2A NB OF PHASE 1ph
FREQUENCY
50/60Hz
www.steamOvap.com
Figure 2 – IER Name plate
section
2

O V E R V I E W
8
Model designation and options codification
Type & Model
Nominal Voltage
Nb of Phase
Options
MB Mounting Bracket
FS Floor Stand
BC/MS BACnet MSTP
BC/IP BACnet IP
Mod Modbus
IER 12 - 240 / 1 - MB
IER electrical rating
Model Steam
Capacity Power
Current
208Vac/1p 240Vac/1p 208Vac/3p 480Vac/3p 600Vac/3p
IER-04
10lb/h
[4.5kg/h] 3.3kW 16.0A 13.9A 9.3A 4.0A 3.2A
IER-05
15lb/h
[6.8kg/h] 5.0kW 24.0A 20.8A 13.9A 6.0A 4.8A
IER-09
24lb/h
[11.4kg/h] 8.3kW 40.1A 34.7A 23.1A 10.0A 8.0A
IER-12
35lb/h
[15.9kg/h] 11.7kW
- 44.2A 32.4A 14.0A 11.2A
IER-17
50lb/h
[22.7kg/h] 16.7kW
- - 46.3A 20.0A 16.0
IER-22
65lb/h
[29.5kg/h] 21.7kW
- - - 26.1A 20.8A
IER-31
93lb/h
[42.3kg/h] 31.0kW
- - - 37.3A 29.8
IER-44
130lb/h
[59.1kg/h] 43.3kW
- - - 52.1A 41.7A
IER-62
185lb/h
[84.1kg/h] 61.7kW
- - - 74.2A 59.3A

O V E R V I E W
9
IER Dimensions

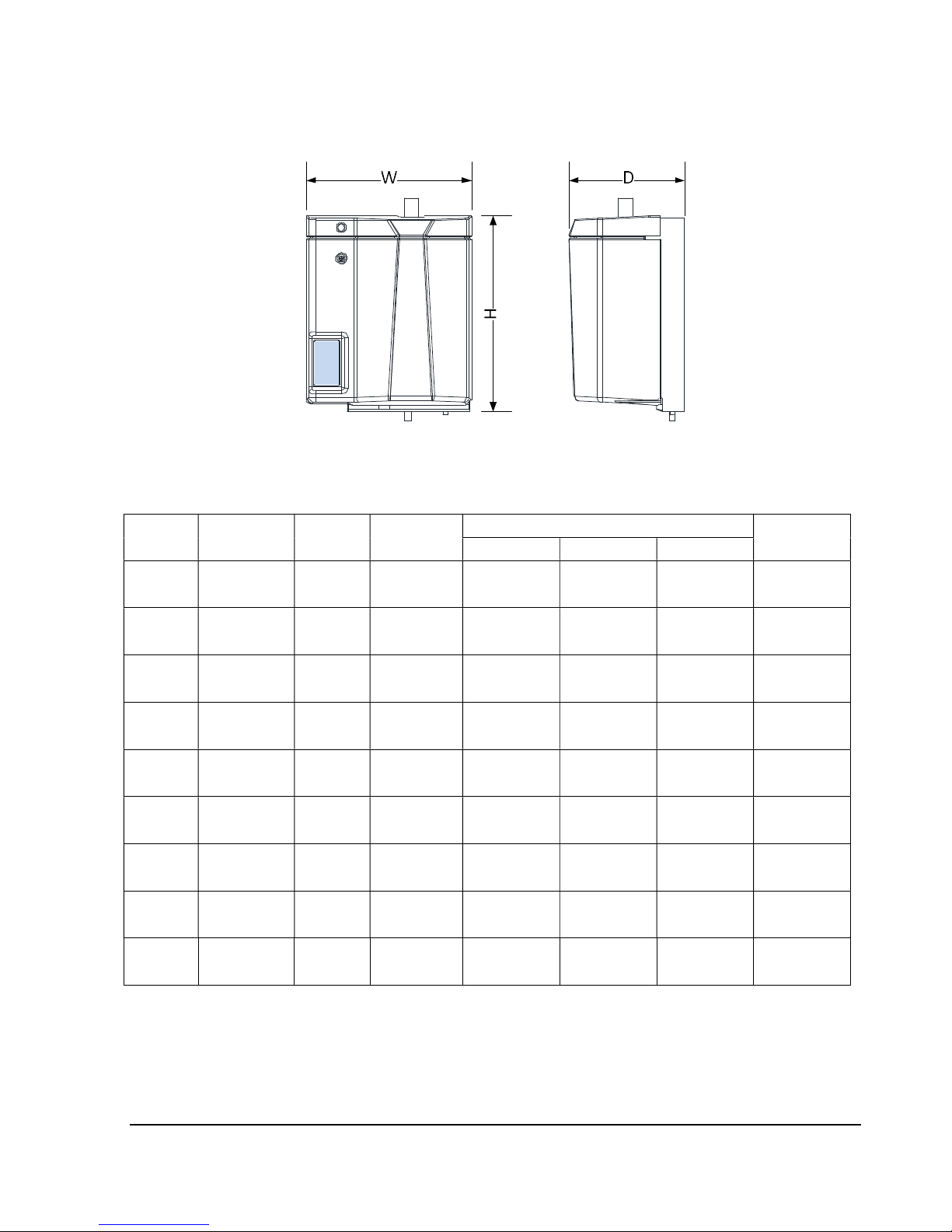

Figure 3 – IER Dimensions
Model Steam
Capacity
Nb Cyl
+ size
Nb Steam
Outlet + Ø Dimensions Net
weight
W H D
IER-04
10lb/h
[4.5kg/h]
1x
small
1x 1.5po
[DN40]
20in
[510mm]
23in
[585mm]
13in
[330mm]
55lb
[25kg]
IER-05
15lb/h
[6.8kg/h]
1x
small
1x 1.5po
[DN40]
20in
[510mm]
23in
[585mm]
13in
[330mm]
55lb
[25kg]
IER-09
24lb/h
[11.4kg/h]
1x
small
1x 1.5po
[DN40]
20in
[510mm]
23in
[585mm]
13in
[330mm]
55lb
[25kg]
IER-12
35lb/h
[15.9kg/h]
1x
medium
1x 2po
[DN50]
23in
[585mm]
27in
[686mm]
17in
[432mm]
73lb
[34kg]
IER-17
50lb/h
[22.7kg/h]
1x
medium
1x 2po
[DN50]
23in
[585mm]
27in
[686mm]
17in
[432mm]
73lb
[34kg]
IER-22
65lb/h
[29.5kg/h]
1x
medium
1x 2po
[DN50]
23in
[585mm]
27in
[686mm]
17in
[432mm]
73lb
[34kg]
IER-31
93lb/h
[42.3kg/h]
1x
medium
1x 2po
[DN50]
23in
[585mm]
27in
[686mm]
17in
[432mm]
73lb
[34kg]
IER-44
130lb/h
[59.1kg/h]
2x
medium
2x 2po
[DN50]
42in
[1067mm]
27in
[686mm]
17in
[432mm]
146lb
[67kg]
IER-62
185lb/h
[84.1kg/h]
2x
medium
2x 2po
[DN50]
42in
[1067mm]
27in
[686mm]
17in
[432mm]
146lb
[67kg]

I N S T A L L A T I O N
10
Installation overview
General
1. Installation of this humidifier should be carried out by trained and qualified personnel.
2. Any work related to installation of this humidifier must comply with local code and
regulation regarding safety and prevention of accidents.
WARNING. Risk of electric shock.
Power supply must be disconnected during installation.
Main power should be connected only after all installation steps have been completed and
properly verified.
Typical installation with steam ramp

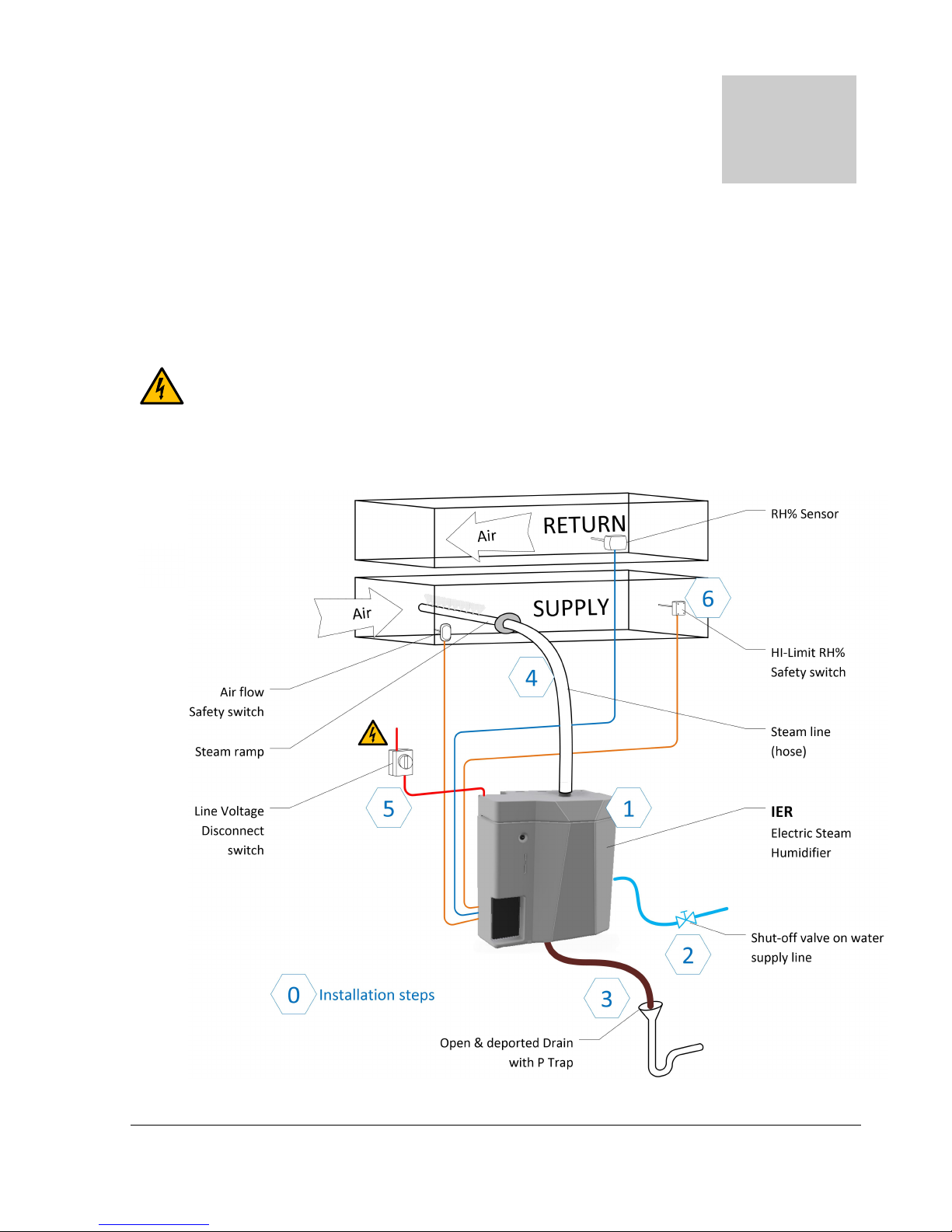

Figure 4 – installation overview with steam distribution in duct
section
3


I N S T A L L A T I O N
11
Installation steps :
1. Positioning & mounting of IER electric steam humidifier
2. Water supply installation
3. Drain installation
4. Steam line installation for duct humidification
or Direct humidification in room
5. Power supply installation
6. Safety & RH% control installation
Typical installation with Space blower
Figure 5 –IER with remote Space blower typical installation
Typical installation steps :
1. Positioning & mounting of IER electric steam humidifier
2. Space blower installation (only if remote)
3. Water supply installation
4. Drain installation
5. Power supply installation
6. RH% control installation

I N S T A L L A T I O N
12
Installation – step 1
IER Positioning & Mounting
General guidelines for positioning
IER electric steam humidifier should be positioned so that:
 Length of the steam line (or hose) is as short as possible,
 In case steam hose is used, the bend radius of 12in (300mm) is ensured
 Humidifier is easily accessible for service
CAUTION. Risk of malfunction due to vibration. Do Not mount IER electric steam
humidifier directly on ventilation duct.
CAUTION. Risk of flooding. Ensure that the local where IER electric steam humidifier
will be installed is equipped with floor drain.
In case of no floor drain is available; installation of a water leak detector is required in order to
prevent any flooding in case of abnormal operation or service.
IER electric steam humidifier should be installed in a well-ventilated and dry environment.
If local is subject to below freezing point temperature, activation of ant freezing function of the
IER electric steam humidifier is required.
For outdoor installation please contact your steamOvap representative to order and install
special outdoor optional enclosure for IER.
IER maximum ambient conditions:
Temperature: 41°F to 122°F [+5 to +50°C]
Relative Humidity: 90%RH max (non condensing)
Ingress Protection for IER standard enclosure: IP20


I N S T A L L A T I O N
13
Clearances

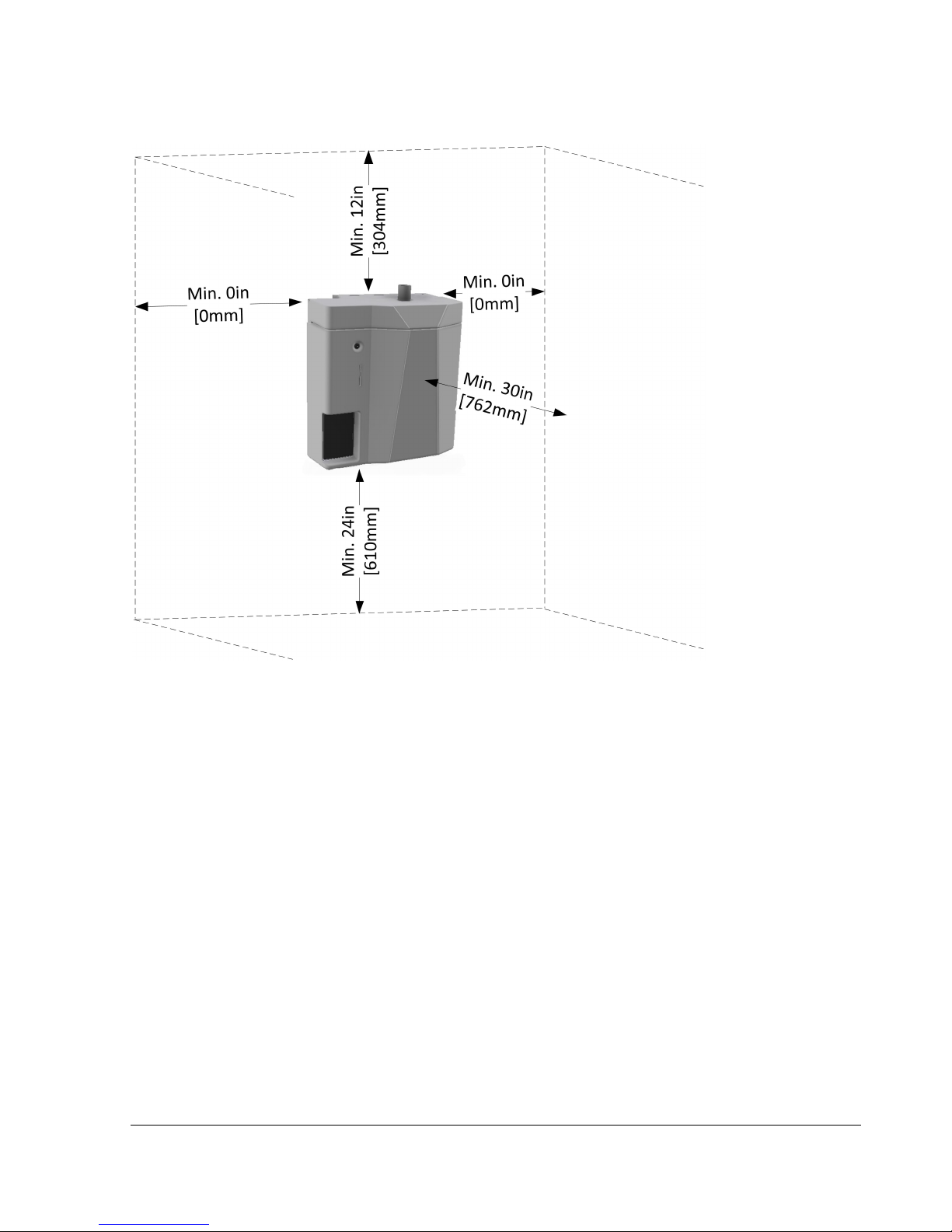

Figure 6 – minimum clearances
Clearance guidelines
There is no minimum clearance on both side of the IER humidifier, but it is a good practice to
have a clearance of 4 to 8 in [100 to 200mm] for ease of installation and service
Allow a minimum clearance of 24in [610mm] with floor to allow for proper drain slope and
drain pipe column.
Front clearance of 30in [762mm] is required for access to the IER humidifier
Top clearance is required of 12in [304mm] for access and proper steam connection

I N S T A L L A T I O N
14
Clearances for IER with space blower

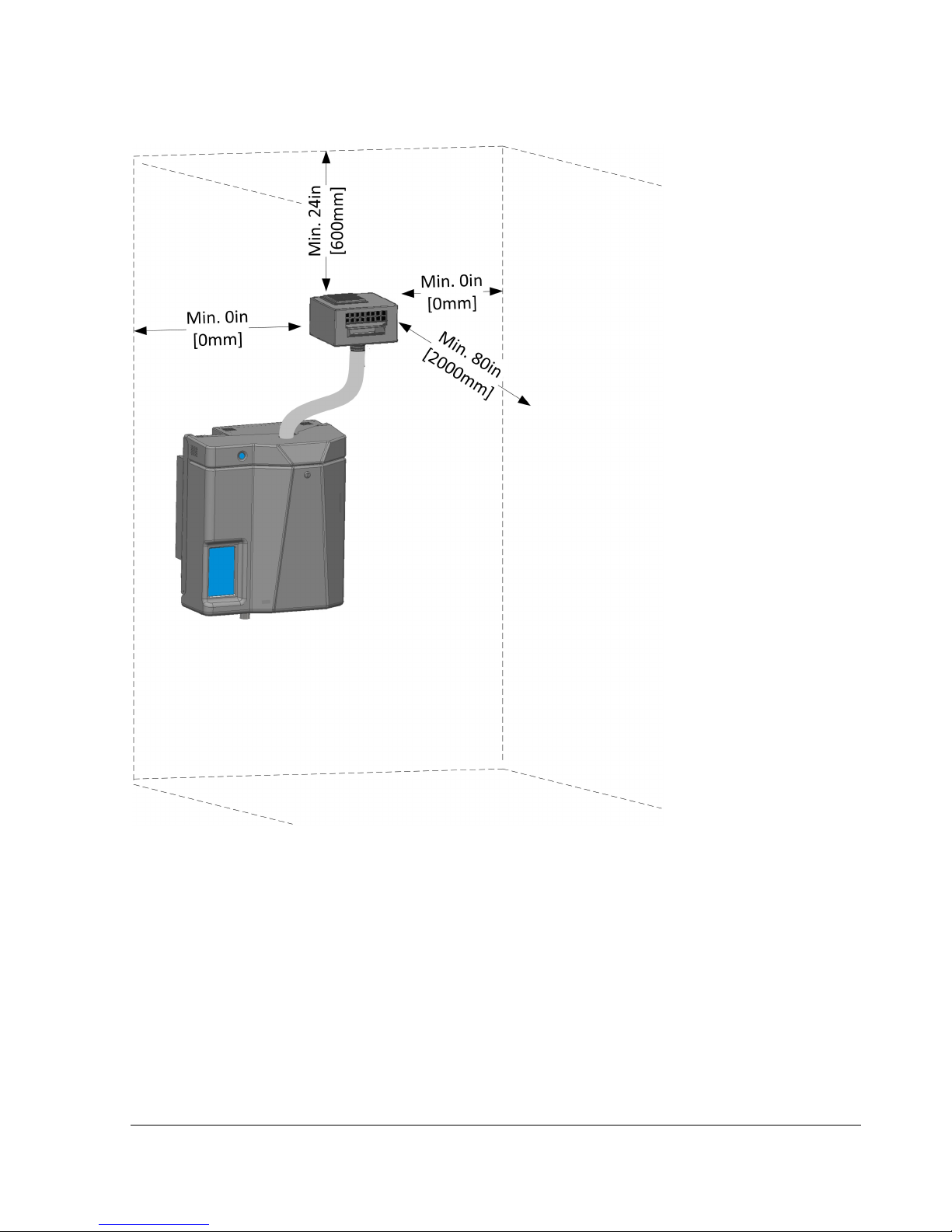

Figure 7 – minimum clearances for SB
Clearance guidelines
There is no minimum clearance on both side of the Space blower, but it is a good practice to
have a clearance of 4 to 8 in [100 to 200mm] for ease of installation and service
Front clearance of 80in [2000mm] is required for steam absorption.
A top clearance is required of 24in [600mm] for access and for steam absorption to avoid any
condensing on the ceiling.

I N S T A L L A T I O N
15
Mounting holes positions & weight
Figure 8 mounting holes single module
(IER 04 to 31)
Figure 9 – mounting holes double module
(IER44 & 62)
Model Mounting holes positions (in) [mm]
M1 M2 M3 M4 M5 M6
IER04 to 09 2 [51] 8 [203] ½ [13] 19.25[489]
6 [152] -
IER12 to 31 2 [51] 11.25 [286] ½ [13] 23.5 [597] 7.8 [197] -
IER44 & 62 2 [51] 34.3 [871] ½ [13] 23.5 [597] 7.8 [197] 30.7 [782]
Weight
Model Nb Cyl + size
Net Weight Oper. Weight
IER-04
1x small 55lb
[25kg]
84lb
[38kg]
IER-05
1x small
IER-09
1x small
IER-12
1x medium
73lb
[37kg]
123lb
[56kg]
IER-17
1x medium
IER-22
1x medium
IER-31
1x medium
IER-44
2x medium 146lb
[67kg]
246lb
[112kg]
IER-62
2x medium

I N S T A L L A T I O N
16
General guidelines for Mounting
CAUTION. Risk of malfunction. IER electric steam humidifier must be levelled in X & Z
axis.
Installation on wall (without mounting bracket)
1. Verify that wall structure and strength is appropriate to support the operating weight of
the IER electric steam humidifier.
In case, the wall is not solid enough to support operating weight of IER electric steam
humidifier, install it on a floor stand (FS option is available to your steamOvap
representative).
2. Mark the wall or support according to the above holes location, and drill 4 holes to the
wall or support as per the size of anchors and/or screws.
3. Use anchors of sufficient size (at least 1/4in [6mm]). Insert those anchors and the 2 top
screws, ensure that the screw heads extends 1/4in [6mm] from the wall, so that the IER
electric steam humidifier will be able to be hung on those 2 screws.
4. With front cover removed, hung the IER electric steam humidifier onto the 2 top screws.
Insert the bottom screw through the back plate of the humidifier and into the anchors
in the wall.
Ensure that the humidifier is properly levelled.
Tighten the 3 screws. Re verify the level in the 2 direction X and Z axis.
5. Re-install the front cover to the humidifier.
6. Optional Mounting bracket (option MB) is available to your steamOvap representative
in order to ease up wall mounting process.


I N S T A L L A T I O N
17
Installation on wall (with mounting bracket – option MB)
1. Optional Mounting bracket (option MB) is available to your steamOvap representative
in order to ease up wall mounting process.
2. Verify that wall structure and strength is appropriate to support the operating weight of
the IER electric steam humidifier.
In case, the wall is not solid enough to support operating weight of IER electric steam
humidifier, install it on a floor stand (FS option is available to your steamOvap
representative).
3. Mark the wall or support according to the above holes location, Drill holes to the wall or
support to attach the mounting bracket to the wall as per the size of anchors and/or
screws.
Distance between the 2 holes in Mounting bracket is 15in [381mm]
Figure 10 – Installation with Mounting bracket
4. Use anchors of sufficient size (at least 1/4in [6mm]). Install the mounting bracket to the
wall or support.
Ensure that the mounting bracket is properly levelled.
5. With front cover removed, hung the IER electric steam humidifier onto the mounting
bracket.
6. Install the 2 supplied screws to avoid the IER humidifier to move up from the mounting
bracket.
Installation on Floor Stand (option FS)
1. Ensure that the floor structure and strength is appropriate to support the operating
weight of the IER electric steam humidifier.
2. Attach the floor stand to the floor or structure to avoid any movement of the IER
electric steam humidifier.
You can use bolt or screws to attach this one to surrounding structure or to the floor.
3. Install Humidifier (with front cover removed) on the floor stand and secure it with
supplied bolts.
4. Re-install the front cover to the humidifier.
15in
[381mm]

I N S T A L L A T I O N
18
Installation – step 2
Water supply installation
Water supply specification & quality:
Water supply pressure: 15 to 80PSI [1 to 5bar]
Water supply temperature: 37 to 105°F [3 to 40°C]
IER electric steam humidifier can accept a wide range of water quality.
Untreated water will lead to scale deposits that will need to be regularly removed from steam
chamber.
Use of additives such as scale inhibitor or corrosion inhibitors, disinfectants or other can impair
the normal operation of the humidifier and are not allowed.
Water supply conductivity: 1 to 1500µS/cm
Water supply hardness: 0 to 16grains/gallon [0 to 15°gH][268mg CaCO3/l]
Water supply PH: 6.5 to 7.5
Water supply chloride content: 0 to 50ppm

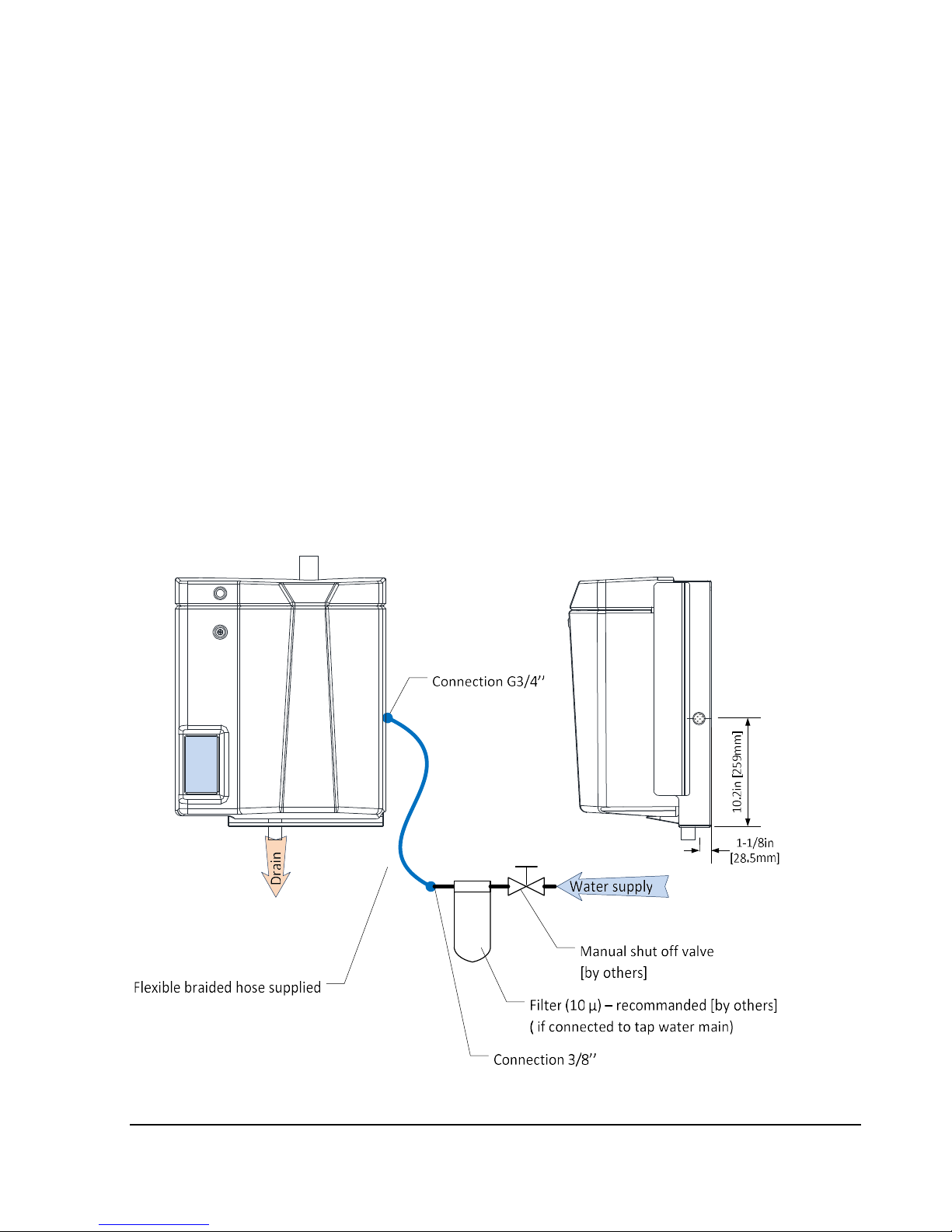

Figure 11 – water supply connection

I N S T A L L A T I O N
19
Water supply connection:
1. Install a manual; shut off valve on the water main line.
2. If IER humidifier is supplied with tap water it is recommended to install a 10µ sediment
filter on the line. This filter will protect internal water fill valve from clogging.
3. A flexible braided hose is supplied for an easy and secure connection to the water
supply inlet.
This hose is equipped with 1/2in [12mm] female swivel connection at both ends.
Installation – step 3
Drain installation
Water drained specification:
Drained water maximum temperature: 120°F [60°C]
Drained water flow rate: 6.6 GPM [25 l/min]
Drain outlet dimension: IER04 to 31: (1x)1-1/4in [32mm]
IER44 & 62: (2x) 1-1/4in [32mm]
Figure 12 – water drain connection
Installation steps :
1. Ensure that an Open drain with a P-trap is installed offset from the IER humidifier.
IMPORTANT: Risk of malfunction. A minimum slope angle of 5 degree of the drain hose
or pipe and a minimum length of 24in [60cm] must be provided between the drain
outlet of the IER humidifier and the open drain inlet and P-trap.
2. If required, install a connection sleeve 1-1/4 [32mm] at the drain outlet of the IER to the
drain pipe, and secure it with the supplied 2 collars.

I N S T A L L A T I O N
20
Installation – step 4
Steam line installation
Duct humidification
Horizontal duct
Figure 13 – SRS & SRSX installation – no dedicated condensate return line
Figure 14 – SRC & SRCX installation – with dedicated condensate return line to IER
