Steel City 50-310 User manual

VER.
Should you require assistance,
please have available your:
odel no.: __________________
Serial no.: __________________
6” X 89” OSCILLATING
BELT SANDER
OWNER’ MANUAL
50-310

Page 2
TABLE OF CONTENT
INTRODUCTION
INTRODUCTION...........................................................................................................2
TABLE OF CONTENTS.................................................................................................2
WARRANTY ..................................................................................................................3
PRODUCT SPECIFICATIONS......................................................................................4
GENERAL SAFETY ......................................................................................................5
PRODUCT SAFETY......................................................................................................7
ELECTRICAL AND GROUNDING INSTRUCTIONS.....................................................8
UNPACKING AND INVENTORY ...................................................................................9
ASSE BLY .................................................................................................................10
ADJUST ENTS..........................................................................................................14
AINTENANCE ..........................................................................................................16
DIAGRA ....................................................................................................................17
PARTS LIST ................................................................................................................18
This user manual is intended for use by anyone working with this machine. It should be kept available
for immediate reference so that all operations can be performed with maximum efficiency and safety.
Do not attempt to perform maintenance or operate this machine until you have read and understand
the information contained in this manual.
The drawings, illustrations, photographs and specifications in this user manual represent your machine
at the time of print. However, changes may be made to your machine or this manual at any time with
no obligation to Steel City.

Page 3
WARRANTY
STEEL CITY WARRANTY
The manufacturer warrants its machines to be free from defects in workmanship and materials for a period of
2 years from the date of the original purchase for Steel City shop machines or for a period of 1 year for Titanium
production machines; subject to the following conditions :
A- Warranty applies to the original buyer only and may not be transferred. Original proof of purchase is
required.
B- Warranty is void if repairs or alterations are made to the machine by an unauthorized service center without
the direct consent of the manufacturer or its representative.
C- Warranty does not include defects, failures or breakages directly or indirectly caused by or resulting from
improper use, improper or lack of maintenance, abuse or misuse, negligence, accidents, damages in
handling or transportation, or normal wear and tear of any part or component.
D- Accessories and wear items such as motor, switch, bearings, drive belt or other accessories are covered
for 1 year.
E- Consumables such as blades, knives, bits, sandpaper or others are not covered.
To file a warranty claim, customer may contact his dealer or email [email protected]
The manufacturer or its representative will inspect, repair or replace any part that has proven to be defective in
workmanship or material, provided that the customer sends the product prepaid to a designated authorized
service center and provides reasonable time to proceed.
If judged on warranty, the manufacturer or its representative will return the repaired product prepaid or will replace
it by a new one at its choice. On the contrary, if it is determined that there is no defect or that the problem resulted
from causes not within the scope of the warranty, it will dispose of or return the product at customer’s expenses,
following customer’s instructions.
The manufacturer or its representative shall not be held liable for any special, indirect, incidental, punitive or
consequential damages, including and without limitation loss of profits arising from or related to the warranty,
the breach of any agreement, the operation or the use of its machines.
Note:
The specifications in this manual are provided for informational purposes only and are subject to rectification
without notice. Some measures have been slightly rounded for ease of reading. Unless otherwise noted, they
should be considered for reference only.
Steel City reserves the right to make certain improvements to the design and appearance of its machines,
components, accessories or parts without notice and without the obligation to perform them on existing models.

Page 4
PRODUCT PECIFICATION
otor 11⁄2HP , 220 V (110 V possible)
Belt size 6” x 89” (152 x 2260 mm)
Oscillation 1⁄2”
Oscillating frequency 108 / min
Belt speed 3900 fpm (1279 m / min)
Front table size 29 5⁄8” x 9 7⁄8” (750 x 250 mm)
Auxiliary table size 117⁄8” x 97⁄8” (300 x 250 mm)
Dust port diameter Ø 4” (100 mm)

Page 5
All federal and state laws and any regulations having
jurisdiction covering the safety requirements for use of this
machine take precedence over the statements in this
manual. Users of this machine must adhere to all such
regulations.
Below is a list of symbols that are used to attract your
attention to possible dangerous conditions.
These are safety alert symbols. They are used to alert you
to potential personal injury hazards. Obey all safety
messages that follow these symbols to avoid possible injury
or death.
Indicates an imminently hazardous situation which, if not
avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, WILL result in serious injury or death.
Indicates a potentially hazardous situation which, if not
avoided, COULD result in serious injury or death.
Exposure to the dust created by power
sanding, sawing, grinding, drilling and other
construction activities may cause serious
and permanent respiratory or other injury,
including silicosis (a serious lung disease),
cancer, and death. Avoid breathing the dust, and avoid
prolonged contact with dust. The dust may contain
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other
masonry products.
• Arsenic and chromium from chemically-treated
lumber.
Always operate tool in well ventilated area and provide
for proper dust removal. Use a dust collection system
along with an air filtration system whenever possible.
Always use properly fitting NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure,
and wash exposed areas with soap and water.
DANGER
!
This manual is not totally comprehensive. It does not and can not convey every possible safety and
operational problem which may arise while using this machine. The manual will cover many of the basic
and specific safety procedures needed in an industrial environment.
ALWAY wear eye protection. Any
machine can throw debris into the eyes
during operation, which could cause severe
and permanent eye damage. Everyday
eyeglasses are NOT safety glasses.
ALWAY wear Safety Goggles (that comply with ANSI
standard Z87.1) when operating power tools.
AFETY
WARNING
!
ALWAY wear hearing protection. Plain
cotton is not an acceptable protective
device. Hearing equipment should comply
with ANSI S3.19 Standards.
WARNING
!
WARNING
!
WARNING
!
TO REDUCE the risk of electrical shock.
DO NOT use this machine outdoors. DO
NOT expose to rain or moisture. Store
indoors in a dry area. DO NOT handle the
plug with wet hands.
1. To avoid serious injury or damage to the machine, read
the entire User anual before assembly and operation
of this machine.
2. Serious personal injury may occur if normal safety
precautions are overlooked or ignored. Accidents are
frequently caused by lack of familiarity or failure to pay
attention. Obtain advice from supervisor, instructor, or
another qualified individual who is familiar with this
machine and its operation.
3. TOP using this machine, if at any time you experience
difficulties in performing any operation. Contact your
supervisor, instructor or machine service center
immediately.
WARNING
!
CHILDPROOF THE WORK HOP AREA
by removing switch keys, unplugging tools
from the electrical receptacles, and using
padlocks. DO NOT use near or around
children.
WARNING
!

Page 6
4. Prevent electrical shock. Follow all electrical and safety
codes, including the National Electrical Code (NEC) and
the Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring should be
made by qualified personnel only.
5. ALWAY be sure that the power switch is in the “OFF”
position and unplug the machine from the electrical
receptacle when making adjustments, changing parts or
performing any maintenance.
6. AVOID ACCIDENTAL TARTING. ake sure that the
power switch is in the “OFF” position before plugging in
the power cord to the electrical receptacle.
7. NEVER leave a machine running, unattended. Turn the
power switch to the OFF position. DO NOT leave the
machine until it has come to a complete stop.
8. THE U E of extension cords is not recommended for
220V equipment. It is better to position your equipment
and install the wiring to eliminate the need for an extension
cord. If an extension cord is necessary, refer to the chart
in the Grounding Instructions section to determine the
minimum gauge for the extension cord. The extension
cord must also contain a ground wire and plug pin.
9. DO NOT pull a machine by the power cord. NEVER
allow the power cord to come in contact with sharp
edges, hot surfaces, oil or grease.
10. DO NOT unplug a machine by pulling on the power
cord. ALWAY grasp the plug, not the cord.
11. REPLACE a damaged cord immediately. DO NOT use
a damaged cord or plug if the machine is not operating
properly, or has been damaged, left outdoors or has
been in contact with water.
12. NEVER remove any chips without turning off the
machine and disconnecting the power.
13. NEVER turn on the machine if the workpiece is in
contact with the blade.
14. EN URE that the machine sits firmly on the floor before
using. If the machine wobbles or is unstable, correct the
problem by using shims or blocks prior to operation.
15. ALWAY keep hands and fingers away from the blades
when operating.
16. DO NOT U E the machine to perform an operation for
which it was not designed. It will be safer and provide
high quality job by only performing operations for which
the machine was intended.
17. Every work area is different. Always consider safety first,
as it applies to your work area. Use this machine with
caution. Failure to do so could result in serious personal
injury and damage to the machine.
18. DO NOT stand on a machine. Serious injury could result
if it tips over or you accidentally contact any moving part.
19. DO NOT store anything above or near the machine.
20. REMOVE ALL MAINTENANCE TOOL from the
immediate area prior to turning the machine ON.
21. MAINTAIN your balance. DO NOT extend yourself over
the tool. Wear oil resistant rubber soled shoes. Keep
floor clear of debris, grease, and wax.
22. DO NOT operate any machine or tool if under the
influence of drugs, alcohol, or medication.
23. MAINTAIN all machines with care. ALWAY KEEP
the machine clean and in good working order. KEEP all
blades and tool bits sharp and free of all rust and pitch.
24. EACH AND EVERY time, check for damaged parts prior
to using any machine. Carefully check all guards to see
that they operate properly, are not damaged, and
perform their intended functions. Check for alignment,
binding or breakage of all moving parts. Any guard or
other part that is damaged should be immediately
repaired or replaced. Check material for loose knots.
25. Safety decals are on this machine to warn and direct
you to how to protect yourself or visitors from personal
injury. These decals MU T be maintained so that they
are legible. REPLACE decals that are not legible.
26. KEEP protective guards in place and in working order.
27. Check material for loose knots, nails and other defects.
28. ALWAY keep the work area clean, well lit, and
organized. DO NOT work in an area that has slippery
surfaces. Keep floor clear of debris, grease, and wax.
29. ECURE all work. When it is possible, use clamps or
jigs to secure the workpiece. This is safer than
attempting to hold the workpiece with your hands.
30. TAY ALERT, watch what you are doing, and use
common sense when operating any machine. DO NOT
operate any machine tool while tired or under the
influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
31. U E ONLY recommended accessories. Use of incorrect
or improper accessories could cause serious injury to
the operator and cause damage to the machine. If in
doubt, DO NOT use it.
32. Wear proper clothing, DO NOT wear loose clothing,
gloves, neckties, or jewelry. These items can get caught
in the machine during operations and pull the operator
into the moving parts. Users must wear a protective
cover on their hair, if the hair is long, to prevent it from
contacting any moving parts.
33. Keep visitors and children away from any machine.
DO NOT permit people to be in the immediate work
area, especially when the machine is operating.
34. DO NOT use a machine as a toy.
35. DO NOT use electrical tools in the presence of
flammable liquids or gasses.
36. AVE these instructions and refer to them frequently
and use them to instruct other users.
37. Establish a AFETY ZONE around shop machinery.
A clearly defined “no-go” zone on the floor around each
machine. Take a few moments to either paint (using
non-slip paint) or using tape, define on the floor the limits
or perimeter of each machines safety zone.

Page 7
PRODUCT AFETY
1. Inspect belt and disc before start the machine. A breacked
belt could cause several injuries.
2. Replace all used and breacked abrasives.

Page 8
To reduce the risk of electric shock, follow all
electrical and safety codes, including the
National Electric Code (NEC) and the
Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring
should be made by qualified personnel only.
WARNING
!
This machine MU T BE GROUNDED
while in use to protect the operator from
electric shock.
WARNING
!
In the event of a malfunction or breakdown, GROUNDING
provides the path of least resistance for electric current and
reduces the risk of electric shock. The plug MU T be
plugged into a matching electrical receptacle that is
properly installed and grounded in accordance with ALL
local codes and ordinances.
If a plug is provided with your machine DO NOT modify the
plug. If it will not fit your electrical receptacle, have a
qualified electrician install the proper connections to meet
all electrical codes. All connections must also adhere to all
of OSHA mandates.
IMPROPER ELECTRICAL CONNECTION of the
equipment-grounding conductor can result in risk of electric
shock. The conductor with the green insulation (with or
without yellow stripes) is the equipment-grounding
conductor.
DO NOT connect the equipment-grounding conductor to a
live terminal if repair or replacement of the electric cord or
plug is necessary.
Check with a qualified electrician or service personnel if you
do not completely understand the grounding instructions,
or if you are not sure the tool is properly grounded.
MINIMUM RECOMMENDED GAUGE FOR EXTEN ION CORD (AWG)
115/230 VOLT OPERATION ONLY
25’ long 50’ long 100’ long
0 to 6 Amps 18 AWG 16 AWG 16 AWG
6 to 10 Amps 18 AWG 16 AWG 14 AWG
10 to 12 Amps 16 AWG 16 AWG 14 AWG
12 to 15 Amps 14 AWG 12 AWG Not
recommended
◊ EXTEN ION CORD
◊ PLUG /RECEPTACLE
MAKE URE the circuit breaker does not
exceed the rating of the plug and
receptacle.
WARNING
!
To reduce the risk of fire or electrical
shock, use the proper gauge of extension
cord. When using an extension cord, be
sure to use one heavy enough to carry the
current your machine will draw.
WARNING
!
The smaller the gauge-number, the larger the diameter of
the extension cord is. If in doubt of the proper size of an
extension cord, use a shorter and thicker cord. An
undersized cord will cause a drop in line voltage resulting
in a loss of power and overheating.
WARNING
!
If you are using an extension cord outdoors, be sure it is
marked with the suffix “W-A” (“W” in Canada) to indicate
that it is acceptable for outdoor use.
ake certain the extension cord is properly sized, and in
good electrical condition. Always replace a worn or
damaged extension cord immediately or have it repaired by
a qualified person before using it.
Protect your extension cords from children, sharp objects,
excessive heat, and damp or wet areas.
U E ONLY a 3-wire extension cord that has
a 3-prong grounding plug and a 3-pole
receptacle that accepts the machine’s
plug.The third prong is used to ground the
tool and provide protection against
accidental electric shock. DO NOT remove the third.
◊ MAGNETIC AFETY WITCH
If the machine is equipped with a magnetic safety switch
you must to reset the overload protection switch after an
overload.
1. Remove the control box cover.
2. Press the reset button.
3. Reinstall the control box cover.
Make certain that the machine is disconnected
from the power source
WARNING
!
ELECTRICAL AND GROUNDING IN TRUCTION

Page 9
UNPACKING AND INVENTORY
CLEANING COMPONENT
Bare metal surfaces have been coated by a rust
prevention compound at the factory. Protected surfaces
must be cleaned prior to assembly and installation.
Use appropriate cleaner and follow relevant safety
measures.
Carefully remove the machine, components and tools
from the shipping carton. Check for damaged or missing
items as per list below.
Please report any damaged or missing part to your
teel City dealer immediately.
Carriage
screws
12x
Belt
1x
iter gauge
1x
Auxiliary table
1x
Stop
1x
Door bracket
1x
Adjustment tool
1x
Handle
1x
Allen keys
1x
Socket screw
2x
Countersunck head
screw 2x
Round head
flange screws
5x
Hex screw
3x
Round head
screws
2x
Drum guard
1x
Lower cross bar 1x
Upper crossbar 1x
Bottom
1x
Door
1x
Side
2x
Back
1x
Door handle
1x
Feet
4x
Switch
1x
Handle rod 13⁄8”
1x
THE machine
1x
Handle rod 3⁄4”
1x
Handle rod 1⁄2”
2x Auxiliary table shaft
1x
Auxiliary table
bracket 1x
Parallel fence
1x

Page 10

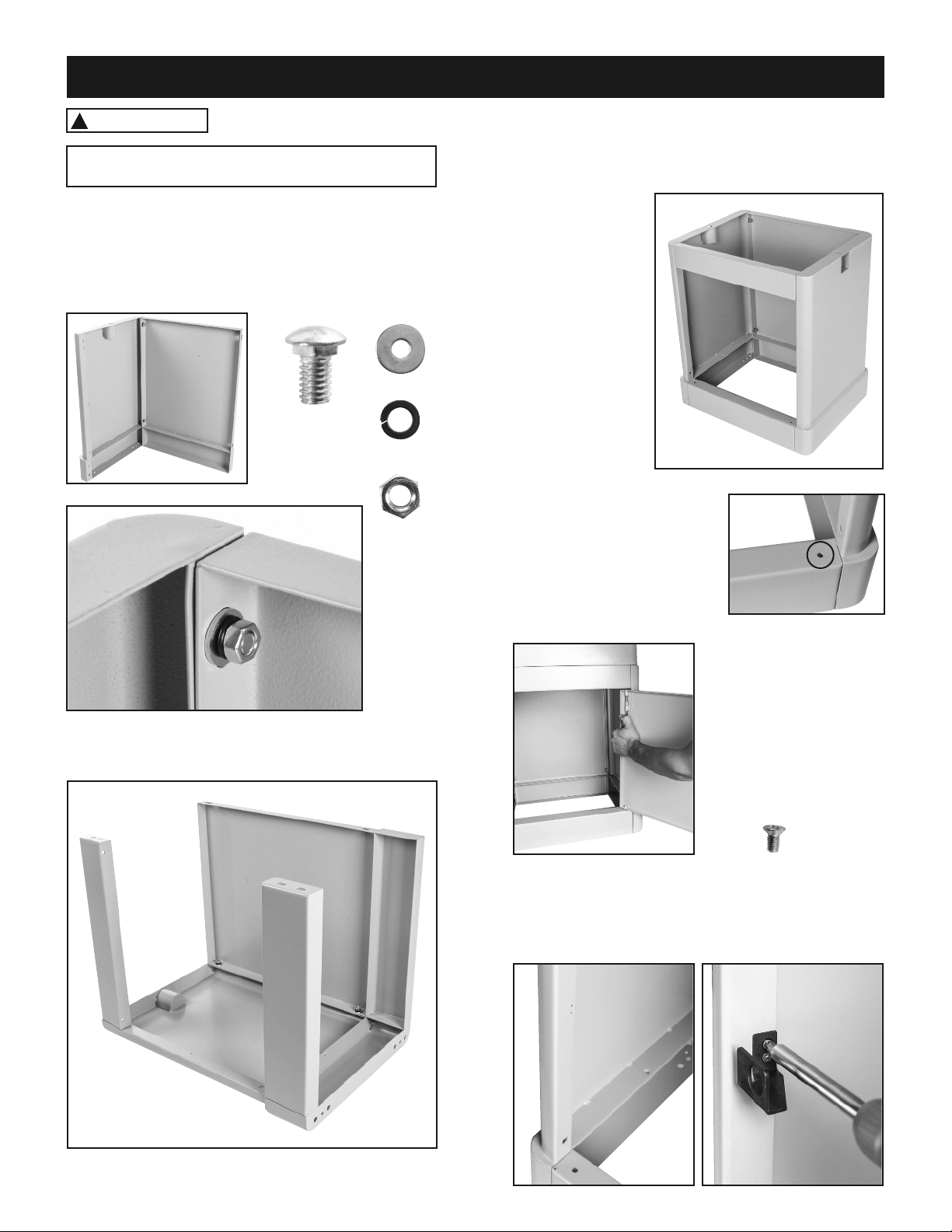

A EMBLY
TEEL TAND
1. Secure a side and the back panel by hand tighttening
carriage bolt with a washer, a lock washer and a nut.
2. Repeat with the two ends of the crossbar.
3. Repeat with the last side. Tighten all the nuts using the
right wrench.
4. Insert the lower door hinge
pin into the hole in the lower
crossbar.
5. Pull down on the spring
lever and fit it into the
hole in the upper cross-
bar.
4. Secure the latch stopper to the left side panel with two
little countersunk screw.
WARNING
!
Make certain that machine is disconnected
from the power source.

Page 11
5. Inserting the handle with a flat washer into the door.
5. Then slide the rubber spacer,
the smaller washer onto the
threaded rod and then tighten
the nut with the right wrench.
To close the door, hold the handle the
horizontal so that the rubber element
penetrates into the hole of the support
carry.
To close the door, hold the handle to
Tip over the handle downward, what
will crush the rubber and will block(sur-
round) the whole to the support carries.
6. Insert the bottom
panel and align the
two elongated
holes with the
tapped holes on the
each side of the
bottom.
7. Screw the two round head screw with lock washers
and washers.
RUBBER FEET
1. Install a rubber foot in each corner, then fit a flat
washer and screw inside each. Using the right wrench,
secure the rubber feet with a nut.
FIX THE MACHINE
1. Put down the machine on its support, align holes
tapped by the machine with the mounting holes of the
support. Thread 2 screws with washers by hand then
tight them definitively.
The machine is heavy, two people are required
to unpack. Use dolly or hand truck to move it.

Page 12
GET THE BELT AND THE FENCE
For shipping reasons, the belt is placed between the back
guards and the platen.
1. Remove the two rear lock handles.
2. Remove the two guards.
HANDLE
Align the plastic handle on the rod lever and insere it in.
AUXILIARY TABLE
To facilitate the continuation of the assembly, tilt the drum
cover to the back.
1. Fix the table and switch bracket on the side of the
motor with two socket screw.
3. Remove the belt and the fence and replace the
guards.
DRUM GUARD
1. Install the left guard and align its mounting holes with
the corresponding holes in the machine. Slide it under the
washer of the handle.
2. Secure the guard with 3 round head flange screws.
TOP
Look for the two holes on the left of the driving drum and
fix the stop in place with a large washer and the 11⁄2”
handle.

Page 13

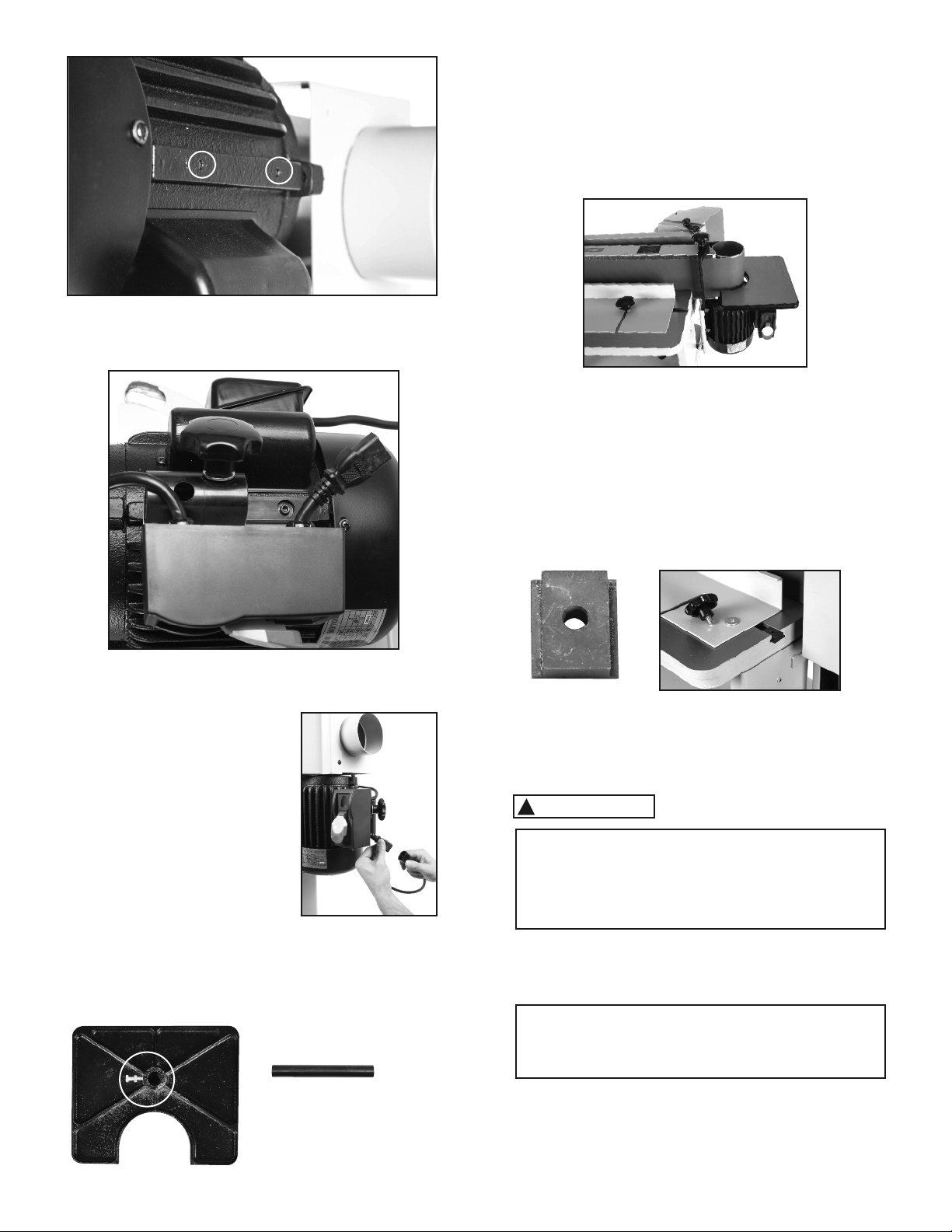

4. Unscrew the hex screw under the auxiliary table until
the hole is completely cleared.
PARALLEL FENCE
In the T groove are two T nuts.
1. Put the fence on the front table and align the T nuts with
the two grooves fo the fence.
2. Secure the fence with two handle 1⁄2” rod and two large
washers
Écrou en T
5. Insert the shaft in the hole of the arm and direct the
flat to the lock handle. Lock the shaft in place..
6. 5. Insert the table on its shaft and lock it with the screw
of the 3thstep. Lock the lock nut.
2. Thread the 3⁄4” handle in the hole of the table support.
3. Connect the switch and the
motor. DU T COLLECTION
inimum recommended dust collection CF require-
ments for this sander is 1100 CF .
Operating this sander without an adequate col-
lection can lead to equipment malfunction or
dangerous situations for the operator or other
individuals in the workshop.
WARNING
!
NOTE:
Run: start the collector before the machine
top: top the machine before the collector

Page 14
TRACKING
On the driving drum is the tracking mechanism. With the
adjustment tool, unlock the lock nut then screw or unscrew
the adjustment screw.
Clockwise: the belt climb
Counter clockwise:the belt comes down
The belt have to run in the middle of the drum. Turn the
sanding belt by hand to verify the adjustment. When the
adjustment is right, start the machine to confirm it.
Improve the adjustment if needed.
ADJU TMENT
CHANGE THE BELT
1. Remove the tension, the guards and the stop.
2. Insert the belt in a parallel way and guide it to the
bottom of the drums.
3. Lock the tension, replace the stop and the guards.
WARNING
!
Make certain that machine is disconnected
from the power source.
TABLE HEIGHT
Loose the two lock knobs under the front tables. Lift or let
the table come down at the deliberate height. Lock the
adjustment.
Lock handle
Adjustment screw

Page 15

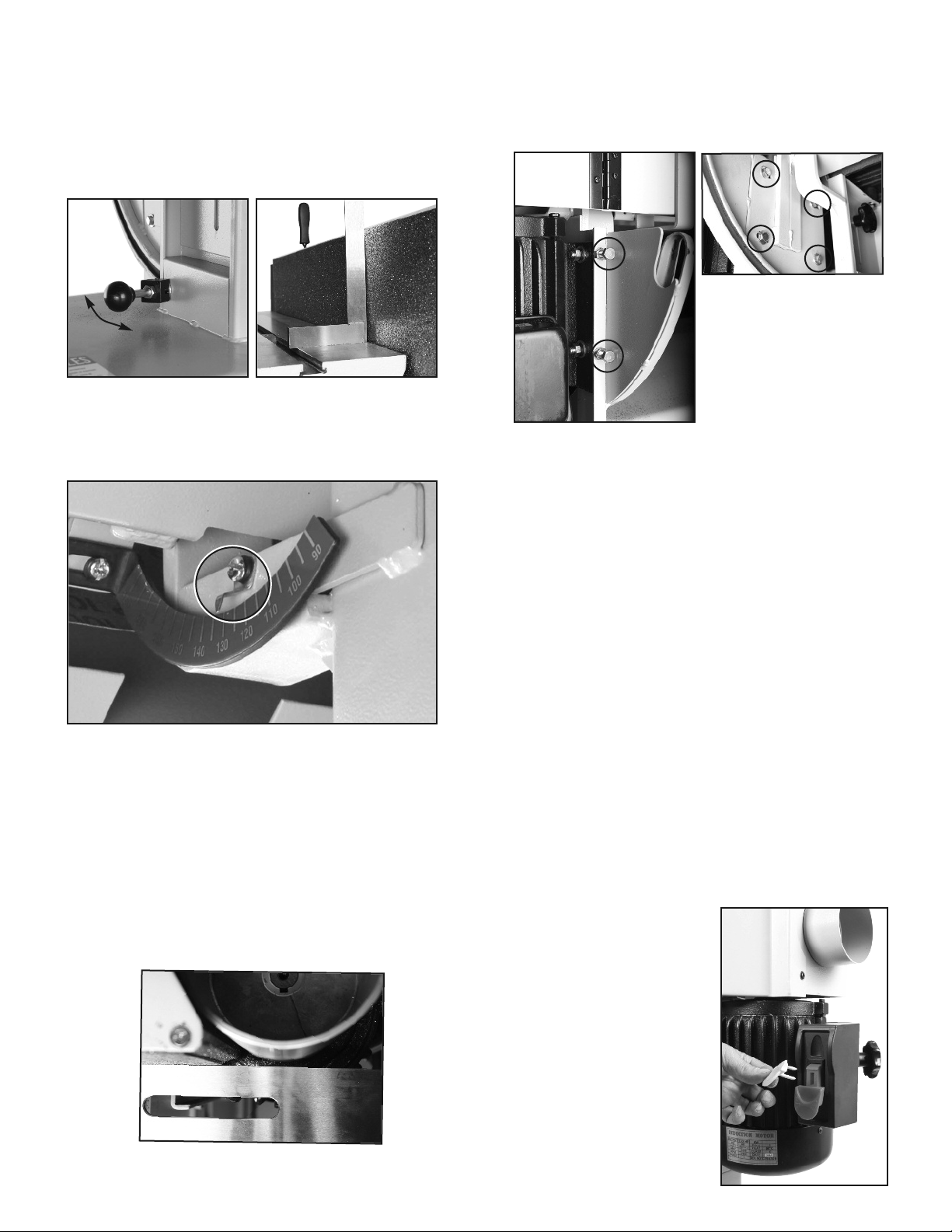

TILT THE BELT - QUARENE
1. Tilt the lever to unlock the belt angle.
2. Adjust the machine at the right table. 90
° by example.
3. Tilt the lever to lock the adjustment.
OFF ET AND PARALLELI M
BETWEEN THE PLATEN AND THE
DRIVEN DRUM
1. Remove the guards and the abrasive belt. Put a rule
on the front table against the graphite. Check the off-
set between the rule and the drum. It must to be 1⁄8”
minimum.
LOCK THE WITCH
Close the switch then pull the yellow key.
NAIL
Loose the screw of the nail , adjust it and lock the screw.
4. Screw or unscrew the 2 hex screw among which lock-
nuts one loosened on step 2. It is possible to adjust the
offset and the parallelism of the driven drum.
5. After adjustment, tight the 4 bolts and the 2 lock nuts.
Install the belt and the guards.
2. Unscrew the two hex lock nuts behind the machine.
3. Unscrew the four bolts that hold the motor bracket to
the machine frame.
2 lock nuts
4 bolts

Page 16
MAINTENANCE
LUBRICATION
All ball bearings are sealed type and require no further
lubrication.
Blow and clean all of the mobile member. Remove the
covers to make sure it is really cleaned. Remove any
gums, resins or other residues.
Each 6 months, put down some drops of oil on the diverse
joints of the led pulley.
CLEANING BELT
To prolonge the abrasive life, clean them frequently with
a gum of cleaning
When machine run, press the gum stick against the belt
and move the stick securely from the bottom to the top.
WARNING
!
Make certain that machine is disconnected
from the power source.
Remove the cover of the oscillating mecanism. Grease
the gear and worm gear with grease #2.
Lubricate inside and ouside the trunnion.

Page 17
DIAGRAM

Page 18
!"#$%&'( #)*)&+)%&'( ,)-+#.!$.'& /$0
!"#$"%"$ &"$"$""$' ()'*+,- $
!"#$"%"& .""""""/ 0)1)+,-*(23.*-(4 $
!"#$"%"5 $"$"!"!&6 3.*-(42'78 $
!"#$"%"! 3""#"#&5 9:;4:;3(92#<$/=>&5>$%$<& &
!"#$"%"/ 3"$$"#"" 4,8;+?-#<$/=%&5?+( &
!"#$"%"@ &"$"$""! .79A2-)'B,2'9)(A $
!"#$"%"C 3"$&"#@" B7(A2+?-2#<@=%$/?+( $
!"#$"%$" &"$"$""D ()02,((,+-9*( $
!"#$"%$") 3"$$"/"" 4,8;+?-2#<@=%$/?+( $
!"#$"%$$ 3"#$"!&! 6*+2!>&! $
!"#$"%$& $"$"&"&5 B7(A24)+:B,2#<@=%$/?+( $
!"#$"%$# $"$"&"&# 4)+:2A+7' $
!"#$"%$5 3"5""!&! A,E2!>!>&! $
!"#$"%$! 3""&"5$/ 4:;4,8;3(9;2$<5=>&"?+(>$= $
!"#$"%$/ 3"&$"5"5 FB)-2.)34,92$<5=>&# $
!"#$"%$D &"$"$"$$) -)'B, $
!"#$"%$D) 3""&"!$" ()623(9;!<$/=>$@?+(>!<@= 5
!"#$"%$@ &"$"$"/! 36,(*)B23(9; &
!"#$"%$C 3"$$$"""0 +?-20$" &
!"#$"%$C) 3"&#"#"@ 369*+12.)34,92#<@= &
!"#$"%&" &"$"$"$# 1?*:,2'B7(A &
!"#$"%&$ &"$"$"$5 F,+(, $
!"#$"%&& &"$"$"$! A+7'2'7B-2@>$& 5
!"#$"%&# &"$"$"$/ 07-79297BB,9 $
!"#$"%&5 &"$"&"$D 1?*:,2')9 $
!"#$"%&! 3"#$"#"/ 6*+2#>/ $
!"#$"%&/ 3""!"5"5 3,-23(9;2$<5=>&"?+(>$<5= $
!"#$"%&D $"$"5"5CG 673*-*7+26B)-, $
!"#$"%&@ $"$"5"!" 67*+-,9 $
!"#$"%&@) &"$"&"&" 673*-*7+26B)-, $
!"#$"%&C &"$"$"&& 3)+:*+12',B- $
!"#$"%#" $"$"5"5/ 0*-,921)?1,2'7:E $
!"#$"%#$ 3""#"$"@ 9:;4:;3(9;2!<#&=>#&?+(>$<&= #
!"#$"%#& 3"$$"$"" 4,8;+?-2!<#&=%#&?+( #
!"#$"%## $"$"5"5! 4)+:2A+7' $
!"#$"%#5 &$D""""$ 3)+:*+12-)'B, $
!"#$"%#5' &$D""""& 3)+:*+12-)'B,23-)+: $
!"#$"%#! &$D"""#D )9'79 $
!"#$"%#/ &"$"$"#C A+7'2'7B-2@>#! $
!"#$"%#/ &"$"$"#C A+7'2'7B-2@>#! $
!"#$"%#D) 3"#$"/5" 6*+2/>5" $
!"#$"%#@ &$D""""5 369*+12/>5" $
!"#$"%#C &"$"$"!! 6)9-*-*7+29*+1 $
!"#$"%5" 3"5""5$" A,E25>5>$" $
!"#$"%5$ &$D""""!1 07-79297BB,92F9)0, $
!"#$"%5& ($$"/""$ ',)9*+12/""$HH &
!"#$"%5! 3"&#"5"" 369*+12.)34,92$<5= &
!"#$"%5C 3""#"#"5 64*B*624:23(9;2#<$/=>&5?+(>$<5= 5
!"#$"%!" 3"&&"#"" 1,)92.)34,92#<$/= $"
!"#$"%!$ &"$"$"#$ ',B-29,6B)(*+126B)-, $
!"#$"%!& &$/"""5$ (7++,(-*+1297: $
!"#$"%!# 3""/"!$" .*+123(9;2!<$/= $&
!"#$"%!5 &"$"$"#&I 3)+:2(B)0624)+:B, $
!"#$"%!! 3""&"!#" 4:;4,8;3(9;2!<$/=>$@?+(>$%#<5= $
%% % %
PART LI T

Page 19
!"#$%&'( #)*)&+)%&'( ,)-+#.!$.'& /$0
% % % %
!"#$"%!/ 3"$&"&"$ +EB7+2+?-2!<$/=%$@?+( !
!"#$"%!D &"$"$"## -*B-23()B, $
!"#$"%!@ 3""5"#"$J FB)-24:;3(9;2#<$/>#<5 $
!"#$"%!C $"$"&"&& .*:-4267*+-,9 $
!"#$"%/" 3""5"#"" FB)-24:;3(9;2#<$/=>&5?+(>#<@= $
!"#$"%/$ 0""""""" 07-79 $
!"#$"%/& 3""&"!&" 4:;4,8;3(92!<$/=>$@?+(>$%$<5= !
!"#$"%/# 3"&$"!""J FB)-2.)34,92!<$/=>$@>&- 5"
!"#$"%/! C"$"""/5 6B?1 &
!"#$"%/D B""""$!5I ,B,(-9*(2(79: $
!"#$"%/C' &$D"""$5 ',B-2(7K,9 $
!"#$"%/C+ &$D"""$# :?3-2(7K,9 $
!"#$"%D" &"$"$""& B*F-*+126B)-, &
!"#$"%D$ &"$"$"&5 A+7'2'7B-2@>&" #
!"#$"%D& &"$"$"5" '9)(A,- $
!"#$"%D# &"$"5"!51 3-)+:2L9*14-2M29*14-N &
!"#$"%D5 &"$"5"!# 6)9-*-*7+ &
!"#$"%D@ 3"&#"!"/ 369*+12.)34,9 &&
!"#$"%DC 3"$$"!"" 4:;4,8;3(92!<$/=%$@?+( &5
!"#$"%@" C"$"""/# FB,8*'B,26B)-, &
!"#$"%@$ &"$"#"55 :9*K,92.9,+(4 $
!"#$"%@& 3""5"!$&0 FB)-24:;3(9;20! @
!"#$"%@# 3""5"5&"0 FB)-24:;3(9;25>&" @
!"#$"%@@ $"5"$"&C 9?'',92F,,- 5
!"#$"%@C 3""C"!$& 9:;4:;3(92!<$/=%$@>#<5= 5
!"#$"%C" C"$"""/& F*8,:2')3, &
!"#$"%C5 &"$"$"!$ ,8-,+3*7+2-)'B, $
!"#$"%C! 3"&#"#"" 369*+12.)34,92#<$/= $"
!"#$"%C/ &"$"$"!" 3?6679-*+1297: $
!"#$"%$"" O""""$"& 3()B, $
!"#$"%$"& *&"""""C B)',B $
!"#$"%$"# &$D"""#@P :?3-2(7K,9 $
!"#$"%$"5 3""#"#"5 64*B*624:;3(9;2#<$/=>&5?+(>$<5= #
!"#$"%$"! &$D"""&# -9?'*+,2(7K,9 $
!"#$"%$"/ &$D"""&5 -9?'*+,2')3, $
!"#$"%$"D &$D"""#" (7++,(-*+12)9'79 $
!"#$"%$"@ &$/"""#C -9?'*+,2)9'79 $
!"#$"%$"C &$D"""&@ -9?'*+,2F*8,:2')3, $
!"#$"%$$" &$D"""&D) ()02'9)(A,- $
!"#$"%$$$ 3""$"5&" ()623(9;$<5=>&"?+(>$%$<5= &
!"#$"%$$! B""""""! ,B,(-9*(2(79: $
!"#$"%$$@ &"$"$"5@I 19)64*-,26): $
!"#$"%$&5 3"&$"5"$ FB)-2.)34,92$<5= /
!"#$"%$#/ &$D"""$@ 3?6679-*+12')3, $
!"#$"%$#D 3""$"#"@ ()623(9;2#<$/=>#<@= &
!"#$"%$5/ &$D"""&! F*8,:2B776 &
!"#$"%$5D 3""$"!&"0 ()623(9;20! 5
!"#$"%$5@ &"C"""5C ',)9*+12(7K,92/&"& $
!"#$"%$5C 3""&"!"$ 4,8;4:;3(9;2!<$/=>$@?+(>$= $
!"#$"%$!" 3""5"5$&0 FB)-24:;3(9;25>$& #
!"#$"%$!$ &$D"""$D ',)9*+12')3, $
!"#$"%$!& ($&"/&"& ',)9*+12/&"& &
!"#$"%$!5 &$D"""5/ ',)9*+12(7K,92/""# $
!"#$"%$!! ($$"/""# ',)9*+12/""# $

Page 20
!"#$%&'( #)*)&+)%&'( ,)-+#.!$.'& /$0
% % % %
!"#$"%$!@ 3""$"5"C ()623(9;2$<5=>&"?+(>$<&= &
!"#$"%$/" *&""""$" B)',B $
!"#$"%$/5 &$D"""#$ 6): &
!"#$"%$/! ($$"/@"" ',)9*+12/@""HH &
!"#$"%$/D &$D"""$" .79021,)9 $
!"#$"%$/@ 3""$"!$" ()623(9;2!<$/=>$@?+(>!<@= &
!"#$"%$/C !"&"D""5 A+7'2'7B- &
!"#$"%$@# &$D""""@ :9*K,+297BB,9 $
!"#$"%$@5 3""!"/"/0 37(;3,-;3(9;2/>/ &
!"#$"%$@! &$D"""!$1 :9*K,+297BB,92)9'79 $
!"#$"%$@/ 3"5""!5" A,E2!>!>5" $
!"#$"%$@@ &$D""""C .790 $
!"#$"%$C$ 3"5""5&! A,E25>5>&! $
!"#$"%$C# .$"$D.%& 3-9)*+29,B*,F2'?34*+1 &
!"#$"%$C5 &$D"""#& O7*+26B)-, $
!"#$"%$CC *&$D"""$ 0)+?)B $
!"#$"%&"# $$$"@"&5 A+7'2'7B- $
!"#$"%&"5 3"!&""#" 9*+123-.%#" &
!"#$"%&"! &$D"""!/ ()02,((,+-9*( $
!"#$"%&"/ &$D"""!51 367+1,26B)-, $
!"#$"%&"D 3""$"!5"0 ()623(9;2!>5" &
!"#$"%&"@ &$/"""&! (7++,(-*+1297: &
!"#$"%&"C 3"!#""$C 9*+129%$C &
!"#$"%&$" 3""!"!"! 3,-23(9,.2!<$/=%#<5B= &
