Steel City TITANIUM Series User manual

TITANIUM SERIES
25” WIDE BELT SANDER
For technical support, provide the following model
and serial numbers:
Model o: ______________________
Serial o: ______________________
OWNER’S MAN AL
50-510
0232020

Page 2
WARRANTY
STEEL CITY WARRANTY
The manufacturer warrants its machines to be free from defects in workmanship and materials for a period of
2 years from the date of the original purchase for Steel City shop machines or for a period of 1 year for Titanium
production machines; subject to the following conditions :
A- Warranty applies to the original buyer only and may not be transferred. Original proof of purchase is
required.
B- Warranty is void if repairs or alterations are made to the machine by an unauthorized service center without
the direct consent of the manufacturer or its representative.
C- Warranty does not include defects, failures or breakages directly or indirectly caused by or resulting from
improper use, improper or lack of maintenance, abuse or misuse, negligence, accidents, damages in
handling or transportation, or normal wear and tear of any part or component.
D- Accessories and wear items such as motor, switch, bearings, drive belt or other accessories are covered
for 1 year.
E- Consumables such as blades, knives, bits, sandpaper or others are not covered.
To file a warranty claim, customer may contact his dealer or email [email protected]
The manufacturer or its representative will inspect, repair or replace any part that has proven to be defective in
workmanship or material, provided that the customer sends the product prepaid to a designated authorized
service center and provides reasonable time to proceed.
If judged on warranty, the manufacturer or its representative will return the repaired product prepaid or will replace
it by a new one at its choice. On the contrary, if it is determined that there is no defect or that the problem resulted
from causes not within the scope of the warranty, it will dispose of or return the product at customer’s expenses,
following customer’s instructions.
The manufacturer or its representative shall not be held liable for any special, indirect, incidental, punitive or
consequential damages, including and without limitation loss of profits arising from or related to the warranty,
the breach of any agreement, the operation or the use of its machines.
Note:
The specifications in this manual are provided for informational purposes only and are subject to rectification
without notice. Some measures have been slightly rounded for ease of reading. Unless otherwise noted, they
should be considered for reference only.
Steel City reserves the right to make certain improvements to the design and appearance of its machines,
components, accessories or parts without notice and without the obligation to perform them on existing models.

Page 3
This user manual is intended for use by anyone working with this machine. It should be kept available for
immediate reference so that all operations can be performed with maximum efficiency and safety.
Do not attempt to perform maintenance or operate this machine until you have read and understand the
information contained in this manual.
The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time
of print. However, changes may be made to your machine or this manual at any time with no obligation to
Steel City.
I TRODUCTIO .......................................................................................................... 3
PRODUCT SPECIFICATIO S ..................................................................................... 3
SAFETY........................................................................................................................ 4
PRODUCT SAFETY..................................................................................................... 6
ELECTRICAL A D GROU DI G I STRUCTIO S.................................................... 7

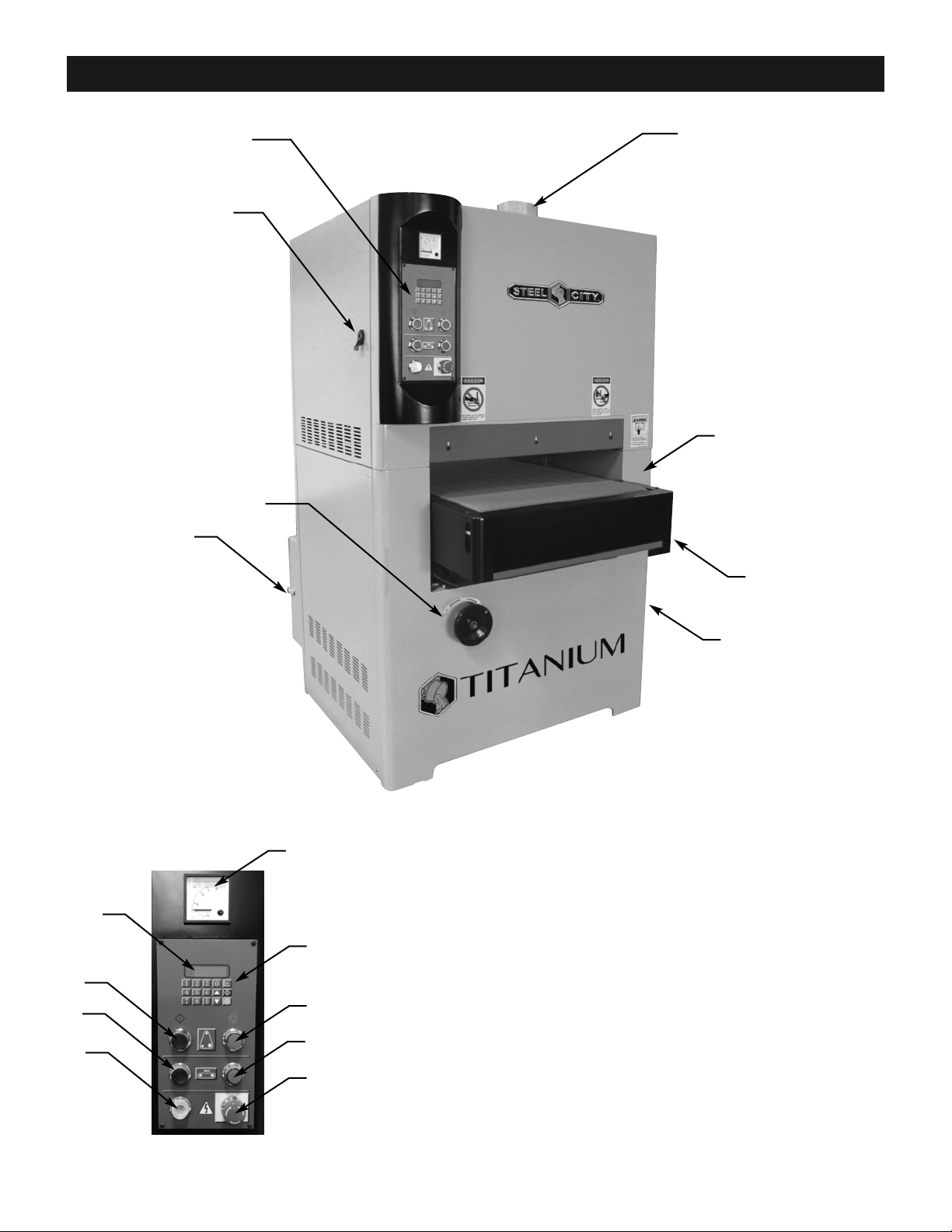

FEATURE IDE TIFICATIO .........................................................................................8
U PACKI G A D I VE TORY .................................................................................. 9
I STALLATIO .......................................................................................................... 10
ADJUSTME TS ......................................................................................................... 12
OPERATIO ................................................................................................................16
MAI TE A CE ......................................................................................................... 17
ELECTRICAL SCHEMATIC.........................................................................................18
PARTS LIST ............................................................................................................... 19
TABLE OF CONTENTS
INTROD CTION
PROD CT SPECIFICATIONS
ain motor
50-510 3 10 HP - 220V - 1 ph - 60A
50-510 T4 15 HP - 600V - 3 ph - 15A
Variable speed feed motor 1 HP
Table elevation motor 1⁄4HP
Number of sanding heads 2
Type Drum + Combi (small sanding drum + platen)
Drum size 1st station 7.87’’ dia.
Drum size 2nd station 4’’ dia.
Graphite size 25.75’’ x 3.5’’
Sandpaper size 25” x 60” (635 x 1524 mm)

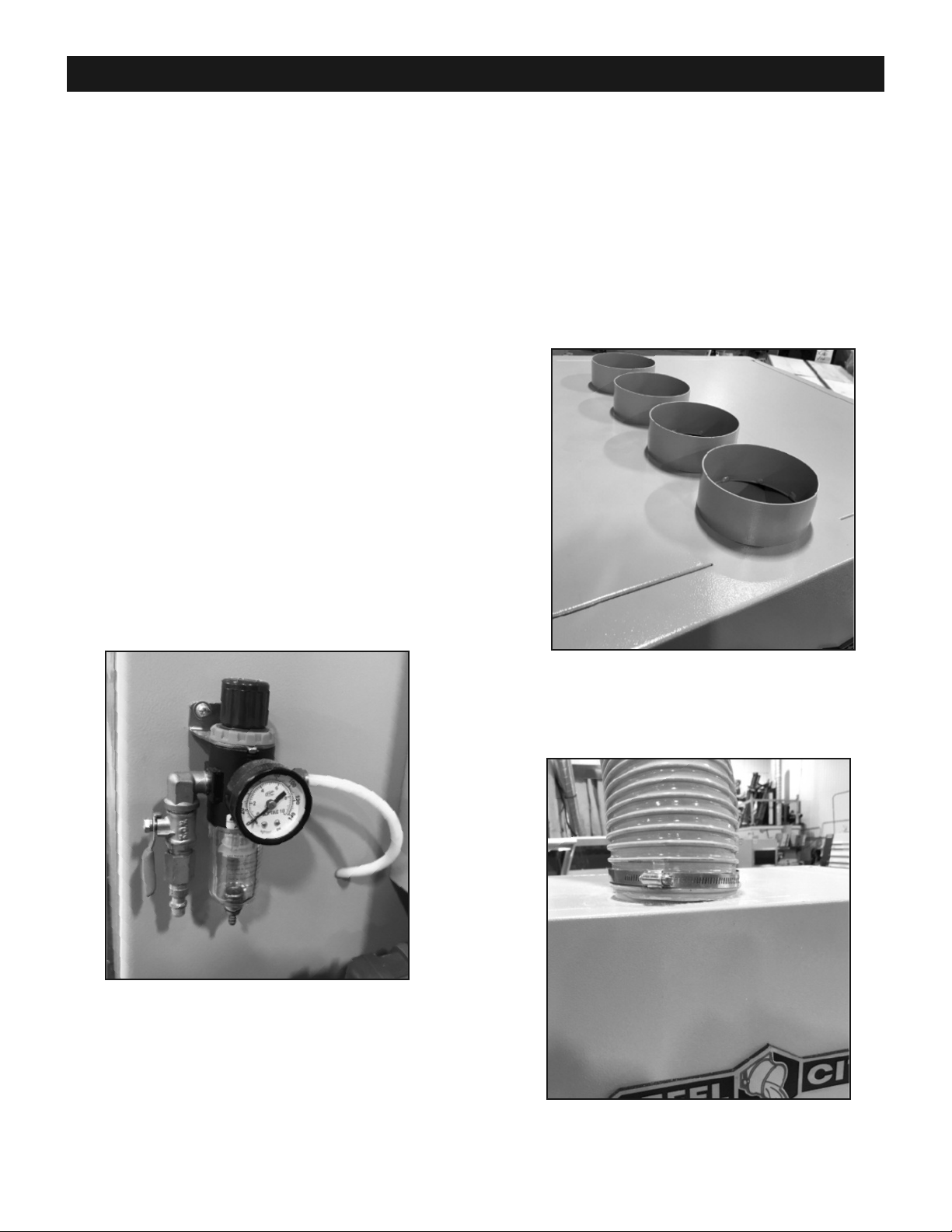

Dust ports 4 x Ø 5” located on top of sander
aximum sanding width 24” (620 mm)
aximum thickness of board 5.91’’ (150 mm)
inimum thickness of board ¼’’ (6.5 mm)
inimum board length 14’’ (355 mm)
Feed speed (variable) 15 to 49 ft/min (4,5 to 15 m/min)
Approx. dimensions 63” x 44” x 73” (1600 x 1120 x 1850 mm)
Approx. Weight 2645 lb (1200 kg)

Page 4
All federal and state laws and any regulations having
jurisdiction covering the safety requirements for use of this
machine take precedence over the statements in this
manual. Users of this machine must adhere to all such
regulations.
Below is a list of symbols that are used to attract your
attention to possible dangerous conditions.
These are safety alert symbols. They are used to alert you
to potential personal injury hazards. Obey all safety
messages that follow these symbols to avoid possible injury
or death.
Indicates an imminently hazardous situation which, if not
avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, WILL result in serious injury or death.
Indicates a potentially hazardous situation which, if not
avoided, CO LD result in serious injury or death.
Exposure to the dust created by power
sanding, sawing, grinding, drilling and other
construction activities may cause serious
and permanent respiratory or other injury,
including silicosis (a serious lung disease),
cancer, and death. Avoid breathing the dust, and avoid
prolonged contact with dust. The dust may contain
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other
masonry products.
• Arsenic and chromium from chemically-treated
lumber.
Always operate tool in well ventilated area and provide
for proper dust removal. Use a dust collection system
along with an air filtration system whenever possible.
Always use properly fitting IOSH/OSHA approved
respiratory protection appropriate for the dust exposure,
and wash exposed areas with soap and water.
DANGER
!
This manual is not totally comprehensive. It does not and can not convey every possible safety and
operational problem which may arise while using this machine. The manual will cover many of the basic
and specific safety procedures needed in an industrial environment.
ALWAYS wear eye protection. Any
machine can throw debris into the eyes
during operation, which could cause severe
and permanent eye damage. Everyday
eyeglasses are NOT safety glasses.
ALWAYS wear Safety Goggles (that comply with A SI
standard Z87.1) when operating power tools.
SAFETY
WARNING
!
ALWAYS wear hearing protection. Plain
cotton is not an acceptable protective
device. Hearing equipment should comply
with A SI S3.19 Standards.
WARNING
!
WARNING
!
WARNING
!
TO RED CE the risk of electrical shock.
DO NOT use this machine outdoors. DO
NOT expose to rain or moisture. Store
indoors in a dry area. DO NOT handle the
plug with wet hands.
1. To avoid serious injury or damage to the machine, read
the entire User Manual before assembly and operation
of this machine.
2. Serious personal injury may occur if normal safety
precautions are overlooked or ignored. Accidents are
frequently caused by lack of familiarity or failure to pay
attention. Obtain advice from supervisor, instructor, or
another qualified individual who is familiar with this
machine and its operation.
3. STOP using this machine, if at any time you experience
difficulties in performing any operation. Contact your
supervisor, instructor or machine service center
immediately.
WARNING
!
CHILDPROOF THE WORKSHOP AREA
by removing switch keys, unplugging tools
from the electrical receptacles, and using
padlocks. DO NOT use near or around
children.
WARNING
!

Page 5
4. Prevent electrical shock. Follow all electrical and safety
codes, including the ational Electrical Code ( EC) and
the Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring should be
made by qualified personnel only.
5. ALWAYS be sure that the power switch is in the “OFF”
position and unplug the machine from the electrical
receptacle when making adjustments, changing parts or
performing any maintenance.
6. AVOID ACCIDENTAL STARTING. Make sure that the
power switch is in the “OFF” position before plugging in
the power cord to the electrical receptacle.
7. NEVER leave a machine running, unattended. Turn the
power switch to the OFF position. DO NOT leave the
machine until it has come to a complete stop.
8. THE SE of extension cords is not recommended for
220V equipment. It is better to position your equipment
and install the wiring to eliminate the need for an extension
cord. If an extension cord is necessary, refer to the chart
in the Grounding Instructions section to determine the
minimum gauge for the extension cord. The extension
cord must also contain a ground wire and plug pin.
9. DO NOT pull a machine by the power cord. NEVER
allow the power cord to come in contact with sharp
edges, hot surfaces, oil or grease.
10. DO NOT unplug a machine by pulling on the power
cord. ALWAYS grasp the plug, not the cord.
11. REPLACE a damaged cord immediately. DO NOT use
a damaged cord or plug if the machine is not operating
properly, or has been damaged, left outdoors or has
been in contact with water.
12. NEVER remove any chips without turning off the
machine and disconnecting the power.
13. NEVER turn on the machine if the workpiece is in
contact with the blade.
14. ENS RE that the machine sits firmly on the floor before
using. If the machine wobbles or is unstable, correct the
problem by using shims or blocks prior to operation.
15. ALWAYS keep hands and fingers away from the blades
when operating.
16. DO NOT SE the machine to perform an operation for
which it was not designed. It will be safer and provide
high quality job by only performing operations for which
the machine was intended.
17. Every work area is different. Always consider safety first,
as it applies to your work area. Use this machine with
caution. Failure to do so could result in serious personal
injury and damage to the machine.
18. DO NOT stand on a machine. Serious injury could result
if it tips over or you accidentally contact any moving part.
19. DO NOT store anything above or near the machine.
20. REMOVE ALL MAINTENANCE TOOLS from the
immediate area prior to turning the machine O .
21. MAINTAIN your balance. DO NOT extend yourself over
the tool. Wear oil resistant rubber soled shoes. Keep
floor clear of debris, grease, and wax.
Keep floor clear of debris, grease, and wax.
22. DO NOT operate any machine or tool if under the
influence of drugs, alcohol, or medication.
23. MAINTAIN all machines with care. ALWAYS KEEP
the machine clean and in good working order. KEEP all
blades and tool bits sharp and free of all rust and pitch.
24. EACH AND EVERY time, check for damaged parts prior
to using any machine. Carefully check all guards to see
that they operate properly, are not damaged, and
perform their intended functions. Check for alignment,
binding or breakage of all moving parts. Any guard or
other part that is damaged should be immediately
repaired or replaced. Check material for loose knots.
25. Safety decals are on this machine to warn and direct
you to how to protect yourself or visitors from personal
injury. These decals M ST be maintained so that they
are legible. REPLACE decals that are not legible.
26. KEEP protective guards in place and in working order.
27. Check material for loose knots, nails and other defects.
28. ALWAYS keep the work area clean, well lit, and
organized. DO NOT work in an area that has slippery
surfaces. Keep floor clear of debris, grease, and wax.
29. SEC RE all work. When it is possible, use clamps or
jigs to secure the workpiece. This is safer than
attempting to hold the workpiece with your hands.
30. STAY ALERT, watch what you are doing, and use
common sense when operating any machine. DO NOT
operate any machine tool while tired or under the
influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
31. SE ONLY recommended accessories. Use of incorrect
or improper accessories could cause serious injury to
the operator and cause damage to the machine. If in
doubt, DO NOT use it.
32. Wear proper clothing, DO NOT wear loose clothing,
gloves, neckties, or jewelry. These items can get caught
in the machine during operations and pull the operator
into the moving parts. Users must wear a protective
cover on their hair, if the hair is long, to prevent it from
contacting any moving parts.
33. Keep visitors and children away from any machine.
DO NOT permit people to be in the immediate work
area, especially when the machine is operating.
34. DO NOT use a machine as a toy.
35. DO NOT use electrical tools in the presence of
flammable liquids or gasses.
36. SAVE these instructions and refer to them frequently
and use them to instruct other users.
37. Establish a SAFETY ZONE around shop machinery.
A clearly defined “no-go” zone on the floor around each
machine. Take a few moments to either paint (using
non-slip paint) or using tape, define on the floor the limits
or perimeter of each machines safety zone.

Page 6
PROD CT SAFETY
◊ ADDITIONAL SAFETY – WIDE ..
BELT SANDERS
The use of a wide belt sander is a source of serious
injury if basic safety rules are not followed. Be aware of
the following warnings:
◊ Pinch hazards
Be cautious when feeding a piece in the machine. Do
not place your fingers under the piece while feeding so
they could get caught between the piece and the
conveyor belt.
◊ trangulation hazards
Do not wear loose clothing, jewelry, large gloves and
tie back long hair. They could get pinched by rotating
parts.
◊ Contact with rotating sandpaper
Rotating sandpaper can cause important injuries very
rapidly. Keep hands away from rotating sandpaper at
all times during operation.
◊ Kickback
A piece can be ejected by the machine and hit the
operator. Do not stand in-line with the piece when
feeding, make sure the height is adjusted with respect
to the thickness of the piece so the pressure roller
maintains proper contact, and be careful about feeding
more than one piece at a time as the thickness might
be different and the pressure roller will not hold the
thinnest piece.
◊ Minimum dimensions
Never sand pieces that are below the minimum
dimensions to avoid kickback.
◊ Material
Do not sand any material other than wood.
◊ Dust
Sanding dust represents a health hazard and must be
seriously considered. Never operate the sander without
adequate dust collection system running. Wear eye
protection. Use respiratory protection if appropriate.
WARNING
!

Page 7
To reduce the risk of electric shock, follow all
electrical and safety codes, including the
ational Electric Code ( EC) and the
Occupational Safety and Health Regulations
(OSHA). All electrical connections and wiring
should be made by qualified personnel only.
WARNING
!
This machine M ST BE GRO NDED
while in use to protect the operator from
electric shock.
WARNING
!
In the event of a malfunction or breakdown, GRO NDING
provides the path of least resistance for electric current and
reduces the risk of electric shock. The plug M ST be
plugged into a matching electrical receptacle that is
properly installed and grounded in accordance with ALL
local codes and ordinances.
If a plug is provided with your machine DO NOT modify the
plug. If it will not fit your electrical receptacle, have a
qualified electrician install the proper connections to meet
all electrical codes. All connections must also adhere to all
of OSHA mandates.
IMPROPER ELECTRICAL CONNECTION of the
equipment-grounding conductor can result in risk of electric
shock. The conductor with the green insulation (with or
without yellow stripes) is the equipment-grounding
conductor.
DO NOT connect the equipment-grounding conductor to a
live terminal if repair or replacement of the electric cord or
plug is necessary.
Check with a qualified electrician or service personnel if you
do not completely understand the grounding instructions,
or if you are not sure the tool is properly grounded.
MINIM M RECOMMENDED GA GE FOR ExTENSION CORDS (AWG)
115/230 VOLT OPERATION ONLY
25’ long 50’ long 100’ long
0 to 6 Amps 18 AWG 16 AWG 16 AWG
6 to 10 Amps 18 AWG 16 AWG 14 AWG
10 to 12 Amps 16 AWG 16 AWG 14 AWG
12 to 15 Amps 14 AWG 12 AWG ot
recommended
◊ ExTENSION CORDS
◊ PL GS/RECEPTACLES
MAKE S RE the circuit breaker does not
exceed the rating of the plug and
receptacle.
WARNING
!
To reduce the risk of fire or electrical
shock, use the proper gauge of extension
cord. When using an extension cord, be
sure to use one heavy enough to carry the
current your machine will draw.
WARNING
!
The smaller the gauge-number, the larger the diameter of
the extension cord is. If in doubt of the proper size of an
extension cord, use a shorter and thicker cord. An
undersized cord will cause a drop in line voltage resulting
in a loss of power and overheating.
WARNING
!
If you are using an extension cord outdoors, be sure it is
marked with the suffix “W-A” (“W” in Canada) to indicate
that it is acceptable for outdoor use.
Make certain the extension cord is properly sized, and in
good electrical condition. Always replace a worn or
damaged extension cord immediately or have it repaired by
a qualified person before using it.
Protect your extension cords from children, sharp objects,
excessive heat, and damp or wet areas.
SE ONLY a 3-wire extension cord that has
a 3-prong grounding plug and a 3-pole
receptacle that accepts the machine’s
plug.The third prong is used to ground the
tool and provide protection against
accidental electric shock. DO NOT remove the third.
◊ MAGNETIC SAFETY SWITCH
If the machine is equipped with a magnetic safety switch
you must to reset the overload protection switch after an
overload.
1. Remove the control box cover.
2. Press the reset button.
3. Reinstall the control box cover.
Make certain that the machine is disconnected
from the power source
WARNING
!
ELECTRICAL AND GRO NDING INSTR CTIONS

Page 8
FEAT RE IDENTIFICATION
FRO T VIEW
CO TROL PA EL
C
AB
F
H
G
E
D
A
C
E
G
I
B
D
F
H
A. Control panel
B. Dust outlet ports
C. Access door
D. Electrical cubicle
E. Table height handwheel
F. Conveyor variable speed (in the back)
G. Air pressure regulator (in the back)
H. Emergency stop push bar
A. Ammeter
B. Table height display
C. Keyboard - table height
D. Sanding belt start
E. Sanding belt stop
F. Conveyor belt start
G. Conveyor belt stop
H. Power O light
I. Emergency stop pushbutton

Page 9
NPACKING AND INVENTORY
◊ CLEANING
Anti-corrosive oil is applied to the machine before
shipment. After unpacking, clean the anti-corrosive oil
with soft cloths and appropriate cleaning product. Do
not use lacquer thinner, acetone or other volatile
solvents, as they can damage painted surfaces.
◊ MOVING THE MACHINE
The machine is heavy and should be moved to its
location with a lift truck. ake sure the lift truck has
adequate capacity and proper handling methods are
used. The forks must protrude from the far side of the
machine bottom when moving. Pay careful attention to
the machine balance while it is being moved and that
it does not hit the floor when placed at the location.
Be aware of missing or damaged parts to
inform your supplier as soon as possible.
This machi e is heavy a d
should be moved to its
locatio with a lift truck.
WARNING
!
ITEM QTY DE CRIPTION
1 2 SANDING BELT 1 X #100 AND 1 X #180
2 1 GRAPHITE PAD
3 1 FELT PAD
4 1 PLATEN RE OVAL TOOL
5 1 FLAT SCREWDRIVER
6 1 PHILLIPS SCREWDRIVER
7 1 WRENCH 17 X 19
8 1 WRENCH 12 X 14
9 1 WRENCH 8 X 10
10 1 HEX KEY SET
11 2 DOOR LOCK KEY
12 2 LI IT SWITCH TUBE
13 1 TOOLBOX

Page 10
◊ CLEANING
Anticorrosive oil is applied to the machine before
shipment. It can be removed by using WD40 on the
coated parts and wipe it off with a soft cloth. This
may be done several times before the coating is
removed completely. Do not use lacquer thinner
or other volatile solvents, as they can damage the
surface of the machine.
◊ ELECTRICAL IN TALLATION
Electrical wiring should be done by a qualified
electrician. The machine must be properly grounded to
avoid electric shocks and associated hazards.
◊ COMPRE ED AIR
Compressed air is used to control the belt tension
and oscillation. A clean air source must be connected
to the air inlet on the regulator.
NOTE: the machine will not run if air pressure is
not sufficient.
Pull the regulator knob up to unlock and rotate it,
clockwise to increase, counter-clockwise to decrease,
until pressure is set to about 75-80 psi. Press the knob
down to lock it.
◊ DU T COLLECTION
CAUTION:
This machine creates a lot of dust during operation.
ake sure to use adequate dust collector and
wear appropriate respiratory/dust mask if required.
This machine should use a dust collector providing
adequate capacity for the 4 dust ports of 5’’. The
capacity must take into account branches,
elbows and other connections in the network.
The 4 dust ports are located on top of the machine.
The hoses must be secured to the ports by mean of
hose clamps.
INSTALLATION
NOTE: Always turn on the dust collector before
operating the sander.

Page 11
◊ IN TALLING / REPLACING
ANDING BELT
1. Disconnect machine from power source.
2. Open the left access door; turn the belt tension
knob (A) to the ‘OFF’ position (left) to release pressure.
3. Remove the pad lock lever (B) by turning it
counterclockwise and pull it up.
4. Remove the pad block (C)
5. Remove existing belt (if present).
6. Make sure the direction of the arrows on the inside
of the belt matches the direction of rotation of the
machine (counter-clockwise). The edges of the
sanding belt should not be chipped or torn. Insert the
new belt starting first on the upper roller, then the lower
roller and center the belt while avoiding contact with the
limit switch fingers located on each side of the belt.
NOTE: the sanding belt must be centered between
the limit switches (D) and the edge of the belt must
be between the tongs of the oscillation controller
(E) before tensioning the belt, or damage may
occur tothe belt or to the sander when turned ON.
7. Replace pad block (C) and tighten pad lock lever (B).
8. Turn ON the belt tension knob (A).
9. ake sure there is clearance between the belt edges
and the limit switch finger on either side. If not, make
the appropriate belt corrections following the above
procedure (with air tension turned OFF) as necessary.
NOTE: the machine will not start if there is no
tension on the belt or if a limit switch is
depressed.
A
B
C
D
E

◊ ANDING BELT TEN ION
The tension of the sanding belt is controlled by an air
cylinder. Turn the belt tension knob to put or remove
tension on the belt.
When the machine is not in use, release the belt tension
to avoid belt fatigue.
NOTE: the machine will not start if there is no
tension on the belt or if a limit switch is
depressed.
Page 12
◊ TABLE MOVEMENT
The height of the table can be manually adjusted by
mean of the handwheel (F) located below the table,
or by using the digital keyboard in the control panel:
otorized movement: Press Table Up or Table Down (G)
key once for moving the table in increments of 0.005’’
(0.1mm)
Keyboard (H): to enter desired value
Digital display (I): Shows the entered value
Table Start key (J): oves the table to the entered value
Table Stop key (K): Stops table movement
etric/Imperial unit key (L): Press and hold the key for
10 seconds to switch between metric and imperial unit.
Press and hold the key for 3 seconds to calibrate the
display at the current board thickness.
ADJ STMENTS
◊ ANDING BELT TRACKING
The sanding belt tracking is the side movement
of the sanding belt while oscillating. The travel should
be equal on both ways and remain inside its normal
track, or the machine will stop.
Tracking was set at the factory, but might require
adjustment for example, after replacing sandpaper.
Tracking depends on the stream of air in the air fork
gap, on oscillation timing and on oscillation speed.
Adequate stream of air is required through the air flow
controller;
keep the holes clear as, if the jet of air is weak, the belt
will track away from the controller and into the limit
switch on the opposite end of the roller.
F
I
H
L
J
K
G

Page 13
The oscillation timing is the time it takes for the sanding
belt to oscillate from right-to-left and from left-to-right. This
oscillation should take the same amount of time. If
oscillation time to the left is, say 2 seconds, but time to the
right is longer, loosen the oscillation adjustment knob (M)
and move it to the right, until correct tracking is obtained.
Then tighten the adjustment knob.
The oscillation speed can be adjusted by means of the
speed controller (N) on the cylinder:
Loosen the fixing nut on the speed controller, then turn
the controller clockwise to decrease oscillation speed, or
turn counter-clockwise to increase. Tighten the fixing nut.
Different oscillating speeds give different sanding results,
some experiments might be required to obtain desired
result.
◊ ANDING PLATEN
The combi head has an adjustable felt platen with a
graphite pad. It is used during the finish sanding passes,
so during the rough sanding passes or dimensioning,
the platen is up and not used.
To adjust platen position, unlock the platen lock lever (A)
and adjust height by mean of the height lever (B). A
scale, divided in 0.1mm increments (approx. 0.004”),
helps in adjusting.
When at above 0, the platen is up and not used (for
roughing passes). Typically set at 1.5 mm up.
At 0, the platen is even with the sanding drum and is
used for intermediate finishing passes (typically 100-150
grit).
Under 0, the platen is lower than the sanding drum. It is
then doing the finish sanding (typically 180 and finer
grit). The platen should not be lowered by more than
0.2mm as burn marks and premature graphite wear will
occur.
During finish sanding passes, it is not necessary to use
the table height handwheel; adjusting the platen height
alone will be sufficient.
NOTICE:
The platen should always be kept clean after
sanding. If the workpiece has straight notches
across it, the graphite cloth and felt have worn out
and should be replaced immediately.
M
N
B
A

Page 14
◊ FEED PEED
The conveyor belt has variable speed , controlled by the
speed selector dial (O) of the worm gear reducer
mounted on the conveyor, in the back of the sander.
Turn the dial clockwise to decrease the speed,
counter-clockwise to increase it.
IMPORTANT:
CHANGE THE FEED PEED ONLY WHILE
THE MACHINE I RUNNING.
FAILURE TO DO O MAY CAU E GEARBOX
DAMAGE.
◊ CONVEYOR BELT
The belt should always run at the center of the contact
drum. The belt tracking and tension are adjusted at the
factory.
However, should they require correction the adjustment
bolts are located on each side of the conveyor front
roller. Disconnect the machine from power. Turn the
bolts to increase/decrease the tension or correct the belt
tracking.
◊ V-BELT TEN ION
After the machine has been in operation for some time,
the V-belts might need to be re-adjusted.
Disconnect the machine from power. Remove the lower
right access door. Check the belt tension; each belt
should deflect by about 3/4”-1’’ when pushed moderately
at mid distance between the motor pulley and the roller
pulley.
If correction is required, raise or lower the motor base-
plate by mean of the tensioning bolt (P) and/or correct
the tension on the intermediate bender (Q).
NOTE: Keep V-belts correctly tensioned to
ensure proper functionality of emergency stop
brake (R). The emergency disc brake must be
able to stop the sanding drum.
O
Q
P
R

Page 15
◊ BRAKE Y TEM
The sander will automatically stop if any of the following
occurs:
- No air supply to the machine
- No sanding belt installed
- Improper belt tension
- Sanding belt runs out of track
If sanding belt breaks, all movement will be stopped but
the table can still be raised or lowered.
Operator should find the cause of stoppage and make
necessary correction. Then the machine can be reset
and started.
◊ RUN TE T
After installed and adjusted, the sander should be run to
make sure it functions properly and that the safety
features are working as they should.
If a problem is found or a safety feature does not
operate, have it fixed prior to using the sander. Serious
injury could result from inoperative safety feature.
ake sure there is no tool, workpiece, towel, packaging
or else left inside the sander.
1. Press the Emergency Stop button on the control panel.
2. Open compressed air inlet valve and check pressure.
3. Install/make sure the sanding belt is properly installed
and tensioned.
4. Connect the sander to power supply. Indicator light
should come on.
5. Turn Emergency Stop button clockwise so it springs out;
this resets the switch.
6. Press the sanding belt start button; main motor should
start and sanding belt run without abnormal noise.
7. Press the Emergency Stop button; machine should stop
immediately. Do not reset the E-stop button and press
the Start button; motor SHOULD NOT start.
8. Repeat steps 5-7 with the conveyor belt start button to
test the conveyor motor. It should run steady without
abnormal noise. The belt must be running toward the
machine and properly centered.
9. Reset the Emergency Stop button.
10.Press the sanding belt and the conveyor belt start
buttons so both motors run.
11.Press the Emergency Stop Plate, located in front of the
conveyor belt; the sanding belt and the conveyor belt
should stop.
If any of the safety components did not work, it is
mandatory to have them repaired prior to using the
sander, to avoid serious injuries.

Page 16
OPERATION
◊ OVERVIEW
This section is only to provide a basic understanding on
how the sander is used. This supposes that the sander
is carefully checked, adjusted and in ready-to-run
condition.
This is not meant to be instructional. Should training be
required, ask your dealer for advice on sources that can
provide adequate training on use of a wide belt sander.
The basic operating procedure is as follows:
1. Place the workpiece on the conveyor belt and
underneath the sanding belt.
2. Raise the table to approximate workpiece thickness.
3. Remove the workpiece. Start the dust collector, the
sanding belt, then start the conveyor belt.
4. Carefully feed workpiece into the sander, supporting the
back of the piece until supported by pressure rollers.
5. During initial pass with a new piece, adjust the table
height so the piece has a very light contact with the
sanding belt.
Determining the depth of wood removal is one of the
most important procedures for the sander. It may take
some experimentation to determine the proper depth,
given the variables of abrasive grit, type of wood, feed
rate, platen position. The ammeter also helps in
estimating the load applied to the abrasive. To prevent
unnecessary wear of the sanding belt, the wood piece
should be surface planed before sanding.
Never remove lots of material in a single pass. As a
general rule, 1/64” (0.4mm) is suggested for coarser
grits and softer woods, while 1/128” (0.2mm) may be
preferable with finer grits and harder woods. For best
results, use scrap pieces of wood to practice on. This
will help you develop a familiarity with the machine
before doing finish work on good pieces.
6. Receive the workpiece from the outfeed side of the
conveyor.
7. If needed, raise the conveyor table by a small amount
and repeat feeding process through the sander.
8. Stop the machine and change the sandpaper to a finer
grit and repeat feeding process.
9. When sanding is complete, stop the sander and the dust
collector; disconnect the sander from the power.
◊ U ING THE PLATEN
The sander is equipped with a platen with a graphite
pad. It is used during finish sanding to create a buffed
like look and prepare the piece for final hand sanding
and finish coat.
Please refer to previous section Adjustments/Platen.
◊ GRIT ELECTION
The grit size of the sandpaper designates the
coarseness of the abrasive. The lower the grit number,
the coarser the abrasive. With coarser grit papers, such
as 60 grit, very aggressive material removal and surface
scratching occur.
With finer grit abrasives, very little material is
removed and a buffed like look begins to appear.
The table below shows different types of grit and their
uses.
ABRA IVE NORMAL U E
60 Grit surfacing and dimensioning boards,
truing warped boards
80-100 Grit surfacing, light dimensioning,
removing planer ripples
120 Grit light surfacing, minimal stock removal
150 Grit finish sanding, minimal stock removal
180 Grit finish sanding only, no stock removal
The general rule of thumb is to sand a workpiece with
gradually higher grit numbers, with no one grit increase
higher than 50 (ex. 100-150). The type of wood and the
desired finish will determine the grit to use.

Page 17
MAINTENANCE
◊ LUBRICATION AND MAINTENANCE
1. The machine interior should be thoroughly cleaned
every day after work. Remove the sanding belts before
cleaning and replace them afterwards.
2. The bearings should be greased after every 100 hrs of
use.
3. The water should be drained from the filter cups
regularly.
4. onthly, apply a good amount of grease on the table
elevation screws, and apply grease to the chain and
gears mechanism. Pay attention not to put grease on
the V-belts.
5. The oil in the gear reducer should be changed after the
first 300 hours, and every 2500 hours of use thereafter.
6. Test the safety features on a regular basis.
7. Check for damaged or worn sanding belts. Replace if
required.

Page 18
ELECTRICAL SCHEMATIC

Page 19
PARTS LIST
S50510A001
S50510A002
S50510A003
S50510A004
S50510A005
S50510A006
S50510A007-1
S50510A007-2
S50510A008
S50510A009
S50510A010
S50510A011
S50510A012
S50510A013

Page 20
