STEELE PRODUCTS SP-GG100 User manual

SP-GGIO0 tons_nvxc_cALL:888496-5881
PARA 5ERVICII) LLAME:

1000WATTGE ERiATOR

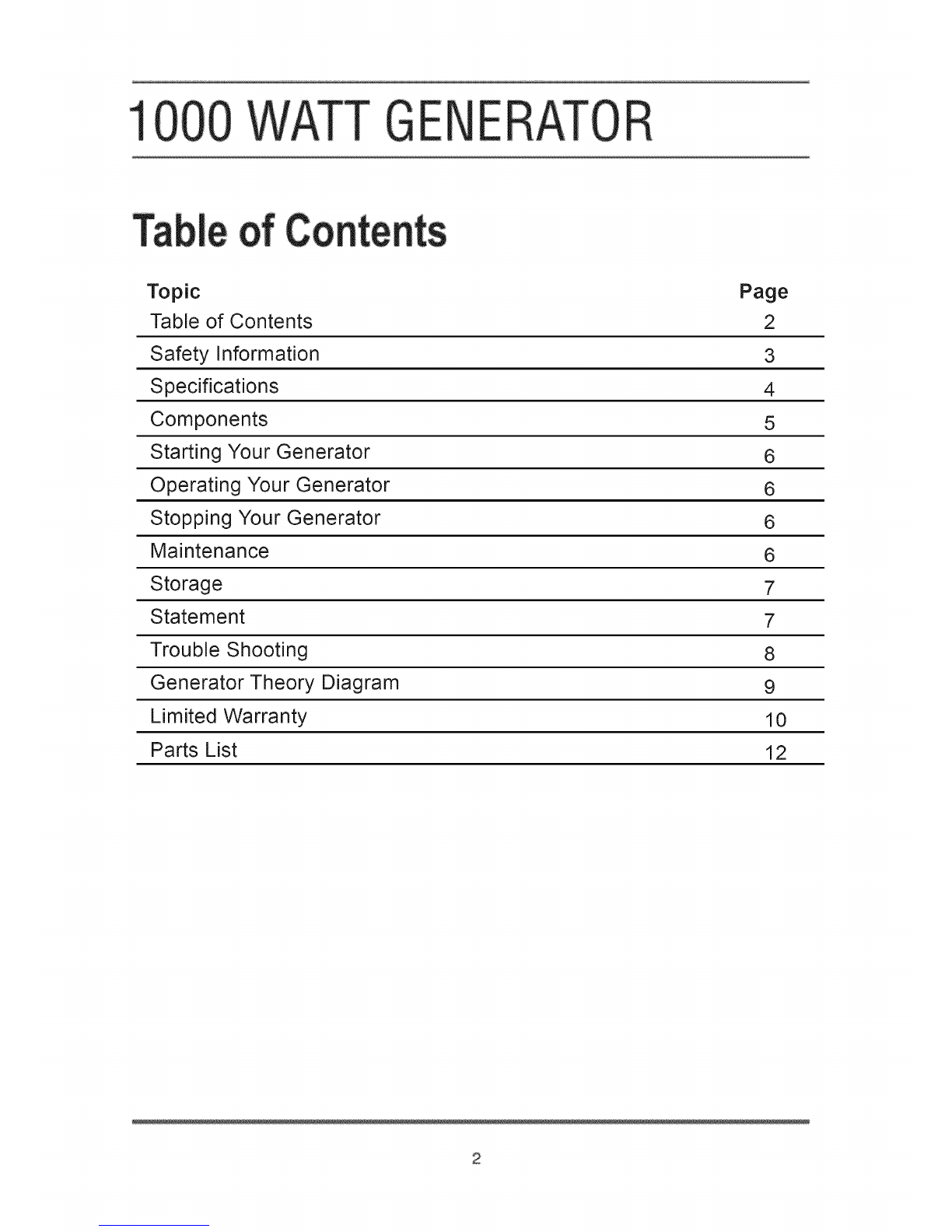

Tableof Contents
Topic
Table of Contents
Safety Information
Specifications
Components
Starting Your Generator
Operating Your Generator
Stopping Your Generator
Maintenance
Storage
Statement
Trouble Shooting
Generator Theory Diagram
Limited Warranty
Parts List
Page
2
3
4
5
6
6
6
6
7
7
8
9
10
12
2

1000 GE ERATOR
Safety information
CAUTION
PLEASEREADANDUNDERSTANDTHiSMANUAL
COMPLETELY,BEFOREOPERATINGTHIS GENERAZOR_
Never operatethe engine in an enclosed area,All gasoline engines produce carbon
monoxide gas while running. Breathing exhaust fumes can kiil_Operatethe engine in a
welbventilated area, oniy_
Extractirom CPSCDocument#5008onCarbonMonoxide
The U,S ConsumerProduct S Commissio_(CPSC)hasissuedthe following warning regarding
carbonmonoxide poisoning:
. Donot usepodab!eheatersor lanternswhiie s_eepingin enclosedareassuch aste_ts campers and
othervehicles..This is especiallyimpodaet at high altitudes wherethe risk of carbon monoxide
, _aow thesymptoms dcarbonmonoxide poisoning: headachedizziness weakness nausea,
vomiting, s_eepi_essandconf_sio_ Carbonmonoxide reducesthe blood's abiiity to carry oxygen.
Lowbbod oxygen_evelscan result in ioss dconsciousnessanddeath
*Seea doctor if youor a member dyourfamily dwe_opscofd or flu iikesymptoms
Carbonmonoxide poisoningcaneasi:ybe mistakenfor a cow or flu and is often detectedtoo :ate.
*A_coholco_sumpt on anddrug use i_c_easetheeffects dcarbonmonoxide poisoning.
.Carbonmonoxide isespeciallytoxic lo mother and chiWduring pregnancy,inheLs theelderiy.
smokers,,and peoplewiifsbtood or circuBtory systemproblems such asanemia_or headdisease.
Fuel is highly Flammable
DONOT refuei while engine is running.
DONOT refuei near sparks or open flame
DONOTsmoke while refueling
A S aflow the engine and muffler to cool before refueling.
Refuei ONLYin weiloventi/ated area.
DONOTover-fill gas tank
EngineAnd Muffler Get Very Net
Keepflammable materials at least 3 feet:from generator.
When in use, peacegenerator in an areawhere children are not likely to touch it:.
Eie;tri; Shock hazard
DONOToperate in rain or snow, or next to body of water.
DONOTtouch with wet hands.
Besure to USEGROUNDEDPLUGSwith the generator.
DONOTconnect generator to commercial power outlets.

1000WATTGENERATO

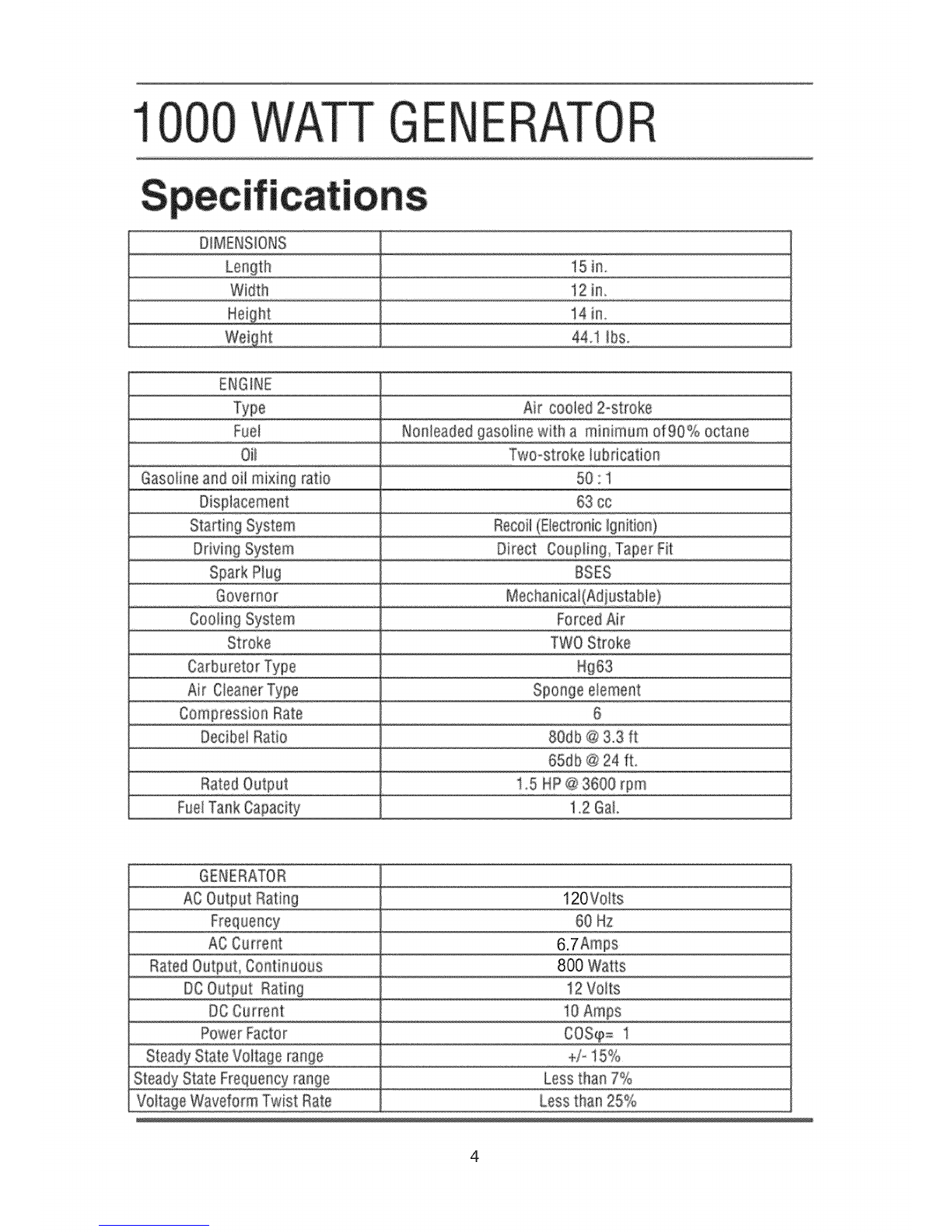

Specifications
15 in.
12 in
14in.
44.1 tbs
Air cooied 2ostroke
Nonleaded gasoline with a minimum ofg0% octane
Twoostroke lubrication
Gasoline and oil mixing ratio 50 ' 1
DiSpIacement 63 cc
Starting System Recoil(Bectronic_gaition)
Driving System Direct Coupling, Taper Fit
Spark Plug
Cooling System ForcedAir
TWOStroke
Air CleanerType Sponge etement
Compression Rate
Decibel Ratio 80db @3.3 ft
65db @24 ft
RatedOutput 15 HP @:36:00rpm
1_2Gal_
ACOutput Rating 60 Hz
ACCurrent
Rated Output, Continuous
DCOutput Rating
DCCurrent:
Steady StateVottage range
SteadyState Frequency range
800 Watts
12Volts
10 Amps
COS_= I
+/° 15%
Lessthan 7%
Lessthan 25%

1 RWATTGE
t 2:
,//............... /_...................
3
/.....................
5
4
1 Handle
2_FuelCap
3_FuelTank
4. FuelShut-off
5 RecoilStarter
6_,EngineOmOffSwitch
X Throtte Lever
8. Air Cleaner
!3
12
!
I
9 ControlPanel
10.Generator
11,Muffler
12,Cylinder
13.SparkPlug
5

1000WATTGENERATOR
STARTINGTHE ENGINE
1_Disconnect all electric appliances from generator before sta_ing.
2_Turnfuel shut_off I_verto "ON"
3_Move Choke leverall the way to the ieft
4_Turnengine switch to 'sON°'position_
5. Puil recoil starlet cord slowly until engaged,then pull briskly to sta_.
6_Onceengine has sta_ed, move choke iever al! the way' backto the right°
CONNECTING ELECTRICALAPPLIANCES
A!waysallow engine to warm up before connecting any electrical !oad
to the generator:
STOPPINGENGINE
1 Turnoff alt appfiances, then disconnect them from the generator_
2. Turnengine :Switchto _'STOVposition_
'_OFF3_Turnfuel shut-off leverto
4. Allow engine to cool before attempting to move the generator or to refuel.
RESE_ING BREAKERBUTTONS
if resettripS, disconnect a_iexternai electrical appliances before pushing the reset
button._After reconnecting the external electrical appliance, if reset continues to trip
that indicates that the e_ectricalleadconnected to the generator from one or more of
the appliances may havea shod circuiL in that event, discontinue use of that item
until it has beenchecked and/or repaired by a qualified technician.

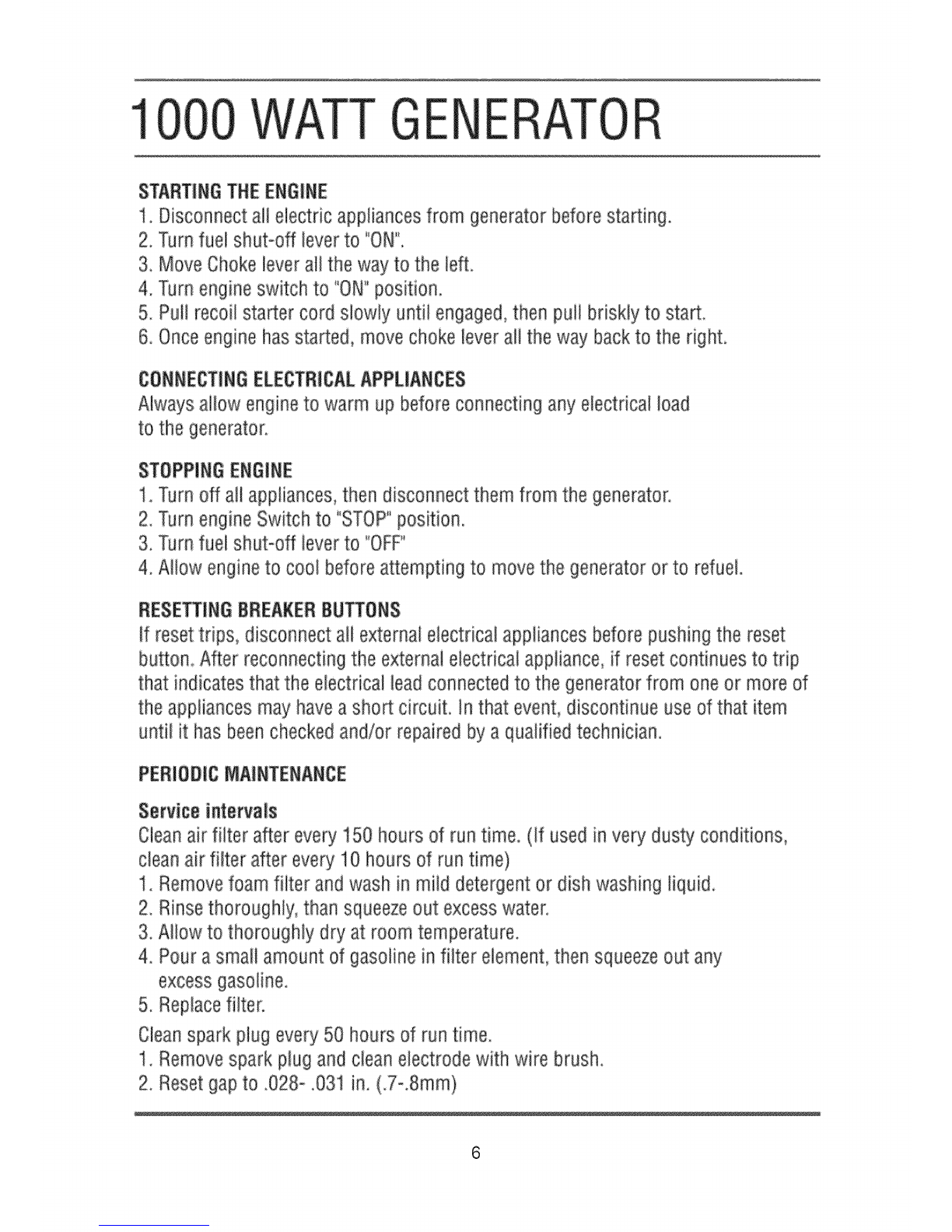

DOICMAINTENANCE
Service intervals
Cteanair filter after every 150 hours of run time_ (if used in very dusty conditions,
cleanair filter after every 10 hours of run time)
1. Removefoam fitter and wash in mild detergent or dish washing liquid.
2. Rinsethoroughly, than squeezeout excess wa4:er.
3. Allow to thoroughiy dry at room temperature.
4 Pour a small amount of gasoline in filter element, then squeezeout any
excess gasoline.
5. Replacefilter.
Cleanspark plug every 50 hours of run time.
1. Remove spark plug and clean electrode with wire brush.
2. Reset gap to .028o.031 in. (.7o_8mm)
6

1000 GE ERATOR

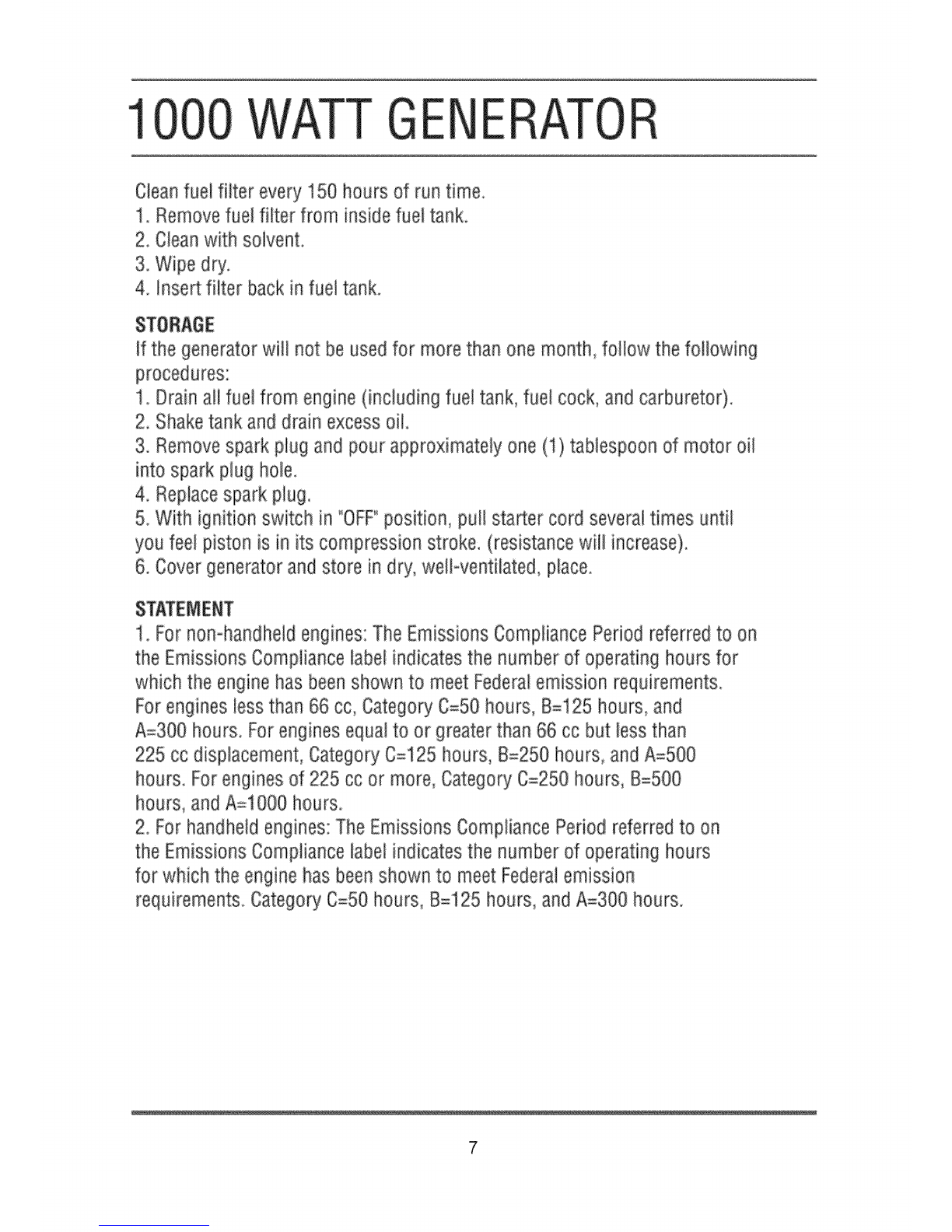

Cleanfuel filter every 150 hours of run time.
1. Removefuel filter from inside fuel tank
2. C/canwith solvent.
3. Wipe dry.
4. Inse_ filter back:in fuel tank.
ffthe generator will not be used for more than one month, follow the following
1. Drain all fuel from engine (including fuel tank, fuet cock, and carburetor).
2. Shaketank and drain excess oil.
3. Removespark plug and pour approximately one (1) ta.Nespoon of motor oil
into spark plug hole.
4. Replacespark plug,
5_With ignition switch in "OFF"position, pull sta_er cord several times until
you fee! piston is in its compression stroke. (resistance will increase).
6. Covergenerator and store in dry, welFventiiated, place_
i. For nonohandheidengines: The Emissions Compliance Period referred to on
the Emissions Compliance labe!indicates the number of operating hours for
which the engine has beenshown to meet Federaiemission requirements.
For engines iess than 66 cc Category C=50 hours, B=125 hours, and
A=300 hours. For engines equal to or greater than 66 cc but less than
225 cc displacement, Category"C=125 hours, B=250 hours, and A=500
hours. For engines of 2:25cc or more, Category C=250 hours, B=500
hours, and A=I000 hours
2. For handheld engines: The Emissions Compliance Period referred to on
the Emissions Compliance label indicates the number of operating hours
for which the engine has beenshown to meet Federatemission
requirements. Category C=50 hours, B=125 hours, and A=300 hours.
7

O0
1
i ]

i000 WATTGE ERATO

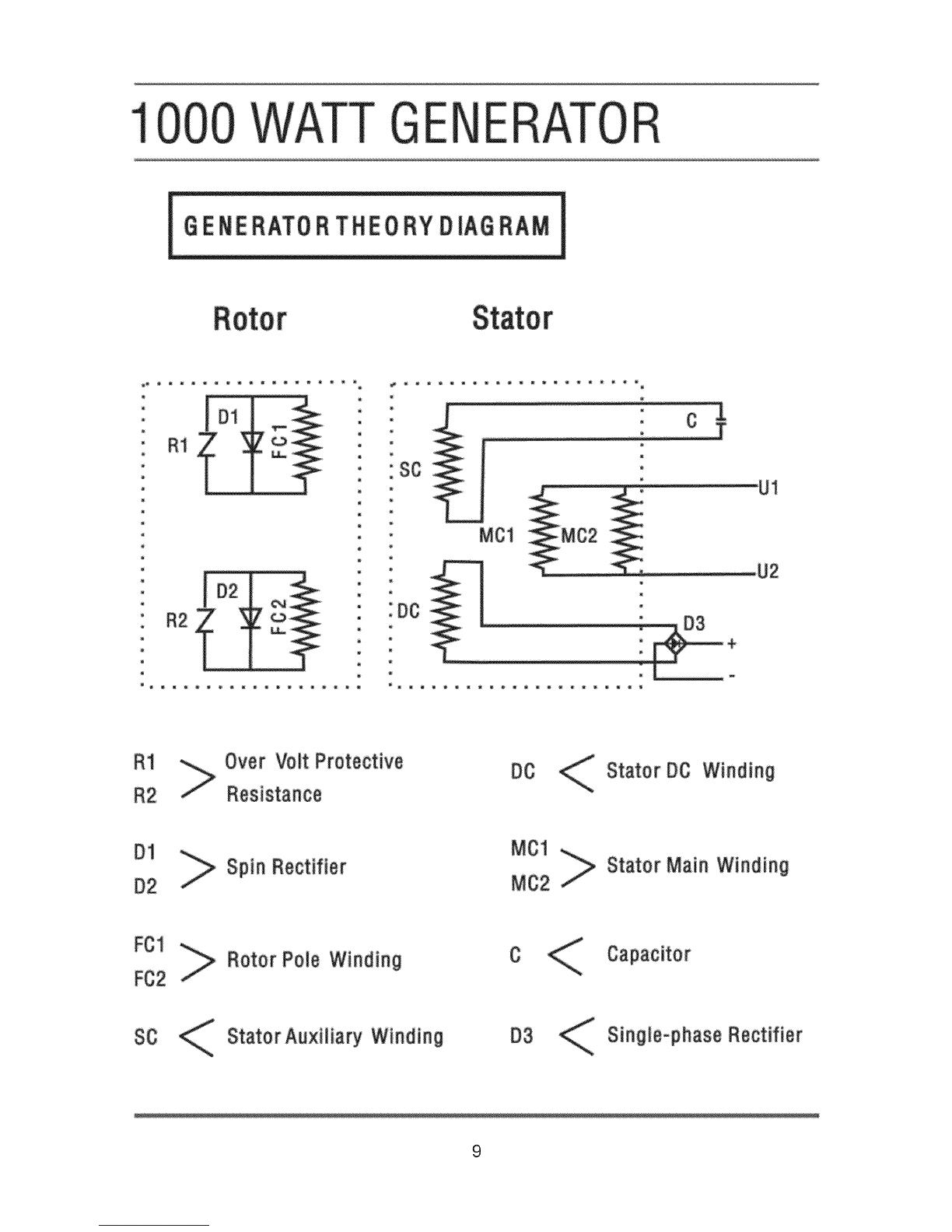

GENERATO R THE0BY DiAGRAM
Rotor r
"R1
======================
°°" _1--'_MCi
" U2
,:DO : i D3 i
: +
R1 Over Volt Protective Stator DO Winding
D1 Spin Rectifier MCi _ Stator Main Winding
MC2
_ Rotor Pole Winding C
Stator Auxiliary Winding Single°phase Rectifier
9

1 GE
Limited Warranty
STEELE® warrants to the original purchaser who uses the product in a
consumer application (personal, residential or household usage) that al! products
covered under this Wa_anty are free from defects in material and workmanship for
one ye_ from the date of purchase. All :products covered by this limited Wa_anty
which are used in co ial applications 0.e. income producing) are wa_anted to
be free of defects in material and workmanship fi_r 90days from the date of original
p_chase. Pr_ucts cover_ _der this include air compressors, air tools,
service p_s, pressure washers and generators.
STEELE® will repair or replace at STEELE® 's sole option,
products or comp which have fmied within the w _riod. Set, dee will
be schedu_d according to _e work flow and business hours at the semite
center location, _d the availabiliW of replacem_t pa_s. All decisions of
STEELE® with regard to this limited warranty shall be final.
This wa_ty gives you specific legal rights, and you may also have other rights
which v_ from state to state.
_SPONSIBILI_f _OF ORAGIN_ PURCHASER (initial Use0:
o
O
Q
O
o
it
To pro_ss a w claim on this p t, DO NOT return item to the r¢_it_.
The product must be evNuated by an Authorized Wa_anty Sere'ice Center. For
the location of the nearest Authorized Warranty Service Center contact the
replier or place ofp_chase.
Re_in on_nai cash register sales _ceipt as proof of purchase for' warranty work.
U_ re_onabie care in _e operation and maintenance of_e pr_uct as described
in the 's M_ual(s).
Deliver or ship the product to the nearest Authorized Wawan WService Center.
Freight costs, if any, must be paid by the purchaser.
Air comwessors with 60 and 80 gallon ranks vcill _ t_ at the site of
ins_llation. Contact the newest _d W Service C_ter t_t provides
onosite _ice calls for s_Ace call arrangem_ts.
!f the purchaser does not receive satisfactory results from the Authorized
Wa_anty Semite Cent_, the purehas_ should contact STEELE®.
10
