STEELE PRODUCTS SP-GG1000E User manual

Owner's Manual
10,000
iiiiii_
Generstor
SP-GGIOOOE runsEnvxc_c :888-898-8881
PARA SERVICIO LLAME:

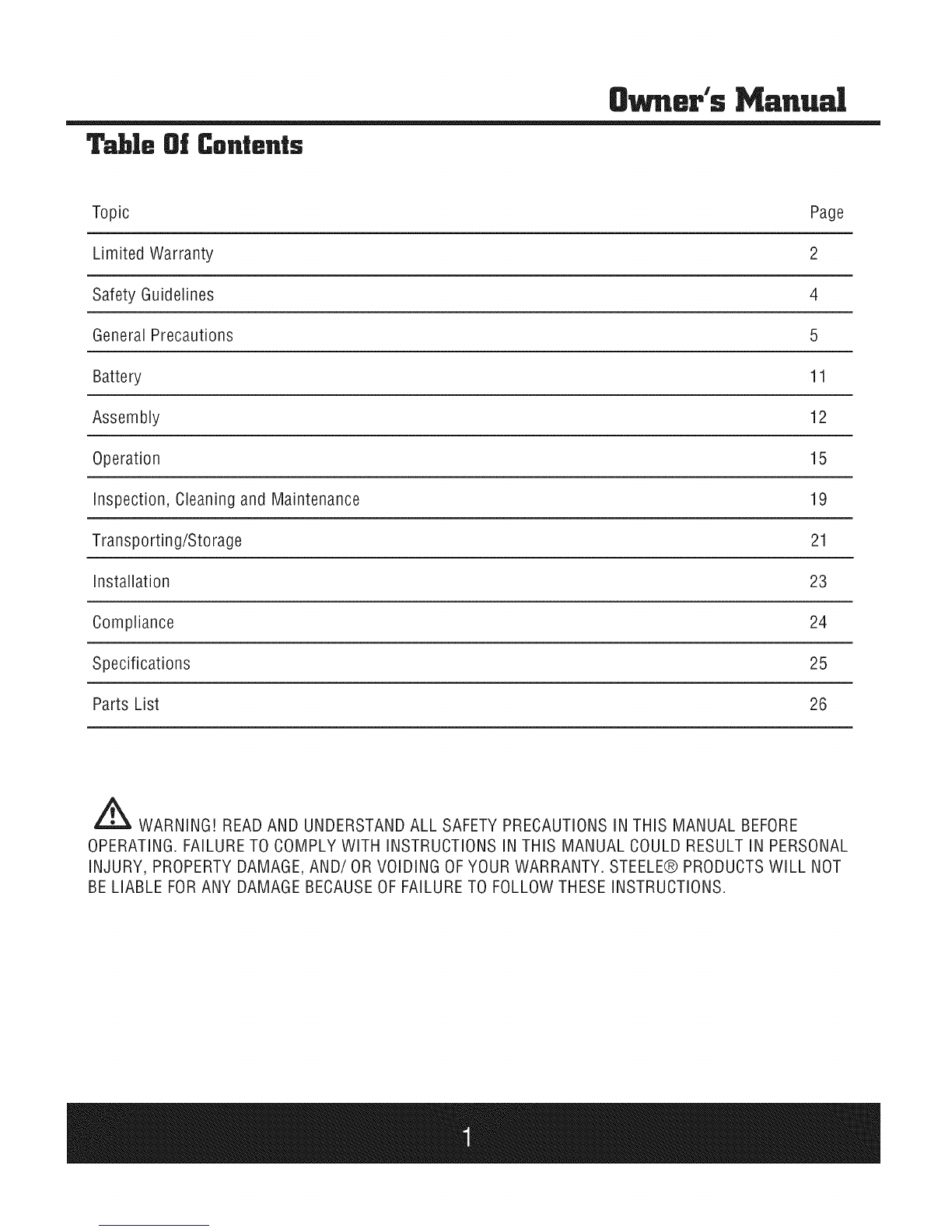

Topic Page
Limited Warranty 2
Safety Guidelines 4
General Precautions 5
Battery 11
Assembly 12
Operation 15
Inspection, Cleaning and Maintenance 19
Transporting/Storage 21
Installation 23
Compliance 24
Specifications 25
Parts List 26
'_ WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE
OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/OR VOIDING OFYOUR WARRANTY. STEELE® PRODUCTSWILL NOT
BE LIABLE FORANY DAMAGE BECAUSEOF FAILURE TO FOLLOW THESE INSTRUCTIONS.

Steele@warrantsto the originalpurchaserwhousestheproductin aconsumerapplication(personal,
residentialorhouseholdusage)thatall productscoveredunderthiswarrantyarefreefrom defectsin
materialandworkmanshipfor oneyearfromthedateof purchase.All productscoveredbythis limited
warrantywhichareusedin commercialapplications(i.e.incomeproducing)arewarrantedto befreeof
defectsin materialandworkmanshipfor 90daysfrom thedateoforiginalpurchase.Productscoveredunder
thiswarrantyincludeair compressors,air tools,serviceparts,pressurewashersandgenerators.
Steele@will repairor replace,at Steele's@soleoption,productsorcomponentswhichhavefailedwithinthe
warrantyperiod.Servicewill bescheduledaccordingto thenormalworkflow andbusinesshoursatthe
servicecenterlocation,andtheavailabilityof replacementparts.Alldecisionsof Steele@with regardtothis
limitedwarrantyshallbefinal.
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrightswhichvaryfromstateto
state.
RESPONSIBILITYOFORIGINALPURCHASER(initial User):
Toprocessawarrantyclaimonthisproduct,DONOTreturnitemto theretailer.Theproductmustbe
evaluatedbyanAuthorizedWarrantyServiceCenter.Forthe locationofthenearestAuthorizedWarranty
ServiceCentercontacttheretailerorplaceof purchase.
Retainoriginalcashregistersalesreceiptasproofof purchasefor warrantytowork.
Usereasonablecarein theoperationandmaintenanceoftheproductasdescribedin theOwner'sManual(s).
Deliveror shiptheproductto theAuthorizedWarrantyServiceCenter.Freightcosts,if anymustbepaidby
thepurchaser.Ifthepurchaserdoesnotreceivesatisfactoryresultsform theAuthorizedWarrantyService
Center,thepurchasershouldcontactSteele@toll free888-896-6881.
THISWARRANTYDOESNOTCOVER:
Merchandisesoldas reconditioned,usedas rentalequipment,orfloor or displaymodels.
Merchandisethathasbecomedamagedorinoperativebecauseof ordinarywear,misuse,cold,heat,rain,
excessivehumidity,freezedamage,useof improperchemicals,negligence,accident,failureto operatethe
productin accordancewiththe instructionsprovidedinthe Owner'sManual(s)suppliedwiththe product,
impropermaintenance,theuseofaccessoriesorattachmentsnotrecommendedbySteele@,or
unauthorizedrepairor alterations.
oRepairandtransportationcostsof merchandisedeterminenotto bedefective.
Costsassociatedwith assembly,requiredoil, adjustmentsor otherinstallationandstart-upcosts.
Expendablepartsoraccessoriessuppliedwiththeproductwhichareexpectedto becomeinoperativeor
unusableafterareasonableperiodof use.

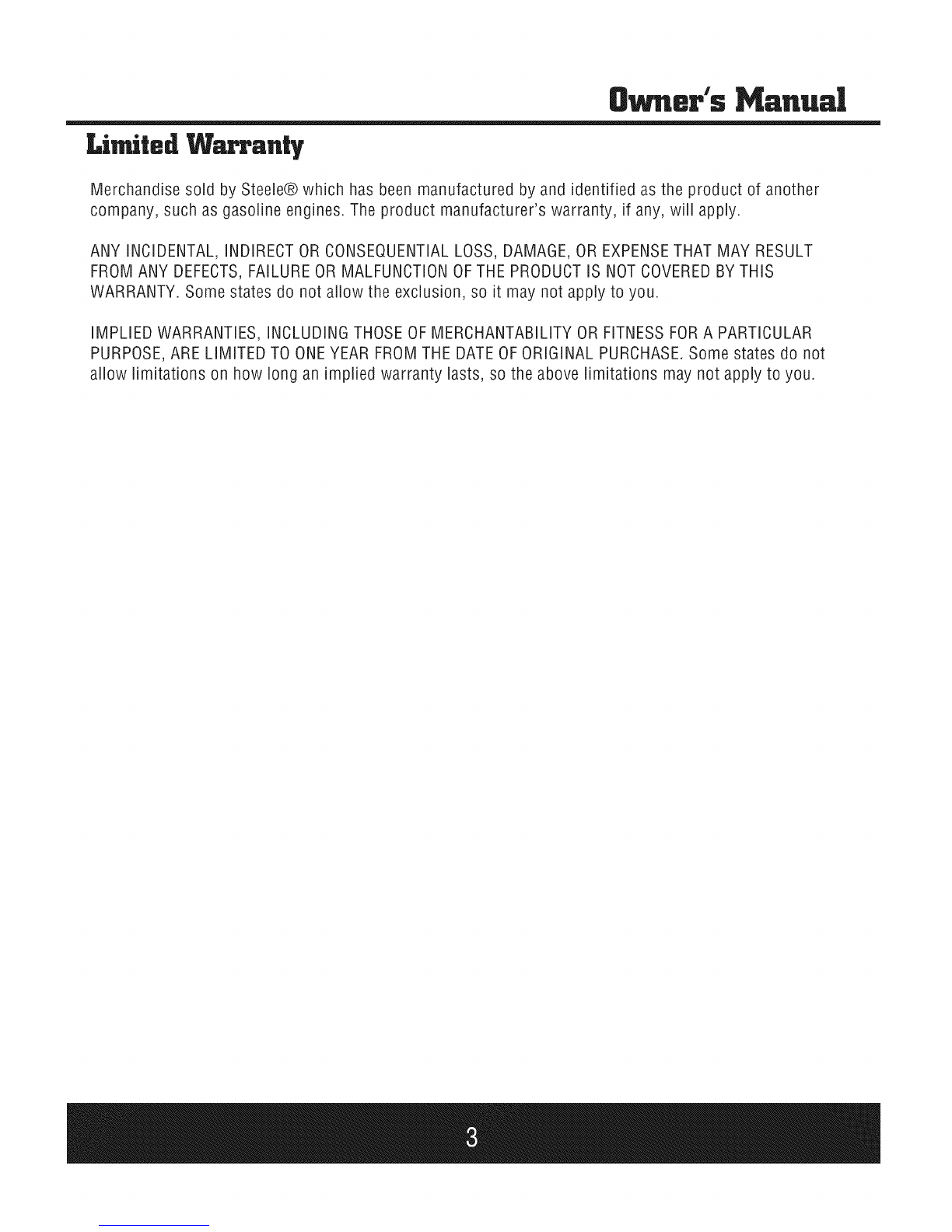

MerchandisesoldbySteele@whichhasbeenmanufacturedbyandidentifiedastheproductof another
company,suchasgasolineengines.Theproductmanufacturer'swarranty,if any,willapply.
ANYINCIDENTAL,INDIRECTORCONSEQUENTIALLOSS,DAMAGE,OREXPENSETHATMAYRESULT
FROMANYDEFECTS,FAILUREORMALFUNCTIONOFTHEPRODUCTISNOTCOVEREDBYTHIS
WARRANTY.Somestatesdonotallowtheexclusion,soit maynotapplyto you.
IMPLIEDWARRANTIES,INCLUDINGTHOSEOFMERCHANTABILITYORFITNESSFORA PARTICULAR
PURPOSE,ARELIMITEDTOONEYEARFROMTHEDATEOFORIGINALPURCHASE.Somestatesdo not
allowlimitationson howlonganimpliedwarrantylasts,sotheabovelimitationsmaynotapplytoyou.

Thismanualcontainsimportantinformationthatyou needto knowandunderstandinorderto keepYOU
SAFEandto PREVENTEQUIPMENTPROBLEMS.Thefollowingsymbolshelpyou recognizethis information.
Pleasereadthemanualandpayattentionto thesesections.
SaveTheseImportantSafetyinstructions!Readandunderstandallof thesesafetyinstructions. Be sure to
retain them for future use.
_ WARNING! Warnings indicate a certainty or strong possibility of personal injury or death if
instructions are not followed.
J_ CAUTION Cautions indicate a possibility of equipment damage if instructions are not followed
,_ NOTE: Notes give helpful information
,_ WARNING! Improper operation or maintenance of this product could result in serious injury an
property damage, Read and understand all warnings and operating Instructions before using this equipment.
When using air tools, basic safety precautions should always be followed to reduce the risk of personal
injury.

Owner's Manua!

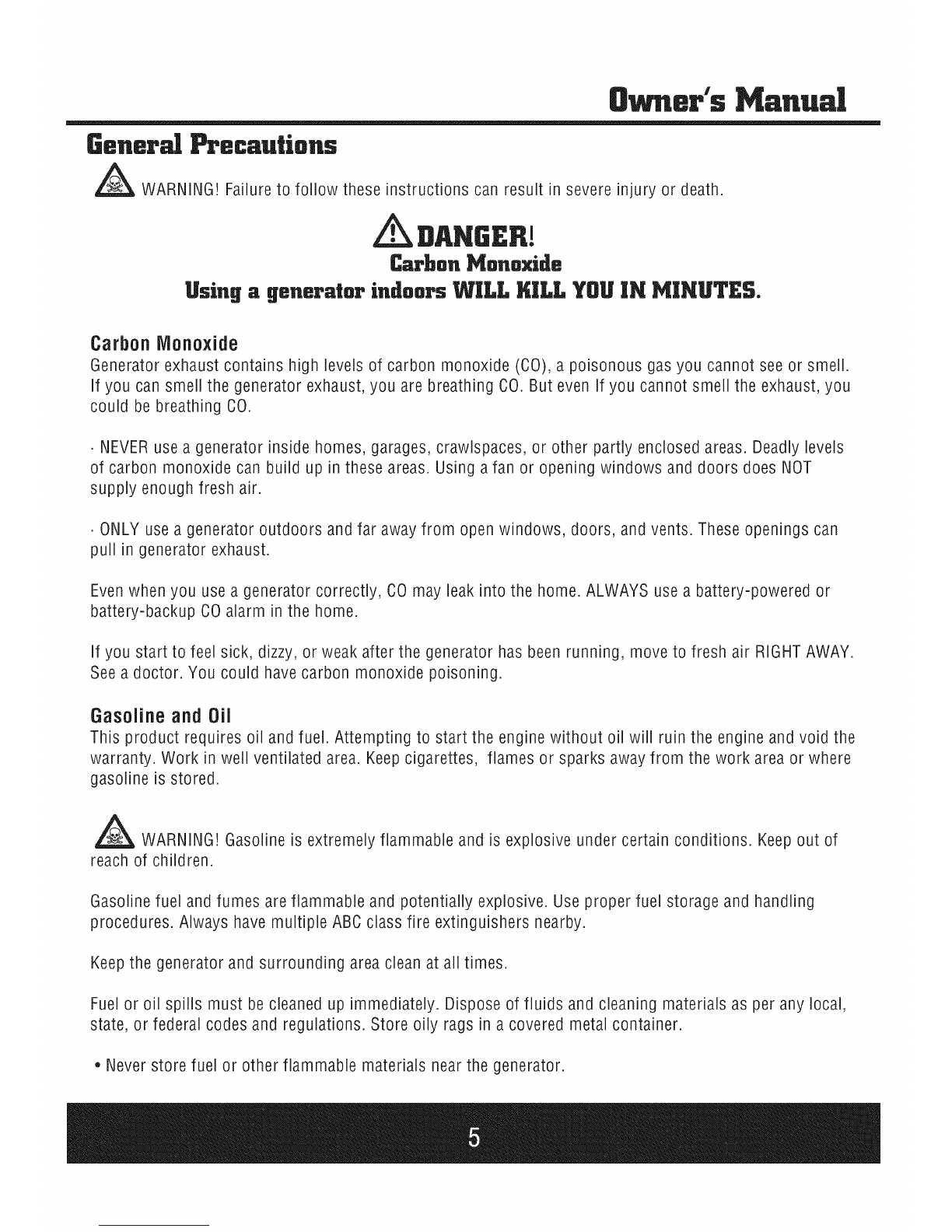

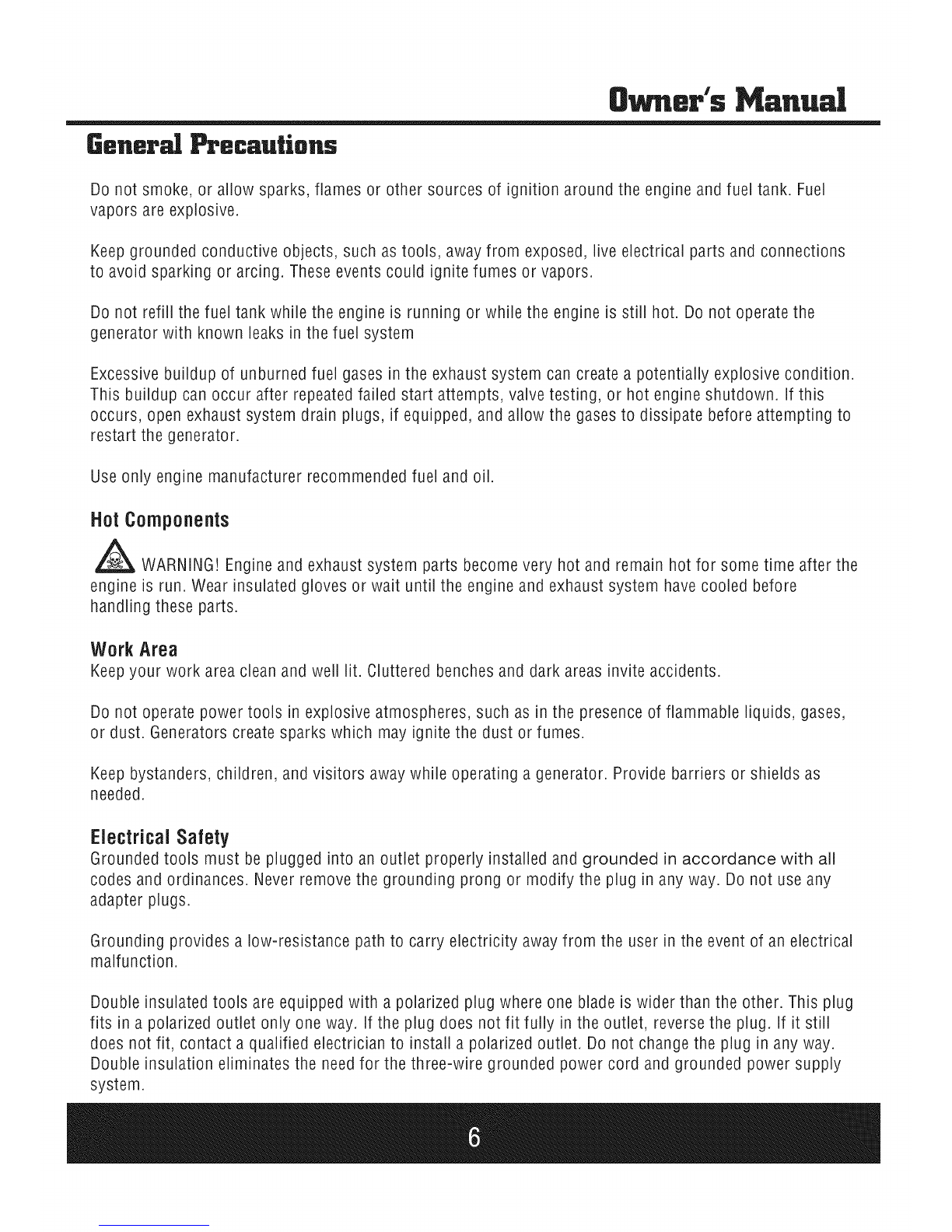

Gener Precautions
,_ WARNING! Failure to follow these instructions can result in severe injury or death.
DANGER!
Carbon Monoxide
Using a generator induurs WILL KILL YOU IN MINUTES.
Carbon Monoxide
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell,
If you can smell the generator exhaust, you are breathing CO, But even If you cannot smell the exhaust, you
could be breathing CO,
• NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT
supply enough fresh air.
• ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can
pull in generator exhaust.
Even when you use a generator correctly, COmay leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY.
See a doctor. You could have carbon monoxide poisoning.
Gasoline and Oil
This product requires oil and fuel, Attempting to start the engine without oil will ruin the engine and void the
warranty, Work in well ventilated area, Keep cigarettes, flames or sparks away from the work area or where
gasoline is stored,
_ WARNING! Gasoline is extremely flammable and is explosive under certain conditions. Keep out of
reach of children.
Gasoline fuel and fumes are flammable and potentially explosive, Use proper fuel storage and handling
procedures, Always have multiple ABC class fire extinguishers nearby,
Keep the generator and surrounding area clean at all times.
Fuel or oil spills must be cleaned up immediately, Dispose of fluids and cleaning materials as per any local,
state, or federal codes and regulations, Store oily rags in a covered metal container,
o Never store fuel or other flammable materials near the generator.

Donotsmoke,orallowsparks,flamesorothersourcesofignitionaroundtheengineandfueltank.Fuel
vaporsareexplosive.
Keepgroundedconductiveobjects,suchastools,awayfrom exposed,liveelectricalpartsandconnections
to avoidsparkingorarcing.Theseeventscouldignitefumesor vapors.
Donotrefillthefueltankwhiletheengineis runningor whiletheengineisstill hot.Donot operatethe
generatorwith knownleaksin thefuel system
Excessivebuildupof unburnedfuelgasesinthe exhaustsystemcancreateapotentiallyexplosivecondition.
Thisbuildupcanoccurafterrepeatedfailedstartattempts,valvetesting,orhot engineshutdown,Ifthis
occurs,openexhaustsystemdrainplugs,if equipped,andallowthegasesto dissipatebeforeattemptingto
restartthegenerator.
Useonlyenginemanufacturerrecommendedfuel andoil.
HotComponents
,_ WARNING! Engine and exhaust system parts become very hot and remain hot for some time after the
engine is run. Wear insulated gloves or wait until the engine and exhaust system have cooled before
handling these parts.
WorkArea
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases,
or dust. Generators create sparks which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a generator. Provide barriers or shields as
needed.
Electrical Safety
Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all
codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any
adapter plugs.
Grounding provides a low=resistance path to carry electricity away from the user in the event of an electrical
malfunction.
Double insulated tools are equipped with a polarized plug where one blade is wider than the other. This plug
fits in a polarized outlet only one way, If the plug does not fit fully in the outlet, reverse the plug, If it still
does not fit, contact a qualified electrician to install a polarized outlet, Do not change the plug in any way.
Double insulation eliminates the need for the three-wire grounded power cord and grounded power supply
system.

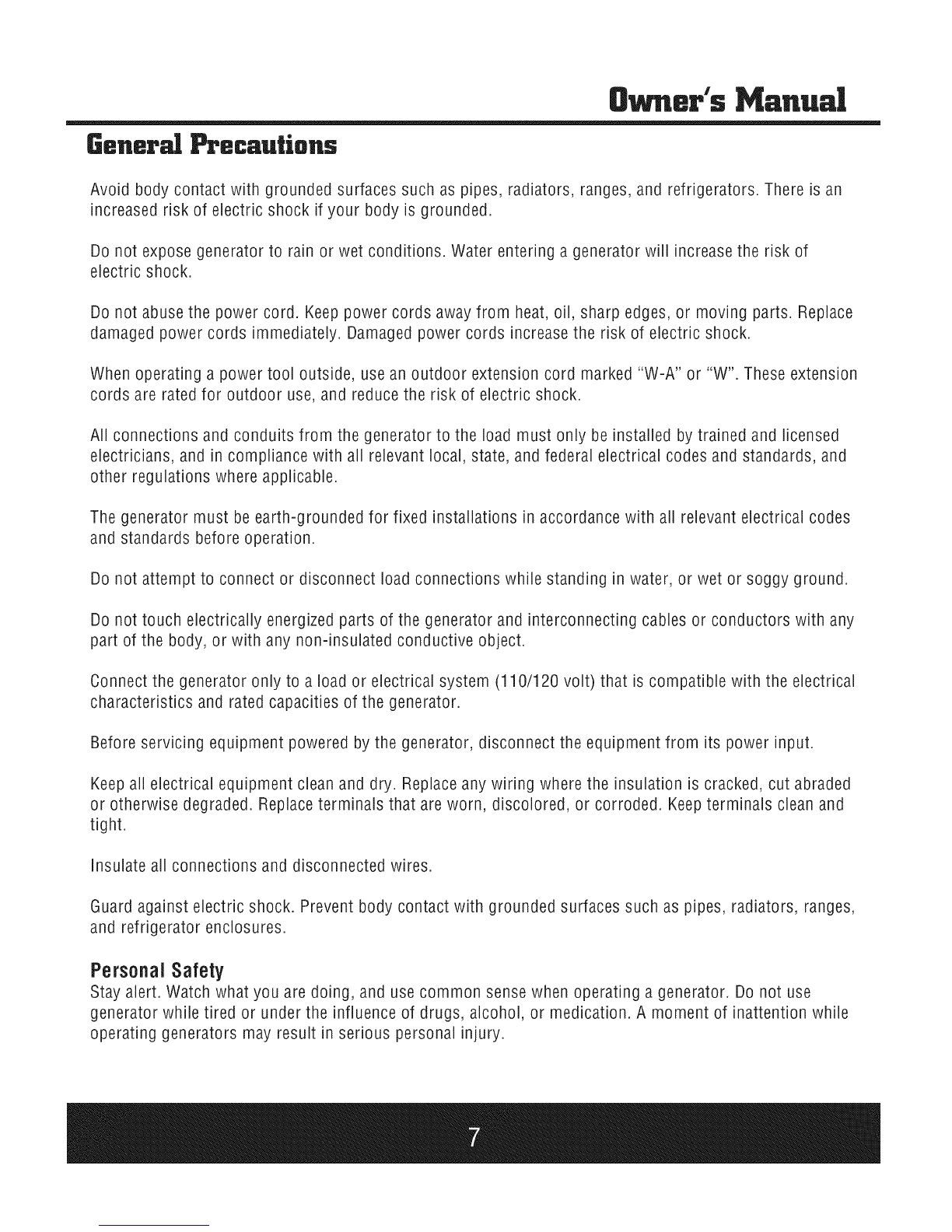

Avoidbodycontactwith groundedsurfacessuchaspipes,radiators,ranges,andrefrigerators.Thereisan
increasedrisk ofelectricshockif your bodyis grounded.
Donotexposegeneratorto rainorwetconditions.Waterenteringa generatorwill increasetheriskof
electricshock.
Donotabusethe powercord. Keeppowercordsawayfrom heat,oil, sharpedges,or movingparts.Replace
damagedpowercordsimmediately.Damagedpowercordsincreasetheriskof electricshock.
Whenoperatingapowertool outside,useanoutdoorextensioncordmarked"W-A"or "W".Theseextension
cordsareratedfor outdooruse,andreducetheriskof electricshock.
All connectionsandconduitsfrom thegeneratorto the loadmustonlybeinstalledbytrainedandlicensed
electricians,andin compliancewith all relevantlocal,state,andfederalelectricalcodesandstandards,and
otherregulationswhereapplicable.
Thegeneratormustbeearth-groundedfor fixedinstallationsin accordancewithall relevantelectricalcodes
andstandardsbeforeoperation.
Donotattemptto connector disconnectloadconnectionswhilestandingin water,or wetorsoggyground.
Donottouchelectricallyenergizedpartsofthegeneratorandinterconnectingcablesor conductorswith any
partofthebody,or withanynon-insulatedconductiveobject.
Connectthegeneratoronlytoaloadorelectricalsystem(110/120volt)thatiscompatiblewith theelectrical
characteristicsandratedcapacitiesof thegenerator.
Beforeservicingequipmentpoweredbythegenerator,disconnectthe equipmentfrom its powerinput.
Keepallelectricalequipmentcleananddry.Replaceanywiringwheretheinsulationiscracked,cutabraded
or otherwisedegraded.Replaceterminalsthatareworn,discolored,orcorroded.Keepterminalscleanand
tight.
Insulateallconnectionsanddisconnectedwires.
Guardagainstelectricshock.Preventbodycontactwith groundedsurfacessuchaspipes,radiators,ranges,
andrefrigeratorenclosures.

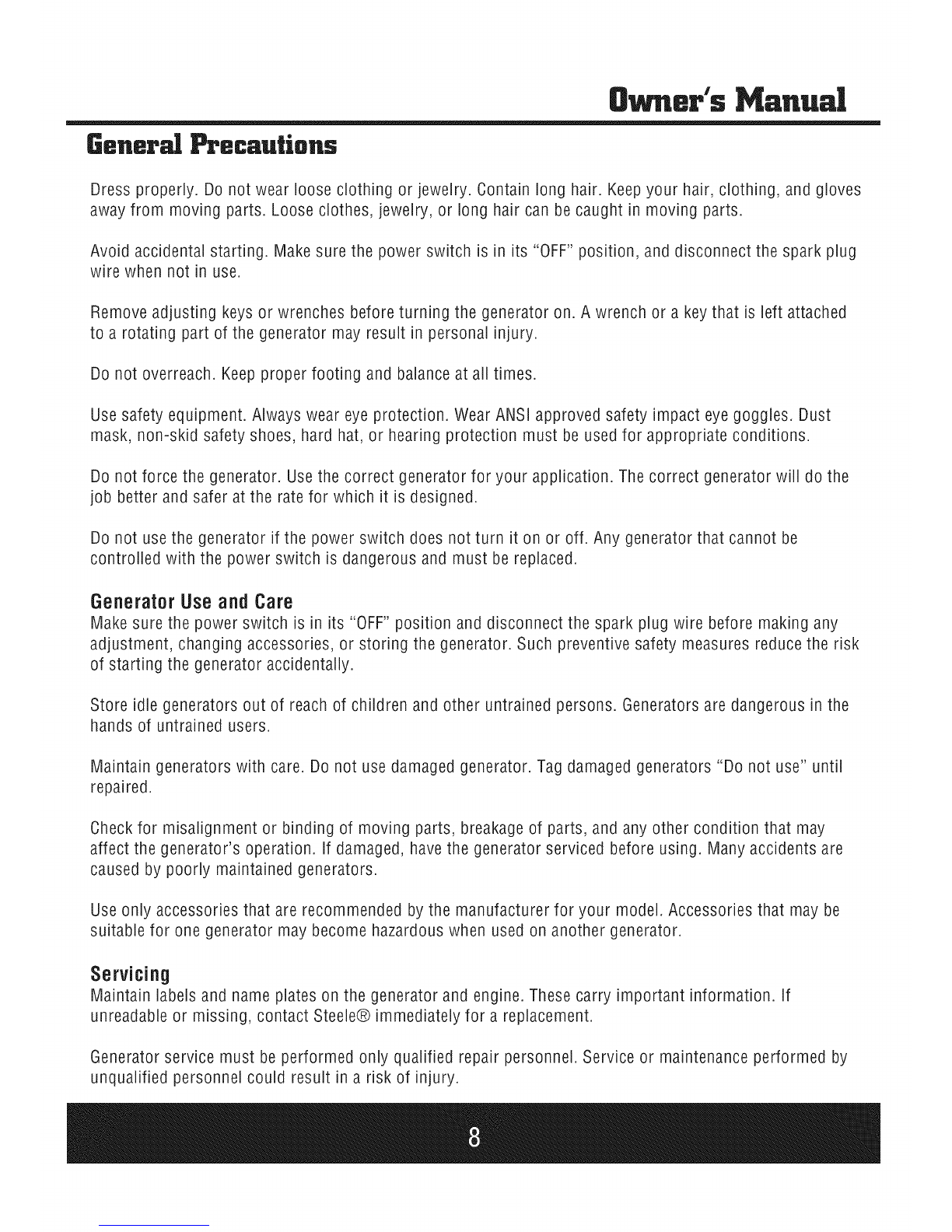

PersonalSafety
Stay alert. Watch what you are doing, and use common sense when operating a generator. Do not use
generator while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while
operating generators may result in serious personal injury.

Dressproperly.Donotwearlooseclothingor jewelry.Containlonghair.Keepyour hair,clothing,andgloves
awayfrom movingparts.Looseclothes,jewelry,or longhaircanbecaughtin movingparts.
Avoidaccidentalstarting.Makesurethe powerswitchis in its"OFF"position,anddisconnectthesparkplug
wirewhennot in use.
Removeadjustingkeysorwrenchesbeforeturningthegeneratoron.Awrenchorakeythatis leftattached
to a rotatingpartofthegeneratormayresultin personalinjury.
Donotoverreach.Keepproperfootingandbalanceatalltimes.
Usesafetyequipment.Alwaysweareyeprotection.WearANSIapprovedsafetyimpacteyegoggles.Dust
mask,non-skidsafetyshoes,hardhat,or hearingprotectionmustbeusedfor appropriateconditions.
Donotforcethegenerator.Usethecorrectgeneratorfor yourapplication.Thecorrectgeneratorwill dothe
job betterandsaferattheratefor whichit isdesigned.
Donotusethegeneratorif thepowerswitchdoesnotturnit onor off.Anygeneratorthatcannotbe
controlledwiththepowerswitchis dangerousandmustbereplaced.
Generator Use and Care
Make sure the power switch is in its "OFF" position and disconnect the spark plug wire before making any
adjustment, changing accessories, or storing the generator. Such preventive safety measures reduce the risk
of starting the generator accidentally.
Store idle generators out of reach of children and other untrained persons. Generators are dangerous in the
hands of untrained users.
Maintain generators with care. Do not use damaged generator. Tag damaged generators "Do not use" until
repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may
affect the generator's operation. If damaged, have the generator serviced before using. Many accidents are
caused by poorly maintained generators.
Use only accessories that are recommended by the manufacturer for your model. Accessories that may be
suitable for one generator may become hazardous when used on another generator.
Servicing
Maintain labels and name plates on the generator and engine. These carry important information. If
unreadable or missing, contact Steele® immediately for a replacement.
Generator service must be performed only qualified repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.

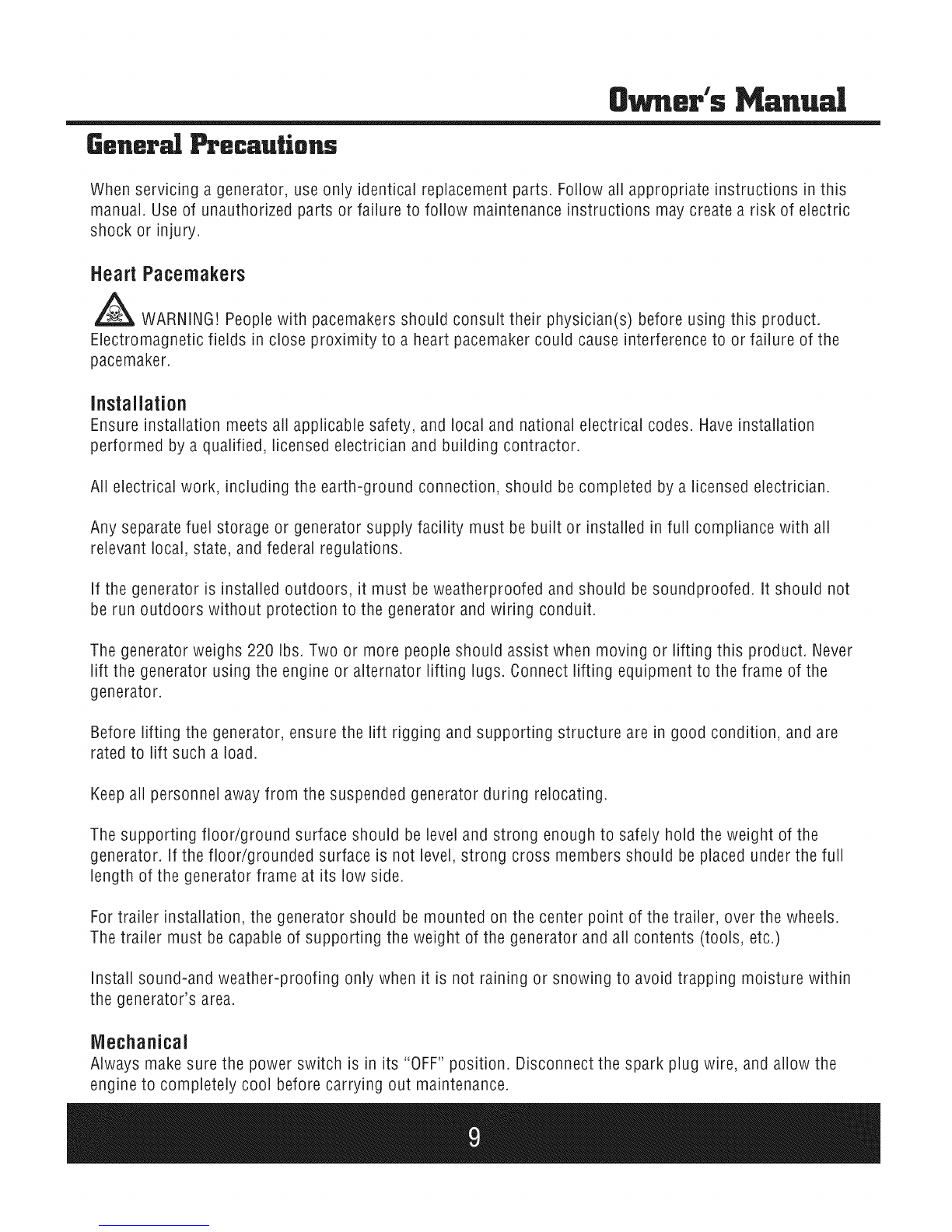

Whenservicingagenerator,useonlyidenticalreplacementparts.Followall appropriateinstructionsinthis
manual.Useof unauthorizedpartsor failuretofollow maintenanceinstructionsmaycreatea riskof electric
shockor injury.
HeartPacemakers
_ WARNING! People with pacemakers should consult their physician(s) before using this product.
Electromagnetic fields in close proximity to a heart pacemaker could cause interference to or failure of the
pacemaker.
installation
Ensure installation meets all applicable safety, and local and national electrical codes. Have installation
performed by a qualified, licensed electrician and building contractor.
All electrical work, including the earth-ground connection, should be completed by a licensed electrician.
Any separate fuel storage or generator supply facility must be built or installed in full compliance with all
relevant local, state, and federal regulations.
If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It should not
be run outdoors without protection to the generator and wiring conduit.
The generator weighs 220 Ibs. Two or more people should assist when moving or lifting this product. Never
lift the generator using the engine or alternator lifting lugs. Connect lifting equipment to the frame of the
generator.
Before lifting the generator, ensure the lift rigging and supporting structure are in good condition, and are
rated to lift such a load.
Keep all personnel away from the suspended generator during relocating.
The supporting floor/ground surface should be level and strong enough to safely hold the weight of the
generator. If the floor/grounded surface is not level, strong cross members should be placed under the full
length of the generator frame at its low side.
For trailer installation, the generator should be mounted on the center point of the trailer, over the wheels.
The trailer must be capable of supporting the weight of the generator and all contents (tools, etc.)
Install sound-and weather-proofing only when it is not raining or snowing to avoid trapping moisture within
the generator's area.
Mechanical
Always make sure the power switch is in its "OFF" position. Disconnect the spark plug wire, and allow the
engine to completely cool before carrying out maintenance.

Checkfor damagedparts.Beforeusingthegenerator,anypartthatappearsdamagedshouldbecarefully
checkedto determinethatit will operateproperlyandperformits intendedfunction.Checkfor alignmentand
bindingof movingparts,anybrokenpartsor mountingfixtures,andanyotherconditionthat mayaffect
properoperationtechnician.
Thegeneratoris designedwith guardsfor protectionfrom movingparts.Inanycase,caremuststill betaken
to protectpersonnelandequipmentfrom othermechanicalhazardswhenworkingaroundthegenerator.
Donotoperatethegeneratorwith safetyguardsremoved.Whilethe generatoris running,do notattemptto
reacharoundthesafetyguardfor maintenanceoranyotherreason.
Keephands,arms,longhair,looseclothing,andjewelryawayfrom movingparts.Beawarethatwhenengine
partsaremovingfasttheycannotbeseenclearly.
Keepaccessdoorsonenclosuresclosedandlockedwhenaccessisnotrequired.
WhenworkingonoraroundthegeneratoralwayswearprotectiveclothingincludingANSIapprovedsafety
gloves,safetyeyegoggles,andsafetyhat.
Donotalteroradjustanypartof thegeneratorthatisassembledandsuppliedbythemanufacturer.
Alwaysfollowandcompletescheduledengineandgeneratormaintenance.
Chemicals
Avoid contact with hot fuel, oil, exhaust fumes, and hot solid surfaces.
Avoid body contact with fuels, oils, and lubricants used in the generator. If swallowed, seek medical
treatment immediately. Do not induce vomiting if fuel is swallowed. For skin contact, immediately wash with
soap and water. For eye contact, immediately flush eyes with clean water and seek medical attention.
Noise
Prolonged exposure to noise levels above 85 DBA is hazardous to hearing. Always wear ANSI approved ear
protection when operating or working around the generator when it is running.
Extension Cord
If an extension cord (not included) is used, make sure to use only UL approved cords having the correct
gauge and length according to the following table:
Nameplate Amps _ Cord Lengths_
(@full load) 0'-50' 20'-100' 100'-150' 150'-200'
O- 5 16AWG 16AWG 12AWG 12AWG
5.1 -8 16AWG 14AWG 10AWG
8.8 - 12 14AWG 12AWG

Ma.ua]
Battery
Assembly

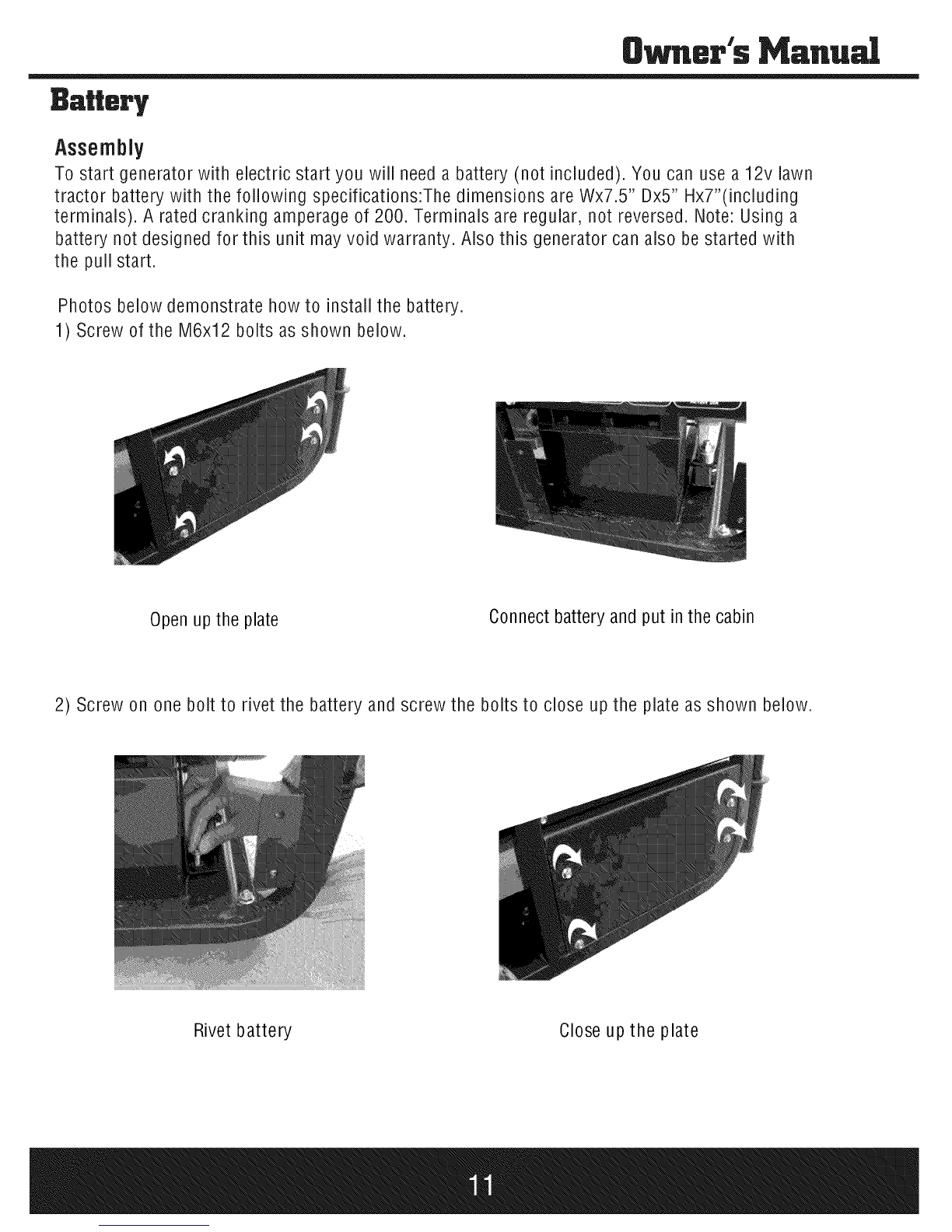

To start generator with electric start you will need a battery (not included). You can use a 12v lawn
tractor battery with the following specifications:The dimensions are Wx7.5" Dx5" Hx7"(including
terminals). A rated cranking amperage of 200. Terminals are regular, not reversed. Note: Using a
battery not designed for this unit may void warranty. Also this generator can also be started with
the pull start.
Photos below demonstrate how to install the battery.
1) Screw of the IVI6x12 bolts as shown below.
Open up the plate Connect battery and put in the cabin
2) Screw on one bolt to rivet the battery and screw the bolts to close up the plate as shown below.
Rivet battery Close up the plate

Manua!
Assembly
Unpacking
1. Remove the generator and loose parts box from the carton.
2. Compare the loose parts with the inventory list below.
Loose Parts(Wheel kit and handle)
Check all loose parts against the following list. Contact your dealer toll free at 888.896.6881
if any of the loose parts shown are not included with your generator
HardwareCheck:
Your Hardware Kit should include:
1) 2 Handles with bolts and brackets
2) 4 (six) MSx4Omm bolts, (6mm x 1.0) thread
3) 4 (six) M8 Nuts (6mm x 1.0) thread
4) 2 (two) rubber bushings with 2 nuts
5) 2 (two) axle shafts
6) 2 (two) washers
7) 4 (four) cotter pins
8) 4 (four) bolts and nuts
9) 1 (one) generator leg
10) 2 (two) wheels (not shown)
5
@@@@
D]@@@@

Manual
Assembly

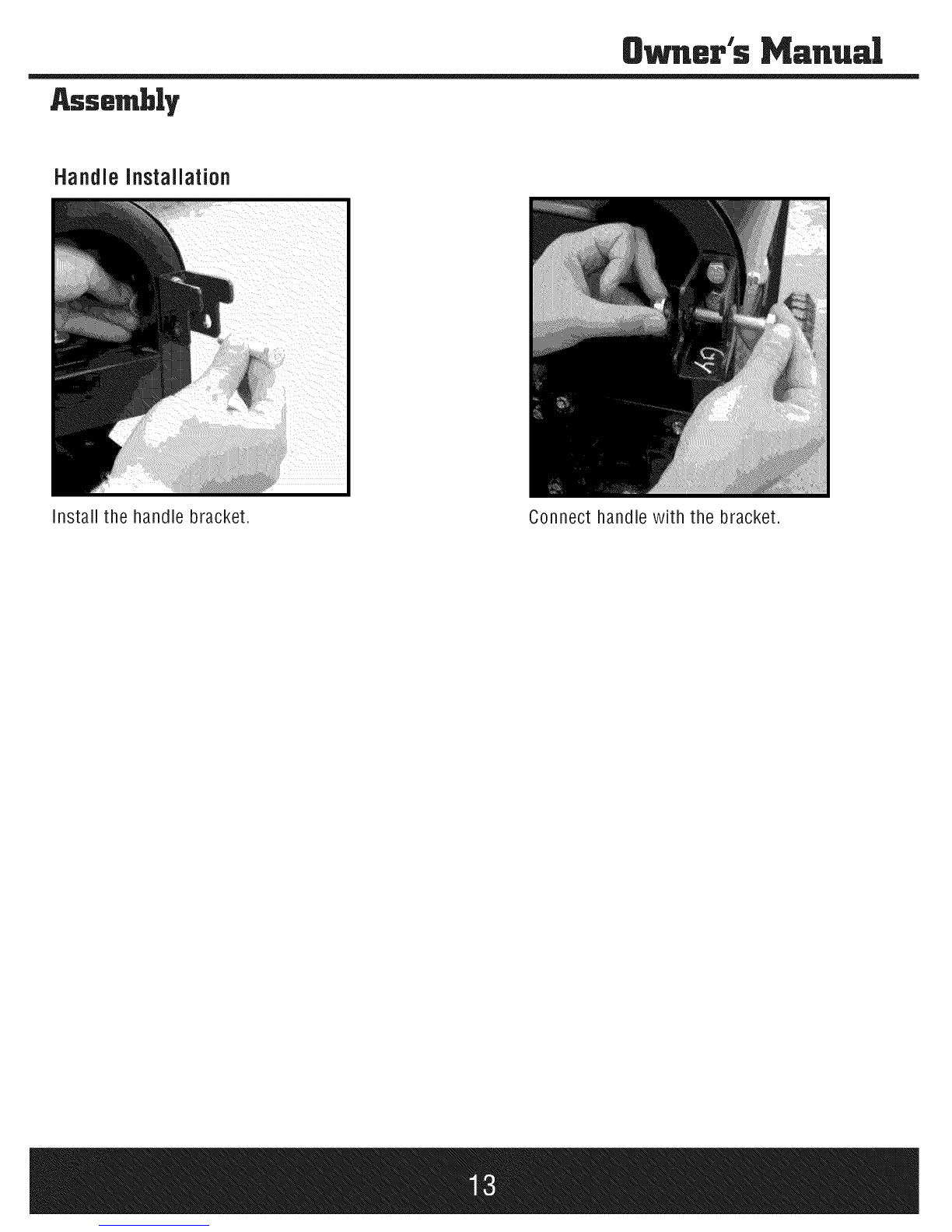

HafldJeIflstaiJatiofl
Install the handle bracket. Connect handle with the bracket.

Manual
Assembly
Wheel Kit InstalJation
Start by installing the
rubber floor mounts
onto the support leg
as shown,
Note: The leg should
be installed on the
same side as the pull
handle.
Here is the hardware required to install
the support leg, Placea block of wood
under the generatorso that you don't
haveto hold it up while trying to install
the leg, Placethe support leg underthe
frame, Pushthe bolt through the frameand
thru the leg,Threada nut onto the bolt,
Tighten with a wrench.
This is what the leg
looks like when it is
installed.
Slide the wheels
onto the axle,
Place a washer
over the wheel
Thewheels should be installed on the
side opposite to the handle, Placea
block of wood under the generator so
that you don't have to hold it up while
trying to install the axle, Placethe axle
mount brackets. Thread two bolts through
the frame and through the axle mounting
plates. Thread a nut onto the bolt and
tighten, Pushthe axle shaft into the axle
mount bracket, Then push the cotter pin
through the axle and bend it backwards as
shown.
Push the cotter pin through the axle and
bend it backwards as shown
Your generator is now mobile. Enjoy!
8 8
6 6

_ NOTE:The parts listed above are
helpful for locating the controls mentioned
below.

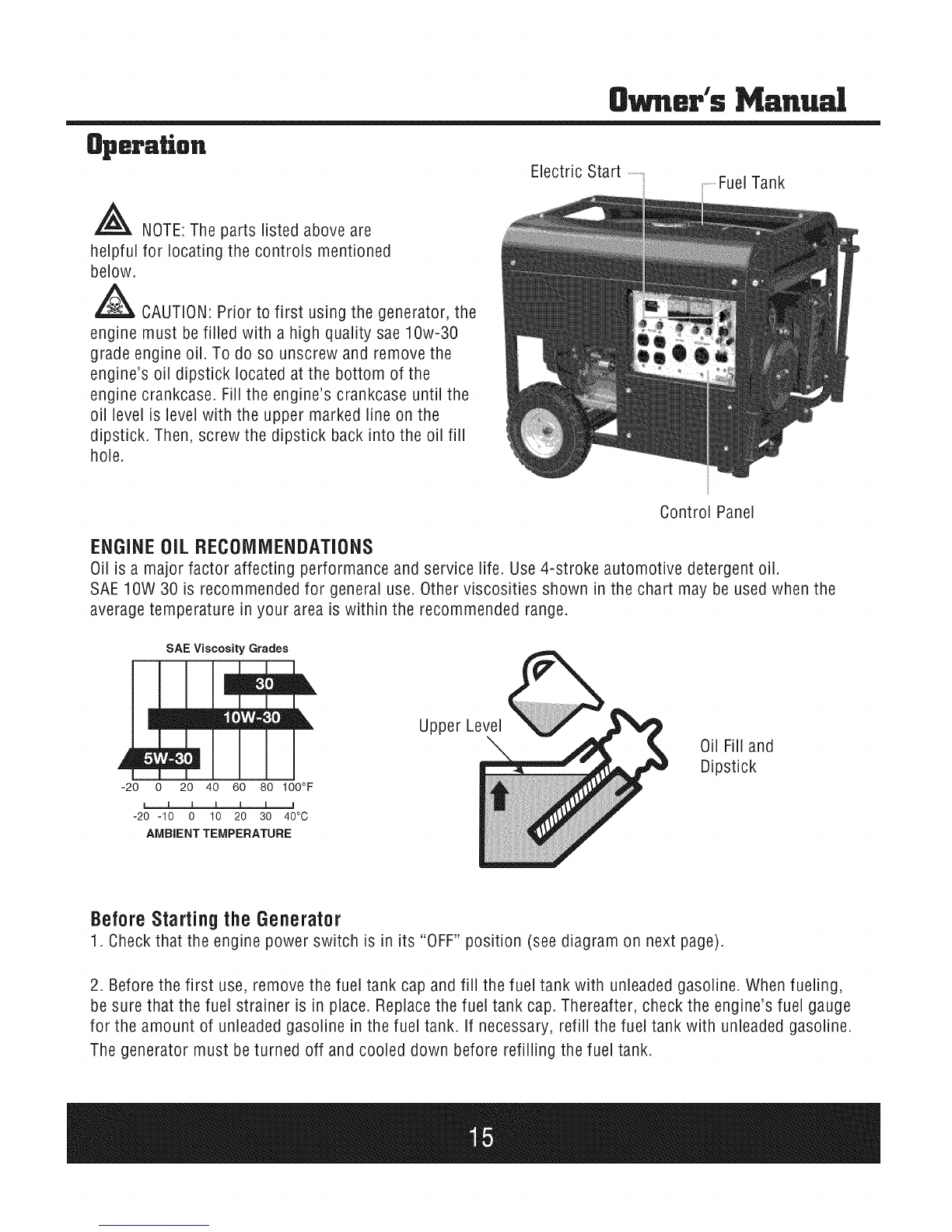

_IL CAUTION Prior to first using the generator, the
engine must be filled with a high quality sae 10w-30
grade engine oil. To do so unscrew and remove the
engine's oil dipstick located at the bottom of the
engine crankcase. Fill the engine's crankcase until the
oil level is level with the upper marked line on the
dipstick. Then, screw the dipstick back into the oil fill
hole.
Electric Start ......................FueITank
Control Panel
ENGINEOiL RECOMMENDATIONS
Oil is a major factor affecting performance and service life. Use 4=stroke automotive detergent oil.
SAE lOW 30 is recommended for general use. Other viscosities shown in the chart may be used when the
average temperature in your area is within the recommended range.
SAE Viscosity Grades
||k
|mmE k
AEZ|
-20 0 20 40 60 80 IO0°F
-20 -10 0 10 20 30 40°C
AMBIENT TEMPERATURE
Upper Level Oil Fill and
Dipstick
BeforeStarting the Generator
1. Check that the engine power switch is in its "OFF" position (see diagram on next page).
2. Before the first use, remove the fuel tank cap and fill the fuel tank with unleaded gasoline. When fueling,
be sure that the fuel strainer is in place. Replace the fuel tank cap. Thereafter, check the engine's fuel gauge
for the amount of unleaded gasoline in the fuel tank. If necessary, refill the fuel tank with unleaded gasoline.
The generator must be turned off and cooled down before refilling the fuel tank.

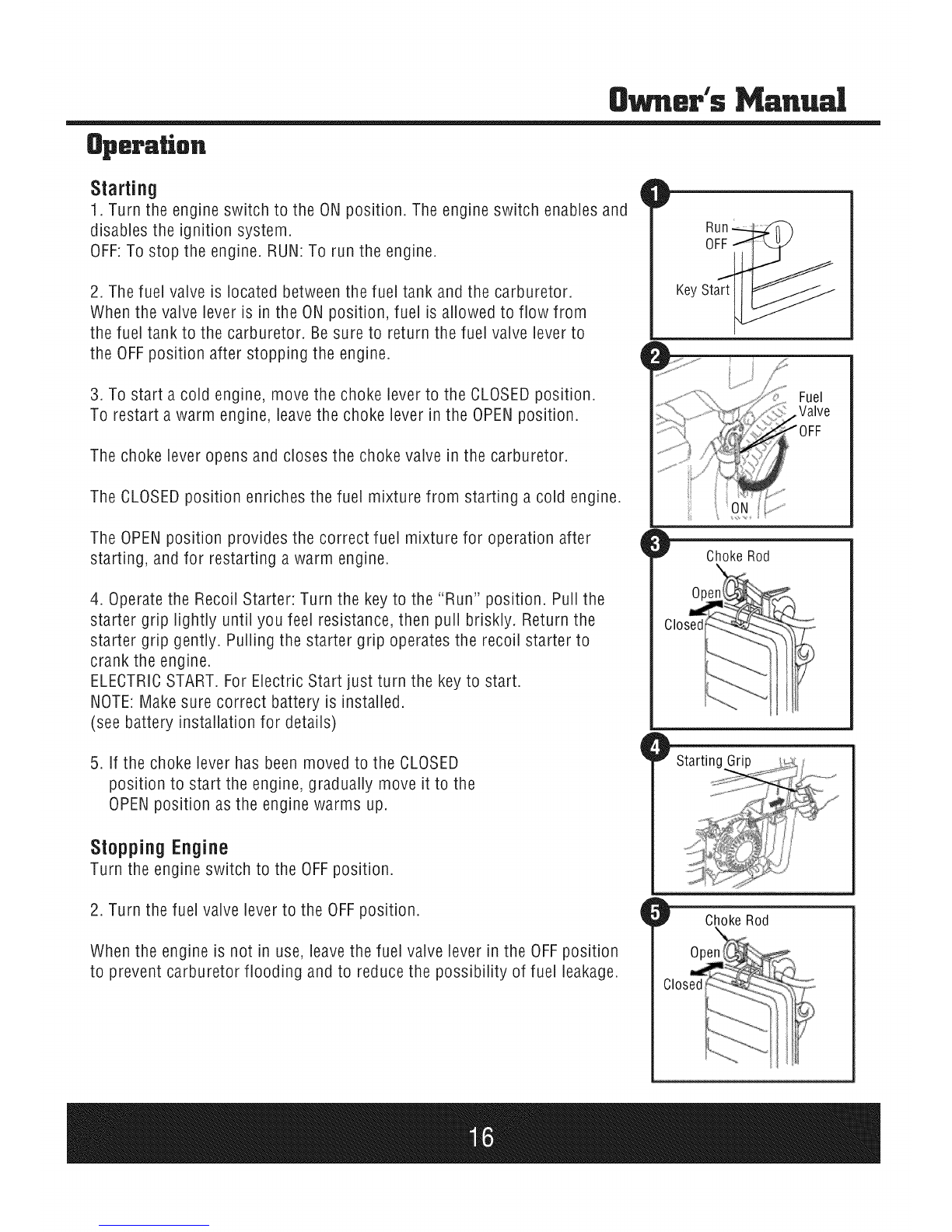

Starting
1, Turn the engine switch to the ON position. The engine switch enables and
disables the ignition system.
OFF:To stop the engine. RUN: To run the engine.
2. The fuel valve is located between the fuel tank and the carburetor.
When the valve lever is in the ON position, fuel is allowed to flow from
the fuel tank to the carburetor. Be sure to return the fuel valve lever to
the OFFposition after stopping the engine.
3. To start a cold engine, move the choke lever to the CLOSED position.
To restart a warm engine, leave the choke lever in the OPEN position.
The choke lever opens and closes the choke valve in the carburetor.
The CLOSED position enriches the fuel mixture from starting a cold engine.
The OPEN position provides the correct fuel mixture for operation after
starting, and for restarting a warm engine.
4. Operate the Recoil Starter: Turn the key to the "Run" position. Pull the
starter grip lightly until you feel resistance, then pull briskly, Return the
starter grip gently. Pulling the starter grip operates the recoil starter to
crank the engine.
ELECTRICSTART, For Electric Start just turn the key to start.
NOTE: Make sure correct battery is installed.
(see battery installation for details)
Run_
i
KeySt
Fuel
OFF
Choke Rod
5. If the choke lever has been moved to the CLOSED
position to start the engine, gradually move it to the
OPEN position as the engine warms up.
Stopping Engine
Turn the engine switch to the OFFposition.
2. Turn the fuel valve lever to the OFFposition.
When the engine is not in use, leave the fuel valve lever in the OFFposition
to prevent carburetor flooding and to reduce the possibility of fuel leakage.
StartingGrip _,__4
Choke Rod

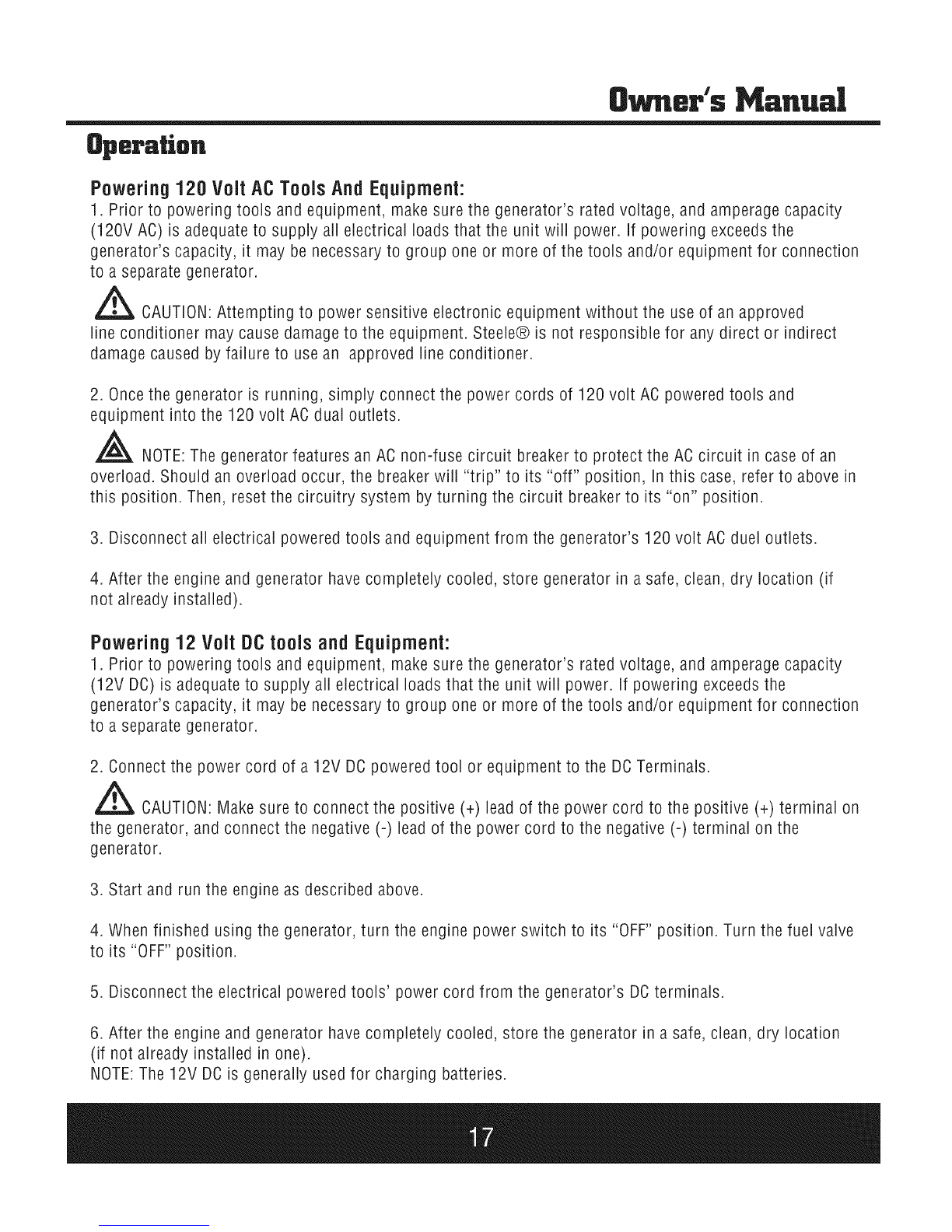

Powering 120 Volt ACTools And Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(120V AC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
,i_ CAUTION Attempting to power sensitive electronic equipment without the use of an approved
line conditioner may cause damage to the equipment. Steele® is not responsible for any direct or indirect
damage caused by failure to use an approved line conditioner.
2. Once the generator is running, simply connect the power cords of 120 volt AC powered tools and
equipment into the 120 volt AC dual outlets.
,_. NOTE:The generator features an AC non-fuse circuit breaker to protect the AC circuit in case of an
overload. Should an overload occur, the breaker will "trip" to its "off" position, In this case, refer to above in
this position. Then, reset the circuitry system by turning the circuit breaker to its "on" position.
3. Disconnect all electrical powered tools and equipment from the generator's 120 volt AC duel outlets.
4. After the engine and generator have completely cooled, store generator in a safe, clean, dry location (if
not already installed).
Powering 12 Volt DCtools and Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(12V DC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
2. Connect the power cord of a 12V DC powered tool or equipment to the DC Terminals.
L_ CAUTION Make sure to connect the positive (+) lead of the power cord to the positive (+) terminal on
the generator, and connect the negative (-) lead of the power cord to the negative (-) terminal on the
generator.
3. Start and run the engine as described above.
4. When finished using the generator, turn the engine power switch to its "OFF" position. Turn the fuel valve
to its "OFF" position.
5. Disconnect the electrical powered tools' power cord from the generator's DC terminals.
6. After the engine and generator have completely cooled, store the generator in a safe, clean, dry location
(if not already installed in one).
NOTE:The 12V DC is generally used for charging batteries.

Spark PlugService
In order to service the spark plug, you will need a spark plug wrench (commercially available).
Recommended spark plugs: NHSP LD F7TC. To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
1. Remove the spark plug cap.
2. Use a spark plug wrench to remove the spark plug.
3. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with
a wire brush if it isto be reused.
4. Measure the plug gap with a feeler gauge.
5. Check that the spark plug washer is in good condition.
6. After the spark plug is seated, tighten with a spark plug in by hand to prevent cross-threading.
7. After the spark plug is seated, tighten with a spark plug wrench to compress the washer.
A_ NOTE:The spark plug must be securely tightened. An improperly tightened spark plug can become
very hot and could damage the Engine. Never use spark plugs which have an improper heat range. Use only
recommended spark plus or equivalent.
PLUG WRENCH

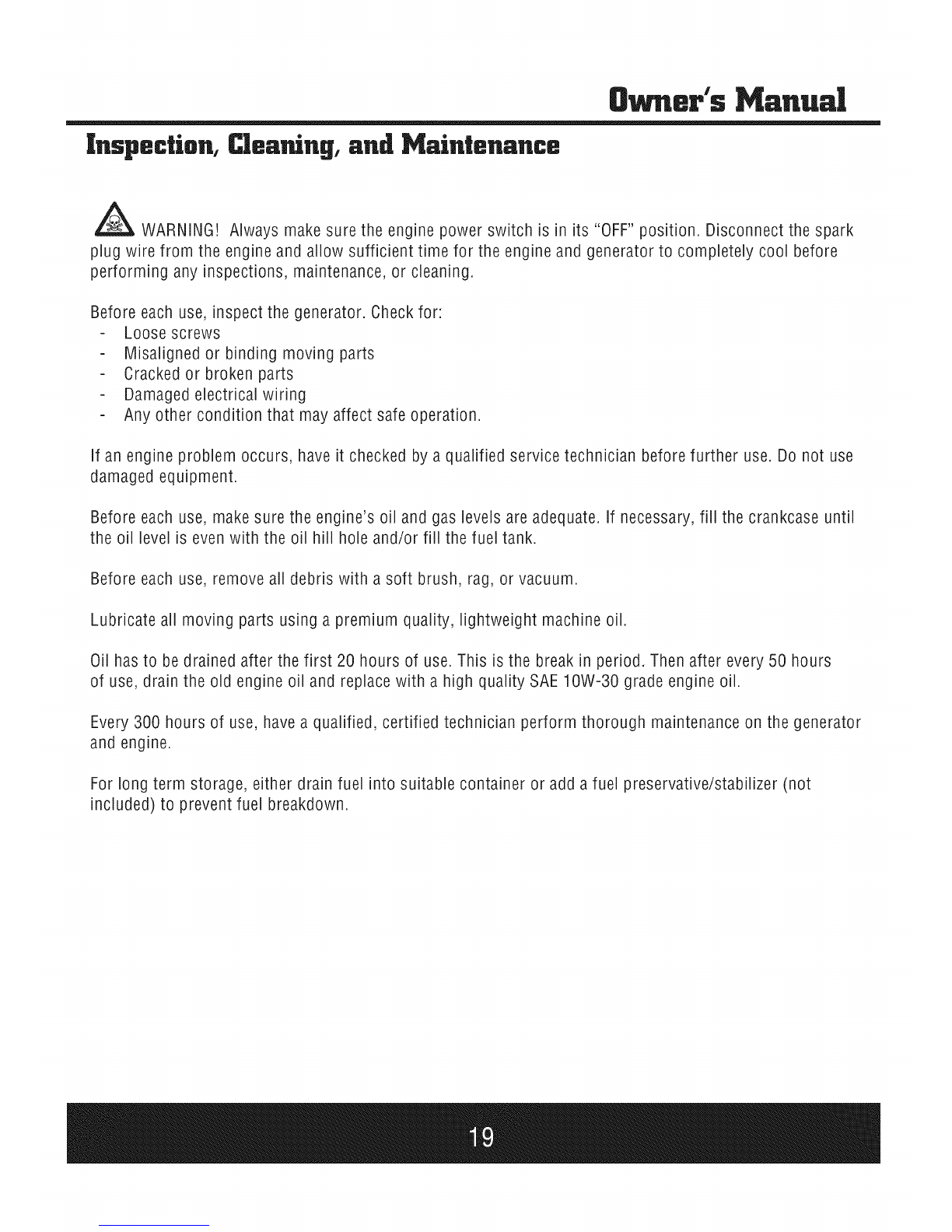

,l_ WARNING! Always make sure the engine power switch is in its "OFF" position. Disconnect the spark
plug wire from the engine and allow sufficient time for the engine and generator to completely cool before
performing any inspections, maintenance, or cleaning.
Before each use, inspect the generator. Check for:
Loose screws
Misaligned or binding moving parts
Cracked or broken parts
Damaged electrical wiring
Any other condition that may affect safe operation.
If an engine problem occurs, have it checked by a qualified service technician before further use. Do not use
damaged equipment.
Before each use, make sure the engine's oil and gas levels are adequate. If necessary, fill the crankcase until
the oil level is even with the oil hill hole and/or fill the fuel tank.
Before each use, remove all debris with a soft brush, rag, or vacuum.
Lubricate all moving parts using a premium quality, lightweight machine oil.
Oil has to be drained after the first 20 hours of use. This is the break in period, Then after every 50 hours
of use, drain the old engine oil and replace with a high quality SAE 10W-30 grade engine oil.
Every 300 hours of use, have a qualified, certified technician perform thorough maintenance on the generator
and engine.
For long term storage, either drain fuel into suitable container or add a fuel preservative/stabilizer (not
included) to prevent fuel breakdown.
