HEAD UNIT
SURROUND SOUND PROCESSOR
INSTALLATION MANUAL
October 2018

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
2
Table of Contents
Compliance .......................................................................................................... 5
Pre-Installation ..................................................................................................... 6
Unpacking the unit ............................................................................................ 6
Operating Voltage ............................................................................................ 7
Ventilation Requirements ................................................................................. 7
Heat output ....................................................................................................... 7
Home Automation System Integration ................................................................. 8
Rear Panel ........................................................................................................... 9
Remote .............................................................................................................. 10
Setup Procedure ................................................................................................ 11
Installation Via OSD ........................................................................................... 12
Installation Via Web Interface ............................................................................ 12
Source ................................................................................................................ 12
Create ............................................................................................................. 12
Edit / Edit all enabled sources. ....................................................................... 13
Arrange / Arrange the order of sources by making a prioritized list. .............. 13
Delete / Delete enabled sources. ................................................................... 13
Speaker and Room ............................................................................................ 13
Speaker Configuration .................................................................................... 13
RoomPerfect™ ............................................................................................... 14
How to Set Up RoomPerfect™ .......................................................................... 15
Volume Setting ............................................................................................... 15
RoomPerfect™ Preparations ......................................................................... 15
Placing the Microphone in the Focus Position ............................................... 15
Measuring the Focus Position ........................................................................ 16

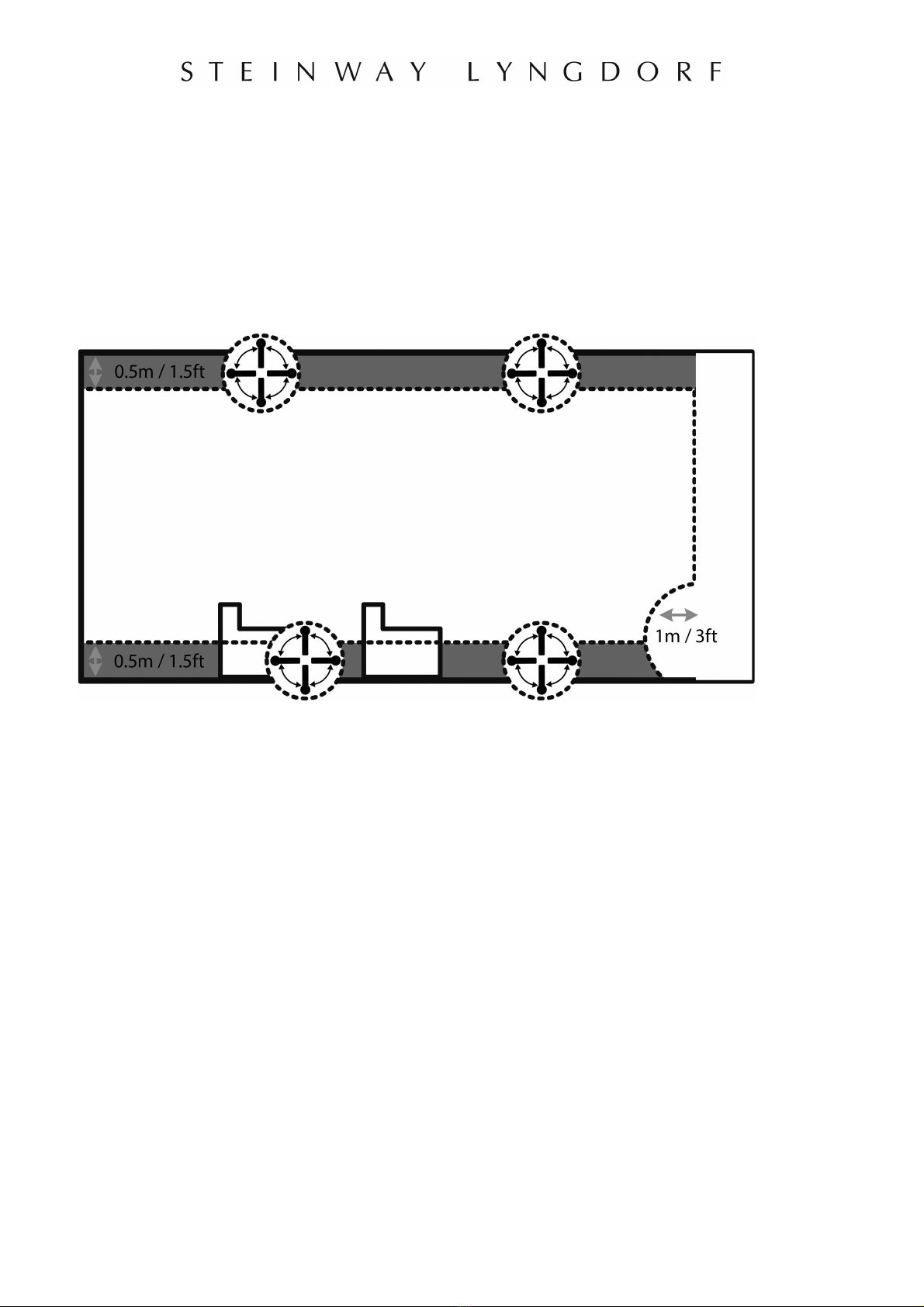

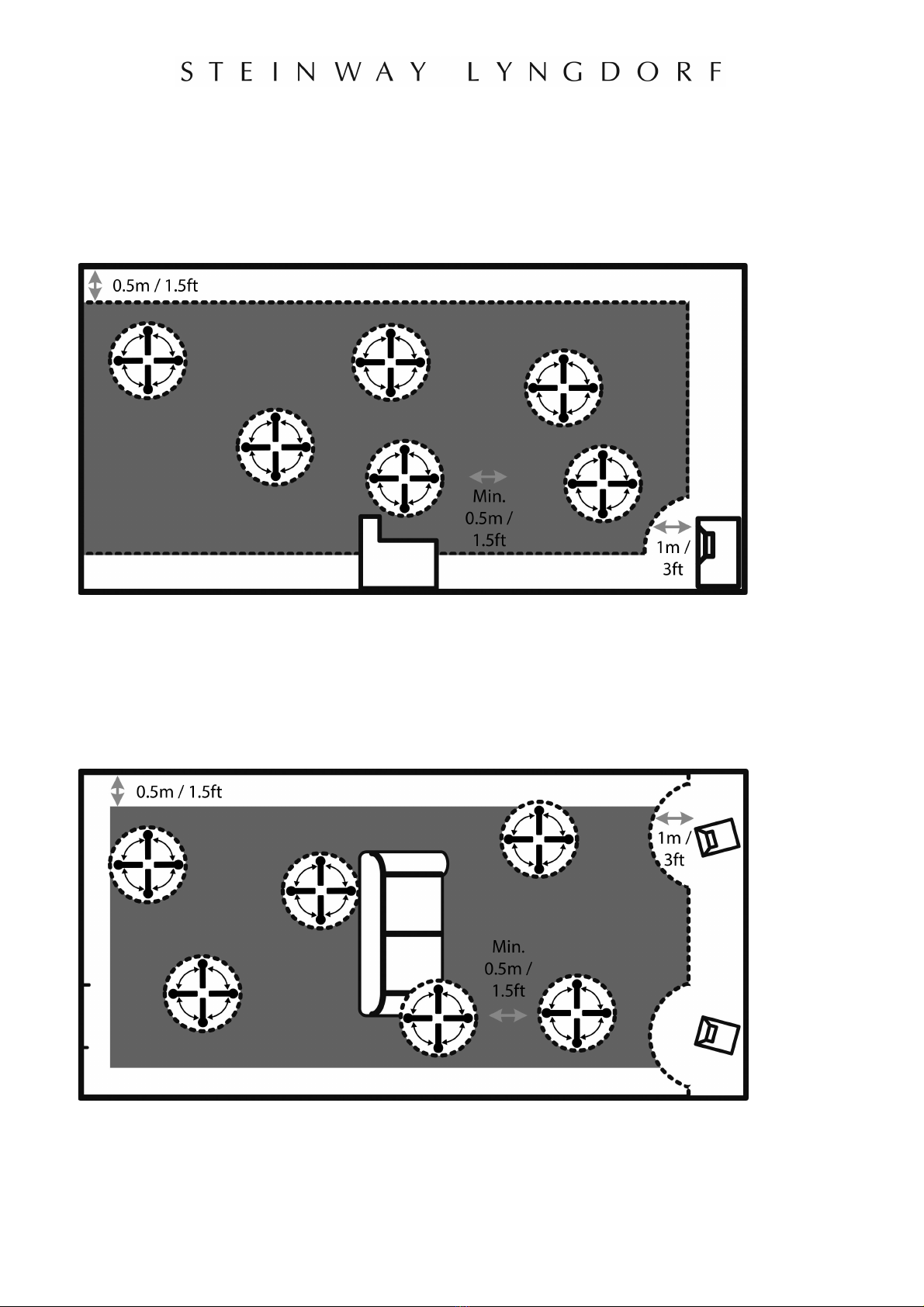

Measuring Random Room Positions .............................................................. 16
Room Measurements Above 90% RoomKnowledge ..................................... 17
Audio Setup ....................................................................................................... 18
Audio Processing ........................................................................................... 18
Voicing Setup ................................................................................................. 18

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
3
Zone B ............................................................................................................... 19
Setup .............................................................................................................. 19
System Configuration ......................................................................................... 19
General Setup ................................................................................................ 19
Power management ....................................................................................... 19
Default volume settings .................................................................................. 19
HDMI CEC settings ........................................................................................ 20
Display timeout ............................................................................................... 20
Password protection ....................................................................................... 20
Control of speaker setups .............................................................................. 20
Show bypass .................................................................................................. 20
Enable front IR sensor .................................................................................... 20
OSD info level ................................................................................................ 20
Trigger In Setup .............................................................................................. 20
Trigger Out Setup ........................................................................................... 20
Network Configuration .................................................................................... 20
Streaming Setup ............................................................................................. 20
Manage Software ............................................................................................... 21
Software Information ...................................................................................... 21
Network Information ....................................................................................... 21
Backup ........................................................................................................... 21
Restore ........................................................................................................... 21
Factory Reset ................................................................................................. 21
Software Update ............................................................................................. 21
Daily Operation .................................................................................................. 22
Audio Change Audio Modes ..................................................................... 22
Mute Turns the sound on and off. ........................................................... 22
Stand-By Turn the system from op. mode to standby and vice versa ..... 22
Voicing Skip between the active Voicings ................................................ 23
Maintenance ...................................................................................................... 24
Troubleshooting ................................................................................................. 24
RoomPerfect™ ............................................................................................... 24

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
4
Network Setup ................................................................................................... 26
Connecting to Head Unit Processor with a Network Cable ............................ 26
Set Up a Fixed IP Address in Windows XP or Windows 7 ............................. 27
Trademarks ........................................................................................................ 28
Service Information ............................................................................................ 28

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
5
Compliance
WEEE
The European Parliament and the Council of the European Union have issued the Waste Electrical and
Electronic Equipment Directive. The purpose of the Directive is to prevent waste of electrical and electronic
equipment and to promote reuse, recycling, and other forms of waste recovery. Steinway Lyngdorf products
and the accessories packed with them are subject to the WEEE Directive. Please dispose of any waste
materials in accordance with your local recycling regulations. Products and equipment which must be
collected for reuse, recycling, and other forms of recovery are marked with the icon of the crossed-out waste
receptacle.
FCC
Steinway Lyngdorf products and accessories comply with parts 15 and 68 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must
accept any interference received, including any interference that may cause undesired operation. The Head
Unit Processor contain TX FCC ID: TYOJN5139M0.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. Equipment marketed to a consumer must be capable of complying
with the necessary regulations in the configuration in which the equipment is marketed.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
6
Pre-Installation
Please read all material carefully prior to installation. If you need additional assistance, contact your Steinway
Lyngdorf representative.
Unpacking the unit
Unpacking the Head Unit Processor
The Head Unit Processor is packed in a wooden crate. A tool for removing the clips is in the pallet. Remove the clips from
the top of the crate and remove the lid. Afterwards, remove the clips on the walls. You can now easily get access to the
head unit and move it from the pallet.
Carefully check for shipping damage. If the unit bears any sign of transport damage you need to photograph the damage,
and report the incident to your Steinway Lyngdorf representative immediately
Note: Keep the shipping carton and all packing material for future use. If this unit is shipped
without the original packing, damage could occur and void the warranty.
Inventory
Check the list below to ensure that all necessary product components have been delivered. Report all
discrepancies to your Steinway Lyngdorf representative immediately.
• Owner’s manual
• Power cord
• Link cable
• IR / RF Remote

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
7
Operating Voltage
Steinway Lyngdorf products must be connected to the mains power system. The Head Unit Processor will
automatically detect the voltage between 110-230v.
Ventilation Requirements
The Head Unit Processor does not have a built-in fan, nor does it require special measures to ensure proper
heat dissipation. However, it should be placed in an environment free of excessive heat.
Heat output
Maximum: 85W / 290 BTU/hr.
Cables and Plugs
Use only mains cables and power plugs approved by Steinway Lyngdorf. Using other types may cause damage
to the system and will void the warranty.
Connecting
For cabling between the processor and amplifiers, please use RJ45 to RJ45 B standard cables. Use only cables
and connectors approved by Steinway Lyngdorf. Poor quality cables may violate safety/ EMC regulations as
well as cause noise and interference.
• For cable lengths less than 1 meter, use CAT5E/shielded CAT6 cable.
• For cable lengths in excess of 1 meter, use double-shielded CAT5E cables.
• All RJ45 connectors should be shielded.
Please refer to the wiring diagram supplied by Steinway Lyngdorf to determine which cables you need.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
8
Home Automation System Integration
The Head Unit Processor is compatible with home automation systems via the RS232 and network connector
on the rear socket panel. The Head Unit Processor’s IR and trigger connections can also be programmed for
use in a home automation system.
IP Control
Open a TCP connection on port 84 and use the same protocol as on the serial interface (see Head Unit
Processor Serial Control Manual). Use Telnet, Putty, or similar programs to open the TCP connection.
If you do not know the IP address of the Head Unit Processor on your local network, the Head Unit Processor
supports Apple´s Bonjour Discovery service, which must be on the computer you want to set up the Head Unit
Processor with. The software is built-in as part of the Apple OS X operating system (not iOS devices). For
Windows operating systems, the software can be found at http://www.apple.com/support/bonjour/
Pressing the OK button on the remote and toggling through Info will also display the current IP address of the
unit.
Access the Head Unit Processor by going to http://headunit.local in your browser.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
9
Rear Panel
On the back of the Head Unit Processor, you will find a range of inputs and outputs:
• Various optical, coaxial, and analog stereo audio inputs.
• 3 HDMI inputs and 1 HDMI outputs, all 4K compatible.
• 1 trigger input and 4 trigger outputs.
• 2 IR inputs (IR in A and B) and 1 IR connector output (IR in B - duplicated).
• 2 LAN connectors, for Ethernet connection on the local network. IP control is supported.
• 2 USB connectors, for music file playback, software updating, etc.
• 1 streaming USB input.
• 1 SD card slot for storing backup data.
• 1 microphone input for the RoomPerfect™ room correction microphone.
• 1 RS-232 connector for serial control of the unit.
• 5 Digital Link outputs for connecting Steinway Lyngdorf’s amplifiers.
Note: Do not use the USB ports for charging smartphones and tablets.
In Standby mode, only LAN A is active; LAN B connector is not active.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
10
Remote
The Head Unit Processor comes with a dedicated RF and IR remote control for installations and everyday use.
Setup Access the installation menu.
Standby Turn the Head Unit Processor on and into standby.
Audio Access the post-processing menu.
Up/Down Move up and down in menus.
Browse available settings in a menu.
Toggles between the available RoomPerfect™ filters.
Left/Right Move left and right in menus.
Toggle between neutral and the available voicings.
OK Activate the info screen, indicating the status of the unit.
Select a menu and store a selected setting.
Back Return to the previous menu.
Menu Access the user menu.
SRC Access the source menu list.
Source -/+ Toggle between active sources.
Volume +/- Turn volume up and down.
Mute Mute and restore the sound.
Play/Pause Play/pause the currently playing track of the media player.
Skip Forward/
Backwards Skip in the current playlist in the media player.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
11
How to Pair Remote
The remote control is paired to the Head Unit Processor at the factory, and you only need to pair it again if
you have a new Head Unit Processor or remote. To pair the RF remote control to a Head Unit Processor:
1. Turn on the Head Unit Processor.
2. Hold down Play & OK until the remote control´s green LED flashes.
3. Point the remote control at the Head Unit Processor and hold it within 30cm / 1 foot of the front
panel; when the green LED stops blinking, the remote is connected via Zigbee.
4. The remote will be paired to the Head Unit Processor.
To reset the pairing of the remote control, press Back and OK until the red LED flashes twice.
Switching Remote to RF and IR Mode
To switch the remote from RF to IR mode, hold down OK and 1. The LED will flash red twice.
To switch the remote from IR to RF mode, hold down OK and 2. The LED will flash green twice.
Setup Procedure
Set up the Head Unit Processor surround sound processor by following these steps:
1. Check that the mains voltage switch on the A1/A2 amplifiers is correctly set to either 115V or 230V.
2. ID-assign all Model A1/A2 amplifiers via dip-switches on the A1/A2 socket panel according to the
project-specific wiring diagram.
3. Connect speakers to the Model A1/A2 amplifiers.
4. Connect Model A1/A2 amplifiers to the Head Unit Processor as shown in the project-specific wiring
diagram.
5. Connect all external equipment, such as a Blu-ray player or home automation system, to the Head
Unit Processor, including inputs, outputs, and mains.
6. Connect power to the Head Unit Processor, the amplifiers, and all connected audio and video sources.
7. Switch on the Head Unit Processor.
8. Access Installer menu via Web or the remote and OSD.
9. Go to Speaker and room - -> Manage and add the Speaker Configuration file from a USB stick.
10. Verify speaker setup by going to Speaker and room, select your speaker configuration and press Right
on the remote to select the setup. At the bottom of the screen, select and press Verify Speakers.
11. Check speaker phases (refer to speaker owner’s manuals).
12. Run RoomPerfect™ Guided Setup.
13. Set up sources, zones, etc.
14. Save and back-up settings.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
12
Installation Via OSD
If connected to a screen, we recommend setting up the Head Unit Processor via the OSD setup guide. Access
the menu system by pressing the Setup button on the remote control.
Note: There are some differences between the options available via the web interface and
OSD. This is a description of how to set up via the web interface.
Installation Via Web Interface
You will need a computer, and the Head Unit Processor must be connected to an existing network, or you may
use a crossover network cable for direct connection.
If you do not know the IP address of the Head Unit Processor on your local network, the Head Unit Processor
supports Apple´s Bonjour Discovery service, which must be on the computer you want to set up the Head Unit
Processor with. The software is built-in as part of the Apple OS X operating system (not iOS devices). For
Windows operating systems, the software can be found at http://www.apple.com/support/bonjour/
• Access the web menu by typing http://headunit.local/ in your browser.
Alternatively, you can connect a screen to the Head Unit Processor using any of the video output sockets on
the back. Access the menu system by pressing the Setup button on the remote control.
Pressing the OK button on the remote and toggling through Info will display the IP address of the unit.
Source
In the Source menu, you can register the individual sources connected to the Head Unit Processor by the
audio and/or video input sockets they use.
Create
Source name / Input the name for the source.
Lip-sync offset / Set delay time in milliseconds to ensure that the video and audio signals are played back
simultaneously.
Volume offset / Enables you to match input levels from different sources.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
13
Audio input / Select the audio input.
Default post processing / Select the default audio mode.
Default voicing / Select the default voicing.
Video input / Select the video input.
Preset vTuner station / Select and preset a vTuner internet radio station.
Speaker configuration / Select which speaker configuration to use.
Trigger out / Choose which trigger output to activate when using this source.
Audio input / Select the audio input.
This procedure must be followed for all connected sources.
Edit / Edit all enabled sources.
Arrange / Arrange the order of sources by making a prioritized list.
Delete / Delete enabled sources.
Remember to press accept after making selections.
Speaker and Room
The Speaker and Room menu provides information about the current speaker configuration, allowing you to
select a configuration that is stored on the Head Unit Processor, on a laptop, or on a connected memory stick.
Speaker Configuration
Manage
Add or delete speaker config files.
To add a file, insert a USB stick with the speaker configuration file you have received from your Steinway
Lyngdorf representative, select the file and press Add. The speaker configuration will be added to the Speaker

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
14
Configuration list. After adding the speaker configuration, it will be visible as a menu below Speaker
Configuration. Press Left on the remote to select it.
Verify speakers
Press the Verify Speakers button to verify your setup.
RoomPerfect™
Focus position
The focus filter improves the sound quality at a specific listening position. This makes the focus filter the best
solution for optimal sound quality at a single listening position.
It is possible to add multiple focus positions. This must be done after RoomPerfect™ has
been set up completely.
Edit distance
Be sure to select the unit of measure, then enter the distances to the speakers and woofers.
How to measure distances to speakers and woofers
The best results are obtained by using a laser-equipped measuring device. Before starting, place the
RoomPerfect™ microphone at listening height in the main listening position. For each channel, measure the
straight-line distance through the air from the tip of the RoomPerfect™ microphone to the center of the
tweeter unit in the loudspeaker in question. Do not measure distances at floor level, as these measurements
will not give acoustically accurate results.
When measuring distances to in-room boundary woofers:
• If the stack of woofers is taller than the listening position, measure the distance from the listening
position to the back edge of the middle of the stack of woofers.
• If the woofers are lower than the listening position, measure the distance from the listening
position to the back edge of the top woofer.
When measuring distances to in-wall boundary woofers:
• If the stack of woofers is taller than the listening position, measure the distance from the listening
position to the dust cap of the middle of the stack of woofers.
• If the woofers are lower than the listening position, measure the distance from the listening
position to the top dust cap of the top woofer.
If in doubt, contact your Steinway Lyngdorf representative for guidance.

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
15
Do not measure distances at floor level, as these measurements will not give acoustically
accurate results.
How to Set Up RoomPerfect™
The RoomPerfect™ microphone is a very sensitive and finely calibrated device which must
be treated with utmost care. If the microphone has been dropped on the floor, it may be
damaged. If this is the case, obtain a new microphone from your Steinway Lyngdorf
representative before performing the system calibration.
Volume Setting
The system guides you through the selection of a proper calibration volume level. Follow the instructions on
the display to find the optimal volume setting for doing the calibration.
You can choose to use a volume setting other than the one requested by the system by choosing Use Current.
The calibration will not be inferior in quality, but the time required for an exact measurement will be longer. If
the volume setting is too high, the system will display Error – Clipping. Reduce the volume and try again.
RoomPerfect™ Preparations
• Place the RoomPerfectTM calibration microphone on the stand. Be sure to fasten the screws
properly so the microphone does not move during a measurement.
• Plug the supplied microphone cable into the microphone.
• Connect the microphone cable to the microphone terminal on the rear panel of your processor.
Placing the Microphone in the Focus Position
When you are prompted to place the microphone in the focus position, connect the microphone to the
microphone input on the back panel and place the microphone, using the microphone stand, in your primary
listening position. The height and the orientation of the microphone should correspond to your head’s height
and direction.
Press Enter and a test signal will start from the left speaker. The system will give an estimated optimal volume
for calibrating the system or will accept the current volume. Adjust the volume if required and retry the
measurement.
The calibration volume should not be so loud that it is inconvenient to you, or that it causes damage to your
loudspeakers. If this is the case, set it to a lower and more appropriate level. A low volume can result in a

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
16
longer calibration time or a measurement time-out. A low volume and long measurement will not affect the
quality of the end result.
The display reads 0 to 99.9 as volume level, where 88 refers to full gain (0 dB)
Measuring the Focus Position
When the calibration volume has been set, RoomPerfect™ will send a range of tones to measure the focus
position.
If there is noise in the room, the measurement may take longer. This will not affect the quality of the end
result.
See RoomPerfect™ troubleshooting if the measurement stops prematurely, and then retry the measurement.
Measuring Random Room Positions
When the focus position has been measured, the next step is to measure the acoustical properties of the
room. It is important to perform well spaced measurements to get a comprehensive image of the acoustical
properties of the room. See RoomPerfect™ troubleshooting if the measurement stops prematurely.
Keep taking measurements until RoomKnowledge reaches 90%.
These are the rules of thumb when measuring the room:

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
17
• the microphone should be in random and varying positions, heights, and orientations. Point it
up/down/sideways, the more random positions the better.
• the measurements should cover the entire room, not only your listening area.
• do not take measurements behind plants, furniture, etc.
• the microphone should not be closer than 0.5m/1.5ft from the floor, ceiling, and walls.
• the microphone should be at least 1m/3ft from the front of the loudspeakers.
• there should be at least 50cm/1.5ft between each measurement.
• do not take symmetrical measurements in the room.
Room Measurements Above 90% RoomKnowledge

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
18
When RoomKnowledge has reached 90%, you can decide to add room measurements or do it at a later time.
We recommend taking a couple of measurements within 50cm/.5ft of the walls and ceiling when above 90%
RoomKnowledge.
To fully optimize RoomPerfect™’s understanding of the room’s acoustical properties, we recommend you
keep doing measurements until the RoomKnowledge is above 95%. The higher the RoomKnowledge, the more
accurate the room correction filters will be.
Calculation of Focus and Global Filters
When room measurements are complete, the system will calculate the focus and global filters automatically.
Audio Setup
Audio Processing
This menu allows you to manage the audio processing presets for DTS, NeoX, AURO, and Dolby.
Voicing Setup
A voicing is an equalizer filter that can be activated to amplify or attenuate certain frequencies according to
your personal preferences. This equalization is an addition to the RoomPerfect™ corrections.
Voicings can be edited, deleted, added or loaded in the Head Unit Processor.
Editing and adding voicings

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
19
In the intuitive GUI for the voicing tool, you can edit or add a voicing by combining up to eight filter sections.
For each section, you can choose between parametric or high and low shelves as well as high and low-pass
filters. Once the filter type is selected, you can insert a center frequency, Q, and gain. Then the filter, including
the final voicing, is shown as a graph so that you can immediately see the result.
We recommend you create voicings using the web interface, but they can be created using the remote
control.
Zone B
Setup
Here you can adjust the Zone B volume and default settings.
The Zone B output is a stereo downmix of the main zone audio – intended for use as an
input in adjacent space.
System Configuration
General Setup
Power management
• Choose the standby mode:
o Deep sleep – The Head Unit Processor cannot be turned on via LAN or a IP control system.
RS232 based control systems will work.
o Network - The Head Unit Processor can also be turned on via LAN or a IP based control
system.
• Choose the delay before auto off (minutes). If you don´t press any buttons or audio isn´t being
played, this sets the idle time required for automatic shut-down.
NOTE: The Head Unit Processor cannot turn on from standby via LAN B; use LAN A instead
Default volume settings
• Set a max volume for the device (dB). This setting is a safety precaution.
• Set startup volume

Steinway & Sons Head Unit Processor – Installation Manual, version 1.0
20
o Use last volume – Sets the volume to be the same as when the Head Unit Processor was
turned off.
o Use fixed volume – Sets the default volume at startup.
HDMI CEC settings
Set enable CEC and use ARC channel as audio input to Off or On.
Display timeout
Set seconds before turning off the display.
Password protection
Set a required password to enter the web setup section.
Control of speaker setups
Set to allow sources to change speaker setup to No or Yes.
Show bypass
Set the bypass mode for your device to Off or On.
Enable front IR sensor
Turn the Head Unit Processor´s IR sensor Off or On. This function is useful if you are using a home automation
system and other remotes are using the same IR codes as the Head Unit Processor remote.
OSD info level
Choose the level of information to show on the OSD.
Trigger In Setup
Allows you to set up the system so that it can be switched on via an external device in the system.
Trigger Out Setup
Allows you to set up the system so that the Head Unit Processor can control other devices in the system.
Network Configuration
Change the network mode to manual or automatic.
For more info, see the Network Setup chapter.
Streaming Setup
Configure streaming player setup.
• Streaming players can control volume – set to Off or On
• Streaming players can change input source – set to Off or On
• Streaming players can power on the device from standby mode – set to Off or On
