Articulating Crane
Owners’ Manual
Model 6000
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: [phone]
www.stellarindustries.com Rev 1
PN 37810
Subject to Change without Notication.
© 2022 Stellar Industries, Inc.
Installation • Assembly Drawings • Parts

Page ii | Stellar®6000 Articulating Crane Owner’s Manual
P65 Warning / Serial Tag Location
MODELNO.SERIAL NO.
DATE
MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.
PNC5942
®
PATENTINFORMATION
http://www.stellarindustries.com/ip
MODEL NO.SERIAL NO.
DATE
MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.
PN C5942
®
PATENT INFORMATION
http://www.stellarindustries.com/ip
Serial Tag
Location
WARNING
Operating, maintaining, and servicing a Stellar
product may expose you to chemicals including, but
not limited to, engine exhaust, carbon monoxide,
phthalates, and lead. These chemicals are known
to the State of California to cause cancer and birth
defects (or other reproductive harm). To keep your
exposure to a minimum, be sure to avoid breathing
exhaust and service your Stellar product in a well-
ventilated area while wearing gloves or washing
your hands frequently. For more information, go to
www.P65Warnings.ca.gov/passenger-vehicle. www.p65warnings.ca.gov
NOTICE
Cold Weather Performance
Although clear data on cold weather performance from every steel
manufacturer is not available for all types and thicknesses of steel, Stellar
Industries is confident that the weldments on our products will operate to
100% of their intended purpose to temperatures down to -40° F / C.
It is recommended it Stellar manufactured equipment needs to be used in
temperatures below -40° F / C, the operator should pull the unit into a
climate-controlled area and allow the weldments to warm up to and then
maintain a temperature above this level.

Stellar®6000 Articulating Crane Owner’s Manual | Page iii
Introduction ................................................................................................................................iv
Chapter 1 - Specications ............................................................................................................ 1
Capacity Chart - Decal PN 5165 ................................................................................................ 2
Chapter 2 - Installation.................................................................................................................. 3
General Installation .................................................................................................................... 3
Installer Notice ......................................................................................................................... 3
Torque Data Chart ................................................................................................................... 4
Installation Overview ............................................................................................................... 5
Mounting Kit Drawing .............................................................................................................. 5
Hydraulic Installation .................................................................................................................. 6
Face Seal/O-Ring Size Chart ..................................................................................................... 7
Hydraulic Kit - PN 13040 ............................................................................................................ 8
Control Kit - PN 52257 ............................................................................................................... 9

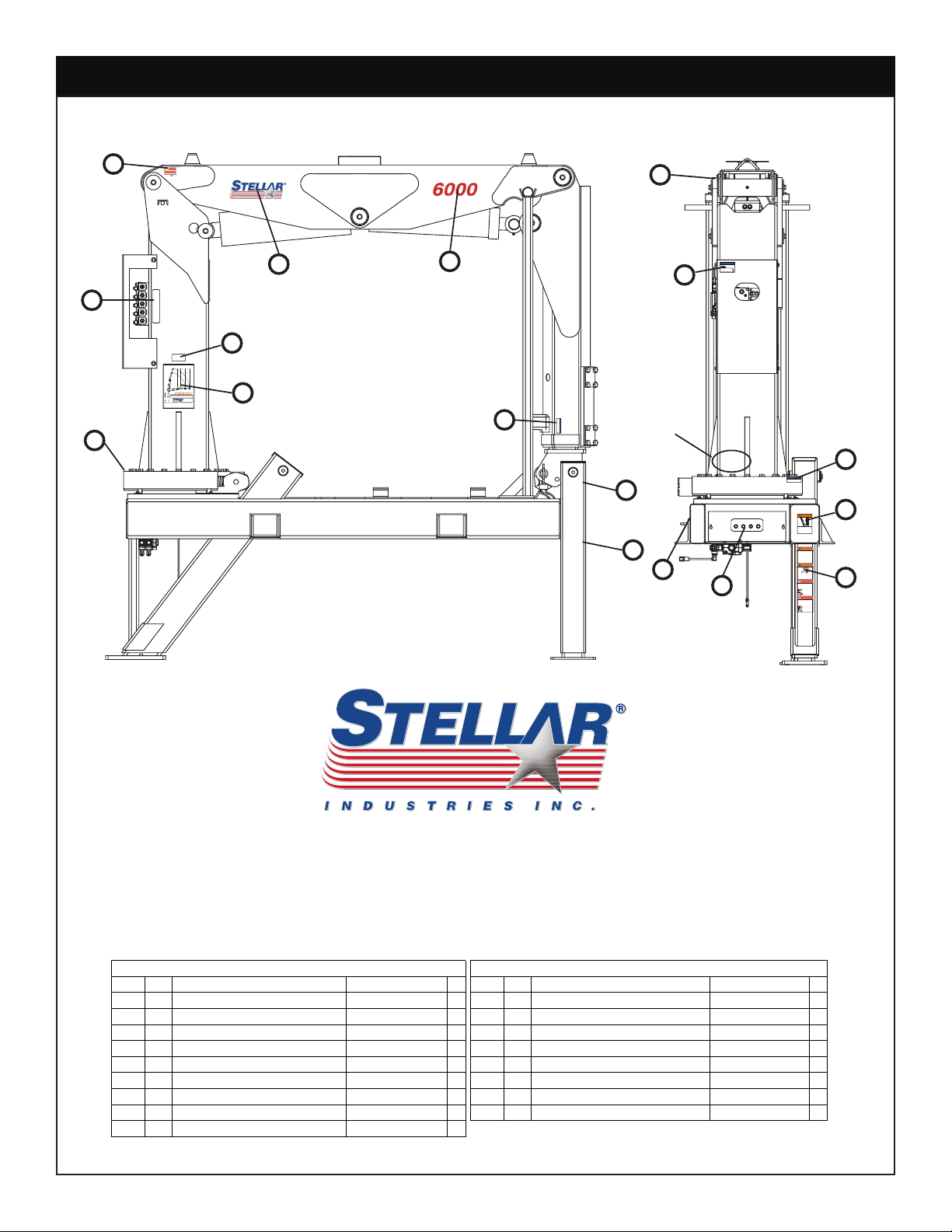

Decal Placement - PN 13356 ................................................................................................... 10
Chapter 3 - Assembly Drawings..................................................................................................11
Base Assembly - PN 22140 ......................................................................................................11
Gear Bearing - PN 4032........................................................................................................... 12
Stabilizer Valve Bank - PN 61040 ............................................................................................ 13
Mast Assembly - PN 22141 ...................................................................................................... 14
Valve Bank - PN 44530 ............................................................................................................ 15
Valve Bank (Alternate) - PN 125254 ........................................................................................ 16
Valve Bank (Alternate) - PN 125254 Parts List ........................................................................ 17
Main Boom Assembly - PN 22142 ........................................................................................... 18
Extension Boom Assembly - PN 22143 ................................................................................... 19
Radio Remote - PN 88454 ....................................................................................................... 20
Table of Contents

Page iv | Stellar®6000 Articulating Crane Owner’s Manual
Introduction
A copy of this manual is provided with every crane and can be found in the hard plastic manual
case that is installed on the chassis. A copy of this manual shall remain with the crane at all times.
Throughout the manual, three signal words will be used to bring attention to important items:
A NOTICE signal word indicates a practice not related to physical injury.
A WARNING signal word indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
A DANGER signal word indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Information contained within this manual does not cover operation, maintenance, or
troubleshooting. Please refer to the Small OTR Crane Manual for details on these items.
This manual is not binding. Stellar Industries, Inc. reserves the right to change, at any time, any or
all of the items, components, and parts deemed necessary for product improvement or commercial/
production purposes. This right is kept with no requirement or obligation for immediate mandatory
updating of this manual.
In closing:
If more information is required or technical assistance is needed, or if you feel that any part of this
manual is unclear or incorrect, please contact the Stellar Customer Service Department by phone
at 800-321-3741 or email at [email protected].
WARNING
NOTICE
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at
800-321-3741
Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST
Or email at the following addresses:
Technical Questions, and Information [email protected]
Order Parts [email protected]
Warranty Information [email protected]
DANGER

Stellar®6000 Articulating Crane Owner’s Manual | Page 1
Chapter 1 - Specications
Model 6000 Crane
SPECIFICATION SHEET
Crane Rating: 60,000 ft-lbs (8.30 ton meters)
Standard Boom Length: 11’ (3.35 m) from CL of Crane
14’ (4.27 m) from CL of Truck
Boom Extension: Hydraulic 32” (81.3 cm)
Maximum Horizontal Reach: 14’ (4.27 m) from CL of Crane
17’ (5.18 m) from CL of Truck
Maximum Vertical Lift: 20’ (6.10 m) from Truck Frame
(From Truck Frame)
Cylinder Specications
Inner Lift Cylinder: 6” (15.24 cm) bore with integral pilot
operated counterbalance valves.
Outer Lift Cylinder: 5” (12.70 cm) bore with integral pilot
operated counterbalance valves.
Extension Cylinder: 3” (7.62 cm) bore with integral pilot
operated counterbalance valves.
Rotation: 290 degree power
(Worm Gear Drive)
Lifting Capacities: 10,000 lbs @ 9’ (4535 kg @ 2.74 m)
(From CL of Truck) 4,250 lbs @ 17’ (1930 kg @ 5.18 m)
Power Supply Required: PTO & Pump
(6.0 gpm @ 2850 psi)
(22.7 lpm @ 197 bars)
Controls: Proportional Radio Controls standard for all functions.
Stowed Height: 75” (190.5 cm) above Truck Frame
(Above Truck Frame)
Mounting Space Required: 32” (81.3 cm)
Approximate Shipping Weight: 3,150 lbs (1,430 kg)

Page 2 | Stellar®6000 Articulating Crane Owner’s Manual
Capacity Chart - Decal PN 5165

Stellar®6000 Articulating Crane Owner’s Manual | Page 3
Installer Notice
According to Federal Law (49 cfr part 571), each nal-stage manufacturer shall complete the
vehicle in such a manner that it conforms to the standards in e󰀨ect on the date of manufacture
of the incomplete vehicle, the date of nal completion, or a date between those two dates. This
requirement shall, however, be superseded by any conicting provisions of a standard that applies
by its terms to vehicles manufactured in two or more stages.
Therefore, the installer of Stellar® products are considered one of the manufacturers of the vehicle.
As such a manufacturer, the installer is responsible for compliance with all applicable federal l and
state regulations, as well as any OEM instructions such as chassis body builder guides. They are
required to certify that the vehicle is in compliance with the Federal Motor Vehicle Safety Standards
and other regulations issued under the National Tra󰀩c and Motor Vehicle Safety Act and also
complies with recommended best practices from the chassis OEM.
Please reference the Code of Federal Regulations, title 49 - Transportation, Volume 5 (400-999),
for further information, or visit http://www.gpoaccess.gov/nara/index.html for the full text of Code of
Federal Regulations.
Chapter 2 - Installation
General Installation
This chapter is designed to serve as a general guide for the installation of a Stellar 2200 Crane on
a Stellar Service Body. Each installation is considered unique so certain portions of this chapter
may or may not apply to your direct application. If a question should arise during the installation
process, please contact Stellar Customer Service at [phone].
This crane is designed for use with a Stellar Service Body installed on a vehicle that meets the
minimum chassis requirements of the crane. It is the installer’s responsibility to assure that the
crane is mounted on a platform that will support the maximum crane rating of this
crane.
Do not install this crane on a body not capable of handling the loads imposed on
it. Failure to do so may result in serious injury or death.
When installing welder units to the service bodies, it is highly recommended that
a surge protector is installed on the chassis batteries to protect the crane radio receiver, wiring and
other electronic devices from an unexpected electrical spike or surge. Failure to do so could result
in extensive damage to the service body and crane electrical circuit.
WARNING
NOTICE

Page 4 | Stellar®6000 Articulating Crane Owner’s Manual
When using the torque data in the
chart, the following rules should be
observed:
• Bolt manufacturer’s particular
specications should be consulted
when provided.
• Flat washers of equal strength must
be used.
• All torque measurements are given
in foot-pounds. To convert to inch-
pounds, multiply by 12.
• Torque values specied are for
bolts with residual oils or no special
lubricants applied.
• Torque values for socket-head
capscrews are the same as for Grade
8 capscrews.
• Do not use these values if a di󰀨erent torque value or tightening procedure is
given for a specic application. Torque values listed are for general use only. Check tightness of
fasteners periodically.
• Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with
identical grade.
• Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used,
these should only be tightened to the strength of the original.
• Tighten plastic insert or crimped steel-type lock nuts to approximately 110 percent of the dry
torque values shown in the chart below, applied to the nut, not to the bolt head. Tighten toothed or
serrated-type lock nuts to the full torque value. Note: “Lubricated” means coated with a lubricant
such as engine oil, or fasteners with phosphate and oil coatings. “Dry” means plain or zinc plated
without lubrication. Tighten lubricated bolts to approximately 80% of dry bolts.
Size Bolt DIA Plain Plated Plain Plated Plated
(DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb)
5/16-18 0.3125 17 13 25 18 22
3/8-16 0.3750 31 23 44 33 39
7/16-14 0.4375 49 37 70 52 63
1/2-13 0.5000 75 57 105 80 96
9/16-12 0.5625 110 82 155 115 139
5/8-11 0.6250 150 115 220 160 192
3/4-10 0.7500 265 200 375 280 340
7/8-9 0.8750 395 295 605 455 549
1-8 1.000 590 445 910 680 823
1 1/8-7 1.1250 795 595 1290 965 1167
1 1/4-7 1.2500 1120 840 1815 1360 1646
1 3/8-6 1.3750 1470 1100 2380 1780 2158
1 1/2-6 1.500 1950 1460 3160 2370 2865
GRADE 5 GRADE 8 GRADE 9
Torque Data Chart
NOTICE

Stellar®6000 Articulating Crane Owner’s Manual | Page 5
1. Locate mounting brackets and clamp to chassis1” (min) from rear of cab (or desired location).
2. Set crane on chassis and check for interferences.
3. Using mounting bracket as a guide, mark holes to be drilled into truck frame.
4. Remove mounting brackets and drill holes.
5. Mount brackets using 3/4” Grade 8 bolts, ast washers, and nyloc nuts.
6. Lower crane onto mounting brackets.
7. Mount crane using 1” Grade 8 bolt, at washers, and nyloc nuts.
8. Connect pressure and return lines per hydraulic kit.
9. Connect (+12V) Power and ground wires inside crane box.
10. Check reservoir for oil and ll if necessary.
11. Operate crane several cycles.
Installation Overview
Mounting Kit Drawing

Page 6 | Stellar®6000 Articulating Crane Owner’s Manual
Hydraulic Installation
Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic, without
Stellar Industries’ approval.
Do not touch or grab any hoses that could be under pressure. Release system
pressure before attempting to make adjustments or repairs.
Do not attempt service or repair when PTO is engaged.
Disassemble and assemble hydraulic components on a clean surface.
Clean all metal parts in a nonammable cleaning uid. Then lubricate all components to aid in
assembly.
Hydraulic uid expands when heated. This raises the pressure in an
unventilated tank. Release the tank pressure before removing the cap completely. Failure to do so
may cause the oil to shoot out of the tank very rapidly and cause severe burns.
Do not rely on the hydraulic uid to support the boom or crane. If hydraulic
uid escapes, the boom or crane can fall immediately. Make sure the ground or blocking is
supporting the boom before performing any maintenance or repair.
Contaminants in a hydraulic system a󰀨ect operation and will result in serious
damage to the system components. Dirty hydraulic systems are a major cause of component
failures.
If evidence of foreign particles is found in the hydraulic system, ush the system.
When installing metal hydraulic tubes, tighten all ttings nger tight. Then , in order, tighten the
ttings at the rigid end, the adjustable end, and the mounting brackets. After tubes are mounted,
install the hoses. Connect both ends of the hose with all ttings nger tight. Position the hose so
it does not rub the machine or another hose and has a minimum of bending and twisting. Tighten
ttings in both couplings.
Due to manufacturing methods, there is a natural curvature to a hydraulic hose. The hose should
be installed so any bend is with this curvature.
WARNING
WARNING
WARNING
NOTICE

Stellar®6000 Articulating Crane Owner’s Manual | Page 7
Face Seal/O-Ring Size Chart
Face Seal (A)
Stellar®PN
Hose
Size
Fitting
Size Stellar®PN
O-ring Boss (B)
#4 C2027 D1245
#6 C2028 D1246
#8 C2029 D1247
#10 32223 D1248
#12 D1244 D1249
#161”
3/4”
5/8”
1/2”
3/8”
1/4”
D1250
B
A

Page 8 | Stellar®6000 Articulating Crane Owner’s Manual
Hydraulic Kit - PN 13040
PN 13040

Stellar®6000 Articulating Crane Owner’s Manual | Page 9
Control Kit - PN 52257
In
Down
Down
CCW
Rot.CW
OuterUp
InnerUp
Ext.Out

Page 10 | Stellar®6000 Articulating Crane Owner’s Manual
Decal Placement - PN 13356
WARNING
CrushHazard
Keepclear of stabilizer legs during
operation.
Failureto keep clear of moving
stabilizerlegs can result in death or
seriousinjury.
C4795-Rev B
NOTICE
73929
NOTICE
16973
Useonly Stellar®approved lifting
devicesand/or attachements.
NOTICE
9188-RevC
Damagemay occur if worm gear or
bearingsrun dry. Refer to the equipment
manualfor proper lubrication instructions.
35234
ProudlyDesigned
andManufactured
intheUSA by
OFF
ON
WEEKLY
GREASE
4158
SPEED
CONTROL
OPTION
FLOOD
LIGHTS
ROTATION
BEARINGOPTION
41068
INNER
PUSHPULL
OUTIN
OUTER
CCWCW
ROTATION
EXTENSION
OUTIN
OUTIN
DANGER
Deathor serious injury will
resultfrom touching tethered
remoteif crane, load, or vehicle
becomeselectrically
Maintainsafe clearance
highvoltage power
ElectrocutionHazard
WARNING
Readand understand all
manualsand safety signs
beforeoperating or servicing
thisequipment.
Failureto follow operating,
maintenance,or safety
instructionscan result in
deathor serious injury.
UntrainedOperator Hazard
DANGER
ElectrocutionHazard
Deathor serious injury will result from
inadequateclearance if crane, load,
orvehicle becomes electrically
charged.
•Maintain safe clearance from
high voltage power sources.
•Never approach vehicle or
load if equipment is near a
high voltage power source.
85504
charged.
from
sources.
WARNING
Keepclear of crane during operation.
Failureto keep clear of moving crane
canresult in death or serious injury.
CrushHazard
FORSERVICEON THIS EQUIPMENT
CONTACT:
STELLARINDUSTRIES,INC.
190STATESTREET, GARNER, IA 50438
641-923-3741
800-321-3741
4214
3'
7500lbs10000lbs
9' 11'
5450lbs
14'
4250lbs
17'
9' 11' 14' 17'
5165-Rev A
CHART
CAPACITY
10'
21'
23'
.914m
2.74m3.35 m4.27 m5.18 m
3.05m
2.74m3.35 m4.27 m5.18 m
7.01m
6.40m
4535kg 3400kg 2470 kg 1930 kg
0’
TRUCK CRANE
GROUND ·
0m
190STATE STREET GARNER, IA 50438
PHONE:[phone] FAX: [phone]
6000
0m®
WARNING
Donotexceed equipment load charts and ratings.
Failuretofollow equipment load charts and ratings can result in death or serious injury.
OverloadHazard
10
11
12
13
14
15 16
17
02
07
04
03
05
06
02
16
TIRE SERVICE DECAL KIT
FOR
6000 - PN 13356
DECALS IN BOLD ARE NOT SHOWN - PLACE ON BODY
06
Serial
Tag
Location
General Tire Crane Decal Kit - PN 85362 6000 Decal Kit - PN 85366
Item No. PN Description Location QTY Item No. PN Description Location QTY
01 15172 DECAL ASME/ANSI B30.22/B30.5 DO NOT PLACE 110 54593 DECAL 6000 ID PRE-MASKED Main Boom - Both Sides 2
02 C4795 DECAL DANGER FOOT Stabilizers - CS & SS 2 11 5165 DECAL CAPACITY 6000 Crane Mast/Reservoir 2
03 73929 DECAL RADIO PRESSURE WASHER NOTICE Crane Mast 1 12 4158 DECAL 3200 PANEL Crane Control Center 1
04 16973 DECAL USE STELLAR APPROVED ATTACHMT Main Boom - Both Sides 2 13 4188 DECAL ROTATIONAL ALIGNMENT Crane Base 1
05 9188 DECAL WORM GEAR LUBRICATION Crane Base 1 14 41331 DECAL VB CONTROL TIRE CRANE Crane Base 1
06 35234 MADE IN THE USA - STELLAR Crane Mast - Both Sides 2 15 13036 DECAL CRANE OUTRIGGER Crane Base 1
07 4214 DECAL CONTACT STELLAR Crane Mast 1 16 85504 DECAL WARNING PLACARD SMALL Stabilizers CS & SS 2
08 C4545 DECAL DANGER ELECTROCUTION Four Corners of the Body 4 17 53850 DECAL STELLAR LOGO 4X11.5 PRE-MASKED Main Boom - Both Sides 2
09 C5910 DECAL STELLAR LOGO 4.00X9.50 PRE-MASKED Body - Optional 3

Stellar®6000 Articulating Crane Owner’s Manual | Page 11
Chapter 3 - Assembly Drawings
PN 22140
1 4789 1BASE 6000 CRANE
4 4817 1OUTRIGGER LEG SS 6000
3 4032 1BEARING SWING DRIVE 6000
2 4792 1SADDLE 6000
PC WHITE
5 D0773 1CYLINDER 2.00X25.50
6 4816 1OUTRIGGER LEG CS 6000
7 3783 1CYLINDER 2.00X18.75 PAINTED BLK
8 C5902 24WASHER 0.63 SAE FLAT YELLOW GR8
10 D1312 2CAP SCR 0.63-11X3.50 HHGR8
9 77555 20CAP SCR 0.63-11X4.00 HHGR8 W/RED PATCH
11 24868 2NUT 0.63-11 HHGR8 NYLOCK ZY
12 0343 6WASHER 0.31 USS FLAT
13 0420 4CAP SCR 0.31-18X0.75 HHGR5
14 11458 1MOTOR HYD 10 CU IN/ PNT BLK
15 53569 1PLUG PLASTIC 5.00X5.00 SQ-5
18 C6106 6NUT 0.50-13 HHGR5 NYLOC
17 0504 2CAP SCR 0.50-13X3.00 HHGR5
16 3945 1BUMPER DOCK 3X3.38X6
19 0352 8WASHER 0.50 USS FLAT ZINC
20 0500 4CAP SCR 0.50-13X1.75 HHGR5
21 3875 4SNAP RING 1.00 INTERNAL
ITEM PART No. QTY.DESCRIPTION
22 9320 4PIN CAP 0.44X1.75X0.19 YZ
25 61040 1VB 2 SECT W/PB HYDROCONTROL
24 0479 2CAP SCR 0.25-20X0.75 HHGR5
23 4876 1PLATE SWITCH MTG 6000 PC WHITE
26 0489 2CAP SCR 0.31-18X2.50 HHGR5
27 0342 3NUT 0.31-18 HHGR5 NYLOC
28 104018 1HARDWARE KIT BASE ASM 30IN GREASE LINE
29 21151 1GASKET MOTOR 008-10056-1
31 7341 1PLUG 0.50 NICKEL PLATED
30 30490 1CAP ASM OUTRIGGER SLANT
32 44605 1GUARD TTB 6000 CRANE LZR PC BLACK
33 8622 1CLAMP HOSE/TUBE AG-2
34 4912CR 1PIN 1.00X3.25 SR ZC
35 D0977CR 1PIN 1.00X3.75 ZC
36 11688CR 2PIN 1.00X6.31D&T ZC
39 0487 1CAP SCR 0.31-18X1.75 HHGR5
40 18611 2SCREW #6-32X0.38 HH MACH SELF TAP
38 62484 2CAP SCR 12MMX40MM SH
37 0351 4CAP SCR 0.38-16X1.00 HHGR5
ITEM PART No. QTY.DESCRIPTION
4
5
21
34
21
21
35
6
21
7
9
8
23
24
26
25
27
13
12
3
11
8
14
38
2
17
16
22
36
1
18
19
20
18
28
29
NOTE:
TRIM EDGE IS NOTED
BY IT'S PART NUMBER
30
20445 C5470(2)
C5470(2)
C4739
31
36 22 37
37
32
10
15
C-BALANCE VALVE 9803
C-BALANCE VALVE 9803
27
12
33
12
39
40
C4702 - 22.5 INCHES
CYLINDER SEAL KITS:
BOB: 1099
COL: 129799
BMF: 129901
CYLINDER SEAL KIT:
BOB: 1099
Base Assembly - PN 22140

Page 12 | Stellar®6000 Articulating Crane Owner’s Manual
1
ON WORM AND BEARING GEAR TEETH
USE MOLY GREASE 936SF HEAVY, STELLAR PN 4460
2
USE EP2 LITHIUM COMPLEX GREASE, STELLAR PN 78090
ON WORM BEARINGS AND BEARING RACE
GREASE MAIN BEARING RACE THROUGH
REMOTELY MOUNTED GREASE ZERK
PN 4032
127184 1BEARING AND SEAL KIT 3200/4500/6000GP
229458 1WORM 6000 GP 170-10063-1
ITEM PART No. QTY.DESCRIPTION
116931 1BEARING AND SEAL KIT 6000 TTB KNMTS BEFORE 2006
230440 1WORM 6000 KINEMATICS W17A02 BEFORE 2006
ITEM PART No. QTY.DESCRIPTION
167866 1BEARING AND SEAL KIT 6000 TTB KNMTS AFTER 2006
265679 1WORM 6000 KINEMATICS W17B02 AFTER 2006
ITEM PART No. QTY.DESCRIPTION
Gear Bearing - PN 4032

Stellar®6000 Articulating Crane Owner’s Manual | Page 13
Stabilizer Valve Bank - PN 61040
HANDLE/LEVER 70789
RELIEF 61931
LEVER BOX ASSEMBLY 70790

Page 14 | Stellar®6000 Articulating Crane Owner’s Manual
PN 22141
14486 1MAST 6000 SERIES CRANE
444530 1VB 4 SECT W/PROP STER8GPM DEUTSCH
366838 20CAP SCR 0.63-11X2.50 HHGR8 W/RED PATCH
2C5902 20WASHER 0.63 SAE FLAT YELLOW GR8
50490 2CAP SCR 0.31-18X3.50 HHGR5
626765 1GUARD VB 6000 RADIO STERLING VB PC WHITE
70343 4WASHER 0.31 USS FLAT ZINC
80420 4CAP SCR 0.31-18X0.75 HHGR5
10 0480 2CAP SCR 0.25-20X1.00 HHGR5
9D0917 2WASHER 0.25 FLAT SS
ITEM PART No. QTY.DESCRIPTION
11 0478 2CAP SCR 0.25-20X0.50 HHGR5
12 0340 2WASHER 0.25 USS FLAT
13 85930 1STRAP VALVE RETAINING
14 78246 1BACKUP ALARM 87 DECIBEL
12
1
3
2
6
8
7
4
9
10
C4739
C4758
C5470
5
SHOWN FOR REFERENCE
2) TRIM EDGE IS NOTED
BY ITS PART NUMBER
11
NOTES:
1) RADIO RECEIVER & ALARM
13
Mast Assembly - PN 22141

Stellar®6000 Articulating Crane Owner’s Manual | Page 15
5
3
1
5
4
5
3
2
HYDRAULIC SCHEMATIC
EUQROTYTQNOITPIRCSEDTRAPMETI
125367 RELIEF VALVE 24685/24690137 FT LBS
25368SEAL KIT 25367
224960 VALVE FLW CTRL PRP/JP04C3150N 0-8 120-22 FT LBS
25369SEAL KIT 24960/25381
325371 VALVE SOLND 3 POS 4 WAY TAND G045713 25 FT LBS
425372 VALVE SOLND 3 POS 4 WAY OPEN G04591 125 FT LBS
25373SEAL KIT 25371/25372
544532 COIL 12VDC DUETSCH CAP012H93 FT LBS
PN 44530
Valve Bank - PN 44530

Page 16 | Stellar®6000 Articulating Crane Owner’s Manual
HYDRAULIC SCHEMATIC
3
1
5
3
3
4
2
5
6
Valve Bank (Alternate) - PN 125254
