Congratulations on purchasing your new ZoomX
«X-003»monocular. Enjoy the sharp, bright,
high-resolution view offered by these outstanding
optics. Follow the instructions for use and your
product will be a reliable companion for many years to
come.
Do not, under any circumstances, look through
the monocular at the sun or laser light sources!
Serious eye injury may result.
Never leave the monocular in the sun for extend-
ed periods of time without the protective lens
cap. Extreme exposure to direct sunlight through
the objective lens and eyepiece can cause the
device to function as a burning glass and damage
the interior components or cause a fire.
Never leave the removable outer parts within
reach of children (risk of swallowing).

Tripod Adapter
Socket
with 1/4” threads
(under the screw)
02
Eyepiece cover
Focus Knob
Ocular Lens
(Eyepiece)
Objective
lens cover Tripod

Eyecup Adjustment
03
Your ZoomX «X-003» monocular is fitted with
twist-up eyecup that provide a comfortable view of
the full image and help to exclude extraneous light.
For use without eyeglasses or sunglasses, twist the
eyecup upwards, rotating it counter-clockwise until it
lock into the fully «Up» position (Pic. 1).
If you are wearing glasses, start with the eyecup in
the «Down» position – this will bring your eyes closer
to the monocular’s ocular lense, allowing you to see
the full field of view. To lower the eyecup from the full
«Up» position, rotate it clockwise (Pic. 2). The eyecup
may also be set to a position midway between fully up
and fully down, which may suit some individuals
better.

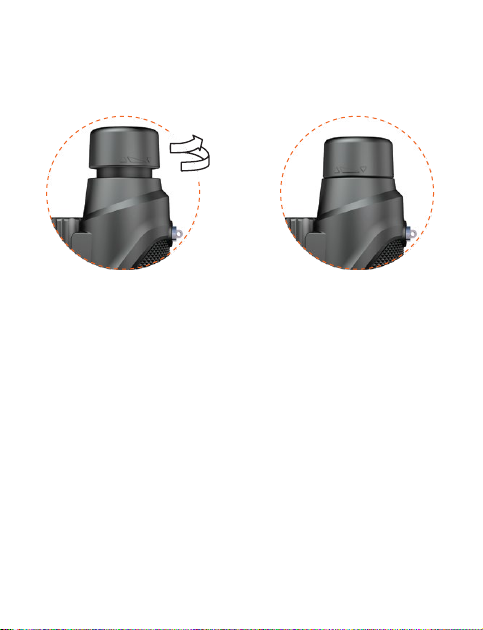

Eyecup in «Up» Position
(for use without eyeglasses)
Eyecup in «Down» Position
(for use with eyeglasses)
Pic. 1 Pic. 2

Focus Adjustment
04
To obtain a sharp view through your monocular, you
need to adjust the focus. Rotate the focus wheel
until you have a sharp image.
Hint: Eyeglasses worn for nearsightedness should be
worn when using monoculars, as you may not be able
to reach a sharp focus at infinity without them.
Focus wheel

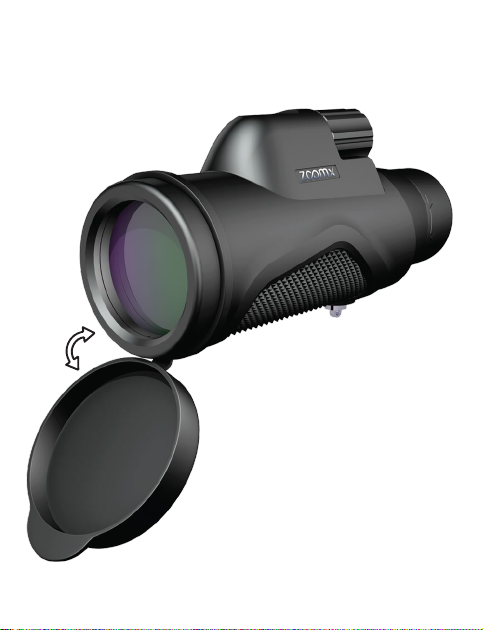

Objective Lens Cover
When using your «X-003»
monocular, flip open the
objective lens cover. To
prevent accidental loss, the
cover is tethered to (remov-
able) rubber security ring.
When you have finished using
the monocular, put the cover
back in place to protect the
monoculars' lens.
05

How to use the
Smartphone Adapter
with iPhone
Smartphone Adapter
06
Set your smartphone
to Smartphone Adapter.
Align the camera
Tighten the
locking bolt
Align the hole of the adapter
with the camera of your smartphone.
Tighten the locking bolt.
1 2

07
Turn on the camera
of your smartphone.
Zoom in a little on your smartphone
to get a rectangular image.
5 6
Attach the smartphone adapter
to the monoculars’ eye socket.
Remove the front cover cap
from the monoculars’ lens.
3 4

Setting up the Adapter
for Dual-Camera Smartphones
08
Some smartphones have
two or more cameras on
the back of the device.
For example:
Apple iPhone 8 Plus,
Apple iPhone XS Max
To connect your smartphone
to the smartphone adapter,
you need to use the main
camera.

How to Attach the Tripod
09
Remove the screw from the
Tripod Adapter Socket
1
Mount the tripod into the
adapter socket
2
Pull out the
extension legs
3

10
Care and Maintenance
First, blow or brush away any dust or debris on the
lens (using «canned air» or a soft lens brush).
To remove dirt or finger prints, clean with the supplied
soft storage bag (made of washable micro-fiber
cloth), rubbing in a circular motion. Use of a coarse
cloth (including paper towels) or unnecessary rubbing
may scratch the lens surface and eventually cause
permanent damage. The included storage bag/mi-
cro-fiber cloth is ideal for the routine cleaning of your
optics. Simply breathe lightly on the lens to provide a
slight amount of moisture, then gently rub the lens
with the micro-fiber cloth.
For more thorough cleaning, photographic lens tissue
and photographic lens cleaning fluid or isopropyl
alcohol may be used. Always apply the fluid to the
cleaning cloth – never directly on the lens.
To prevent potential damage to the optical coatings
on the lens surfaces of the monocular, never use
household window cleaning liquids, and avoid using
facial tissue or clothing that may have fibers which
can be abrasive and hold oils or dirt.

11

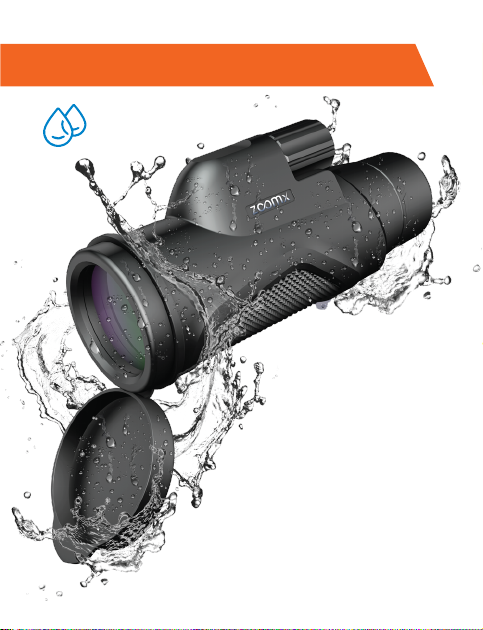

Waterproof/Fog-proof Information
Your ZoomX «X-003»
monocular has been
designed and built
utilizing the latest
waterproof and fog-proof
technology. Fog-proof
protection is achieved
from dry nitrogen
purging that removes all
internal moisture.
IPX7

12
Warranty
Yours monocular from ZoomX product line is covered by
our warranty and guaranteed to be free from manufactur-
ing defects in materials and workmanship for the life of the
product. If such a defect appears, we will repair your
product or replace it, as appropriate and at our discretion,
with the same or an equivalent model, free of charge. This
guarantee is non-transferable and does not cover cosmet-
ic damage or damage sustained through wear and tear.
ZoomX product line belongs
to the StellaX trademark.
Or scan this QR code
Activate your Lifetime Warranty:
www.zoomx.company/warranty
You should do this immediately:
The product must be registered
within 20 days of purchase.
