Stern TOUCH B Product manual

1
INSTALLATION AND MAINTENANCE GUIDE
electronically operated self-closing faucet
TOUCH B / e / BRe

INDEX
1 TECHNICAL DATA
2 OPERATION
3 PACK CONTENTS
4 PRE-INSTALLATION INFORMATION
4-5 FAUCET INSTALLATION
5-8 FLOW TIME ADJUSTMENT
9 LOW BATTERY INDICATOR
10 BATTERY REPLACEMENT INSTRUCTIONS
10 MAINTENANCE
Filter cleaning instructions
Care and cleaning of chrome and special finishes
11 SERVICE CHECK LIST
12 SPARE PARTS LIST
13 LIMITED WARRANTY

1
TEchNIcal DaTa
Product control: Touch using Piezo technology
Installation: Deck mounted
Hot water supply: Max 70˚C
Operating water pressure: 0.5-8.0 bar (7-116 PSI)
With water pressure of more than 8 Bars,
use a pressure reducing valve
Power specification: 9V low voltage system
Power source: Touch B: 1 x 9V battery
Touch E and BRE: 9V transformer
Default flow time: 8 seconds
Programmable flow time: 1 – 60 seconds
1 TECHNICAL DATA
2 OPERATION
3 PACK CONTENTS
4 PRE-INSTALLATION INFORMATION
4-5 FAUCET INSTALLATION
5-8 FLOW TIME ADJUSTMENT
9 LOW BATTERY INDICATOR
10 BATTERY REPLACEMENT INSTRUCTIONS
10 MAINTENANCE
Filter cleaning instructions
Care and cleaning of chrome and special finishes
11 SERVICE CHECK LIST
12 SPARE PARTS LIST
13 LIMITED WARRANTY

2
OPERaTION
TOUCH BRE
This model features a permanent ring illumination.

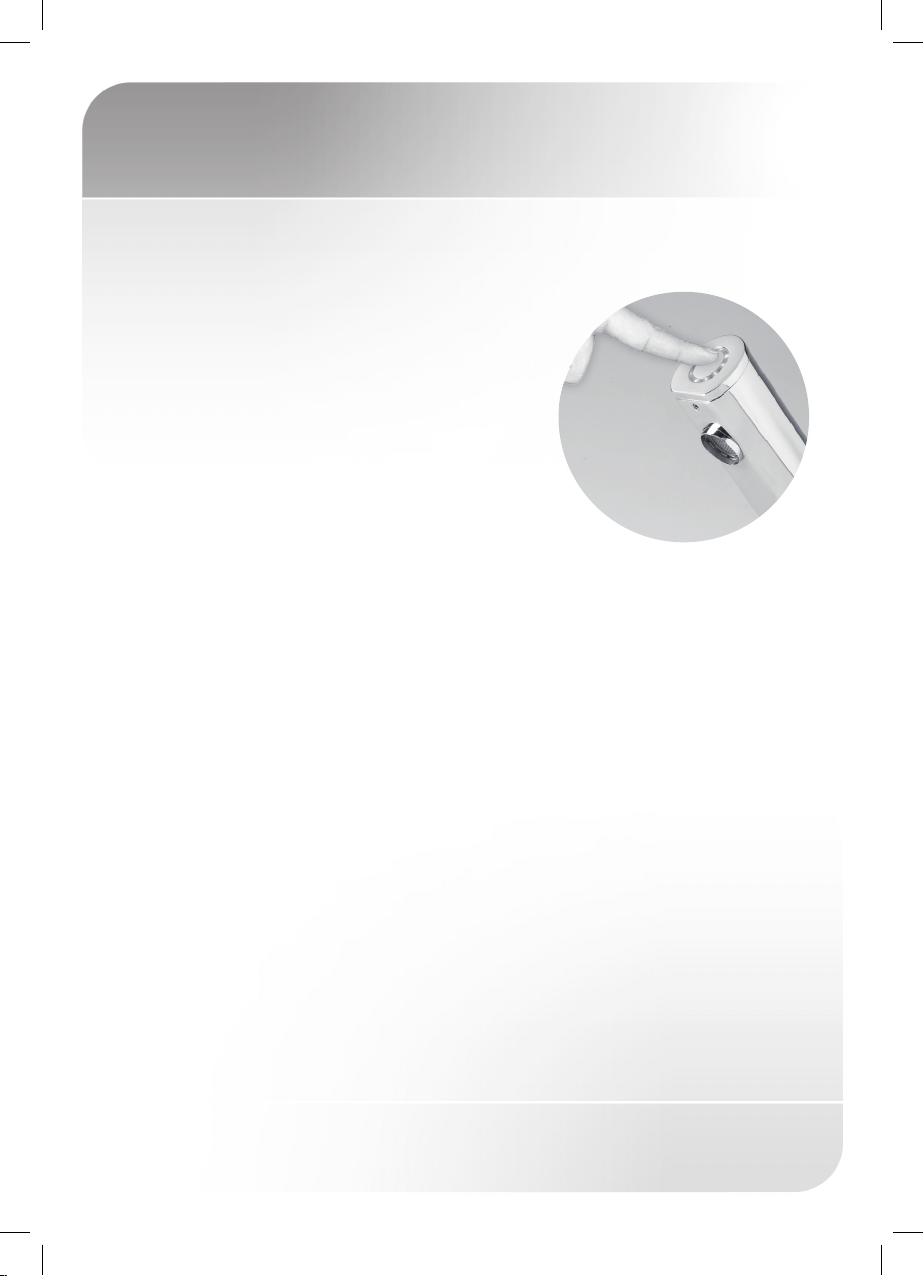

To operate Touch BRE, simply touch the Piezo area
in the middle of the light ring at the Piezo cap. A
flow cycle of 8 seconds will be completed. The
light will blink while water runs out of the faucet.
If you do not need more water, just touch the
designated area again to stop the water flow
before the default time has passed.
TOUCH B and TOUCH E
To operate Touch, simply touch the designated
area at the piezo cap. Default flow time is 8
seconds.
If you do not need more water, just touch the
designated area again to stop the water flow
before the default flow time has passed.

3
Pack cONTENTs
Familiarize yourself with the part names and confirm that the parts are included.
B VERSIONS E VERSIONS
9V Battery box Transformer
1x Tap and attachments
BRE VERSION
1x Allen key 2 mm
1x Filter

4
PRE–INsTallaTION INFORMaTION
Check contents
Separate all parts from packaging and check each part with the Pack contents
section.
Make sure all parts are accounted for before discarding any packaging material. If
any parts are missing, do not attempt to install your Touch faucet until you obtain
the missing parts.
Preparation for Installation:
Flush water supply lines thoroughly before installing the faucet. Do not allow dirt,
Teflon tape or metal particles to enter the faucet.
Shut off water supply.
Important:
All plumbing is to be installed in accordance with applicable codes and
regulations.
FAUCET INSTALLATION
Step 1 – Remove all mounting hardware
1. Shut off the water supply and remove the hexagonal
nut, the disk and the gasket. Do not remove the O-ring
from the base of the faucet.
Step 2 – Installing the faucet
1. Place the faucet with O-ring into the hole in deck or
lavatory. Make sure the O-ring is located between the
deck or lavatory and the bottom of the faucet.
2. Slide the gasket over the flexible hose.
3. Secure the faucet to deck or lavatory with the
hexagonal nut and the disk.

5
FaUcET INsTallaTION
Step 3 – Connecting the water supply
1. Fit the pipe to the housing of the solenoid valve. Important: inlet and outlet
should follow the indicating arrow at the solenoid housing.
2. Fit the water supply inlet to the adapter at the solenoid valve housing.
Note: Make sure that the filter is assembled between the housing of the solenoid
valve and the adapter.
Step 4 – Connecting the power source
1.For Touch B: Install the battery box at the wall under the sink using the screws or
the two sided adhesive foam tape.
For Touch E / BRE: Plug the transformer into the electricity socket.
Important: In order to avoid entering into the adjusting mode, wait 10 seconds
before operating the system.
2. Turn on the central water supply and the shut-off valves.
3. Check for leaks.
FLOW TIME ADJUSTMENT
Adjustment levels
The flow time is programmable on site. If necessary, the default flow time of
8 seconds can be adjusted to any value between 1 to 60 seconds. The Touch
adjustment mechanism is composed of 3 adjustment levels for changing the flow
time. An indicator light (LED) will guide you from one level to the other.
The following table shows the number of steps in each level, the duration of each
step and how to recognize in what adjusting level you are.
Level 1 Level 2 Level 3 Out of adjusting mode
No. of steps
Seconds to be increased by
touching once
Adjustment level indicator
10 steps 10 steps 2 steps
1 second 2 seconds 15 seconds
Level 1 is
reached
once
entering into
adjusting
mode
Indicator
light blinks
twice
Indicator
light blinks
3 times
Indicator light blinks 4 times

6
FlOW TIME aDJUsTMENT
How to adjust the flow time in Touch B and Touch E
1) Open the piezo cap using the provided 2 mm
Allen key.
2) Disconnect the power supply (batteries or
transformer).
3) While the power source is disconnected,
verify that the solenoid valve is installed and
touch the piezo cap twice.
4) Then, reconnect the power supply.
5) The indicator light (LED) on the back of the
Piezo cap will start blinking. After a few blinks
the LED will give a steady red light. Touch the
Piezo cap when the steady red light is still on to
enter into the adjusting mode. When done correctly, the light will stop blinking.
Note: If you will not press at the indicated area, the previous adjustment will
remain.
The following examples show how to manage the adjustment levels:
Example 1: You wish to adjust the flow time to 20 seconds.
At level 1 perform 3 steps of 1 second (you will get 3 seconds). Total: 3 seconds
Go to level 2 and perform 1 step of 2 seconds (you will get 2 seconds). Total: 5
seconds)
Go to level 3 and perform 1 step of 15 seconds (you will get 15 seconds). Total: 20
seconds.
Example 2: You wish to adjust the flow time to 45 seconds.
At level 1 perform 1 step of 1 second (you will get 1 second). Total: 1 second
Go to level 2 and perform 7 steps of 2 seconds (you will get 14 seconds). Total: 15
seconds)
Go to level 3 and perform 2 steps of 15 seconds (you will get 30 seconds). Total: 45
seconds.
Example 3: You wish to adjust the flow time to 60 seconds.
At level 1 perform 10 steps of 1 second (you will get 10 seconds). Total: 10 seconds
Go to level 2 and perform 10 steps of 2 seconds (you will get 20 seconds). Total: 30
seconds)
Go to level 3 and perform 2 steps of 15 seconds (you will get 30 seconds). Total: 60
seconds.

7
FlOW TIME aDJUsTMENT
6) By touching the Piezo cap the new flow time will be programmed. In adjusting
mode level 1, each touch increases the flow time by 1 second with a maximum of 10
seconds. You will see the LED blinking every time that a new step is performed.
7) If your desired flow time is within 10 seconds, no other adjusting levels are
needed and you can
stop pressing the Piezo
cap. The LED will blink
2 times, then 3 times
and after 4 times you
will leave the adjusting
mode. The Touch is now
adjusted to the desired
flow time.
8) If you need to perform
steps at adjusting level
2, wait after you see the
LED blink twice and then,
perform the needed
quantity of steps (with a
maximum of 10 steps of
2 seconds).
If you do not need more
levels, stop pressing.
The indicator light will
blink 3 times and after 4
times you will leave the adjusting mode. The Touch is now adjusted to the desired
flow time.
9) If you need to perform steps at adjusting level 3, wait after you see the LED blink
3 times and then, perform the needed quantity of steps (with a maximum of 2 steps
of 15 seconds).
10) To leave the adjusting mode wait until the LED blinks 4 times. The Touch is
adjusted to the desired flow time.

8
FlOW TIME aDJUsTMENT
How to adjust the flow time in Touch BRE
1) Disconnect the transformer.
2) While the power source is disconnected,
verify that the solenoid valve is installed and
touch the piezo cap twice.
3) Then, reconnect the power supply.
4) The light ring at the Piezo cap will start
blinking. After a few blinks the light ring
will give a steady light. Touch the Piezo cap
when the steady light is still on to enter into
adjusting mode. When done correctly, the
light ring will stop blinking.
Note: If you will not press at the indicated area, the
previous adjustment will remain.
5) By touching the Piezo area in the middle of the light ring at the Piezo cap
the new flow time will be programmed. In adjusting mode level 1, each touch
increases the flow time by 1 second with a maximum of 10 seconds. You will
see the light of blinking every time that a new step is performed.
6) If your desired flow time is within 10 seconds, no other adjusting levels
are needed and you can stop pressing the Piezo cap. The light will blink 2
times, then 3 times and after 4 times you will leave the adjusting mode. The
Touch BRE is now adjusted to the desired flow time.
7) If you need to perform steps at the adjusting level 2, wait after you see the
light blinking twice and then, perform the needed quantity of steps (with a
maximum of 10 steps of 2 seconds)
8) If you do not need more levels, stop pressing. The light will blink 3 times,
and after 4 times you will leave the adjusting mode. The Touch BRE is now
adjusted to the desired flow time.
9) If you need to perform steps at the adjusting level 3, wait after you see the
light blinking 3 times and then, perform the needed quantity of steps.(with a
maximum of 2 steps of 15 seconds)
10) To leave the adjusting mode wait until the light blinks 4 times. The Touch
BRE is now adjusted to the desired flow time.

9
lOW BaTTERY INDIcaTOR
The Touch faucet has an advanced battery level management system
consisting of two steps:
Step 1
The battery still has enough power to open and close the solenoid valve.
At this first step the battery level management system allows the solenoid
valve to open and close but will activate a warning indicator light.
The LED at the back of the Touch cap will blink twice when the battery
level management system has activated step 1 and the user touches the
designated area.
Step 2
At his point the battery might not have enough power to open and close
the solenoid valve.
The battery level management system does not allow the solenoid valve
to open. Instead of providing an opening and closing pulse, the system
provides two closing pulses.
The LED at the back of the Touch cap will blink three times when the
battery level management system has activated step 2 and the user
touches the designated area. Water will not flow since the solenoid will
not be opened.

10

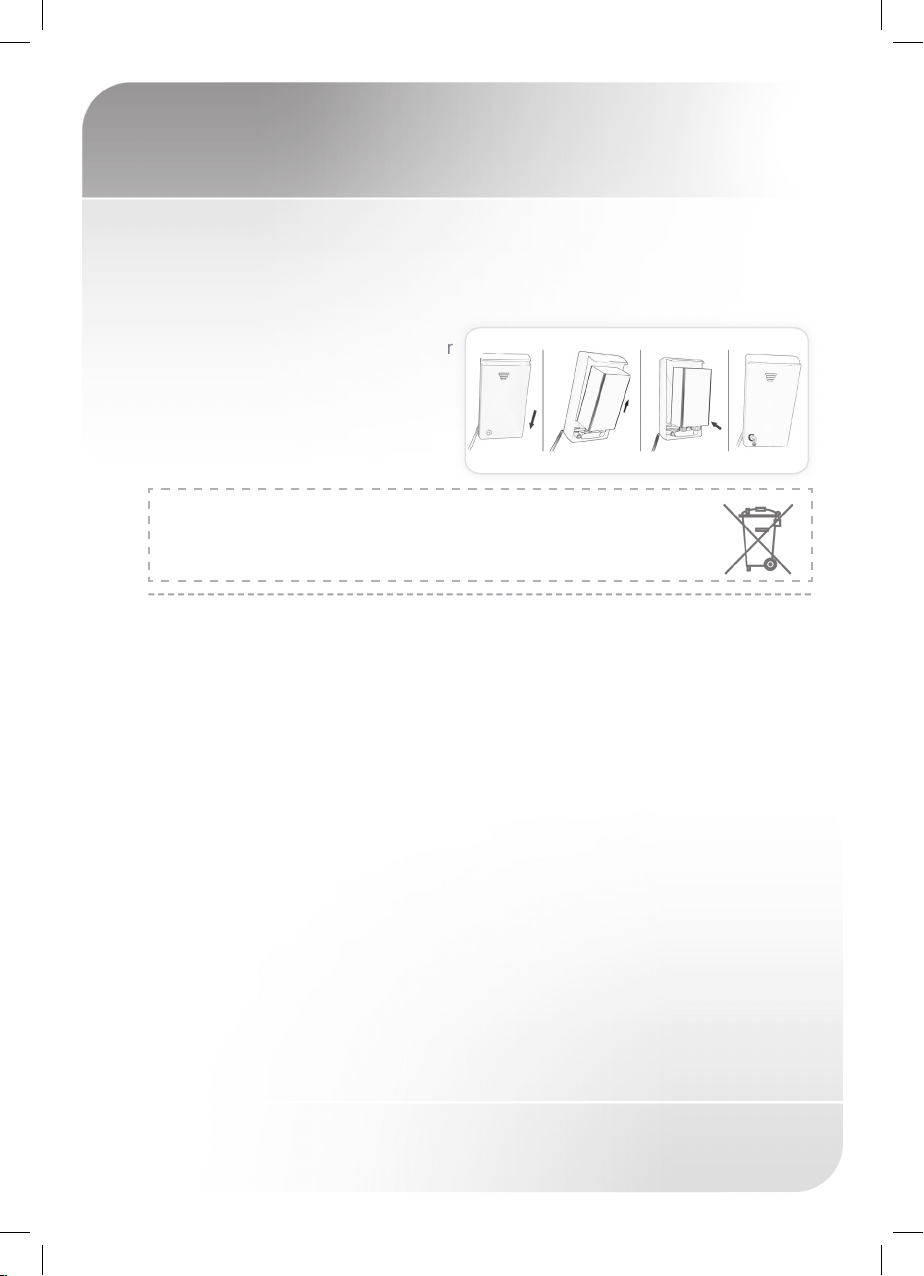

BaTTERY REPlacEMENT
1. Carefully open the battery box.
2. Remove the old battery.
3. Replace the used battery with a new 9V battery. A Lithium battery is
recommended.
Note: Do not allow moisture or water
into the system
4. Close the box.
5. In order to avoid entering into the
adjusting mode, wait 10 seconds
before operating the system.
MAINTENANCE
Filter cleaning instructions
The Touch is provided with one stainless steel filter preventing foreign particles to
enter the lines. If the water flow has decreased, this may be because the filter is
clogged. The filter can be cleaned as follows:
1. Shut-off the water shut off valve.
2. Disconnect the water supply inlet from the adapter at the solenoid valve
housing.
3. Remove the filter from the adapter and wash it under running water.
4. Reassemble the parts.
5. Reconnect the solenoid valve housing and restore the incoming water
supply.
6. Make sure that there is no water leakage.
Care and cleaning of chrome and special finishes
DO NOT use steel wool or cleansing agents containing alcohol, acid, abrasives, or
the like. Use of any prohibited cleaning or maintenance products or substances
could damage the surface of the faucet. For surface cleaning of faucet us ONLY
soap and water, then wipe dry with clean cloth or towel. When cleaning bathroom
tile, the faucets should be protected from any splattering of harsh cleansers.
Important: Spent batteries should not be disposed of with
normal household waste. Contact your local authority for
information on waste disposal and recycling.

11
sERvIcE chEck lIsT
No water is coming out of the faucet
Water flow does not stop
Check the flow time. If needed adjust it
following the instructions at page.
Check the solenoid valve. If debris or scale is
present, unscrew the solenoid valve, pull out
the plunger and the spring and clean them.
Use scale remover if needed. When replacing
the spring, make sure that it is in vertical
position.
Water flow diminished
Check the batteries. Low or used up batteries.
Replace the batteries. See page 10.
Check the flow time. See page 5.
Check the connection between the piezo cap
connector and the solenoid connector.
Check that the battery box is correctly connected.
Check the solenoid valve. If debris or scale are
present, unscrew the solenoid valve, pull out the
plunger and the spring and clean them.
Use scale remover if needed. When replacing the
spring, make sure that it is in vertical position.
Check the diaphragm. If needed, clean the orifice
or replace it.
Check the water supply pressure. It must be 0.5-
8.0 bar (7-116 PSI) . With water pressure of more
than 8 Bars, use a pressure reducing valve.
Check the filter. If needed, remove it , clean it and
reinstall it. See page 10.

12
sPaRE PaRTs lIsT
Solenoid Valve Kit for Touch B or E
Solenoid Housing Kit / Solenoid Housing Kit USA
Seals and Screws Kit
Cover Kit for Touch B or E
Cover Kit for Touch BRE
Diaphragm
Battery Box for 1 x 9V battery
IP 67 Battery Box for 6 x 1.5 AA batteries
Transformer
Solenoid valve kit for Touch BRE
PART NAME PART CODE
07230017
07231008 / 07231009
07210081
07270031
07270160
04500001
06530008
06530020
06522042
07230039

13
lIMITED WaRRaNTY
Y. Stern Engineering Ltd. warrants that its electronic faucets, flush valves and controls
will be free of defects in material and workmanship during normal use for two years from
the date the product is purchased.
If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair,
provide a replacement part or product, or make appropriate adjustments. Damage
caused by accident, misuse, or abuse is not covered by this warranty. Improper care
and cleaning will void the warranty. Proof of purchase (original sales receipt) must be
provided to Stern Engineering Ltd. with all warranty claims.
Stern Engineering Ltd is not responsible for labor charges, installation, or other incidental
or consequential costs other than those noted above. In no event shall the liability of
Stern Engineering Ltd. exceed the purchase price of the faucet, valve or control.
If you believe that you have a warranty claim, contact your Stern Distributor, Dealer
or Plumbing Contractor. Please be sure to provide all pertinent information regarding
your claim, including a complete description of the problem, the product, model number,
the date the product was purchased, from whom the product was purchased and the
installation date. Also include your original invoice.
Y. STERN ENGINEERING AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty excludes product damage
due to installation error, incorrect maintenance, wear and tear, battery, water composition,
product abuse, or product misuse, whether performed by a contractor, service company,
or the consumer. This warranty does not cover product damage caused by the following:
- Incorrect installation, inversions of supply pipes.
- Pressures or temperatures exceeding recommended limits.
- Improper manipulation, tampering, bad or lapsed maintenance.
- Foreign bodies, dirt or scale introduced by the water supply.

14
15 Gan Rave Blvd., 81222 Gan Rave, Yavne, Israel
Tel: [phone], Fax: [phone], [email protected]
www.sternfaucets.com
04.13 015225100-C
