Stiga READY HST User manual

February 2, 2004
Ready Stiga
13-2716-14
READY
READY HST

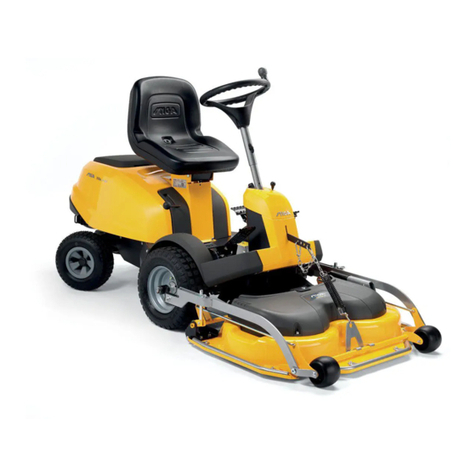

A ride-on lawnmower with front-mounted deck at a satisfying
price. A shorter and lower mower that is easy to turn in narrow
places.
The front mounted deck lets you see what you are cutting and lets
you get under bushes, around trees, into corners and across
edges. The Multiclip system cuts and fertilises at the same time
and also makes the machine quieter. You don't need to rake or
empty a collector.
The comfortable seat is sprung and adjustable to different leg
lengths. The seat can also be folded so that it doesn't get wet
when it rains. In addition the seat has draining.
The ride-on lawnmower is easy to operate with little steering
power. The cutting deck is comfortably raised and lowered by
using a foot pedal. The deck has a unique system for easy cleaning.
Equipped with an environment friendly 12,5 hp motor and hydro-
static pedal with a speedgear and a reverse gear. Deck is available
with 85 or 92 cm cutting width.

Ready HST (13-2716-14)
MOTOR
Brand Briggs & Stratton
Power 12,5 hp I/C OHV/AVS
Cylinders 1 - cyl
FUEL
Type of fuel Petrol
Tank volume 3,8 l
SPEED CONTROL
Type of transmission Hydrostatic K46
Number of gears Speed gear 0 - 9 km/h + R
STEERING
Type of steering Rear wheel steering
WHEELS
Type of wheels Lawn tyre tread
Wheel size Front 16 inches Rear 13 inches
Bearings Plain
Tyre pressure Front 0,4 bar Rear 1,2 bar
Driving Front wheel drive
CUTTING SYSTEM
Type of cutting system Front cutting deck
Cutting heights 30 - 80 mm in 14 steps
Cutting width 85 or 92 cm
Cutting height adjustment Central
CONTROLS
Deck connection Quick coupling
COLOUR & MATERIAL
Colour Yellow / Gray
Material of chassis Steel
MEASURES & WEIGHT
Weight 170 kg
Gross weight 209 kg
Package size W*H*L 91*86*170
Type of package Wood crate
Largest measures W*H*L 83*112*159
SEAT
Type of seat Comfort seat
Seat adjustable horizontally Yes
OTHER FACTS
CE-mark Yes
Instructions for use 8211-0335-01
EAN bar code 731 332 130 249 8
