Stihl FS510 C-M User manual

{
STIHL FS 510 C-M, 560 C-M Instruction Manual
Notice d’emploi

GInstruction Manual
1 - 54
FNotice d’emploi
55 - 114

Original Instruction ManualPrinted on chlorine-free paper
Printing inks contain vegetable oils, paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2012 0458-772-8221-A. VA0.A12. 0000005287_001_GB
FS 510 C-M, FS 560 C-M
English
1
{This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.
Contents
Dear Customer,
Thank you for choosing a quality
engineered STIHL product.
This machine has been built using
modern production techniques and
comprehensive quality assurance.
Every effort has been made to ensure
your satisfaction and troublefree use of
the machine.
Please contact your dealer or our sales
company if you have any queries
concerning your machine.
Your
Hans Peter Stihl
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 2
Approved Combinations of Cutting
Attachment, Deflector, Limit Stop
and Harness 12

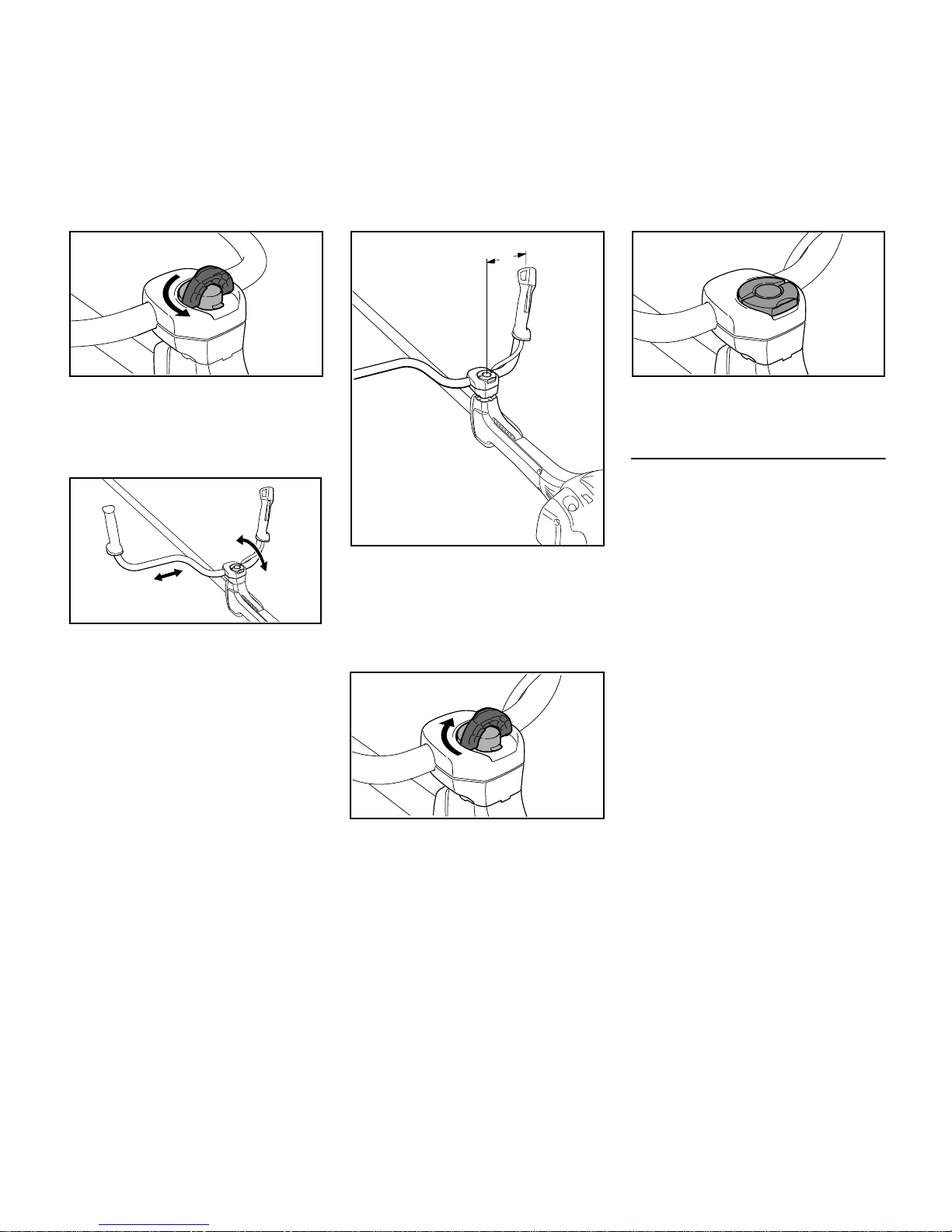

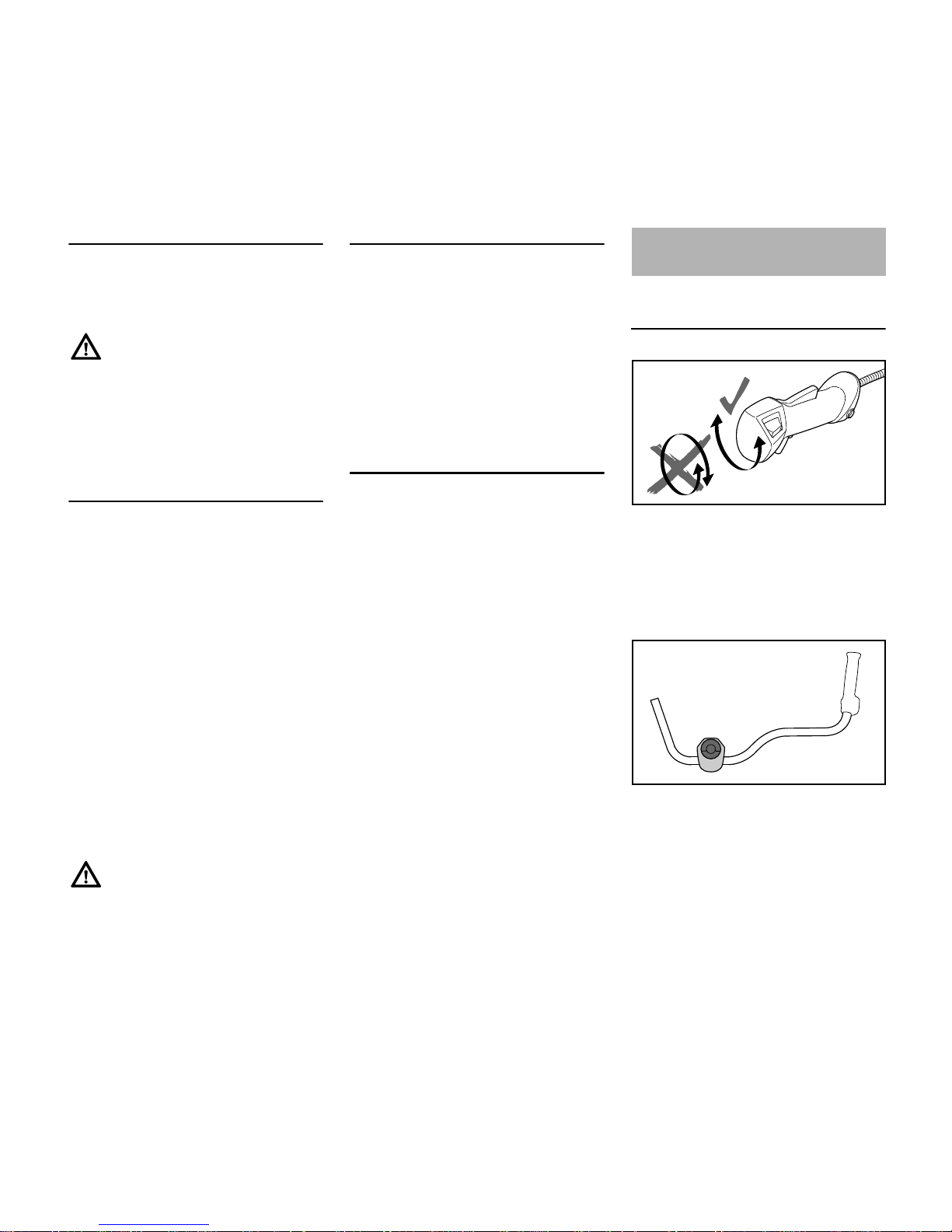

Mounting the Bike Handle 13
Adjusting the Throttle Cable 17
Mounting the Deflector 17
Mounting the Cutting Attachment 21
Fuel 26
Fueling 27
Fitting the Full Harness 28
Balancing the Trimmer/Brushcutter 28
Starting / Stopping the Engine 29
Operating Instructions 32
Air filter 32
Engine Management 33
M-Tronic 33
Winter Operation 34
Spark Plug 35
Engine Running Behavior 36
Replacing the Starter Rope and
Rewind Spring 37
Storing the Machine 40
Sharpening Metal Cutting Blades 41
Replacing Nylon Line 41
Replacing the Cutting Blade 42
Inspection and Maintenance by
User 43
Inspections and Maintenance by
Dealer 44
Maintenance and Care 46
Main Parts 48
Specifications 50
Special Accessories 51
Maintenance and Repairs 52
STIHL Limited Emission Control
Warranty Statement 53

FS 510 C-M, FS 560 C-M
English
2
Pictograms
The meanings of the pictograms
attached to the machine are explained in
this manual.
Depending on the model concerned, the
following pictograms may be attached to
your machine.
Symbols in text
Warning where there is a risk of an
accident or personal injury or serious
damage to property.
Caution where there is a risk of
damaging the machine or its individual
components.
Engineering improvements
STIHL's philosophy is to continually
improve all of its products. For this
reason we may modify the design,
engineering and appearance of our
products periodically.
Therefore, some changes, modifications
and improvements may not be covered
in this manual.
Observe all application local safety
regulations, standards and ordinances.
If you have not used this type of power
tool before: Have your dealer or other
experienced user show you how to
operate your power tool or attend a
special course in its operation.
Minors should never be allowed to use a
power tool.
Keep bystanders, especially children,
and animals away from the work area.
When the power tool is not in use, shut it
off so that it does not endanger others.
Secure it against unauthorized use.
The user is responsible for avoiding
injury to third parties or damage to their
property.
Guide to Using this Manual
Fuel tank; fuel mixture of
gasoline and engine oil
Operate decompression
valve
Manual fuel pump
Operate manual fuel
pump
Tube of grease
Intake air: Summer
operation
Intake air: Winter
operation
Handle heating
Safety Precautions and
Working Techniques
Some special safety pre-
cautions have to be
observed when working
with this power tool
because of the very high
speed of the cutting
attachment.
It is important you read
and understand the
instruction manual before
first use and keep the
manual in a safe place for
future reference. Non-
observance of the
instruction manual may
result in serious or even
fatal injury.

FS 510 C-M, FS 560 C-M
English
3
Do not lend or rent your power tool
without the instruction manual. Be sure
that anyone using it understands the
information contained in this manual.
The use of noise emitting power tools
may be restricted to certain times by
national or local regulations.
To operate the power tool you must be
rested, in good physical condition and
mental health.
If you have any condition that might be
aggravated by strenuous work, check
with your doctor before operating a
power tool.
Persons with pacemakers only: The
ignition system of your power tool
produces an electromagnetic field of a
very low intensity. This field may
interfere with some pacemakers. STIHL
recommends that persons with
pacemakers consult their physician and
the pacemaker manufacturer to reduce
any health risk.
Do not operate the power tool if you are
under the influence of any substance
(drugs, alcohol) which might impair
vision, dexterity or judgment.
Depending on the cutting attachment
fitted, use your power tool only for
cutting grass, wild growth, shrubs,
scrub, bushes, small diameter trees and
similar materials.
Do not use your power tool for any other
purpose because of the increased risk of
accidents.
Only use cutting attachments and
accessories that are explicity approved
for this power tool model by STIHL or
are technically identical. If you have any
questions in this respect, consult a
servicing dealer. Use only high quality
parts and accessories in order to avoid
the risk of accidents and damage to the
machine.
STIHL recommends the use of original
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
Never attempt to modify your unit in any
way since this may increase the risk of
personal injury. STIHL excludes all
liability for personal injury and damage
to property caused while using
unauthorized attachments.
Do not use a pressure washer to clean
the power tool. The solid jet of water
may damage parts of the power tool.
The deflector on this power tool cannot
protect the operator from all objects
thrown by the cutting attachment
(stones, glass, wire, etc.). Such objects
may ricochet and then hit the operator.
Clothing and Equipment
Wear proper protective clothing and
equipment.
Avoid clothing that could get caught on
branches or brush or moving parts of the
machine. Do not wear a scarf, necktie or
jewelry. Tie up and confine long hair
(e.g. with a hair net, cap, hard hat, etc.).
Sturdy shoes with non-slip soles may be
worn as an alternative only when using
mowing heads.
A face shield alone does not provide
adequate eye protection.
Wear hearing protection, e.g. earplugs
or ear muffs.
STIHL offers a comprehensive range of
personal protective clothing and
equipment.
Clothing must be sturdy
but allow complete free-
dom of movement. Wear
snug-fitting clothing, an
overall and jacket combi-
nation, do not wear a
work coat.
Wear steel-toed safety
boots with non-slip soles.
Wear a safety hard hat
for thinning operations,
when working in high
scrub and where there is
a danger of head injuries
from falling objects. To
reduce the risk of injury
from thrown objects,
always wear a face shield
and safety glasses.
Wear heavy-duty gloves.

FS 510 C-M, FS 560 C-M
English
4
Transporting the Power Tool
Always stop the engine.
Carry the unit hanging from the shoulder
strap or properly balanced by the drive
tube. Fit transport guard on metal cutting
attachments to avoid the risk of injury
from blade contact
Transporting in a vehicle: Properly
secure your power tool to prevent
turnover, fuel spillage and damage.
Fueling
Always shut off the engine before
refueling.
Do not fuel a hot engine – fuel may spill
and cause a fire.
Open the fuel cap carefully to allow any
pressure build-up in the tank to release
slowly and avoid fuel spillage.
Fuel your power tool only in well-
ventilated areas. If you spill fuel, wipe
the machine immediately – if fuel gets on
your clothing, change immediately.
This reduces the risk of unit vibrations
causing the fuel cap to loosen or come
off and spill quantities of fuel.
To reduce the risk of serious or fatal
burn injuries, check for fuel leakage. If
fuel leakage is found, do not start or run
the engine until leak is fixed.
Before Starting
Check that your power tool is properly
assembled and in good condition – refer
to appropriate chapters in the instruction
manual.
–Use only an approved combination
of cutting attachment, deflector,
handle and harness. All parts must
be assembled properly and
securely.
–The stop switch must move freely.
–Smooth action of choke knob,
throttle trigger lockout and throttle
trigger – the throttle trigger must
return automatically to the idle
position. The choke knob must
spring back from the } position to
the run position F when the throttle
trigger lockout and throttle trigger
are squeezed.
–Check that the spark plug boot is
secure – a loose boot may cause
arcing that could ignite combustible
fumes and cause a fire.
–Cutting tool or attachment: Check
for correct and secure assembly
and good condition.
–Check protective devices (e.g.
deflector for cutting attachment,
rider plate) for damage or wear.
Always replace damaged parts. Do
not operate your machine with a
damaged deflector or worn rider
plate (lettering and arrows no longer
legible).
–Never attempt to modify the controls
or safety devices in any way.
–Keep the handles dry and clean –
free from oil and dirt – for safe
control of the power tool.
–Adjust the harness and handle(s) to
suit your height and reach. See
chapters on "Fitting the Harness"
and "Balancing the Machine".
To reduce the risk of personal injury, do
not operate your power tool if it is
damaged or not properly assembled.
If you use a shoulder strap or full
harness: Practice removing and putting
down the machine as you would in an
To reduce the risk of seri-
ous burn injuries, avoid
touching hot parts of the
machine, including the
gearbox housing.
Gasoline is an extremely
flammable fuel. Keep
clear of naked flames. Do
not spill any fuel – do not
smoke.
002BA479 KN
After fueling, tighten
down the screw-type fuel
cap as securely as
possible.

FS 510 C-M, FS 560 C-M
English
5
emergency. To avoid damage, do not
throw the machine to the ground when
practicing.
Starting the Engine
Start the engine at least 3 meters from
the fueling spot, outdoors only.
Place the unit on firm ground in an open
area. Make sure you have good balance
and secure footing. Hold the unit
securely. The cutting attachment must
be clear of the ground and all other
obstructions because it may begin to run
when the engine starts.
Your power tool is a one-person unit. To
reduce the risk of injury from thrown
objects, do not allow other persons
within a radius of 15 meters of your own
position – even when starting.
To reduce the risk of fire, keep hot
exhaust gases and hot muffler away
from easily combustible materials (e.g.
wood chips, bark, dry grass, fuel).
Holding and Controlling the Power Tool
Always hold the power tool firmly with
both hands on the handles.
Make sure you always have good
balance and secure footing.
Right handle on control handle, left hand
on left handle.
During Operation
Make sure you always have good
balance and secure footing.
In the event of imminent danger or in an
emergency, press the stop switch to
shut off the engine.
To reduce the risk of injury, do not allow
any other persons within a radius of 15
meters of your own position. To reduce
the risk of damage to property, also
maintain this distance from other objects
(vehicles, windows).
The correct engine idle speed is
important to ensure that the cutting
attachment stops rotating when you let
go of the throttle trigger. If the cutting
attachment continues to rotate when the
engine is idling, have the machine
checked by your servicing dealer. STIHL
recommends a STIHL servicing dealer.
Take special care in slippery conditions
– damp, snow, ice, on slopes or uneven
ground.
Watch out for obstacles: Roots, tree
stumps or holes which could cause you
to trip or stumble.
Always stand on the ground while
working, never on a ladder, work
platform or any other insecure support.
Be particularly alert and cautious when
wearing hearing protection because
your ability to hear warnings (shouts,
alarms, etc.) is restricted.
To reduce the risk of accidents, take a
break in good time to avoid tiredness or
exhaustion.
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Stay alert so as not to endanger
others.
To reduce the risk of
injury, avoid contact with
the cutting attachment.
Do not drop start the
power tool – start the
engine as described in
the instruction manual.
Note that the cutting
attachment continues to
run for a short period
after you let go of the
throttle trigger – flywheel
effect.
002BA480 KN
15m (50ft)
Your power tool produces
toxic exhaust fumes as
soon as the engine is
running. These fumes
may be colorless and
odorless and contain
unburned hydrocarbons
and benzol. Never run
the engine indoors or in
poorly ventilated loca-
tions, even if your model
is equipped with a cata-
lytic converter.

FS 510 C-M, FS 560 C-M
English
6
To reduce the risk of serious or fatal
injury from breathing toxic fumes,
ensure proper ventilation when working
in trenches, hollows or other confined
locations.
To reduce the risk of accidents, stop
work immediately in the event of
nausea, headache, visual disturbances
(e.g. reduced field of vision), problems
with hearing, dizziness, deterioration in
ability to concentrate. Apart from other
possibilities, these symptoms may be
caused by an excessively high
concentration of exhaust gases in the
work area.
Operate your power tool so that it
produces a minimum of noise and
emissions – do not run the engine
unnecessarily, accelerate the engine
only when working.
To reduce the risk of fire, do not smoke
while operating or standing near your
power tool. Note that combustible fuel
vapor may escape from the fuel system.
The dusts, vapor and smoke produced
during operation may be dangerous to
health. If the work area is very dusty or
smoky, wear a respirator.
If your power tool is subjected to
unusually high loads for which it was not
designed (e.g. heavy impact or a fall),
always check that it is in good condition
before continuing work – see also
"Before Starting".
Check the fuel system in particular for
leaks and make sure the safety devices
are working properly. Do not continue
operating your power tool if it is
damaged. In case of doubt, have the unit
checked by your servicing dealer.
Special care must be taken when
working in difficult, over-grown terrain.
When cutting high scrub, under bushes
and hedges: Keep cutting attachment at
minimum height of 15 cm to avoid
harming small animals.
Always shut off the engine before
leaving the unit unattended.
Check the cutting attachment at regular
short intervals during operation or
immediately if there is a noticeable
change in cutting behavior:
–Turn off the engine. Hold the unit
firmly and wait for the cutting
attachment to come to a standstill.
–Check condition and tightness, look
for cracks.
–Check sharpness.
–Replace damaged or dull cutting
attachments immediately, even if
they have only superficial cracks.
Clean grass and plant residue off the
cutting attachment mounting at regular
intervals – remove any build up of
material from the cutting attachment and
deflector.
To reduce the risk of injury, shut off the
engine before replacing the cutting
attachment.
Do not continue using or attempt to
repair damaged or cracked cutting
attachments by welding, straightening or
modifying the shape (out of balance).
This may cause parts of the cutting
attachment to come off and hit the
operator or bystanders at high speed
and result in serious or fatal injuries.
When using mowing heads
Use only the deflector with properly
mounted line limiting blade to ensure the
mowing lines are automatically trimmed
to the approved length.
To reduce the risk of injury, always turn
off the engine before adjusting the nylon
line of manually adjustable mowing
heads
Using the unit with over-long nylon
cutting lines reduces the motor's
operating speed. The clutch then slips
continuously and this causes
overheating and damage to important
components (e.g. clutch, polymer
housing components) – and this can
To reduce the risk
of injury from
thrown objects,
never operate the
unit without the
proper deflector for
the type of cutting
attachment being
used.
Inspect the work area:
Stones, pieces of metal
or other solid objects can
be thrown and cause per-
sonal injury or damage
the cutting attachment
and property (e.g. parked
vehicles, windows).
The gearbox becomes
hot during operation. To
reduce the risk of burn
injury, do not touch the
gearbox housing.

FS 510 C-M, FS 560 C-M
English
7
increase the risk of injury from the
cutting attachment rotating while the
engine is idling.
When using metal cutting attachments
STIHL recommends the use of original
STIHL metal cutting attachments. They
are specifically designed to match your
model and meet your performance
requirements.
Metal cutting attachments rotate at very
high speed. The forces that occur act on
the machine, the attachment and the
material being cut.
Sharpen metal cutting attachments
regularly as specified.
Unevenly sharpened metal cutting
attachments cause out-of-balance
which can impose extremely high loads
on the machine and increase the risk of
breakage.
Dull or improperly sharpened cutting
edges can put a higher load on the
cutting attachment and increase the risk
of injury from cracked or broken parts.
Inspect metal cutting attachments for
cracks or warping after every contact
with hard objects (e.g. stones, rocks,
pieces of metal). To reduce the risk of
injury, remove burrs and other visible
build-ups of material (use a file) because
they may become detached and be
thrown at high speed during operation.
To reduce the above-mentioned risks
when using a metal cutting attachment,
never use a metal cutting attachment
with a diameter larger than specified. It
must not be too heavy. It must be
manufactured from materials of
adequate quality and its geometry must
be correct (shape, thickness).
To reduce the risk of injury, a metal
cutting attachment not manufactured by
STIHL must not be heavier, thicker,
have a different shape or a diameter
larger than the largest metal cutting
attachment approved by STIHL for this
power tool model.
Vibrations
Prolonged use of the power tool may
result in vibration-induced circulation
problems in the hands (whitefinger
disease).
No general recommendation can be
given for the length of usage because it
depends on several factors.
The period of usage is prolonged by:
–Hand protection (wearing warm
gloves)
–Work breaks
The period of usage is shortened by:
–Any personal tendency to suffer
from poor circulation (symptoms:
frequently cold fingers, tingling
sensations).
–Low outside temperatures.
–The force with which the handles
are held (a tight grip restricts
circulation).
Continual and regular users should
monitor closely the condition of their
hands and fingers. If any of the above
symptoms appear (e.g. tingling
sensation in fingers), seek medical
advice.
Maintenance and Repairs
Service the machine regularly. Do not
attempt any maintenance or repair work
not described in the instruction manual.
Have all other work performed by a
servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
Only use high-quality replacement parts
in order to avoid the risk of accidents
and damage to the machine. If you have
any questions in this respect, consult a
servicing dealer.
STIHL recommends the use of original
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
To reduce the risk of injury from
unintentional engine startup, always
shut off the engine and disconnect the
spark plug boot before performing any
repairs, maintenance or cleaning work. –
Exception: Carburetor and idle speed
adjustments.
Do not turn the engine over on the
starter with the spark plug boot or spark
plug removed since there is otherwise a
risk of fire from uncontained sparking.
To reduce the risk of fire, do not service
or store your machine near open flames.
Check the fuel filler cap for leaks at
regular intervals.

FS 510 C-M, FS 560 C-M
English
8
Use only a spark plug of the type
approved by STIHL and make sure it is
in good condition – see "Specifications".
Inspect the ignition lead (insulation in
good condition, secure connection).
Check the condition of the muffler.
To reduce the risk of fire and damage to
hearing, do not operate your machine if
the muffler is damaged or missing. –
Do not touch a hot muffler since burn
injury will result.
Vibration behavior is influenced by the
condition of the AV elements – check the
AV elements at regular intervals.
Maintenance, replacement, or repair of
the emission control devices and
systems may be performed by any
nonroad engine repair establishment or
individual. However, if you make a
warranty claim for a component which
has not been serviced or maintained
properly or if nonapproved replacement
parts were used, STIHL may deny
coverage.
For any maintenance please refer to the
maintenance chart and to the warranty
statement near the end of the instruction
manual.
Symbols on Deflectors
An arrow on the deflector shows the
correct direction of rotation of the cutting
attachments.
Some of the following symbols are
applied to the outside of the deflector to
indicate the approved combination of
cutting attachment and deflector.
Harness
The harness is included with the
machine or available as a special
accessory.
NUse the harness.
NWith the engine running, attach the
machine to the harness.
All cutting attachments must be used in
combination with a full harness with a
quick-release system.
Deflector may be used
with mowing heads.
Deflector may be used
with grass cutting blades.
Deflector may be used
with brush knives.
Deflector may be used
with shredder blades.
Deflector must not be
used with mowing heads.
Deflector must not be
used with grass cutting
blades.
Deflector must not be
used with brush knives.
Deflector must not be
used with shredder
blades.
Deflector must not be
used with circular saw
blades.
002BA397 KN

FS 510 C-M, FS 560 C-M
English
9

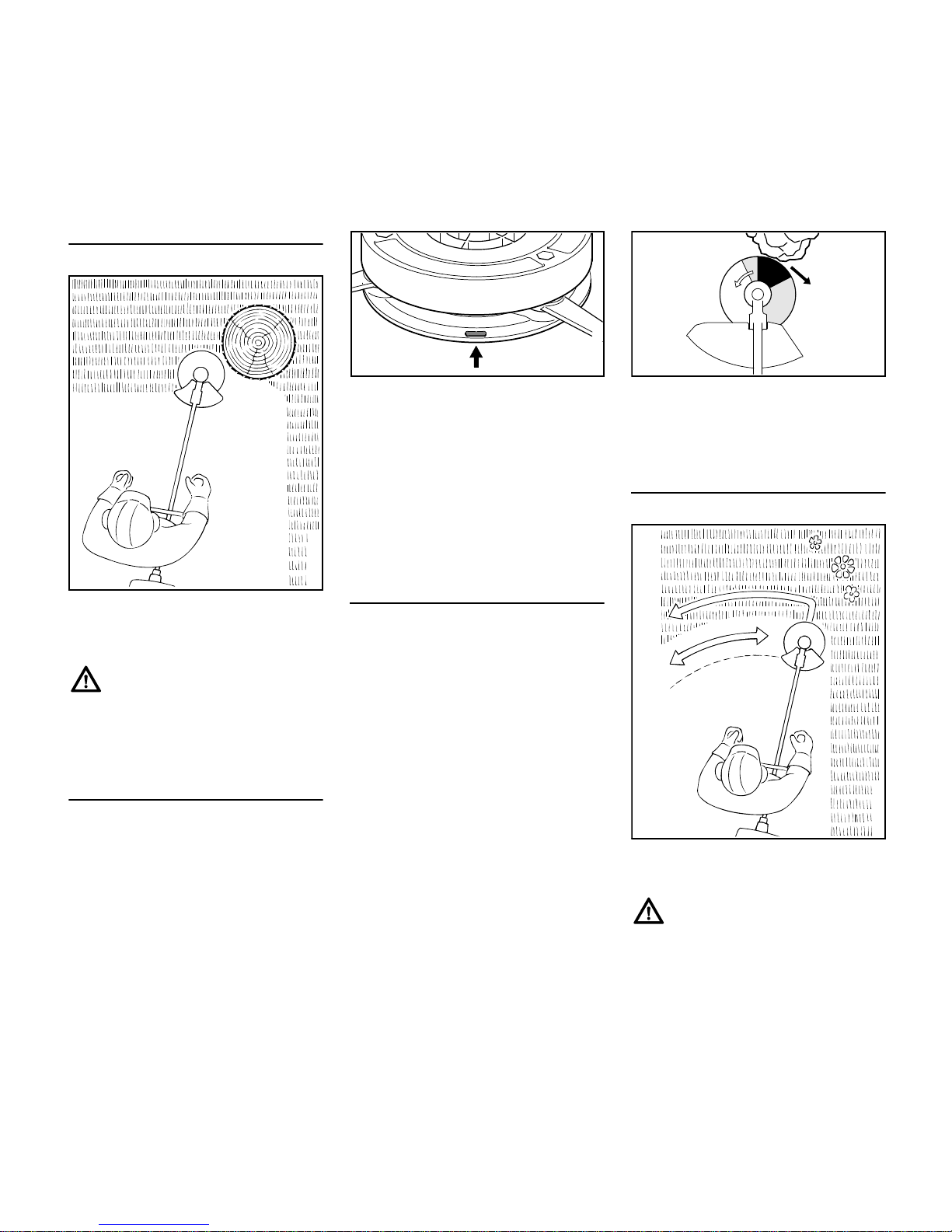

Mowing Head with Nylon Lines
Nylon line achieves a soft cut for edging
and trimming around trees, fence posts,
etc. – less risk of damaging tree bark.
To reduce the risk of injury, never use
steel wire in place of the nylon cutting
line.
STIHL Polycut Mowing Head with
Polymer Blades
For mowing unobstructed edges of
meadows (without posts, fences, trees
or similar obstacles).
Check the wear limit marks!
If one of the wear limit marks on the
PolyCut mowing head is worn through
(arrow): Do not continue using the
mowing head. Install a new one. There
is otherwise a risk of injury from thrown
parts of the head.
It is important to follow the maintenance
instructions for the Polycut mowing
head.
Risk of Kickout (Blade Thrust) with Metal
Cutting Attachments
When using metal cutting attachments
(grass cutting blade, brush knife,
shredder blade, circular saw blade)
there is a risk of kickout when the
rotating blade comes into contact with a
solid object such as a tree trunk, branch,
tree stump, rock or similar. The machine
is thrown to the right or to the rear –
opposite to the attachment's direction of
rotation.
The risk of kickout is greatest when the
black area of the rotating cutting
attachment comes into contact with a
solid object.
Grass Cutting Blade
Use for grass and weeds only – sweep
the brushcutter in an arc like a scythe.
Improper use may damage the grass
cutting blade – risk of injury from thrown
parts.
000BA015 KN
002BA396 KN
002BA135 KN
000BA020 KN

FS 510 C-M, FS 560 C-M
English
10
Resharpen the grass cutting blade
according to instructions when it has
dulled noticeably.
Brush Knife
For cutting matted grass, wild growth
and scrub and thinning young stands
with a stem diameter of no more than 2
cm – do not cut thicker stems – risk of
accidents.
Use the brushcutter like a scythe (sweep
it to the right and left) at ground level
when cutting grass and thinning young
stands.
To cut wild growth and scrub, lower the
brush knife down onto the growth to
achieve a shredding effect – always
keep the cutting attachment below hip
level during this process.
Exercise extreme caution when using
this method of cutting. The higher the
cutting attachment is off the ground, the
greater the risk of injury from cuttings
being thrown sideways.
Warning! Improper use of a brush knife
may cause it to crack, chip or shatter –
risk of injury from thrown parts.
To reduce the risk of injury it is essential
to take the following precautions:
–Avoid contact with stones, rocks,
pieces of metal and other solid
foreign objects.
–Never cut wood or shrubs with a
stem diameter of more than 2 cm –
use a circular saw blade for such
work.
–Inspect the brush knife at regular
short intervals for signs of damage.
Do not continue working with a
damaged brush knife.
–Resharpen the brush knife regularly
and whenever it has dulled
noticeably, and have it balanced if
necessary (STIHL recommends a
STIHL servicing dealer).
Shredder Blade
Suitable for thinning and shredding
tough, matted grass and scrub.
To cut wild growth and scrub, lower the
shredder blade down onto the growth to
achieve a shredding effect – always
keep the cutting attachment below hip
level during this process.
Exercise extreme caution when using
this method of cutting. The higher the
cutting attachment is off the ground, the
greater the risk of injury from cuttings
being thrown sideways.
Warning! Improper use may damage the
shredder blade – risk of injury from
thrown parts.
To reduce the risk of injury it is essential
to take the following precautions:
–Avoid contact with stones, rocks,
pieces of metal and other solid
foreign objects.
–Never cut wood or shrubs with a
stem diameter of more than 2 cm –
use a circular saw blade for such
work.
–Inspect the shredder blade at
regular short intervals for signs of
damage. Do not continue working
with a damaged shredder blade.
–Resharpen the shredder blade
regularly and whenever it has dulled
noticeably, and have it balanced if
necessary (STIHL recommends a
STIHL servicing dealer).
002BA355 KN
002BA509 KN

FS 510 C-M, FS 560 C-M
English
11
Circular Saw Blade
Suitable for cutting shrubs and trees with
a maximum stem diameter of 7 cm.
Before starting the cut, accelerate the
engine up to full throttle. Perform cut
with uniform pressure.
Use circular saw blades only with a
matching limit stop of the correct
diameter.
To reduce the risk of blade damage,
avoid contact with stones and the
ground. Resharpen the blade properly in
good time – dull teeth may result in the
blade cracking and shattering and
causing serious injury.
When felling, maintain a distance of at
least two tree lengths from the next
felling site.

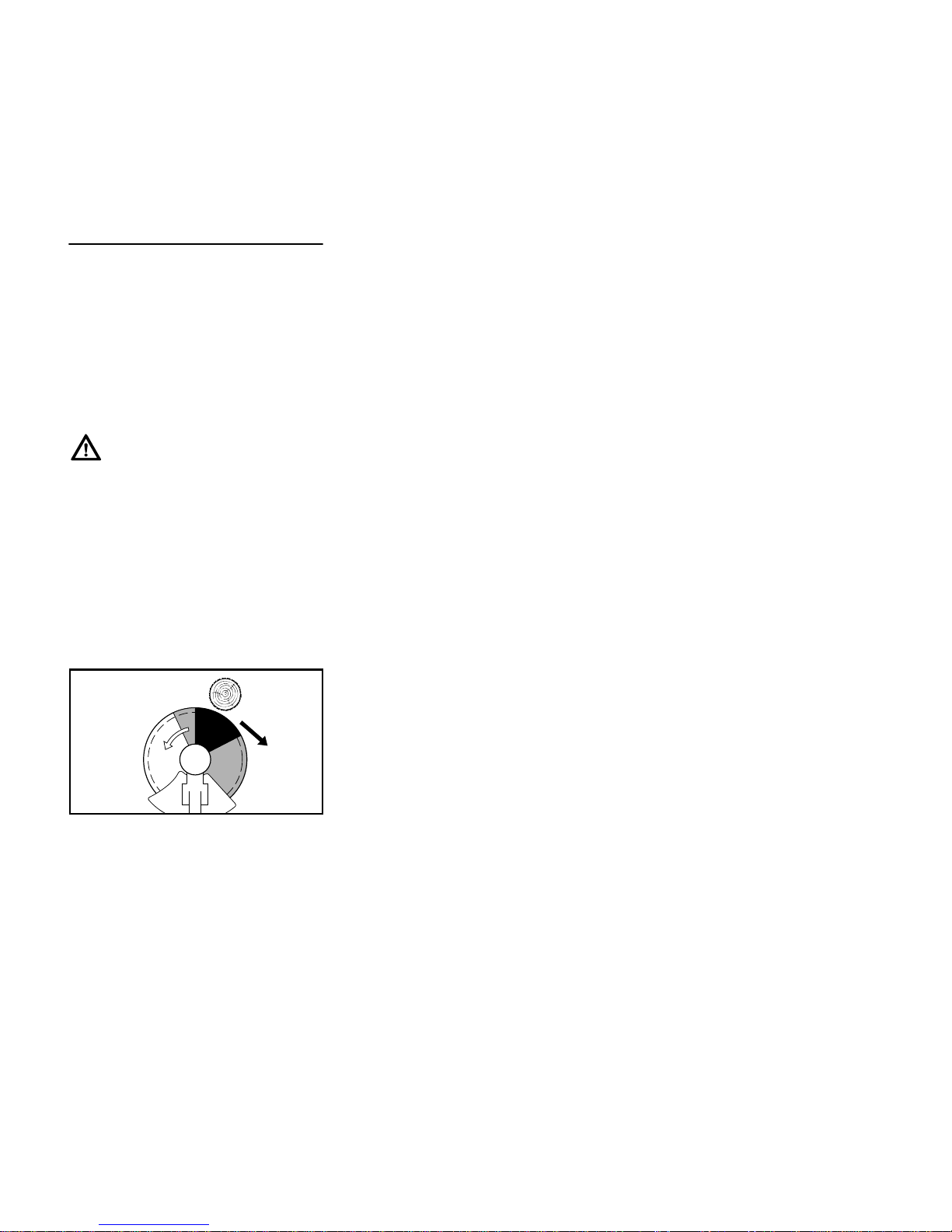

Risk of kickout
The risk of kickout is highest in the black
area of the blade: Do not use this area of
the circular saw blade for cutting.
There is also a risk of kickout when
using the lighter shaded areas of the
blade: These areas of the blade should
only be used by experienced operators
with specialized training.
STIHL recommends that you use the
non-shaded area of the circular saw
blade. Always start the cut with this area
of the blade.
002BA449 KN

FS 510 C-M, FS 560 C-M
English
12
Approved Combinations of Cutting Attachment, Deflector, Limit Stop and Harness
Cutting Attachment Deflector, Limit Stop Harness
5
7
681BA183 KN
3
6
8
4
12
13
14
16
2
910 11 15
1

FS 510 C-M, FS 560 C-M
English
13
Approved Combinations
Select correct combination from the
table according to the cutting
attachment you intend to use.
For safety reasons only the cutting
attachments and deflectors or limit stops
shown in each row of the table may be
used together. No other combinations
are permitted because of the risk of
accidents.
Cutting Attachments
Mowing heads
1STIHL AutoCut 40-4
2STIHL TrimCut 51-2
3STIHL PolyCut 41-3
Metal cutting attachments
4Grass cutting blade 255-8
5Grass cutting blade 250-40 Spezial
6Brush knife 305-2 Spezial
7Brush knife 350-3
8Shredder blade 320-2
9Scratcher tooth circular saw blade
225
10 Chisel tooth circular saw blade 225
11 Carbide tipped circular saw blade
225
Non-metal grass cutting blades, brush
knives, shredder blades and circular
saw blades are not approved.
Deflectors, Limit Stops
Deflectors
12 Deflector for mowing heads only
13 Deflector for metal mowing
attachments, items 4 to 7
14 Deflector for shredder blade
Limit stops
15 Limit stop for circular saw blades
225
Harnesses
16 Full harness must be used
Mounting Bike Handle with Swiveling
Handle Support
Do not rotate the control handle (1)
between unpacking and mounting it on
the handlebar; see also chapter on
"Adjusting the Throttle Cable".
The brushcutter is available with two
different handlebars:
2Handlebar for machines used
primarily for mowing, brushcutting
and shredding, but also for
occasional sawing.
Mounting the Bike Handle
1
3BA003 KN
3BA004 KN
42

FS 510 C-M, FS 560 C-M
English
14
3Handlebar for machines used
mainly for sawing, but also for
mowing and brushcutting.
The machine is supplied with the clamp
moldings (4) mounted on the handlebars
(2, 3).
NDo not change the position of the
clamp moldings on the handlebar
until it is mounted on the handle
support.
The mounting procedure is the same for
both types of handlebar. Therefore, the
following description only shows
handlebar (2).
Mounting the Handlebar
Assembly of the swivelling handle
support involves equipping the clamp
moldings with a spring and mounting
them on the handle support.
NUse the spring (5) from the parts kit
supplied with the machine.
NPush the spring (5) into the lower
clamp molding (6).
NPosition the clamp moldings (4) with
handlebar (2) on the handle support
(7).
NDo not turn the handlebar in the
clamp moldings.
NRaise the grip of the wing screw (8)
to the upright position.
NRotate the wing screw
counterclockwise and tighten it only
moderately.
NPosition wing screw (8) in threaded
insert in handle support (7) – against
pressure of spring (5).
NPosition the clamp moldings so that
the tabs (9) on the lower clamp
molding (6) line up with the slots
(10) in the handle support (7).
2BA001 KN
4
3
3BA005 KN
5
4900BA002 KN
7
2
4
8
3BA007 KN
5
8
3BA008 KN
7
6
10 7
9
3BA0009 KN

FS 510 C-M, FS 560 C-M
English
15
NRotate wing screw clockwise until
the lower clamp molding (6) butts
against the handle support (7).
NSwing the handebar (2) forwards
through 180°.
NOnly tighten the wing screw
moderately.
NFold the grip of the wing screw down
so that it is flush.
Mounting the Control Handle
NTake out the screw (11) and remove
the nut (12) from the control handle
(1).
NHold the control handle in front of
the right-hand end of the handlebar
so that the throttle cable (13) is on
the inboard side of the handlebar
(2).
NPush the control handle (1) in this
position onto the end of the
handlebar (2) until the holes (15)
line up – throttle trigger (14) facing
down.
NFit the nut (12) in the control handle,
insert the screw (11) and tighten it
down firmly.
Adjusting the Handlebar
Opening the wing screw
NRaise the grip of the wing screw to
the upright position.
7
6
3BA010 KN
2
4900BA003 KN
4900BA004 KN
11
12
1
002BA451 KN
13
2
4900BA005 KN
14
15
15
2
4900BA007 KN
1
11
12
4900BA008 KN
4900BA009 KN

FS 510 C-M, FS 560 C-M
English
16
NTurn the wing screw
counterclockwise until the handle
support can be moved.
Lining up the handlebar
NMove the handlebar to the required
position.
NPosition the handlebar (2) so that
distance A is about 7 in (17 cm).
Do not clamp the curved part of the
handlebar.
Closing the wing screw
NRotate the wing screw clockwise
until it becomes difficult to turn.
NTighten down the wing screw firmly.
NFold the grip of the wing screw down
so that it is flush.
Checking the Throttle Cable
NAfter mounting the control handle,
check the throttle cable – see
chapter on "Adjusting the Throttle
Cable".
4900BA010 KN
4900BA011 KN
4900BA012 KN
2
A
4900BA013 KN
4900BA014 KN

FS 510 C-M, FS 560 C-M
English
17
Swiveling the Handlebar
Transport position
NLoosen the wing screw (8) and
unscrew it until the handlebar (2)
can be turned clockwise.
NTurn the handlebar 90° and then
swing the handles down.
NTighten down the wing screw (8)
firmly.
Working position
NReverse the sequence described
above to swing the handles up and
turn the handlebar
counterclockwise.
Correct adjustment of the throttle cable
is a preconditon for correct operation of
the machine in all modes, from starting
to full throttle.
It may be necessary to readjust the
throttle cable after assembling the
machine or after a prolonged period of
operation.
–The throttle cable can checked and
adjusted by the user: see
"Inspection and Maintenance by
User".
–The throttle cable can be checked
and adjusted by your dealer. Have
the machine repaired by your
servicing dealer. STIHL
recommends a STIHL servicing
dealer.
Use the Right Deflector
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head.
Recommendation: Use mowing heads
with a grass shield on the gearbox, see
chapters on "Mounting the Deflector" /
"Mounting the Grass Shield".
Deflector (2) is approved for grass
cutting blades and brush knives only and
must therefore be mounted before fitting
a grass cutting blade or brush knife.
4900BA015 KN
28
Adjusting the Throttle Cable Mounting the Deflector
1
002BA461 KN
2
002BA462 KN

FS 510 C-M, FS 560 C-M
English
18
Recommendation: Use grass cutting
blades with a grass shield on the
gearbox, see chapters on "Mounting the
Deflector" / "Mounting the Grass Shield".
Deflector (3) is approved for shredder
blades only and must therefore be
mounted before fitting a shredder blade,
see chapter on "Mounting the Deflector".
Stop (4) is approved for circular saw
blades only and must therefore be
mounted before fitting a circular saw
blade.
Mounting the Deflector
Deflectors (1, 2 and 4) are mounted to
the gearbox in the same way.
NRemove dirt from joints on gearbox
and deflector – make sure that no
dirt gets into the screw holes in the
gearbox – see section on "Plugs".
NPlace the deflector on the gearbox
(5).
NInsert the screws (6) and tighten
them down firmly.
Mounting shredder deflector
Owing to the high loads on the shredder
deflector (3) and country-specific
regulations on the use of the machine for
shredding, the deflector must be
properly mounted to the machine.
A special screwdriver bit is required to
mount this deflector. The bit is available
only from specialist retailers. It has a
special drive for rotating the screws and
only allows the screws to be tightened.
Once tightened, the screws can no
longer be loosened – not even with the
special tool.
STIHL therefore recommends: Have the
shredder deflector mounted by your
STIHL dealer.
A "shredder deflector mounting kit" is
available as a special accessory for
retrofitting machines with a shredder
deflector. Depending on the machine's
original equipment, a "shredder blade
retrofit kit" may also be needed for the
conversion. Neither of these kits include
the shredder blade – it must be ordered
separately.
The "shredder blade retrofit kit" contains
clamps which butt against the gearbox
and have to be secured to the drive tube.
The kit also contains the shredder
deflector which is mounted to the
clamps.
– Installing the clamps
–Lower clamp (1): Identified by two
lugs (2) on its longitudinal axis, eight
tapped holes and a lateral notch (3).
–Upper clamp (4): Identified by holes
marked 1 to 4 and a lateral lug (5).
3
002BA463 KN
4
002BA464 KN
5
6
002BA465 KN
002BA495 KN
3
2
2
002BA496 KN
5
