Stirling TAC-09CHSA/JAI5 User manual

Model Number TAC-09CHSA/JAI5
Reverse Cycle Inverter
Split System Air Conditioner
INSTALLATION MANUAL
After Sales Support
Telephone: [phone]
Email: [email protected]

2
After Sales Support
Telephone: [phone]
Email: [email protected]
Contents
03 Warranty Details
04 Welcome
05 General Safety Instructions
06 Product Overview
07 Selecting the Installation Place
09 Installation
17 Information for the Installer
19 Other Useful Information

3
After Sales Support
Telephone: [phone]
Email: [email protected]
Reverse Cycle Inverter Split System Air Conditioner
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 60 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

4
After Sales Support
Telephone: [phone]
Email: [email protected]
Welcome
Congratulations on choosing to buy a STIRLING®product.
All products brought to you by STIRLING®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive warranty. We hope
you will enjoy using your purchase for many years to come.

5
After Sales Support
Telephone: [phone]
Email: [email protected]
General Safety Instructions
FOR THE INSTALLER
• Read this guide before installing and using the appliance.
• Compliance: Install the appliance in accordance with all applicable regulations.
• No children’s access: During installation of the indoor and outdoor units,
do not allow children access to the working area.
• Do NOT install the unit:
• In environments where the air could contain gas, oil or sulphur.
• Near sources of heat.
• At a distance of less than 50cm from flammable substances (e.g. alcohol or
other flammable liquids or gases) and pressurised containers (e.g. spray cans).
• Ventilation: If the appliance is used in areas without the possibility of
ventilation, precautions must be taken to prevent any leaks of refrigerant
gas from remaining in the environment and creating a fire danger.
• Outdoor unit: Make sure that the base of the outdoor unit is firmly fixed.
• Disconnect power circuits: Before accessing the terminals, all the power
circuits must be disconnected from the power supply.
• Refrigerant system: Check that air cannot enter the refrigerant system and
check for refrigerant leaks when moving the air conditioner.
• Voltage: Ensure that the mains voltage corresponds to that stamped on the
rating plate. Keep the switch or power plug clean.
• Socket: Check and ensure that the socket is suitable for the plug.
• Fuse ratings: The ratings of the fuse installed in the built-in control unit are
3.15A/250V for 220V type and 3.15A/125V for 110V type.
• Overload protection: The user must protect the indoor unit with a fuse of
suitable capacity for the maximum input current or with another overload
protection device.
• Packaging materials: The packaging materials are recyclable and should
be disposed of responsibly for recycling.
• Test cycle: Carry out a test cycle after installing the air conditioner and
record the operating data. Make sure that air cannot enter the refrigerant
system and check for refrigerant leaks when moving the air conditioner.
PROTECT YOUR WARRANTY
These installation instructions for the TAC-09CHSA/JAI5
STIRLING Reverse Cycle Inverter Split System Air Conditioner are
for use by an appropriately qualified installer. Do not try to install
the air conditioner on your own; doing so will expose you to
danger and void the warranty. Contact a licensed installer.

6
After Sales Support
Telephone: [phone]
Email: [email protected]
Indoor Unit
1 Front panel
2 Air filter
3 Optional filter (if installed)
4 LED display
5 Signal receiver
6 Terminal block cover
7 Ionizer generator (if installed)
8 Deflectors
9 Emergency button
10 Indoor unit rating label
11 Airflow direction flaps
12 Remote control
Outdoor Unit
13 Air outlet grille
14 Outdoor unit rating label
15 Cover
16 Gas valve
17 Liquid valve
Product Overview
• This Inverter Split System Air Conditioner (9000 BTU) is made up of an indoor
and outdoor unit (as pictured below), which are connected through copper
pipes (properly insulated) and an electrical connecting cable.
• The indoor unit is installed on a wall of the room to be air conditioned.
• The outdoor unit is installed on the floor, or on a wall on suitable brackets.
• Technical data of the air conditioner are printed on the labels placed on the
indoor and outdoor units.
• The remote control has been designed for easy and fast use.
NOTE: The figures throughout this manual are for illustrative purposes only
and may vary slightly from the appearance of the unit purchased.
12-3
6
4-5
9
11 8
10 7
DISPL AY HEAL TH Y
3D
ON/OFF
SWING
FAN
TIMER SUPER
SLEEP MODE
ECO
CLOCK
12
12
12-3 4-5
11 10 9 8 7
6
NR
NS
NT
NQ
14
15
16
17
13

7
After Sales Support
Telephone: [phone]
Email: [email protected]
Indoor unit
• This Inverter Split System Air Conditioner (9000 BTU) is suitable for cooling
or heating a room of max. 18 square metres in size.
• Install the indoor unit level on a strong wall that is not subject to vibrations.
• The inlet and outlet ports should not be obstructed, the air should be able
to blow all over the room.
• Do not install the unit near a source of heat, steam or flammable gas.
• Install the unit near an electric socket or private circuit.
Selecting the Installation Place
PROTECT YOUR WARRANTY
These installation instructions for the TAC-09CHSA/JAI5
STIRLING Reverse Cycle Inverter Split System Air Conditioner are
for use by an appropriately qualified installer. Do not try to install
the air conditioner on your own; doing so will expose you to
danger and void the warranty. Contact a licensed installer.
Minimum clearances, in mm
• Do not install the unit
where it will be exposed
to direct sunlight.
• Install the unit where
connection between
indoor and outdoor unit
is as easy as possible.
• Install the unit where
it is easy to drain any
condensation water.
• Check the machine
operation regularly and
leave the necessary
spaces, as shown in the
illustration, right.
• Install the indoor unit
where the filter is easily
accessible.

8
After Sales Support
Telephone: [phone]
Email: [email protected]
Selecting the Installation Place (Cont.)
Outdoor unit
• Do not install the unit:
• Near sources of heat, steam or
flammable gas.
• Where it is exposed to high winds or
excessive dust.
• Where people often pass.
• Avoid installing the unit where it will be
exposed to direct sunlight (otherwise
use a protection, if necessary, that will
not interfere with the airflow).
• Select a place where the air discharge
and operating sound level will not
disturb neighbours.
Installation diagram
Only persons and/or companies qualified and experienced in the installation,
service and repair of refrigerant products should be permitted to do so. The
purchaser must ensure that the person and/or company who is to install,
service or repair this air conditioner has qualifications and experience in
refrigerant products.

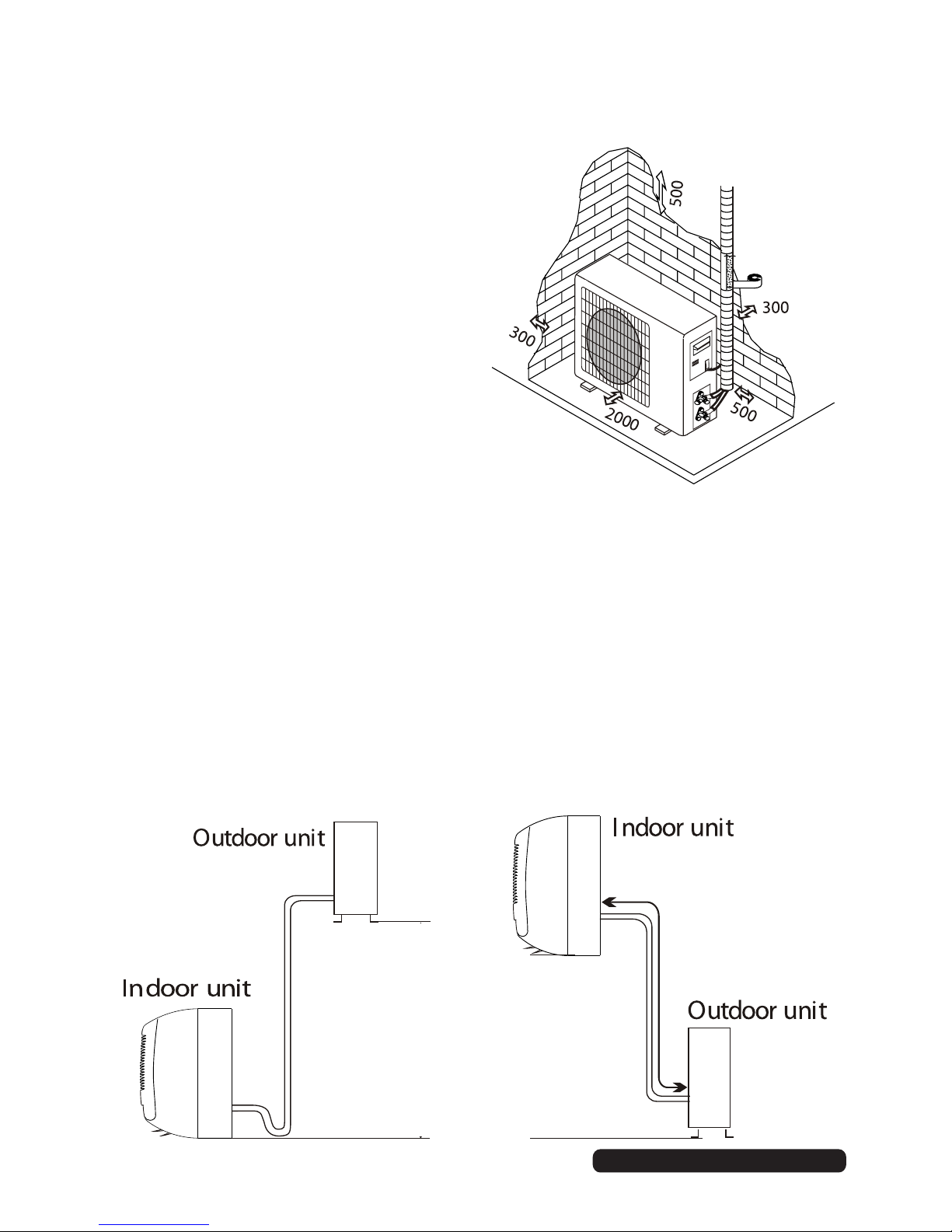

• Leave the minimum indicated spaces around the unit, as illustrated above,
for free air circulation.
• Install the outdoor unit in a safe and solid place.
• If the outdoor unit is subject to vibration, place rubber gaskets onto the feet
of the unit.

9
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation
Installation of the indoor unit
• Before starting installation, decide on the position of the indoor and outdoor
units, taking into account the minimum space required around the units.
• Install the indoor unit in the room to be air conditioned, avoid installation in
corridors or communal areas.
• Install the indoor unit at a height of at least 2.5m from the ground.

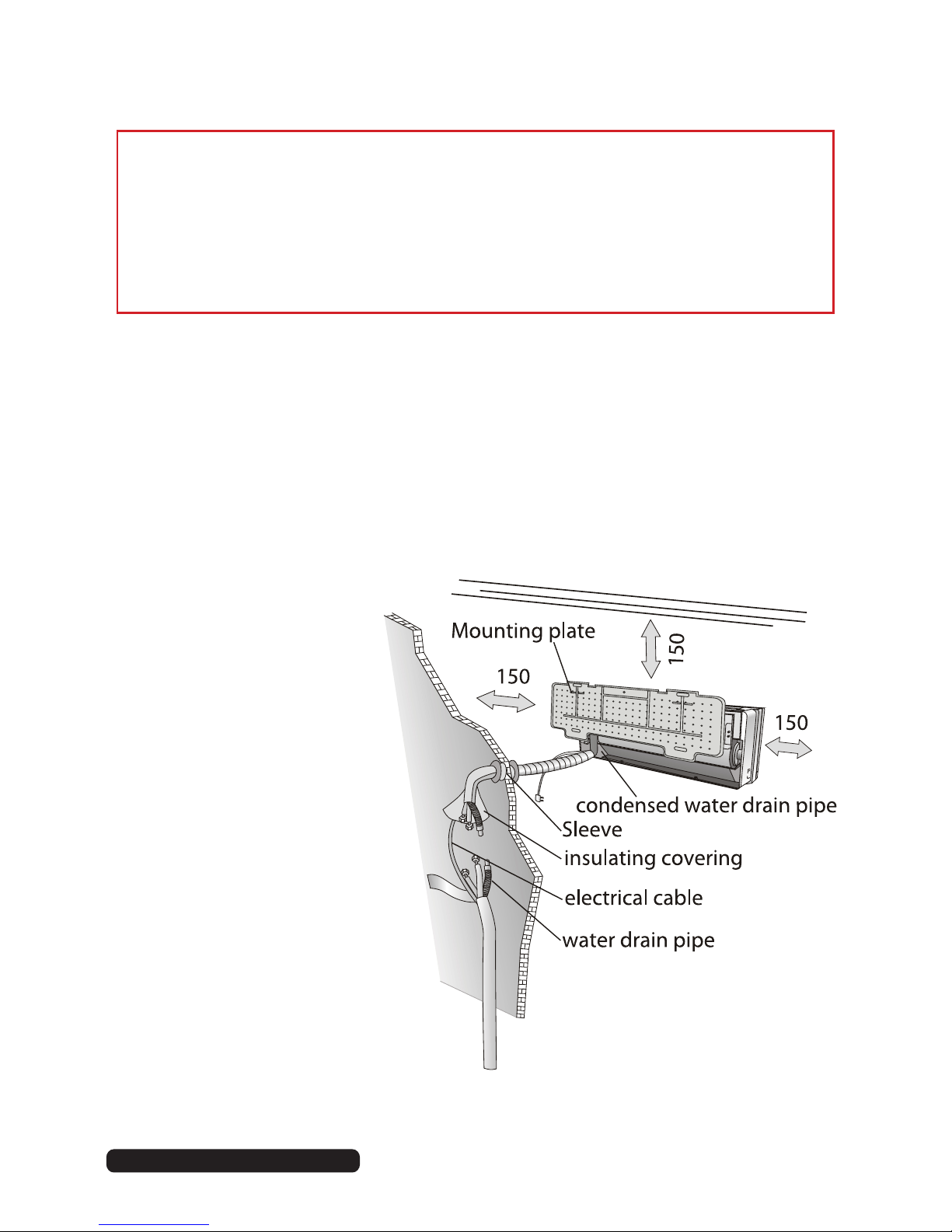

Installing the mounting plate
• Use a spirit level to put the mounting
plate in a perfectly level position
vertically and horizontally.
• Drill 32mm deep holes in the wall to
fix the plate.
• Insert the plastic anchors into the hole.
• Fix the mounting plate by using the
provided tapping screws, as illustrated,
right.
• Check that the mounting plate is
correctly fixed.
Drilling a hole in the wall for the piping
• Decide where to drill the hole in the wall for the piping, if necessary,
according to the position of the mounting plate.
• Install a flexible flange through the hole in the wall
to keep the latter intact and clean.
NOTE: The hole must slope downwards towards
the exterior.
Keep the drain pipe down towards the
direction of the wall hole, otherwise
leakage may occur.

10
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
Electrical connections for the indoor unit

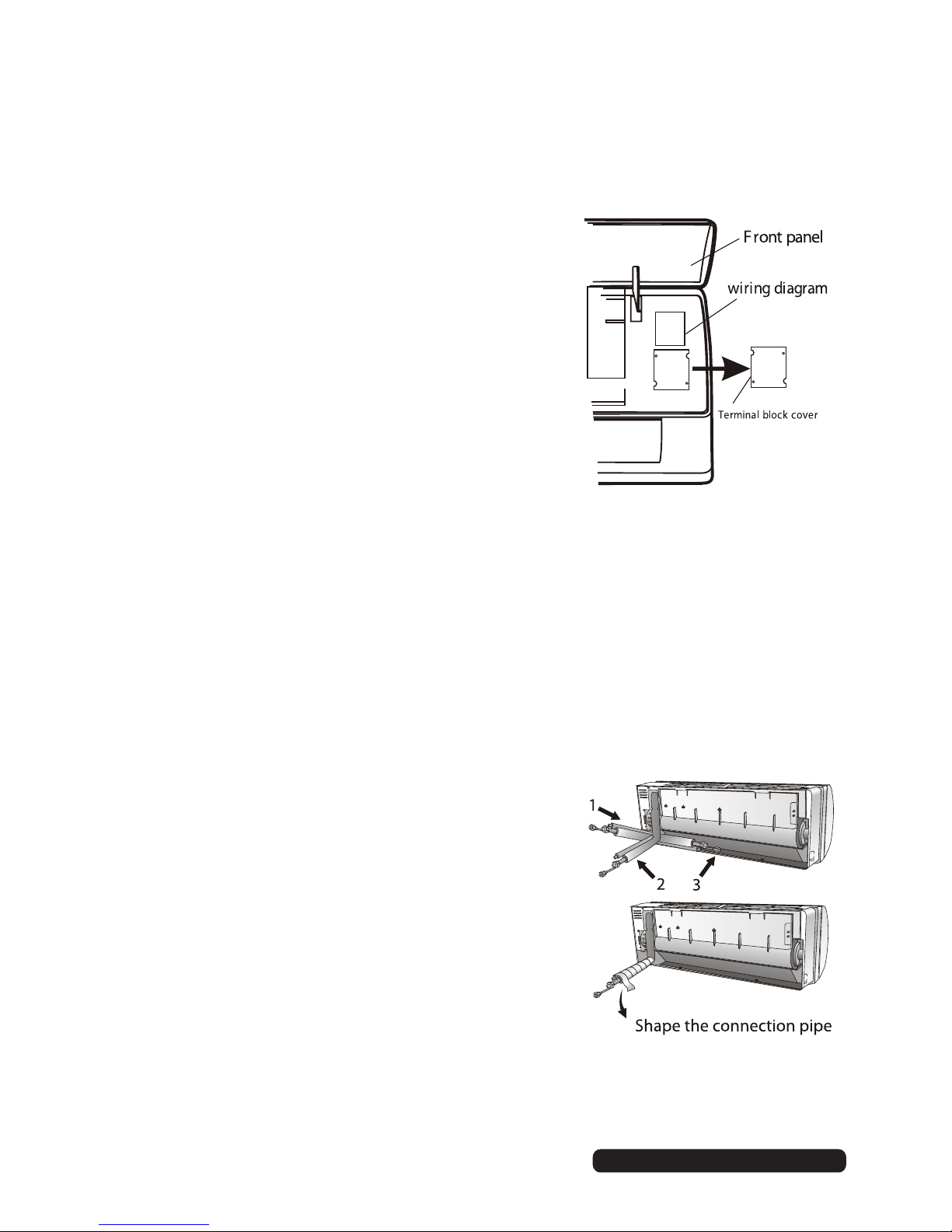

• Lift the front panel.
• Take off the cover as indicated on the right (by
removing a screw or breaking the hooks).
• For the electrical connections, see the circuit
diagram on the right part of the unit under the
front panel.
• Connect the cable wires to the screw terminals
by following the numbering. Use wire of a size
suitable to the electric power input (see the
unit rating plate) and according to all current
national safety code requirements.
• The cable connecting the outdoor and indoor
units must be suitable for outdoor use.
• The plug must be accessible after the
appliance has been installed so that it can be pulled out, if necessary.
• An efficient earth connection must be ensured.
• If the power cable is damaged, contact the after sales support line for
advice on replacement.
NOTE: The cable wires have been connected to the indoor unit’s main PCB
by the manufacturer according to the model without terminal block.
Refrigerant piping connection

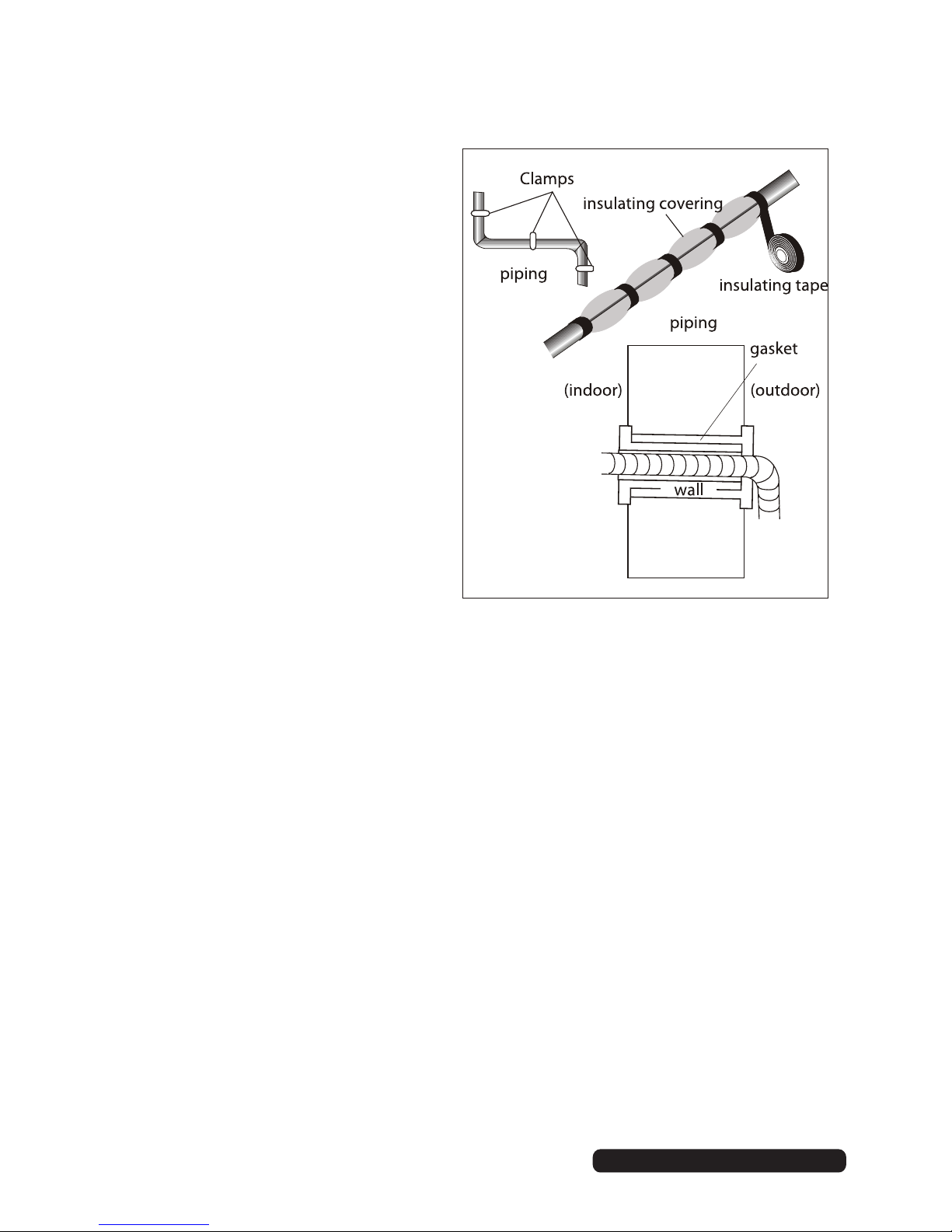

• The piping can be run in the three directions,
as indicated by the numbers 1 to 3 in the
illustration, right. When the piping is run in
directions 1 or 3, cut a notch along the groove
on the side of the indoor unit with a cutter.
• Run the piping in the direction of the wall hole
and bind the copper pipes, the drain pipe and
the power cables together with tape at the
bottom, so that water can flow freely.

11
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)

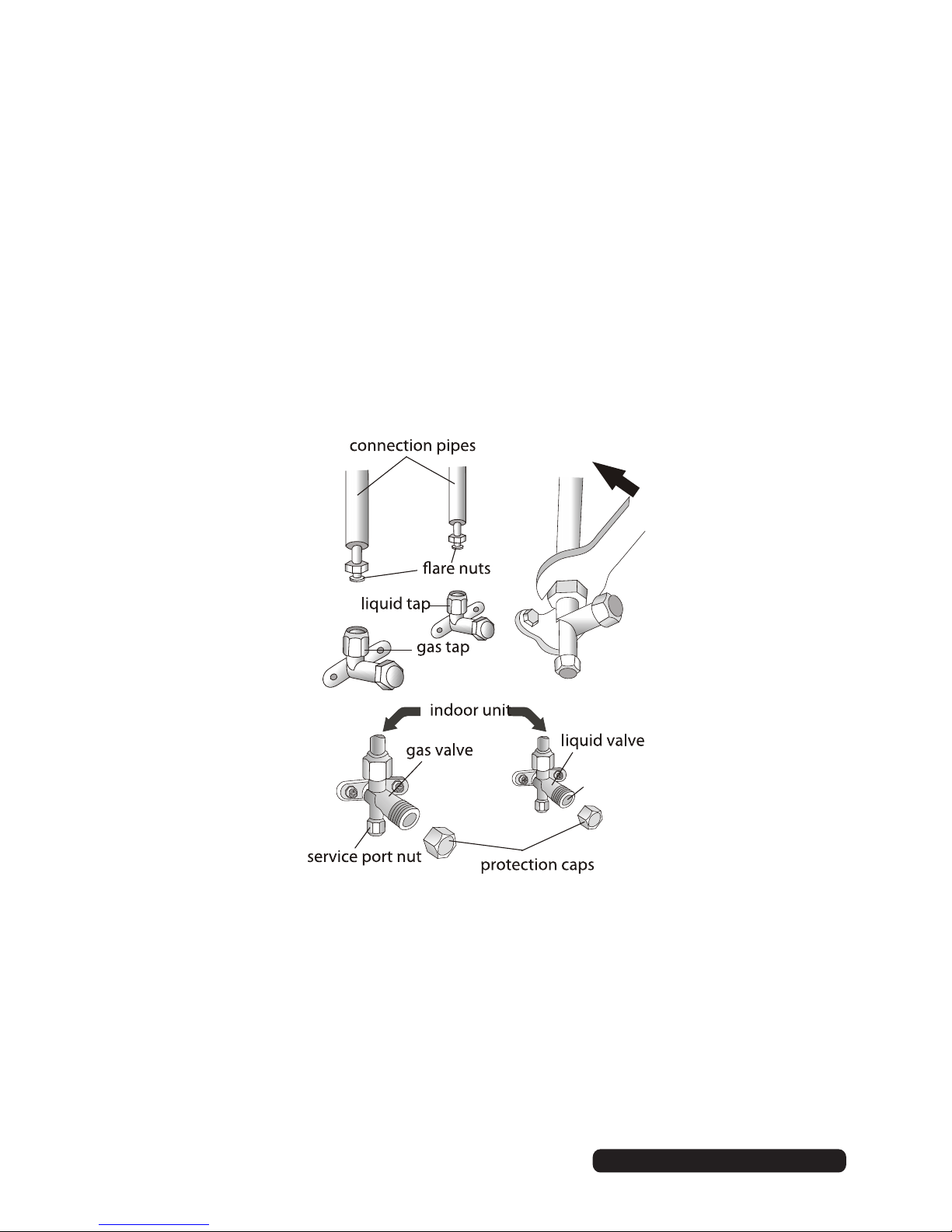

Connecting the pipes
• Do not remove the cap from the pipe until connecting it, to avoid dampness
or dirt from entering.
• If the pipe is bent or pulled too often, it will become stiff. Do not bend the
pipe more than three times at one point.
• When extending rolled pipe, straighten the pipe by unwinding it gently, as
illustrated below.
Connections to the indoor unit
• Remove the indoor unit pipe cap and check
that there is no debris inside.
• Insert the nut and create a flange at the
extreme end of the connection pipe.
• Tighten the connections by using two
wrenches working in opposite directions.
Water drainage from the indoor unit
The condensed water drainage from the indoor unit is fundamental for the
success of the installation.
• Place the drain hose below the piping,
taking care not to create siphons.
• The drain hose must slant downwards to
aid drainage, as illustrated, right.
• Do not bend the drain hose or leave it
protruding or twisted and do not put
the end of it in water. If an extension is
connected to the drain hose, ensure
that it is lagged when it passes into
the indoor unit.
• If the piping is installed to the right, the
pipes, power cable and drain hose must
be lagged and secured onto the rear of the
unit with a pipe connection.
1) Insert the pipe connection into the
relative slot.
2) Press to join the pipe connection to the base.

12
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
After having connected the pipe according to the instructions, install the
connection cables, then the drain pipe. After connection, lag the pipe, cables
and drain pipe with the insulating material.
• Arrange the pipes, cables and drain hose well.
• Lag the pipe joints with insulating material, securing it with vinyl tape.
• Run the bound pipe, cables and drain pipe through the wall hole and mount
the indoor unit onto the upper part of the mounting plate securely.
• Press and push the lower part of the indoor unit tightly against the mounting plate.

13
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
Installation of the outdoor unit
• The outdoor unit should be installed on a solid wall and fastened securely.
• Before connecting pipes and cables, decide on the best position on the
wall, leaving enough space for easy maintenance.
• Fasten the support to the wall using screw anchors that are particularly
suited to the type of wall.
• Use a larger quantity of screw anchors than normally required for the weight
they have to bear to avoid vibration during operation and remain fastened in
the same position for years without the screws becoming loose.
• The unit must be installed following all relevant local regulations.
Water drainage from the outdoor unit
Condensed water and ice formed in the outdoor unit while in heating mode
can be drained away through a drain pipe.
• Fasten the drain port in the 25mm hole
placed in the part of the unit as illustrated on
the right.
• Connect the drain port and the drain pipe.
• Make sure that water is drained into a
suitable place.
Electrical connections
• Take off the cover.
• Connect the cable wires to the terminal
board using the same numbering as in
the indoor unit.
• For the electrical connections, see the
wiring diagram on the back of the cover.
• Fasten the cables with a cable clamp.
• An efficient earth connection must be
ensured.
• Replace the cover.

14
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
Connecting the pipes
Screw the flare nuts to the outdoor unit coupling with the same tightening
procedures described for the indoor unit. To avoid leakage, pay attention to
the following points:
• Tighten the flare nuts using two wrenches, taking care not to damage the
pipes.
• If the tightening torque is not sufficient, there will probably be some
leakage. With excessive tightening of the torque there may also be some
leakage, as the flange could be damaged.
• The best way to tighten the connections is using a fixed wrench and a
torque wrench, as illustrated on page 11.
Bleeding
Air and humidity left inside the refrigerant circuit can cause compressor
malfunction. After having connected the indoor and outdoor units, bleed the
air and humidity from the refrigerant circuit by using a vacuum pump.
• Unscrew and remove the caps from the 2-way and 3-way valves.
• Unscrew and remove the cap from the service port.
• Connect the vacuum pump hose to the service port.
• Operate the vacuum pump for 10 - 15 minutes until an absolute vacuum
of 10mm Hg has been reached.

15
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
• With the vacuum pump still in operation, close the low-pressure knob on
the vacuum pump coupling. Stop the vacuum pump.
• Open the 2-way valve by ¼ turn and
then close it after 10 seconds. Check
all the joints for leaks using liquid
soap or an electronic leak device.
• Turn the body of the 2-way and
3-way valves. Disconnect the
vacuum pump hose.
• Replace and tighten all the caps on
the valves.

16
After Sales Support
Telephone: [phone]
Email: [email protected]
Installation (Cont.)
Final stage
• Wind insulating covering around
the joints of the indoor unit and fix
it with insulating tape.
• Fix the exceeding part of the
signal cable to the piping or to the
outdoor unit.
• Fix the piping to the wall (after
having coated it with insulating
tape) using clamps, or insert them
into plastic slots.
• Seal the hole in the wall through
which the piping is passed so that
no air or water can enter.
Indoor unit test
• Does the ON/OFF switch work properly?
• Do the HEATING, COOLING and FAN modes operate normally?
• Do the TIMER-ON and TIMER-OFF functions operate properly?
• Does each indicator light work properly?
• Do the flaps for air flow direction operate normally?
• Is the condensed water drained regularly?
Outdoor unit test
• Is there any abnormal noise or vibration during operation?
• Could the noise, airflow or condensed water drainage disturb the
neighbours?
• Is there any coolant leakage?
NOTE: The electronic controller allows the compressor to start only three
minutes after voltage has reached the system.

17
After Sales Support
Telephone: [phone]
Email: [email protected]
Information for the Installer
Inverter Split System Air Conditioner Capacity 9000BTU
Liquid pipe diameter 6mm (1/4”)
Gas pipe diameter 9.52mm (3/8”)
Length of pipe with standard charge 3m
Type of refrigerant R410A
Tightening torque for protection caps and flange connection
Pipe diameter Tightening
Torque
(N x m)
Corresponding
Stress (using a
20cm wrench)
Part Tightening
Torque
(N x m)
6mm (1/4”) 15 - 20 Wrist strength Service port nut 7 - 9
9.52mm (3/8”) 31 - 35 Arm strength Protection caps 25 - 30
12mm (1/2”) 35 - 45 Arm strength
15.88mm (5/8”) 75 - 80 Arm strength

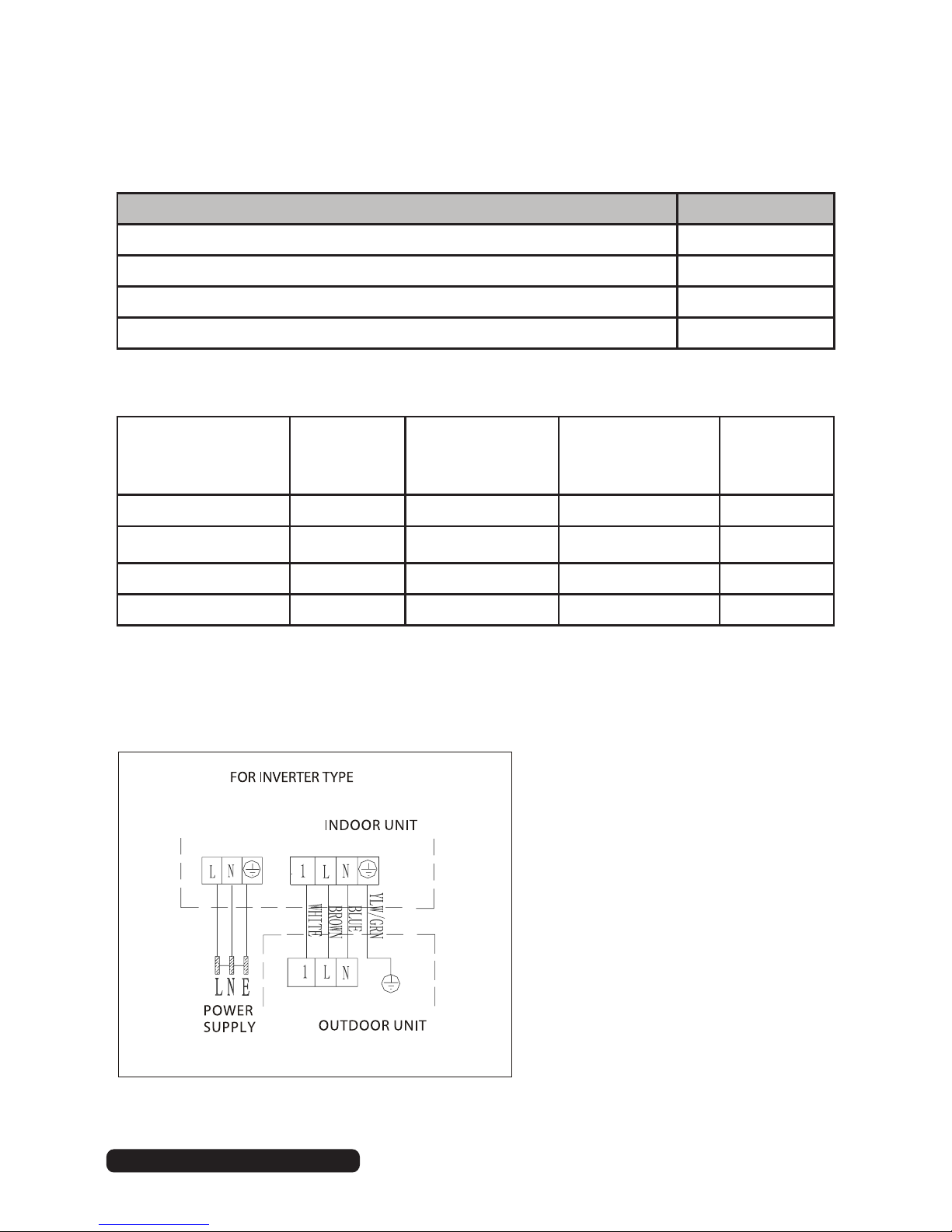

Wiring diagram
Please see the diagram instructions attached to the unit first.
Pipe details
NOTE:
The cable wires have been
connected to the main PCB
of the indoor unit by the
manufacturer according to the
model without terminal block,
see the wiring diagram on the
right part of the unit under the
front panel and the back of the
outdoor cover.
9K HEAT PUMP MODELS

18
After Sales Support
Telephone: [phone]
Email: [email protected]
Information for the Installer (Cont.)
Cable wires specifications
Type of 220V fuse used on the
indoor unit controller for 9K is
50T with rating 3.15A, 250V.
Type of 110V fuse used on the
indoor unit controller for 9K is
50T with rating 3.15A, 125V.
Type of fuse used on the
inverter outdoor unit controller
for 9K is 61T with rating 15A,
250V.
Model Capacity (BTU/hr) 9k
Sectional Area
Power Supply
Cable
N 1.0mm2
AWG18
L 1.0mm2
AWG18
E 1.0mm2
AWG18
Connection
Supply Cable
N 1.0mm2
1 1.0mm2
2 0.75mm2
3 0.75mm2
0.75mm2
Inverter Type
Model Capacity (BTU/hr)
9k
Sectional Area
Power Supply
Cable
N 1.0mm2
(1.5mm2)
AWG18
(AWG16)
L 1.0mm2 (
1.5mm2)
AWG18
(AWG16)
E 1.0mm2
AWG18
(AWG16)
Connection Supply
Cable
N 1.0mm2
(1.5mm2)
L 1.0mm2
(1.5mm2)
1 1.0mm2
(1.5mm2)
1.0mm2
(1.5mm2)

19
After Sales Support
Telephone: [phone]
Email: [email protected]
Other Useful Information (Cont.)
Responsible disposal
• Packaging materials are recyclable. Please dispose them responsibly for
recycling.
• At the end of its working life, do not throw this appliance out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling and recovery of the refrigerant. Contact your local authorities for
advice on recycling facilities in your area.

After Sales Support
Telephone: [phone]
Email: [email protected]
