Stirling STR-23RSJAIF User manual

Model Number STR-23RSJAIF
Reverse Cycle Inverter
Split System Air Conditioner
INSTALLATION MANUAL
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

2
Contents
03 Warranty Details
04 Welcome
05 General Safety Instructions
06 Product Overview
07 Selecting the Installation Place
09 Installation
17 Information for the Installer
19 Other Useful Information
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

3
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Reverse Cycle Inverter Split System Air Conditioner
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts
for a period of 60 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion, solely at our option with no charge for
parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer
has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
YEARS
IN HOME
WARRANTY
5

4
Welcome
Congratulations on choosing to buy a STIRLING®product.
All products brought to you by STIRLING®are manufactured to the highest
standards of performance and safety and, as part of our philosophy of customer
service and satisfaction, are backed by our comprehensive warranty. We hope
you will enjoy using your purchase for many years to come.
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

5
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
General Safety Instructions
FOR THE INSTALLER
• Read this guide before installing and using the appliance.
• Compliance: Install the appliance in accordance with all applicable regulations.
• No children’s access: During installation of the indoor and outdoor units,
do not allow children access to the working area.
• Do NOT install the unit:
• In environments where the air could contain gas, oil or sulphur.
• Near sources of heat.
• At a distance of less than 50cm from flammable substances (e.g. alcohol or
other flammable liquids or gases) and pressurised containers (e.g. spray cans).
• Ventilation: If the appliance is used in areas without the possibility of
ventilation, precautions must be taken to prevent any leaks of refrigerant
gas from remaining in the environment and creating a fire danger.
• Outdoor unit: Make sure that the base of the outdoor unit is firmly fixed.
• Disconnect power circuits: Before accessing the terminals, all the power
circuits must be disconnected from the power supply.
• Refrigerant system: Check that air cannot enter the refrigerant system and
check for refrigerant leaks when moving the air conditioner.
• Voltage: Ensure that the mains voltage corresponds to that stamped on the
rating plate. Keep the switch or power plug clean.
• Socket: Check and ensure that the socket is suitable for the plug.
• Fuse ratings: The ratings of the fuse installed in the built-in control unit are
3.15A/250V for 220V type and 3.15A/125V for 110V type.
• Overload protection: The user must protect the indoor unit with a fuse of
suitable capacity for the maximum input current or with another overload
protection device.
• Packaging materials: The packaging materials are recyclable and should
be disposed of responsibly for recycling.
• Test cycle: Carry out a test cycle after installing the air conditioner and
record the operating data. Make sure that air cannot enter the refrigerant
system and check for refrigerant leaks when moving the air conditioner.
PROTECT YOUR WARRANTY
These installation instructions for the STR-23RSJAIF STIRLING
Reverse Cycle Inverter Split System Air Conditioner are for use
by an appropriately qualified installer. Do not try to install the air
conditioner on your own; doing so will expose you to danger and
void the warranty. Contact a licensed installer.

6
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

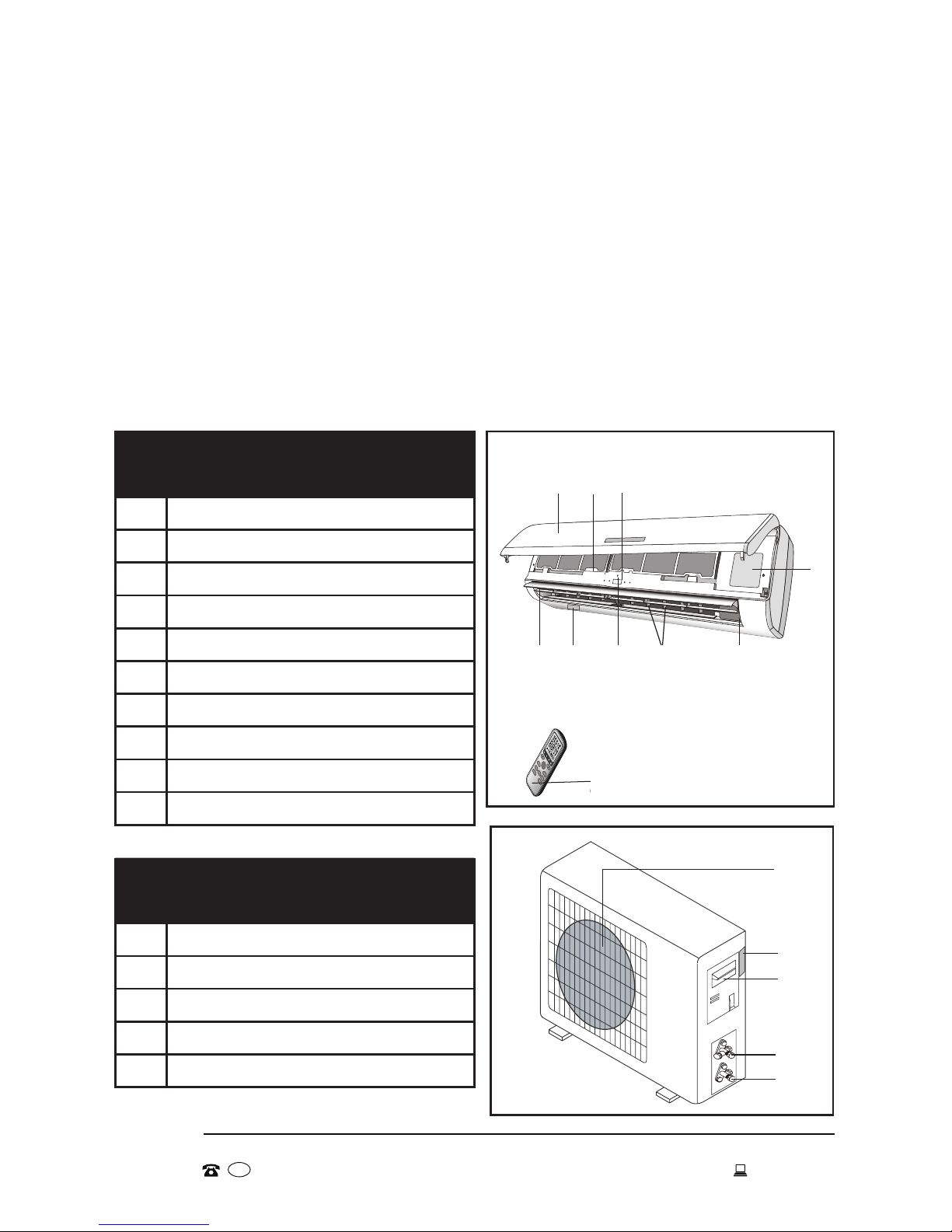

Product Overview
Indoor Unit
No Part
1 Front panel
2 Air filter
3 LED display
4 Signal receiver
5 Terminal block cover
6 Deflectors
7 Emergency button
8 Indoor unit rating label
9 Airflow direction flaps
10 Remote control
Outdoor Unit
No Part
11 Air outlet grille
12 Outdoor unit rating label
13 Cover
14 Gas valve
15 Liquid valve
QS
• This Reverse Cycle Inverter Split System Air Conditioner is made up of an
indoor and outdoor unit (Fig. 1 & 2), which are connected through properly
insulated copper pipes (not supplied) and an electrical connecting cable.
• The indoor unit is installed on a wall of the room to be air conditioned.
• The outdoor unit is installed outdoors on the ground, or on a wall on
suitable brackets.
• Technical data of the air conditioner is printed on the labels placed on the
indoor and outdoor units.
• The remote control has been designed for easy use.
NOTE: The figures throughout this manual are for illustrative purposes only
and may vary slightly from the appearance of the unit purchased.
12-3
6
4-5
9
11 8
10 7
DISPL AY HEAL TH Y
3D
ON/OFF
SWING
FAN
TIMER SUPER
SLEEP MODE
ECO
CLOCK
12
10
12 3-4
9 8 7 6
5
Fig. 1
QW
QU
QV
QT
12
13
14
15
11
Fig. 2

7
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Indoor unit
• This Inverter Split System Air Conditioner (9000 BTU) is suitable for cooling
or heating a room of max. 18 square metres in size.
• Install the indoor unit level on a strong wall that is not subject to vibrations.
• The inlet and outlet ports should not be obstructed, the air should be able
to blow all over the room.
• Do not install the unit near a source of heat, steam or flammable gas.
• Install the unit near an electric socket or private circuit.
Selecting the Installation Place
PROTECT YOUR WARRANTY
These installation instructions for the STR-23RSJAIF STIRLING
Reverse Cycle Inverter Split System Air Conditioner are for use
by an appropriately qualified installer. Do not try to install the air
conditioner on your own; doing so will expose you to danger and
void the warranty. Contact a licensed installer.
• Do not install the unit
where it will be exposed
to direct sunlight.
• Install the unit where
connection between
indoor and outdoor unit
is as easy as possible.
• Install the unit where
it is easy to drain any
condensation water.
• Observe the minimum
clearances stated
(Fig. 3).
• Check the machine
operation regularly and
leave the necessary
spaces, as shown in the
illustration, right.
• Install the indoor unit
where the filter is easily
accessible.

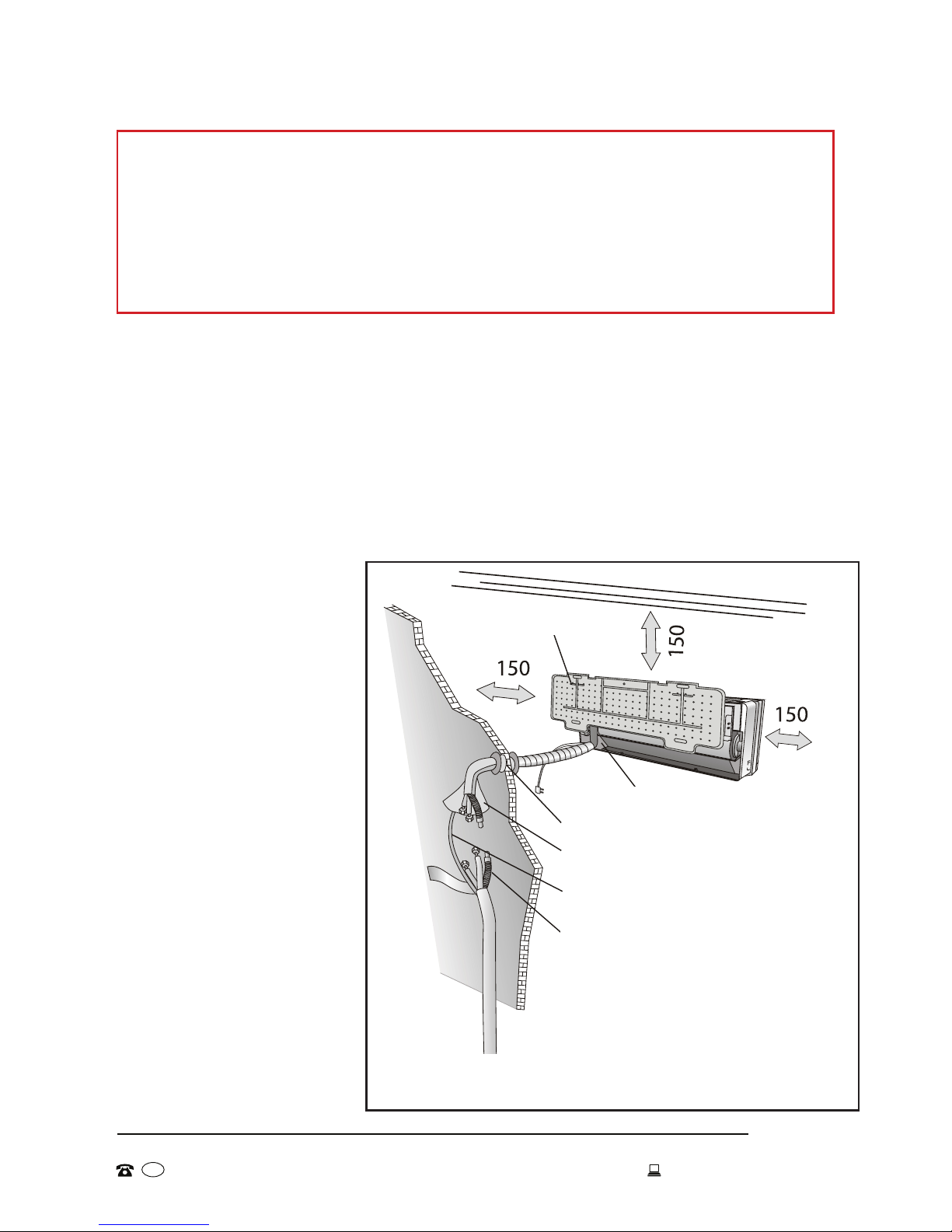

Fig. 3
Minimum clearances, in mm
Mounting plate
Condensed water drain pipe
Sleeve
Insulating covering
Electrical cable
Water drain pipe

8
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Selecting the Installation Place (Cont.)
Outdoor unit
• Do not install the unit:
• Near sources of heat, steam or
flammable gas.
• Where it is exposed to high
winds or excessive dust.
• Where people often pass.
• Avoid installing the unit where it
will be exposed to direct sunlight
(otherwise use a protection that will
not interfere with the airflow).
• Select a place where the air
discharge and operating sound
level will not disturb neighbours.
Installation diagram (Fig. 5)
Only persons and/or companies qualified and experienced in the installation,
service and repair of refrigerant products should be permitted to do so. The
purchaser must ensure that the person and/or company who is to install,
service or repair this air conditioner has qualifications and experience in
refrigerant products.
• Leave the minimum clearances around the unit for free air circulation (Fig. 4).
• Install the outdoor unit in a safe and solid place.
• If the outdoor unit is subject to vibration, place rubber gaskets on the feet
of the unit.
Fig. 4
Fig. 5
Minimum
clearances (mm)
Pipe length is
15m Max.
Pipe length is
15m Max.
Height should be less than 5m
Height should be less than 5m

9
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Installation
Installation of the indoor unit
• Before starting installation, decide on the position of the indoor and outdoor
units, taking into account the minimum space required around the units.
• Install the indoor unit in the room to be air conditioned, avoid installation in
corridors or communal areas.
• Install the indoor unit at a height of at least 2.5m from the ground.

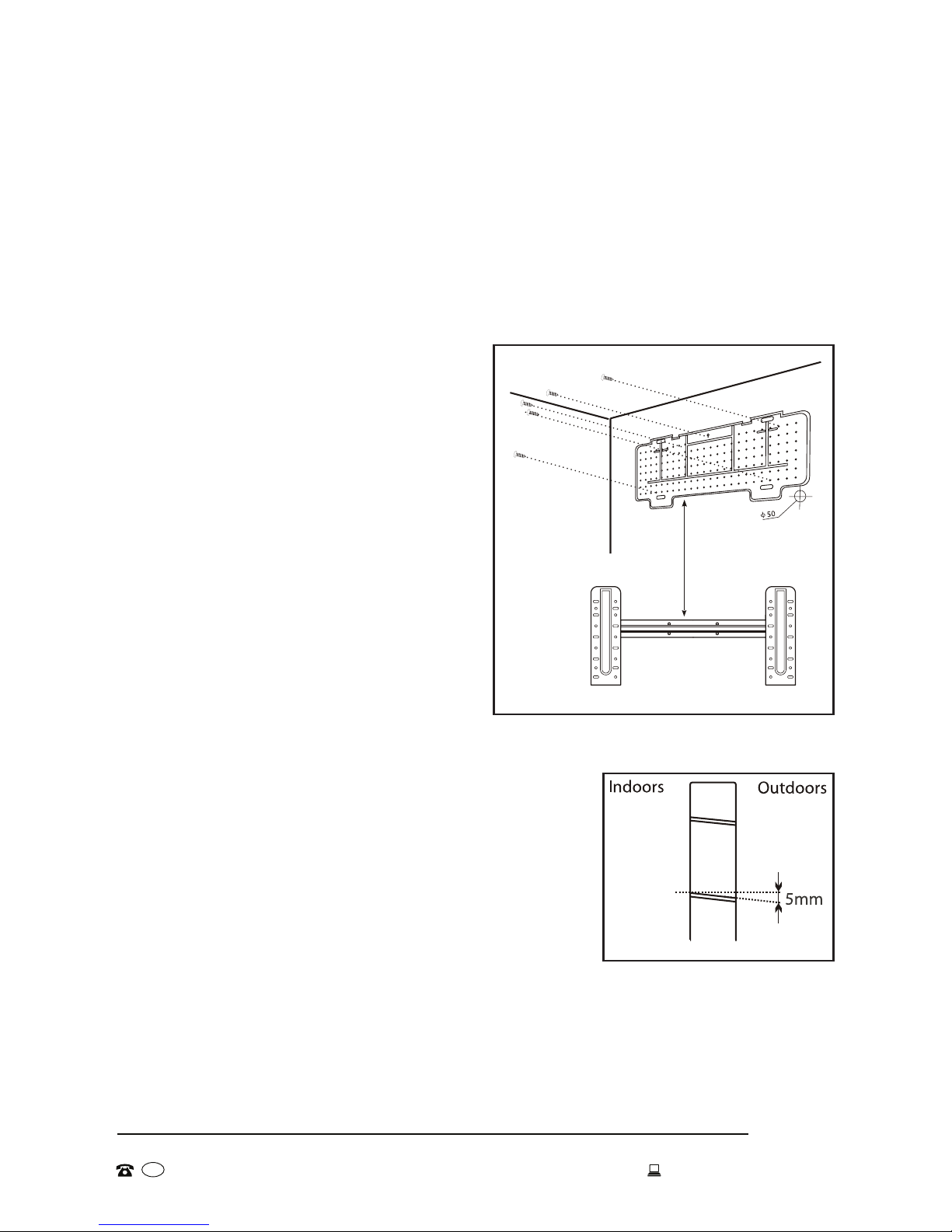

Installing the mounting plate
• Use a spirit level to put the mounting
plate in a perfectly level position
vertically and horizontally.
• Drill 32mm deep holes in the wall to
fix the plate.
• Insert the plastic anchors into the
hole.
• Fix the mounting plate by using the
provided tapping screws (Fig. 6).
• Check that the mounting plate is
correctly fixed.
Drilling a hole in the wall for the piping
• Decide where to drill the hole in the wall for the
piping, if necessary, according to the position of
the mounting plate.
• Install a flexible flange through the hole in the
wall to keep the latter intact and clean.
NOTE: The hole must slope downwards
towards the exterior (Fig. 7).
Keep the drain pipe down towards the direction
of the wall hole, otherwise leakage may occur.
Fig. 6
Fig. 7

10
Installation (Cont.)
Electrical connections for the indoor unit
Fig 8
Fig. 9
• Lift the front panel.
• Take off the cover, as indicated (Fig. 8), by
removing a screw or breaking the hooks.
• For the electrical connections, see the circuit
diagram on the right part of the unit under
the front panel.
• Connect the cable wires to the screw
terminals by following the numbering.
Use wire of a size suitable to the electric
power input (see the unit rating plate) and
according to all current national safety code
requirements.
• The cable connecting the outdoor and indoor
units must be suitable for outdoor use.
• The plug must be accessible after the appliance has been installed so that
it can be pulled out, if necessary.
• An efficient earth connection must be ensured.
• If the power cable is damaged, contact the after sales support line for
advice on replacement.
NOTE: The cable wires have been connected to the indoor unit’s main PCB
by the manufacturer according to the model without terminal block.
Refrigerant piping connection
• The piping can be run in the three directions,
as indicated by the numbers 1 to 3 in Fig. 9.
When the piping is run in directions 1 or 3,
cut a notch along the groove on the side of
the indoor unit with a cutter.
• Run the piping in the direction of the wall
hole and bind the copper pipes, the drain
pipe and the power cables together with
tape at the bottom, so that water can flow
freely.
Terminal block
cover
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Wiring diagram

11
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Installation (Cont.)
Connecting the pipes
• Do not remove the cap from the pipe until connecting it, to avoid dampness
or dirt from entering.
• If the pipe is bent or pulled too often,
it will become stiff. Do not bend it
more than three times at one point.
• When extending rolled pipe,
straighten the pipe by unwinding it
gently, as illustrated (Fig. 10).
Connections to the indoor unit
• Remove the indoor unit pipe cap and check that
there is no debris inside.
• Insert the nut and create a flange at the extreme
end of the connection pipe.
• Tighten the connections by using two wrenches
working in opposite directions (Fig. 11).
Water drainage from the indoor unit
The condensed water drainage from the indoor unit is fundamental for the
success of the installation.
• Place the drain hose below the piping,
taking care not to create siphons.
• The drain hose must slant down-
wards to aid drainage (Fig. 12).
• Do not bend the drain hose or leave
it protruding or twisted and do
not put the end of it in water. If an
extension is connected to the drain
hose, ensure that it is lagged when it
passes into the indoor unit.
• If the piping is installed to the right,
the pipes, power cable and drain
hose must be lagged and secured
onto the rear of the unit with a pipe
connection.
1) Insert the pipe connection into the
relative slot.
2) Press to join the pipe connection
to the base.
Fig. 10
Torque
wrench
Fig. 11
Fig. 12

12
Installation (Cont.)
After having connected the pipe according to the instructions, install the
connection cables, then the drain pipe (Fig. 13). After connection, lag the
pipe, cables and drain pipe with the insulating material.
• Arrange the pipes, cables and drain hose well.
• Lag the pipe joints with insulating material, securing it with vinyl tape.
• Run the bound pipe, cables and drain pipe through the wall hole and mount
the indoor unit onto the upper part of the mounting plate securely.
• Press and push the lower part of the indoor unit tightly against the
mounting plate.
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

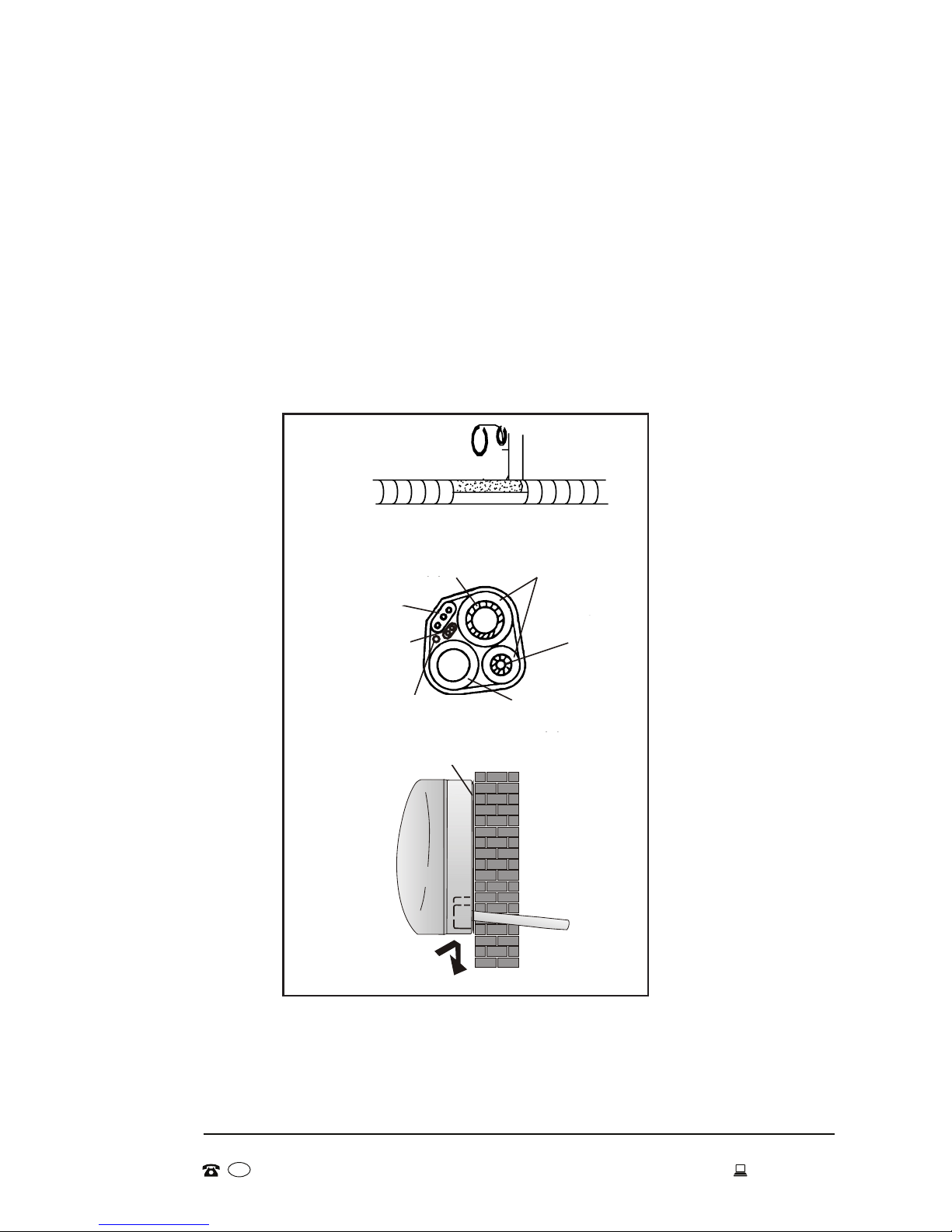

Fig. 13
Covered by vinyl tape
Mounting plate
Refrigerant pipe Insultation
sleeve
Refrigerant
pipe
Condensed water
drain pipe
Connection
cable 1
(for heat-pump)
Connection
cable
Probe cable
(for heat-pump)

13
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Installation (Cont.)
Installation of the outdoor unit
• The outdoor unit should be installed on a solid wall and fastened securely.
• Before connecting pipes and cables, decide on the best position on the
wall, leaving enough space for easy maintenance.
• Fasten the support to the wall using screw anchors that are particularly
suited to the type of wall.
• Use a larger quantity of screw anchors than normally required for the weight
they have to bear to avoid vibration during operation and remain fastened in
the same position for years without the screws becoming loose.
• The unit must be installed following all relevant local regulations.
Water drainage from the outdoor unit
Condensed water and ice formed in the outdoor unit while in heating mode
can be drained away through a drain pipe.

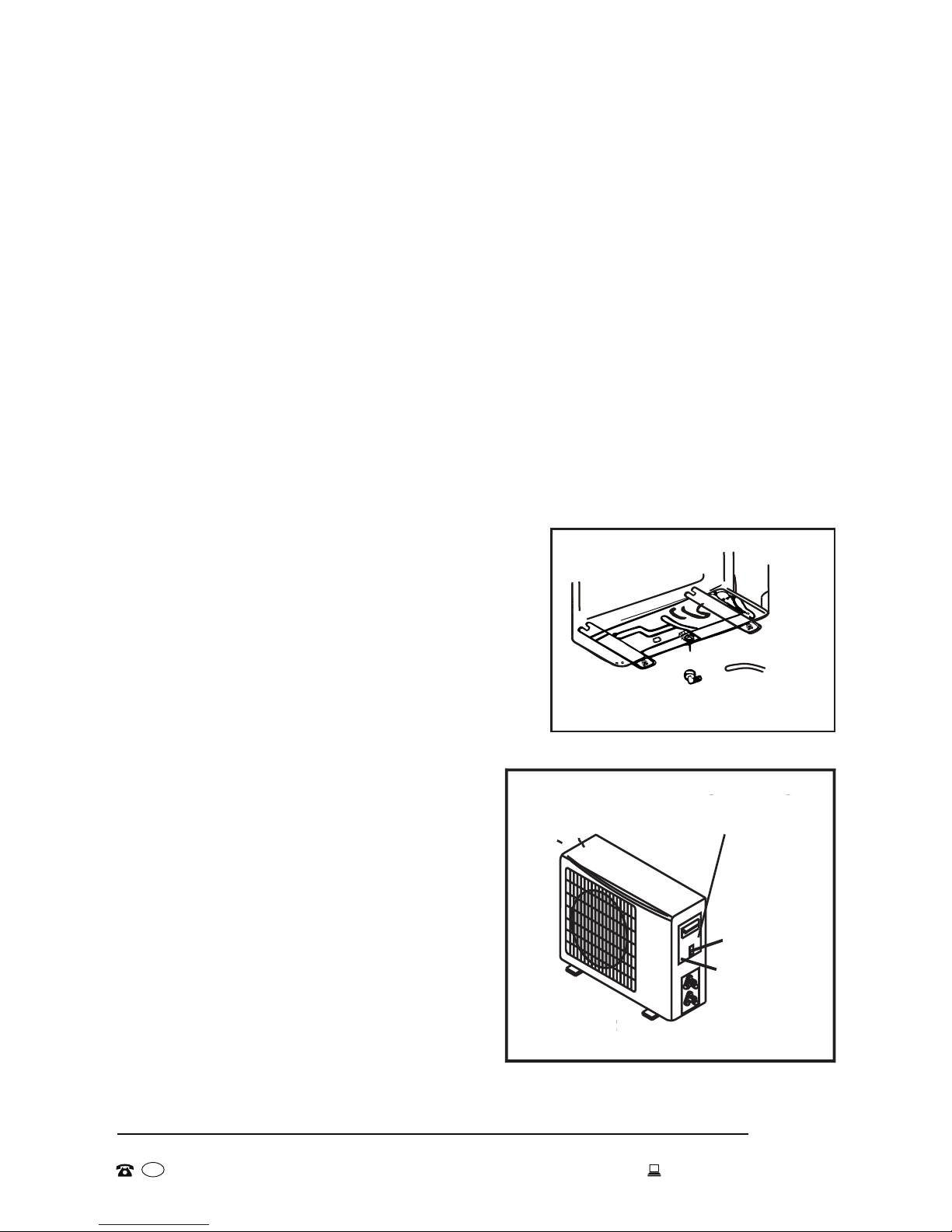

Fig. 14
• Fasten the drain port in the 25mm
hole placed in the part of the unit, as
illustrated (Fig. 14).
• Connect the drain port and the drain
pipe.
• Make sure that water is drained into a
suitable place.
Electrical connections
• Take off the cover.
• Connect the cable wires to the
terminal board using the same
numbering as in the indoor unit.
• For the electrical connections, see
the wiring diagram on the back of the
cover (Fig. 15).
• Fasten the cables with a cable clamp.
• An efficient earth connection must be
ensured.
• Replace the cover.
Drain port Drain pipe
Fig. 15 wiring diagram on the
back cover
Screw
Remove the
upper cover
Outdoor unit

14
Installation (Cont.)
Connecting the pipes
Screw the flare nuts to the outdoor unit coupling with the same tightening
procedures described for the indoor unit. To avoid leakage, pay attention to
the following points:
Bleeding
Air and humidity left inside the
refrigerant circuit can cause
compressor malfunction. After
having connected the indoor
and outdoor units, bleed the air
and humidity from the refrigerant
circuit by using a vacuum pump
(Fig. 17). Detailed instructions
follow on the next page.
• Tighten the flare nuts using two
wrenches, taking care not to
damage the pipes (Fig. 16).
• If the tightening torque is not
sufficient, there will probably be
some leakage. With excessive
tightening of the torque there
may also be some leakage, as
the flange could be damaged.
• The best way to tighten the
connections is using a fixed
wrench and a torque wrench, as
illustrated in Fig. 11 on page 11.
Fig. 16
Connection pipes
Flare nuts
Liquid tap
Gas tap
Liquid valve
Indoor unit
Gas valve
Protection caps
Service port nut
Fig. 17
Service port Vacuum pump
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

15
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Installation (Cont.)
Proceed as illustrated in Fig. 18 and Fig. 19 below:
• Unscrew and remove the caps from the 2-way and 3-way valves.
• Unscrew and remove the cap from the service port.
• Connect the vacuum pump hose to the service port.
• Operate the vacuum pump for 10 - 15 minutes until an absolute vacuum
of 10mm Hg has been reached.
• With the vacuum pump still in
operation, close the low-pressure
knob on the vacuum pump
coupling. Stop the vacuum pump.
• Open the 2-way valve by ¼ turn
and then close it after 10 seconds.
Check all the joints for leaks using
liquid soap or an electronic leak
device.
• Turn the body of the 2-way and
3-way valves. Disconnect the
vacuum pump hose.
• Replace and tighten
all the caps on the
valves.

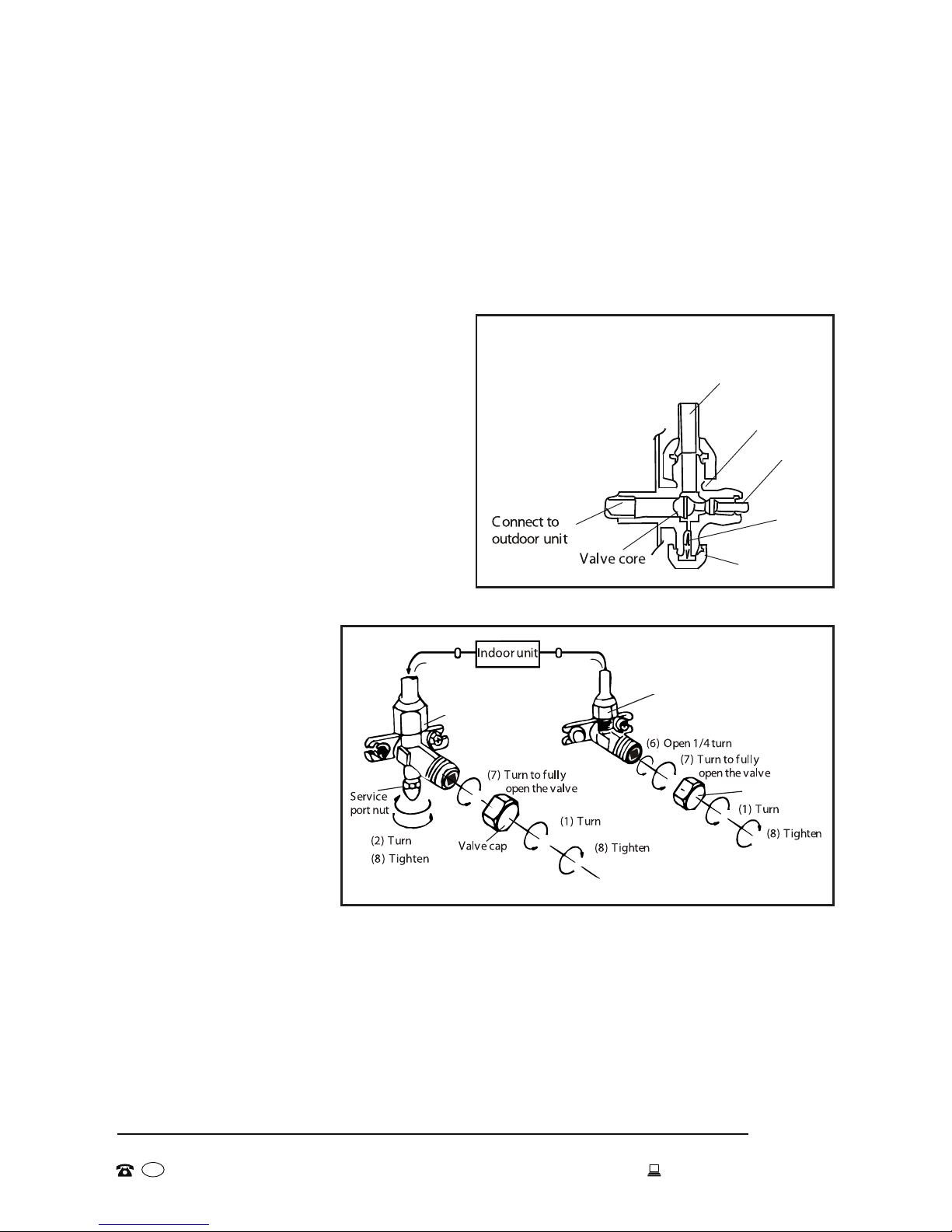

Fig. 18 3-Way valve diagram
Connect to indoor unit
Open position
Spindle
Needle
Service port cap
Fig. 19
Refrigerant flow direction
3-Way valve
2-Way valve
Valve cap

16
Installation (Cont.)
Final stage
• Wind insulating covering around
the joints of the indoor unit and
fix it with insulating tape
(Fig. 20).
• Fix the exceeding part of the
signal cable to the piping or to
the outdoor unit.
• Fix the piping to the wall (after
having coated it with insulating
tape) using clamps, or insert
them into plastic slots.
• Seal the hole in the wall through
which the piping is passed so
that no air or water can enter.
Indoor unit test
• Does the ON/OFF switch work properly?
• Do the HEATING, COOLING and FAN modes operate normally?
• Do the TIMER-ON and TIMER-OFF functions operate properly?
• Does each indicator light work properly?
• Do the flaps for air flow direction operate normally?
• Is the condensed water drained regularly?
Outdoor unit test
• Is there any abnormal noise or vibration during operation?
• Could the noise, airflow or condensed water drainage disturb the
neighbours?
• Is there any coolant leakage?
NOTE: The electronic controller allows the compressor to start only three
minutes after voltage has reached the system.

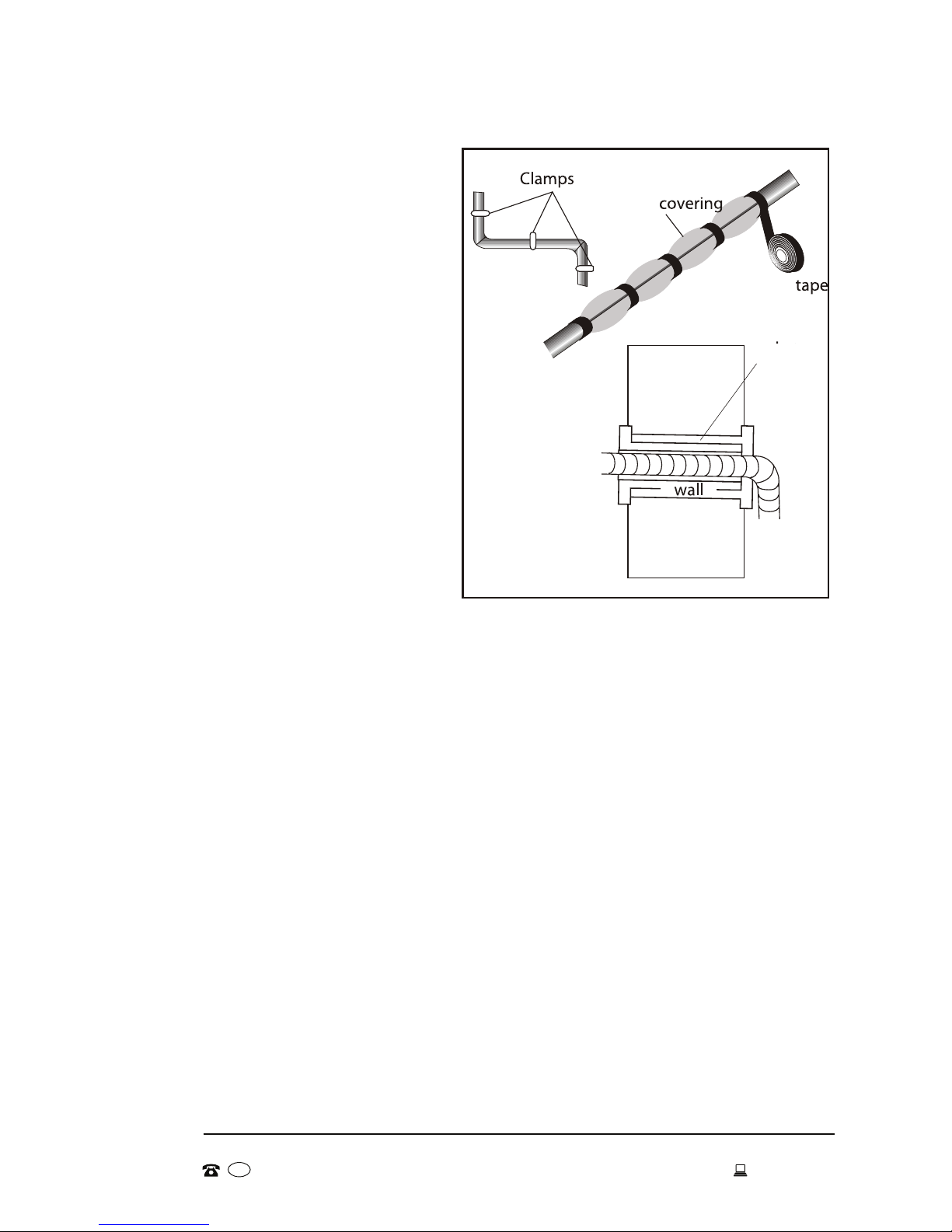

Fig. 20
Insulating
Insulating
Piping
Piping
Gasket
(Outdoor)(Indoor)
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

17
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Information for the Installer
Inverter Split System Air Conditioner Capacity 9000BTU
Liquid pipe diameter 6mm (1/4”)
Gas pipe diameter 9.52mm (3/8”)
Length of pipe with standard charge 3m
Type of refrigerant R410A
Tightening torque for protection caps and flange connection
Pipe Diameter Tightening
Torque
(N x m)
Corresponding
Stress (using a
20cm wrench)
Part Tightening
Torque
(N x m)
6mm (1/4”) 15 - 20 Wrist strength Service port nut 7 - 9
9.52mm (3/8”) 31 - 35 Arm strength Protection caps 25 - 30
12mm (1/2”) 35 - 45 Arm strength
15.88mm (5/8”) 75 - 80 Arm strength
Wiring diagram
Please see the diagram instructions attached to the unit first.
Pipe details
NOTE: The cable wires have been connected to the main PCB of the indoor unit by the
manufacturer according to the model without terminal block, see the wiring diagram on
the right part of the unit under the front panel and the back of the outdoor cover.
9K HEAT PUMP MODELS
For inverter type
9k heat pump models
Indoor unit
Outdoor unit
Power supply

18
Information for the Installer (Cont.)
Cable wires specifications
Type of 220V fuse used on the
indoor unit controller for 9k is
50T with rating 3.15A, 250V.
Type of 110V fuse used on the
indoor unit controller for 9k is
50T with rating 3.15A, 125V.
Type of fuse used on the
inverter outdoor unit controller
for 9k is 61T with rating 15A,
250V.
Model Capacity (BTU/hr) 9k
Sectional Area
Power Supply
Cable
N 1.0mm2
AWG18
L 1.0mm2
AWG18
E 1.0mm2
AWG18
Connection
Supply Cable
N 1.0mm2
1 1.0mm2
2 0.75mm2
3 0.75mm2
0.75mm2
Inverter Type
Model Capacity (BTU/hr)
9k
Sectional Area
Power Supply
Cable
N 1.0mm2
(1.5mm2)
AWG18
(AWG16)
L 1.0mm2 (
1.5mm2)
AWG18
(AWG16)
E 1.0mm2
AWG18
(AWG16)
Connection Supply
Cable
N 1.0mm2
(1.5mm2)
L 1.0mm2
(1.5mm2)
1 1.0mm2
(1.5mm2)
1.0mm2
(1.5mm2)
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014

19
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
Other Useful Information (Cont.)
Responsible disposal
• Packaging materials are recyclable. Please dispose them responsibly for
recycling.
• At the end of its working life, do not throw this appliance out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling and recovery of the refrigerant. Contact your local authorities for
advice on recycling facilities in your area.

Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. We recommend you save this
data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Telephone: [phone] (Aust) - Fax: [phone]
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30am to 06:00pm EST)
Email: [email protected]g
Reverse Cycle Inverter Split System Air Conditioner
AFTER SALES SUPPORT
1300 886 649 [email protected]
AUS
MODEL:STR-23RSJAIF PRODUCT CODE:43512 10/2014
YEARS
IN HOME
WARRANTY
5
