Stirling TW-16EQ User manual

Model Number TW-16EQ
N13275
40 Bottle Wine Cooler
1300 886 649
INSTRUCTION MANUAL

1After Sales Support
Telephone: [phone]
Contents
02 Warranty
03 Welcome
04 Important safety instructions
08 Parts and features
09 Installation
10 Instructions for use
11 Reversing the door swing
13 Care and maintenance
15 FAQs

2
After Sales Support
Telephone: [phone]
40 Bottle Wine Cooler
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a
period of 24 months from date of purchase. Defects that occur within this warranty
period, under normal use and care, will be repaired, replaced or refunded at our
discretion, solely at our option with no charge for parts and labour. The benefits
conferred by this warranty are in addition to all rights and remedies in respect
of the product that the consumer has under the Competition and Consumer Act
and similar state and territory laws.

3After Sales Support
Telephone: [phone]
Welcome
Congratulations on choosing to buy a STIRLING™ product.
All products brought to you by STIRLING™ are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service and
satisfaction, are backed by our comprehensive 2Year Warranty. We hope you will
enjoy using your purchase for many years to come.

4
After Sales Support
Telephone: [phone]
Important safety instructions
Pay particular attention to safety messages that follow this safety
alert symbol or the words DANGER, WARNING and CAUTION.
These words are used to alert you to a potential hazard that can
seriously injure you and others. The instructions will tell you how to
reduce the chance of injury and let you know what can happen if the
instructions are not followed.
Danger means that failure to
read this safety statement may
result in severe injury to you or
others.
Warning means that failure
to read this safety statement
may result in extensive
product damage or serious
personal injury.
Caution means that failure to
read this safety statement may
result in minor or moderate
injury, or damage to property or
equipment.
Read this manual thoroughly before first use, even if you are familiar with this type
of product. We have provided many important safety statements in this manual
concerning the use of this appliance. Always read and obey all safety statements.
They reduce the risk of fire, electric shock and injury when correctly adhered to.
Keep the manual in a safe place for future reference, along with the completed
warranty card, purchase receipt and carton. If applicable, pass these instructions on
to the next owner of the appliance.
This is a wine cooler, this is NOT a fridge.
A wine cooler is designed for the storage of bottles at a certain temperature that is
particularly suitable for wine ONLY. The temperature maintained in this wine cooler is
too low for safe storage of perishable foods.

5After Sales Support
Telephone: [phone]
Important safety instructions (Cont.)
Electrical safety
• Before connecting and turning on the appliance, ensure the electrical voltage and
circuit frequency correspond to those indicated on the appliance. Plug it into an
earthed, 3-prong, 220~240 VAC, 50 Hz wall outlet with a 15 A fuse (circuit breaker)
at the mains.
• Do not modify the cord and plug provided with the appliance. Improper use of the
grounded plug can result in the risk of electric shock. If the plug does not fit your
power outlet, have a proper outlet installed by a qualified electrician.
• Ensure the outlet is properly earthed to the ground. If unsure, consult a qualified
electrician or a service representative. Improper connection of the equipment
grounding conductor can result in the risk of an electric shock.
• Do not use an adaptor; do not use an extension cord.
• We recommend you connect the appliance to a separate circuit serving only this
appliance. Use a power point that cannot easily be turned off accidentally.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect the power before cleaning or servicing.
Failure to do so can result in electric shock or serious injury.
• If the power cord is damaged, do not use the appliance. Contact the after sales
support line to have it replaced.
• Never unplug the unit by pulling the power cord. Always grip the plug firmly and pull
straight out from the power point.
• Do not kink or damage the power cord. Do not leave it exposed or dangling. Secure
it behind the unit so no one steps on or places anything on the cord or against it.
• Any electrical work required for the installation of this appliance should be carried
out by a qualified electrician.
Usage conditions and restrictions
• This appliance is intended for indoor household use only. It is not suitable for
commercial or industrial use. Do not use it outdoors.
• Do not use this appliance for anything other than its intended purpose.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instructions concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance. Never
allow children to operate, play with or crawl inside the wine cooler.

6
After Sales Support
Telephone: [phone]
Installation
• This wine cooler must be properly positioned and installed as described in this
manual.
• This appliance is heavy, take care when moving it. Use two or more people to move
and install the wine cooler. Failure to do so can result in back or other injury.
• Install the appliance in an area protected from elements such as wind, rain, water
spray or drips.
• Do not install the wine cooler next to an oven, grill or other source of high heat.
• To ensure proper ventilation for your wine cooler, the front of the unit must be
completely unobstructed. Choose a well ventilated area with temperatures above
16°C and below 32°C.
• Keep any ventilation openings in the appliance enclosure clear of obstructions.
• It is important for the wine cooler to be level in order to work properly. You may need
to make several adjustments to level it.
• Check for leaks after connection.
Cleaning and maintenance
• Before cleaning the appliance, make sure it is disconnected from the power supply.
Failure to do so can result in electrical shock or injury
• Do not use solvent based cleaning agents or abrasives on the interior. These
cleaners may damage or discolour the interior.
• Never clean the wine cooler parts with flammable fluids, or store or use petrol or
other flammable vapours and liquids in the vicinity of this or any other appliance.
The fumes from these substances can create a fire hazard or explosion.
• Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• The LED lamp cannot be replaced.
• Do not attempt to alter or modify this appliance in any way.
• Do not attempt to repair or replace any part of your wine cooler unless it is
specifically recommended in this manual. All other servicing should be referred
to a qualified technician.
Important safety instructions (Cont.)

7After Sales Support
Telephone: [phone]
• At the end of its working life, do not throw this appliance out with your household
rubbish. Electrical and electronic products contain substances that can have
a detrimental effect on the environment and human health if disposed of
inappropriately. Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling and recovery of the
refrigerant. Contact your local authorities for advice on recycling facilities in your
area.
Important safety instructions (Cont.)
• Before discarding your Wine Cooler, disconnect it from the power supply and cut off
and render any plug useless.
• Risk of child entrapment: Take off the door and leave the shelves in place so that
children cannot easily climb inside.
Responsible disposal

8
After Sales Support
Telephone: [phone]
Parts and features
1
5
6
23
4
1. Cabinet top
2. Control panel with digital display
3. Glass door
4. Chrome bottle shelves (6)
5. Chrome straight edge shelves (2)
6. Levelling feet

9After Sales Support
Telephone: [phone]
Installation
First of all ...
Before installing your wine cooler, read all safety instructions in this manual, especially
the sections on electrical safety and installation. Then follow the instructions below.
• Remove all packaging materials from around and inside the appliance and dispose
of them responsibly. Plastic wrapping can be a suffocation hazard for babies and
young children, so make sure all packaging materials are out of reach of children.
• Check to ensure you have all of the following parts:
- 6 chrome bottle shelves
- 2 chrome straight shelves
• Inspect the cord for damage. Do not use the wine cooler if the cord is damaged.
Contact the after sales support line for advice.
• Clean the interior surface with lukewarm water and a soft cloth to remove any dust
from transit and storage.
• Before connecting the wine cooler to the power outlet, let it stand upright for
approximately two hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transport.
Installing the wine cooler
• This appliance is designed to be freestanding only and should not be recessed or
built in (fully recessed).
• Place your wine cooler on a sturdy, level floor that is strong enough to support it
when it is fully loaded.
• To level your wine cooler, adjust the levelling feet at the bottom of the unit.
• To ensure proper air circulation which is necessary for cooling the compressor, allow
125mm of free space at the back and sides of the unit.
• Install the wine cooler:
• Away from direct sunlight, which may affect the acrylic coating.
• Away from heat sources (stove, heater, radiator, etc.), which may increase the
wine cooler’s power consumption.
• In an area without extreme cold ambient temperatures, which may affect the wine
cooler’s efficient performance.
• In an area without excessive moisture and high humidity.
• Plug the wine cooler into an exclusive, properly installed and earthed wall outlet.
Do not under any circumstances cut or remove the third (earth) prong from the
power cord. Any questions concerning power and/or earthing should be directed
toward a certified electrician.
• After plugging the appliance into a wall outlet, allow the unit to cool down for two to
three hours before placing items in the compartment.

10
After Sales Support
Telephone: [phone]
Instructions for use
Setting the temperature control
Your new wine cooler has a temperature range of between 7ºC and 18ºC, the default
temperature is 13ºC. To adjust the temperature, press the UP or DOWN arrow
buttons on the control panel (see the illustration below). Each press increases the
temperature by 1ºC.
NOTE: Pressing both the UP and DOWN arrow buttons at the same time will
change the displayed temperature from degrees Celsius (°C) to degrees
Fahrenheit (°F).
We recommend keeping wine at the temperatures suggested below. In those
temperature ranges, the LED will either be illuminated yellow, green or red, as
indicated.
Champagne/sparkling wine 7ºC - 9ºC Yellow LED
White wine 10ºC - 15ºC Green LED
Red wine 16ºC - 18ºC Red LED
NOTE: When cooling both wine and beer simultaneously, we recommend placing
wine bottles on the top and beer on the bottom shelves.
Error messages
The thermostat can measure temperatures from 0°C to 37°C. The current temperature
inside the cabinet is displayed on the digital display. If the cabinet temperature falls
below 0°C, “LL” will be displayed; if it rises above 37°C, “HH” will be displayed; if
there is something wrong with the thermostat, “F1” will be displayed.
Interior LED light
Press LAMP on the control panel to turn the LED light on or off.

11 After Sales Support
Telephone: [phone]

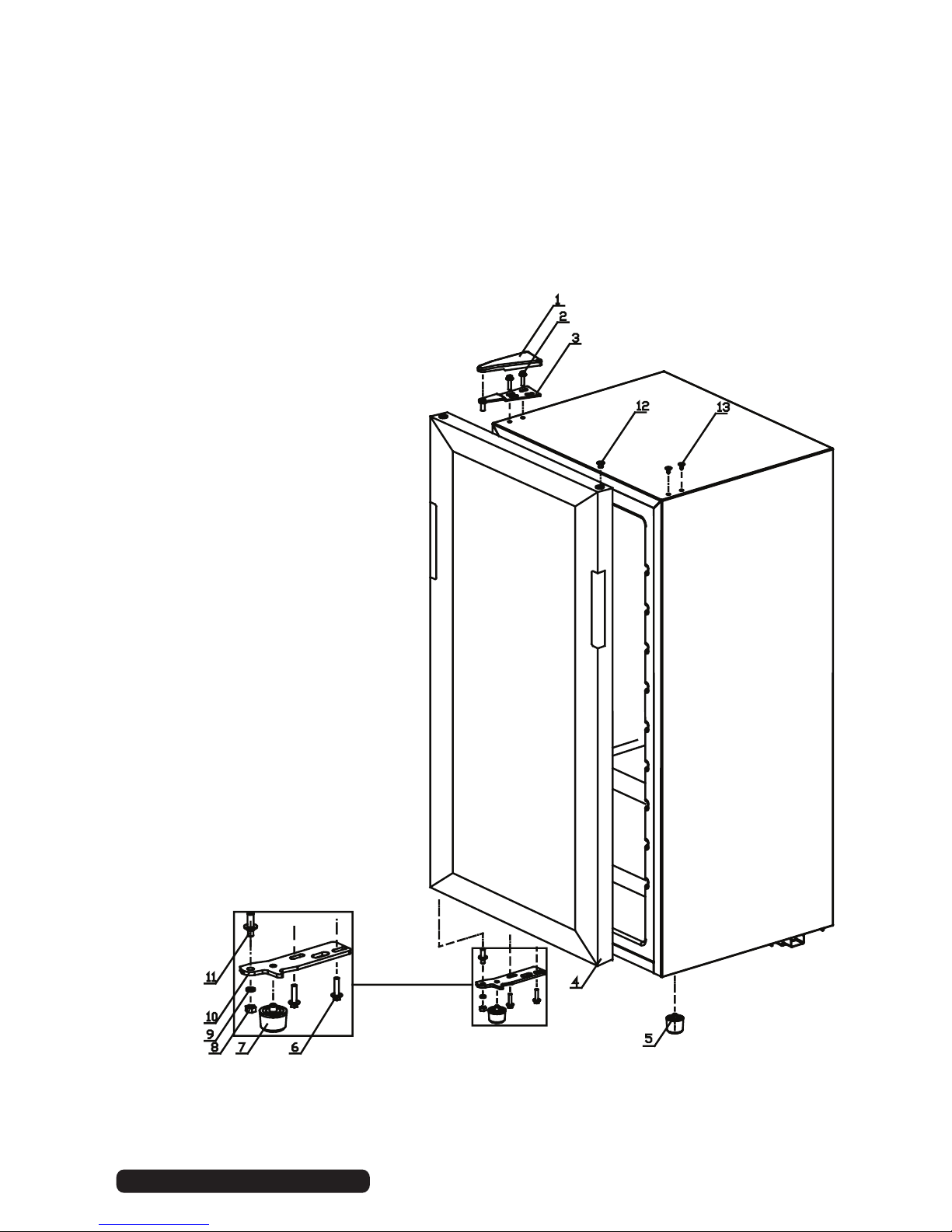

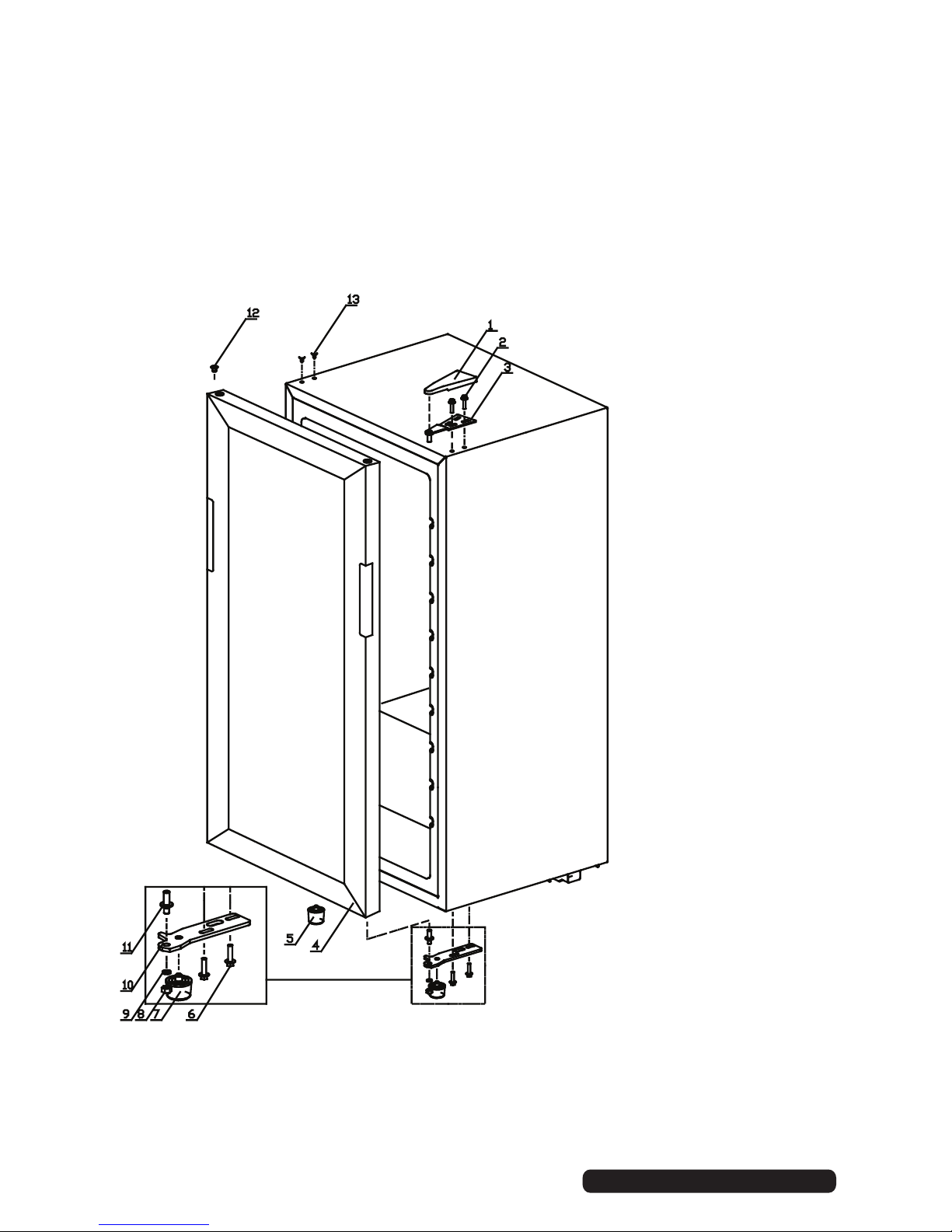

Reversing the door swing
The numbers in square
brackets refer to the
part numbers, as
illustrated.
1.Remove the upper
hinge cover [1]. Then
remove the screws
[2] and the upper
door hinge [3]. Keep
the these parts for
later use.
2.Remove the door
[4] from the upper
hinge [3] and keep
the padded surface
upwards to prevent
scratching.
3.Remove the screws
[6], then the pin [11]
from the lower door
hinge [10]. Keep
the hinge with all its
attachments for later
use: levelling foot [5,
7], screws [6], nut
[8], washer [9] and
pin [11].
The wine cooler has the capability of the door opening from either the left side or the
right side to suit your individual installation requirements. If you want to reverse the
opening direction, follow the instructions below and on the opposite page.
WARNING: Make sure the wine cooler is disconnected from the power supply when
changing the side at which the door opens.
NOTE:

12
After Sales Support
Telephone: [phone]
Reversing the door swing (Cont.)
4.Insert the pin [11] previously
moved from the right side and
transfer it into the other hole at
the left lower side of the door.
5.Insert the lower door hinge
[10] in the left lower side and
fix it to the cabinet with all the
attachments mentioned in point
3, opposite.
6.Remove the hole cover [13] and
transfer it to the same location
on the opposite side.
7.Remove the pin cap [12] from
the right side of the upper frame
of the door and transfer it to the
same location on the opposite
side.
8.Keep the door level and put it
on the lower door hinge [10].
Then fix the door to the cabinet
by fastening the screws in the
upper hinge [3].
9.Put the upper hinge cover [1] on
the upper hinge.

13 After Sales Support
Telephone: [phone]
Care and maintenance
Cleaning the wine cooler
• Unplug the wine cooler and remove all items including the bottle shelves and
straight shelves.
• Wash the inside surfaces with a solution of warm water and baking soda (about
2 tablespoons of baking soda dissolved in 250ml of water).
• Wash the shelves with a mild detergent solution.
• Rinse all parts well and wipe dry with a clean, soft cloth.
• Clean the outside of the wine cooler with mild detergent and warm water.
• Make sure to wring excess water out of the sponge or cloth when cleaning
around the area of the controls or any electrical parts.
Power failure
• Most power failures are corrected within a few hours and should not affect the
temperature of your wine cooler if you minimise the number of times the door is
opened. If the power is going to be off for a longer period of time, you need
to take the correct steps to protect your contents.
Vacation time
• Short vacations: Leave the wine cooler operating during vacations of less than
three weeks.
• Long vacations: If the appliance will not be used for several months, remove
all items and unplug the power cord. Clean and dry the interior thoroughly. To
prevent odours and mould growth, leave the door open slightly, blocking it open if
necessary.
Moving the wine cooler
• Remove all items out of the wine cooler.
• Securely tape down all loose items (shelves and racks) inside the wine cooler.
• Turn the levelling foot up to the base to avoid damage.
• Tape the door shut.
• Protect the outside of the wine cooler with a blanket or similar soft material
and make sure the wine cooler stays secure in the upright position during
transportation.
Energy saving tip
• Install the wine cooler in the coolest area of the room, away from heat producing
appliances and out of direct sunlight.

14
After Sales Support
Telephone: [phone]
If you encounter any problems with your wine cooler, try the suggestions below to see
if you can solve the problem before calling the after sales support line. You can solve
many common problems easily, saving you the time of a possible service call.
FAQs
Problem Possible cause
The wine cooler does not work. Check that it is plugged in.
Check whether the circuit breaker has
tripped or there is blown fuse.
The wine cooler is not cold enough. Check the temperature control setting:
the external environment may require a
higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The wine cooler does not have the correct
clearances.
The wine cooler turns on and off
frequently.
The room temperature is hotter than normal.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The wine cooler does not have the correct
clearances.
The wine cooler is vibrating. Check that the wine cooler is level.
The wine cooler seems to make too much
noise.
The rattling noise may come from the flow
of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of the
refrigerant.
Contraction and expansion of the inside
walls may cause popping and crackling
noises.
The wine cooler is not level.
The door will not close properly. The wine cooler is not level.
The door was reversed and is not properly
installed.
The gasket is dirty.
The shelves are out of position.

After Sales Support
Telephone: [phone]
