Kadeka PLAY KP115ER User manual

WINE CHILLER
INSTRUCTION MANUAL
MODEL NUMBER: KP115ER
Please read this instruction manual thoroughly before using.
Keep this manual handy for further reference.

Dear Customer:
Thank you for purchasing this quality product from KADEKA.
In order to achieve the best of this Wine Chiller, we recommend that you read the instruction manual before
using it. This manual contains important information including safety and installation instructions. Please
read it carefully before use and follow all safety information and instructions.
If you would like to find out more about any other products in KADEKA extensive range, visit us at
www.kadeka.com.vn

1
Table of contents
1. Table of contents.............................................................................................................................1
2. Environment Impact Statement .......................................................................................................2
3. Safety precautions...........................................................................................................................2
4. Name of component ........................................................................................................................5
5. Technical parameters......................................................................................................................6
6. Precautions for installation ..............................................................................................................7
7. Precautions for operation ................................................................................................................7
8. Method of operation ........................................................................................................................8
9. Routine maintenance and care instructions.....................................................................................9
10. Storage of red wine .......................................................................................................................10
11. Ideal wine temperature..................................................................................................................10
12. Troubleshooting ............................................................................................................................11
13. Disusing ........................................................................................................................................12
14. Waste disposal warning.................................................................................................................12
15. General hints................................................................................................................................12
Symbols used in the Manual and their definitions:
Not
allowed
This symbol means
that the behavior
as described is not
allowed, failing
which may give rise
to product
damages or
personal injuries.
Warning
This symbol means that the
safe operation of the product
and the personal safety of the
operator are concerned, and
that the operation must be
performed in strict compliance
with the requirements as
specified, failing which may
give rise to the product
damages or personal injuries.
Caution
This symbol means
that the operator must
pay attention to the
information as
described, failing
which may give rise
to the product
damages or other
losses due to the
improper operation.

2
Safety precautions
Protect the environment and avoid any pollution. This product may cause environment impacts during the
operation.
Please pay attention to the following:
The carton, plastics and other recyclable wastes must be put into the classified waste bin as designated.
The improper disposal of old batteries and other hazardous wastes may cause serious environmental
pollution; therefore, they must be stored in the waste recycling bin.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are not allowed to load and unload refrigerating appliances.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
For appliances which use flammable insulation blowing gases, the instructions shall include
information regarding disposal of the appliance. Only the service agent or similarly qualified persons can
disposal flammable insulation blowing gases of appliance.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
This appliance is intended to be used in household and similar applications such as
–Staff kitchen areas in shops, offices and other working environments;
–Farm houses and by clients in hotels, motels and other residential type environments;
–Bed and breakfast type environments;
–Catering and similar non-retail applications
Due to the special characteristics of the tempered glass, the tempered glass may be
exploded at the probability rate of 3%-5% according to the industrial estimate, while this
company will strictly control it within 3%.
This refrigerating appliance is not intended to be used as a built-in appliance.
Ensure that the power source complies with the requirements as indicated on the parameter
nameplate
An independent socket, at least 10A and complete with earthing device, shall be used, and it is not
allowed to use the transformer and extension socket for power supply.
In all cases, the socket must be connected to an earthing line and it is not allowed to modify
the power line and plug.
The power line plug shall keep in solid contact with the socket; otherwise, it may give rise to
any fire.
After the wine chiller is installed in place, the plug shall be easily accessible to facilitate the
Environment Impact Statement

3
removal of the wine chiller plug-in case of any accident.
Never damage the power line
Never pull out the wine chiller plug by dragging the power line. To remove the plug, hold it and
pull it out of the socket.
Avoid crushing of power line by the wine chiller body or trampling by anybody.
Take much care when handling the wine chiller. Bundle up the power line, but never roller it.
In case of damages of power line
When the power line is damaged or the plug is worn out, do not further use it. In such a case,
the power line or plug must be replaced at the repair workshop designated by the manufacturer,
or replaced by the competent professional.
Where the power line needs to be extended, the cross-sectional area of the extension line must
not be less than 0.75mm2.
In case of leakage of flammable gas
Firstly, close the valve with gas leakage, and then open the doors and windows for ventilation.
Never insert or remove the power socket of the wine chiller.
Never store or use the gasoline or other flammable substances in the immediate area of the
wine chiller to avoid fires.
Never place flammable and explosive substances and highly corrosive acid and alkaline etc.
in the wine chiller.
Avoid damages of the refrigerating circuit.
Do not use any electric device in the closet of this wine chiller.
Do not use any mechanical equipment or other methods to accelerate the defrosting process.
Please take good care of children
Prevent the children from playing inside the wine chiller.
Prevent the children from hanging from the door body to avoid injuries due to inclination of door
body or turnover of the wine chiller.
Prevent the children from putting their hands or feet into various types of punched holes and
side edges of the mechanical compartment, back plate or other metal protection parts of the
wine chiller, to avoid injuries.
Prevent the children from climbing or seating on the shelf in the wine chiller, for this may damage
the wine chiller and the shelf.
Please keep the key of the wine chiller, if any, out of reach by the children, to prevent the
children from locking themselves inside the wine chiller.
Prevent water ingress
Never sprinkle or flush the wine chiller using water, nor place the wine chiller in an area
exposed to moisture or water sprinkling, let alone filling the wine chiller with water, so as to avoid
impairment of the electric insulative of the wine chiller. Furthermore, failing to follow such
requirements may lead to electric shock and fire, or other accidents.
Avoid cold injuries
After the wine chiller is put into operation, never touch its inner surface, especially when your
hand is wet; otherwise, the skin may stick onto the inner surface to get injured.
Never modify the wine chiller without approval
It is not allowed to remove or modify the wine chiller without approval, nor to cause man-
made damages of the refrigerating circuit.
The wine chiller must be repaired by the competent professional.
Do not place the wine or other loads onto the door body when the door is open, to avoid any
accident
Remove the power socket in following cases
Before cleaning or servicing the wine chiller, or when the wine chiller is faulty or has a power
failure, remove the power line plug of the wine chiller, and wait for at least 5 minutes before
switching on the power supply again, to avoid damages of the compressor due to the
consecutive starts.

4
This wine chiller can be only used to store various types of wines
When the wine chiller is to be rejected
Keep the cabinet far away from the source of ignition to avoid any accident. Remove the door
of the wine chiller, to avoid any accident of children when they are playing inside it.
Deliver the wine chiller to the designated place for disposal.
Only the technical service personnel can carry out the maintenance of the wine chiller and
non-professional participation can be dangerous for users. The replacement of the soft power
cables must also comply with this regulation.
This appliance is intended to be used exclusively for the storage of wine.
The appliance is not suitable for the storage of food.
This refrigerating appliance is not suitable for freezing foodstuffs.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
When disposing of the appliance do so only at an authorized waste disposal centre. Do not expose to
flame.
To avoid contamination of food, please respect the following instructions:
Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental compatibility, which is nevertheless flammable. During
transportation and installation of the appliance, ensure that none of the components of the refrigerant
circuit becomes damaged.
The refrigerant (R600a) is flammable.
If the refrigerant circuit should be damaged:
Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.

5

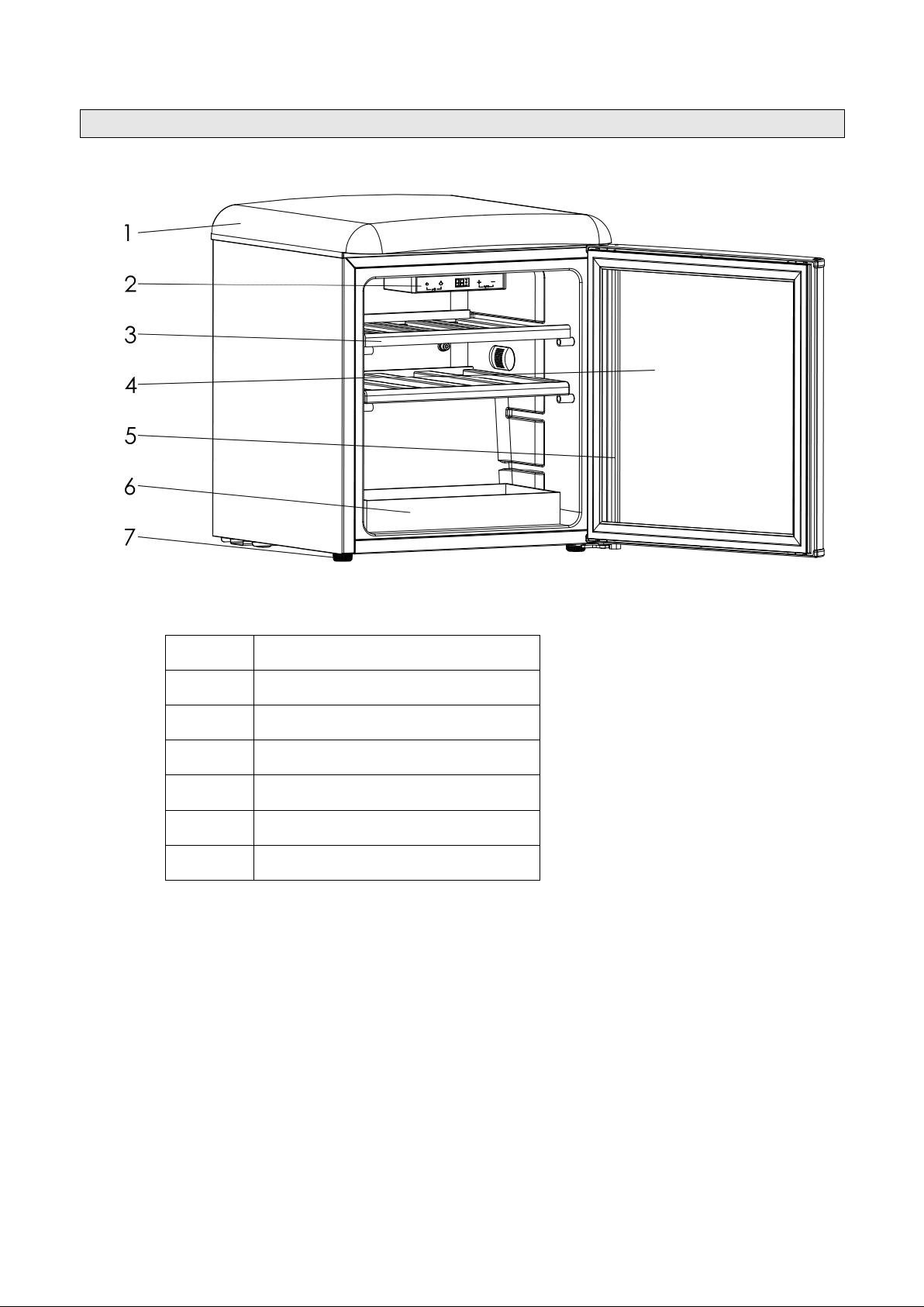

1
Top cover
2
Display panel
3
Shelf
4
Glass door
5
Door gasket
6
Wood box
7
Adjustment leg
Name of component

6
Model
KP115ER
Rated voltage and
frequency
220-240V ~ 50Hz
Climate type
N / ST
Rated current
0.8A
Volume
48L
Refrigerant
R600a / 16g
Insulation blowing agent
Cyclopentane
Dimensions
(Width * Height * Depth）
480*535*505
Note:
●The information about the climate type is provided on the nameplate of the wine chiller. “N / ST” indicates
this appliance is intended to be used at ambient temperatures ranging from 16°C to 38 °C’;
Technical parameters

7
Precautions for installation
The wine chiller shall not be tilted over 45° when being handled, and it can be electrified only 120
minutes after handling operation.
The wine chiller must be placed on a flat and solid ground surface. If it needs to be elevated, a
stable, solid and inflammable pad shall be used. Never use the packaging foam as the pad to
elevate the wine chiller.
Do not place the wine chiller in the area exposed to moisture or water splash. The water splash or
dirt on the wine chiller shall be timely removed using the soft cloth to prevent rusting and impairment
of electric insulative.
This wine chiller is designed to operate in environment temperature specified by its climate type
marked on the rating place. Do not use it in the rain. The wine chiller shall be kept far away from the
heat source and protected against sunshine, to avoid influencing the normal operation of the wine
chiller.
The appliance is only applied with power supply of single-phase alternating current of
220~240V/50Hz.The device uses a wall socket earthed according to current recommendations.
If the power cable is damaged, do not proceed with his replacement but contact your after-sales
service.
The socket must be readily accessible but out of reach of children. If unsure, contact your installer.
The wine chiller shall be well ventilated; otherwise, the normal operation of the wine chiller may be
adversely influenced. The ventilated space must be at least 20cm from the both sides of the wine
chiller. The ventilated space must be at least 10cm from the top and back sides of the wine chiller.
1. Clean the wine chiller.
2. Keep the wine chiller level. After the wine chiller is leveled and cleaned, do not electrify it
immediately. Keep the wine chiller stationary for more than 2 hours, and then electrify it to ensure
the normal operation of the wine chiller.
3. Close the wine chiller door, and insert the power line. After the power supply is switched on, the
wine chiller will start to work. If the wine chiller fails to work in a long period of time, check whether
the power socket and the electric circuit work normally. If, half an hour later, an abrupt reduction of
temperature is detected after the wine chiller door is opened, the wine chiller works normally. After
2~3 hours, adjust the temperature and then fill wines according the instruction. It is normal the
compressor will work for a longer time for the initial plugging, and then works intermittently.
4. Generally, do not stop the wine chiller, to avoid influencing its normal service life. After the power
line plug is removed, wait for at least 5 minutes before inserting it again, to ensure the normal
operation of the wine chiller.
5. Do not switch off the power supply of the wine chiller when unnecessary, because the power
interruption may cause temperature rise inside the wine chiller, thus to shorten the storage term of
wines and degrade their drinking quality.
6. A certain space shall be maintained between wine bottles, which will facilitate the circulation of cool
air. The figure illustrates the layout of drawers, baskets and shelves that result in the most efficient
use of energy for the refrigerating appliance.
7. It is not allowed to flush the wine chiller body using water, nor to wipe the body using the gasoline
or other organic solvents.
8. If the power cord is damaged, it must be replaced by the professional of the manufacturer, its repair
department or any similar department to avoid any danger.
9. All power sockets must be reliably earthed.
10. The system shall be set up during the initial operation of the product for better protection of this
product.
Precautions for operation

8

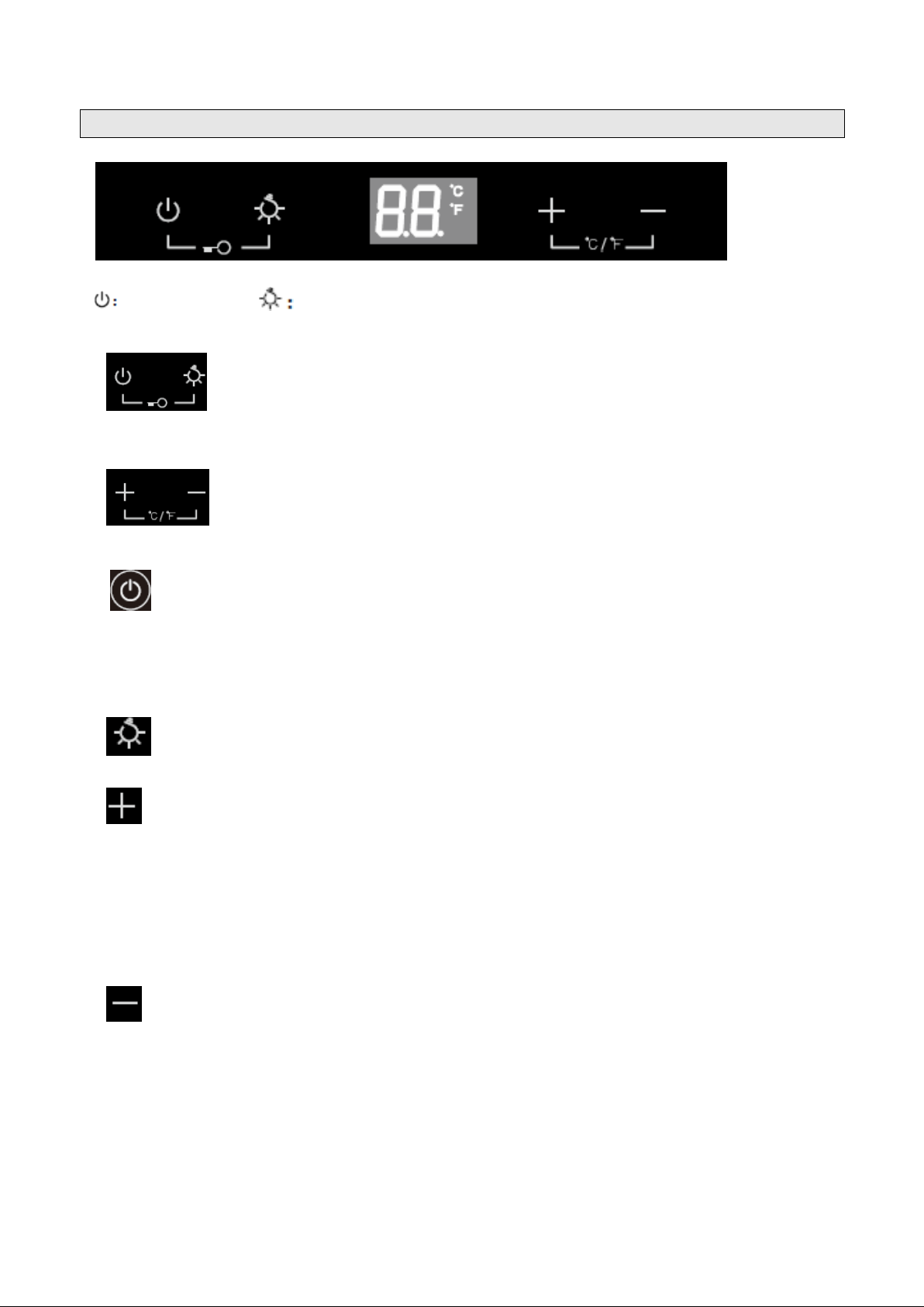

Power key Illumination lamp key +: temperature “+” key −: temperature “-”key
Quick start
1.
Child lock key (combined key)
Lock: No setting can be changed when the lock is activated. Lock is automatically
activated 30 seconds after a setting is changed or there is no activity. When
engaged, pressing any key will result in a 2-beep alarm.
Unlock: To deactivate the auto lock, press both keys simultaneously for 5s. Any
operation should be in unlock mode.
2.
Celsius degree/ Fahrenheit degree switchover key (combined key)
Press both keys simultaneously for 5s, and then you can switch over betweenthe
Celsius degree and Fahrenheit degree for display. Each time the key is pressed, a
switchover will be made. When setting the system temperature, it is not allowed to
switch over between the Celsius degree and Fahrenheit degree.
3.
Power on/off key:
1. Press this key for 5S, and then all external power sources will be disconnected and all
external equipment will be turned off, with the wine chiller in ready mode, the display
screen will indicate “οϜ” for 60s.
2. When the wine chiller is in the ready mode, touch any key to light the display screen and
then
press this power key for 5S, the wine chiller will restore its normal operation and work
under real-time conditions.
4.
Lamp on/off key
The lamp control key is a cycling key: Normally on → Normally off → Normally on.
5.
Temperature “+” key
1. Functions of temperature “+” key: In locked mode, the action of any key is detected, the
display screen will indicate the current set temperature. After unlock operation, this key can
be operated to increase the set temperature by 1℃each time the key is pressed. The
display screen will indicate the current set temperature in a flashing way and at a certain
interval, and 5s later, if no further action of this key is detected, the setting after adjustment
will be memorized, and the screen will exit from the flashing mode and restore the indication
of the set temperature.
2. Rules of temperature adjustment: For example: 5℃(current set temperature)
→6℃→7℃→8℃→. . . →20℃.
6.
Temperature “ -” key:
1. Functions of temperature “-” key: this key can be operated to decrease the set
temperature by 1℃each time the key is pressed. The display screen will indicate the current
set temperature in a flashing way and at a certain interval, and 5s later, if no further action of
this key is detected, the setting after adjustment will be memorized, and the screen will exit
from the flashing mode and restore the indication of the set temperature.
2. Rules of temperature adjustment: For example: 20℃(current set temperature) →1
9℃→1 8℃→17℃→. . . 5℃.
Method of operation

9
1. To develop the best performance of this machine and prolong its service life, it shall be serviced
frequently. Before maintenance, the power line plug shall be removed and it shall be confirmed that
the power supply has been cut off.
2. It is not allowed to remove the power line plug from the socket by
pulling the cable.

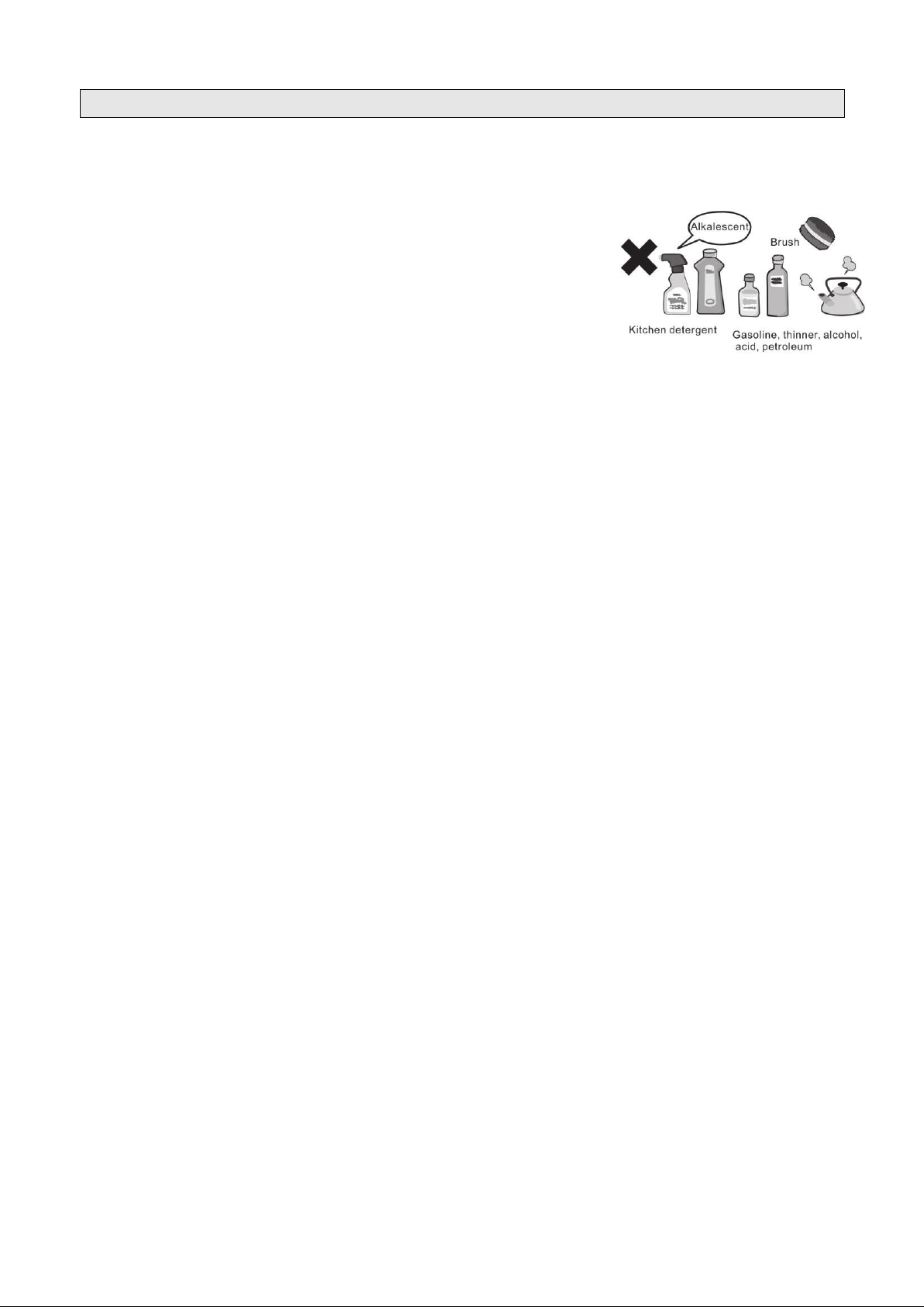

3. The wine chiller inside shall be thoroughly cleaned every year. To
clean the wine chiller, the plug shall be removed and the wine
chiller shall be emptied. Then the wine chiller inside shall be
cleaned using the wet soft cloth or sponge dipped with clean water
or soap liquid (or any other non-corrosive neutral cleanser). It is not
allowed to clean the wine chiller using the organic solvent, alkaline
detergent, boiled water, washing powder or acid and the like.
4. In the humid environment or in the rainy weather, the wine chiller surface may be dewed, especially
on the external surface of the glass door. This is caused due to the contact with the moisture in the
air. In such a case, the surface can be dried using the dry cloth.
5. To ensure the normal operation of the wine chiller in a long period of time, the user should inspect
the wine chiller on a regular basis; if any abnormality is found, the manufacturer shall be notified of
the same immediately.
6. During cleaning operation, it is not allowed to use the water to flush the compressor compartment of
the wine chiller. After cleaning operation, the wine chiller shall be wiped using the dry cloth to prevent
rusting.
Routine maintenance and care instructions

10
Red wine storage zone:
The storage zone is mainly intended to ensure the storage of your red wine under the best conditions.
The temperature of the storage zone has been set at 12°C at the delivery, and this temperature is suitable
for the storage of most of wine products.
The red wine is provided with a complicated nature due to its length of treating process. To express its
best feature, a specific environment is needed. Although all of wine products are manufactured at the
same temperature, they need to be preserved and tasted under different temperature conditions due to
their special features.
Therefore, as for the wine chillers of the wine manufacturer, the absolute temperature is not essential for
the storage of wine. However, a steady temperature is very important within a certain period of time. The
wine can be properly preserved at any temperature as long as its temperature is not changed.
Below we will tell you the storage temperature for different types of wine. If you desire a more appropriate
storage temperature than the inside temperature of the wine chiller (5 - 2 0℃), we recommend you to place
the wine outside, and then store it into the wine chiller when the wine chiller inside temperature is more
appropriate.
Amarone Classic Dry Red Wine 17℃
Amarone Classic Dry Red Wine 17℃
Barbaresco Wine 17℃
Barolo Wine 17℃
Beaujolais Wine 13℃
Bordeaux Blanc 6℃
Dry white wine 8℃
Bordeaux Red Wine 17℃
White Burgundy 11℃
Red Burgundy 18℃
Brunello Wine 17℃
Champagne 6℃
Chianti Classico 16℃
Languedoc-Roussillon 13℃
Passito di Pantelleria 6℃
Provence Rose 12℃Sweet
Sparkling Wine 6℃
Verdicchio di Matelica & Verdicchio dei Castelli di Jesi 8℃
Trentino White Wine 11℃
Franciacorta White Wine 11℃
Aromatic White 10℃
Fruity Dry White 8℃
Friulano Venetian Julia White Wine 11℃
Rodano White Wine 15℃
Loire Dry White Wine 10℃
Loire Liqueur Wine 10℃
Loire Red Wine 14℃
Passito Liqueur Wine 8 - 18℃
Rose Wine, New Wine 12℃
Light Red Wine with Malt Tannins 14℃
Red Wine with a Little of Tannins 16℃
Storage of red wine
Ideal wine temperature

11
If you find any abnormality during operation, immediately stop the operation, remove the power line plug,
and check the machine according to the following instructions. If necessary, contact the after-sales
service center of this company.
Status
Reason and solution
Too high noise
The wine chiller is not level
Level the wine chiller, for the unleveled wine
chiller may produce noise during
operation
The wine chiller
doesn't work
The power supply is not switched on
Switch on the power supply
The computer board is damaged
Notify the manufacturer for repair
The compressor is provided with a protection
mode
The operation interval of the
compressor is 5 minutes.
The wine chiller
door surface is
dewed
The door is opened too frequently or the
door is opened for too long time
Do not open the door for too long time,
nor open or close the door too
frequently
The external environment is highly humid
Dry using a piece of dry cloth
The wine chiller temperature is set too low
Set a proper temperature
The illumination
lamp is not lit
The illumination lamp is damaged
Notify the manufacturer for
replacement of the lamp
Check whether the power supply is switched
on
Check the power supply
The door is not
improperly sealed
and there is a
leakage of cool air
The door seal may be hardened or
deformed due to the low temperature
inside the wine chiller after operation for a
period of time.
Use the hot air of the hair dryer to bake the
deformed surface or use the hot towel to
cover the deformed surface, and close
door and press it
tightly after the door seal is softened.
The compressor
keeps operating for
long time
If the temperature in the summer is too high, the compressor will work for long time. This is
normal.
If the wine chiller is not cool enough, please check against the following items:
If the wine chiller door is not properly sealed or the door is opened too frequently, close the
door tightly, and open the door at a lower frequency. Do not place too many drinks in the
wine chiller, and maintain a certain space between foods.
If the temperature inside the wine chiller reaches too low required temperature, check the
temperature setup, and set the temperature at a higher level.
The refrigerating
effect of the wine
chiller is poor
Adjust the refrigerating level.
The wine chiller is exposed to sunshine or any heat source is located in its immediate area.
Any hot drink is placed into the wine chiller
The drinks in the wine chiller are crowded to impair the cool air circulation. The
wine chiller door is frequently opened or is not properly closed.
There is any odor in the
wine chiller
The new wine chiller may give off the smell of the foaming agent or plastic. That’s normal,
and such smell will disappear slowly in future. Check whether there is any spoiled drink
inside the wine chiller.
Any odorant drink shall be tightly sealed using the plastic bag. The wine
chiller shall be cleaned on a regular basis.
The wine chiller
produces the liquid
flowing sound.
The sound is generated from the flowing of the refrigerant inside the circulating pipeline of the
refrigerating system. That’s normal. No further treatment is
required.
The wine chiller
produces snapping
sound in operation
This is the sound generated in the startup of electric components, such as the relay and
thermal protector, during start or stop of the wine chiller.
This is caused by the mutual fine movements of various kinds of materials due to the
inconsistent thermal expansion and contraction arising out of abrupt
changes of the wine chiller inside temperature when the wine chiller is being started or
stopped.
Troubleshooting

12
If it is not used for a long time, turn off the wine chiller, pull out the plug and take off the
safety device or break the fuse.
Do a good job in cleaning and open the cabinet door so that no smell will be produced.
Packing materials are used to protect the electric appliance during transportation, and
every part of the material is recycled material.
●Paper board/cardboard (made of waste paper)
●Polystyrene blocks (foam, non-fluorinated polystyrene)
●Plastic film, bag (polystyrene)
●Packing tape (polystyrene)
●Do not let children play with packaging material, because the plastic film
may cause suffocation!
●Send the packing materials to the public environmental recycling station.
The outdated wine chiller in residential areas where garbage is not classified still has many
valuable raw materials which shall be dealt with.
The outdated wine chiller shall be discarded immediately; the plug shall be pulled out,
and the soft power cable shall be removed. Destroy the lock to prevent children from
locking themselves when they play.
●Before sending the outdated wine chiller to the public recycling station, the cold circulation
system shall not be damaged to ensure the refrigerant and oil of the wine chiller will not leak.
●Information about recycling dates and recycling stations can be consulted with local
sanitation departments or government agencies.
Correct disposal of this product
Thissymbolontheproduct,orinitspackaging,indicatesthatthis productmaynotbe
treatedashouseholdwaste.Instead,itshouldbe takentotheappropriatewaste
collectionpointfortherecyclingof electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by the inappropriate waste handling of this product. For
more detailed information about the recycling of this product, please contact
your local council, your household waste
disposal service, or the shop where you purchased the product.
The leak proofness of refrigerant cycle has been tested.
The manufacture of this product has been updating the products. In appearance,
accessories and certain technical aspects, the wine chiller you bought may be partly
different from the manual, please understand.
Disusing
Waste disposal warning
General hints

13
Winner, SPBA –Established Brands
Capital Marketing(S)Pte Ltd
Tel:[phone] Fax:[phone]
