IP Industrie JG 32 User manual

WINE CELLARS
USER MANUAL
Linea Easy
LE PICCOLE

Please read the instructions carefully and always keep them within reach
for easy consultation.
All the instructions must be complied with
to correctly operate the equipment .
The manufacturer does not shoulder any responsibility
for failures due to noncompliance with the instructions
provided.
Does not accept claims on the values of temperature or humidity reached
related to detection tools inadequate or unsuitable or perceived sensorial-
ly, the reference values are those that appear on the display of the product
detected with probes certified and calibrated by the manufacturer.
All packaging materials are environmentally friendly and may be recy-
cled please dispose of the package in an environmentally sound way.
Dismissed equipment is not valueless waste:
An environmentally sound disposal may recover precious materials.
WARNING!
If on the appliance there’s this danger signal
generally on the compressor label
It mean that contain COOLING GAS R 00 a
Highly flammable
To avoid possibility of dangerous, please open the door 5 minutes
Before plugging the devic into a power outlet

I N D E X
PERFORMANCE AND CHARACTERISTICS OF THE EQUIPMENT PAG. 2
CHECKING THE EQUIPMENT UPON DELIVERY PAG. 2
CLEANING AND POSITIONING ACCESSORIES PAG. 2
CONNECTING AND INSTALLING THE EQUIPMENT PAG. 3
INSTALLATION AND SAFETY MEASURES PAG. 3
ADJUSTING TEMPERATURES PAG. 3
SINGLE-TEMPERATURE CELLARS PAG. 3
DUAL-TEMPERATURE CELLARS PAG. 4
DOORS REVERSIBILITY PAG. 6
SWITCHING ON AND OFF THE EQUIPMENT PAG. 6
AUTOMATIC DEFROSTING PAG. 6
HUMIDITY MAINTENANCE SYSTEM PAG. 6
SAFETY LOCK PAG. 6
LIGHT SWITCH PAG. 6
SERVICING PAG. 7
GENERAL SAFETY NORMS PAG. 7
MAINTENANCE AND CLEANING PAG.
APPLIANCE DESTRUCTION PAG.
WARRANTY PAG.
LIGHT REPLACE PAG. 9
BUILT-IN DIMENSION PAG.10
MANUFACTURER EEC DECLARATION OF CONFORMITY
Hereby declares that the products are in compliance with the following directive:
2014/35/ E, 2014/30/ E, 2009/125/CE, 2012/19/ E, 2011/65/ E.
With reference to harmonised standards:
EN60335-1, EN60335-2, EN55014-1, EN61000-3
1

PERFORMANCE AND CHARACTERISTICS OF THE EQUIPMENT
CONDITIONING CELLARS TO STORE AND SERVE WINE
GENERAL OPERATING INSTRUCTIONS OF SINGLE-
TEMPERATURE AND DUAL TEMPERATURE CELLARS
This appliance is certified for household use.
This equipment was conceived to replicate the ideal condition of a good natural cellar. To replicate such a peculiar
climate, IP uses a double "hot/cold" automatic circuit capable of ensuring the desired temperature inside the cellar.
An external temperature ranging between 16°C and 32°C does not affect the stable internal temperature. Ideal hu-
midity, stable temperature, anti-V ray’s glass and the use of special compressors on rubber supports ensure lack
of vibrations, low noise levels and low energy consumption.
CHECKING THE EQUIPMENT UPON DELIVERY
We suggest to unpack the equipment immediately after the parcel is delivered to check that it is whole and no
damage was caused during transport.
Any damage must be immediately reported to the carrier even if it was not identified until installation.
Damaged equipment may never be returned to the manufacturer without prior notice and unless prior written
authorisation has been received.
CLEANING AND POSITIONING ACCESSORIES
Before start-up wash inside the cellar and the accessories with neutral soap to remove the typical smell of new
products.
Place internal accessories in the most suitable way for use.

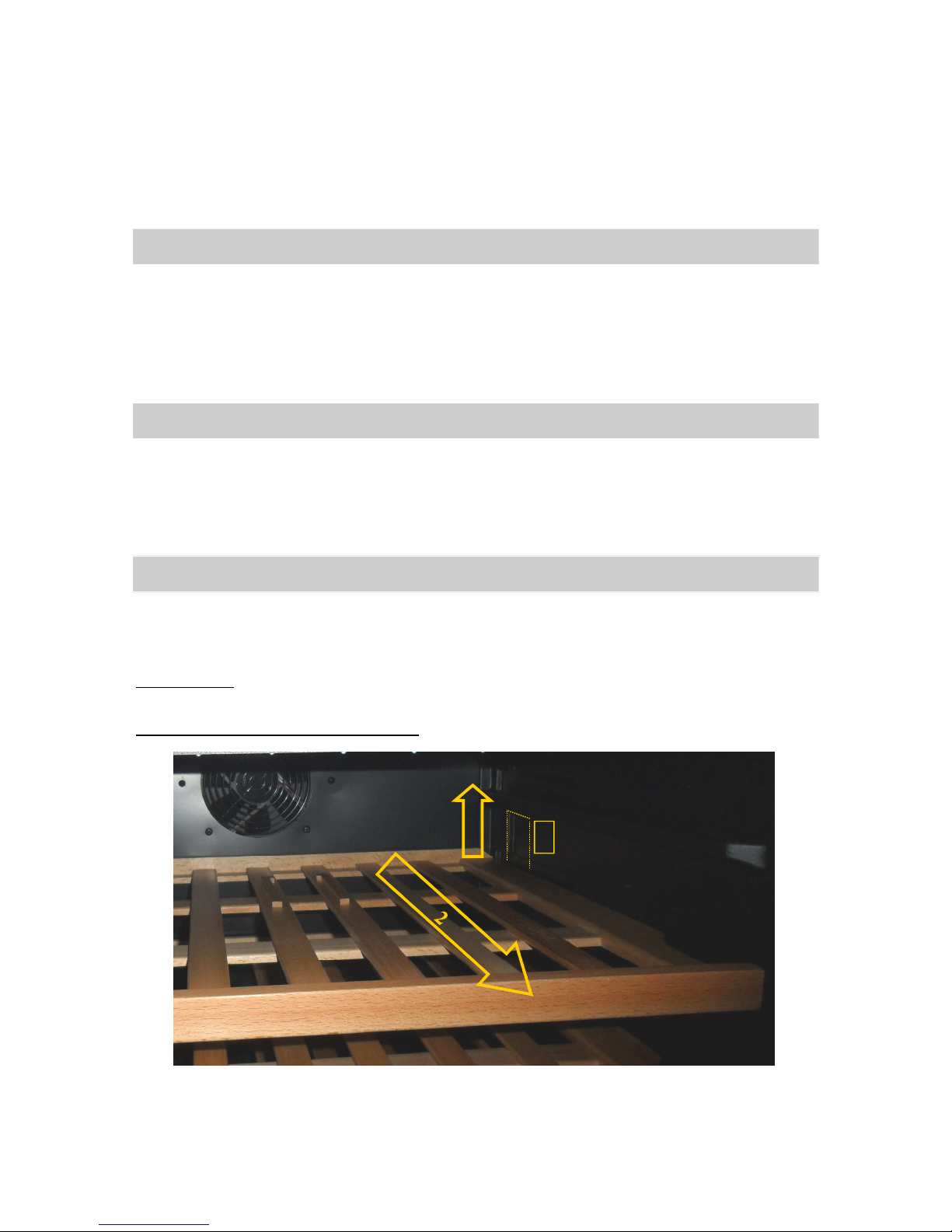

Moving shelves: to remove the shelves lift the right part at the groove on the side, than pull forward to remove. Do on
reverse to install the shelves. See the following picture.
Note: Maximum capacity for each shelf Kg 15
2
1A

INSTALLATION AND SAFETY MEASURES
Make sure that the effective mains voltage matches the value reported in the registration plate normally located
inside the equipment. A +/- 6% difference is allowed. The voltage value must be checked also when the equip-
ment is operating since a voltage lower than the allowed voltage may seriously damage the motor compres-
sor.
Damage deriving from the failure to comply with the present section is not covered by any warranty.
Insert the certified plug provided into a single-phase grounded outlet which must be permanently accessible and
allow disconnecting the equipment if necessary.
Please notice that grounding the e uipment is a safety measure and is legally mandatory.
The manufacturer does not shoulder any responsibility if this safety norm is not complied with.
As the plug is inserted into the socket the equipment will start operating.
Let the empty cellar operate for at least two hours, then place the bottles inside.
The cellar may initially be noisy; after the necessary running-in period has been completed, noise will de-
crease.
If the cellar is switched off and on again, it will not resume operating immediately; this is completely normal and
after a short interruption the cellar will resume operating automatically.
IMPORTANT
To ensure the correct operation of the cellar, it must be located in an environment not excessively hu-
mid, well ventilated and far from heat sources; moreover, direct sunlight must be avoided and the cellar
should be kept clean from dust or various debris. Any damage or defect caused by the failure to comply
with such norms are not covered by the warranty and may not be considered the manufacturer's
responsibility
ADJUSTING TEMPERATURES
Each cellar was carefully tested by the manufacturer at a temperature suitable for storing and serving wine.
By setting the desired temperature, warm and cold air flows are controlled automatically.
The constant operating of an electric fan, inside the cellar, allow to maintain a constant temperature in the
equipment different parts.
3
CONNECTION AND INSTALLATION
LEVELLING THE CELLAR
Place the equipment on a flat surface which must be perfectly levelled to ensure correct operation and
closing of doors.
Allow a 5 cm gap between the cellar and any surrounding surface to reduce energy consumption. (Except to the
built-in version).
ADJUSTING THE FEET OF METAL CELLARS:
Directly screw in or out the two lower feet until perfect alignment is achieved.

ADJUSTING TEMPERATURE IN SINGLE TEMPERATURE CABINETS
MODELS: JG 32 - JG 45 - CEXP 45 - CT 145 - CT 245
BC 45 - C 145 (LETIZIA Mono)
SYMBOLS
 POWER
 LIGHT
 RUN
 DISPLAY 
! UP 
" DOWN 
# TEMP. SET $ 
8) DISPLAY$ 
Temperatures can be setting between +5°C and+18°C
(In BC 45 model temperature there’s only one display, otherwise setting between +2°C and +10°C)
Adjust temperature setting by pushing key 5 (to increase temperature) or key 6 (to decrease tempe-
rature)
Each time you press button (5) and (6) temperature will increase or decrease of 1°C.
If for any reason your wine cellar is switched off, at restart the temperature programmed by the ma-
nufacturer is of 12°C (conservation temperature).
When the led (1) is on: it signals that the cooling system is working.
% &'(
4
)*+,
)*+,$

ADJUSTING TEMPERATURE IN DUAL VERSION MODELS
MODELS: JG 32 D - JG 45 D - C 145 D (LETIZIA Dual)
CEXP 45 - CT 145 - CT 245
SYMBOLS
UPPER PART.
5 / 10 C° LOWER PART. 10 / 18 C°
.Temperatures can be setting as follows:
• pper zone: from + 5°C to + 10°C
• Lower zone: from + 10°C to +18°C
To modify temperatures:
• pper zone: Display (4) shows the top cellar temperature
Push key (6) to modify temperature
• Lower zone: Display (5) shows the lower cellar temperature
Push key (7) to modify temperature.
After pressing key (6) or (7) the display will show the desired temperature and after a few seconds
the display will switch to show the actual temperature.
If for any reason your wine cellar is switched off, we inform that temperatures on restarting will be as
manufacturer programmed:
• pper zone: 6°C
• Lower zone: 12°C
When the green led (1) is on , the refrigerating system is operating.
5
0 15
2 3 4 5 7
POWER
LIGHT
Set pper
Set Lower
pper Chamber Lower Chamber
R N
1
 POWER
 LIGHT
 RUN
 UPPER CHAMBER  -
! LOWER CHAMBER.'-
" SET UPPER / -
7) SET LOWER /-

DOORS REVERSIBILITY
In every metal model the door can be reversibile.
In wooden or wood-paneled models (Mod. Letizia or CEXP 45 model) the door is not reversible.
In each cabinet you can find the necessary kit and instruction to modify the opening of the door.
After the door substitution, remember to keep each remaining parts in a safe place, in case you need
to reverse the door another time.
LIGHT SWITCH
The light switch “LIGHT” is:
• Beside the thermostat on the setting panel
• Inside the aeration grill under the door
On some models if the switch in not present it means that wine cellars have a switch to keep the light on
also when the door is closed and keep off when the door is open.
Energy saving: light will be automatically shutting off after 10 minutes from the start of the cabi-
net.
If you want to turn on the light all the time, please press and hold “LIGHT” button for 5 secs . It will show
on display “LP” and the light will turn on all the time.
If you want to energy conservation, repeat the operation and on display it will show “LF” and the light
automatically shutting off after 10 mins.
Note: if in your cabinet light is on all the time and by pressing the button “ LIGHT” for 5 secs
nothing show on display, it means that energy saving function is not activated.
SWITCHING ON AND OFF THE EQUIPMENT
This model has on/off switch “POWER” on electronic panel.
Turnig off this switch you defuse the cabinet operation, keeping in memory set point temperature.
This model is equipped with inside light on/off switch, it’s unrelated from POWER key, and so it’s
possible to have lighted light with turned off cabinet.
Some equipment does not have a button “switch off” on the electronic panel.
To switch on and off the equipment use the socket.
When the plug is inserted in the socket, the equipment is always in tension, for that reason the
current tap has always to be within reach, in order to allow to switch off the equipment
NOTES
AUTOMATIC DEFROSTING
The equipment has an automatic defrosting system.
During the stop phase of the compressor: “non refrigerating”, the refrigerating surface (back wall) will
automatically defrost.
The condensed water reaches a little basin situated near the compressor, and after that it eva-
porates.
HUMIDITY MAINTENANCE SYSTEM
The conditioned wine cellar is realised to maintain a correct degree of humidity.
In particular circumstances, if humidity is too low, it can be increased filling up the plastic basin 20 cl
(3/4 of it) with water. The level of water into the basin has to be periodically controlled.
The plastic cup is delivered inside the cabinet.
SAFETY LOCK
Some models are equipped with a safety lock, generally located on the bottom of the door.
It’s an esagonal key, to close press the key on the lock hole an turn in clockwise direction, to open
press and turn in counterclockwise direction.
Keep the keys out of the reach of children to avoid them docking themselves inside accidentally.
For the same safety reason, remove the lock or disassemble the door when you dispose of your
appliance.

Please, notice that in most cases the operating problems identified are due to simple causes or an
incorrect electric installation. Consequently, such problems may be easily solved on the spot by an
electrician and sometimes even without resorting to a specialist.
• If the equipment does not start make sure that:
- The plug is correctly inserted in the socket
- Current is correctly supplied to the outlet (to make sure, connect another electric appliance
to the same outlet.
- If no power is supplied, have an electrician to check the outlet.
• If the inner temperature is not sufficiently low, make sure that:
- No objet is preventing the door from closing tightly
- The equipment is not positioned near heat sources
- The back of the cellar is not touching the wall or not covered
- There is no excessive frost inside the cellar
- Make sure that the desired temperature was set
• If the equipment is too noisy, make sure that:
- No object touches the side or other parts of the equipment
- The equipment is perfectly leveled
- The back of the cellar is not excessively close to the wall
- The dripping basin located on the compressor is correctly anchored.
Following such checks, if the equipment still does not operate correctly, contact your dealer to in-
volve a specialist.
SERVICING
GENERAL SAFETY NORMS
Do not simultaneously insert more plugs into the same outlet by means of multiple sockets.
The electric outlet must be visible sufficiently far from the back of the cellar.
When the plug is inserted into the electrical outlet, do not directly spray inside or outside the cellar
any liquid or inflammable gas.
Lockable cellars
If your cellar is equipped with a lock, keep the keys out of the reach of children to avoid that they
unintentionally lock themselves inside.
For the same reason, remove the lock or disassemble the door when the equipment is to be dispo-
sed off.
7
FAULT CODE DESCRIPTION
E1-2-3-4SENSOR SHORT CIRC IT FA LT OR DISCONNECTED
HI WINE CELLAR'S TEMPERAT RE > 20°C
LO WINE CELLAR'STEMPERAT RE < 5°C
FAULT ALARMS
F1 FAN / FAN PPER ZONE BROKEN OR SHORT CIRC IT FA LT OR DISCONNECTED
F 2 FAN LOWER ZONE BROKEN OR SHORT CIRC IT FA LT OR DISCONNECTED

MAINTENANCE AND CLEANING
N.B. Before cleaning remember to disconnect the plug from the mains
The mechanic components of the equipment do not need any maintenance, however, in order to
ensure a long life of the e uipment, careful periodic cleaning is necessary:
- Outer walls of metal cellars: simply clean by means of a dry cloth, in case of difficult stains
use hot water, if necessary use natural detergents; finally rinse well and dry.
- Inner components: manual defrost if necessary.
To clean use water with natural detergents, do not use corrosive products or soap and pay
particular attention when cleaning refrigerating shelves: the use of abrasive and/or sharp material
may remove the protective film and damage the shelves.
- Plastic components: wash with warm water and natural soap if necessary.
Please notice that the door gasket must be kept perfectly clean by means of a moist cloth in order to
prevent the emergence of bad smell inside the cellar.
- Outer walls of wooden cellars: simply clean by means of a dry cloth. Once a year, we
recommend treating with natural wax or a product suitable for treating and nourishing wood, to keep
the wooden layer of your cellar always bright or shining.
- Outer walls of LETIZIA MODEL: simply clean by means of a dry cloth, and to make your
equipment more brilliant use products suitable for glass cleaning.
- Posterior part: in this area dust and little parts of debris are easy to lay.
For that reason, it is suitable to clean it once a year with a brush or a vacuum-cleaner.
- Frontal aeration grill: in built-in models with a frontal aeration grill it is suitable to clean the grill
once a year with a vacuum-cleaner, in order to eliminate dust and other debris.
- Inside light: To replace the inside light, spare parts is not available on standard market.
Please contact customer service. See also instructions pag. 8.
DiSPOSING OF THE EQUIPMENT
Old appliances should not simply be disposed of with normal household waste, but should be delivered to a col-
lection and recycling centre for electric and electronic equipment. A symbol shown on the product, the instruction
manual or the packaging shows that it is suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling
materials or other parts from used devices you are making a significant contribution to the protection of our
environment.
Information on appropriate disposal centres for used devices can be provided by your local authority.
GARANZIA SUL PRODOT
O
Terms of warranty are indicated in the certificate of warranty.
Note: for replacement of spare parts in time of warranty, warranty of spare parts finish whit period
warranty of the appliance
WARRANTY
8

REPLACING THE LED LIGHT ASSEMBLY
Disconnect the appliance by electrical supply, remove the top two Pull-out Roller shelves according to
“How to remove the shelves”.
sing a “+” type head screws screwdriver remove the lock screw (a)
and pull out the light cover(e).
Disconnect the housing(b)from the LEDlight assembly(d).
Remove LED light fixed by two screws “c” or by pcb connector
(c1) assembly to light cover (d)
c1
Remove the LED light assembly then you can replace the new
LED light assembly.
NOTE: FOR SOME MODELS ARE SUPPLIED COMPLETE PARTS JUST ASSEMBLY:
BAR LED (d) + PROTECTION(e), SO NOT YOU SHOULD REMOVE LED FROM THE PROTECTION, ENOUGH TO
REPLACE THE COMPLETE UNIT
SPARE PART NOT AVAILABLE ON THE MARKET, PLEASE CONTACT CUSTOMER SERVICE
9

Distributed by:
IP INDUSTRIE DEL FREDDO PROFESSIONALE S.p.a.
Strada Nuova 16 - 43058 Coenzo di Sorbolo (Parma) ITALY
Phone: [phone] - Fax: [phone]
E-mail: [e-mail] - www.ipindustrie.com
10
BUILT-IN DIMENSION MODELS: JG 45
Certified Quality System
ISO 9001 : 2015
Manufactured by:
NEW SH NXIANG ELECTRICAL APPLIANCE CO., LTD
Zhenxing Road, Nantou Town, Zhongshan City, Guangdong, China
