STKR TRi-MOBILE 12681 User manual

STKRconcepts.com

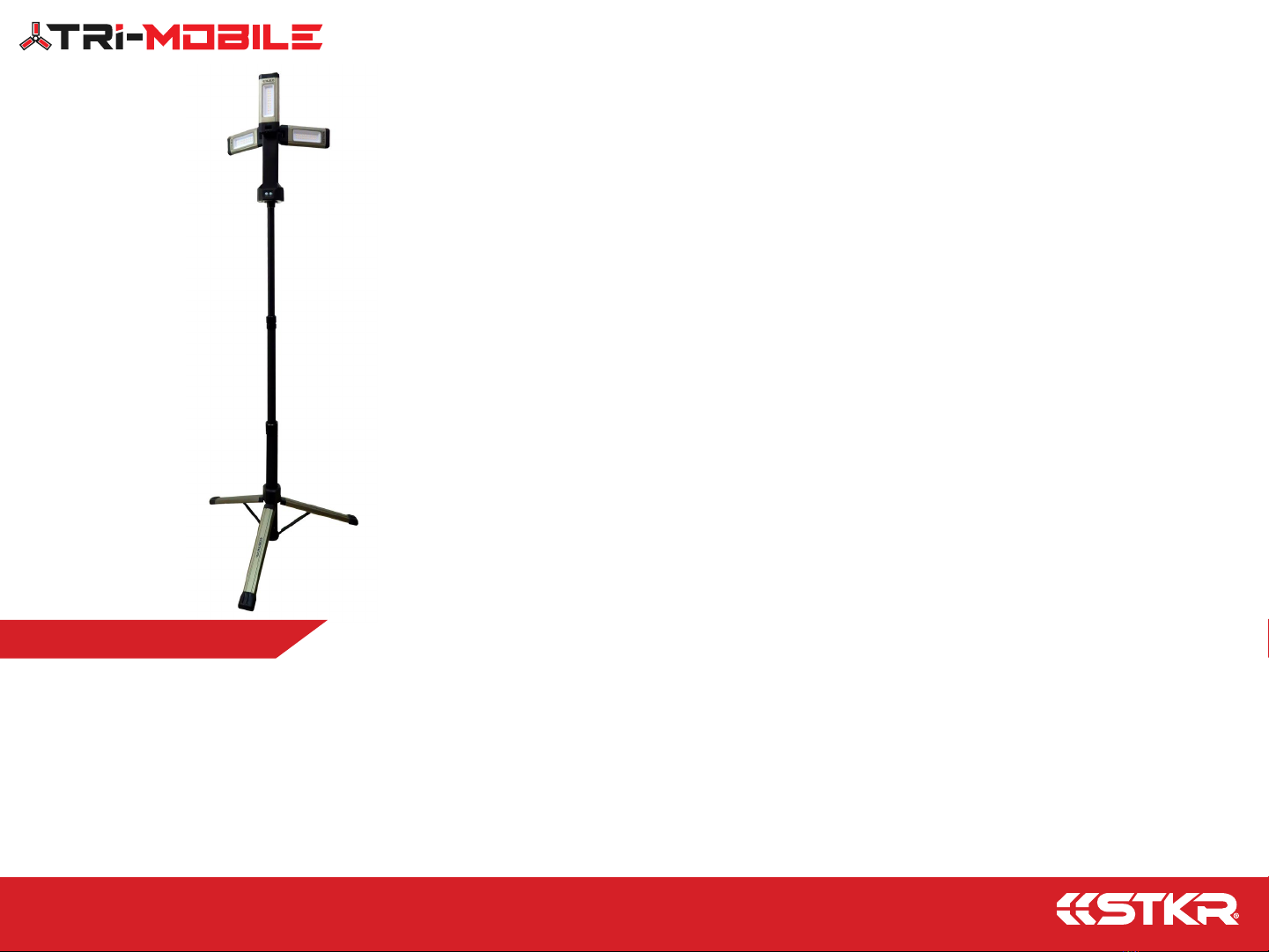

TRi-MOBILE
LIGHT
Light Source: LED
Total Max Light Output: 2000 Lumens
FLOOD LIGHT
-Output: 667 Lumens / head
-Color Temperature: 5400K or 4000K
-Beam Distance: 50m
-Beam Angle: 140 degrees
Item # 12681
UPC: 850026126815
PACKAGE CONTENTS
[1] TRi-MOBILE Light
[1] Tripod Stand
[1] USB-A 2A Charger
[1] USB-A to USB-C Cable
Specifications
OPERATION
POWER/MODE BUTTON
-Press to turn ON
-Press to change brightness:
-After 5 seconds of no brightness change, next button
press is OFF
Light Brightness Modes: 3
1. High
2. Medium
3. Low
4. Off
LIGHT COLOR BUTTON
When light is ON press the sun button to change the
color temperature of the light.
Light Color Temperature Modes: 2
1. 5400K (Cool White)
2. 4000K (Warm White)
BATTERY LEVEL INDICATOR
-Battery level indicator LEDs turn on when light is
turned on
-(1) 0-24% (2) 25-49% (3) 50-74% (4) 75-100%
RUNTIME
High: 1.5 hours
Low: 3 hours
BATTERY
Type: 18650 Lithium-ion
Quantity: 2
Integrated -Soldered
Total Voltage: 7.4V
Total Capacity: 2000 mAh
Total Watt Hours: 14.8Wh
Total Weight: 4.1oz (115g)
Total Lithium Content: 1.2g
CHARGING
Rechargeable: Yes, via USB-C port
Charge Time: 3 hours (with supplied charger)
Charger Voltage: 5V
Charger Amps: 2A
Charging Indication:
-Battery level indicator light blinks while charging
-All 4 battery level indicator lights are on when fully
charged
Recommended: charge stored unit every four months to
maintain optimum performance of lithium-ion battery and
maximize charging levels.
DURABILITY
Waterproof Rating: IPX4
Indoor/Outdoor Use
Impact Resistance: 1m
MATERIALS
-Aluminum light housing & tripod
-ABS plastic body & hook
-Acrylic lens
-Neodymium magnet
-Aluminum tripod thread mount M20x1.5
DIMENSIONS
Extended:
56” x 21.5” x 21.5” (1422mm x 546mm x 546mm)
Collapsed (with Light):
26” x 3.2” x 3.1” (660mm x 82mm x 79mm)
Tripod (collapsed):
18.5” x 2.75” x 2.75” (470mm x 70mm x 70mm)
Light:
3.2” x 3.1” x 8.2” (82mm x 79mm x 208mm)
Tripod Weight: 2lb 9oz (1.17kg)
Light Weight: 1lb 7oz (0.64kg)
Total Weight: 4lb (1.81kg)
PACKAGING
Dimensions: 19.25” x 3.5” x 7” (487mm x 89mm x
178mm)
Weight: 5lb (2.25kg)
OTHER
Manufactured in China
WARRANTY
Length: 1 year

STKRconcepts.com
TRi-MOBILE
LIGHT
Light Source: LED
Total Max Light Output: 2000 Lumens
FLOOD LIGHT
-Output: 667 Lumens / head
-Color Temperature: 5400K or 4000K
-Beam Distance: 50m
-Beam Angle: 140 degrees
Item # 12680
UPC: 850026126808
PACKAGE CONTENTS
[1] TRi-MOBILE Light
[1] USB-A 2A Charger
[1] USB-A to USB-C Cable
Specifications
OPERATION
POWER/MODE BUTTON
-Press to turn ON
-Press to change brightness:
-After 5 seconds of no brightness change, next button
press is OFF
Light Brightness Modes: 3
1. High
2. Medium
3. Low
4. Off
LIGHT COLOR BUTTON
When light is ON press the sun button to change the
color temperature of the light.
Light Color Temperature Modes: 2
1. 5400K (Cool White)
2. 4000K (Warm White)
BATTERY LEVEL INDICATOR
-Battery level indicator LEDs turn on when light is
turned on
-(1) 0-24% (2) 25-49% (3) 50-74% (4) 75-100%
RUNTIME
High: 1.5 hours
Low: 3 hours
BATTERY
Type: 18650 Lithium-ion
Quantity: 2
Integrated -Soldered
Total Voltage: 7.4V
Total Capacity: 2000 mAh
Total Watt Hours: 14.8Wh
Total Weight: 4.1oz (115g)
Total Lithium Content: 1.2g
CHARGING
Rechargeable: Yes, via USB-C port
Charge Time: 3 hours (with supplied charger)
Charger Voltage: 5V
Charger Amps: 2A
Charging Indication:
-Battery level indicator light blinks while charging
-All 4 battery level indicator lights are on when fully
charged
Recommended: charge stored unit every four months to
maintain optimum performance of lithium-ion battery and
maximize charging levels.
DURABILITY
Waterproof Rating: IPX4
Indoor/Outdoor Use
Impact Resistance: 1m
MATERIALS
-Aluminum light housing
-ABS plastic body & hook
-Acrylic lens
-Neodymium magnet
-Aluminum tripod thread mount M20x1.5
DIMENSIONS
Size: 3.2” x 3.1” x 8.2” (82mm x 79mm x 208mm)
Weight: 1lb 7oz (0.64kg)
PACKAGING
Dimensions: 3.94” x 3.94” x 9.45” (100mm x 100mm x
240mm)
Weight: 2lb 3oz (1kg)
OTHER
Manufactured in China
WARRANTY
Length: 1 year

STKRconcepts.com
TRi-MOBILE
Power/Mode Button
•Press to turn on/off and
change light modes
•Built battery level indicator
Magnet Base
•Use hands-free
Hanging Hook
•Nested when not
in use
•Hang from nail,
tree branch, tent,
hook etc
Tripod Legs
•Folds out to create
wide stable base
Tripod Mount
•Attach to tripod
•M20x1.5 thread Flood Light
•Bright area lighting
•5400K (Cool White) OR
4000K (Warm White)
•Up to 2000 lumens
Tripod leg release
•Press to release
tripod legs
Telescoping Rods
•Extends light up to total 4ft 8in (1.4m)
•Use light as a table light or floor light
Charge Port
•Recharge via USB-C
Port
TRi-MOBILE Mount
•Attach to TRi-MOBILE
•M20x1.5 thread
Battery Level Indicator
•4 LEDs indicating battery
level
Light Color Button
•Change LED color
temperature
•5400K (Cool White) OR
4000K (Warm White)
Triple Pivoting
Heads
•Independently
rotate heads
•Aim light where
you need it
Base
•Stable base to
stand light
Extendable up to 4ft 8in (1.4m)
