INSTALLATION INSTRUCTIONS

MPWV _F-1875_090418

RESIDENCE™

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions

should always be followed, including the following:

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE

APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH

THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND

THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS

BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH

ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT

TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS

AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.

SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE

FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING

ORIENTATION, OR MOUNTING RESTRICTIONS.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

MPWV SERIES

Disconnect power to all circuits before wiring xture.

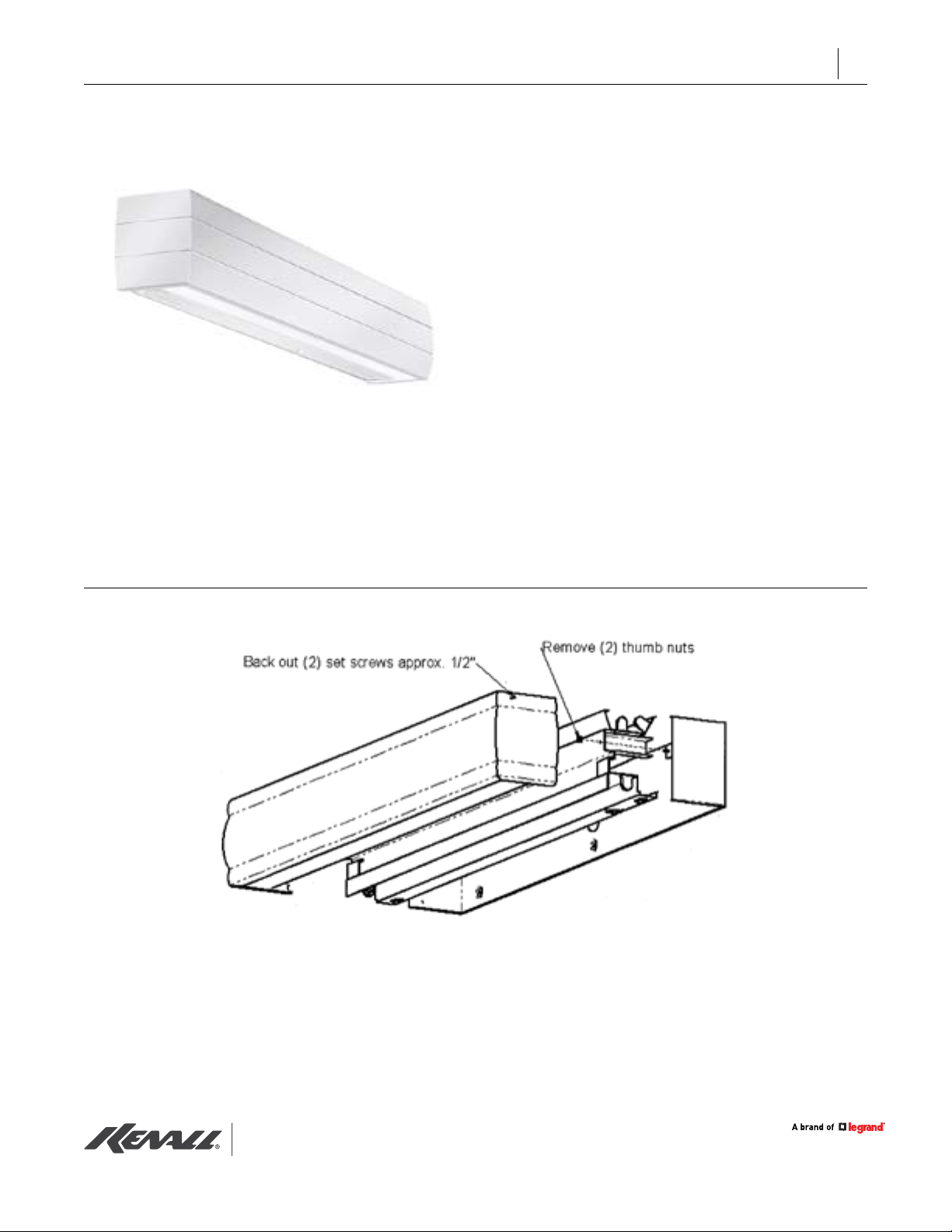

1. Remove valance cover from xture by backing out two (2) set screws (one at each end) of valance

approximately 1/2" and carefully slide valance from baseplate.

2. Remove two thumb nuts and carefully remove electrical assembly.

www.kenall.com |P: 800-4-Kenall |F: 262-891-9701 |10200 55th Street Kenosha, Wisconsin 53144, USA

This product complies with the Buy American Act: manufactured in the United Stateswith more than 50% of the component cost of US origin It may be covered by patents

INSTALLATION INSTRUCTIONS

MPWV _F-1875_090418

3. Locate and drill pilot holes in mounting surface using baseplate as template. Note that baseplate is not

universal and should be mounted with lens brackets up. Using six (6) #10 screws (supplied), mount baseplate

to surface. Fixture should be mounted to surface with 6-point mounting. Do not mount xture from electrical

junction box. NOTE: to comply with OSHPD certication for this xture, see wall structure and mounting

specications at the end of this document. When installed according to those instructions, the product will

meet California Building Code requirements for seismic anchorage, as required by OSHPD (California ‘s Ofce of

Statewide Health Planning and Development).

4. If low voltage controller option was ordered, refer to included supplemental wiring instructions.

5. In all cases, grounding wire(s) must be connected to a suitable ground.

6. Connect quick connect leads to power supply leads using connectors suitable for the gage and number of

wires being used (not included). Black and/or other colored leads connect to the supply conductor and white

lead(s) connect to the neutral supply conductor. Connections are to be made in the junction box, not the xture.

Connect quick connect(s). Install electrical assembly and secure using two thumb nuts. Install lamps (supplied

by others). Slide valance over baseplate and secure with two set screws.
