STL Trigger-Beam LED Flashlight User manual

2809 Business Park Dr • Buda • Texas •78610
Phone [phone] • Fax [phone] • Email [email protected]m

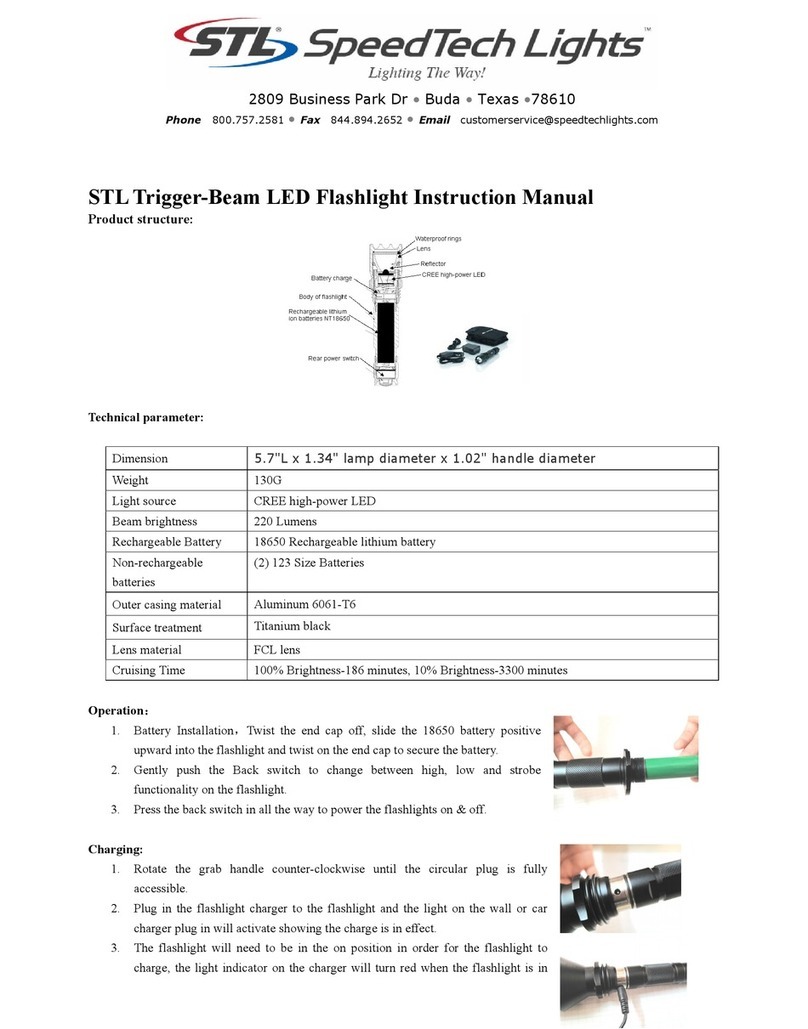

STL Trigger-Beam LED Flashlight Instruction Manual
Product structure:
Technical parameter:
Dimension 5.7"L x 1.34" lamp diameter x 1.02" handle diameter
Weight 130G
Light source CREE high-power LED
Beam brightness 220 Lumens
Rechargeable Battery 18650 Rechargeable lithium battery
Non-rechargeable
batteries
(2) 123 Size Batteries
Outer casing material Aluminum 6061-T6
Surface treatment Titanium black
Lens material FCL lens
Cruising Time 100% Brightness-186 minutes, 10% Brightness-3300 minutes
Operation：
1. Battery Installation，twist the end cap off, slide the 18650 battery positive
end upward into the flashlight and twist on the end cap to secure the battery.
2. Gently push the back switch to change between high, low and strobe
functionality on the flashlight.
3. Press the back switch in all the way to power the flashlights on & off.
Charging:
1. Rotate the grab handle counter-clockwise until the circular plug is fully
accessible.
2. Plug in the flashlight charger to the flashlight and the light on the wall or car
charger plug will activate showing the charger is in effect.
3. The flashlight will need to be in the On position in order for the flashlight to
begin charging. The light indicator on the charger will turn red when the
flashlight is in the on position meaning the flashlight is charging and not yet fully

2809 Business Park Dr • Buda • Texas •78610
Phone [phone] • Fax [phone] • Email [email protected]m
charged. The light indicator will turn green once the flashlight is fully charged. (Click the power button on the
flashlight to ensure it is in the correct position when connecting) 4 Hours = Full Charge.
4. Once the battery is full, remove the charger and twist the handle clockwise to secure the flashlight.
5. You can use a rechargeable 18650 lithium battery or use (2) 123 Size batteries.
