STMicroelectronics SPC58NHADPT302S User manual

Introduction
The SPC58NHADPT302S Rev.A evaluation board supports STMicroelectronics SPC58NH92 microcontroller in FPBGA
17X17X1.8 302.

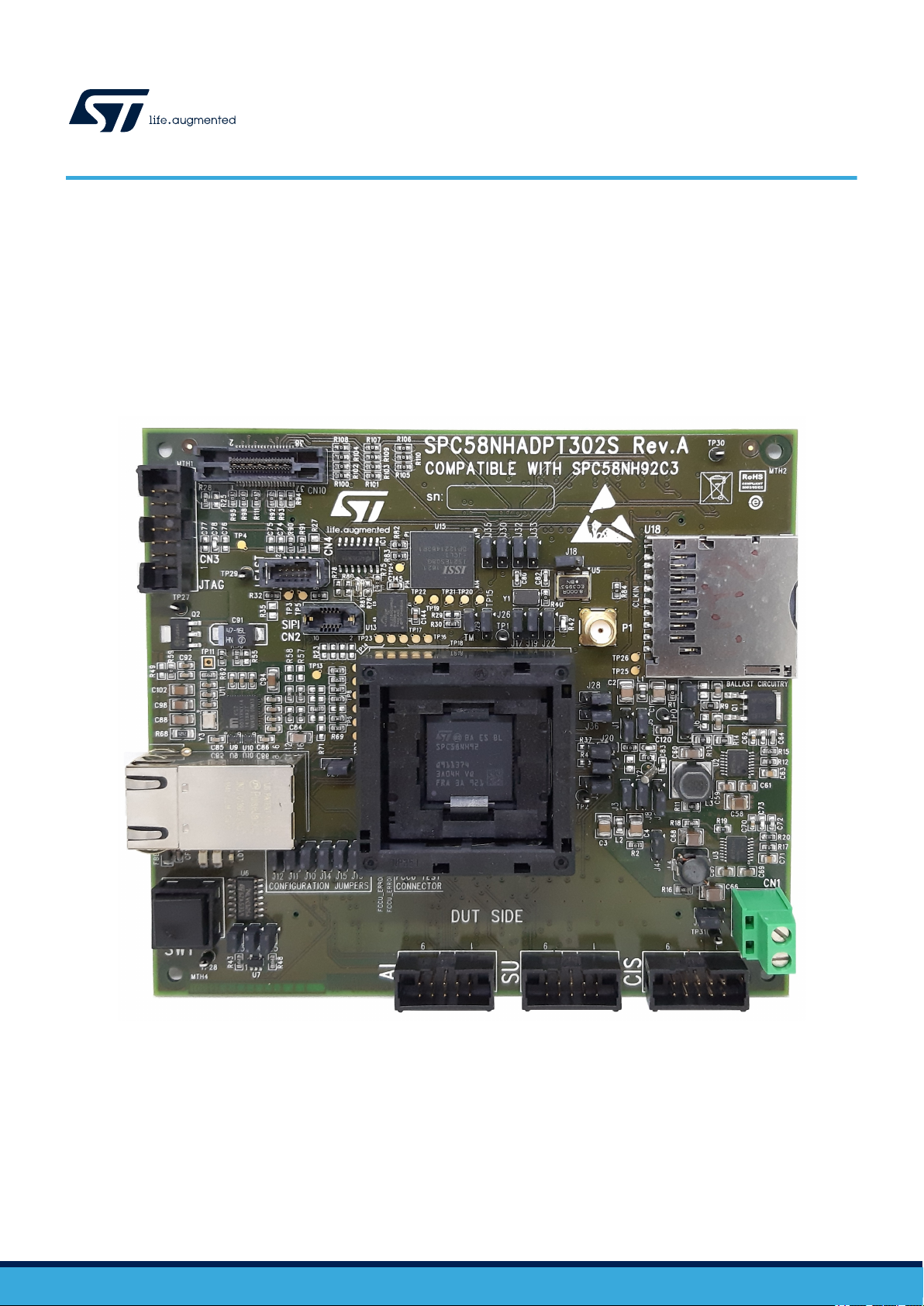

Figure 1. SPC58NHADPT302S Rev.A
Note: picture is not contractual.
SPC58NHADPT302S Rev.A evaluation board
UM2725
User manual
UM2725 - Rev 1 - June 2020
For further information contact your local STMicroelectronics sales office.
www.st.com

1Overview
The SPC58NHADPT302S Rev. A mini module is an evaluation board supporting STMicroelectronics SPC58NH92
microcontroller in FPBGA 17X17X1.8 302 package (FPBGA 17X17X1.8 302 2R20+10+2R14+52 B0.55 P0.8).
This mini module is designed to be connected onto the SPC58XXMB motherboard, offering a mechanism for easy
customer evaluation of the supported devices, and to facilitate hardware and software development.
The mini module may be used as a stand-alone unit allowing access to the CPU, but not to access to the I/O pins
nor any motherboard peripherals.
1.1 Package contents
An SPC58NHADPT302S Rev. A adapter package includes the following items:
• SPC58NHADPT302S Rev. A mini module
• Mini CD with user manual and schematics
1.2 Supported devices
The SPC58NHADPT302S Rev. A mini module supports the SPC58NH family of microcontrollers in FPBGA
17X17X1.8 302.
UM2725
Overview
UM2725 - Rev 1 page 2/38

2License agreement
The packaging of this evaluation board was sealed with a seal stating, “by breaking this seal, you agree to the
terms and conditions of the evaluation board license agreement, the terms and conditions of which are available
at http://www.st.com/ebla”. Upon breaking the seal, you and STMicroelectronics entered into the evaluation board
license agreement, a copy of which is also enclosed with the evaluation board for convenience.
Attention: This evaluation board only offers limited features for evaluating ST products. It has not been tested for use with
other products and is not suitable for any safety or other commercial or consumer application. This evaluation
board is otherwise provided “AS IS” and STMicroelectronics disclaims all warranties, express or implied,
including the implied warranties of merchantability and fitness for a particular purpose.
UM2725
License agreement
UM2725 - Rev 1 page 3/38

3Handling precautions
Please take care to handle the package contents in a manner such as to prevent electrostatic discharge.
Before the EVB is used or power is applied, please fully read the following sections on how to correctly configure
the board. Failure to correctly configure the board may cause irreparable component, MCU or EVB damage.
UM2725
Handling precautions
UM2725 - Rev 1 page 4/38

4Hardware description
4.1 Hardware features
The SPC58NHADPT302S Rev. A mini module board has the following features:
• Connector for external power supplies input (5 V) used in stand-alone mode
• Reset button with driver and led indicator
• Socket for device in FPBGA302 package
• Debug interfaces:
– 14-pin header connector for JTAG interface
– 10-pin header connector for JTAG/LFAST LVDS interface
– 10-pin header connector for SIPI interface
– 38-pin Nexus parallel debug connector
• 40 MHz crystal main oscillator with jumpers to optionally disconnect it
• 8 MHz oscillator with jumpers to optionally disconnect it
• Clock input through SMA connector with jumper to optionally disconnect it
• 2 X Samtec QSH series, 240-way connector to connect mini module to Motherboard
• 1 Gb/s Ethernet port
• HyperRAM and HyperFlash connected to HyperBUS interface
• Embedded eMMC device
• SD/MMC Card Reader
• 3x Header connectors 5x2 with 0.1” (CIS, ISU and AI connectors)
UM2725
Hardware description
UM2725 - Rev 1 page 5/38

4.2 Hardware dimension
The mini module has the following dimensions:
• PCB area: 127 mm x 114.3 mm
• Top components height: 20 mm max
• Bottom components height: 3.5 mm max
• PCB thickness: 1.6 mm

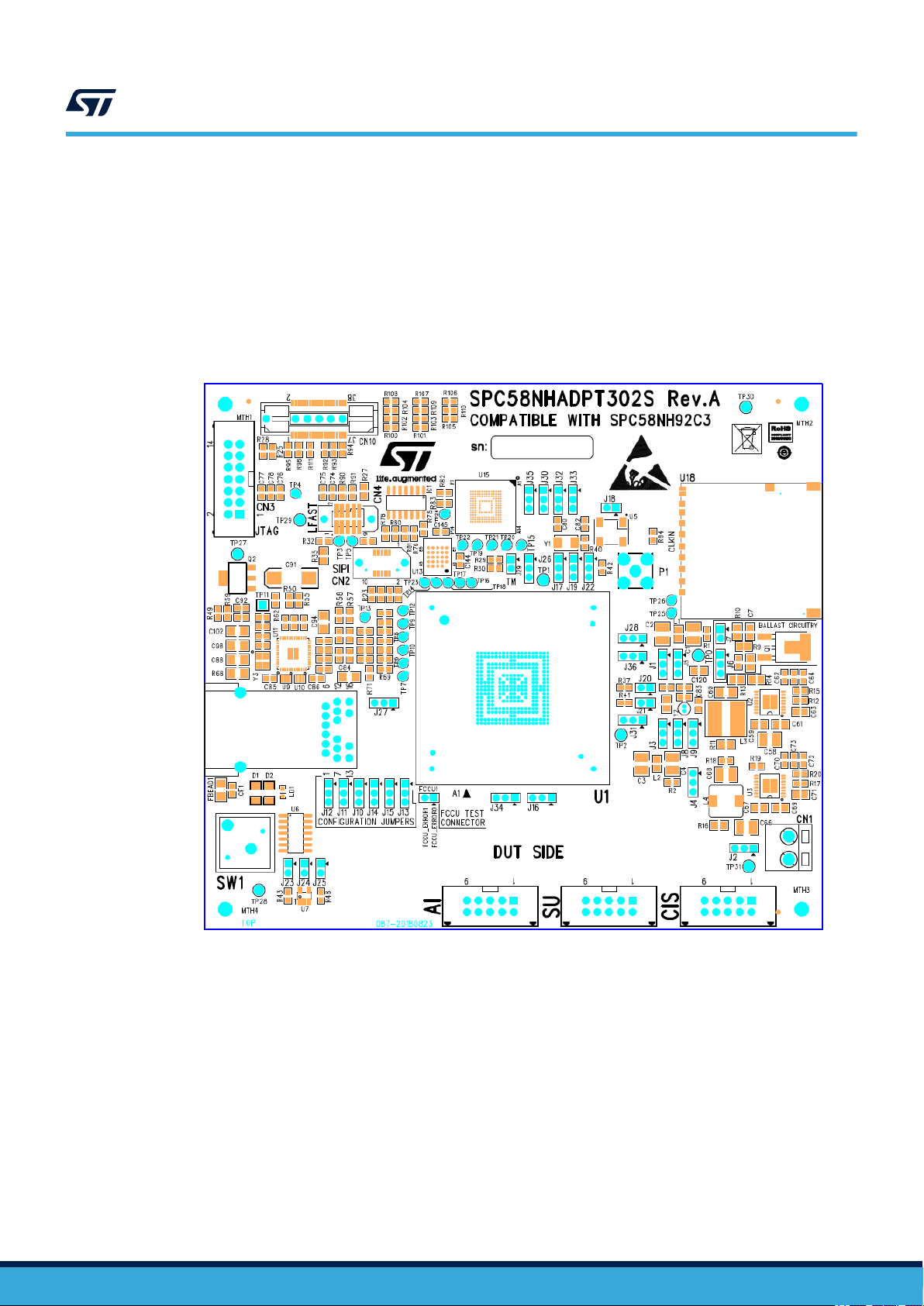

Figure 2. SPC58NHADPT302S Rev. A top component view
UM2725
Hardware dimension
UM2725 - Rev 1 page 6/38

5Power and system configuration
5.1 Power supplies
The mini module can be powered by providing voltages or supplied externally by the 2-Way PCB Screw
Connector (CN1) or supplied by the motherboard.
When the mini module is connected to the mother board (MB), 3V3 and 5V0 are supplied by MB connector
selecting the associated jumpers. In this setup, the external power supply input available on the mini module
should NOT be used.
When the SPC58NHADPT302S Rev. A mini module is used as a stand-alone board, 5V0 voltages must be
supplied externally, 3V3 and 1V2 voltages will be generated internally by specific circuit on the mini module.
The following jumpers are used to configure the power supply (common for all supported devices):
Table 1. Power configuration jumpers
Jumper Description Default Position
J1
5.0V source for J3 pin1 (MB_5.0V_LR or 5.0V_ADC) voltage
configuration:
• 1-2 MB_5.0V_LR
• 2-3 5.0V_ADC
2-3
(5.0V_ADC)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - C3
J2
5V Switching voltage configuration:
• 1-2 5V EXT (External 5V supply)
• 2-3 MB_5.0V_SR (5V from mother board)
2-3
(MB_5.0V_SR)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D4
J3
VDD_HV_ADR_S / VDD_HV_ADV voltage configuration:
• 1-2 5V source from J1 pin2
• 2-3 3.3V_ADC source from J4 pin2
1-2
(5.0V_ADV)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - C3
J4
3V3 source (3.3V and MB_3.3V_SR) voltage configuration:
• 1-2 3.3V (3.3V from Mini module)
• 2-3 MB_3.3V_SR
1-2
(3.3V)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D3
J5
Main mcu supply (VDD_HV_IO_MAIN) voltage configuration:
• 1-2 5.0V_SR (5.0V)
• 2-3 3.3V_SR from J4 pin2 (3.3V)
1-2
(5.0V_SR)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D3
J6
Supply for BALLAST circuit configuration
• 1-2 VDD_HV_IO_MAIN
• 2-3 5.0V_SR
1-2
(VDD_HV_IO_MAIN)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D3
J7
BALLAST CIRCUIT ENABLE
• Closed: enabled
• Open: disable
Closed
(enable)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D2
J8
VDD_LV voltage configuration:
• 2-3 (BALLAST circuit)
• 1-2 (1.2V_SR from J9 pin2)
1-2
(1.2V_SR)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D3
J9
1.2V_SR switching configuration:
• 1-2 MB_1.25V_SR (1.25V from MB)
• 2-3 1.2V (1.2V from Mini module)
2-3
(1.2V from Mini module)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - D3
J16
EXTREG_SEL configuration:
• 1-2 VDD_HV_IO_MAIN
• 2-3 GND
1-2
(H level)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - C3
J27
HPREG_SEL configuration:
• 1-2 VDD_HV_IO_MAIN
• 2-3 GND
1-2
(H level)
Figure 8. Overview of
SPC58NHADPT302S Rev. A mini
module - Top - B3
UM2725
Power and system configuration
UM2725 - Rev 1 page 7/38

5.2 JTAG/LFAST LVDS interface configuration
The following jumpers need to configure the JTAG/LFAST LVDS/SIPI:
Table 2. JTAG/LFAST/SIPI configuration jumpers
Jumper Description Default Position
J10
SIPI pin 3 configuration
• 1-2: RDY
• 2-3: PA14
1-2
(RDY)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B3
J11
TDI_LF configuration
• 1-2: TDI_LF
• 2-3: PA8
1-2
(TDI_LF)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - A3
J12
TDO_LF configuration
• 1-2: TDO_LF
• 2-3: PA9
1-2
(TDO_LF)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - A3
J13
JTAG pin 13 configuration
• 1-2: EVTO
• 2-3: PJ3/PQ4
1-2
(EVTO)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B3
J14
PC1 / ESR0
• 1-2 ESR0
• 2-3 PC1
1-2
(ESR0)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B3
J15
EVTO/ESR0
• 1-2 ESR0
• 2-3 EVTO
1-2
(ESR0)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B3
J31
EVIO/PK10
• 1-2 EVTI
• 2-3 PK10
1-2
(EVTI)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C3
J34
CLKOUT/PE3
• 1-2 PE3
• 2-3 CLKOUT
1-2
(ESR0)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B3
UM2725
JTAG/LFAST LVDS interface configuration
UM2725 - Rev 1 page 8/38

5.3 System clock configuration
The mini module supports the usage of crystal clock sources as well as external clock source:
Table 3. Clock configuration jumpers
Jumper Description Default Position
J20
XTAL32 configuration
• Close: connect pin 2 of 32.768 KHz
crystal (Y2) to XTAL32
Open Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C3
J21
EXTAL32 configuration
• Close: Connect pin 1 of 32.768 KHz
crystal (Y2) to EXTAL32
Open Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C3
J17
EXTAL configuration
• 1-2 Connect pin 2 of 40 MHz crystal
(Y1) to EXTAL
• 2-3 Connect EVB-EXTAL to EXTAL
1-2
(Y1 pin2 to EXTAL)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
J19
XTAL configuration
• 1-2 Connect pin 1 of 40 MHz crystal
(Y1) to XTAL
• 2-3 Connect XTAL to GND
1-2
(Y1 pin1 to XTAL)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
J18
Enable 8 MHz oscillator power supply
• Open – Power off
• Closed – Power on
Open
(Power off)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C1
J22
External 8 MHz clock source
• 1-2 OSC-MOD (from oscillator)
• 2-3 EXTAL-SMA (from SMA
connector)
1-2
(8 MHz from oscillator)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
5.4 Reset circuit
The mini module supports different ways to reset the microcontroller. To use and perform the reset driving there
are different jumpers and switches:
Table 4. Reset configuration jumpers
Jumper Description Default Position
SW1 Reset push button Open Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - A4
J24 Connect the external reset to the reset
driver for ESR0 and PORST pins Close Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A4
J23 Connect the external reset to ESR0 pin Close Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - A4
J25 Connect the external reset to PORST pin Close Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - A4
UM2725
System clock configuration
UM2725 - Rev 1 page 9/38

5.5 Other Jumpers
Table 5. Other jumpers
Jumper Description Default Position
J29 Testmode settings Close
(10 KΩ down)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - B2
5.6 Configuration for pin shared between eMMC & SD Card Reader
The following jumpers need to configure the pin shared between eMMC & SD Card Reader set the jumpers
described in the table below.
Table 6. Pin shared between eMMC & SD Card Reader jumpers
Jumper Description Default configuration Position
J26
Data0 – PJ3-EVTO configuration
• 1-2 D1_SD (SD-CARD)
• 2-3 D1_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
J30
Data1 - PJ4 configuration
• 1-2 D1_SD (SD-CARD)
• 2-3 D1_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C1
J32
Data2 - PH5 configuration
• 1-2 D2_SD (SD-CARD)
• 2-3 D2_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C1
J35
Data3 - PH6 configuration
• 1-2 D3_SD (SD-CARD)
• 2-3 D3_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C1
J28
CLK – PJ2 configuration
• 1-2 CLK_SD (SD-CARD)
• 2-3 CLK_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
J33
FBCLK - PJ0 configuration
• 1-2 FBCLK_SD (SD-CARD)
• 2-3 FBCLK_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C1
J36
CMD - PJ1 configuration
• 1-2 CMD_SD (SD-CARD)
• 2-3 CMD_eMM (eMMC)
1-2
(SD-CARD)
Figure 8. Overview of SPC58NHADPT302S Rev. A
mini module - Top - C2
UM2725
Other Jumpers
UM2725 - Rev 1 page 10/38

6Hardware description
6.1 1 Gb/s Ethernet interface
This paragraph describes the 1 Gb/s Ethernet interface present on the mini-module.
The Ethernet connector is RJ-45 with integrated magnetics.

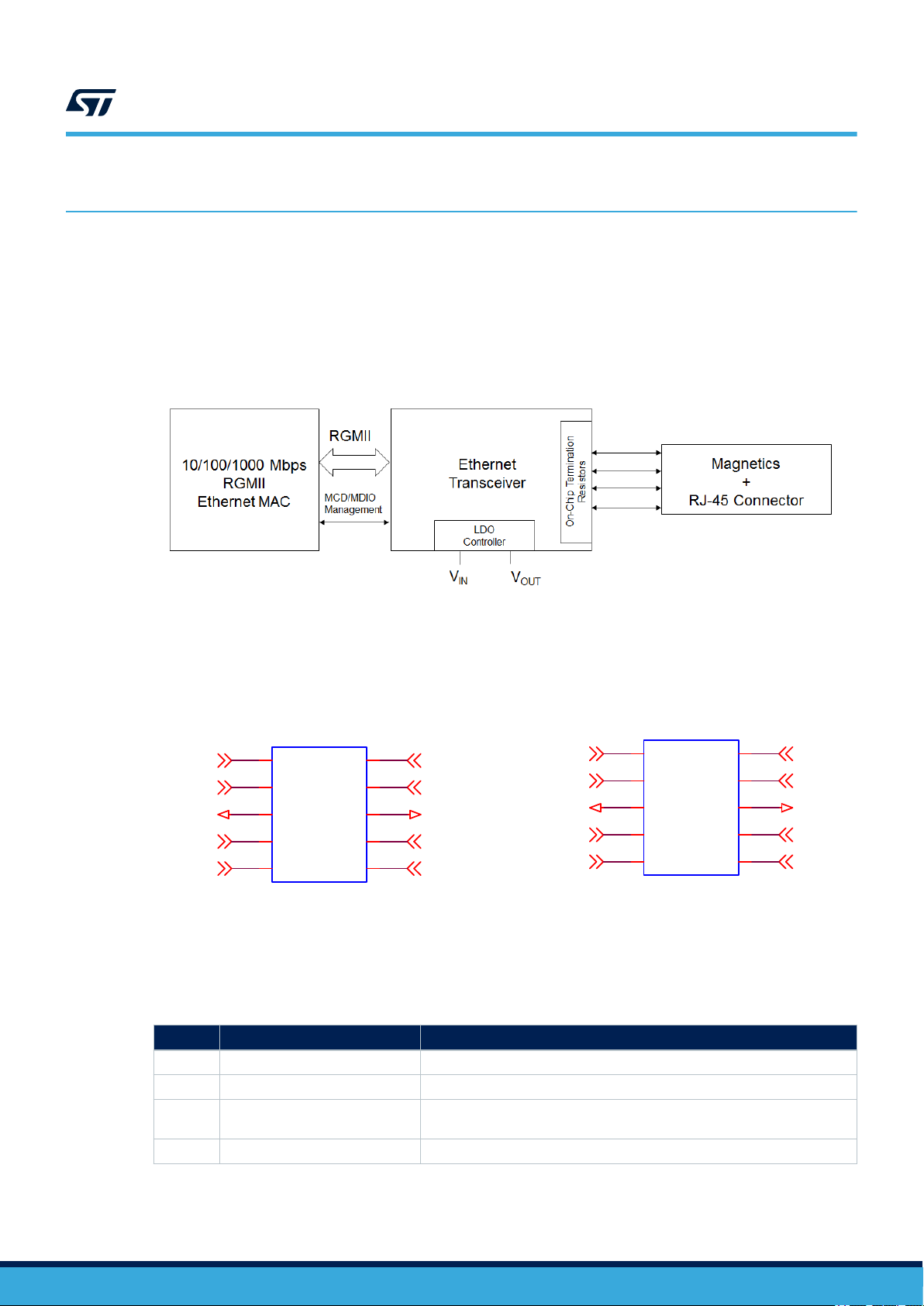

The figure below shows the functional diagram of the Ethernet interface.
Figure 3. 1 Gb/s Ethernet functional diagram
The figure below shows the Ethernet ESD protection schema.
Figure 4. 1 Gb/s Ethernet ESD protection schema
U9
HSP061-4M10Y
I/0 1
1
I/0 2
2
GND
3
I/0 3
4
I/0 4
5NC1 6
NC2 7
GND 8
NC3 9
NC4 10
TXRXM_B
TXRXP_B
GND GND
TXRXM_A
TXRXP_A TXRXP_A
TXRXP_B
TXRXM_B
TXRXM_A
U10
HSP061-4M10Y
I/0 1
1
I/0 2
2
GND
3
I/0 3
4
I/0 4
5NC1 6
NC2 7
GND 8
NC3 9
NC4 10
GND GND
TXRXM_D
TXRXP_D
TXRXM_C
TXRXP_C
TXRXM_D
TXRXP_C
TXRXM_C
TXRXP_D
The following table describes all hardware of 1 Gb/s Ethernet interface of the mini module, their position on PCB.
Table 7. 1 Gb/s Ethernet interface
Jumper Description Position
U9 ESD Protection Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A3
U10 ESD Protection Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A3
U11 Ethernet 1-Port GigabitEthrnt
Ethernet PHY Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A2/A3
U19 Ethernet connector Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A3
UM2725
Hardware description
UM2725 - Rev 1 page 11/38

6.2 Hyperbus interface
This paragraph describes the Hyperbus interface present on the mini module.
The SPC58NHADPT302S contains only one CS (CNS), whereas the memory device contains two CSs lines, one
for RAM and one for FLASH.
The second CS is emulated using one GPIO signal (PA[15]).
The following table shows the logic between CS/GPIO from SPC58NHADPT302S and CS0/CS1 from HyperRAM/
HyperFlash device
Table 8. Hyperbus CS truth table
CSN GPIO CS0 CS1
0 0 1 0
0 1 0 1
1 0 1 1
1 1 0 1
Figure 5. Hyperbus CS scheme
The following table describes all hardware HyperBus of the mini module, their position on PCB.
Table 9. Hyperbus interface
Symbol Description Position
U14 CMOS Inverter Figure 9. Overview of SPC58NHADPT302S Rev. A mini module - Bottom - C1
IC1 TTL OR Gate Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B1
U13 RAM 256Mbit Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
UM2725
Hyperbus interface
UM2725 - Rev 1 page 12/38

6.3 eMMC interface
This paragraph describes the embedded eMMC device present on the mini module.

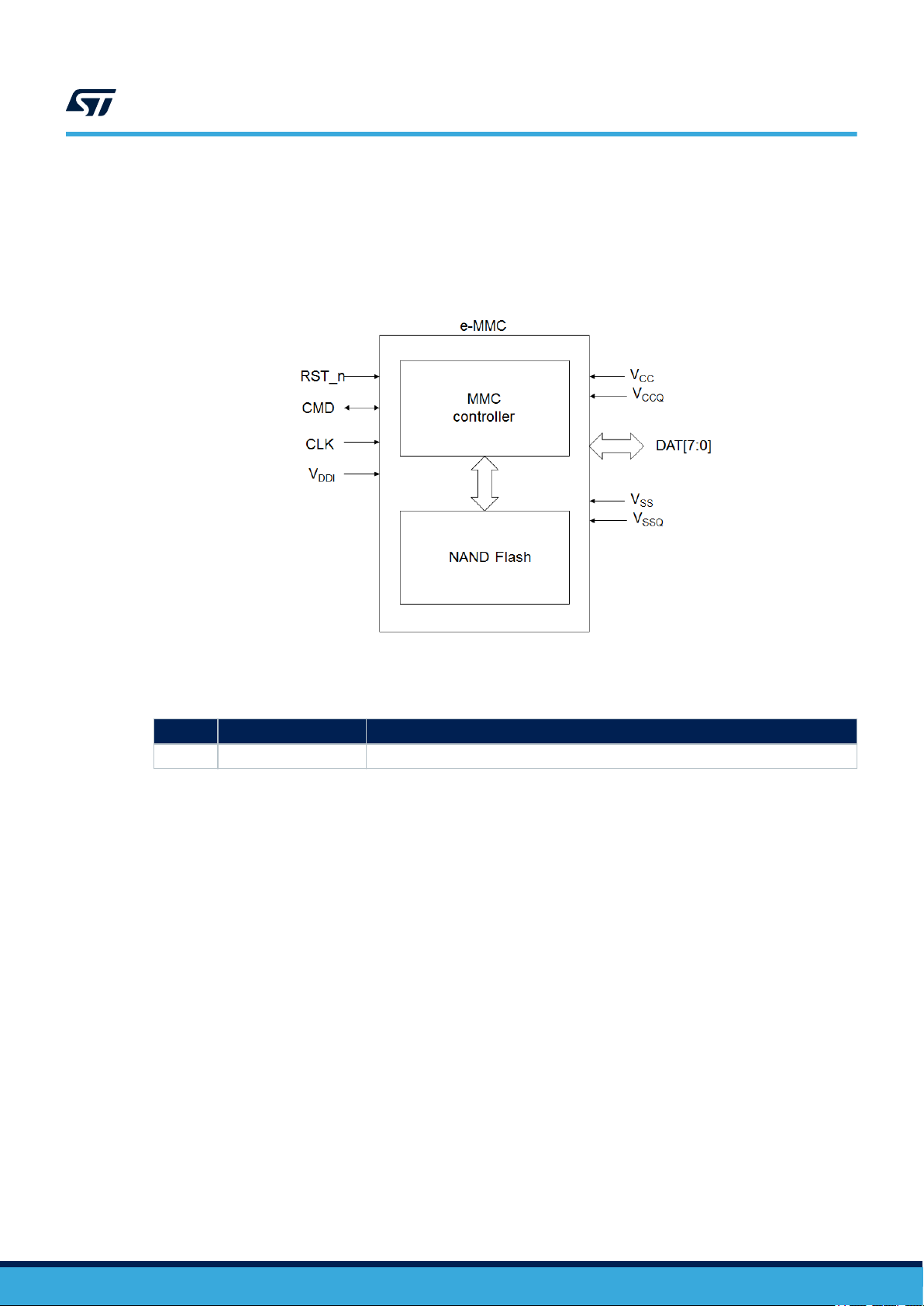

The figure below shows the functional diagram of the eMMC interface.
Figure 6. eMMC functional diagram
Table 10. eMMC interface
Symbol Description Position
U15 eMMC memory 8 GB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B1
UM2725
eMMC interface
UM2725 - Rev 1 page 13/38

6.4 SD/MMC interface
This paragraph describes the Card Reader JEDED/MMC standard version 5.0 compliant.
The filter used is EMIF06-MSD02N16 by STMicroelectronics.
The SD/MMC Card Reader needs to use a power switch to limit the output current to a safe level in case the
output load exceeds the current limits threshold or a short is present.
Use an STMPS2151MTR by STMicroelectronics.

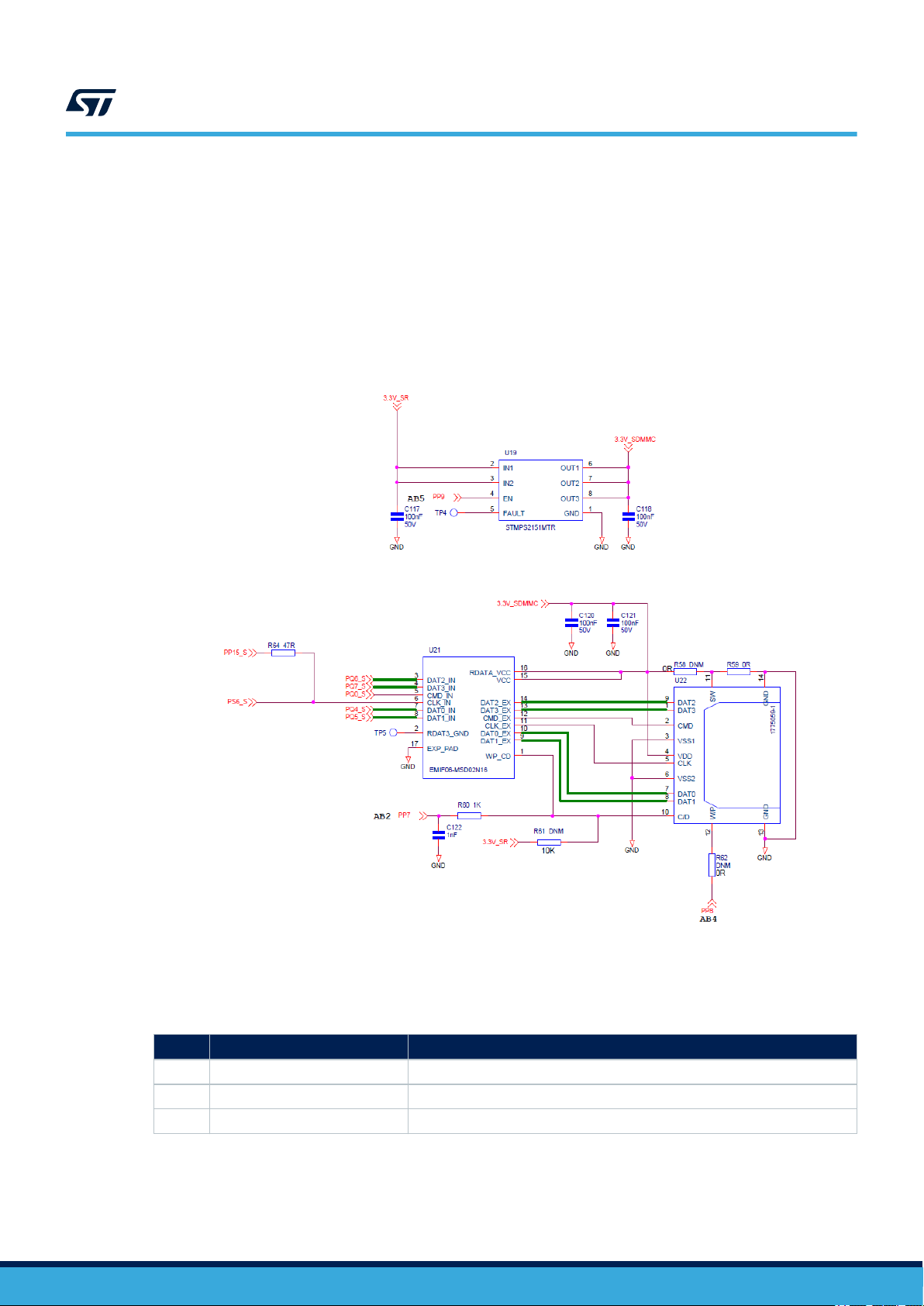

The figure below shows the SD/MMC Card Reader diagram.
Figure 7. SD/MMC Card Reader diagram
The following table describes all hardware of the SD/MMC interface of the mini module and their position on PCB.
Table 11. SD/MMC interface
Symbol Description Position
U16 CMOS switch Figure 9. Overview of SPC58NHADPT302S Rev. A mini module - Bottom - A2
U17 Filter EMI 6-line Micro Figure 9. Overview of SPC58NHADPT302S Rev. A mini module - Bottom - B2
U18 Connector SD reverse push-push Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - D1/D2
UM2725
SD/MMC interface
UM2725 - Rev 1 page 14/38

6.5 CIS, ISU and AI connectors
The mini module is fitted with three 5x2 box header connectors with 0.1”. These connectors are polarized and
they are placed close to the edge with a space of 5 mm between each other.
The connectors have the following features:
Connector 1 (CAN/IO/SPI): CN7 (Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B4).
Serigraphy: CIS
• Power supplies, VSS, VDD_HV_5v0
• 1xSPI with three CS
• 1xCAN
• 8xGPIO
Table 12. CIS – CN7 connector pin mapping
Pin Pin name Port BGA302
1 GPIO_107/SCK_0 PG[11] W7
2 VDD_HV_5v0 - 5.0V_SR
3 GPIO_26/CAN1_TX PB[10] Y14
4 GPIO_52/ECAN1_RX PD[4] E20
5 GPIO_108/SIN_0 PG[12] Y8
6 GPIO_59/SOUT_0 PD[11] T9
7 GPIO_109/PCS_0[0] PG[13] F17
8 GPIO_95/PCS_0[1] PF[15] G20
9 GPIO_172/PCS_0[2] PK[12] L17
10 VSS_HV - VSS_HV
Connector 2 (IO/SPI/UART): CN8 (Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C4)
Serigraphy: ISU
• Power supplies, VSS, VDD_HV_5v0
• 1xSPI with three CS
• 1xUART
• 8xGPIO
UM2725
CIS, ISU and AI connectors
UM2725 - Rev 1 page 15/38

Table 13. ISU – CN8 connector pin mapping
Pin Pin name Port BGA516
1 GPIO_46/SCK_1 PC[14] D9
2 VDD_HV_5v0 - 5.0V_SR
3 GPIO_71/TXD_LIN1 PE[7] E19
4 GPIO_70/RXD_LIN1 PE[6] E17
5 GPIO_45/SIN_1 PC[13] A9
6 GPIO_44/SOUT_1 PC[12] B9
7 GPIO_126/PCS_1[0] PH[14] B6
8 GPIO_83/PCS_1[1] PF[3] B5
9 GPIO_82/PCS_1[2] PF[2] A4
10 VSS_HV - VSS_HV
Connector 3 (ADC/IO): CN9 (Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - D4)
Serigraphy: AI
• Power supplies, VSS, VDD_HV_5v0
• 1xADC (8 signal)
• 8xGPIO
Table 14. AI - CN9 connector pin mapping
Pin Pin name Port BGA516
1 GPIO_179/AN 0 PL[3] G4
2 VDD_HV_5v0 - 5.0V_SR
3 GPIO_38/AN 1 PC[6] E2
4 GPIO_37/AN 2 PC[5] E1
5 GPIO_180/AN 3 PL[4] G5
6 GPIO_181/AN 4 PL[5] H5
7 GPIO_184/AN 5 PL[8] A1
8 GPIO_176/AN 6 PL[0] F5
9 GPIO_158/AN 7 PJ[14] M17
10 VSS_HV - VSS_HV
UM2725
CIS, ISU and AI connectors
UM2725 - Rev 1 page 16/38

6.6 Other connectors
The mini module has the following connectors:
Table 15. Connectors
Connectors Description
CN1 External power supplies input (5V)
CN2 10-pin header connector for SIPI interface
CN3 14-pin header connector for JTAG interface
CN4 10-pin header connector for JTAG/LFAST LVDS interface
CN5, CN6 2 X SAMTEC QSH series, 240 way connector to connect mini module to motherboard
P1 SMA connector for external clock input
U18 SD revers connector
FCCU1 FCCU test connector
6.7 Test points
The mini module has several test points, described in the table below.
Table 16. Test points
Test point Description Position
TP0 VDD_HV_IO_MAIN Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - D2
TP1 VSS_OSC Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C2
TP2 AGND Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C3
TP3 JCOMP_RxDATA_N/PA[5] Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A2
TP4 TCK/PA[6] Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A1
TP5 TMS_TxDATA_P/PA[7] Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A2
TP6 TXD0 Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B3
TP7 TXD1 Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B3
TP8 TXD2 Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP9 TXD3 Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP10 GTX_CLK Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP11 INT_N (on U11) Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A2
TP12 MDC Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP13 MDIO Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP14 CK_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP15 D0_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C2
TP16 D1_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP17 D2_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP18 D3_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP19 D4_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP20 D5_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP21 D6_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
UM2725
Other connectors
UM2725 - Rev 1 page 17/38

Test point Description Position
TP22 D7_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP23 RWDS_HB Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP24 CMD_eMM Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - B2
TP25 FAULT (on U16) Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C2
TP26 RDAT3_GND (on U17) Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - C2
TP27 1.2V_ETH Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A2
TP28 GND Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A4
TP29 GND Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - A1
TP30 GND Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - D1
TP31 GND Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top - D4
UM2725
Test points
UM2725 - Rev 1 page 18/38

7Layout overview

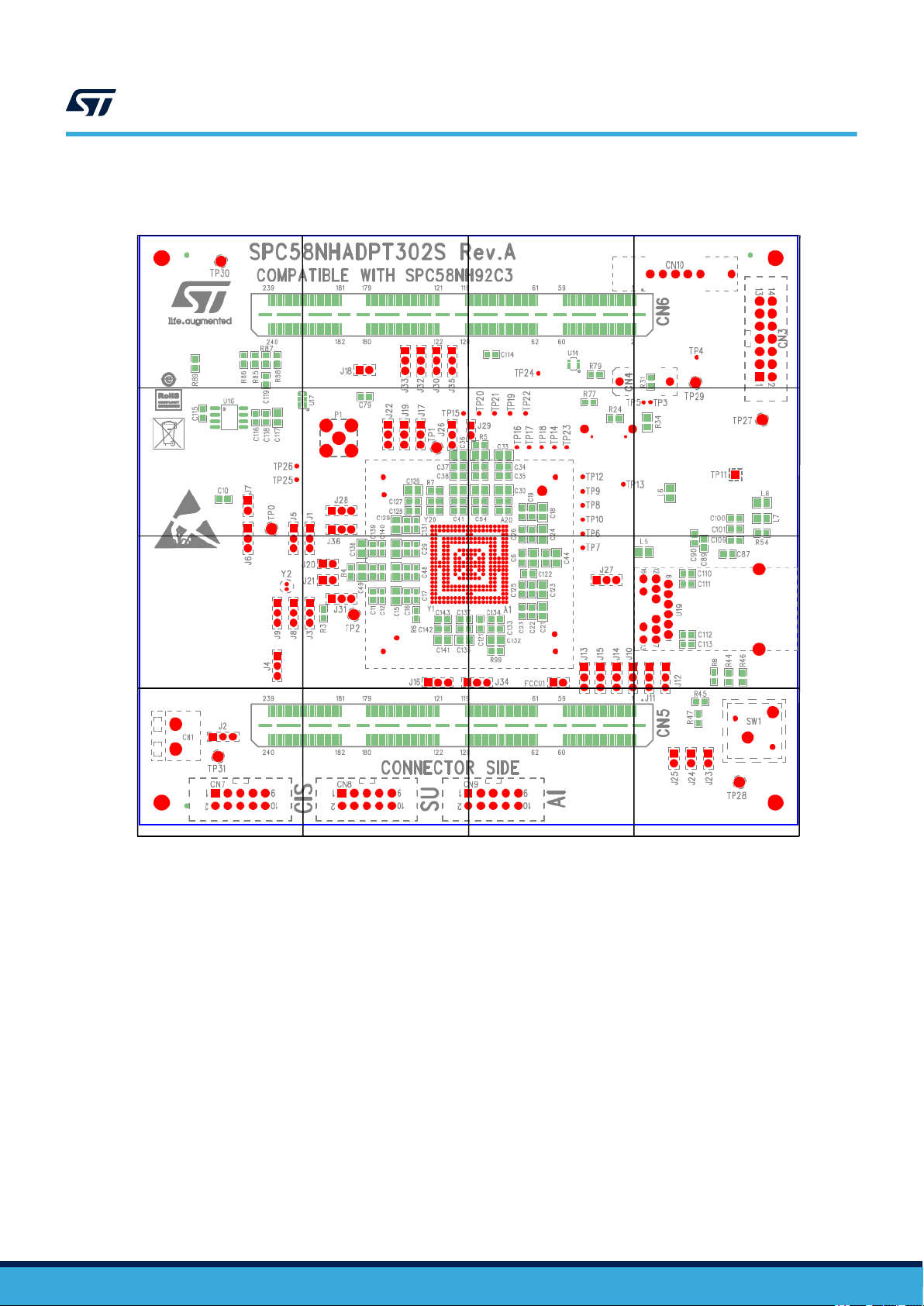

Figure 8. Overview of SPC58NHADPT302S Rev. A mini module - Top
AD
BC
1
2
3
4
UM2725
Layout overview
UM2725 - Rev 1 page 19/38

Figure 9. Overview of SPC58NHADPT302S Rev. A mini module - Bottom
AD
BC
1
2
3
4
UM2725
Layout overview
UM2725 - Rev 1 page 20/38
