STODDART woodson W.PIA50 User manual
Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Your New Woodson Product . . . . . . . . . . . . . . . . . . 3
Australia and New Zealand Warranty . . . . . . . . . . . . . . 4
Warranty Period
Warranty Registration
General Precautions . . . . . . . . . . . . . . . . . . . . . . 4
Installation
Product Overview. . . . . . . . . . . . . . . . . . . . . . . . 5
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Handling
Unpacking

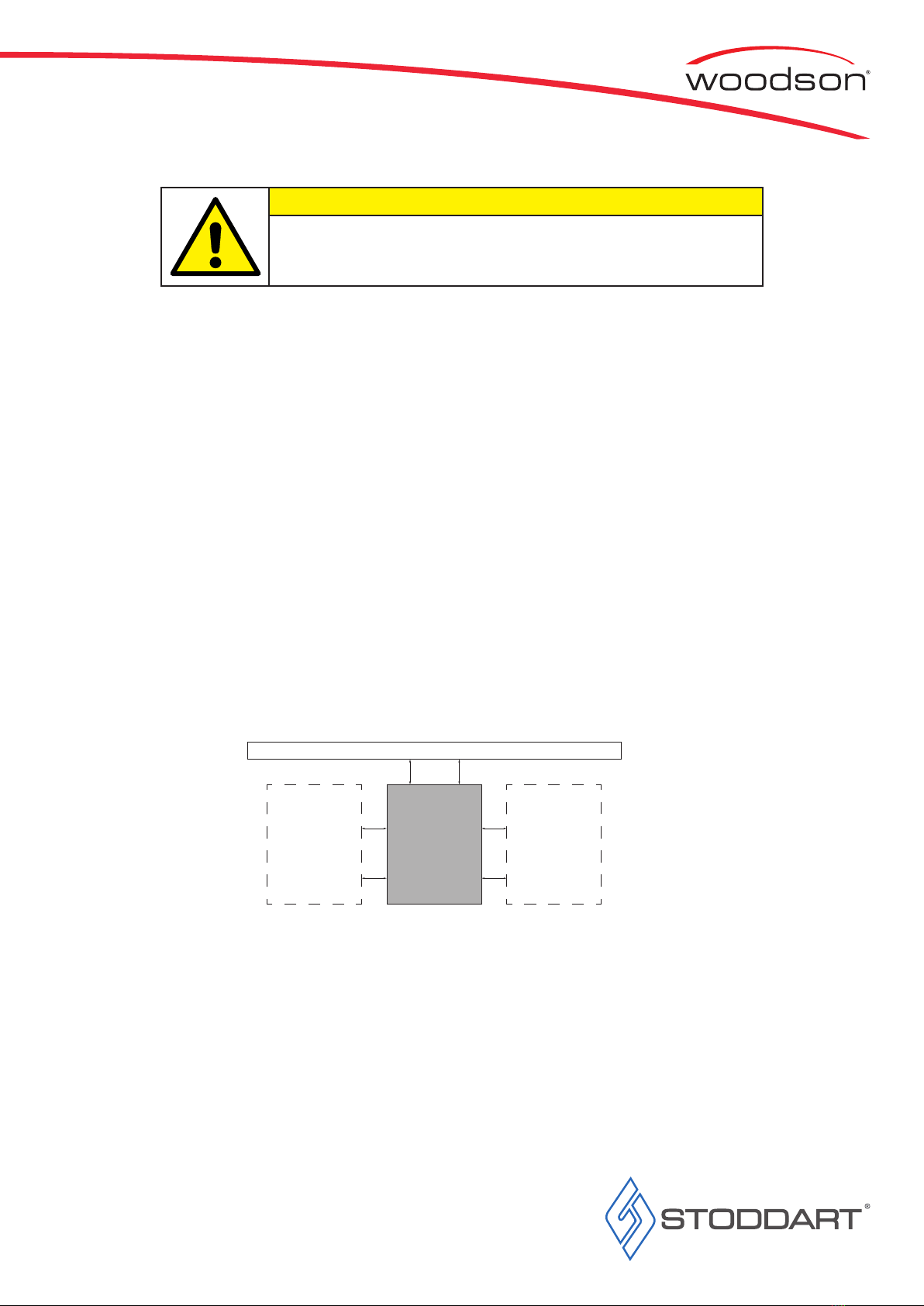

Positioning
Disposal
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . 7
Information
Specification
Technical Specifications . . . . . . . . . . . . . . . . . . . . 8
W.PIA50
W.PIA100
W.PIP200
W.PIM.60
Operation

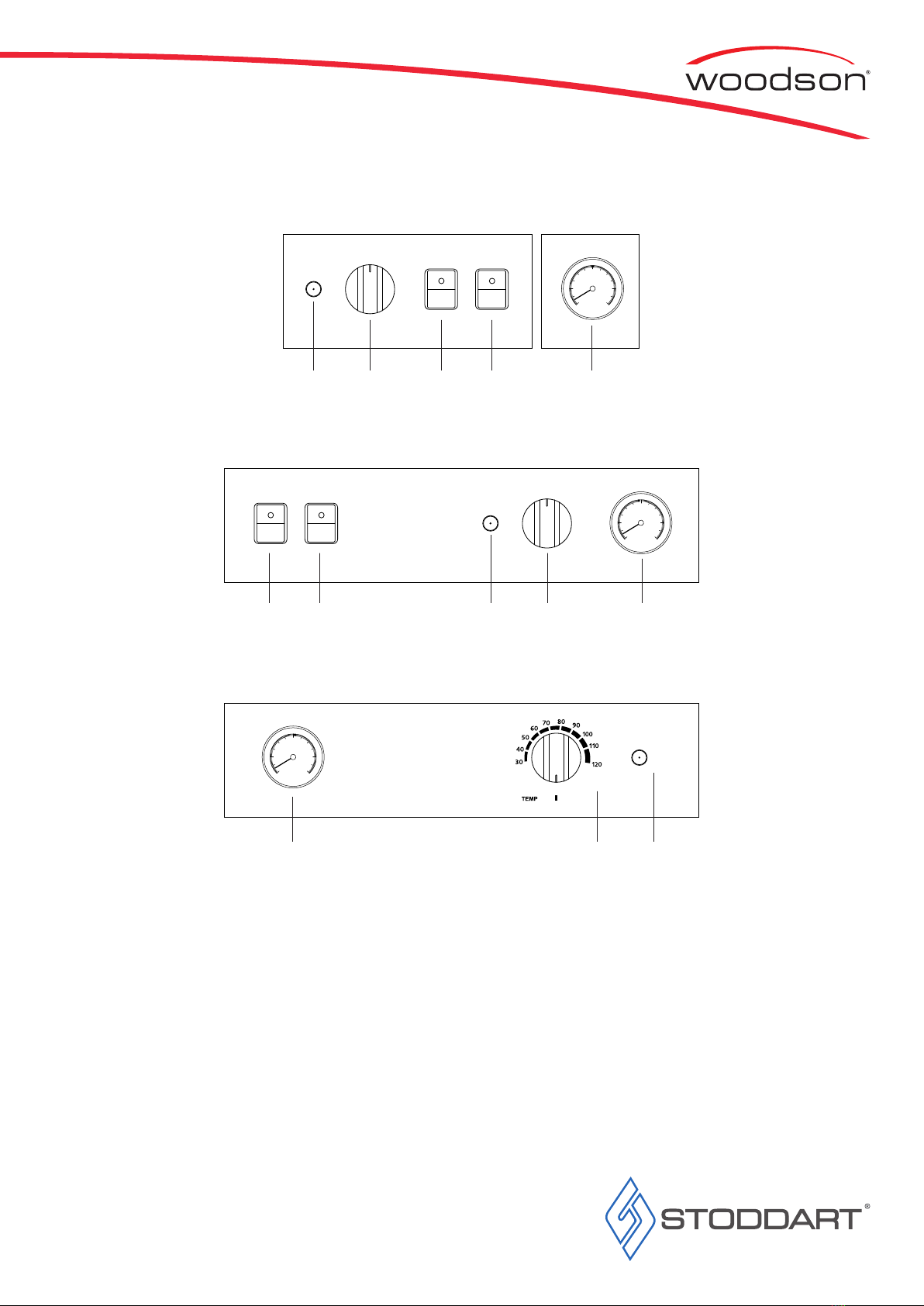

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
W.PIM.60
W.PIP200
W.PIA50 / W.PIA100
Operating Instructions . . . . . . . . . . . . . . . . . . . . 11
Operation (W.PIM.60 / W.PIP200)
Operation (W.PIA50 / W.PIA100)
Food Safety. . . . . . . . . . . . . . . . . . . . . . . . . . 11
Food Temperature
Food Storage
Cleaning and Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Cleaning Procedure
Cleaning Procedure - External Surfaces
Cleaning Procedure - External Surfaces Hard to remove soil (Stain-
less Steel Models only)
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 14
Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Woodson product.
All Woodson products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your
new Woodson product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
Your New Woodson Product
Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance.
Keep this booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons,
units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install. Any installation, removal, servicing,
maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in accordance to this
documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs. All modifications or repairs must
be approved by the manufacturer in writing before initiating. All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Woodson product.
All Woodson products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining your
new Woodson product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results
whilst offering value-for-money, ease-of-use and reliability.
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• DO NOT use sharp objects to remove ice from the unit
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
Our units have been designed for high performance. Therefore, the unit must be used exclusively for the purpose for which it has been designed.
General Precautions
Warranty Registration
Warranty Period
Australia and New Zealand Warranty
To register your new product, go to the Stoddart warranty page: http://www.stoddart.com.au/warranty-registration
Stoddart 12 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase.
To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information
Warranty & Registration
Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Thermometer
Thermometer
Fluro Light
Control Panel
Control Panel
Installation
Product Overview
CAUTION
Surface is HOT
Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
Setting Up
Handling
Unpacking
Positioning
Disposal
• Use suitable means to move the unit;
- For smaller items use two people
- For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet)
• Check the unit for damage before and after unpacking. If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt. No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Do not position the unit in:
- Wet areas
- Near heat and/or steam sources
- Near flammable substances
• Allow an air gap between the unit and other objects or surfaces. A minimum gap of 100mm from all sides is recommend for normal
operational use (if the unit is near any heat sensitive material we suggest you allow additional space)
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
100mm
APPLIANCE
100mm
100mm
Front
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal (if applicable)
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Installation
Electrical Connection
Information
This unit must be installed in accordance with AS/NZS 60335.1
Some procedures in this manual require the power to the equipment to be turned off and
isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug
body. If the power point is not readily accessible turn the equipment off at the isolation switch
or the circuit breaker in the switchboard. Attach a yellow “CAUTION-DO NOT OPERATE” tag.
This must be performed where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
Single Phase Units:
• Supplied and fitted with an appropriately rated plug and lead, indicated as:
- 10A plug & lead fitted
Notes:
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard. Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
487
26
591
350
350
755
637
26
Specification
Technical Specifications
W.PIA50
W.PIA100
Specifications
Model W.PIA50
Height 487mm
Width 591mm
Depth 350mm
Power 1.25kW
10A plug & lead fitted
Specifications
Model W.PIA100
Height 637mm
Width 755mm
Depth 350mm
Power 1.25kW
10A plug & lead fitted
Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

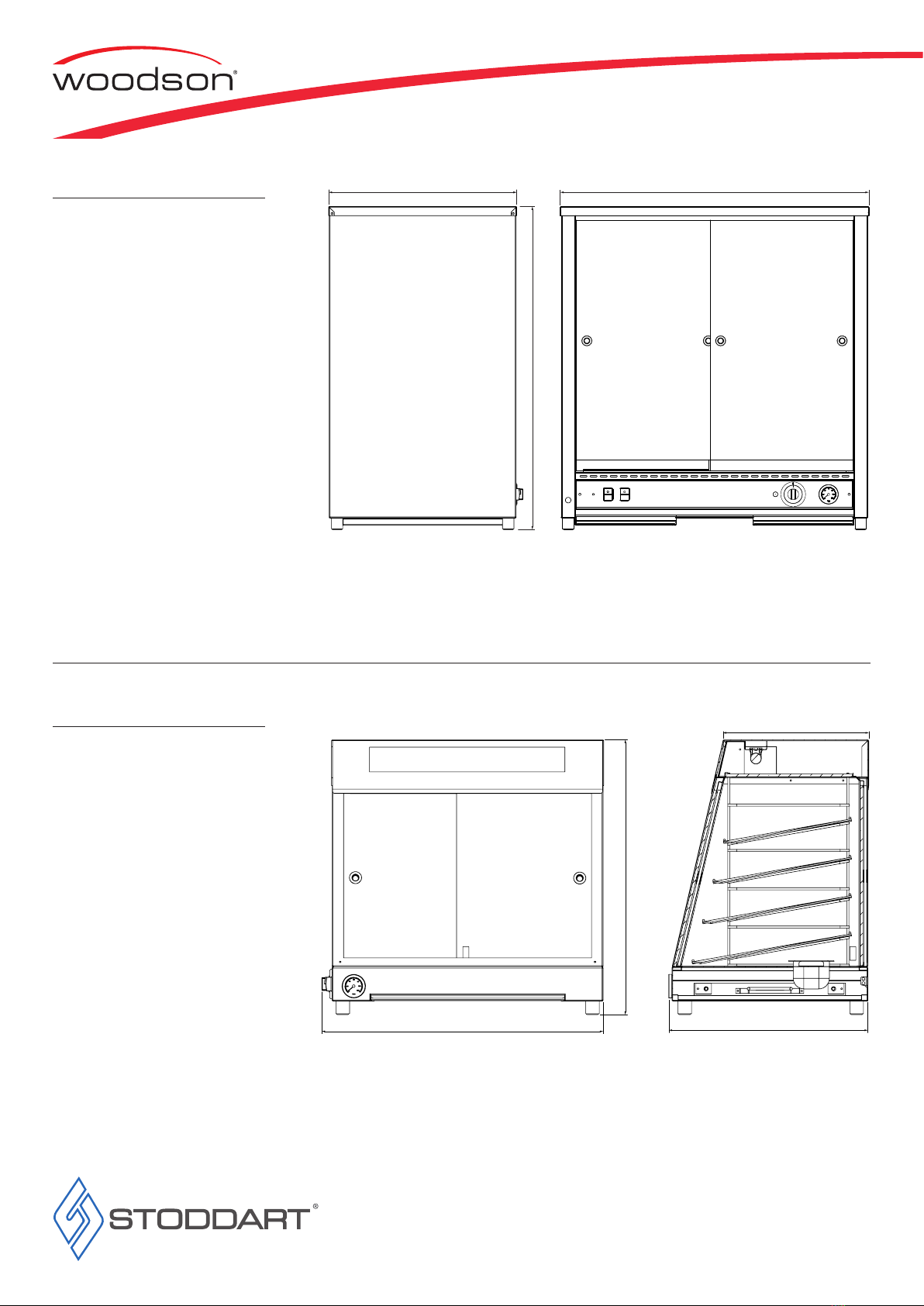

Specification
530 870
915
650
665
343
465
W.PIP200
W.PIM.60
Specifications
Model W.PIP200
Height 915mm
Width 870mm
Depth 530mm
Power 2.1kW
10A plug & lead fitted
Specifications
Model W.PIM.60
Height 650mm
Width 665mm
Depth 465mm
Power 1.5kW
10A plug & lead fitted
Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
60
80
10020
1200
40
60
80
10020
1200
40
60
80
10020
1200
40
Control
W.PIM.60
W.PIP200
W.PIA50 / W.PIA100
Pilot Light Thermostat
Thermostat
Thermostat
Thermometer
Thermometer
Thermometer
Unit Power
Unit Power
Light
Light Pilot Light
Pilot Light
Operation
Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Operating Instructions
Operation (W.PIM.60 / W.PIP200)
Operation (W.PIA50 / W.PIA100)
Upon setting up your equipment, the following steps must be followed:
1. Prior to use Fill the humidity tray/s located at the bottom of the unit with water, monitor regularly to ensure appropriate water levels are
maintained
2. Turn the unit on by pressing the “Power ON/OFF” switch, the pilot light will be illuminated
3. Select the desired temperature by adjusting the “Thermostat”. The temperature will be shown on the “Thermometer”
4. For display lights, press the “Light Switch”
1. Turn the unit on by turning the “Thermostat” clockwise until the pilot light is illuminated
2. Select the desired temperature by adjusting the “Thermostat”. (The operating temperature is shown on the “Thermometer”)
• All food MUST be pre-heated/cooked before placing in the unit. Attempting to cook food with this unit can lead to food poisoning
• Ensure the unit is maintaining the food temperature over 65°C
• The temperature reached on the temperature gauge is the air temperature, NOT the food temperature
• It is important to regularly monitor the food temperature
Food Temperature
• All storage of food should comply with local health standards and regulations
• This unit is NOT designed to store product after hours. The unit MUST be switched OFF
Food Storage
Food Safety
IMPORTANT
This unit is not designed to cook products, it only maintains
them above the regulated 65°C serving temperature.
Operation
Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Cleaning and Maintenance
Cleaning
IMPORTANT
Threaded fasteners can loosen in service.
Regular inspection and adjustment
should be carried out as required
WARNING
This unit is NOT waterproof, do NOT
hose. DO NOT pour water directly onto
the unit. DO NOT immerse in water
IMPORTANT
Some commercial stainless steel
cleaners leave residue or film on the
metal that may entrap fine particles of
food, deeming the surface not
FOOD SAFE
WARNING
Wait until the unit has cooled to a safe
temperature before undertaking any
cleaning or maintenance. Contact with
hot surfaces can cause burns and
serious injury
• Cleaning is recommended for health and safety purposes and to prolong the life of the unit
• Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit
• Do NOT use industrial chemical cleaners, caustic based cleaners or bleaches and bleaching agents, as many will damage the metals
and plastics used on this unit
• Do NOT remove any screws and/or panels for cleaning (unless directed)
• This unit is NOT waterproof, do NOT hose, do NOT pour water directly onto the unit, do NOT immerse in water
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can rust and/or corrode
• Any sign of mild rust and/or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as possible
• NEVER use abrasive pads or cleaners for cleaning
• All metal surfaces should be checked while cleaning for damage, scuffs or scrapes as these can lead to rust and further damage to the
product
• Mild rust and/or corrosion can be treated with a commercial cleaning agent that contains citric/oxalic/nitric/phosphoric acid.
Do NOT use cleaning agents with chlorides or other harsh chemicals as this can cause corrosion.
After treatment, wash with warm (not hot) soapy water and dry thoroughly
• Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit. Check crevices and folds for pooling
• When using, ensure all liquids and moisture is cleaned up straight away.
Food liquids such as juices from vegetables and fruits should NOT be left on preparation surfaces
• Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as grained polished finish
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless steel surface.
Wipe in the direction of the grain
• Some commercial stainless steel cleaners can leave residue or film on the metal; this may trap fine particles of food on the surface,
thus deeming the surfaces not food safe
General Information
Corrosion Protection
Surface Finish
Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Materials Required
• Non Abrasive Cleaning pad
• Clean Sanitised Cloth
• Paper Towel
• Container of warm water
• Nylon Brush
• Appropriate PPE (Personal Protective Equipment)
Cleaning Procedure
1. Isolate the unit from the power supply
1. Remove GN pans, metal shelves/racks and wash separately in a dishwasher or kitchen sink, thoroughly wipe dry after cleaning, DO
NOT allow to air dry.
2. Using a good quality nylon brush remove crumbs and small food items
3. Wipe clean using a cloth dampened (not wet) with clean warm soapy water until all soil has been removed
4. Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices
and folds.
Note: In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining”
This can be removed with an appropriate cleaning agent which contains 10% sodium citrate. Ask your supplier of cleaning chemicals for a
suitable brand.
Cleaning Procedure - External Surfaces
1. Isolate the unit from the power supply
2. Wipe clean using a cloth dampened (not wet) with clean warm soapy water until all soil has been removed
3. Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices
and folds.
Cleaning Schedule
• Daily cleaning is required for the unit. This will help to maintain and prolong the efficiency of your unit
• The unit should be cleaned at the end of each work day
Cleaning Procedure - External Surfaces Hard to remove soil (Stainless Steel Models only)
1. Isolate from the power supply
2. Wearing Personal Protective Equipment (PPE), apply Stainless Cleaner with a non abrasive cleaning pad to the external surfaces
3. Scrub any baked on soil with the cleaner pad in the same direction as grained polish
4. Wipe clean using a cloth dampened with clean warm water until all Stainless Cleaner and soil has been removed
5. Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices
and folds
Cleaning and Maintenance
Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Troubleshooting
Task Type - (O) = Operator
(T) = Technician Task
Problem Possible Causes Task Possible Corrective Action
Unit not heating Unit not turned “on” at the
power socket O Turn power to “on” at the power socket on the wall
“On/Off” switch on the control
panel OSwitch on power “on/off switch” on the control
panel
Food too cold Temperature requires adjusting OAdjust Dials accordingly
Food too hot Temperature requires adjusting OAdjust Dials accordingly
Unit not Hot Element failure TTest & replace the element if necessary
WARNING
Technician tasks are only to be completed by qualied service
people. Check faults before calling service technician.
• If any faults/issues occur with the unit, follow the below troubleshooting procedures
• If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department
Cleaning and Maintenance
www.stoddart.com.au
International
Sales
Tel: +617 3440 7600
Email: [email protected]
Service / Spare Parts
Tel: +617 3440 7600
Email: [email protected]
Email: [email protected]
www.stoddart.co.nz
New Zealand Business Number: 6837694
New Zealand
Sales
Tel: 0800 79 1954
Email: [email protected]
Service / Spare Parts
Tel: 0800 935 714
Email: [email protected]
Email: [email protected]
www.stoddart.com.au
Australian Business Number: 16009690251
Australia
Sales
Tel: 1300 79 1954
Email: [email protected]
Service / Spare Parts
Tel: 1300 307 289
Email: [email protected]
Email: [email protected]
This manual suits for next models
3
Table of contents
Other STODDART Display Case manuals
