Storm Jet HG272E Owner's manual

IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
O w n e r / O p e r a t o r M a n u a l
HG272E

2
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
Safety
Warnings
 This machine is designed to produce very high pressure at the outlet nozzle. High pressure from spray or leaks can
penetrate skin and cause serious injury or death.
 Never direct the spray towards any part of the body.
 Never try to stop or deflect leaks with your hand.
 Avoid contact with engine muffler.
 Never operate machinery while under the influence of alcohol.
Service
Warnings

















Modifications or alterations performed on equipment may void warranty.

Replace damaged hoses or fittings.

Replacement parts must meet or exceed original factory specifications to ensure safe operation.

Do not modify engine parts or settings.

Operating machine with either water or oil leaks will void warranty..

Do not operate with engine in idle position.

Do not leave machine running in bypass (trigger off) for longer than 2 minutes. Failure to do so will destroy pump
seals.

Inlet water temperature must not exceed 80 Degrees Fahrenheit (27 Degrees Celsius).

Ensure you have sufficient water supply. To check water supply, collect water from outlet for one minute. The amount
collected must exceed the water volume of your pump. Pump volume is measured in GPM (gallons per minute). Refer
to model tag on frame for specifications.

Do not allow water to freeze inside pressure washer equipment. (Fill pump fluid end with windshield washer
antifreeze when storing in freezing conditions.)

Pump must be fed with a minimum pressure of 15 PSI and a maximum pressure of 80 PSI.

When feeding pump from a tank, ensure that the tank water level is higher than the pump inlet. (This pump is not
designed to draw water)
Pump oil must be changed seasonally. Use PP-961150C (15W/50 Synthetic).
Pump oil capacity: 4.1oz / 121 ml (do not overfill)

Do not operate pressure washer without a water inlet screen or filter. Dirty water will destroy seals and valves.

To ensure warranty, please return enclosed warranty document with signature.

3
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
Before You
Start
 Engine Oil – Ensure oil level reads to top of dipstick. (Use10W-30 engine oil).
 Pump Oil –This pump comes pre-lubricated from facory. Oil level check not required. Consult factory if pump oil is
leaking. (use 15W-50 synthetic)
 Gasoline - Use regular unleaded gasoline..
 Size your water supply hose - Use no smaller than a 5/8” I.D. hose to feed pump. Hose must be free of kinks and leaks.
Getting
Started
 Flush water inlet hose before attaching to pump.
 Attach water inlet hose and pressure hose onto pump.
 Attach gun/wand assembly to pressure hose and remove nozzle from end of wand.
 Adjust engine throttle arm to middle position and apply choke.
 Turn water on, and pull trigger on gun.
 Inspect for leaks while allowing air to bleed from line.
 With water flowing out of gun, start engine and continue flushing for 10 seconds.
 Turn choke off and adjust throttle to full throttle position (3500 RPM factory setting).
 Release gun and install nozzle into wand to begin washing.

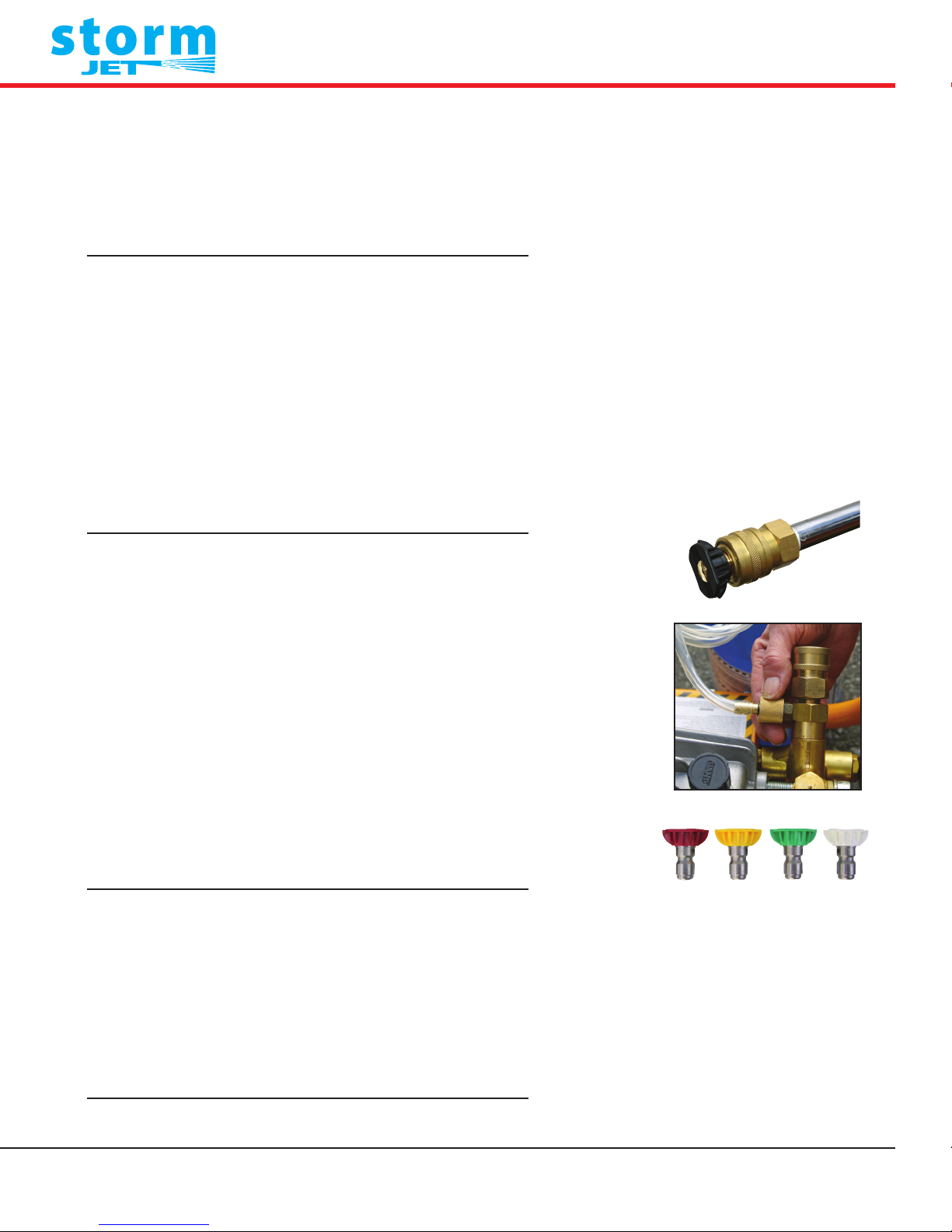

Getting Soap  Your machine is equipped with a low pressure
(downstream) soap injector (Approx. 400 PSI). The pressure is
reduced automatically by installing the black soap nozzle.
 Dispense soap as follows:
1. Place clear vinyl tube with filter attached into soap container.
2. Ensure soap metering valve is adjusted to a mid-range setting
(if equipped See Figure A).
3. Install black soap nozzle into wand assembly, pull trigger
and begin dispensing soap.
4. Rinse fresh water through valve after each use. This will prevent
soap from drying and plugging up the valve.
 Adjust metering valve according to soap requirements.
 Soap will automatically stop drawing if colored high pressure
tips are in use.
Nozzles  All spray tips provided will produce the same pressure (except the black soaper tip). The only difference is the angle
of spray. Use the following as a rule of thumb.
 Yellow tip / 15 Deg (spray angle) - Use on tough cleaning jobs that have a hard surface ie, sidewalks or driveways.
 Green tip / 25 Deg - Use on cleaning your car or vinyl siding
 White tip / 40 Deg - Use on wood surfaces or under your automobile hood. This tip has the lowest impact of the
bunch and will not damage the surface while cleaning.
 Black tip - Use to get soap only
Important  The information provided in this manual will help to ensure the safe operation of this equipment. Failure to comply
with the enclosed operating instructions will nullify warranty.
Figure A

4
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
Pressure Washer Components
1
3
49 10 11 14
16
19
17
13
15
18
12
5
2
6
8
7
Item Part # Description Qty
1 HE-GC190-QHC HONDA 6HP 3/4" SHAFT RES.
REC STRT
1
2 PA-24-GXH2525111H GXH2525 PUMP W/ 3/4" SHAFT 1
3 PP-319011 PW FRAME,RED FOR 10" WH 1
4 PP-721361 GUN W EXT 22M FEMOUT 3/8 PL
5KPSI
1
5 PP-721362 ZN LANCE 24" 22M IN 1/4" QC 1
6 PP-318400 GARD HOSE CONNCT 1/2"MNPT
X 3/4"FGH
1
7 PP-318401 GARD HOSE CONNCT GASKET 1
8 PP-318300 COUPLER BRASS 3/8" FNPT 1
9 PP-403015 NOZ QD 3.0 ORIF 15 DEG SPRAY 1
10 PP-403025 NOZ QD 3.0 ORIF 25 DEG SPRAY 1
Item Part # Description Qty
11 PP-403040 NOZ QD 3.0 ORIF 40 DEG SPRAY 1
12 PP-318605 FILTER PLASTCHEM INJ 1
13 PP-960428 CLEAR HOSE, CHEMICAL
INJECTOR, 4'
1
14 PP-430065 NOZ QD BRASS 30 ORI 65 DEG
SPRY (SOAP)
1
15 06-00010-75 FLAT-FREE WHEEL ASSY,
410/350X4X3/4 ID
2
16 PP-5220010 DECAL, STORMJET 1
17 PP-5220020 DECAL, HONDA ENGINE LOGO 1
18 PP-5220013 DECAL, 2700PSI 2.5GPM 2
19 PP-710025 HOSE ASSY, 25' W QD FTGS 4KPSI
248F
1

5
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
5
4
2
1
3
2 3
1
# Part # Description Qty
1 PP-130301 0-Ring, 3/8”Viton 1
2 PP-318301 Coupler 1
3 PP-319310 Nipple 1
4 PP-710025 25 ft. Hose 1
PP-710050 50 ft. Hose 1
PP-710100 100 ft. Hose 1

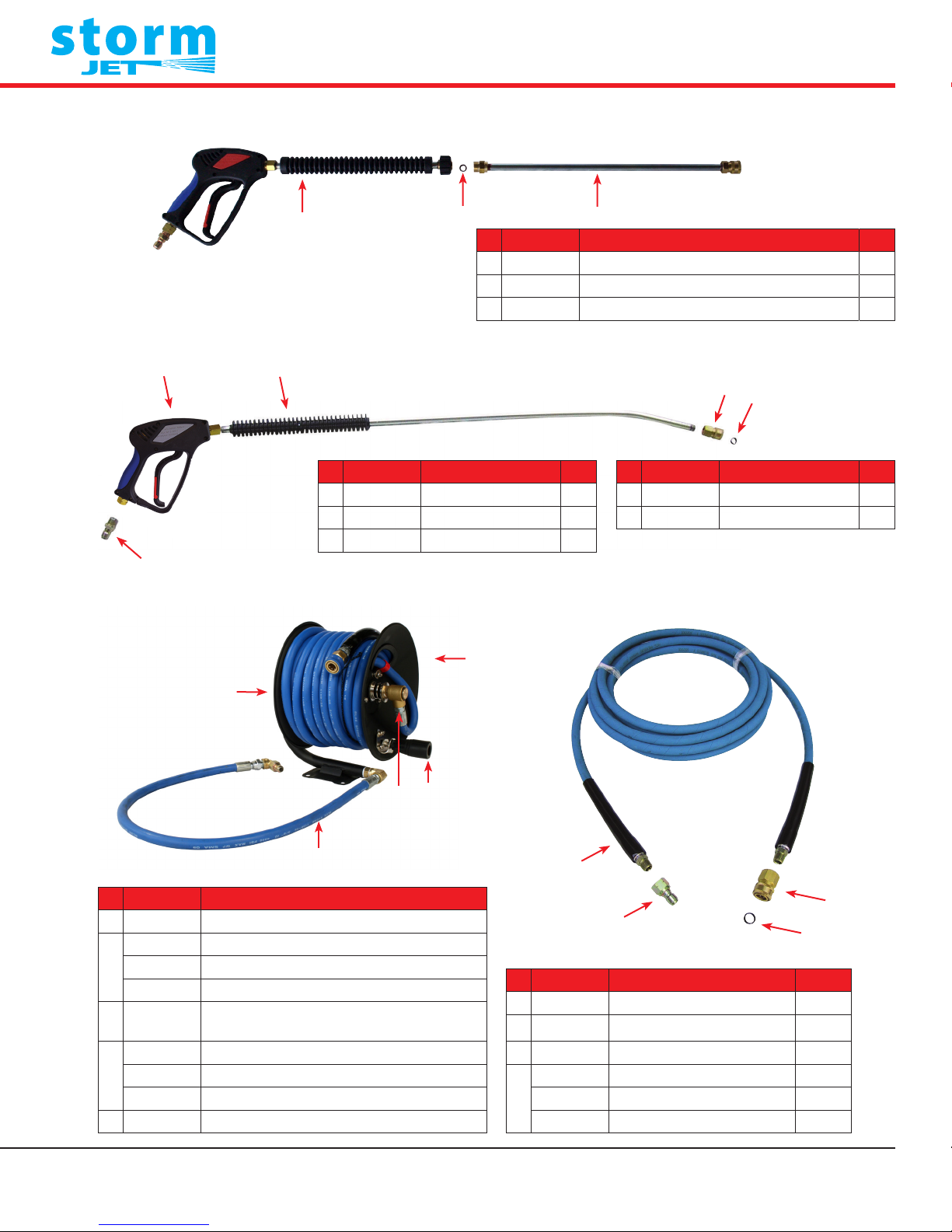

Gun and Wand Assembly
PP-719360
Gun and Wand Assembly
PP-721363
Hose Assembly
PP-710025 (25’) & PP-710050 (50’)
# Part # Description Qty
1 PP-318520 Shut-Off Gun 1
2 PP-419360 Zinc plated lance, 36” 1
3 PP-319315 Nipple 1
# Part # Description Qty
4 PP-318200 Coupler, 1/4” FNPT 1
5 PP-130201 0-Ring 1
# Part # Description Qty
1 PP-721361 Gun W/Extention, 22mm Coupler 1
2 PP-130201 0-Ring 1
3 PP-721362 Lance Extension, 24”22mm x 1/4 QC 1
2
1
3
4
# Part # Description
1 PP-69-H100 Replacement Handle
2 PP-69-H202 Swivel replacement for 50’ Reel
PP-69-H208 Swivel replacement for 150’ Reel
PP-69-H480 Swivel replacement for 200’ Reel
3 PP-718051 Hose Reel Complete with 50 ft hose and Leader
Connector hose
4 PP-718050 Hose Reel - No Hose, 50 ft capacity of 3/8" ID hose
PP-718150 Hose Reel - No Hose, 150 ft capacity of 3/8" ID hose
PP-718200 Hose Reel - No Hose, 200 ft capacity of 3/8" ID hose
5 PP-134003 Leader Hose
Hose Reel Parts
3
5
21
4

6
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
Pump
GX2525
Ref Part # Description Qty.
1 PP-24-07805 Radial Shaft Seal 1
2 PP-24-06310 Adapting Flange 1
3 PP-24-06294 O-Ring 1
4 PP-24-06300 Rear Bearing 1
5 PP-24-06566 Wobble Plate (GXRH2424) 1
5A PP-24-07882 Shaft Ring 1
6 PP-24-06301 Front Bearing 1
7 PP-24-06289 Spring Disk 3
8 PP-24-06287 Plunger, 16mm 3
9 PP-24-06288 Plunger Spring 3
10 PP-24-06299 Socket Bolt 6
11 PP-24-08192 Gasket 1
12 PP-24-06273 Oil Drain Plug 1
13 PP-24-06282 Crankcase (GXRV) 1
PP-24-06338 Crankcase (GXRH) 1
14 PP-24-08083 Vent Cap (Horizontal Only) 1
15 PP-24-06316 Oil Seal 3
17 PP-24-06292 Spacer 3
18 PP-24-07374 Valve Spring 6
19 PP-24-06267 Guided P-Valve 3
20 PP-24-06290 Pressure Ring 3
21 PP-24-06315 V-Sleeve, 16mm 3
22 PP-24-06296 Discharge Plug 3
14 PP-24-08083 Vent Cap (Horizontal Only) 1
15 PP-24-06316 Oil Seal 3
17 PP-24-06292 Spacer 3
18 PP-24-07374 Valve Spring 6
19 PP-24-06267 Guided P-Valve 3
20 PP-24-06290 Pressure Ring 3
21 PP-24-06315 V-Sleeve, 16mm 3
22 PP-24-06296 Discharge Plug 3
23 PP-24-12007 O-Ring 3
24 PP-24-23507 O-Ring 1
25 PP-24-06710 Seat 1
26 PP-24-06386 6mm S.S. Ball 1
27 PP-24-06385 O-Ring 1
28 PP-24-06384 Plastic Poppet Valve 1
29 PP-24-06382 Spring 1
30 PP-24-06410 O-Ring 1
Ref Part # Description Qty.
31 PP-24-06392 Cap 1
35 PP-24-06412 Manifold 1
36 PP-24-06295 Discharge Valve Cone 3
38 PP-24-07910A Triangle O-Ring 1
39 PP-24-06298 Suction Flange 1
40 PP-24-06302 Stud Bolt 4
44 PP-24-06727 Orifice, 1
45 PP-24-06312 O-Ring in Nozzle 1
46 PP-24-07913 O-Ring 1
47 PP-24-06303 Injector Retainer 1
48 PP-24-23009 Spring 1
49 PP-24-23010-0100 Ball 1
50 PP-24-12516-0001 O-Ring 1
51 PP-24-12517 Hose Barb 1
53 PP-24-23422A Thermal Relief Valve 1
54 PP-24-07468 Locktooth Washer 4
55 PP-24-07467 Screws 4
56 PP-24-06334 Mounting Flange X Style 1
9103 PP-24-09103EX Gasoline Flange Kit
70 PP-24-09468 Oil Seal Kit
PP-24-06316 Plunger Oil Seal 3
71 PP-24-09465 Plunger Packing Kit
PP-24-06290 Support Ring 3
PP-24-06315 V-Sleeve 3
72 PP-24-09466 Valve Assembly Kit
PP-24-07374 Valve Spring 3
PP-24-06267 Guided P-Valve 3
PP-24-06295 Discharge Valve Cone 3
PP-24-07373 Discharge Valve Spring 3
73 PP-24-09534 Regulator Repair Kit
PP-24-23507 O-Ring 1
PP-24-06710 Seat 1
PP-24-06386 6mm S.S. Ball 1
PP-24-06385 O-Ring 1
PP-24-06384 Plastic Poppet Valve 1
PP-24-06410 O-Ring 1

7
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

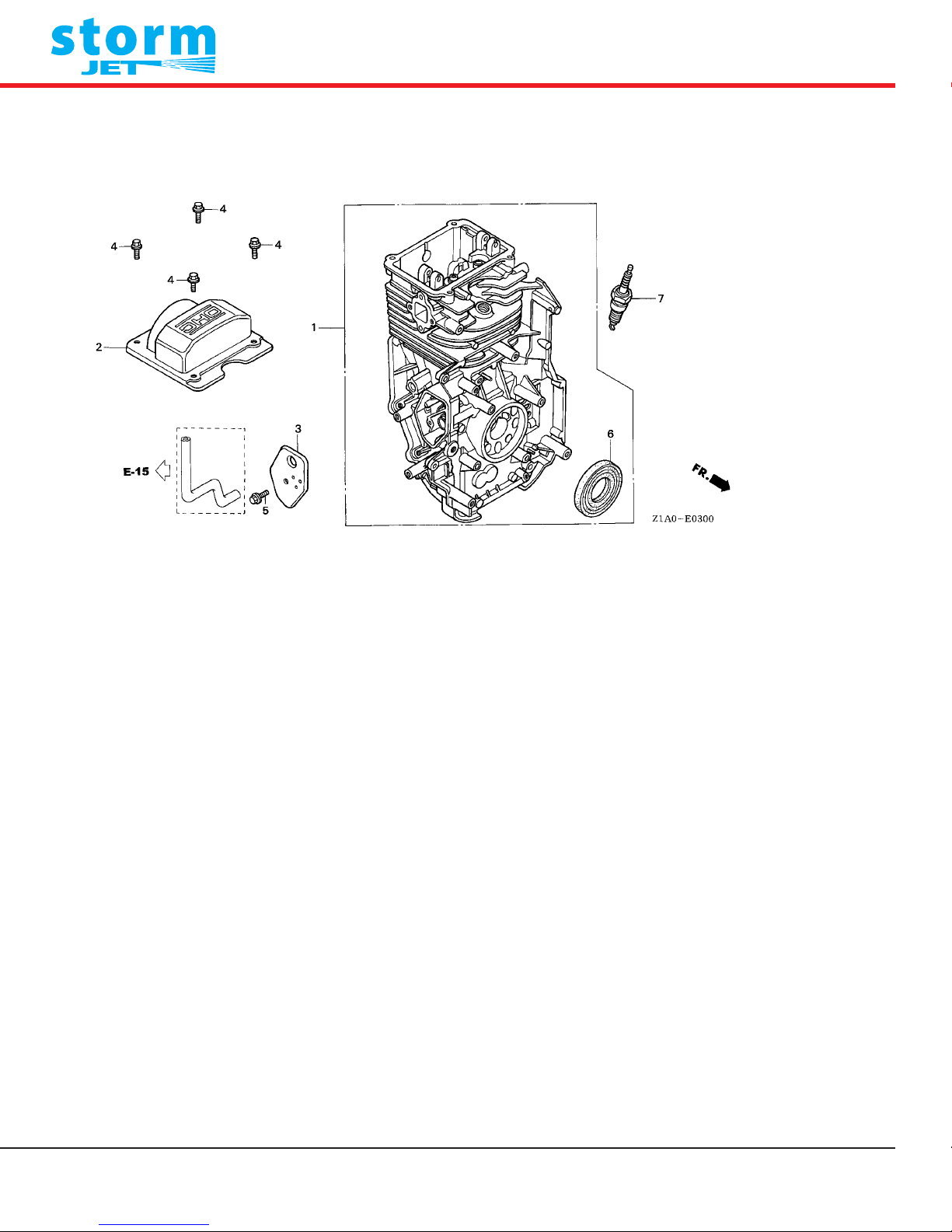

E-3 CYLINDER BARREL
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 12000-Z0Y-405 BARREL ASSY., CYLINDER •••••• 1
2 12311-ZL8-D00 COVER, HEAD ••••••••••••••••• 1
3 12355-ZL8-000 COVER COMP., BREATHER ••••••• 1
4 90013-883-000 BOLT, FLANGE, 6X12(CT200) ••• 4
5 90014-952-000 BOLT, FLANGE, 6X14(CT200) ••• 1
6 91201-ZL8-003 OIL SEAL, 25.4X62X6 ••••••••• 1
7 98079-56846 PLUG, SPARK (BPR6ES)(NGK) ••• 1

8
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-3 CYLINDER BARREL
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 12000-Z0Y-405 BARREL ASSY., CYLINDER •••••• 1
2 12311-ZL8-D00 COVER, HEAD ••••••••••••••••• 1
3 12355-ZL8-000 COVER COMP., BREATHER ••••••• 1
4 90013-883-000 BOLT, FLANGE, 6X12(CT200) ••• 4
5 90014-952-000 BOLT, FLANGE, 6X14(CT200) ••• 1
6 91201-ZL8-003 OIL SEAL, 25.4X62X6 ••••••••• 1
7 98079-56846 PLUG, SPARK (BPR6ES)(NGK) ••• 1

9
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

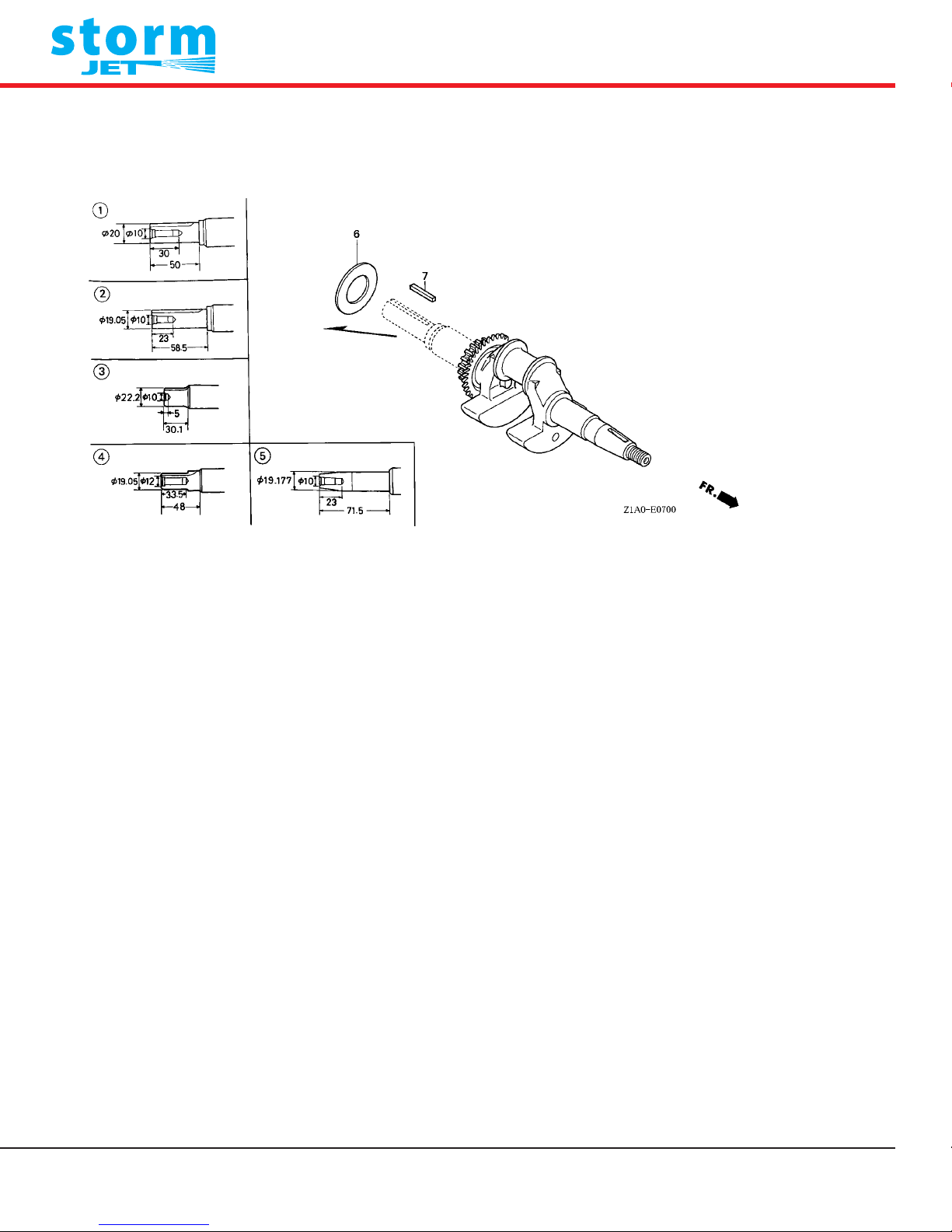

E-7 CRANKSHAFT
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 13310-Z1A-000 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- SHE1,SHE6
2 13310-Z1A-600 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- QFC,QHA,QHAF,QHA1,QHA2,QHC,QHE,QHE5,QHU
3 13310-Z1A-650 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- DHAF
4 13310-Z1A-660 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- MHA2
5 13310-Z1A-670 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- VXU
6 90402-ZL8-000 WASHER, THRUST •••••••••••••• 1
7 90745-ZE1-600 KEY, 4.78X4.78X38 ••••••••••• 1 -------- -------- QHE5

10
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

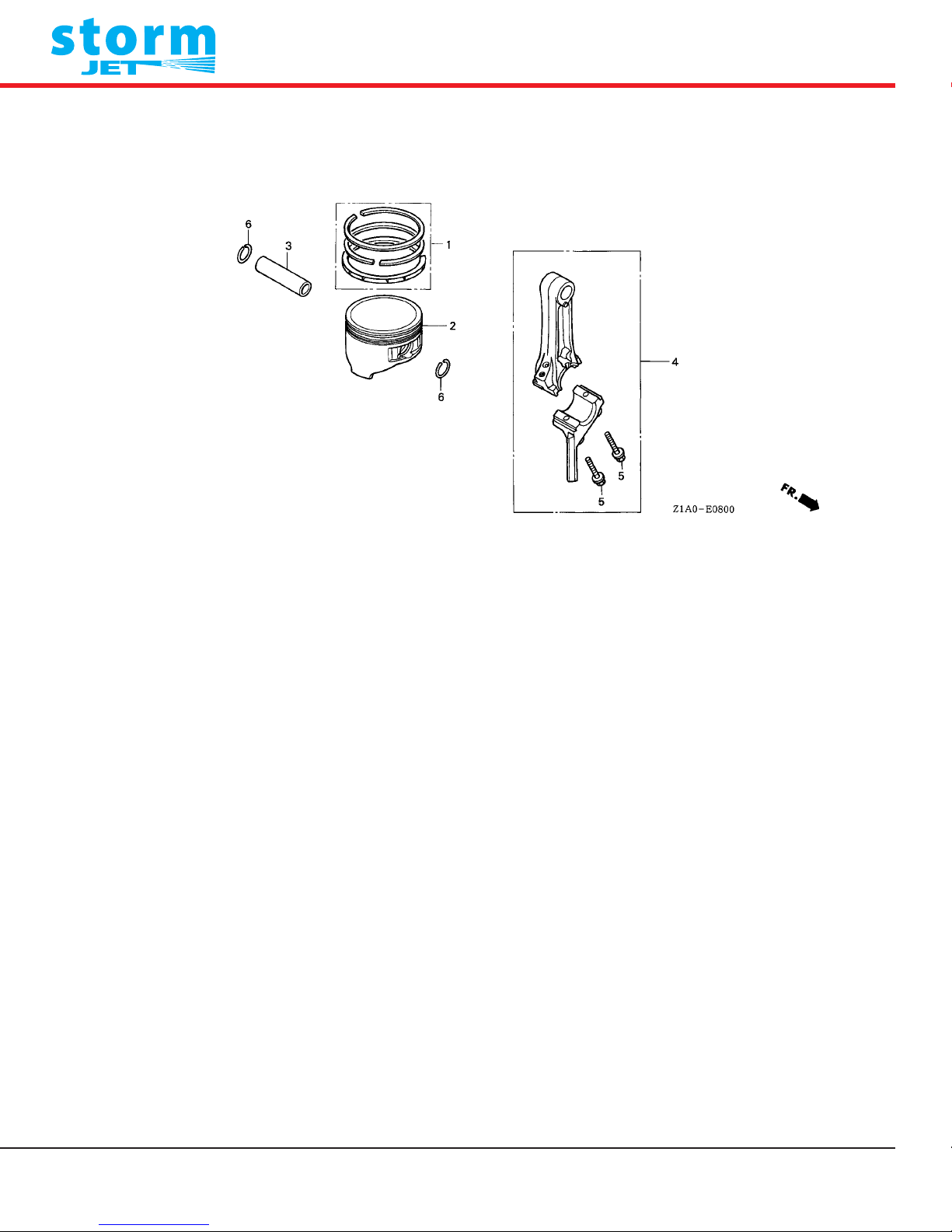

E-8 PISTON/CONNECTING ROD
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 13010-Z0Y-004 RING SET, PISTON (TEIKOKU) •• 1
2 13101-Z0Y-000 PISTON •••••••••••••••••••••• 1
3 13111-Z0Y-000 PIN, PISTON ••••••••••••••••• 1
4 13200-Z0Y-000 ROD ASSY., CONNECTING ••••••• 1
5 90001-ZE1-000 BOLT, CONNECTING ROD •••••••• 2
6 90551-ZE0-000 CLIP, PISTON PIN, 13MM •••••• 2

11
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

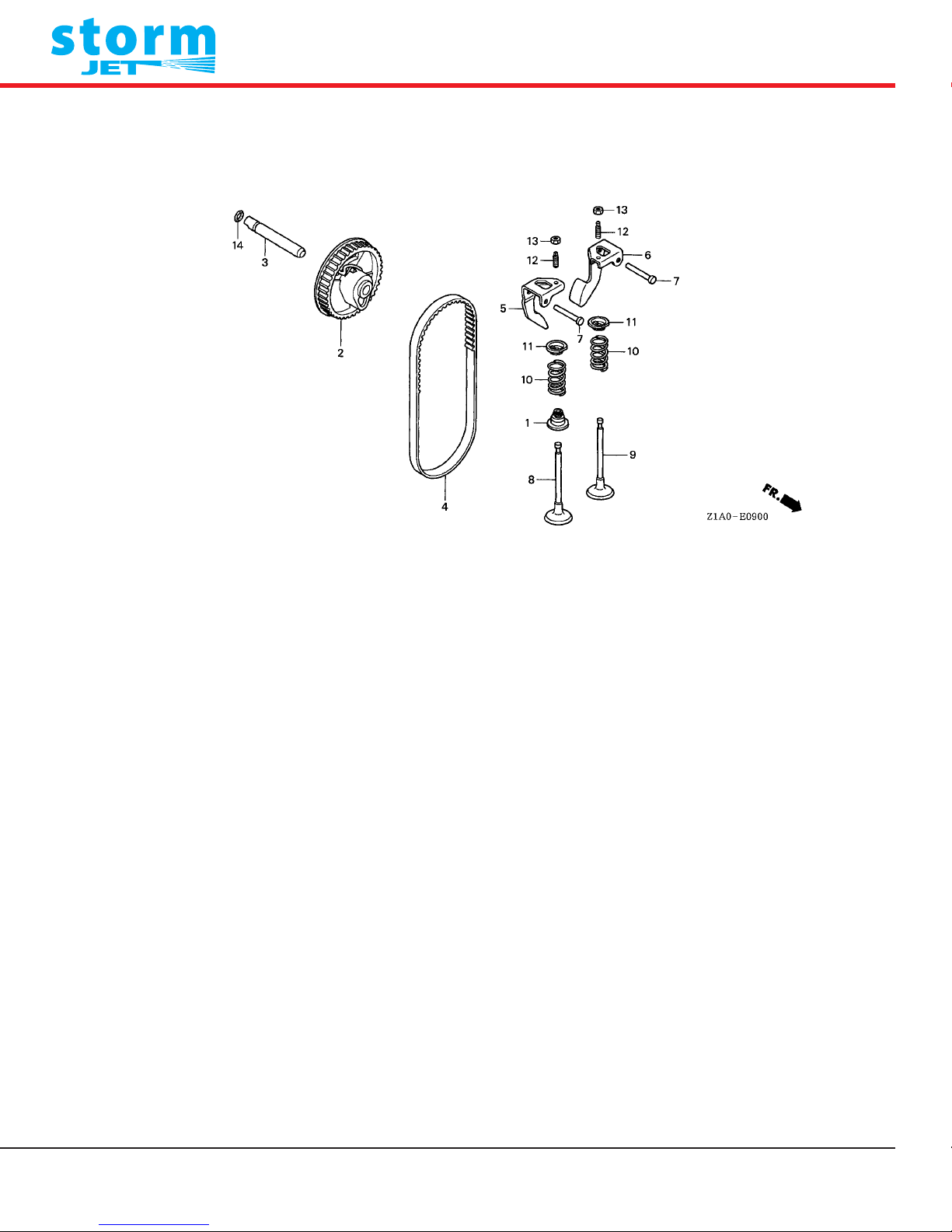

E-9 CAMSHAFT
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 12209-ZM0-003 SEAL, VALVE STEM •••••••••••• 1
2 14320-Z0Y-000 PULLEY COMP., CAM ••••••••••• 1
3 14324-ZL8-000 SHAFT, CAM PULLEY ••••••••••• 1
4 14400-Z0J-014 BELT, TIMING (84HU7 G-200) •• 1
5 14431-ZL8-000 ARM, IN. VALVE ROCKER ••••••• 1
6 14441-ZL8-000 ARM, EX. VALVE ROCKER ••••••• 1
7 14461-ZL8-000 SHAFT, ROCKER ARM ••••••••••• 2
8 14711-ZL8-000 VALVE, IN. •••••••••••••••••• 1
9 14721-ZL8-000 VALVE, EX. •••••••••••••••••• 1
10 14751-ZL8-000 SPRING, VALVE ••••••••••••••• 2
11 14771-ZE1-000 RETAINER, IN. VALVE SPRING •• 2
12 90012-333-000 SCREW, TAPPET ADJUSTING ••••• 2
13 90206-001-000 NUT, TAPPET ADJUSTING ••••••• 2
14 91301-ZM0-V31 O-RING, 6.8X1.9(ARAI) ••••••• 1

12
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-11 RECOIL STARTER
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 28400-Z1A-003ZA STARTER ASSY., RECOIL
*NH1*...................BLACK 1
28400-Z1A-003ZB *R280*..............P0WER RED 1
2 28461-ZL8-003 GRIP, STARTER ••••••••••••••• 1
3 28462-ZL8-003 ROPE, RECOIL STARTER •••••••• 1

13
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

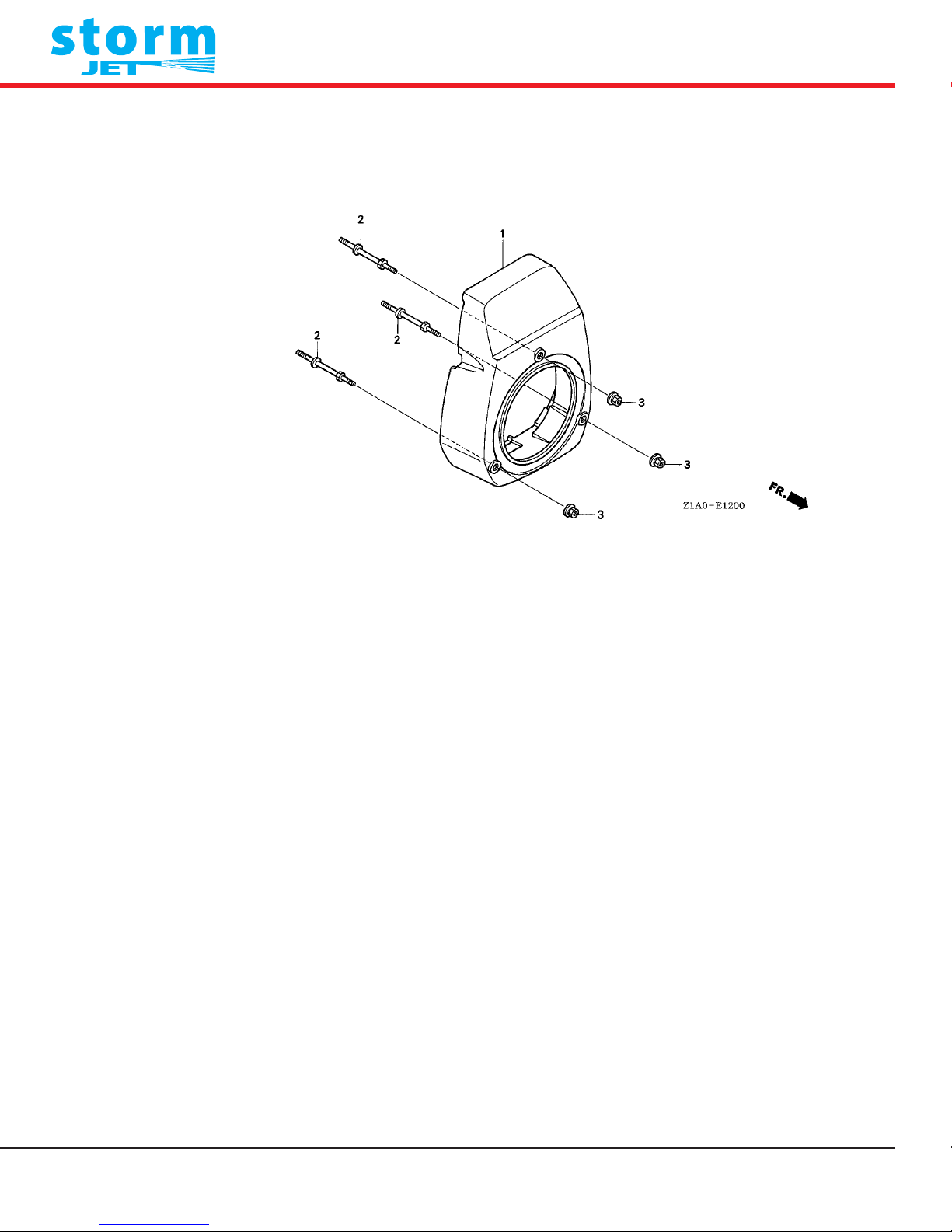

E-12 FAN COVER
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 19611-Z1A-000ZA COVER, FAN
*NH1*...................BLACK 1
19611-Z1A-000ZB *R280*..............P0WER RED 1
2 90043-ZL8-000 BOLT, STUD •••••••••••••••••• 3
3 90201-ZM0-000 NUT, FLANGE, 6MM •••••••••••• 3

14
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2

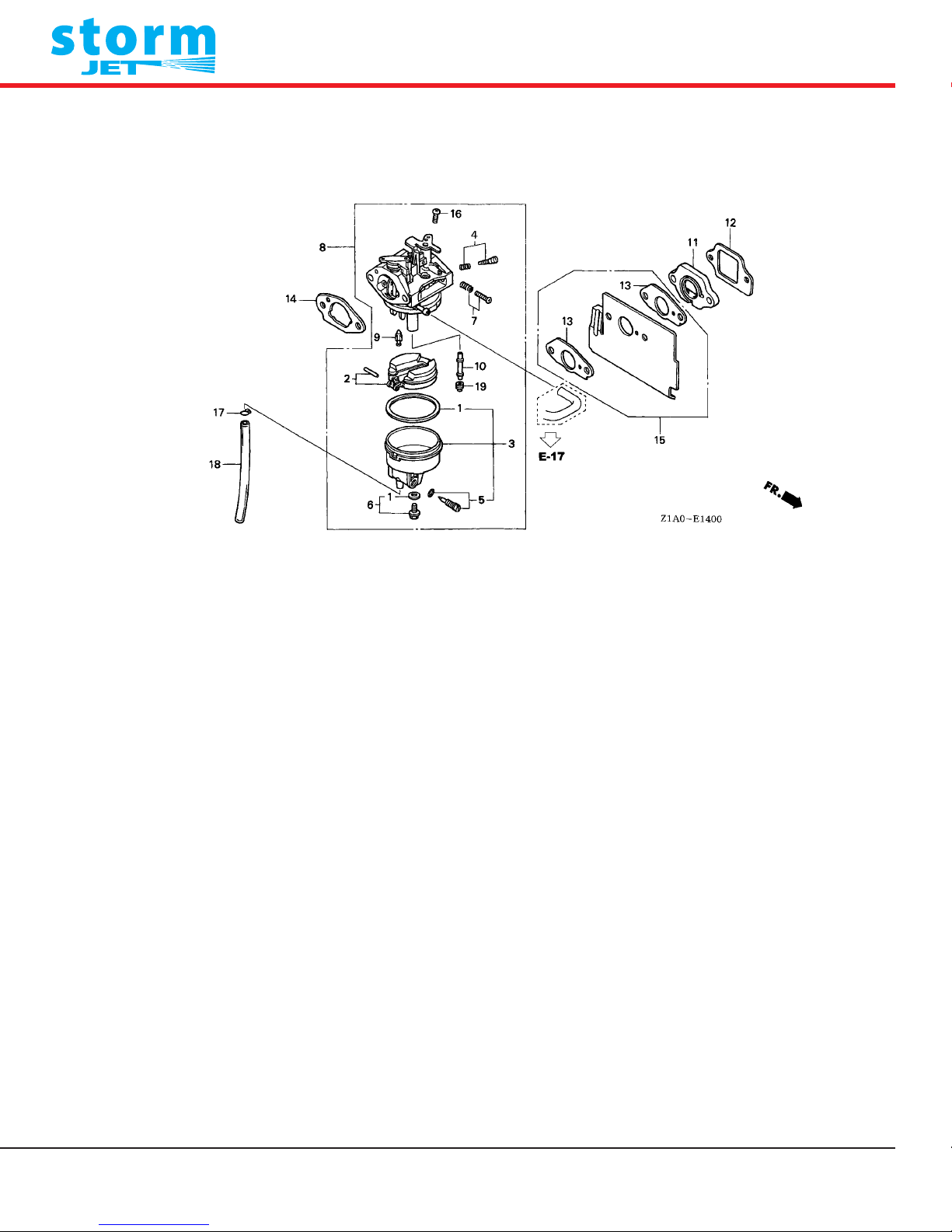

E-14 CARBURETOR
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 16010-883-015 PACKING SET ••••••••••••••••• 1
2 16013-ZL1-003 FLOAT SET ••••••••••••••••••• 1
3 16015-ZL8-003 CHAMBER SET, FLOAT •••••••••• 1
4 16016-Z1A-013 SCREW SET ••••••••••••••••••• 1
5 16024-124-760 SCREW SET, DRAIN •••••••••••• 1
6 16028-ZE0-005 SCREW SET ••••••••••••••••••• 1
7 16029-ZG0-901 SCREW SET ••••••••••••••••••• 1
8 16100-Z1A-003 CARBURETOR ASSY. (BB61E A) •• 1
9 16155-ZL8-003 VALVE COMP., FLOAT •••••••••• 1
10 16166-Z1A-013 NOZZLE, MAIN •••••••••••••••• 1
11 16211-ZL8-000 INSULATOR, CARBURETOR ••••••• 1
12 16212-ZL8-000 PACKING, INSULATOR •••••••••• 1
13 16221-883-800 PACKING, CARBURETOR ••••••••• 2
14 16228-ZL8-000 PACKING, CARBURETOR ••••••••• 1
15 19650-ZL8-000 GUIDE COMP., AIR •••••••••••• 1
16 93500-05006-1H SCREW, PAN, 5X6 ••••••••••••• 1
17 95002-02650 CLIP, TUBE (B6.5) ••••••••••• 1
18 95003-07015-31 TUBE, VINYL, 4X7X150
(95003-07001-60M) 1
19 99101-124-0680 JET, MAIN, #68 •••••••••••••• 1
99101-124-0620 JET, MAIN, #62 •••••••••••••• (1)
99101-124-0650 JET, MAIN, #65 •••••••••••••• (1)

15
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-15 AIR CLEANER
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 15721-ZL8-000 TUBE, BREATHER •••••••••••••• 1
2 17211-ZL8-003 ELEMENT, AIR CLEANER •••••••• 1
3 17220-ZL8-000 CASE COMP., AIR CLEANER ••••• 1
4 17228-ZL8-000 PACKING, AIR CLEANER •••••••• 1
5 17231-Z0J-020 COVER, AIR CLEANER •••••••••• 1
6 90003-ZL8-000 BOLT, FLANGE, 6X112(CT200) •• 2

16
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-16 MUFFLER
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 18310-ZL8-010 MUFFLER COMP. ••••••••••••••• 1
2 18321-Z0L-000 PROTECTOR, MUFFLER •••••••••• 1
3 18348-ZL8-000 CAP, MUFFLER •••••••••••••••• 1 -------- -------- QHE5,SHE6
4 18381-ZL8-305 GASKET, MUFFLER ••••••••••••• (1)
5 18430-ZL8-000 DEFLECTOR COMP., MUFFLER •••• 1 -------- -------- QHE5,SHE6
6 19664-ZL8-000 SHROUD, MUFFLER ••••••••••••• 1
7 90004-ZL8-000 BOLT, FLANGE, 6X79(CT200) ••• 2
8 90013-883-000 BOLT, FLANGE, 6X12(CT200) ••• 3
9 90055-ZE1-000 SCREW, TAPPING, 4X6 ••••••••• 2 -------- -------- DHAF,MHA2,QFC,QHA,QHAF,QHA1,QHA2,QHC,QHE,QHU,SHE1,VXU
6 -------- -------- QHE5,SHE6
10 18350-ZL8-000 ARRESTER COMP., SPARK ••••••• (1) -------- -------- DHAF,MHA2,QFC,QHA,QHAF,QHA1,QHA2,QHC
11 18356-ZL8-000 PLATE, ARRESTER NUMBER •••••• (1) -------- -------- DHAF,MHA2,QFC,QHA,QHAF,QHA1,QHA2,QHC
12 90055-ZE1-000 SCREW, TAPPING, 4X6 ••••••••• (1) -------- -------- DHAF,MHA2,QFC,QHA,QHAF,QHA1,QHA2,QHC

17
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-17 FUEL TANK/FUEL PUMP
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 16700-ZL8-013 PUMP ASSY., FUEL •••••••••••• 1
2 16854-ZH8-000 RUBBER, SUPPORTER (107MM) ••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
3 16882-ZL8-000 TUBE, DIAPHRAGM ••••••••••••• 1
4 16910-ZV4-015 STRAINER COMP., FUEL •••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
5 16915-ZV4-000 SUSPENSION, STRAINER •••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
6 16952-ZA8-800 STRAINER, FUEL •••••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
7 17511-ZL8-000 TANK, FUEL •••••••••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
17511-ZL8-800 •••••••••••••••••••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
8 17516-ZV0-000 RUBBER B, TANK MOUNTING ••••• 2
9 17519-ZL8-800 JOINT, FUEL TUBE •••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
10 17535-166-000 COLLAR, FR. COVER SETTING ••• 1
11 17561-ZL8-000 STAY A, FUEL TANK ••••••••••• 1
12 17620-ZL8-013 CAP ASSY., FUEL TANK •••••••• 1
13 17622-ZL8-003 SPONGE, FUEL CAP BREATHER ••• 1
14 17624-ZL8-003 PACKING, FUEL CAP ••••••••••• 1
15 17701-ZL8-000 TUBE, FUEL TANK ••••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
16 17701-ZL8-800 TUBE, FUEL TANK ••••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
17 17702-ZL8-000 TUBE, FUEL •••••••••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
18 17702-ZL8-800 TUBE, FUEL •••••••••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
19 17703-ZL8-800 TUBE, FUEL RETURN ••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
20 17704-ZL8-800 TUBE, FUEL PUMP ••••••••••••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6
21 80103-MG2-000 CUSHION, RR. FENDER ••••••••• 1
22 90041-ZL8-000 BOLT, FUEL TANK STUD •••••••• 1
23 90473-896-000 WASHER, 6MM ••••••••••••••••• 1
24 90501-KA2-640 COLLAR, 14X6.1 •••••••••••••• 2

18
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
25
FUEL TANK/FUEL PUMP
2
25 93404-06025-00 BOLT-WASHER, 6X25 ••••••••••• 2
26 93894-05014-00 SCREW-WASHER, 5X14 •••••••••• 2
27 94050-06000 NUT, FLANGE, 6MM •••••••••••• 1
28 95001-55033-40 TUBE, FUEL, 5.3X33
(95001-55001-60M) 1 -------- -------- MHA2,QHA2,QHE5,SHE6
29 95002-02080 CLIP, TUBE (B8) ••••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
3 -------- -------- MHA2,QHA2,QHE5,SHE6
30 95002-02100 CLIP, TUBE (B10) •••••••••••• 1 -------- -------- DHAF,QFC,QHA,QHAF,QHA1,QHC,QHE,QHU,SHE1,VXU
5 -------- -------- MHA2,QHA2,QHE5,SHE6
31 95002-50000 CLIP, TUBE (C9) ••••••••••••• 1
32 95002-70000 CLIP, TUBE (C11) •••••••••••• 1
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.

19
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-19 FLYWHEEL
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 13331-357-000 KEY, SPECIAL WOODRUFF, 25X18 1
2 30500-Z0J-003 COIL ASSY., IGNITION •••••••• 1
3 31110-Z0J-013 FLYWHEEL COMP. •••••••••••••• 1
4 32195-ZL8-840 CORD, STOP SWITCH ••••••••••• 1 -------- -------- SHE6
5 32195-Z0J-000 CORD, STOP SWITCH ••••••••••• 1 -------- -------- MHA2,QFC,QHA,QHA1,QHA2,QHC,QHE,QHE5,QHU,SHE1
6 36103-ZE1-000 HOLDER, STOP SWITCH CORD •••• 1 -------- -------- MHA2,QFC,QHA,QHA1,QHA2,QHC,QHE,QHE5,QHU,SHE1
46391-VM0-003 CLIP, BRAKE PIPE (A) •••••••• 1 -------- -------- SHE6
7 78419-SJ6-003 CLIP D, SPEEDOMETER CABLE ••• 1 -------- -------- SHE6
8 90022-888-010 BOLT, FLANGE, 6X20(CT200) ••• 1
9 90213-S3Y-000 NUT, FLANGE, 14MM ••••••••••• 1
10 93892-05008-00 SCREW-WASHER, 5X8 ••••••••••• 1 -------- -------- SHE6

20
Owner/Operator Manual – HG272E
IT’S A DIRTY WORLD… LET’S CLEAN IT UP!
2
E-19-10 OIL ALERT/OIL LEVEL SWITCH
Ref.
No. Part No. Description
Reqd. QTY
Parts catalogue code
GC
190A
Serial No.
1 30548-ZL8-000 CLAMPER, STOP SWITCH CORD ••• 1 -------- -------- VXU
2 30549-ZL8-000 CLAMPER, CORD ••••••••••••••• 1 -------- -------- VXU
3 32195-Z0J-810 CORD, STOP SWITCH ••••••••••• 1 -------- -------- VXU
4 34150-ZL8-003 ALERT UNIT, OIL ••••••••••••• 1 -------- -------- VXU
5 35419-ZL8-000 PROTECTOR, SWITCH ••••••••••• 1 -------- -------- VXU
6 35480-ZL8-811 SWITCH COMP., OIL LEVEL ••••• 1 -------- -------- VXU
7 36103-ZE1-000 HOLDER, STOP SWITCH CORD •••• 1 -------- -------- VXU
8 90013-883-000 BOLT, FLANGE, 6X12(CT200) ••• 3 -------- -------- VXU
9 90014-952-000 BOLT, FLANGE, 6X14(CT200) ••• 1 -------- -------- VXU
10 90015-883-000 BOLT, FLANGE, 6X28 •••••••••• 1 -------- -------- VXU
11 91302-ZL8-003 O-RING, 11.8X2.4 •••••••••••• 1 -------- -------- VXU
12 91501-ZL8-000 COLLAR, 6.6X13.8X14.5 ••••••• 1 -------- -------- VXU
