Strahman MINI M-70 Series User manual

INSTRUCTION FOR SERVICING SPRAY NOZZLE:
The entire working parts of the Strahman Mini M-70 Lightweight Spray Nozzle
are contained in a Single Cartridge Unit. CAUTION: Not for use on steam hose.
To replace cartridge:
Remove the Rubber Cover (20) by slipping it o the back of the nozzle and pulling it over the front using a round
tool; not a sharp tool that can cut cover.
Remove the Lever Arm Screw & Nut (24) and the Lever Arm (6).
Unscrew Lock Screw (30) and extract the cartridge from back end of nozzle with Cage (18).
Be sure when replacing Cage (18) to place cut-away part of cage facing downward, so Lever Arm (6) can be
inserted.
To insert new cartridge, reverse procedure beginning.
Be sure Lever Arm (6) is placed ahead of Stem Guide (31) on cartridge unit.
To replace Rubber Cover (20) wipe body with detergent, insert nozzle end fi rst then handle into cover. Use a round
ended tool approx. 3/8” in diameter to stretch cover over back. Do not use sharp tool. Sharp tools can cut cover.
1.
2.
3.
4.
5.
6.
7.
wipe body with detergent, insert nozzle end fi rst then handle into cover. Use a round
A
C
E
R
T
I
F
I
E
D
Q
U
A
L
I
T
Y
P
R
O
D
U
C
T
•
A
C
E
R
T
I
F
I
E
D
Q
U
A
L
I
T
Y
P
R
O
D
U
C
T
•
A
C
E
R
T
I
F
I
E
D
Q
U
A
L
I
T
Y
P
R
O
D
U
C
T
•
1 YEAR
LIMITED
WARRANTY
WDEMINIM70ASSY062020
Assembly Instructions for Series—
MINI M-70 | MINI M-75 | MINI S-70 | MINI S-75
MINI M-70 SERIES
ESTABLISHED 1921
STRAHMANVALVES.COM
WORLD HEADQUARTERS
STRAHMAN VALVES, INC.
2801 BAGLYOS CIRCLE, BETHLEHEM, PA 18020
P: +1 484.893.5080 F: +1 484.893.5099 E: [email protected]
UNITED STATES • FRANCE • GERMANY • CHINA • HONG KONG

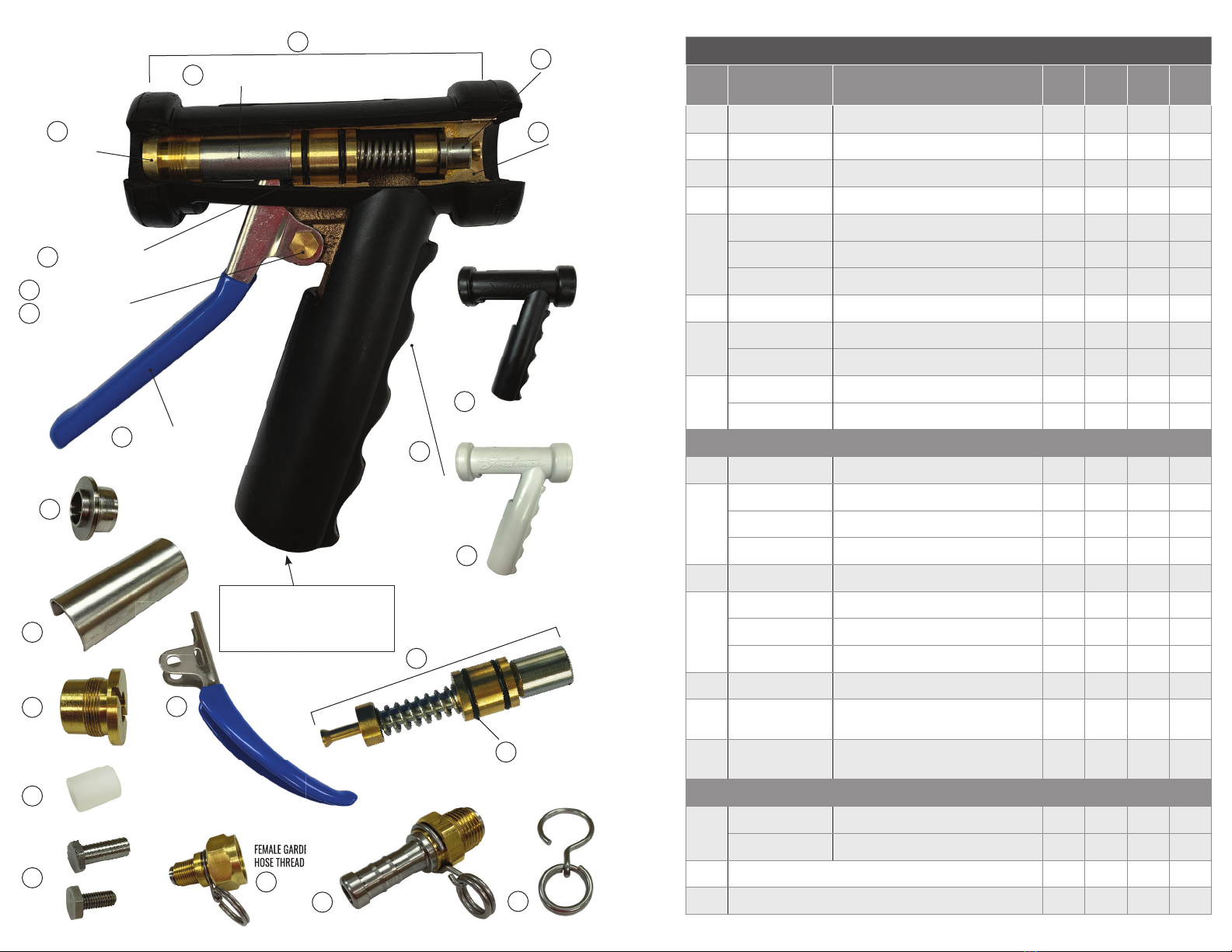

PARTS LIST
ITEM
NO.
ORDER
NUMBER DESCRIPTION
MINI
M-70
MINI
M-75
MINI
S-70
MINI
S-75
8 M7MSEAT SEAT, SS 303 √ √ √ √
18 M7MCAGE MINI NOZZLE CAGE, SS 304 √ √ √ √
30 M7MSCAP LOCK SCREW, BR C3600 √ √
22 M7MBU MINI LEVER ARM BUSHING NYLON √ √ √ √
24
M7MLSCRSS MINI LEVER ARM SCREW, SS 303 √ √
M7MLSCR MINI LEVER ARM SCREW, BRONZE √ √
M7MLNUT MINI LEVER ARM NUT, SS 303 √ √ √ √
6 M7MLARMC LEVER ARM - BLUE (BL) √ √ √ √
29
M7MBDF BODY, BRASS C83600 √ √
M7MBDSS BODY, STAINLESS STEEL 304 √ √
20
M7MCOVRBLACK NOZZLE RUBBER COVER - BLACK (B) √ √ √ √
M7MCOVRWHITE NOZZLE RUBBER COVER - BLACK (W) √ √ √ √
ADAPTER PARTS
21 MINISWL0075GSS ¾” MINI GHT SWIVEL HOSE ADAPTER, SST √ √
21S
MINISWL0500SS ½” MINI SWIVEL ADAPTER, SST √ √
MINISWL0063SS ⅝” MINI SWIVEL ADAPTER, SST √ √
MINISWL0075SS ¾” MINI SWIVEL ADAPTER, SST √ √
21 MINISWL0075GBR ¾” MINI GHT SWIVEL HOSE ADAPTER, BRONZE √ √
21S
MINISWL0500BR ½” MINI SWIVEL ADAPTER, BRONZE √ √
MINISWL0063BR ⅝” MINI SWIVEL ADAPTER, BRONZE √ √
MINISWL0075BR ¾” MINI SWIVEL ADAPTER, BRONZE √ √
28 M7MLRNG MINI LOCK RING, SS302 √ √ √ √
HADAP00380050B MINI ADAPTER TO STRAHMAN HOSE - BRONZE (NOT
SHOWN)
√ √
HADAP00380050SS MINI ADAPTER TO STRAHMAN HOSE, SST (NOT
SHOWN)
√ √
REPLACEABLE CARTRIDGE UNIT
S
M7MCART MINI NOZZLE CARTRIDGE, BRASS √ √
M7MCARTSS MINI NOZZLE CARTRIDGE, SST √ √
31 STEM GUIDE (INSTALLED WITH CARTRIDGE) (NOT SHOWN) √ √ √ √
28 BODY SEALING O RING (INSTALLED W/CARTRIDGE) √ √ √ √
LEVER ARM (TRIGGER)
LOCK SCREW
FEMALE GARDEN
HOSE THREAD
LEVER ARM BUSHING
LEVER ARM SCREW & NUT
NOZZLE CAGE
CARTRIDGE UNIT
SEAT
BODY
BODY SEALING O RING
NOZZLE RUBBER
COVER
FEMALE GARDEN
HOSE THREAD
8
29
18
30
32
22
24
6
8
18
30
22
24 21
6
S
32
28
20
20B
20W
21S
S
Add pipe sealant at this
connection; tighten to
ensure an adequate seal.
