streamer YH18 Series User manual

Dimension
179mm
30 mm
21 mm
Applications
-Use in damp and dry environment.
- For use on a wide range of LED fittings to convert them from standard
to emergency fitting.
- LED fitting would be maintained emergency fitting if standard
(main powered) driver, emergency lighting kit and battery are all retained
in the circuit. LED fitting would be non-maintained emergency fitting
if only emergency conversion module and battery are retained in the circuit.
- Additional Relay that can control standard LED driver.
- Deep discharge protection.
- Connector between emergency kit and battery has the function of
polarity reversal protection.
- Ambient range ta 0....50℃
- IP20 protection, relies on end-product enclosure for protection against
accidental contact live parts.
- Not intended for use in luminaries for high-risk task area lighting.
- Full warranty 3 years.
Relevant standard
IEC 61347-1
IEC 61347-2-7
EN 62034
EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 62493
AS/NZS 60598-2-22
AS2293.3
Product description
- Self-test function.
- LED emergency converter that can transfer standard LED fitting into
emergency LED fitting.
- Used with Lithium iron phosphate battery.
- Suits for LED fitting with external led driver.
- Accessary: test switch and charge indicator.
180min LVLE 220-240
18
YH18 Series Self-test
LED Emergency converter
1/6
Data sheet 02 / YH18 Basic self-test

Technical data
- Input rated voltage: 220-240V AC, 50-60Hz
- AC input current: 50mA
- AC Input power: 5W max
- Power factor: 0.6
- Charge time : 16 hours
- Charge mode: trickle re-charging on battery.
- Output emergency power 2-4 wattage DC10...50V (3-15 LEDs) DC50...200V(15-60 LEDs) Constant power output.
- Output voltage DC10...50V, DC55V max(SELV) DC50...200V,DC250V max.
- Battery capacity (LiFePO4) 1500mAh, 2200mAh, 3000mAh.
- Battery Charging Current: 0-250mA
- 3 hours rated duration
Max casing temperature tc 80
- . ℃
- Lumen Factor: 120lm/Wattage
- Reinforced insulation between mian supply and the battery circuit.
- This unit can recharge the battery normally after reconnecting of battery.
YH18 Series Self-test
LED Emergency converter
YH18 - 2 03 1050 Li
Nomenclature
Emergency power kit
1. Basic series
2. Power(Emergency mode)
3. Duration
4. Output voltage
(Emergency mode)
5. Battery
YH18
2: 2W ; 3: 3W; 4: 4W;
03: 180minutes
1050: 10V to 50V
H200: 50V to 200V
Li: LiFePO4 Battery
1 2 3 4 5
Naming rules
Ordering data
Type
YH18-2031050Li
YH18-203H200Li
YH18-3031050Li
YH18-4031050Li
YH18-303H200Li
YH18-403H200Li
Mode
*Constant power
DC 10-50V 2W
DC 50-200V 2W
DC 10-50V 3W
DC 10-50V 4W
DC 50-200V 3W
DC 50-200V 4W
Battery
LiFePO4 6.4V1.5AH
LiFePO4 6.4V1.5AH
LiFePO4 6.4V2.2AH
LiFePO4 6.4V3.0AH
LiFePO4 6.4V2.2AH
LiFePO4 6.4V3.0AH
Duration
3 Hours
3 Hours
3 Hours
3 Hours
3 Hours
3 Hours
Qty
/Carton
25pcs
25pcs
25pcs
25pcs
25pcs
25pcs
2/6
Data sheet 02 / YH18 Basic self-test

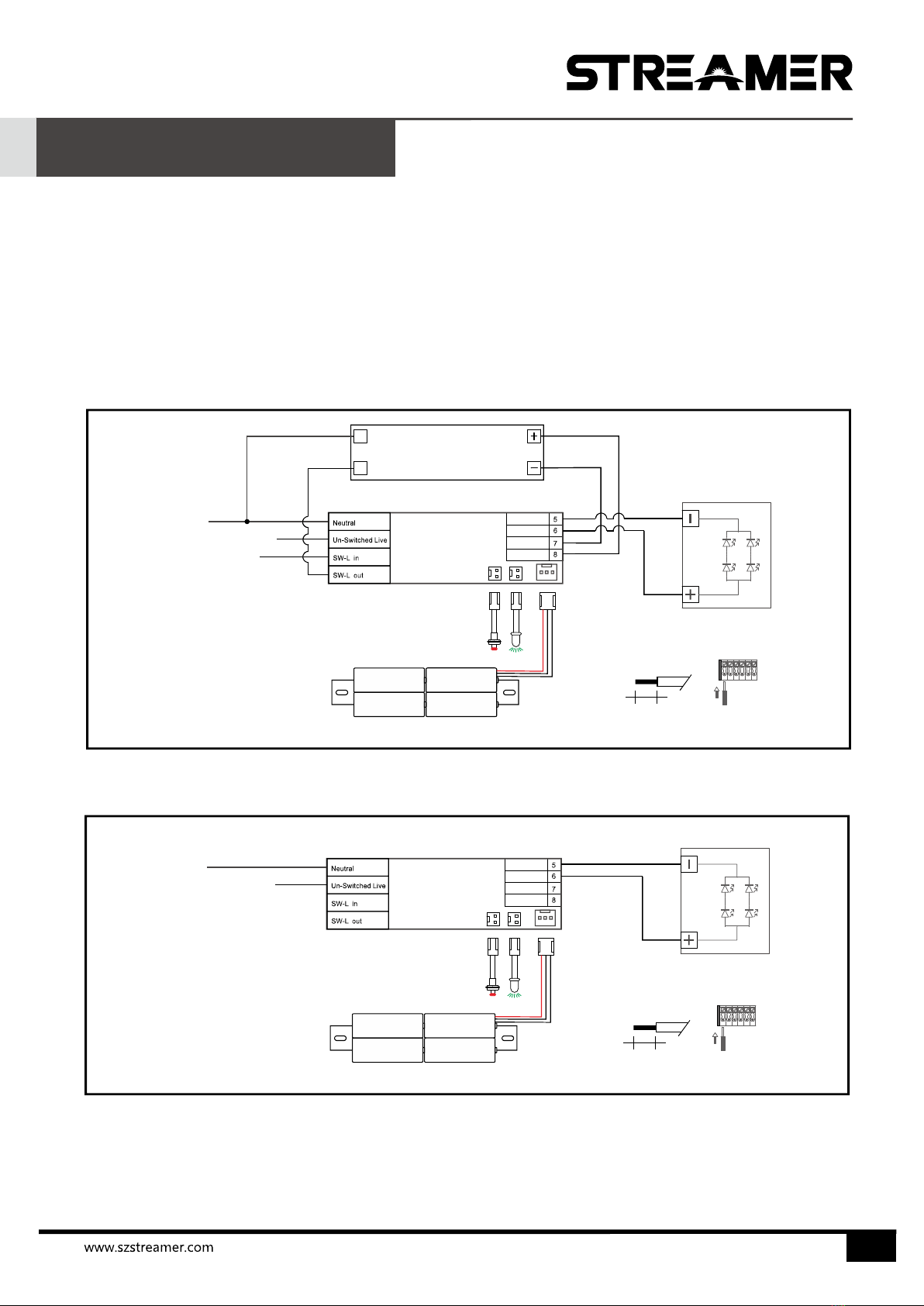

Wiring diagram(Maintained)
Wiring diagram(Non-maintained)
2
2
wire preparation
0.5-1.5mm
wire preparation
0.5-1.5mm
7-8mm
7-8mm
YH18 Series
H
YH18 Series
H
LED Driver -
LED Driver -
LED Lamp -
LED Lamp -
LED Lamp +
LED Lamp +
LED Driver +
LED Driver +
L
LED Driver
N
Battery pack
Battery pack
LED-
LED-
LED+
LED+
Led charging indicator
& test switch
Led charging indicator
& test switch
LED Module
LED Module
Neutral
Neutral
Un-switched supply
Un-switched supply
Switched supply
YH18 Series Self-test
LED Emergency converter
- Installed on the back of the panel requires safety and fixation.
- Only professional people (e.g. electrical Engineer) can wire it.
- Please confirm that the electrical parameters of this product match with the luminaire.
- Please check the wiring method carefully before installation.
- Please power off mains supply before installation, and confirm the wiring is correct, then connect the battery, the last step is to turn on
mains supply.
Install
3/6
Data sheet 02 / YH18 Basic self-test

*YH18 series are all available with LiFePO4 batteries
If you need more details of spec, please go to www.szstreamer.com for downloading .
Battery Declaration
- Batteries' lifetime is 4 years.If you are using or stocking the batteries for 4 years, please replace the batteries.
- The batteries can not be charged for 5000 hours consistently.
It should be discharged for once at least, during the 5000 hours charging time.
YHBL-2-1.5B
YHBL-2-2.2
YHBL-2-3.0
YHBL-2-1.5Z
LiFePO4 6.4V 1.5Ah
LiFePO4 6.4V 2.2Ah
LiFePO4 6.4V 3.0Ah
Battery type Battery model
Fig.1 YHBL-2-1.5B
Fig.2 YHBL-2-1.5Z
Fig.3 YHBL-2-3.0
YHBL-2-2.2
Model No.: Rated Type
Number
of cells
Battery cells
type
YHBL-2-1.5B
YHBL-2-1.5Z
YHBL-2-2.2
YHBL-2-3.0
YHBL-2-1.5B
YHBL-2-2.2
YHBL-2-3.0
YHBL-2-1.5Z
90×36×23mm 3.5×1.4×0.9''
160×20×23mm 6.3×0.8×0.9''
130×36×23mm 5.1×1.4×0.9''
160×36×23mm 6.3×1.4×0.9''
IFR18650-1500
IFR18500-1100
IFR18650-1500
IFR18650-1500
6.4V 1.5AH 9.6Wh
6.4V 2.2AH 14.4Wh
6.4V 3.0AH 19.2Wh
6.4V 1.5AH 9.6Wh
IFR18650-1500 2s1p
IFR18500-1100 2s2p
IFR18650-1500 2s2p
IFR18650-1500 2s1p
2
4
4
2
Battery model
Battery voltage per cell
Battery capacity per cell
Battery case temperature
Max short term temperature
IFR18650-1500 IFR18500-1100
3.2V 3.2V
1500mAh 1100mAh
0....60° 0....60°
70° 70°
Model No.:
Battery pack
L×W×H
*2S1P
S: Series connection
P: Parallel connection
YH18 Series Self-test
LED Emergency converter
4/6
Data sheet 02 / YH18 Basic self-test

YH18 Series SelfTest
LED Emergency converter
Test switch
The test button is a open switch , if you press it, it connects, and then you release it, it cuts off automatically.
When you are doing the daily maintenance , if you press the test button, the emergency driver goes into emergency mode, if you release the button, the emergency driver will go back to
normal mode.
LED indicator
It can reflect charging or not charging. LED charging monitor will be light if battery is connected while it will be off without battery connecting.
5/6
Data sheet 02 / YH18 Basic self-test
Fast flashing green
(0.1 sec on, 0.1 sec off)
Slow flashing green
(1 sec on, 1 sec off)
Slow flashing red
(1 sec on, 1 sec off)
Green and red off
LED indication
Permanent green
Permanent red
Fully Charged/
Charging Mode
Load failure
Battery failure
DC mode
Open circuit/ Short circuit
Led failure (emergency mode)
Battery failed the duration test or function
test / No battery
Battery operation (emergency mode)
Function test underway
Duration test underway
Color
Green
Red
Red
Green
Green
Status Comment
AC mode
SelfTest
The emergency kits carry out self-tests automatically to ensure its functionality.
The self-test includes 3 types of tests:
Initial test
-As soon as mains supply is connected, the emergency kit will carry out a 3-seconds functional test automatically.
- In case of a failure, the LED will turn permanent red. Otherwise, the charge mode will start.
Functional test
- Refers to charging, discharging and the functioning of load.
- Carry out for 10 seconds automatically every 30 calendar days.
Duration test
- Refers to the test of batteries capacity.
- Carry out every 180 calendar days.
Rest mode
Rest mode can be initiated during emergency mode by pressing test switch longer than 3 seconds.
The rest mode will be exited automatically after reconnect AC mains.
Please note
If mains supply is off during self-test period, emergency conversion module would terminate self-test immediately
and go into emergency mode.
Self-test is under the regulation of EN62034
.
Explanation of LED indicator

Attention
- To guarantee the rated discharge time, please charge the battery for more than 12 hours.
Please ensure that the voltage is 80% higher than the rated voltage, less than 110% of the highest rated voltage.
- Charge and discharge cycle needs to be done at least once every three months, and the continuous charging time can not exceed 3
months.
Warranty
- Warranty 3 years
- Except for the following circumstances:
1) Improper installation or operation.
2) Misuse.
3) Abuse.
4) Unauthorized or improper repair alteration.
5) Accident or negligence in use, storage, transportation.
6) Any natural acts.
* If users would like to change the batteries pack, please use the nominated models of STREAMER , then it will be under the warranty .
6/6
Data sheet 02 / YH18 Basic self-test
YH18 Series Self-test
LED Emergency converter
